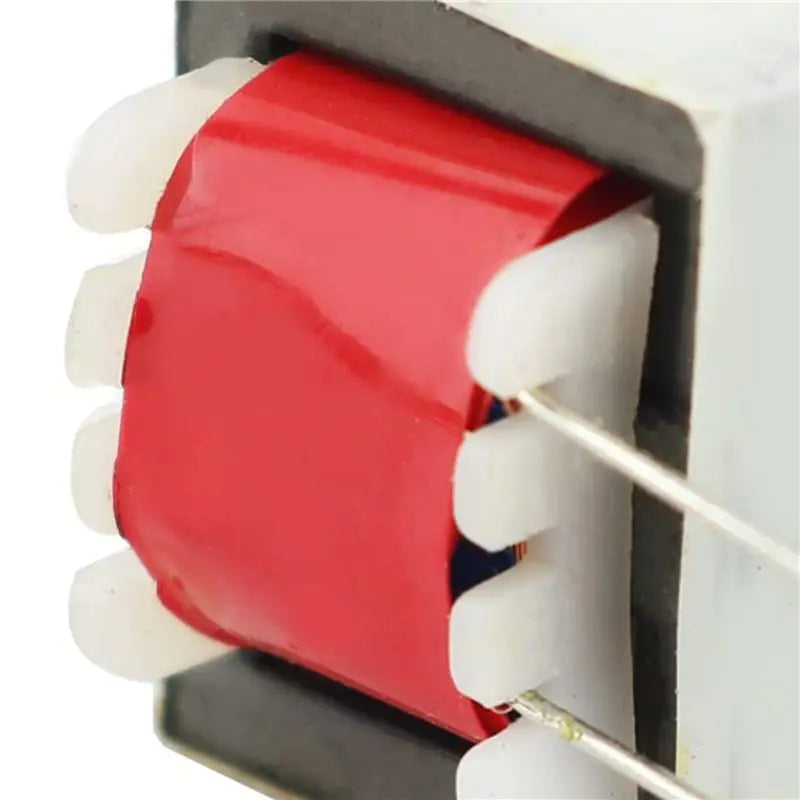

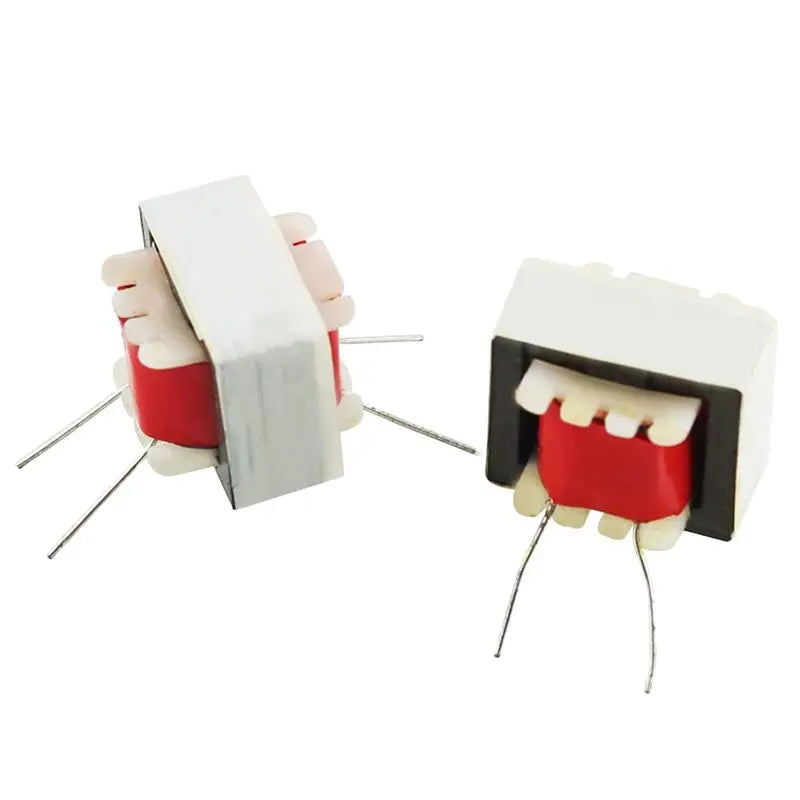

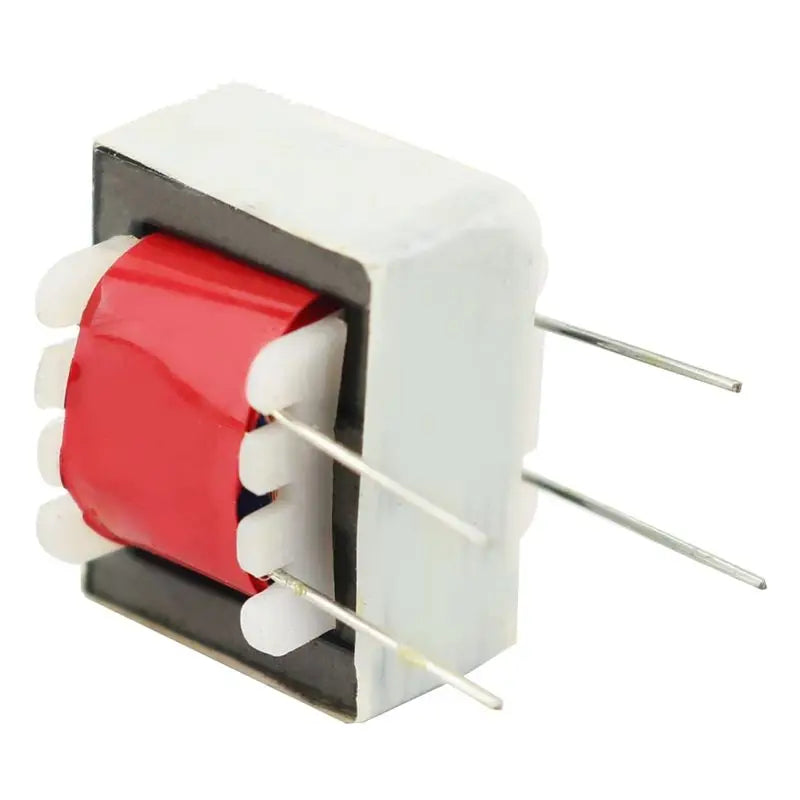

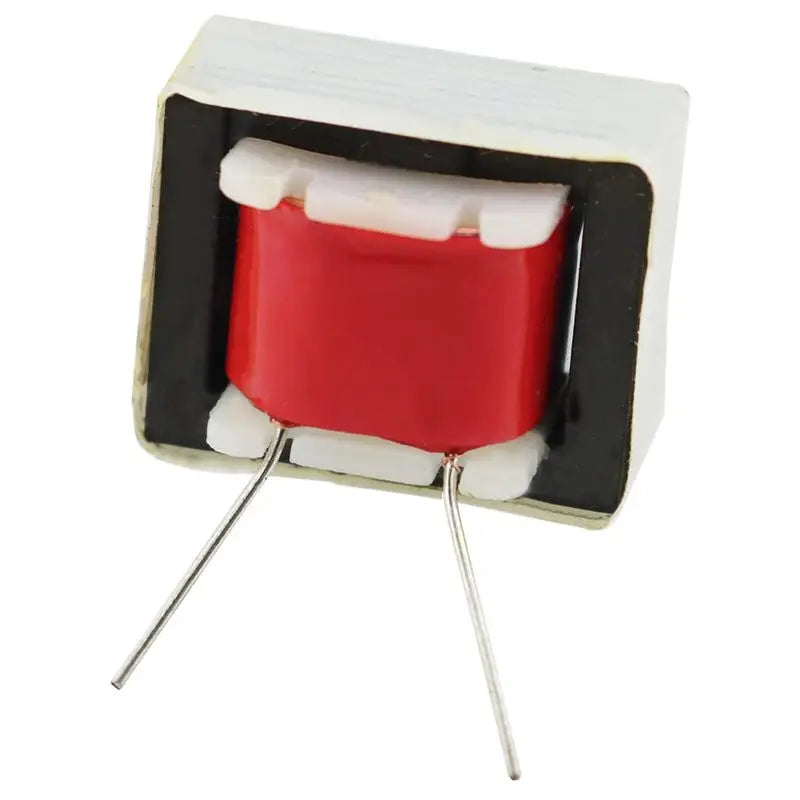

EI14 Audio Isolation Transformer 600:600 Ohm 1:1 – 50 Pack

EI14 Audio Isolation Transformer 600:600 Ohm 1:1 — 50-Piece Pack

Upgrade your audio projects with this high-efficiency EI14 Audio Isolation Transformer pack. Featuring a precise 600:600 ohm impedance ratio and a 1:1 voltage ratio, these transformers are engineered for stable, low-loss audio signal transmission. Whether you're working on radio communication systems, broadcasting equipment, automatic control circuits, or voltage amplification stages, these compact EI-14 core transformers deliver consistent, reliable performance in every application.

Key Features

• 600:600 Ohm AC Impedance — Balanced 1:1 ratio for clean, accurate signal transfer between primary and secondary windings
• High-Efficiency EI-14 Core Design — Closely coupled primary and secondary windings with sufficient passband, minimizing hysteresis loss and leakage inductance
• EMI Isolation — Built-in electromagnetic interference suppression helps maintain signal integrity in noise-prone environments
• Alloy Construction — Durable alloy core material ensures stable performance and extended service life
• Lead-Free Compliant — RoHS-friendly electronic components for safe, responsible use
• Low Voltage Operation — Rated below 50V AC or 75V DC, suitable for a wide range of low-voltage audio and control circuits
• No Battery Required — Purely passive component; no power supply needed for transformer operation
• Bulk Value Pack — 50 transformers per package — ideal for prototyping, production runs, or keeping stock on hand

Specifications

Applications

• Radio communication equipment
• Radio and television broadcast circuits
• Automatic control systems
• Voltage amplification stages
• Power output circuits
• DIY audio electronics and prototyping

Package Contents

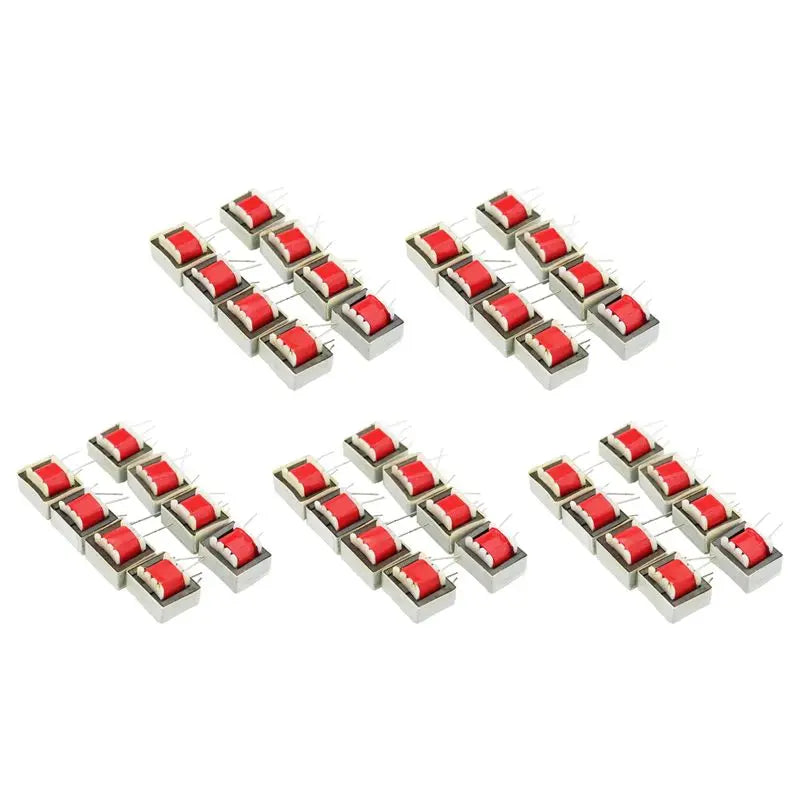

50 × EI14 Audio Isolation Transformer (no other accessories included)

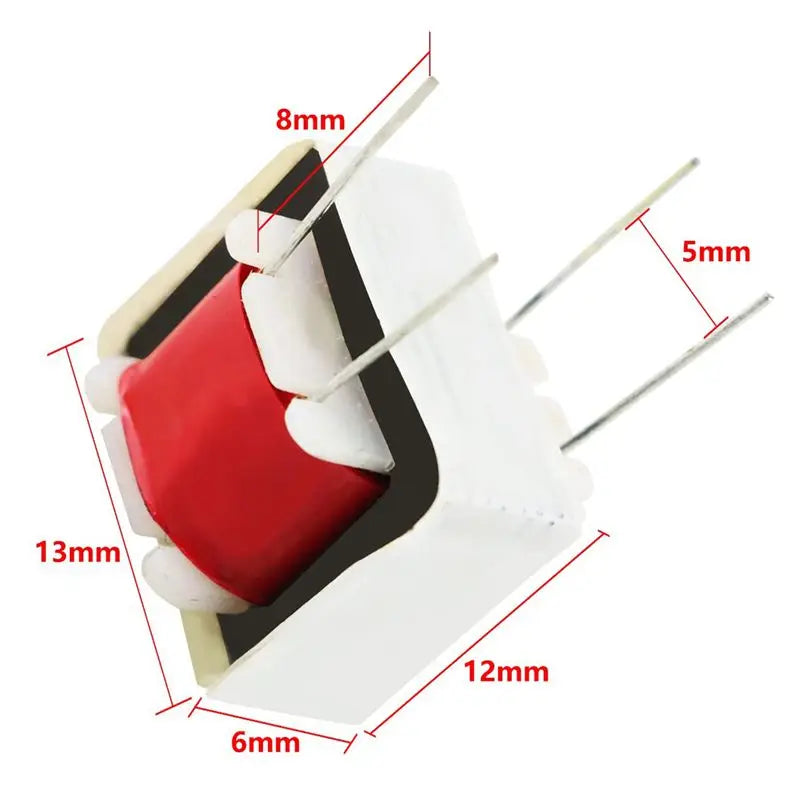

Note: Due to lighting and display differences, actual color may vary slightly from images. Measurement tolerance: ±1–3 mm.

Explore More Electronics & DIY Components

Looking for more components for your audio or electronics projects? Check out these related products in our store:

• Browse Our Wall Art Collection

For authoritative guidance on electrical component safety standards, refer to the U.S. Consumer Product Safety Commission (CPSC). For information on electromagnetic compatibility and electronic standards, visit NIST – National Institute of Standards and Technology.

Frequently Asked Questions

Q: What is an EI14 audio isolation transformer used for?

A: An EI14 audio isolation transformer is a passive electronic component used to electrically isolate two audio circuits while allowing the audio signal to pass through. It is commonly used in radio communication systems, broadcast equipment, amplifier circuits, and automatic control systems to prevent ground loops and reduce electromagnetic interference (EMI).

Q: What does 600:600 ohm 1:1 mean for this transformer?

A: A 600:600 ohm impedance ratio means the primary (input) and secondary (output) windings have equal impedance — 600 ohms each — making this a 1:1 transformer. This is a standard balanced audio line impedance, ideal for connecting two audio stages without signal loss or impedance mismatch. The 1:1 voltage ratio means the output voltage mirrors the input voltage.

Q: Are these transformers lead-free and RoHS compliant?

A: Yes. These EI14 audio isolation transformers are manufactured with lead-free compliant electronic components, making them suitable for use in products that must meet RoHS (Restriction of Hazardous Substances) standards.

Q: How many transformers come in one order?

A: Each order includes a pack of 50 EI14 audio isolation transformers. This bulk quantity is perfect for electronics engineers, hobbyists, and prototypers who need a reliable supply of consistent components.

Q: What voltage range is this transformer rated for?

A: These transformers are rated for low-voltage applications: below 50V AC or 75V DC. They are not intended for use in high-voltage circuits.
