Duckbill 304 Stainless Steel Water Liquid Level Sensor G1 2 DC0-220V

Discover the Duckbill 304 Stainless Steel Water Liquid Level Sensor G1 2 DC0-220V — a standout decor pick featuring lightweight, stainless steel design for dependable, everyday performance.

Specifications

Material: Metal

Output: Switching Transducer

Type: Water Flow Sensor

Use: Pressure Sensor

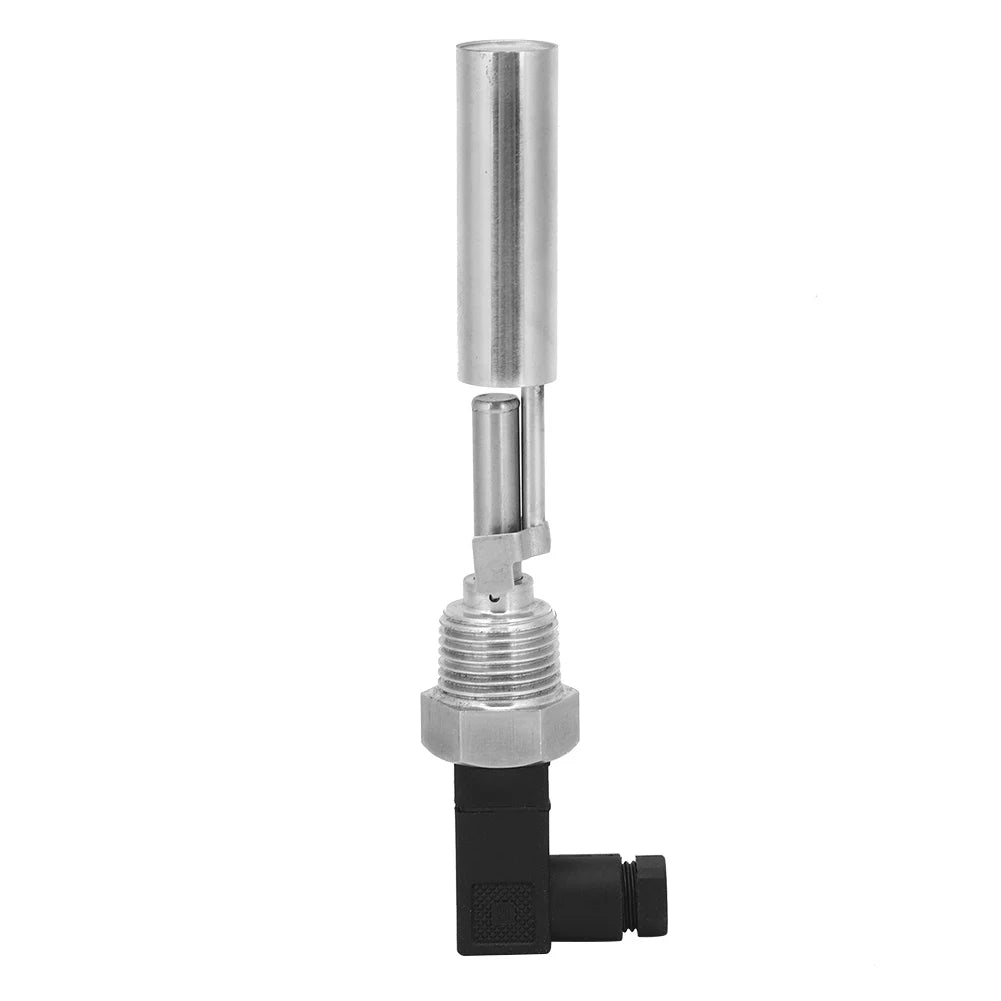

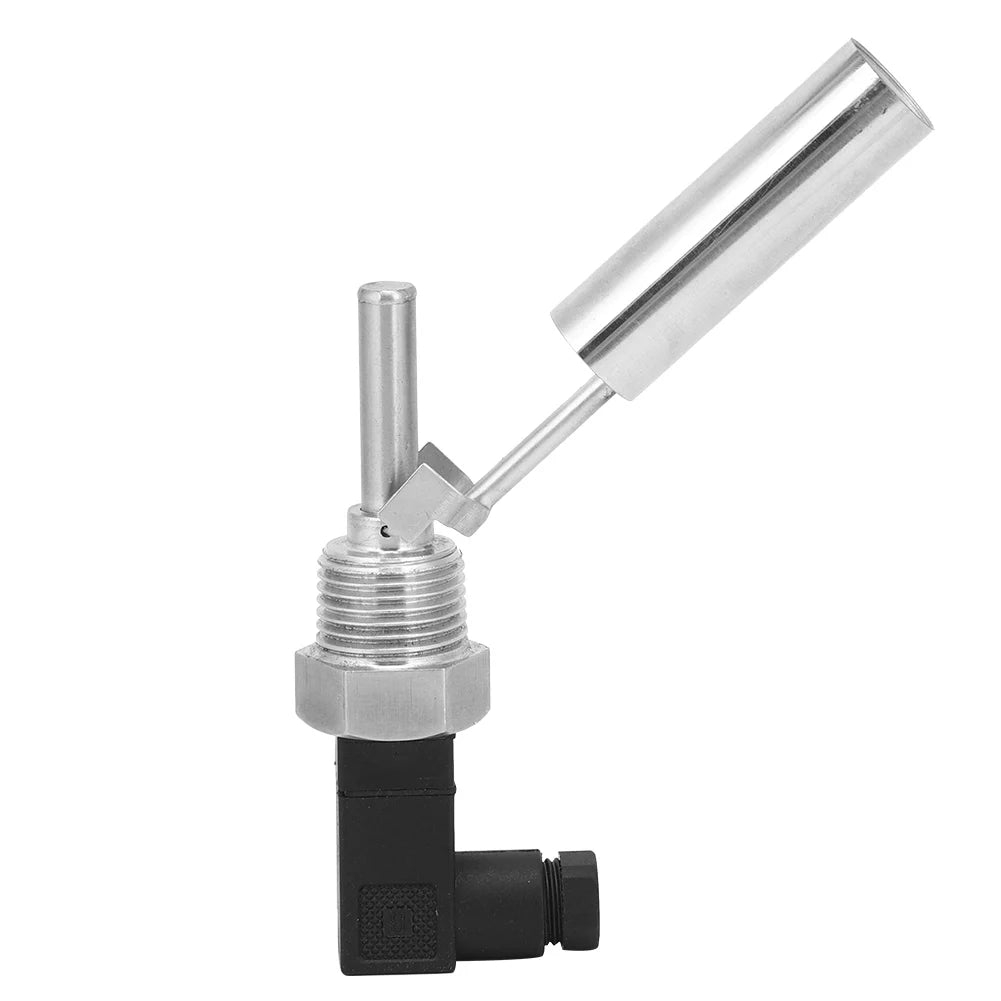

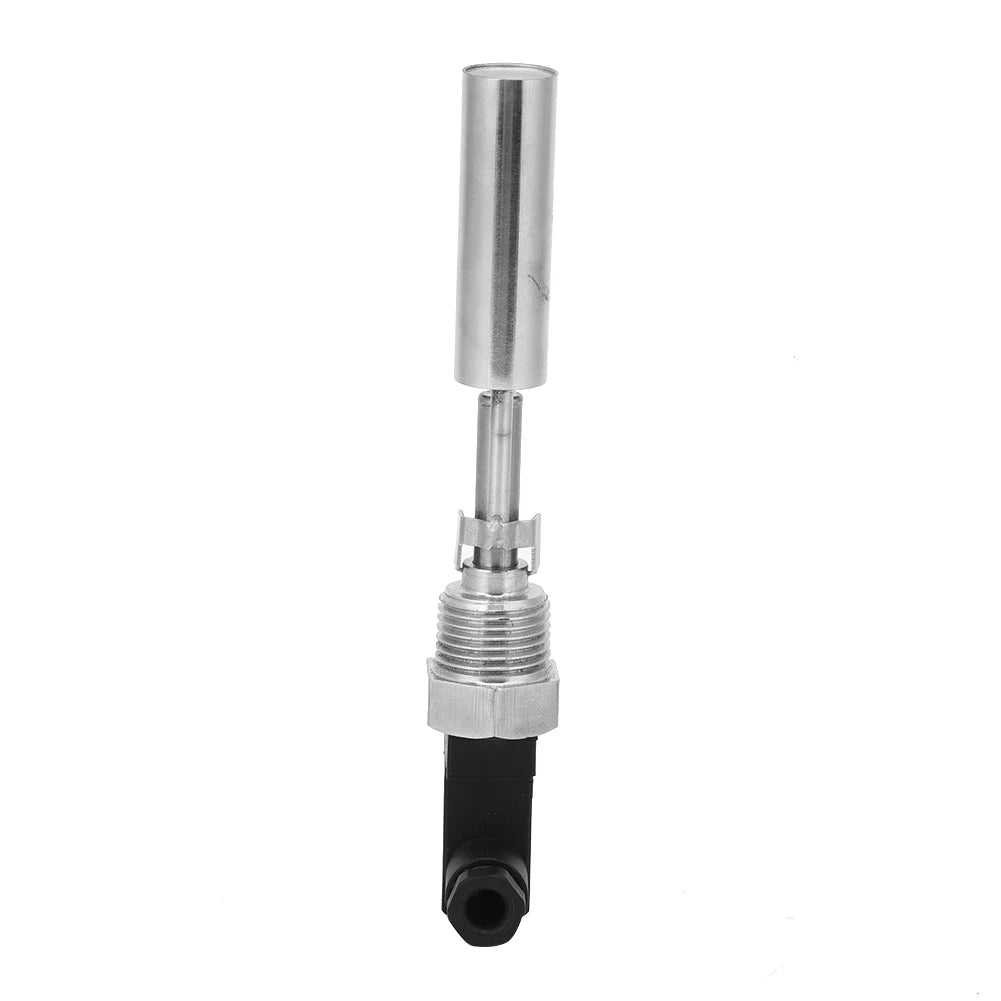

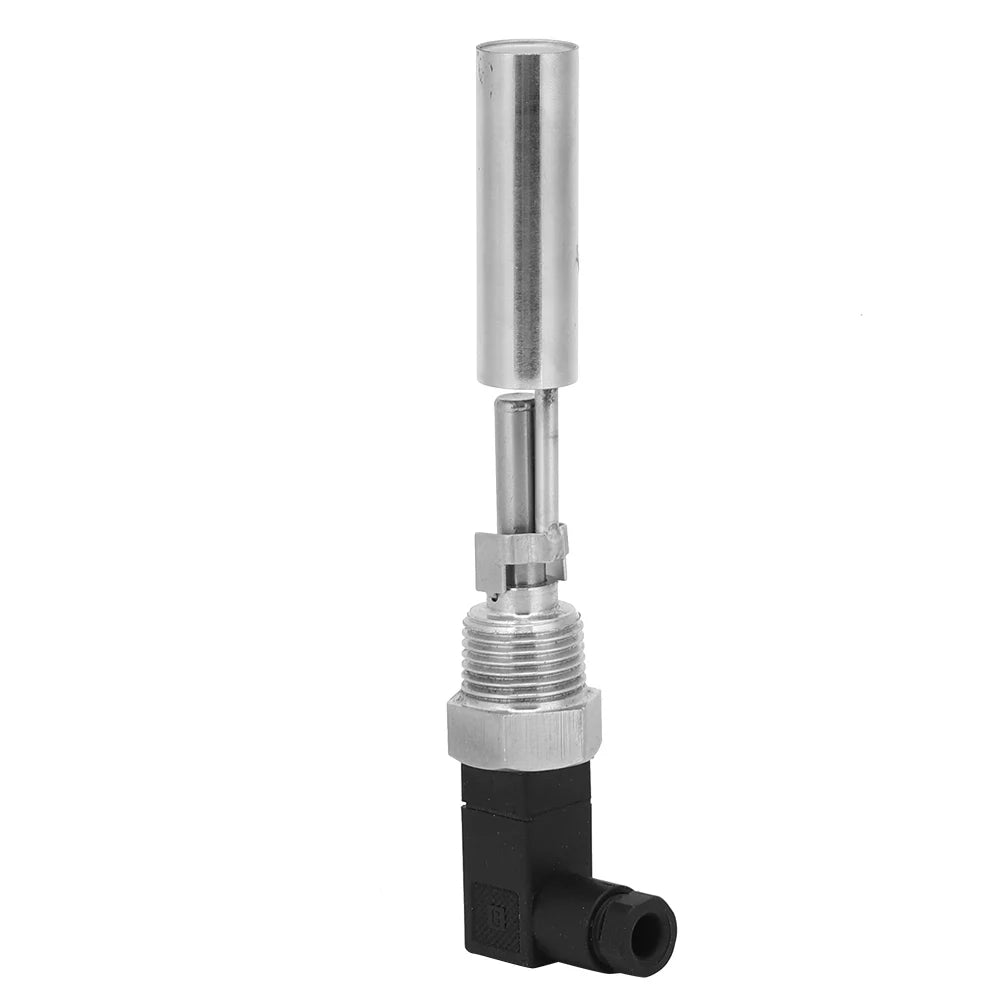

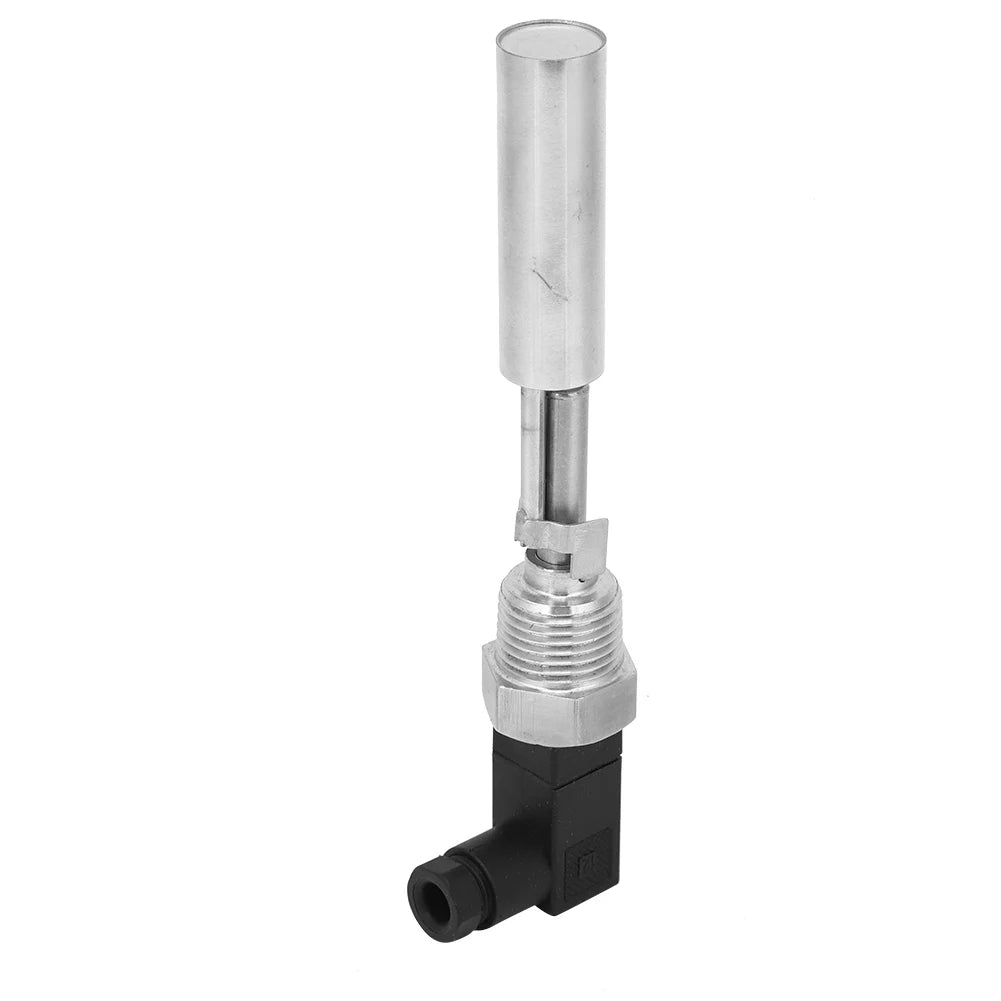

Duckbill Float Switch 304 Stainless Steel Water Liquid Level Sensor G1/2" DC0-220V:

Feature:

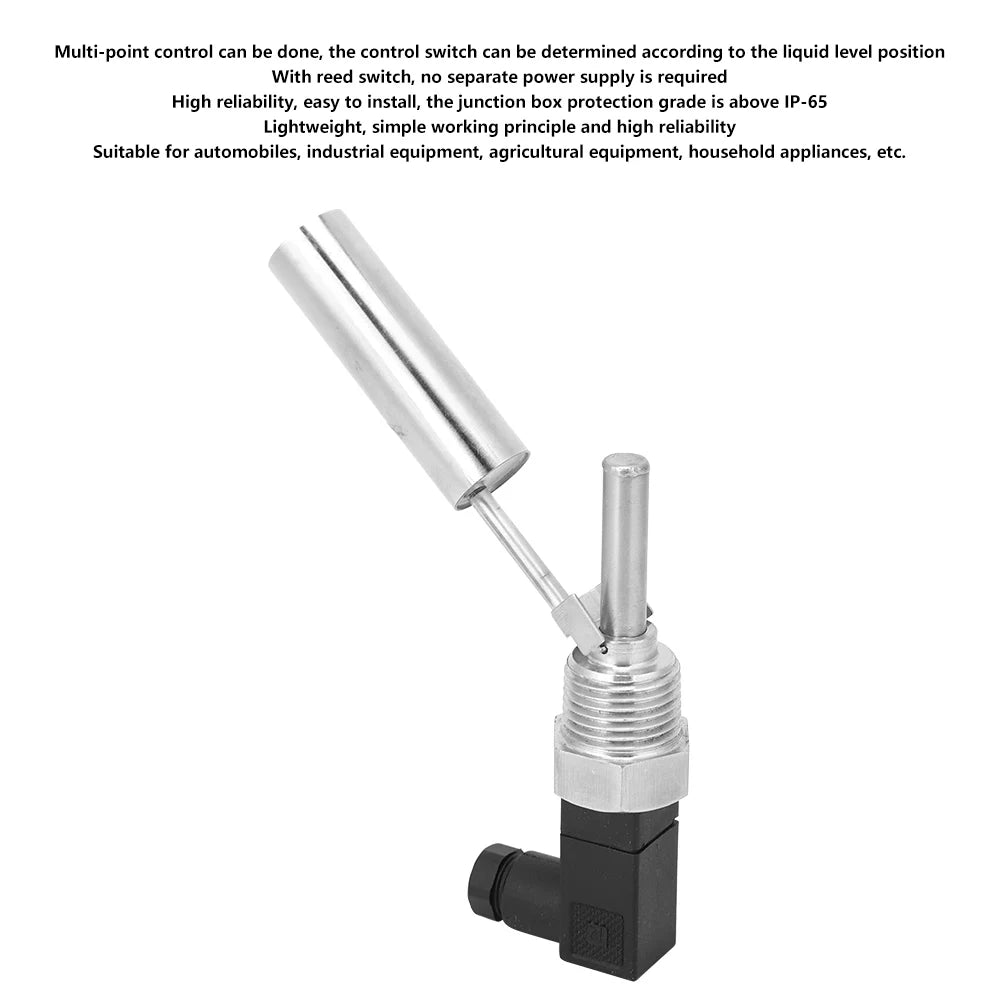

1. Multi-point control can be done, the control switch can be determined according to the liquid level position
2. With reed switch, no separate power supply is required
3. High reliability, easy to install, the junction box protection grade is above IP-65
4. The material is stainless steel SUS304, can be used in high temperature and high pressure places, suitable for different density, different acid and alkali, different pressure and temperature
5. Lightweight, simple working principle and high reliability
6. Suitable for automobiles, industrial equipment, agricultural equipment, household appliances, etc.

Specification:

Item Type: Duckbill Float Switch
Contact Capacity: 10W (low pressure) / 50W (high pressure)
Working Voltage: 0-220 (V)
Working Current: 0.5-1.5 (A)
Maximum Temperature Resistance: 120(℃)
Maximum Withstand Voltage: 0.2(Mpa)
Material: 304 stainless steel
Thread: G1/2"
Size: Approx. 108 x 17 x 55.5mm / 4.3 x 0.7 x 2.2in
15mm / 0.6in
Working Principle:
The small float switch, small liquid level controller and liquid level sensor are mainly composed of a magnetic reed switch and a float. There are magnetic materials in the float. When the float moves up and down with the measured liquid level, the magnetic reed switch is touched to detect the liquid level position.

Package List:

1 x Duckbill Float Switch:

:

Frequently Asked Questions

Q: What is the Duckbill 304 Stainless Steel Water Liquid Level Sensor G1 2?

A: The Duckbill 304 Stainless Steel Water Liquid Level Sensor G1 2 is a quality decor pick. Multi-point control can be done, the control switch can be determined according to the liquid level position 2.

Q: What is the Duckbill 304 Stainless Steel Water Liquid Level Sensor G1 2 made of?

A: The Duckbill 304 Stainless Steel Water Liquid Level Sensor G1 2 is made from Metal Output, measuring Approx. 108 x 17 x 55.5mm / 4.3 x 0.7 x 2.

Q: Why choose the Duckbill 304 Stainless Steel Water Liquid Level Sensor G1 2?

A: The Duckbill 304 Stainless Steel Water Liquid Level Sensor G1 2 stands out in our decor range — With reed switch, no separate power supply is required 3.
