Oasis Select

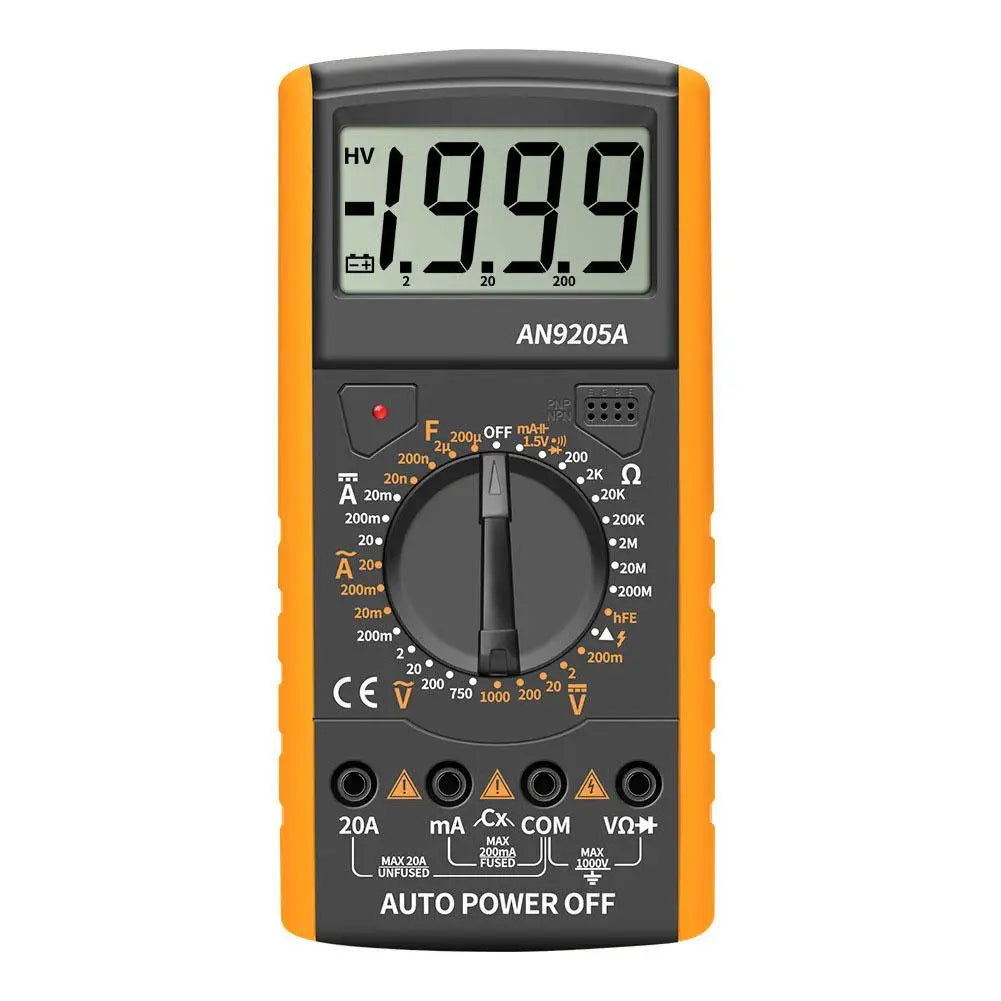

DT9205A Digital Multimeter – NCV, Auto Range, AC/DC Tester
DT9205A Digital Multimeter – NCV, Auto Range, AC/DC Tester
Couldn't load pickup availability
DT9205A Digital Multimeter – Your All-in-One Electrical Testing Tool
Whether you're a professional electrician or a handy DIY enthusiast, the DT9205A Digital Multimeter is the reliable, feature-packed tester you need. With auto-range recognition, built-in NCV (Non-Contact Voltage) induction, and a wide array of measurement functions, this meter makes electrical diagnostics fast, safe, and accurate.
Made in Mainland China.
Why Choose the DT9205A?
- Auto Range Recognition – Automatically selects the right range so you spend less time adjusting and more time working.
- NCV Induction Detection – Safely detect live wires without direct contact — an essential safety feature for any electrician.
- Versatile Measurements – Measures AC/DC voltage, AC/DC current, resistance, capacitance, diode, and transistor (triode) values.
- Clear 3-Digit LCD Display – Maximum display value of 1999 for easy, accurate readings even in low-light conditions.
- Compact & Durable – Portable design (195 × 90 × 35 mm) built to handle everyday workshop and on-site use.
- Wide Operating Range – Functions reliably in temperatures from 0°C to 40°C.
Full Specifications
| DC Voltage | 200m / 2 / 20 / 200 / 1000V (±0.5%) |
| AC Voltage | 200m / 2 / 20 / 200 / 700V (±1.0%) |
| DC Current | 2m / 20m / 200m / 20A (±1.0%) |
| AC Current | 2m / 20m / 200m / 20A (±1.5%) |
| Resistance | 200 / 2K / 20K / 200K / 2M / 20M / 200MΩ (±1.0%) |
| Capacitance | 20n / 200n / 2µ / 20µ / 200µF (±4.0%) |
| Display | 3-digit LCD, max 1999 |
| Diode Test | Yes |
| Transistor (Triode) Test | Yes |
| Power Supply | 9V 6F22 battery (not included) |
| Operating Temperature | 0°C – 40°C |
| Dimensions | 195 × 90 × 35 mm / 7.48 × 3.54 × 1.38 in |
What's in the Box?
- 1 × DT9205A Digital Multimeter
- 1 × Test Cable (lead set)
Note: 9V battery is not included.
Related Products You May Like
- 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler
- 0-60MPa Pressure Gauge for S60H Diesel Injector Nozzle Tester
Safety & Standards Reference
For guidance on electrical safety practices and test equipment standards, visit the OSHA Electrical Safety resource page — a trusted reference for safe electrical work procedures.
Frequently Asked Questions
Q: Does the DT9205A Digital Multimeter support auto-ranging?
A: Yes! The DT9205A features auto range recognition, which means it automatically identifies the appropriate measurement range for the value being tested. This saves time and reduces the risk of incorrect readings when testing AC/DC voltage, current, or resistance.
Q: What is NCV induction and why is it useful on a digital multimeter?
A: NCV stands for Non-Contact Voltage detection. The DT9205A's NCV induction feature allows you to detect the presence of live AC voltage in a wire or outlet without physically touching it — simply hold the meter near the conductor. This is a critical safety feature for electricians and DIYers working around live circuits.
Q: Is a battery included with the DT9205A multimeter?
A: No, the 9V 6F22 battery required to power the multimeter is not included in the package. You will need to purchase one separately before use.
Q: Can this multimeter test capacitors and transistors?
A: Absolutely. The DT9205A supports capacitance measurement (20nF up to 200µF) as well as diode and transistor (triode) testing, making it a versatile tool for electronics repair and circuit diagnostics.
