Double-sided 150mA Alcohol Sensor Module Ethanol Gas Electronics
Double-sided 150mA Alcohol Sensor Module Ethanol Gas Electronics
Couldn't load pickup availability
Discover the Double-sided 150mA Alcohol Sensor Module Ethanol Gas Electronics — a standout decor pick featuring adjustable design for dependable, everyday performance.
Specifications
DIY Supplies: Electrical
!--StartFragment--!--StartFragment--

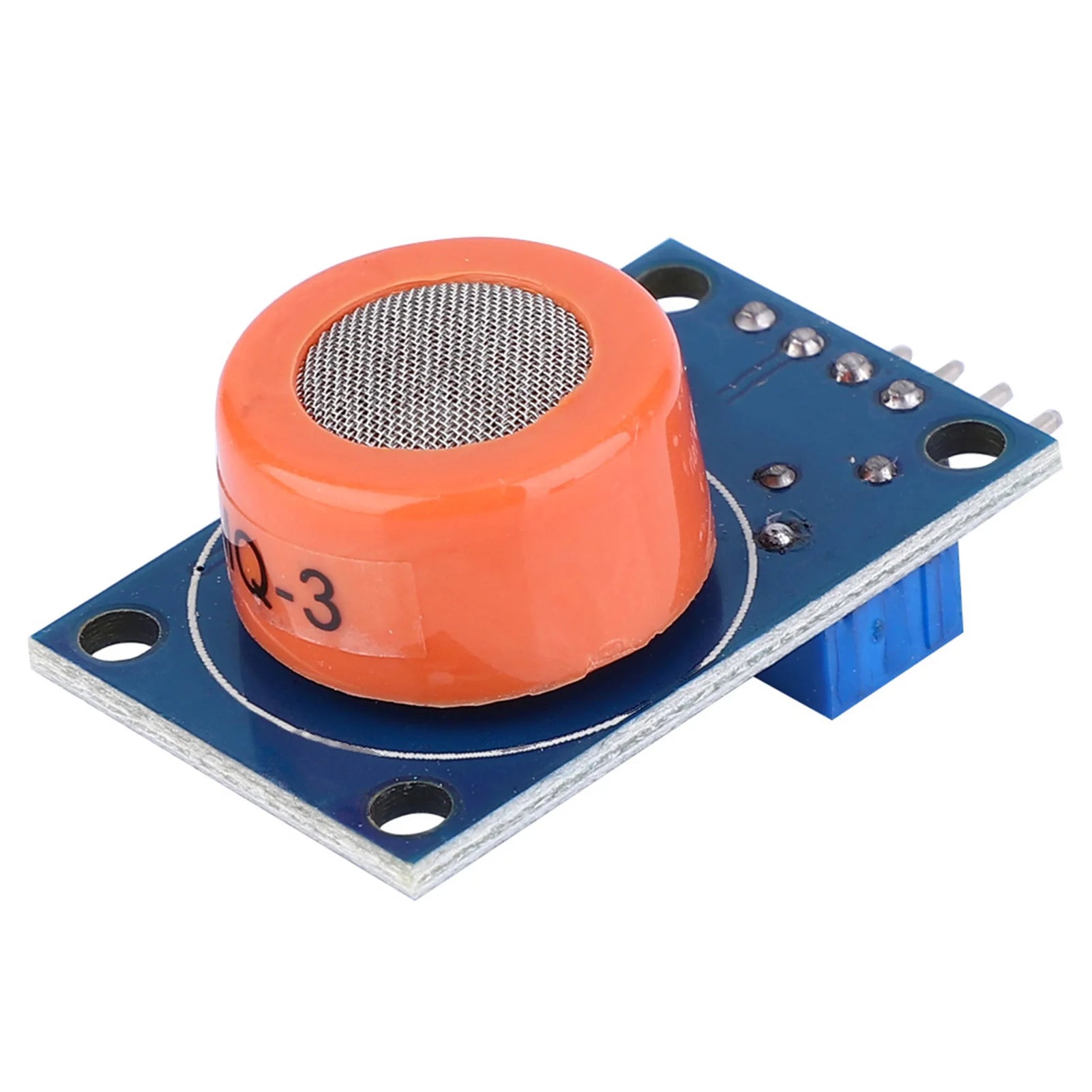

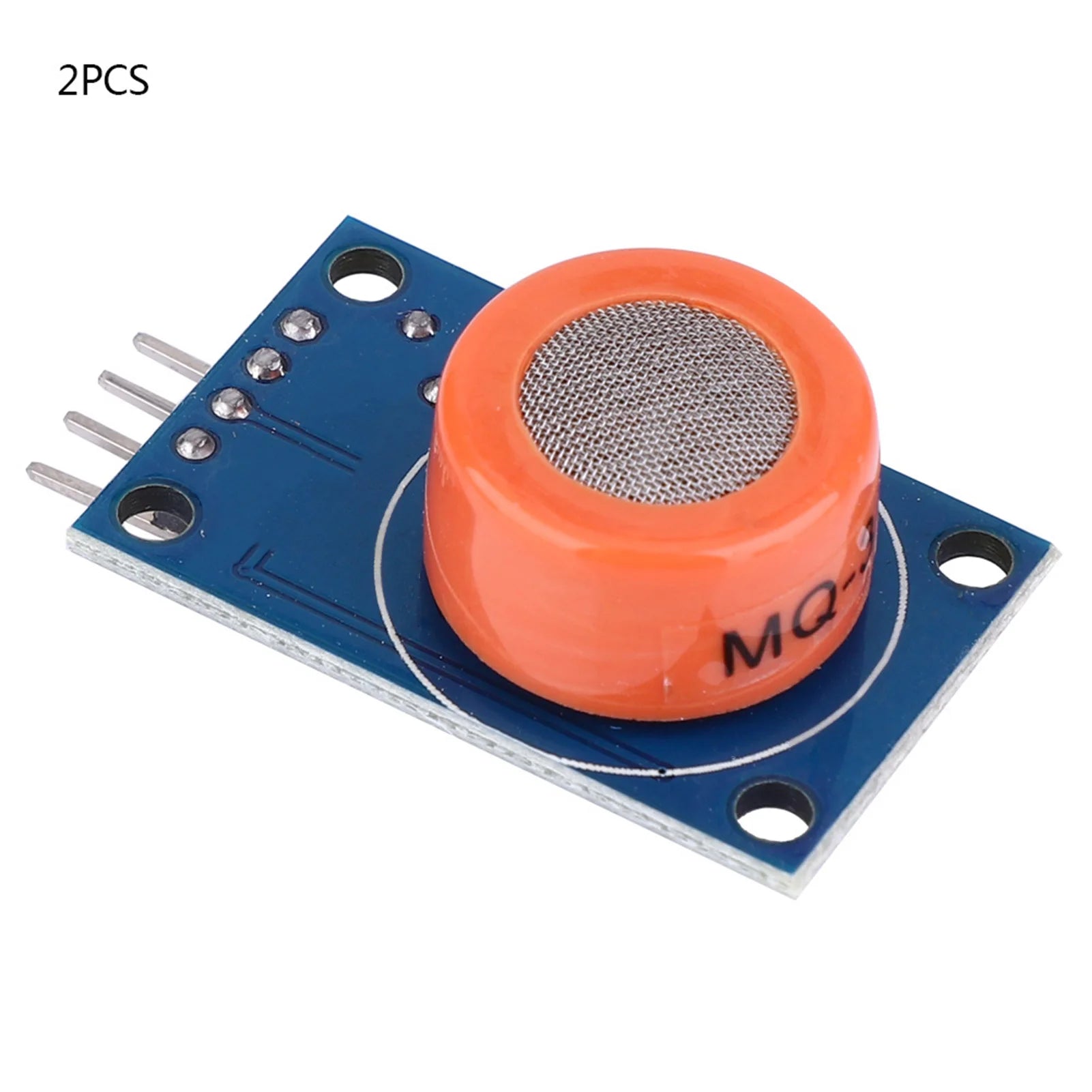

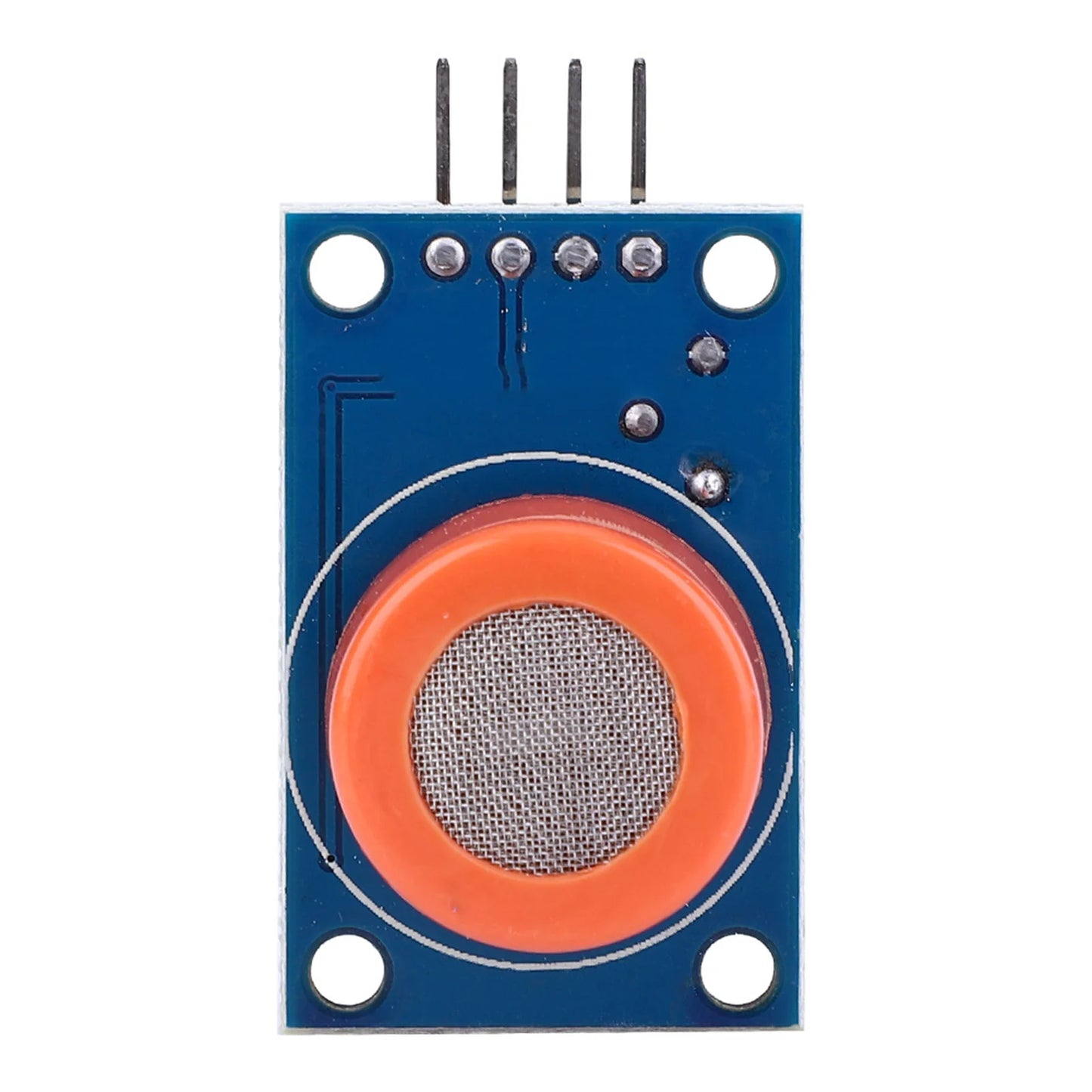

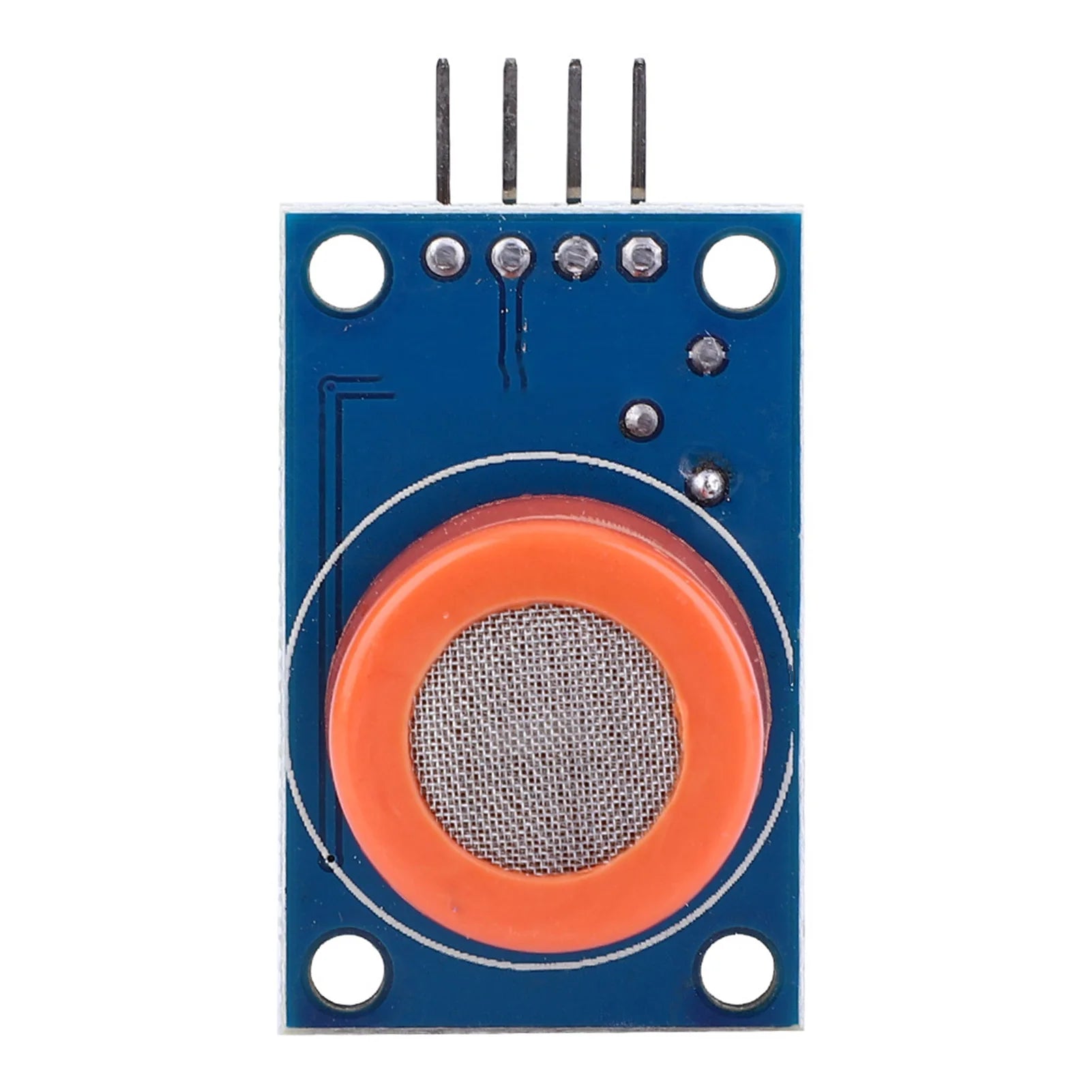

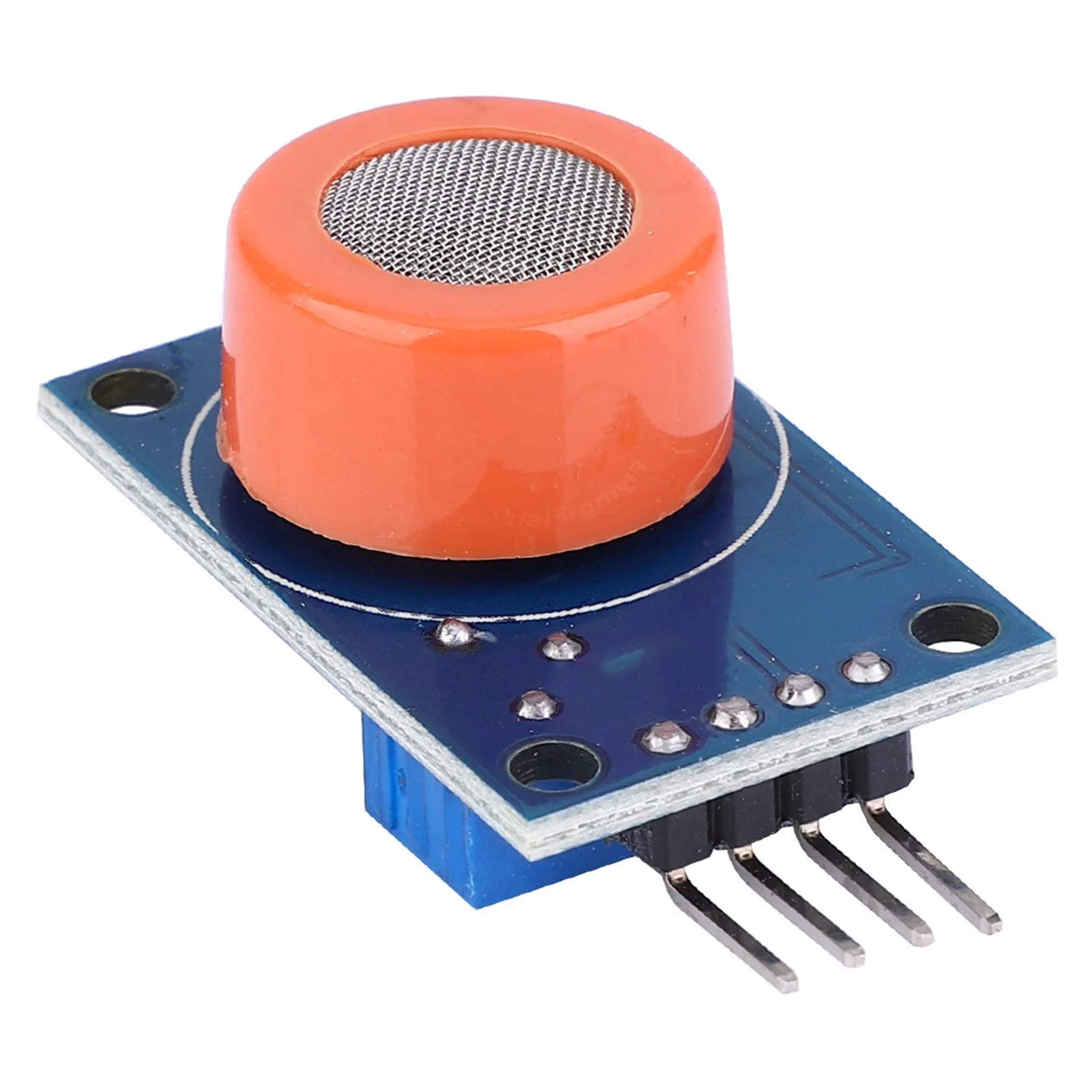

2pcs MQ-3 Alcohol Gas Sensor Module Ethanol Detector Breath Gas Detection Board
Specification:

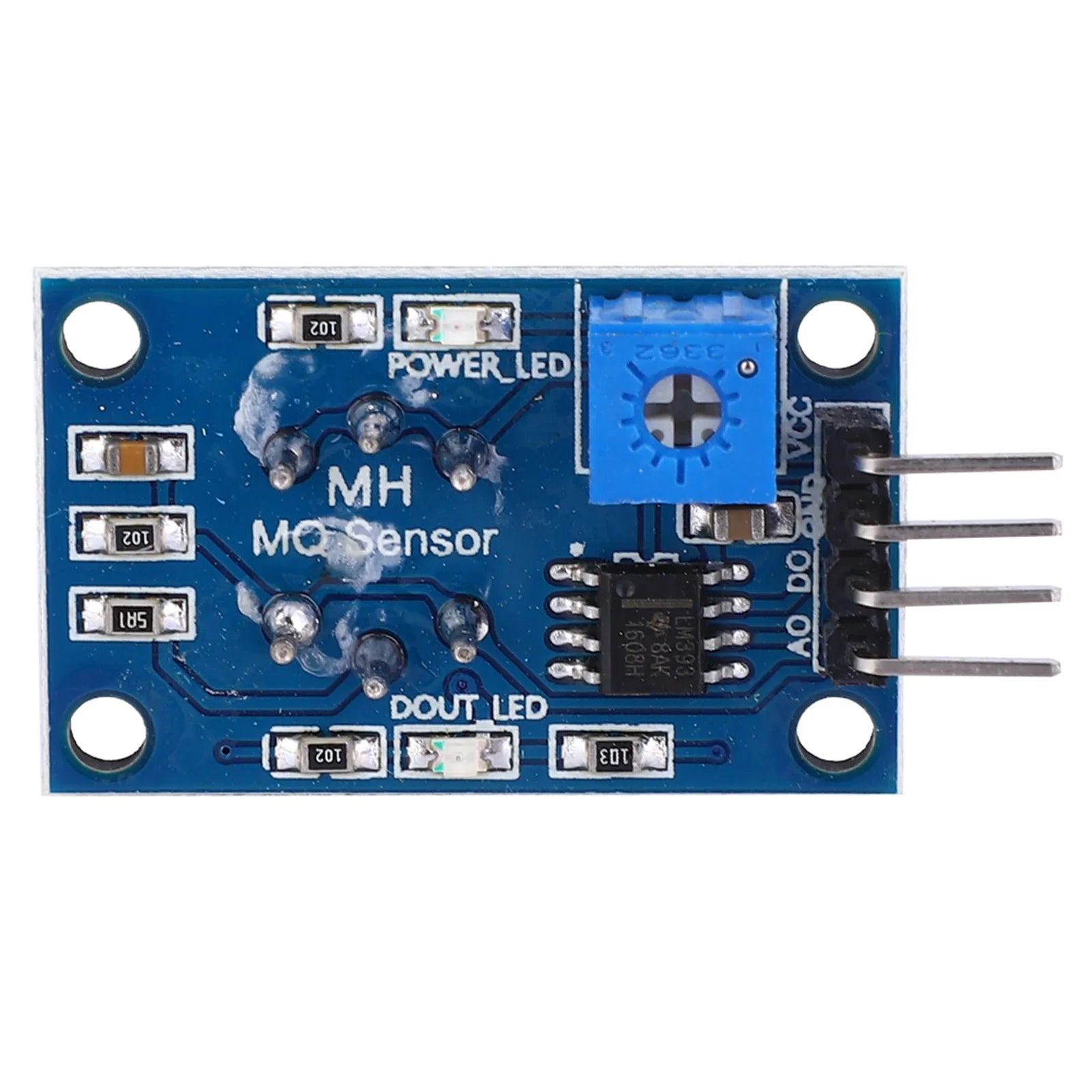

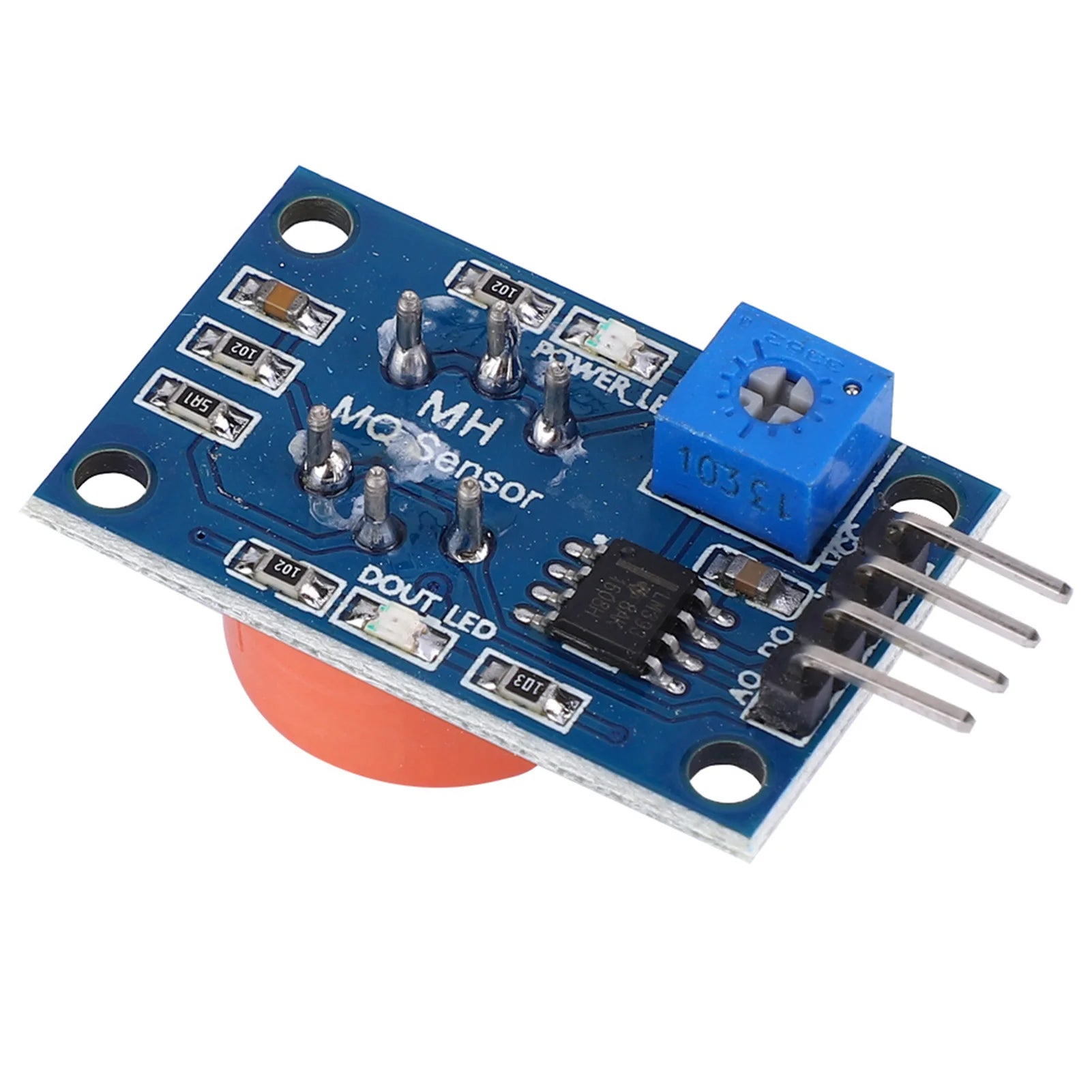

1. Using double-sided circuit board design, with power indicator and TTL signal output indicator.
2. With DO switching signal (TTL) output and analog output AO.
3. TTL output valid signal is low level. (When the output is low level, the signal light is on, it can be directly connected to the MCU or relay module)
4. Analog output voltage, the higher the voltage, the higher the concentration.
5. High sensitivity for the detection of alcohol gas.
6. Rapid response and recovery characteristics.
7. There are four screw holes for easy positioning
Detailed Test Parameters:
Model: MQ-3
Detecting gas: alcohol vapor
Detection concentration: 0.04-4mg/L alcohol
Standard circuit condition: Loop voltage VC ≤24DC
Heating voltage :VH 5.0±0.2V AC/DC
Load resistance: RL adjustable
Gas sensor characteristics under standard test condition: Heating resistor 31Ω±3Ω
Heating power consumption: ≤90mW
Sensitive surface resistance: 2KΩ-20KΩ (in 0.4mg/L alcohol)
Sensitivity: Rs (in air) / Rs (0.4mg / L alcohol) ≥ 5
Concentration slope: ≤0.6 (R300ppm/R100ppm alcohol)
Standard test conditions: 20℃±2℃; 65%±5% RH
Standard test circuit: 5.0V ± 0.1V
Warm-up time: ≥48 hours
Electrical Properties:
Input voltage: DC5V
Power consumption (current ): 150mA
DO output: TTL digital 0 and 1 ( 0.1 and 3.3V)
AO output: 0.1-0 .3V, the highest concentration voltage is about 4V
Note: After the sensor is powered, needs to warm up around 20S, measured data was stable , heat sensor is a normal , because the internal heating wire , if hot is not normal.
Wiring:
1. VCC: connected to the positive pole of the power supply
2. GND: connected to the negative power supply
3. DO: TTL switching signal output
4. AO: analog signal output
Package list:
2 x Alcohol Gas Sensor
