DIN 35mm Rail Mounting Bracket Clip for Solid State Relay C45
DIN 35mm Rail Mounting Bracket Clip for Solid State Relay C45
Couldn't load pickup availability

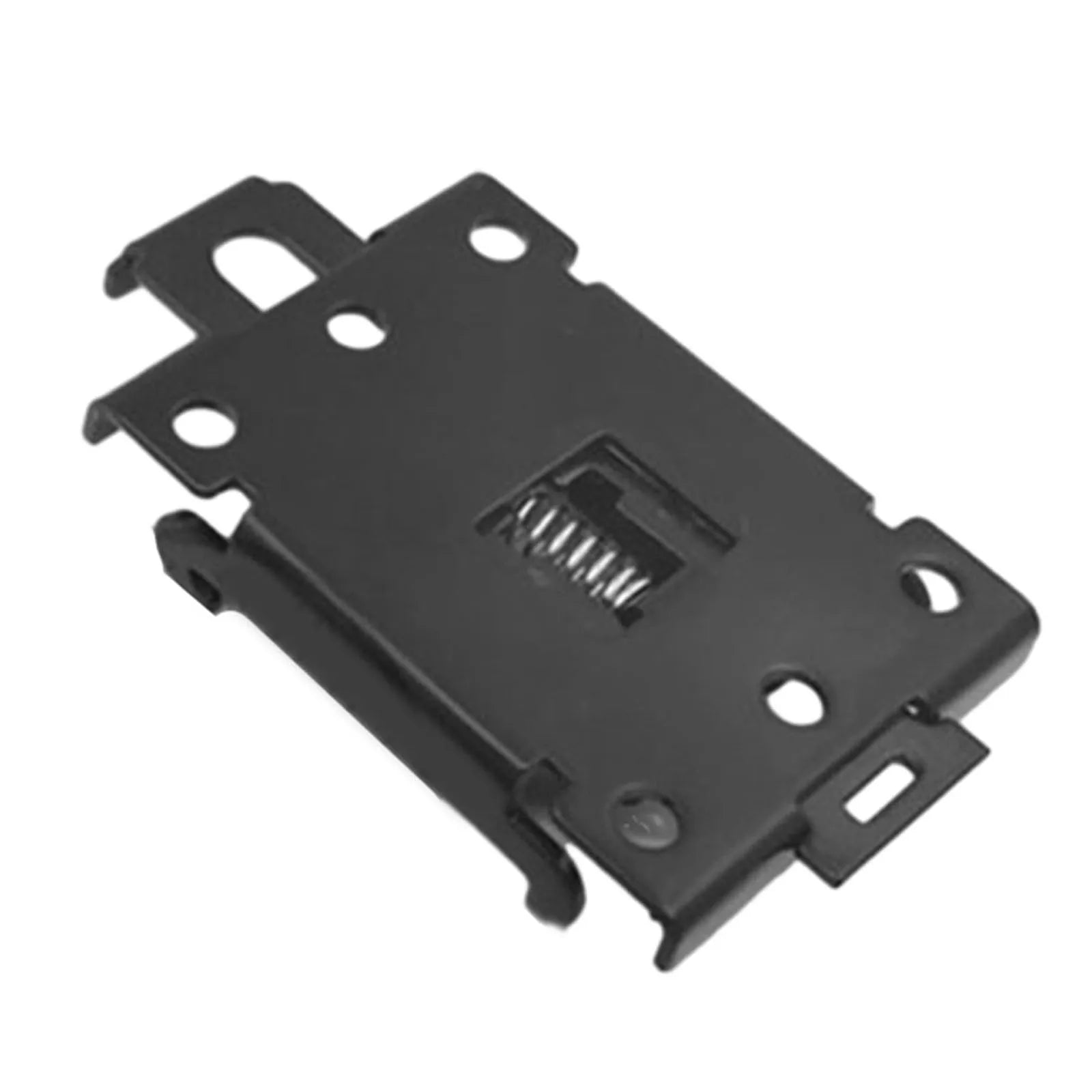

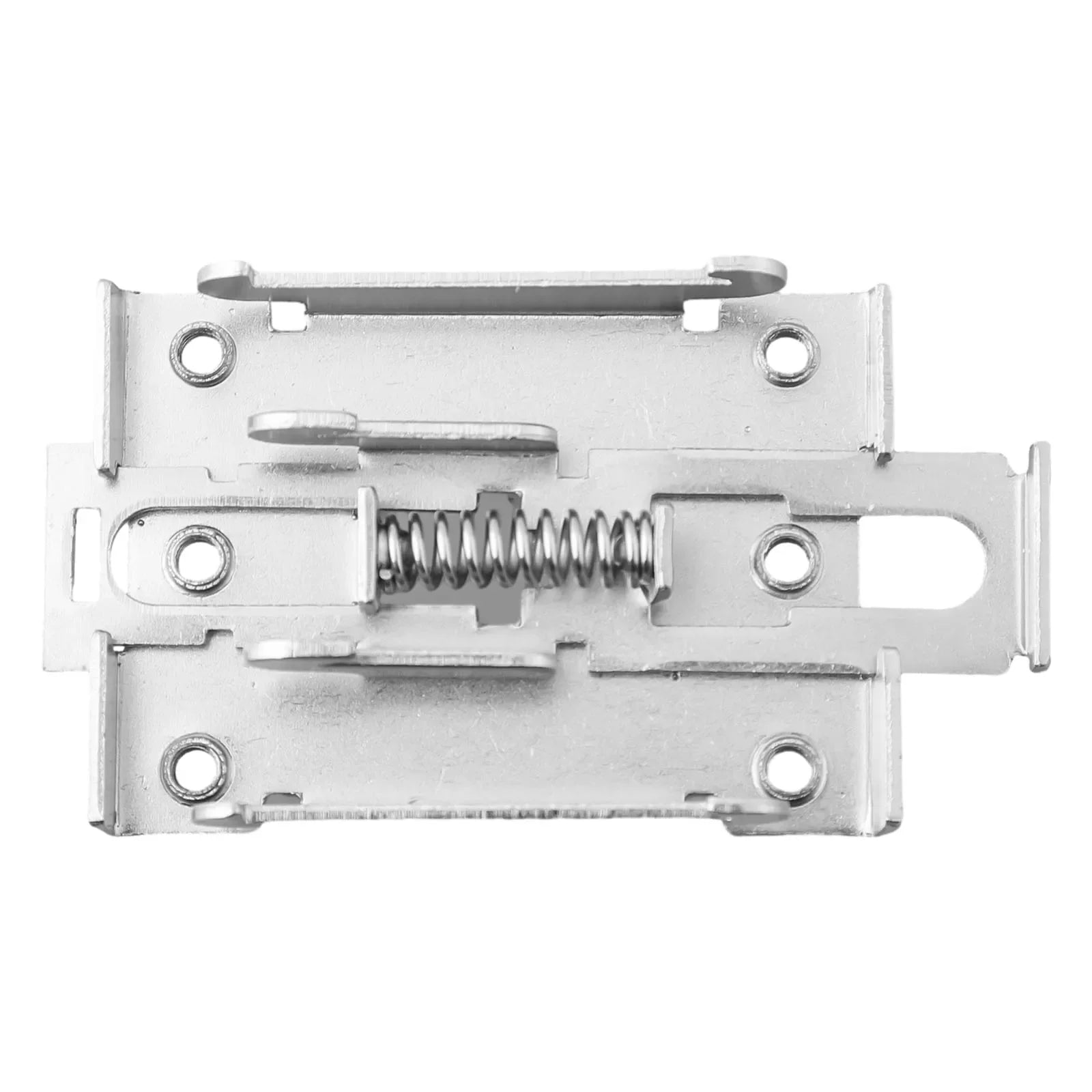

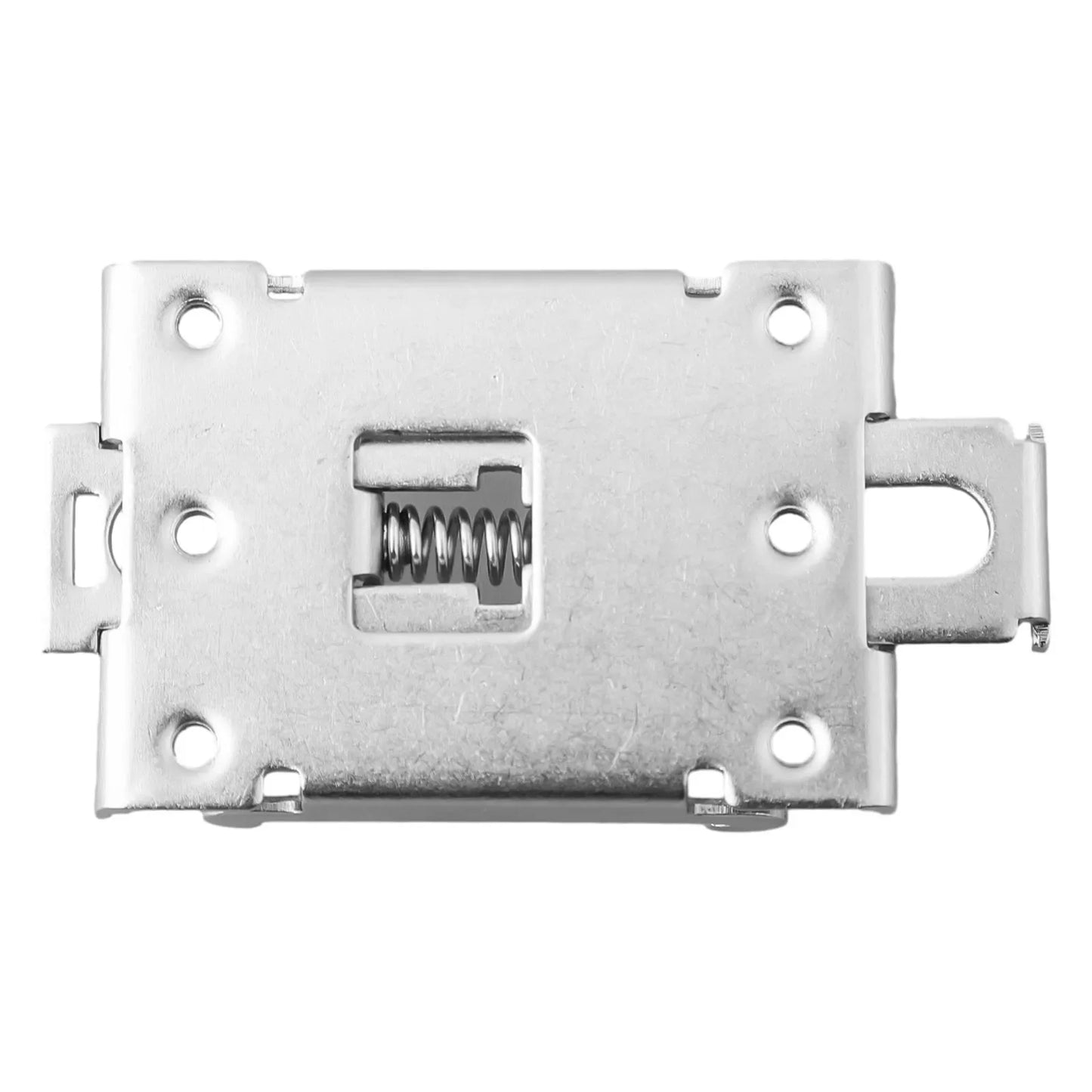

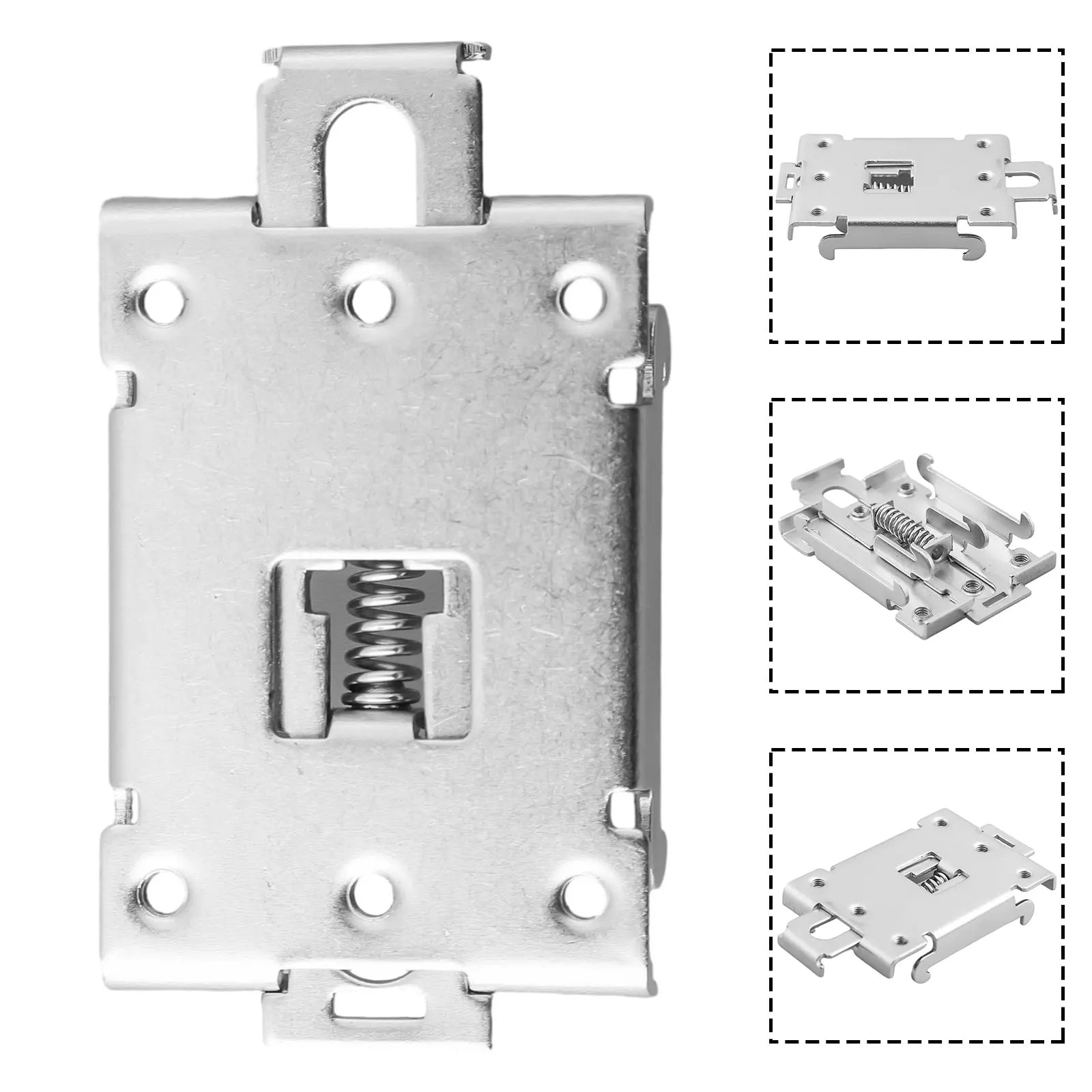

DIN 35mm Rail Mounting Bracket – Solid State Relay Clip for C45 Rail
Securely mount your solid state relays, circuit boards, and electronic switches onto standard 35mm DIN rails with this precision-stamped aluminum alloy mounting bracket. Designed for industrial and DIY electronic applications, this clip-style adapter makes rail installation fast, tool-free, and dependable.
Key Features
- Aluminum Alloy Construction: Lightweight yet sturdy material ensures long-lasting reliability in demanding industrial environments.

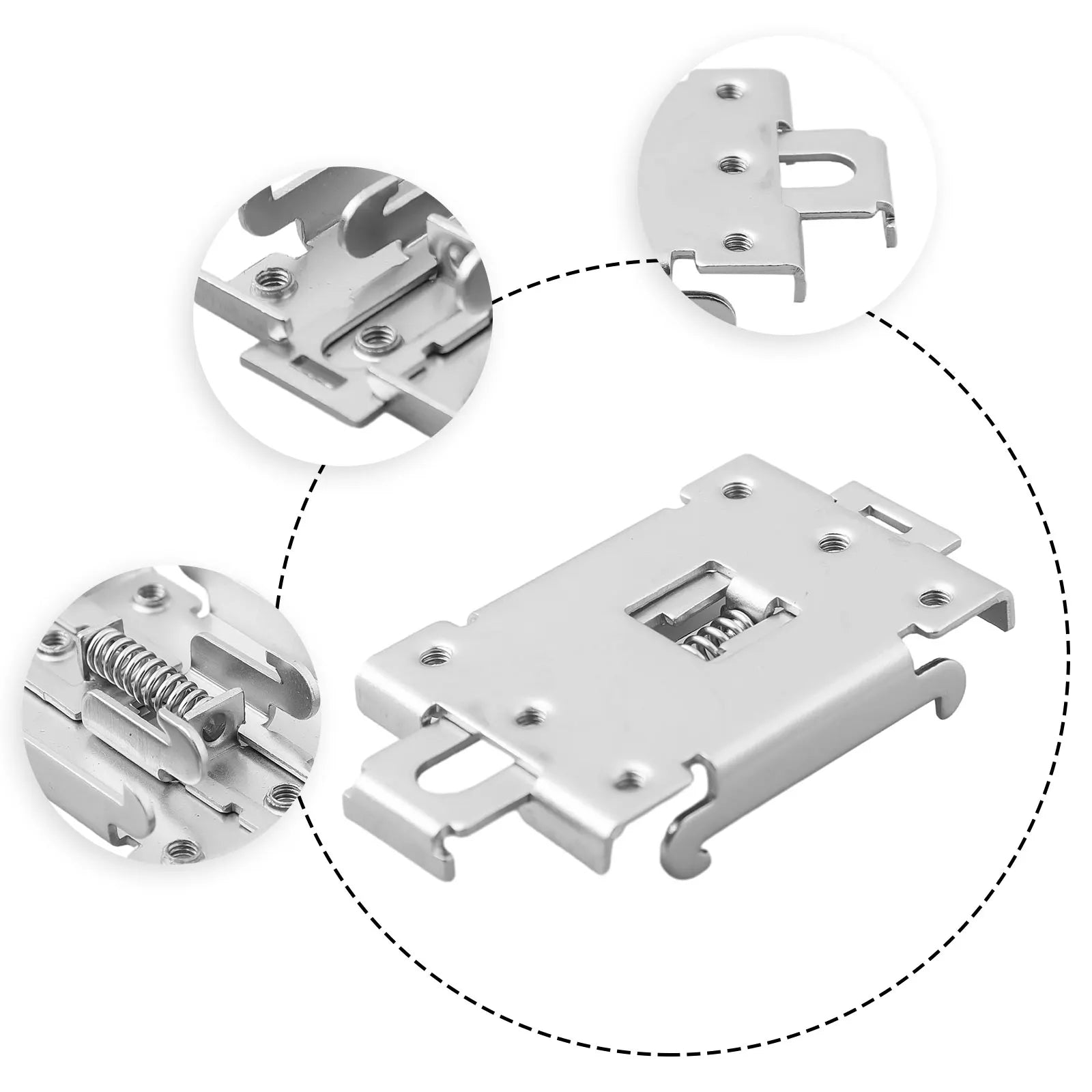

- Nickel-Plated Spring Mechanism: The nickel plating treatment prevents spring deformation even after repeated installation and removal cycles.
- Universal 35mm DIN Rail Compatibility: Fits standard DIN 35 (C45) mounting rails used across industrial control panels, switchboards, and electronics enclosures.
- Stamped Precision Build: Manufactured via a stamping process for consistent dimensions and reliable fitment every time.

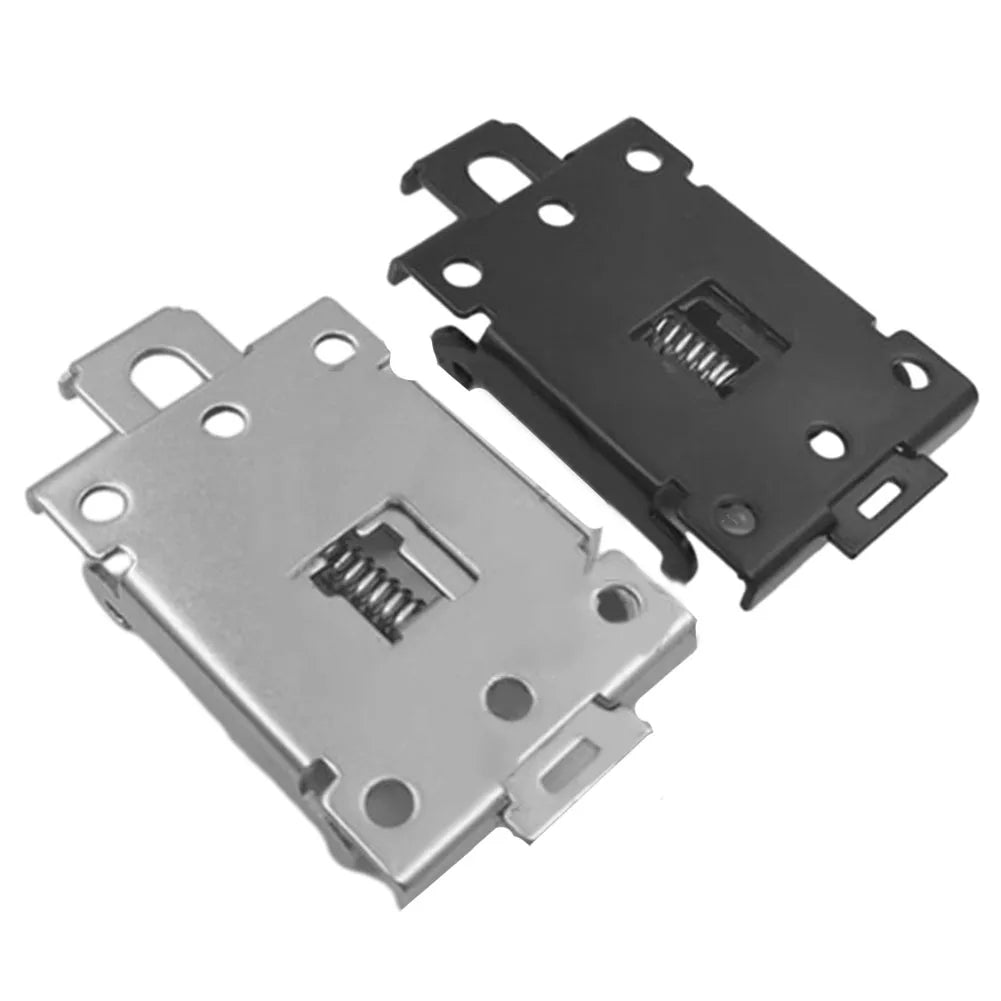

- Available in Silver & Black: Choose the finish that best matches your setup.
- Compact & Versatile: Ideal for mounting single-phase solid state relays, power switches, and DIY project boards.
Specifications
| Material | Aluminum Alloy |
| Surface Treatment | Nickel Plating |
| Manufacturing Process | Stamping |
| Rail Compatibility | DIN 35mm / C45 Standard Rail |
| Dimensions (L × W) | 80.5 × 44mm / 3.17 × 1.73 inches (approx.) |
| Color Options | Silver, Black |
| Country of Origin | Made in China |
Package Contents
- 1 × 35mm DIN Rail Mounting Bracket Clip
Related Products You May Like
- 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino
- 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler
- 1-Channel Relay Module DC 3.3V–5V–12V–24V Optocoupler for Arduino
Helpful Resource
For guidance on electrical enclosure and panel wiring safety standards, visit the OSHA Electrical Safety page.
Note: Actual color may vary slightly from images due to monitor brightness and lighting conditions. Please allow minor measurement deviations of ±1–2mm.
Frequently Asked Questions
Q: What size DIN rail does this mounting bracket fit?
A: This bracket is designed to fit standard 35mm DIN rails (also known as C45 rails), which are the most commonly used rail type in industrial control panels and electrical enclosures worldwide.
Q: Will the spring clip wear out after repeated use?
A: No — the bracket features a nickel-plated spring mechanism that is specifically engineered to resist deformation, maintaining a secure and reliable grip even after multiple installation and removal cycles.
Q: What types of devices can be mounted with this bracket?
A: This DIN rail clip is commonly used to mount solid state relays, power switches, circuit boards, and various electronic modules in industrial and DIY applications. It is particularly suited for single-phase solid state relay mounting.
Q: Is any special tool required for installation?
A: No special tools are required. The bracket is designed for easy, tool-free snap-on installation and removal from standard 35mm DIN rails, making setup quick and straightforward.
