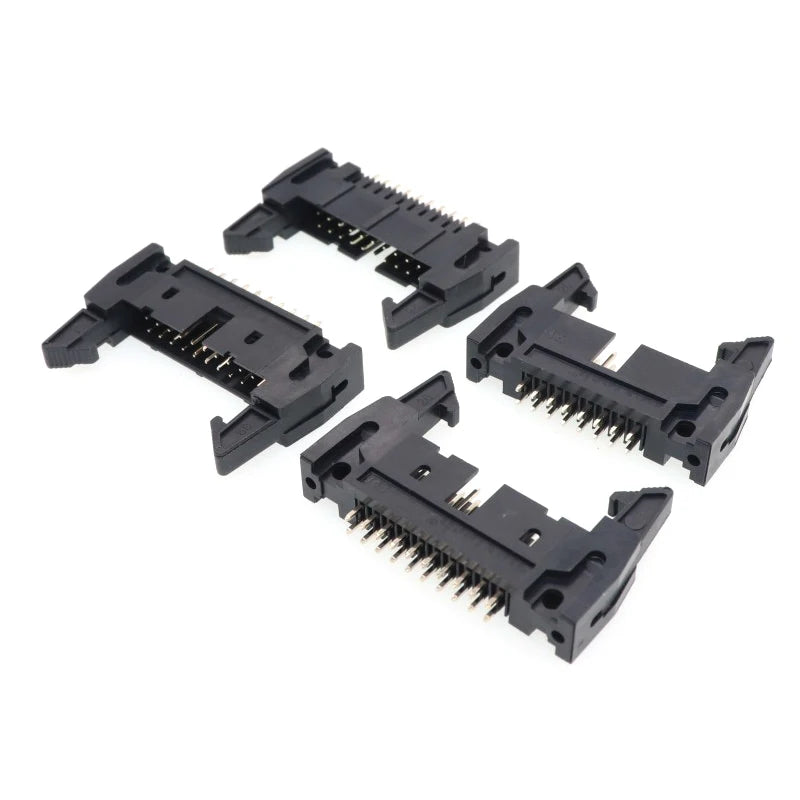

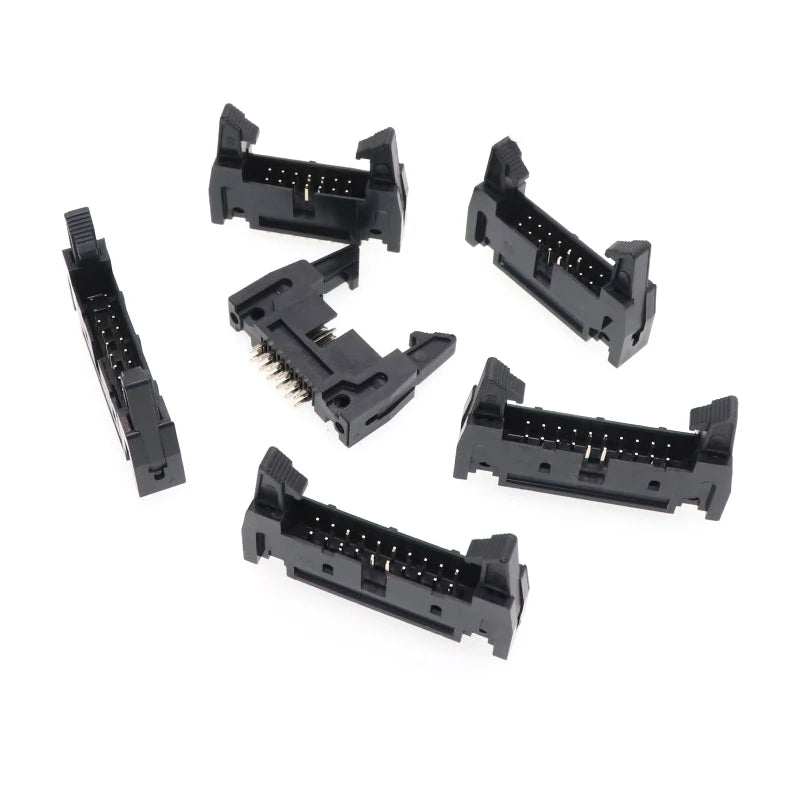

5pcs DC2 2.54mm IDC Socket Connector – Straight & Right Angle

DC2 2.54mm Pitch IDC Socket Connectors – 5-Pack

Get reliable, professional-grade connections for your flat ribbon cable projects with this 5-piece set of DC2 2.54mm Pitch IDC Socket Connectors. Available in both straight and right-angle (hook horn) configurations, and offered in a wide range of pin counts — 10P, 14P, 16P, 20P, 26P, 30P, and 40P — these versatile connectors are ideal for electronics prototyping, PCB design, DIY maker boards, and professional electrical assemblies.

CE certified and built to withstand demanding environments, each connector features brass pins with gold (Au) or tin (Sn) plating over nickel for excellent conductivity and long-term durability. The flame-retardant PBT insulator (UL94V-0 rated) ensures safe operation across a wide temperature range.

Made in Mainland China.

Key Specifications

Model: DC2 2.54mm Pitch

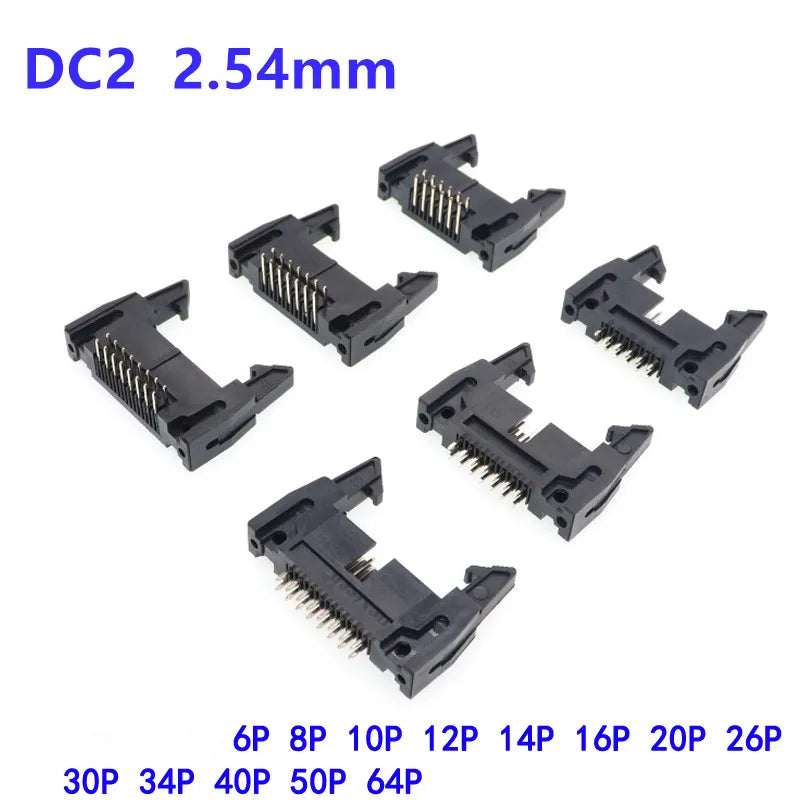

Pin Count Options: 10P / 14P / 16P / 20P / 26P / 30P / 40P
Pitch: 2.54mm

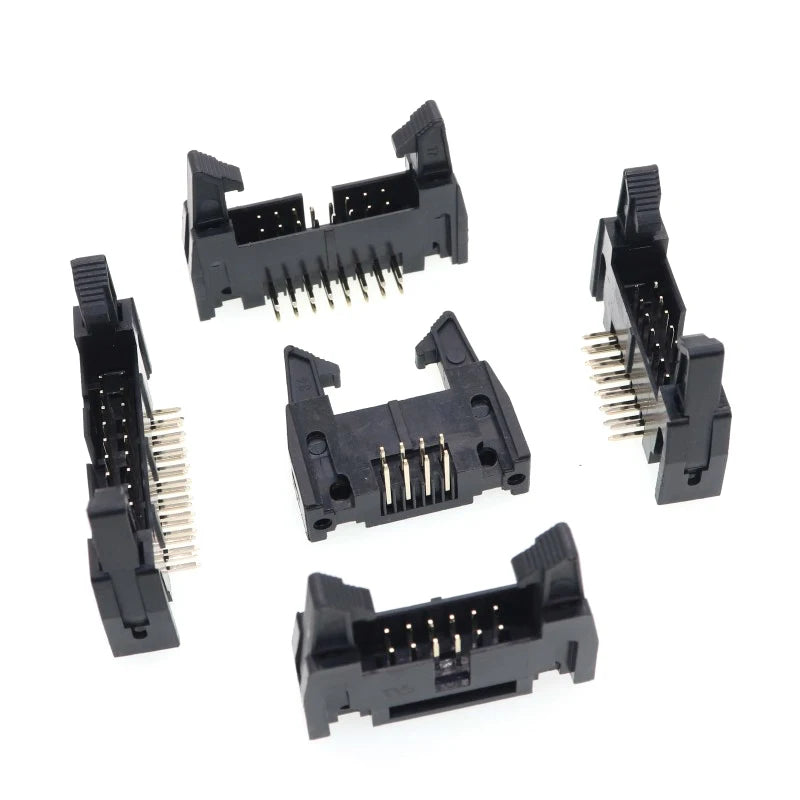

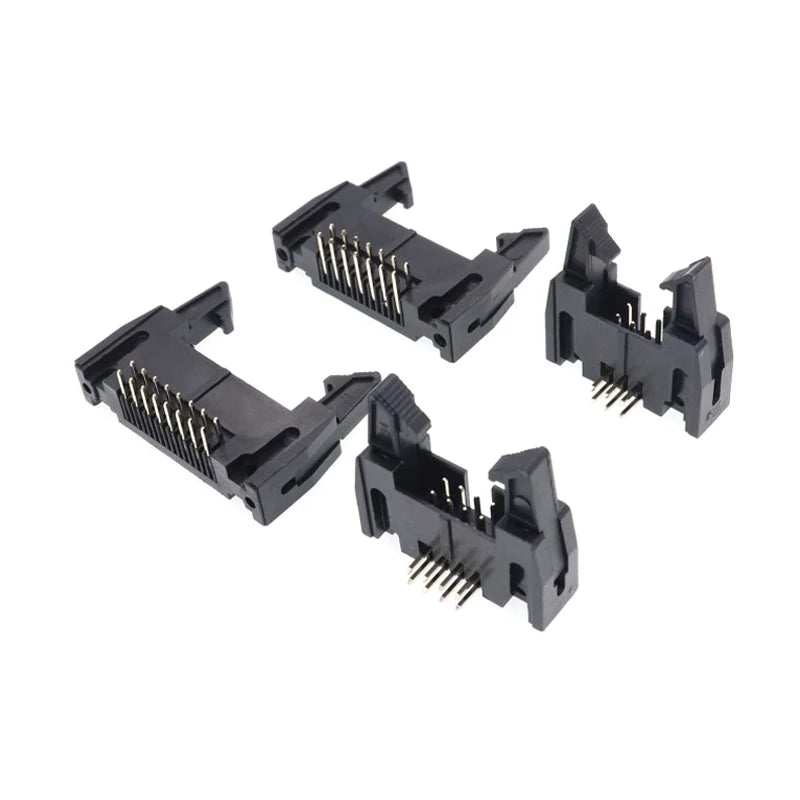

Orientation: Straight & Right Angle (Hook Horn)
Rated Current: 3A
Dielectric Withstanding Voltage: 1000VAC
Contact Resistance: Max 20 Ω
Insulation Resistance: Min 1000 Ω
Operating Temperature: -40°C to +105°C
Pin Material: Brass
Pin Plating: Au or Sn over 50µ" Ni
Insulating Material: PBT Polyester Fiber (UL94V-0)
Certification: CE
Quantity: 5 pieces per pack

Why Choose These IDC Connectors?

✅ Wide compatibility — fits standard 2.54mm pitch flat ribbon cables and IDC applications
✅ Dual orientation — straight and right-angle versions to suit your PCB layout
✅ High dielectric strength — rated for up to 1000VAC for safe low-voltage signal and power connections
✅ Flame-retardant housing — UL94V-0 rated PBT insulator for added safety
✅ CE certified — meets EU low-voltage directive requirements
✅ Wide temperature range — reliable from -40°C to +105°C

Common Applications

Flat ribbon cable (FRC) assemblies
PCB-to-cable IDC connections
Arduino, Raspberry Pi, and other DIY maker board projects
Electronics prototyping and development
Industrial control panels and automation wiring

For further guidance on safe electrical connector usage and standards, visit the U.S. Consumer Product Safety Commission (CPSC).

Explore More From Our Electronics Range

Frequently Asked Questions

Q: What pin count options are available for these DC2 2.54mm IDC socket connectors?

A: These connectors are available in 10P, 14P, 16P, 20P, 26P, 30P, and 40P configurations, so you can choose the exact pin count needed for your flat ribbon cable or PCB project.

Q: What is the difference between the straight and right-angle (hook horn) versions?

A: The straight version mounts perpendicular to the PCB surface, while the right-angle (hook horn) version routes the cable parallel to the board — ideal when space is limited or when cable routing needs to avoid nearby components.

Q: Are these connectors compatible with standard ribbon cables?

A: Yes. With a 2.54mm (0.1") pitch, these DC2 IDC socket connectors are fully compatible with standard flat ribbon cables (FRC) commonly used in electronics prototyping, computing, and industrial control wiring.
