DC Fan Motor Tester 3-Wire & 5-Wire | HVAC Diagnostic Tool

Professional DC Fan Motor Tester for HVAC Technicians & DIY Enthusiasts

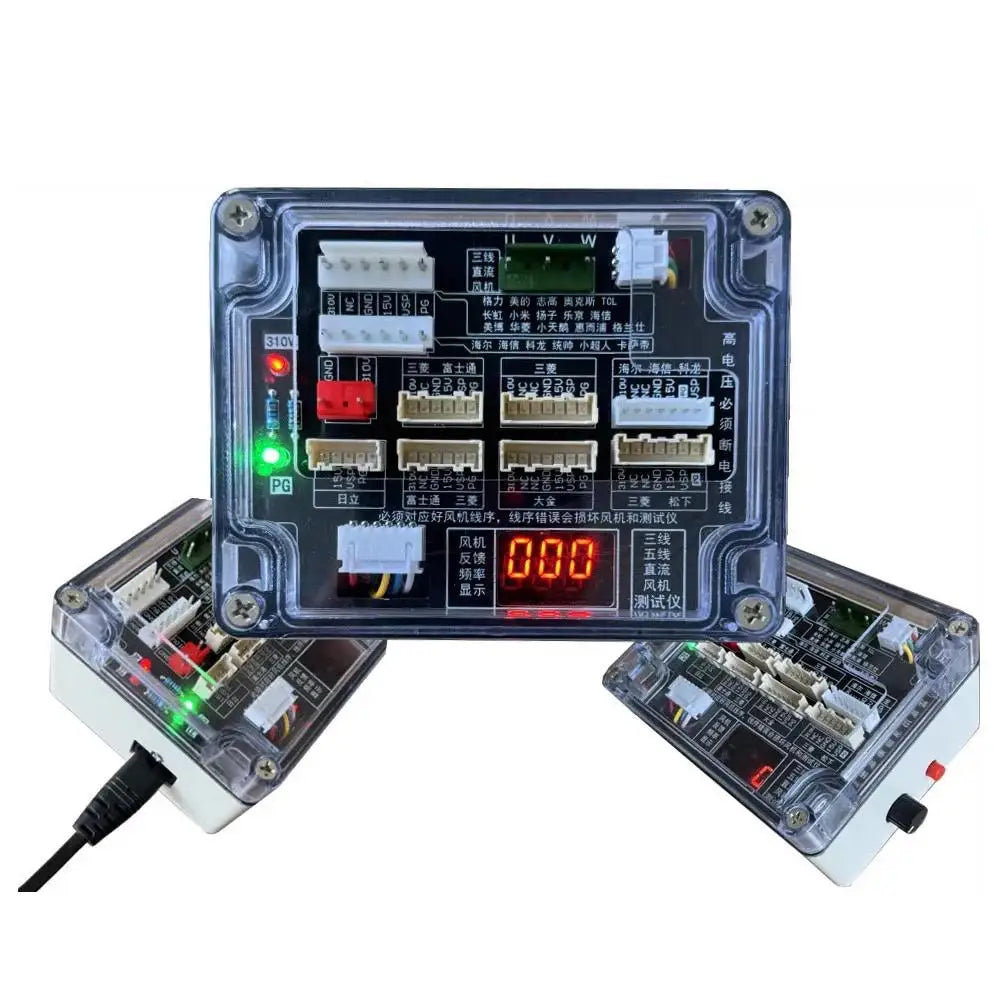

Take the guesswork out of HVAC motor diagnostics with this universal DC Fan Motor Tester. Compatible with both 3-wire and 5-wire DC motors, this tool quickly identifies motor faults, speed inconsistencies, and abnormal feedback signals — saving you time and costly service calls. A clear digital display shows real-time RPM frequency, while built-in 310V short-circuit protection keeps both the tester and your motor safe throughout testing.

Made in Mainland China.

Key Features

• Universal Compatibility: Supports 3-wire and 5-wire DC motors used in air conditioners and HVAC systems

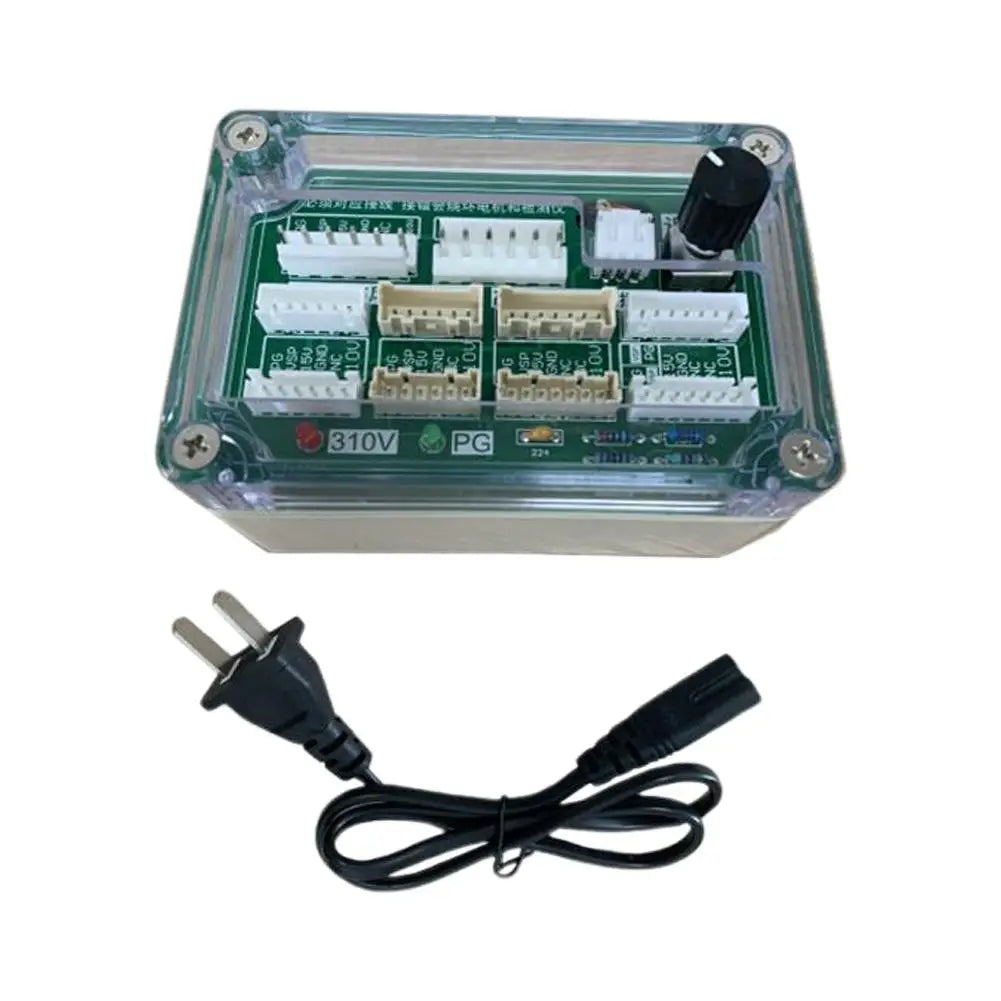

• Color-Coded Connection Ports: Clearly labeled for fast, accurate hookup — no guesswork required
  • 🔴 Red → 310V
  • ⚫ Black → GND
  • 🟡 Yellow → VSP (Speed Control)
  • 🔵 Blue → FG (Speed Feedback)
  • ⚪ White → 15V (VCC)

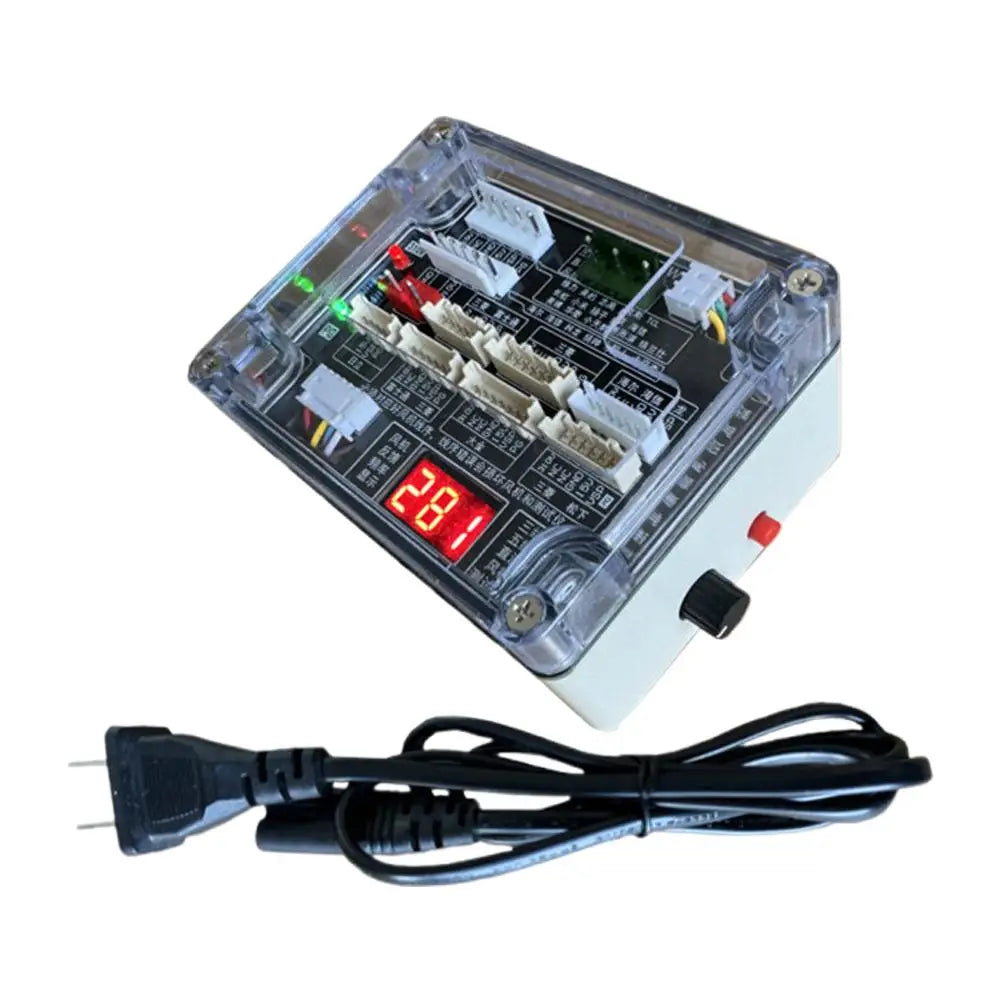

• Digital RPM Display: Instantly read motor frequency to confirm healthy operation or detect a fault
• Adjustable Speed Knob: Gradually ramp up motor speed to simulate real-world operating conditions
• 3-Wire / 5-Wire Toggle Switch: Seamlessly switch between modes for broad motor compatibility
• Short-Circuit Protection: Automatically cuts power if a 310V overload is detected, protecting equipment
• Durable Housing: Impact-resistant casing handles the demands of fieldwork and workshop environments

How to Use

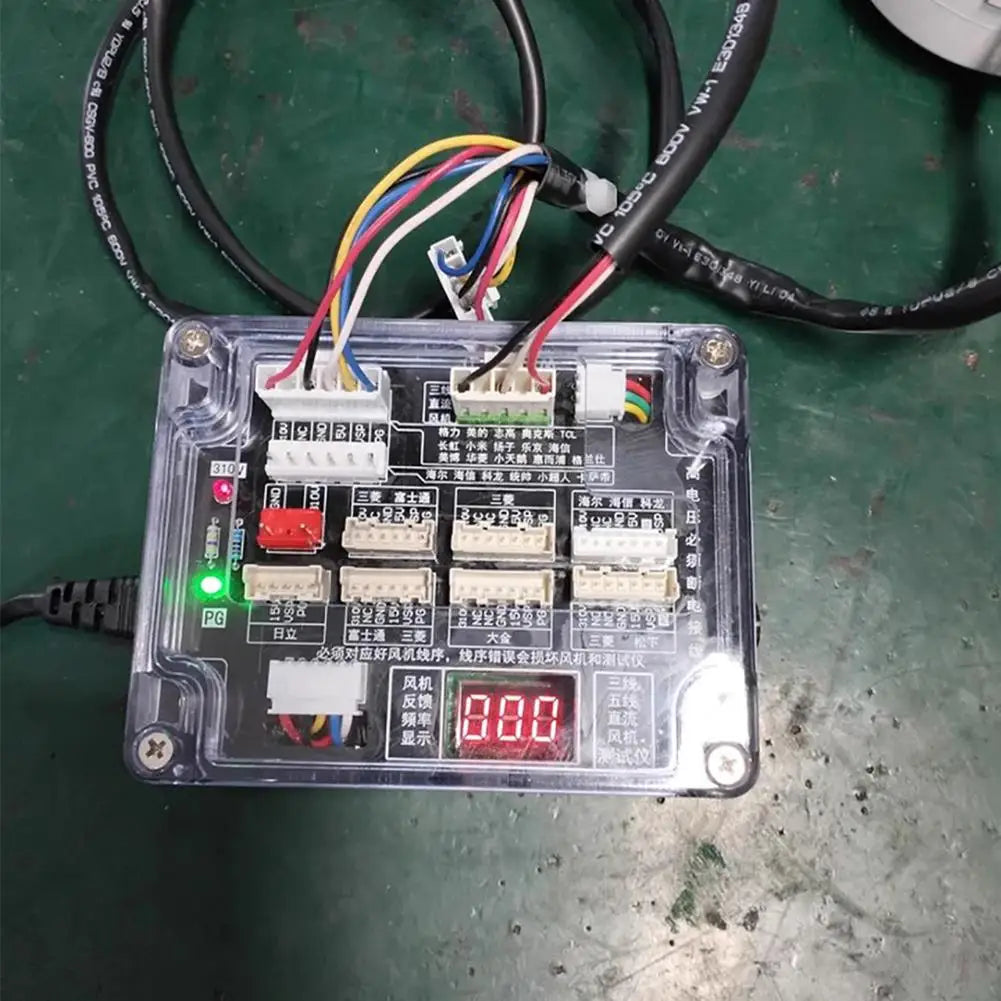

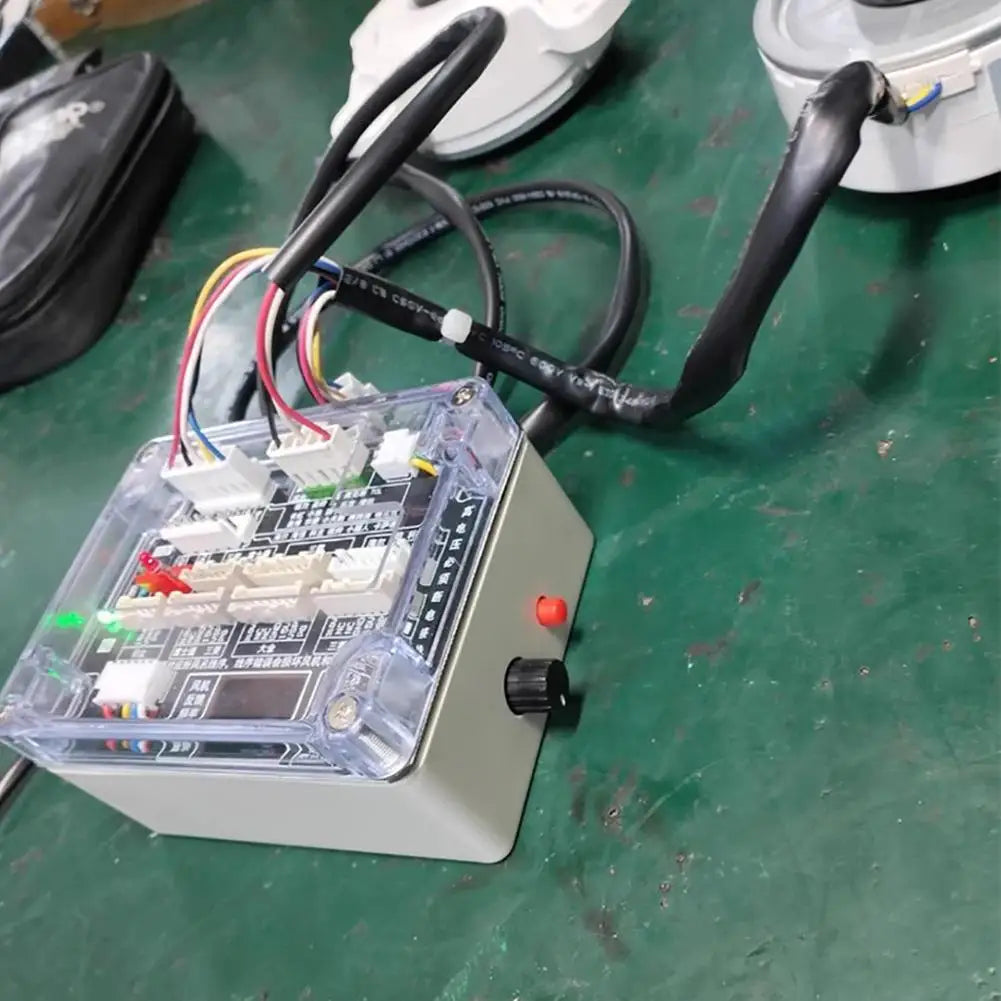

1. Connect Wires: Match each motor wire to the corresponding color-coded port (consult the motor nameplate for wire functions).
2. Select Mode: Toggle the 3-wire/5-wire switch to match your motor type.
3. Test & Diagnose: Slowly turn the speed knob and observe the digital display.
   • ✅ Motor accelerates smoothly + rising RPM frequency = Motor is healthy
   • ⚠️ No rotation, unstable speed, or abnormal frequency = Motor fault detected

Important Safety Warnings

• Always verify wire functions against the motor nameplate before connecting to prevent damage.
• Do not connect wires to NC (empty/unused) ports.
• Ensure power is off before making any wire connections.

Specifications

• Compatible Motors: 3-Wire and 5-Wire DC Fan Motors
• Voltage Protection: 310V Short-Circuit Protection
• Display: Digital RPM / Frequency Readout
• Batteries: Not included / Not required
• Origin: Mainland China
