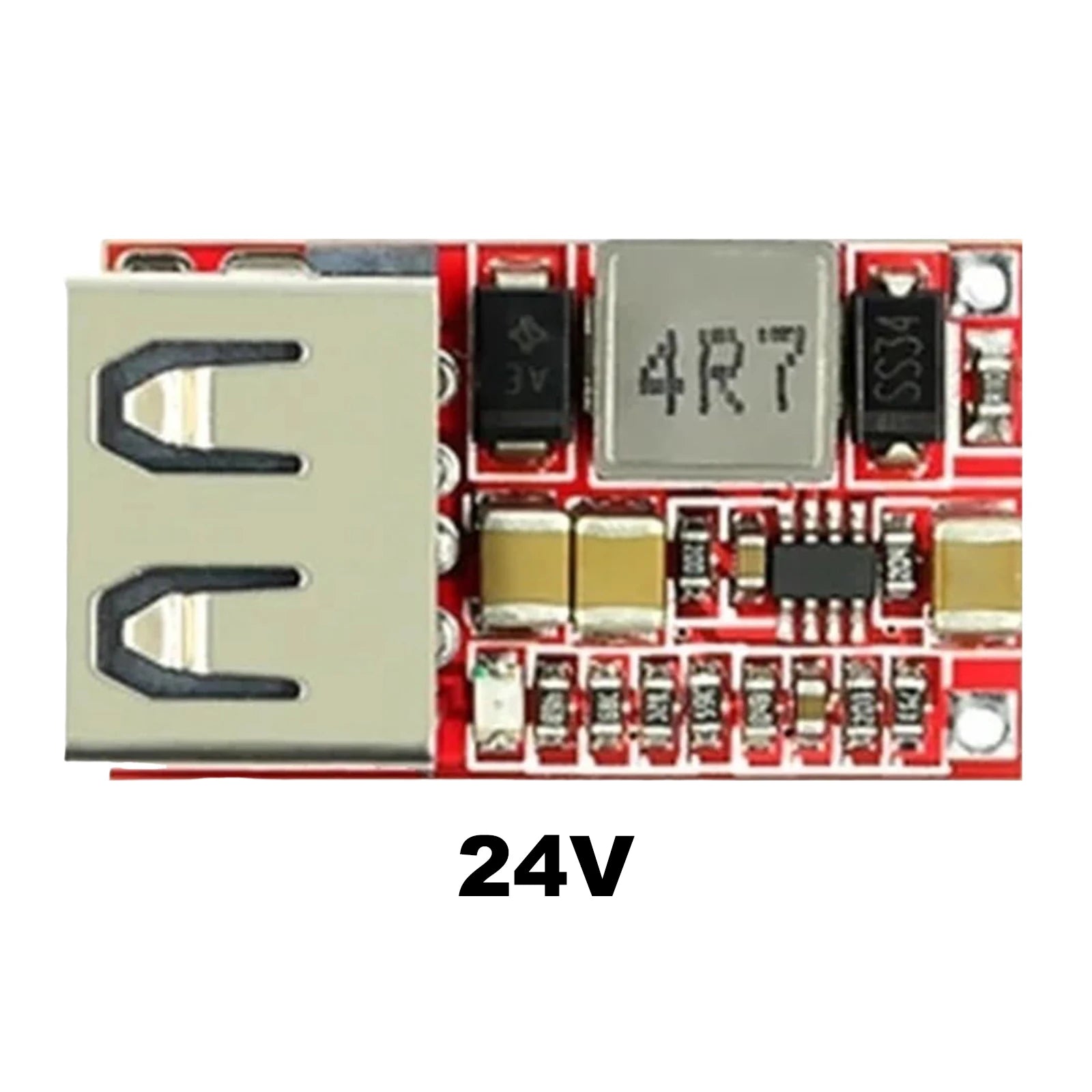

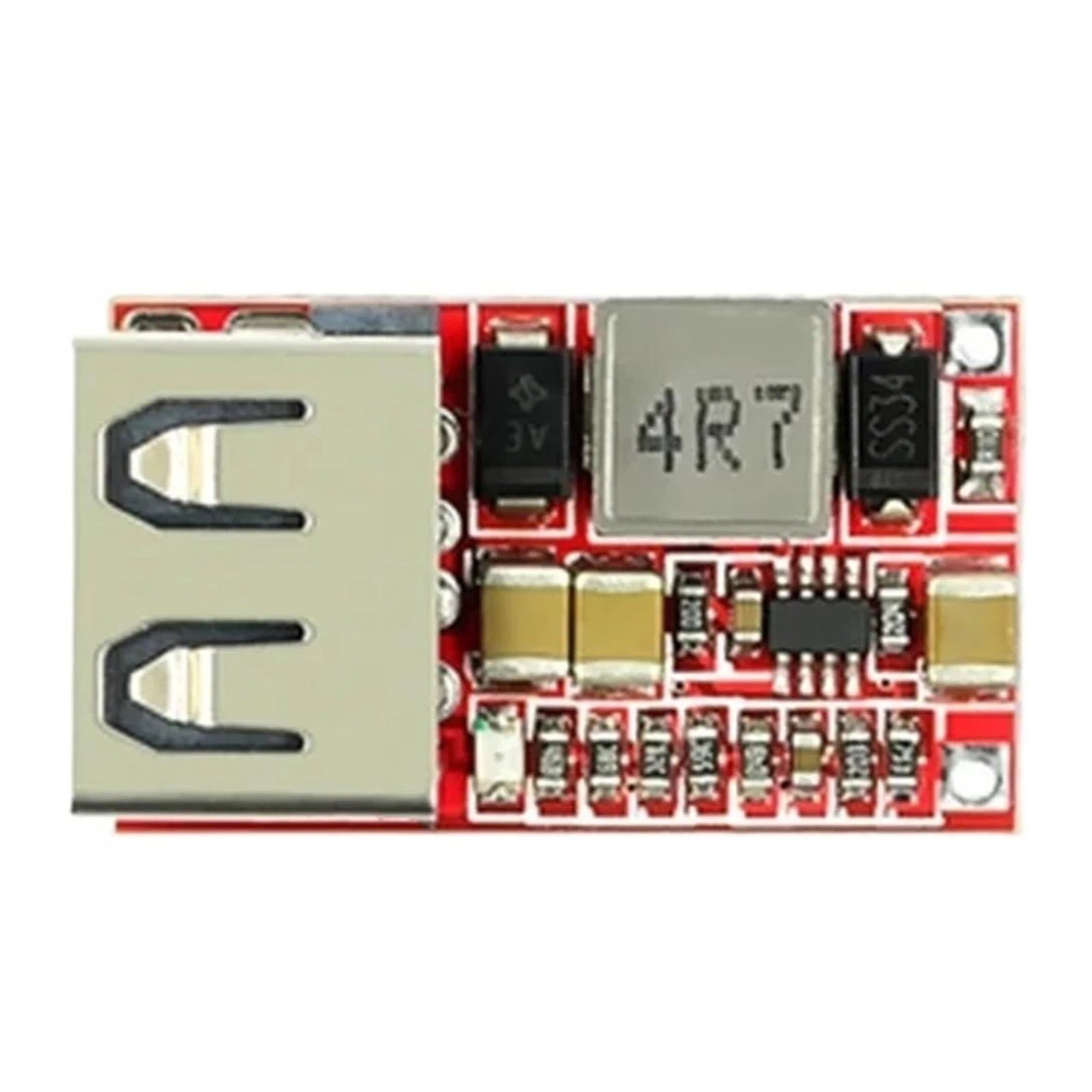

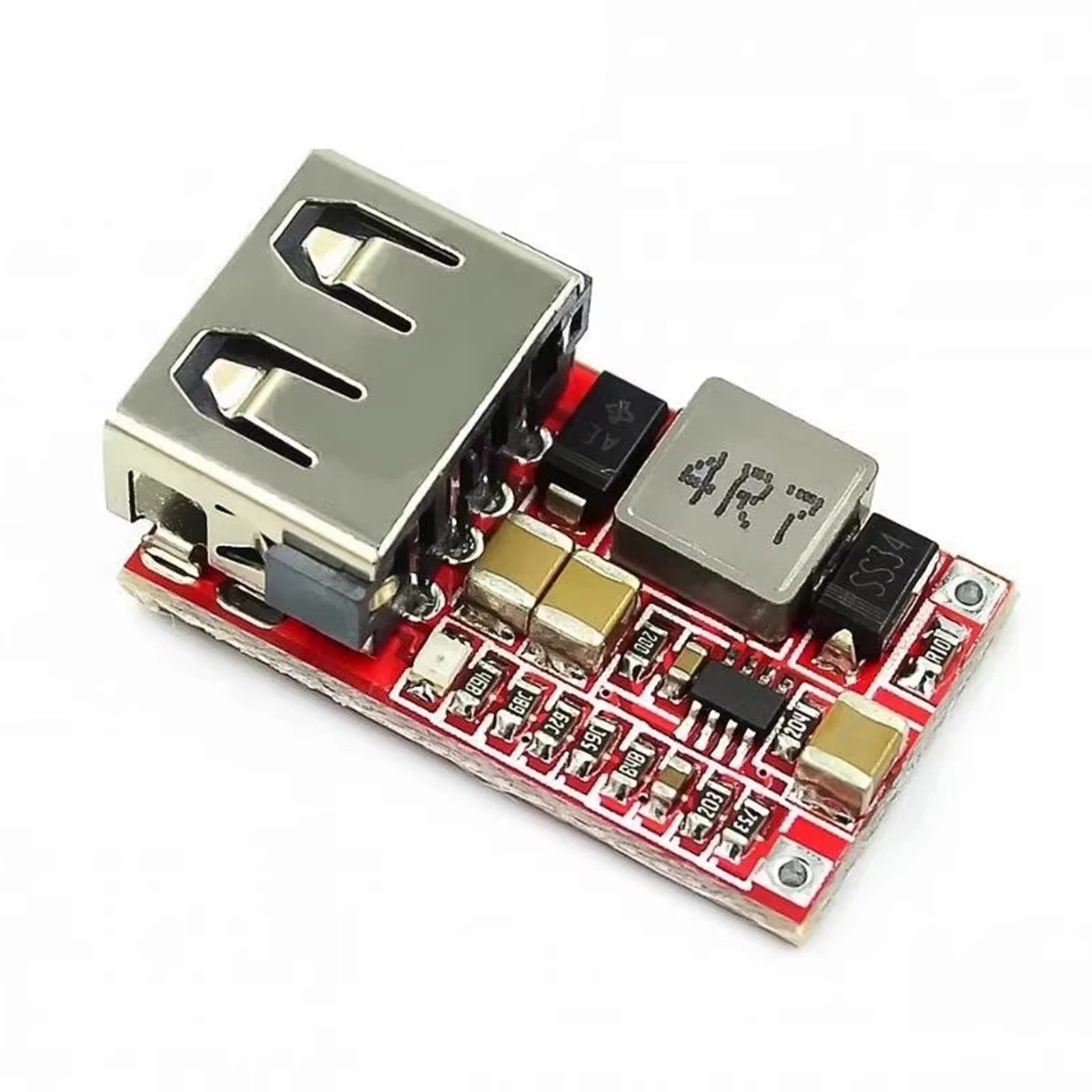

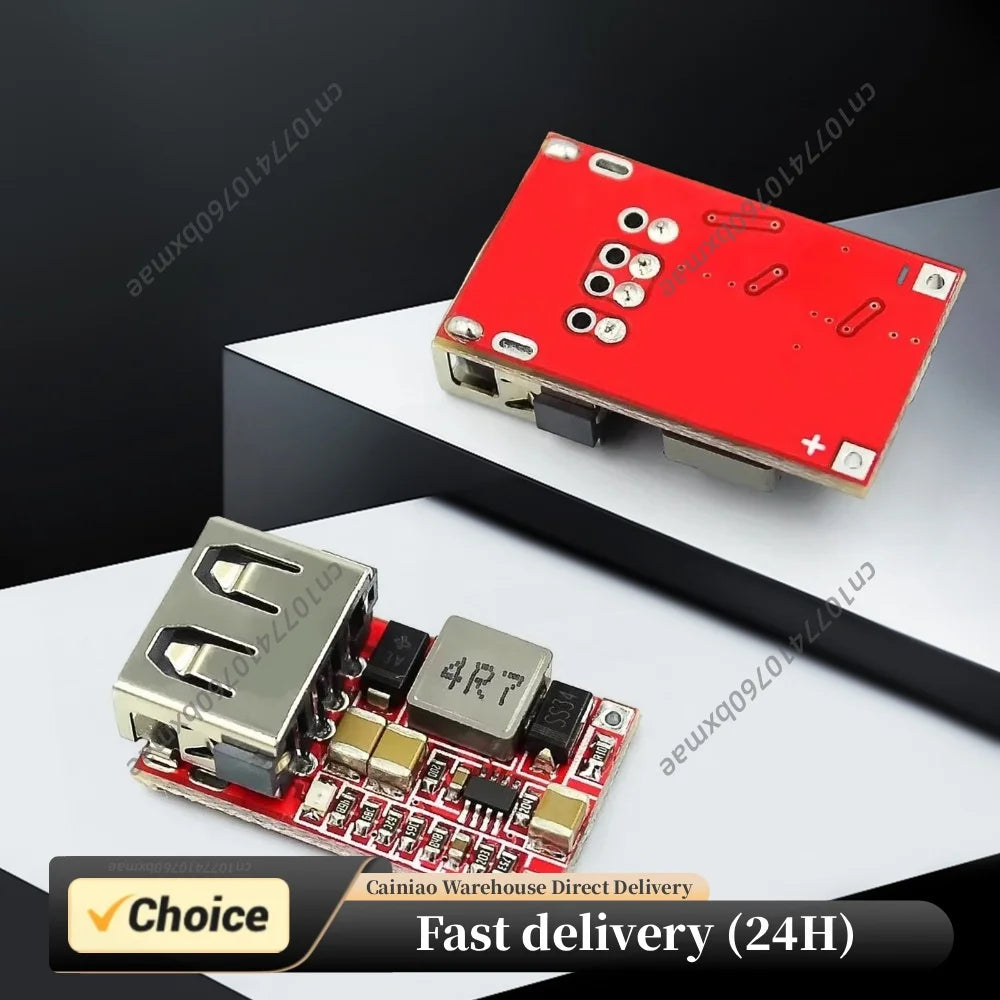

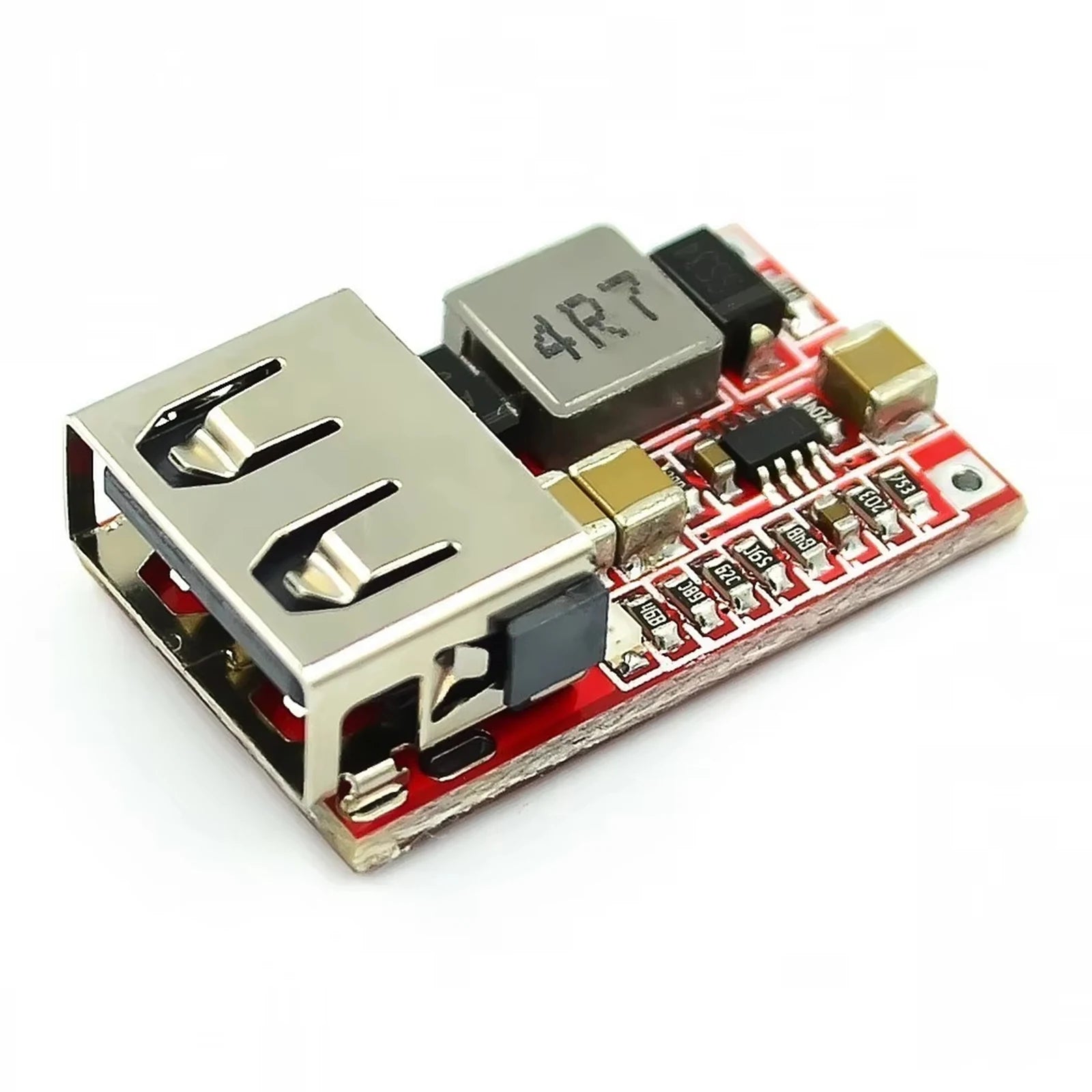

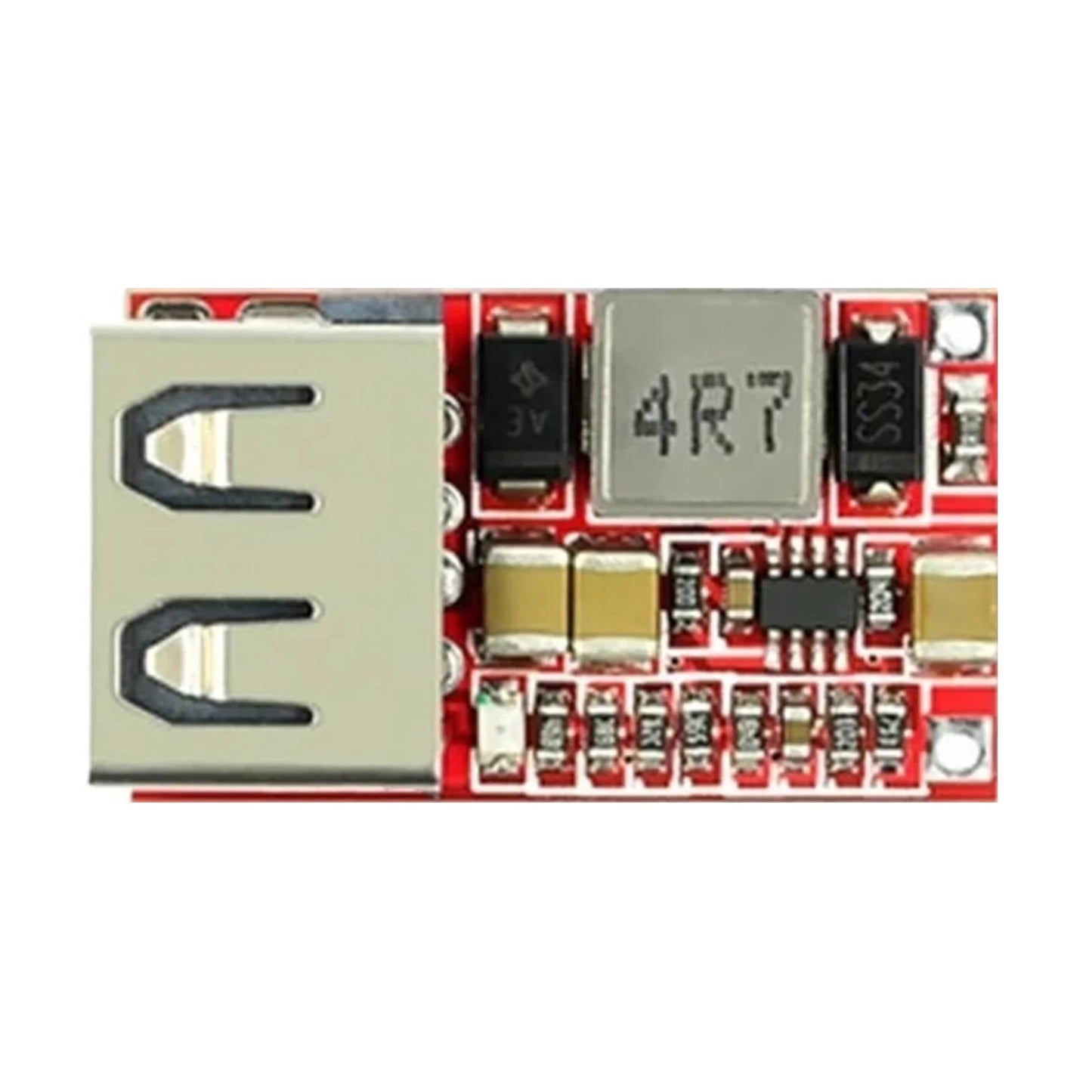

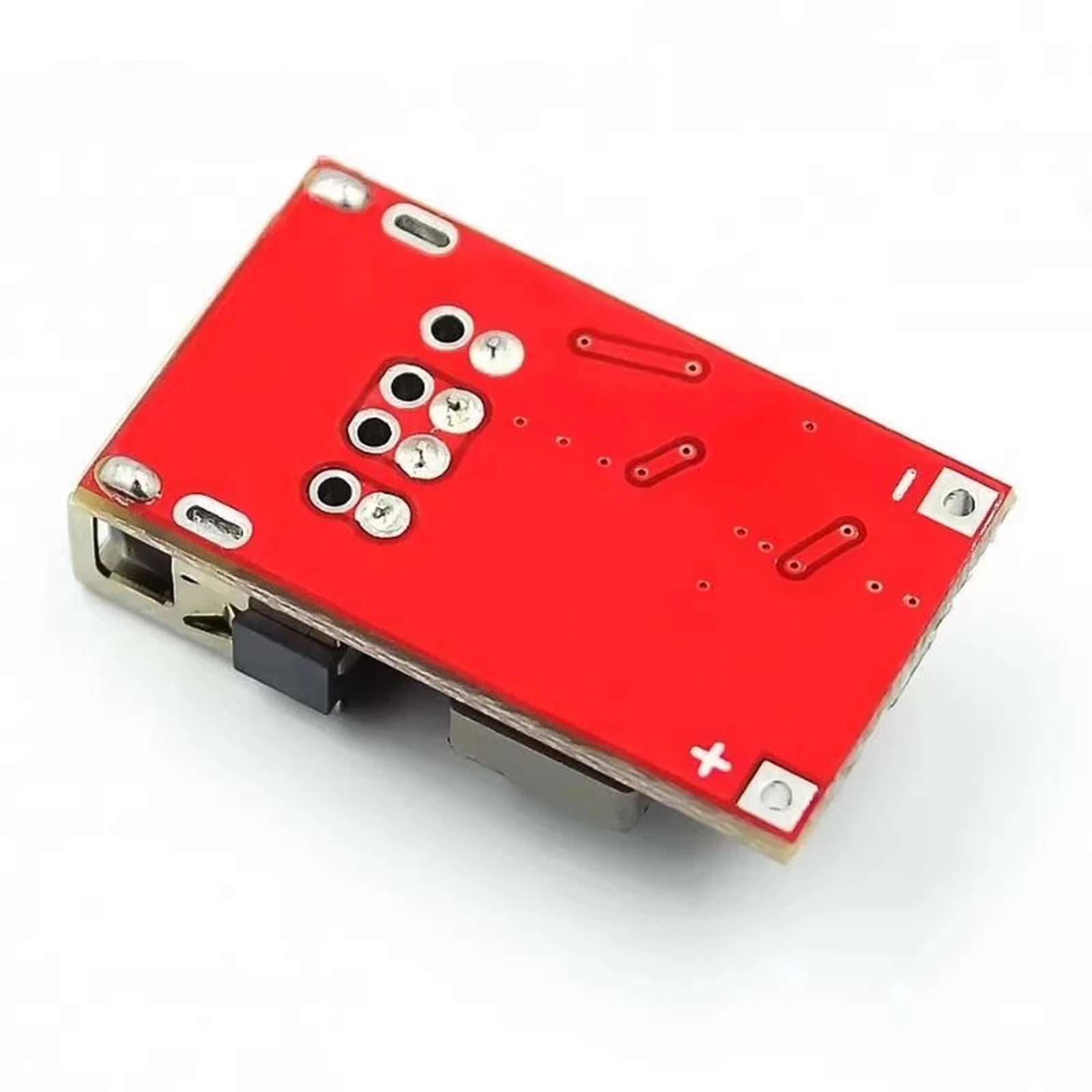

DC-DC Step-down Module 6-24V 5V3A USB Step Down Mini Steps Up Boost

$13.07 USD

~~$9.52 USD~~ $13.07 USD

Sale Sold out

Shipping calculated at checkout.

Color 24V 20V

Discover the DC-DC Step-down Module 6-24V 5V3A USB Step Down Mini Steps Up Boost — a standout decor pick featuring adjustable, compact design for dependable, everyday performance.

Specifications

Condition: New

Type: Voltage Regulator

DC-DC Step-Down Module USB-A 6-24V To 5V3A USB Step Down Module Power Adjustable Converter for Car Mobile Phone Chargers
Features:
1.High Efficiency Conversion: Utilizing synchronized rectification technology, this dc-dc step-down module achieves up to 97.5% conversion efficiency with low heat and energy savings. Accepts 6-24V DC wide voltage input for stable 5V/3A output, ideal for automotive, marine or solar environments.
2.Universal Fast Charging: Featuring a standard USB-A connection, the 6-24v to 5v3a usb step down module delivers up to 3A for fast charging mobile phones, headsets, dash cameras and more. Maintains reliable performance under heavy load without extra cooling.
3.Solid Structure and Easy Installation: Built from rugged materials and engineered for longevity, the output charger steps downed power modules resist wear, heat and electromagnetic interference. Plug-and-play simplicity allows swift upgrades or replacements, no complex wiring required.
4.Precise Non-Isolated Design: The mini dc-dc steps up boost modules maintain a stable 5V±0.1V output with minimal ripple, preventing interference with vehicle electronics. Compatible across sedan, truck and bus 12V/24V DC power systems for broad versatility.
5.Comprehensive Safety Protection: Integrated safeguards against input reverse, output over-voltage, over-current and short-circuit ensure safe operation. The compact power adjustable converter (25.5*15*5mm/1x0.59x0.2in) fits easily for personalized automotive DIY upgrades.

Specification:
Origin:
Product Dimensions: 25.5 x 15 x 5mm / 1x0.59x0.2 (inch)
Material: PCB circuit board + copper
Input Voltage: DC 6-24V
Output Voltage: 5.1-5.2V (Selectable between 3.3-6V; please inform the seller in advance if you require a different voltage; default is 5.1V-5.2V)

Output Current: Maximum 3A (Please pay attention to heat dissipation under full load). Actual testing shows that with an input of 12V, the output is within 2A, requiring no special heat dissipation treatment.

Conversion Efficiency: Up to 97.5% (6.5V to 5V 0.7A) (Tested after short-circuit/reverse connection protection and fuse)
Load Regulation: ±1%
Voltage Regulation: ±0.5%
Dynamic Response: 5% 200us
Output Short-Circuit Protection: Yes; do not short-circuit for extended periods.

DC-DC Step-Down Module USB-A 6-24V To 5V3A USB Step Down Module Power Adjustable Converter for Car Mobile Phone Chargers
Features:
1.High Efficiency Conversion: Utilizing synchronized rectification technology, this dc-dc step-down module achieves up to 97.5% conversion efficiency with low heat and energy savings. Accepts 6-24V DC wide voltage input for stable 5V/3A output, ideal for automotive, marine or solar environments.
2.Universal Fast Charging: Featuring a standard USB-A connection, the 6-24v to 5v3a usb step down module delivers up to 3A for fast charging mobile phones, headsets, dash cameras and more. Maintains reliable performance under heavy load without extra cooling.
3.Solid Structure and Easy Installation: Built from rugged materials and engineered for longevity, the output charger steps downed power modules resist wear, heat and electromagnetic interference. Plug-and-play simplicity allows swift upgrades or replacements, no complex wiring required.
4.Precise Non-Isolated Design: The mini dc-dc steps up boost modules maintain a stable 5V±0.1V output with minimal ripple, preventing interference with vehicle electronics. Compatible across sedan, truck and bus 12V/24V DC power systems for broad versatility.
5.Comprehensive Safety Protection: Integrated safeguards against input reverse, output over-voltage, over-current and short-circuit ensure safe operation. The compact power adjustable converter (25.5*15*5mm/1x0.59x0.2in) fits easily for personalized automotive DIY upgrades.

Specification:
Origin:
Product Dimensions: 25.5 x 15 x 5mm / 1x0.59x0.2 (inch)
Material: PCB circuit board + copper
Input Voltage: DC 6-24V
Output Voltage: 5.1-5.2V (Selectable between 3.3-6V; please inform the seller in advance if you require a different voltage; default is 5.1V-5.2V)

Output Current: Maximum 3A (Please pay attention to heat dissipation under full load). Actual testing shows that with an input of 12V, the output is within 2A, requiring no special heat dissipation treatment.

Conversion Efficiency: Up to 97.5% (6.5V to 5V 0.7A) (Tested after short-circuit/reverse connection protection and fuse)
Load Regulation: ±1%
Voltage Regulation: ±0.5%
Dynamic Response: 5% 200us
Output Short-Circuit Protection: Yes; do not short-circuit for extended periods.

DC-DC Step-Down Module USB-A 6-24V To 5V3A USB Step Down Module Power Adjustable Converter for Car Mobile Phone Chargers
Features:
1.High Efficiency Conversion: Utilizing synchronized rectification technology, this dc-dc step-down module achieves up to 97.5% conversion efficiency with low heat and energy savings. Accepts 6-24V DC wide voltage input for stable 5V/3A output, ideal for automotive, marine or solar environments.
2.Universal Fast Charging: Featuring a standard USB-A connection, the 6-24v to 5v3a usb step down module delivers up to 3A for fast charging mobile phones, headsets, dash cameras and more. Maintains reliable performance under heavy load without extra cooling.
3.Solid Structure and Easy Installation: Built from rugged materials and engineered for longevity, the output charger steps downed power modules resist wear, heat and electromagnetic interference. Plug-and-play simplicity allows swift upgrades or replacements, no complex wiring required.
4.Precise Non-Isolated Design: The mini dc-dc steps up boost modules maintain a stable 5V±0.1V output with minimal ripple, preventing interference with vehicle electronics. Compatible across sedan, truck and bus 12V/24V DC power systems for broad versatility.
5.Comprehensive Safety Protection: Integrated safeguards against input reverse, output over-voltage, over-current and short-circuit ensure safe operation. The compact power adjustable converter (25.5*15*5mm/1x0.59x0.2in) fits easily for personalized automotive DIY upgrades.

Specification:
Origin:
Product Dimensions: 25.5 x 15 x 5mm / 1x0.59x0.2 (inch)
Material: PCB circuit board + copper
Input Voltage: DC 6-24V
Output Voltage: 5.1-5.2V (Selectable between 3.3-6V; please inform the seller in advance if you require a different voltage; default is 5.1V-5.2V)

Output Current: Maximum 3A (Please pay attention to heat dissipation under full load). Actual testing shows that with an input of 12V, the output is within 2A, requiring no special heat dissipation treatment.

Conversion Efficiency: Up to 97.5% (6.5V to 5V 0.7A) (Tested after short-circuit/reverse connection protection and fuse)
Load Regulation: ±1%
Voltage Regulation: ±0.5%
Dynamic Response: 5% 200us
Output Short-Circuit Protection: Yes; do not short-circuit for extended periods.

1 x DC-DC Step-Down Module
or
1 x DC-DC Step-Down Module
or
1 x DC-DC Step-Down Module

Options

Color: 24V, 20V

Frequently Asked Questions

Q: What is the DC-DC Step-down Module 6-24V 5V3A USB Step Down Mini Steps?

A: The DC-DC Step-down Module 6-24V 5V3A USB Step Down Mini Steps is a quality decor pick. Accepts 6-24V DC wide voltage input for stable 5V/3A output, ideal for automotive, marine or solar environments.

Q: What is the DC-DC Step-down Module 6-24V 5V3A USB Step Down Mini Steps made of?

A: The DC-DC Step-down Module 6-24V 5V3A USB Step Down Mini Steps is made from PCB circuit board + copper Input Voltage, measuring 25.5 x 15 x 5mm / 1x0.59x0.2.

Q: Why choose the DC-DC Step-down Module 6-24V 5V3A USB Step Down Mini Steps?

A: The DC-DC Step-down Module 6-24V 5V3A USB Step Down Mini Steps stands out in our decor range — 2.Universal Fast Charging: Featuring a standard USB-A connection, the 6-24v to 5v3a usb step down module delivers up to 3A for fast charging mobile phones, headsets, dash cameras and more.
