DC 12V–24V PIR Motion Sensor Switch – 120°, 5–8m Range, 1–10 Min Adjustable Delay, for LED Strip & Lamp

DC 12V–24V PIR Motion Sensor Switch – Automatic Infrared Detection for LED Strips & Lamps

Automate your LED lighting with this DC 12–24V PIR motion sensor switch. Detects human body infrared heat within a 5–8 meter range and a 120° detection angle, automatically switching your LED strip lights or lamps on when motion is detected and off after an adjustable delay of 1–10 minutes. Works in both light and dark conditions — no daylight override. Available in black or white.

Key Features

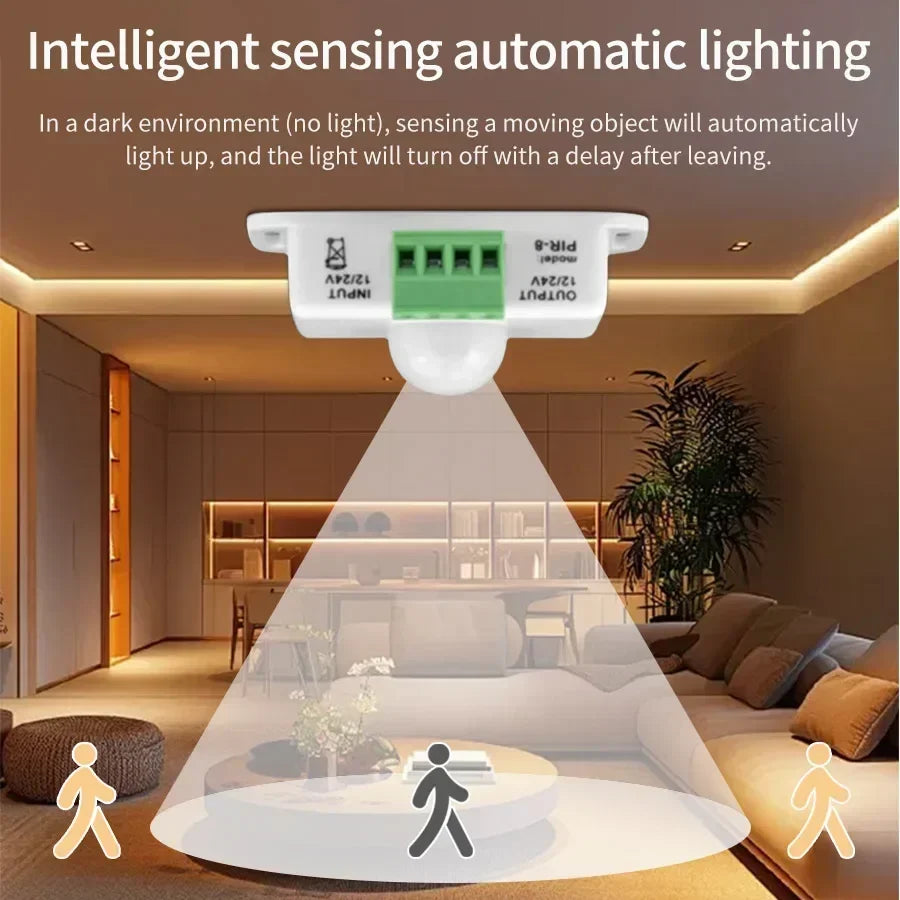

• PIR Infrared Motion Detection: Detects human body heat within a 5–8 meter range and 120° detection angle — automatically switches lights on when motion is detected

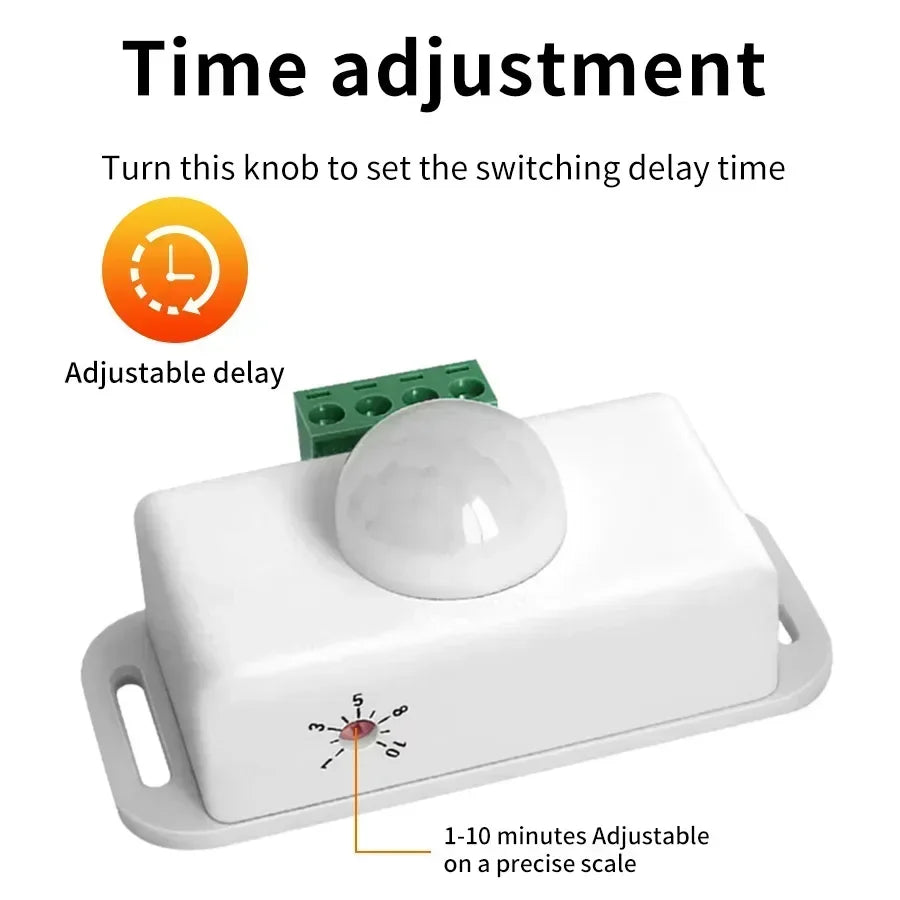

• Adjustable Delay Time: Set the lights-off delay from 1 to 10 minutes after motion stops — adjustable to suit your needs
• Works in Light & Dark: Operates 24 hours a day regardless of ambient light conditions — no daylight sensor override
• DC 12–24V Compatible: Works with standard DC 12V and DC 24V power supplies — ideal for LED strip lighting systems
• 6A Max Load Current: Supports up to 96W at 12V or 192W at 24V — suitable for a wide range of LED strips, bulbs, and lamps
• Stable, Flicker-Free Output: Smooth, stable switching with no flickering — gentle on LED strips and bulbs
• Easy Screw Mount Installation: Mounts with 2 screws (66mm hole spacing) at a recommended height of 2–3.5 meters

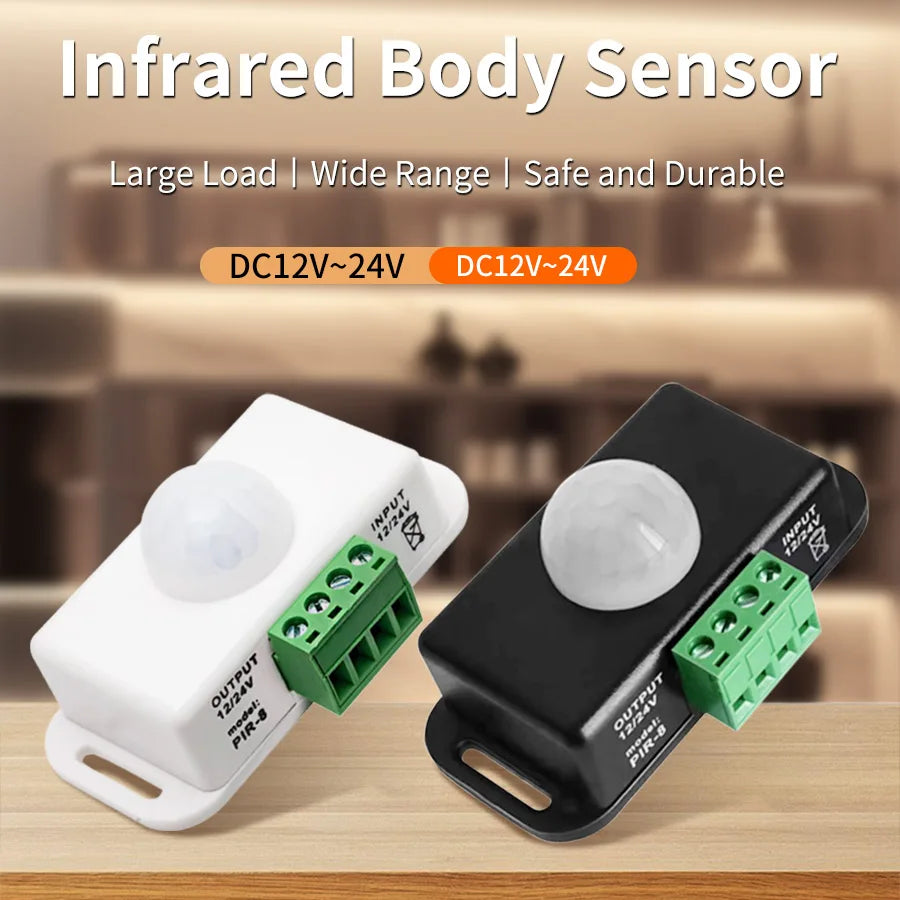

• Black or White: Available in two colors to match your installation environment
• Wide Temperature Range: Operates from -20°C to +60°C — suitable for indoor and sheltered outdoor use
• Versatile Compatibility: Works with LED strips, LED bulbs, incandescent lamps, energy-saving lamps, and fluorescent lamps

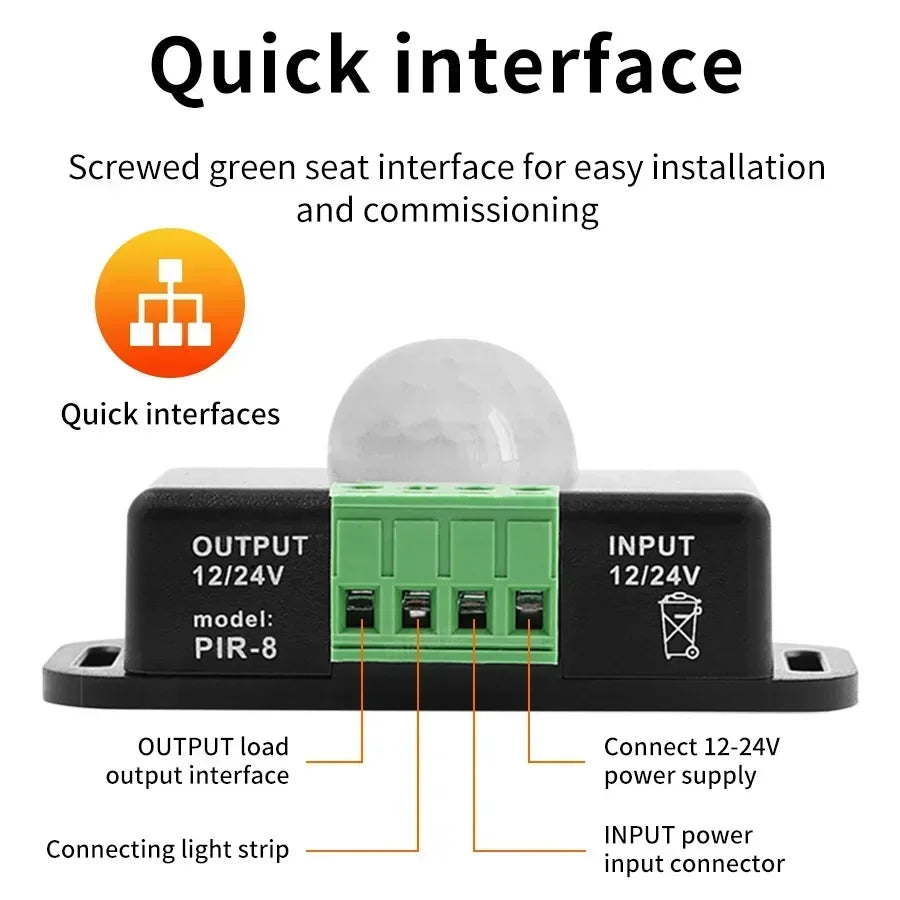

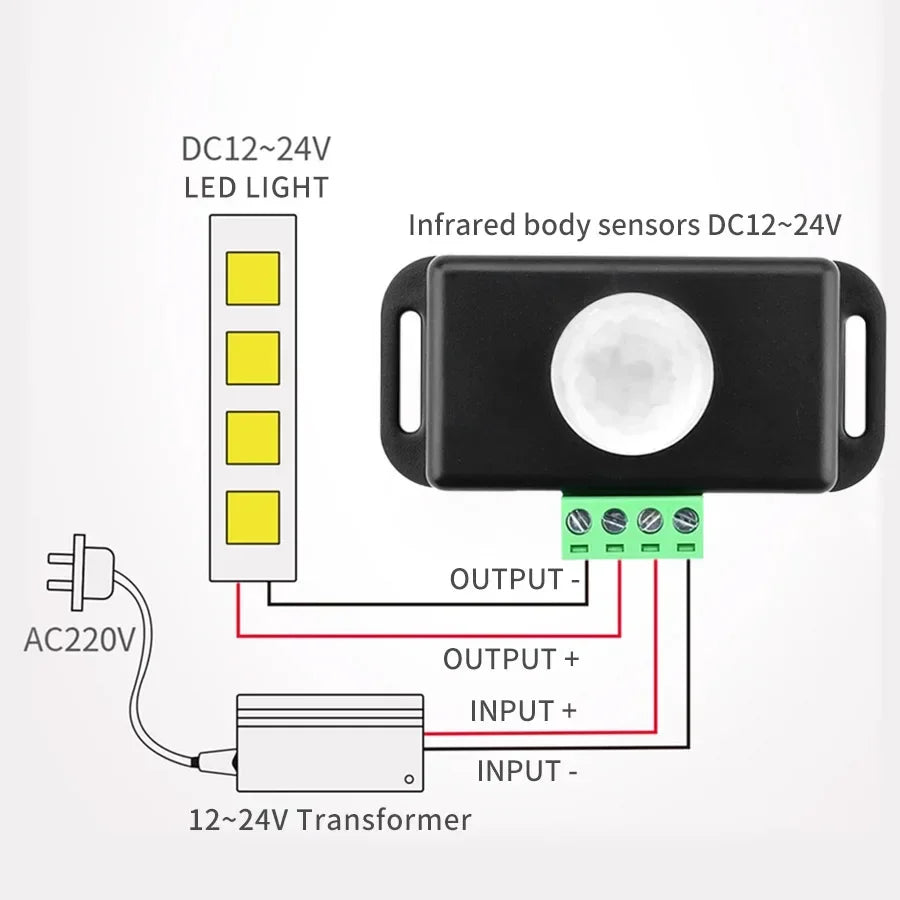

Wiring Instructions

• INPUT: Connect to DC 12–24V power supply
• OUTPUT: Connect to LED strip or lamp load

Specifications

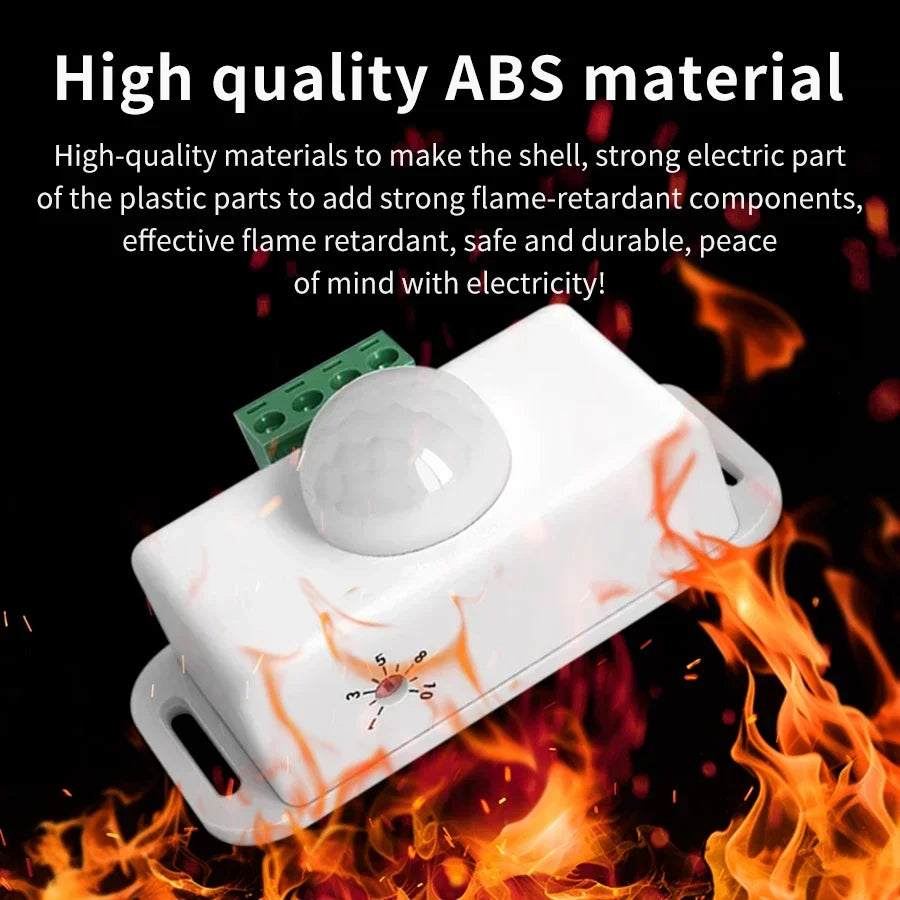

• Housing Material: ABS
• Conductor Material: Copper

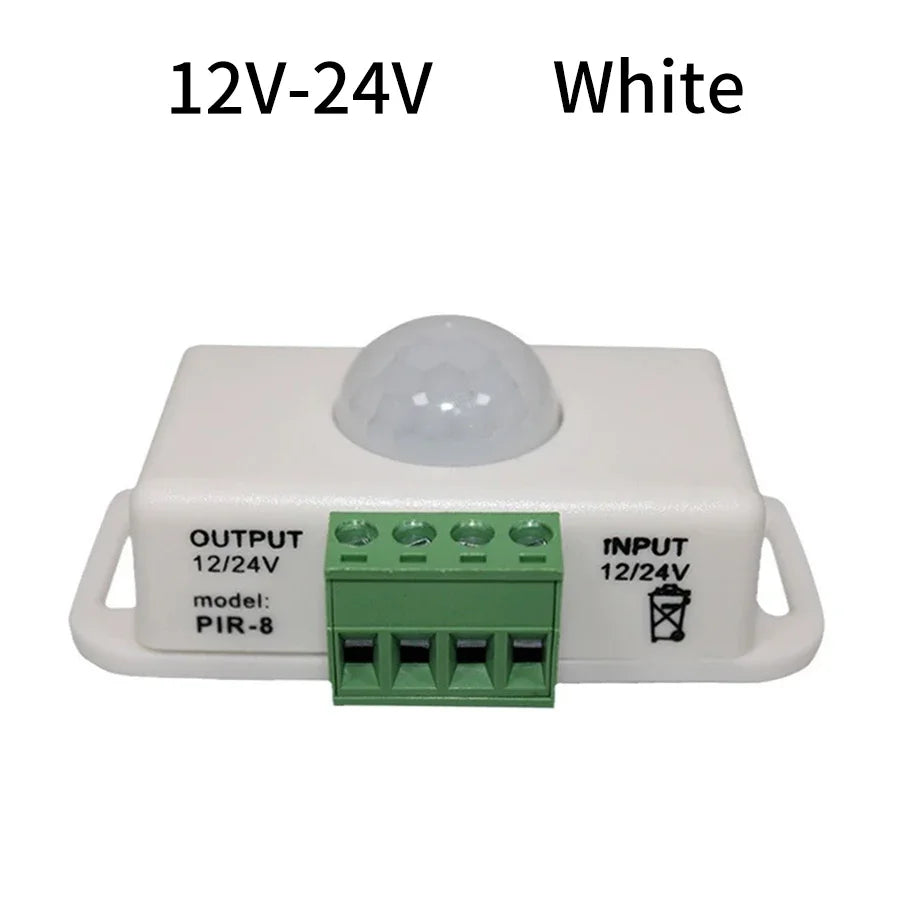

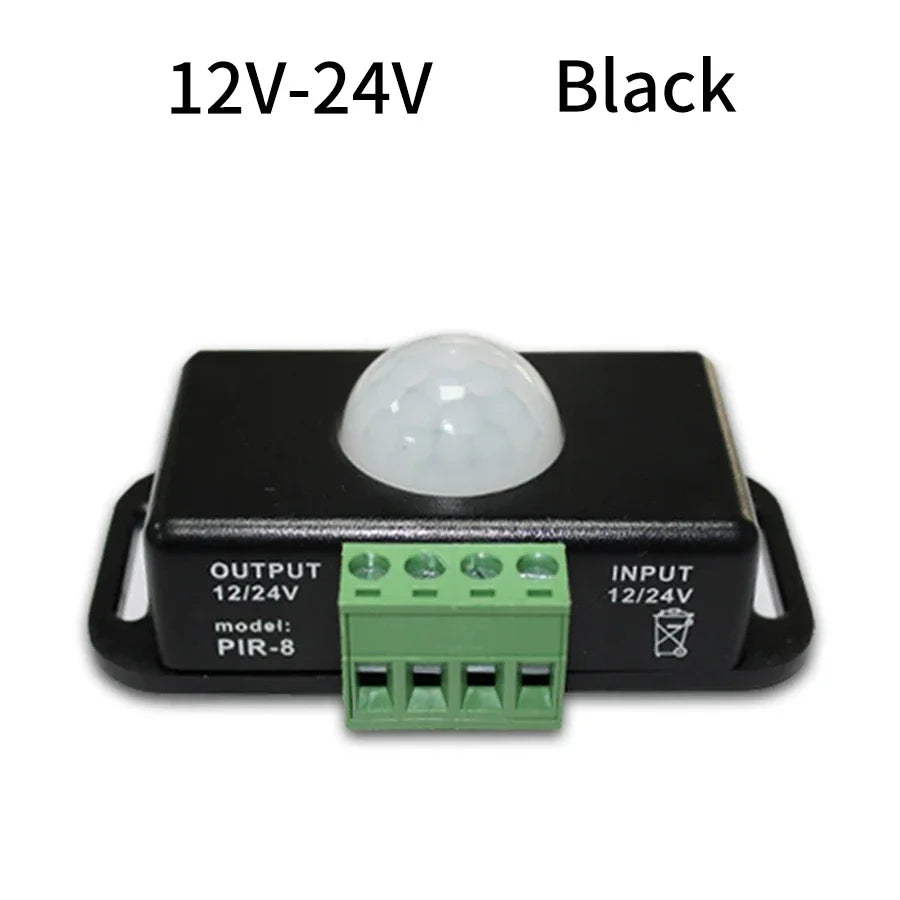

• Color: Black / White (select at checkout)
• Dimensions: 76 × 45 × 34 mm (2.99 × 1.77 × 1.34 inches)
• Working Voltage: DC 12V – DC 24V
• Max Load Current: 6A
• Output Power: 12V: <96W / 24V: <192W
• Detection Range: 5–8 meters
• Detection Angle: 120°
• Delay Time: 1–10 minutes (adjustable)
• Installation Height: 2–3.5 meters
• Operating Temperature: -20°C to +60°C
• Operating Humidity: ≤93% RH
• Static Power Consumption: <1W
• Mounting: Screw fixed, 2 holes (66mm spacing)
• Package Includes: 1 x PIR Motion Sensor Switch Module

Note: Colors may appear slightly different due to monitor settings and lighting. Professional electrical installation recommended.

Explore more lighting controls and electrical accessories in our store. For LED strip lighting installation guides, visit Super Bright LEDs’ LED Strip Installation Guide.
