DB15 DR15 15-Pin D-Sub 90° PCB Connector Male Female 5-Pack

DB15 DR15 3-Row 15-Pin D-Sub PCB Right-Angle Connectors – 5-Pack

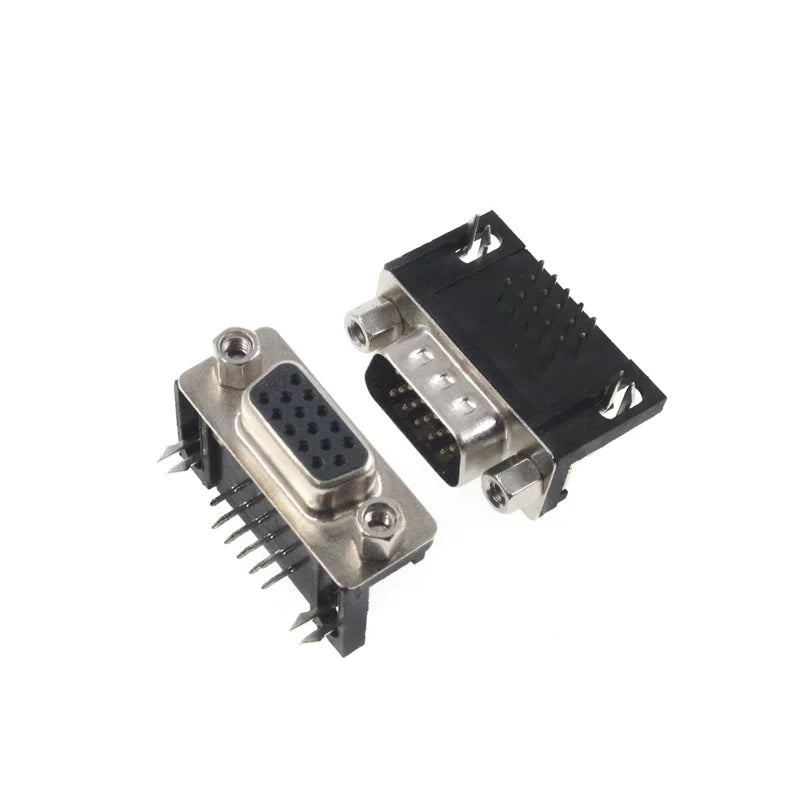

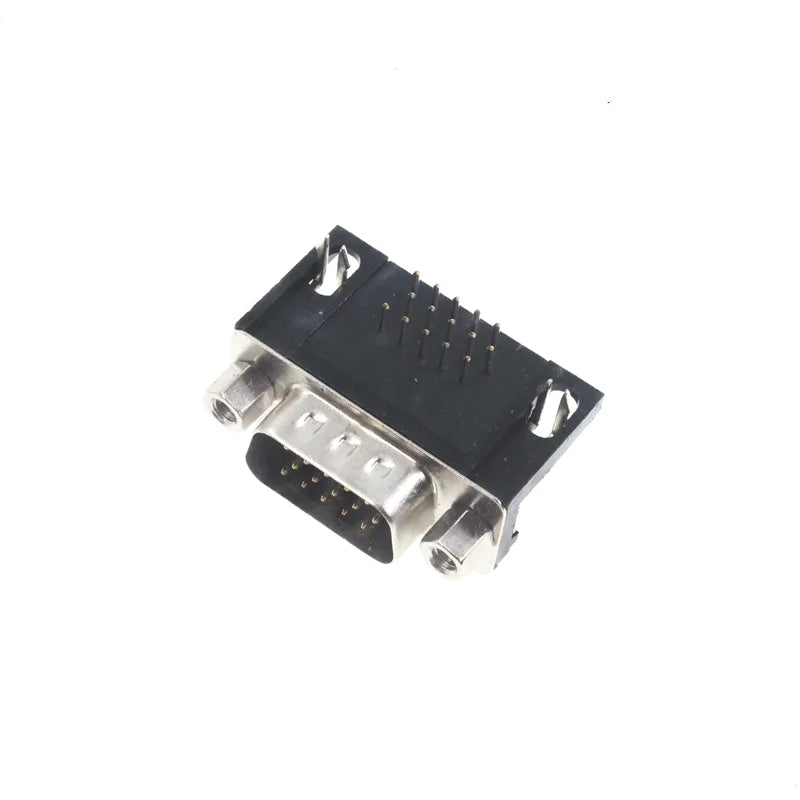

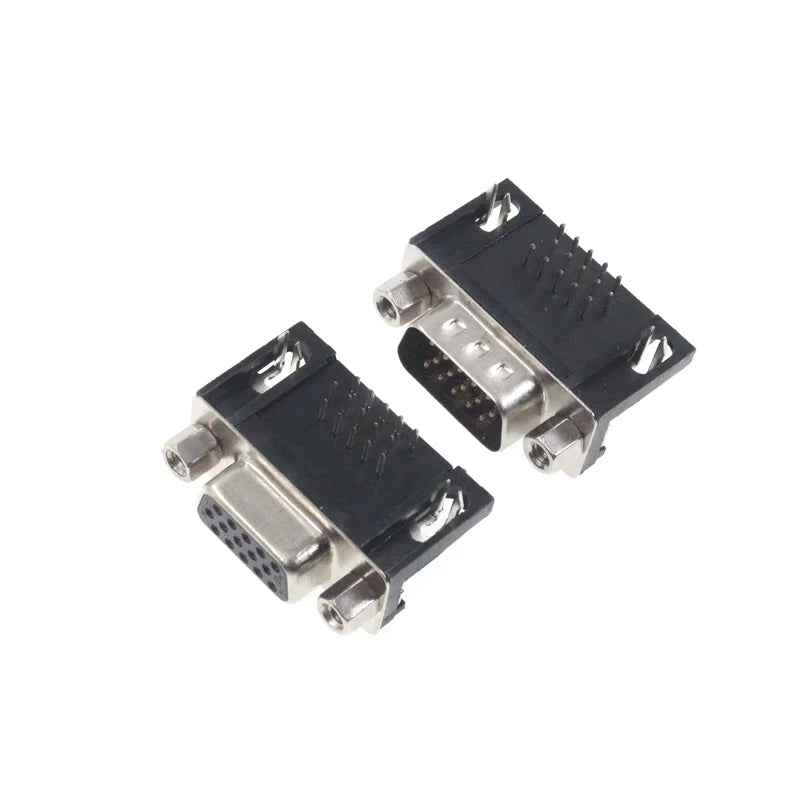

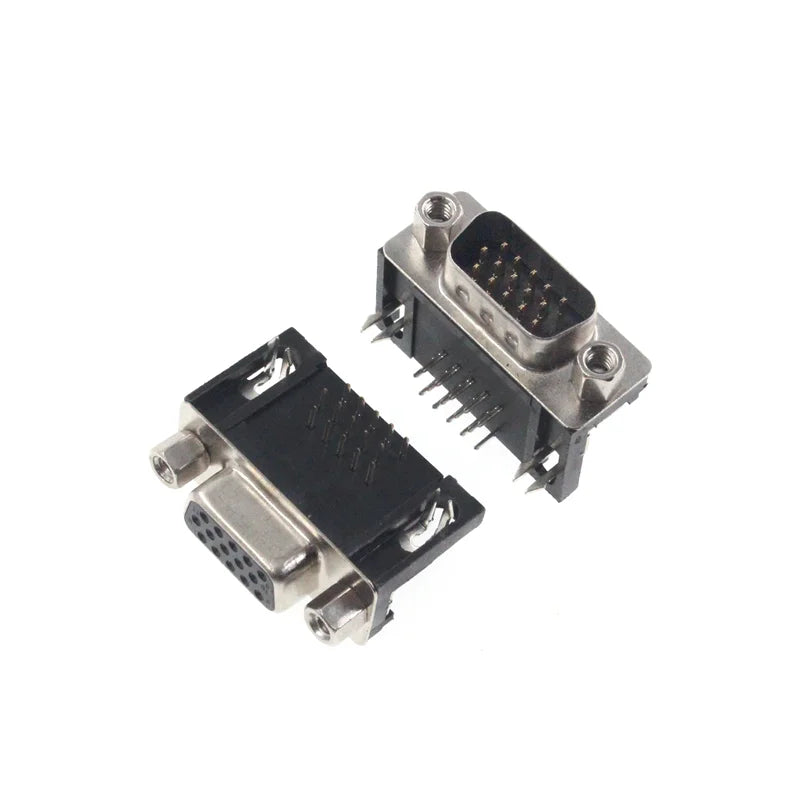

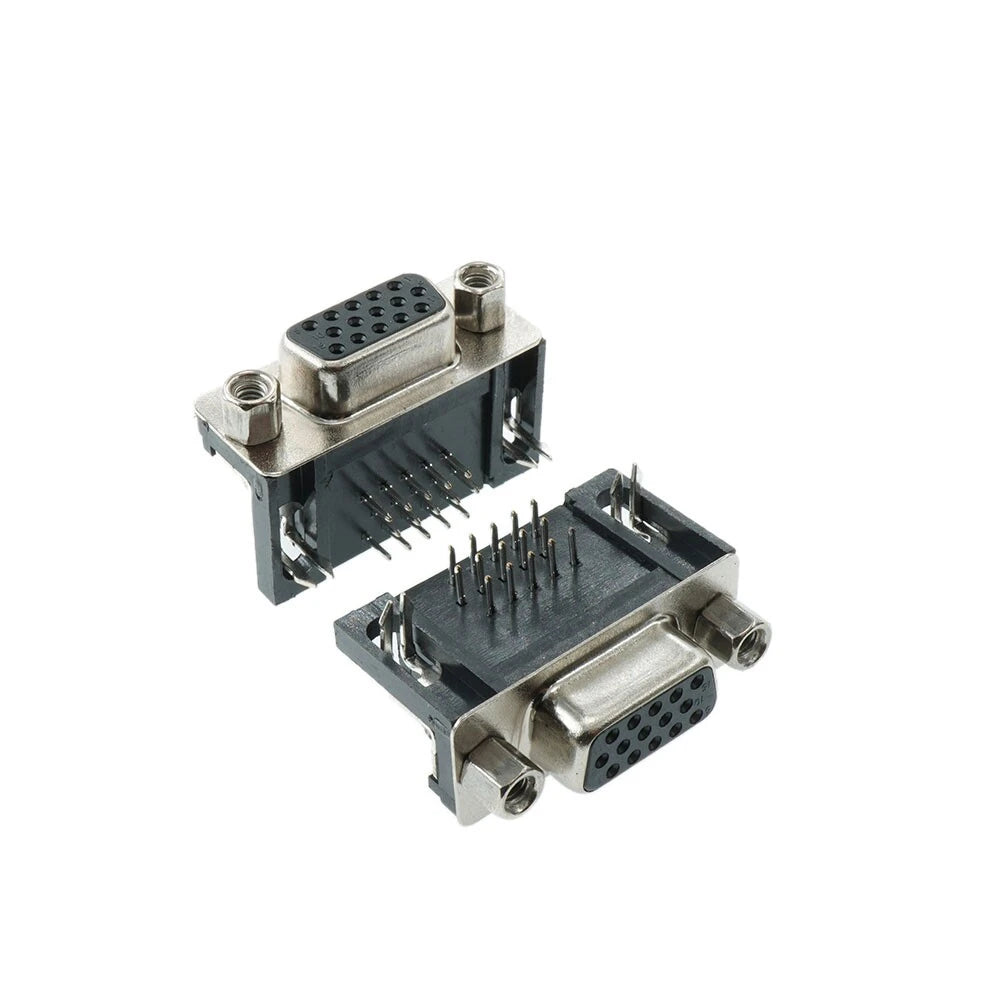

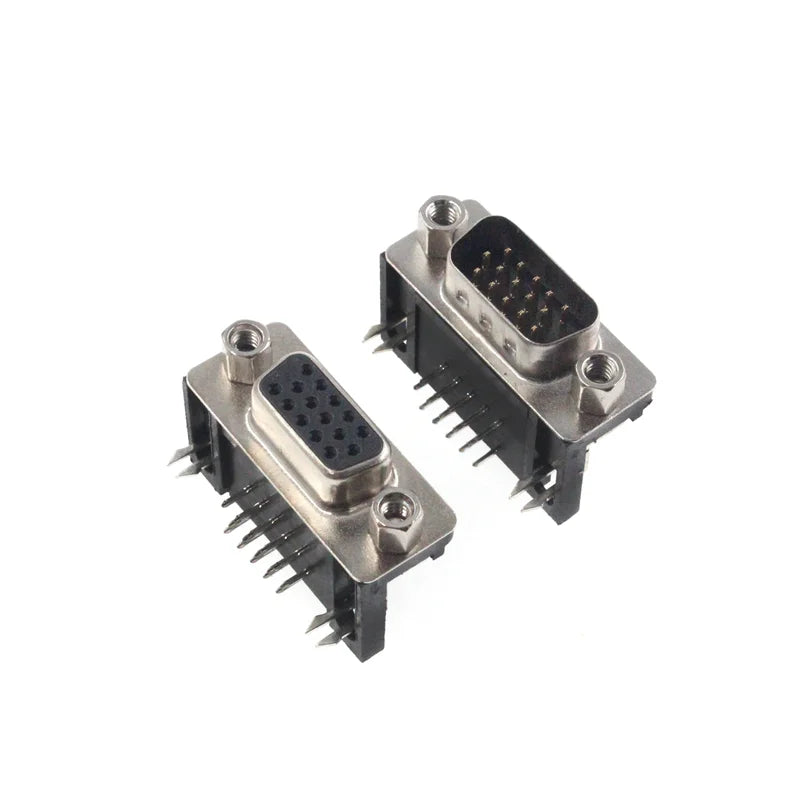

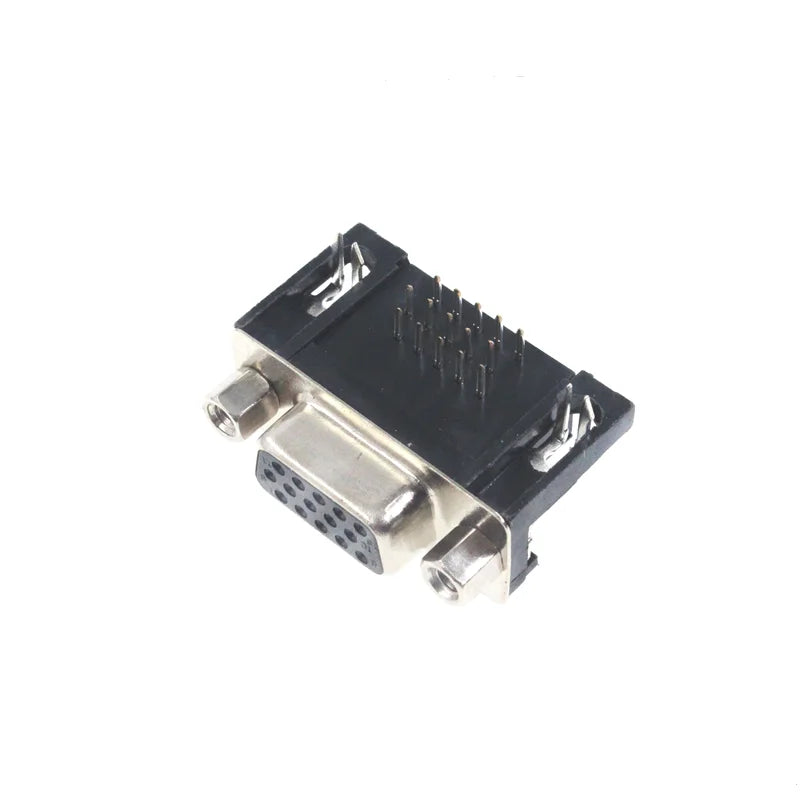

Upgrade your electronics projects with this versatile 5-piece set of DB15 / DR15 D-Sub 15-pin connectors. Featuring a 90-degree right-angle PCB mount design, these connectors are ideal for direct board soldering in tight enclosures, custom cable assemblies, VGA adapter builds, and parallel-port interfacing. The pack includes both male and female variants so you have everything you need for a complete connection solution.

Key Features

• 15-Pin, 3-Row D-Sub (DR15) configuration for reliable signal transmission
• 90° right-angle PCB mount – sits flush and saves vertical clearance inside enclosures
• 5 pieces per pack – mix of male and female connectors for complete project flexibility
• CE Certified – meets EU Low Voltage Directive (below 50 V AC / 75 V DC)
• Compatible with VGA, parallel port, and other D-Sub 15-pin applications
• Sturdy metal shell with reliable solder-cup through-hole pins
• No battery required; no wireless components
• No high-concern chemicals

Specifications

Common Applications

• VGA display adapter boards and breakout modules
• Parallel port interface cards and legacy device adapters
• Custom PCB enclosures requiring right-angle connectors
• Robotics, automation, and DIY electronics projects
• Replacement connectors for repair and prototyping work

Related Products You May Like

• "1% Better Every Day" Motivational Canvas Wall Art Print
• "Everything Is Figureoutable" Sage Green Quote Canvas Wall Art

For further reference on connector standards and electronic component safety, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What is the difference between a DB15 and a DR15 connector?

A: Both DB15 and DR15 refer to 15-pin D-Subminiature connectors with 3 rows of pins. "DB" historically denoted the shell size, while "DR" specifies the high-density 3-row variant. In common usage, both terms describe the same 15-pin, 3-row D-Sub connector used in VGA and parallel-port applications.

Q: Are these connectors compatible with standard VGA cables?

A: Yes. The DB15 DR15 3-row 15-pin D-Sub pinout matches the standard VGA connector specification, making these PCB connectors suitable for building or repairing VGA adapter boards and breakout circuits.

Q: What does the 90-degree right-angle mount mean?

A: A 90-degree right-angle PCB mount means the connector body lies parallel to the circuit board surface, with pins soldering horizontally into the PCB. This orientation is ideal when the connector needs to face the side of an enclosure rather than the top, saving vertical space inside tight cases.

Q: How many connectors are in the pack, and what types are included?

A: Each order includes 5 pieces total, covering both male and female DB15 DR15 connectors, giving you a complete set for both ends of a custom cable or adapter assembly.
