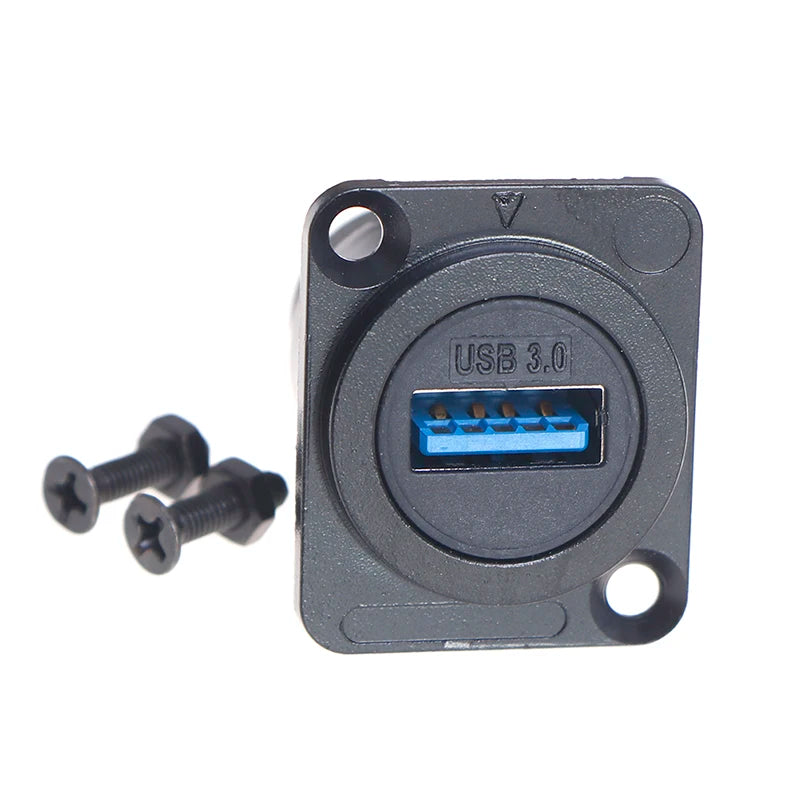

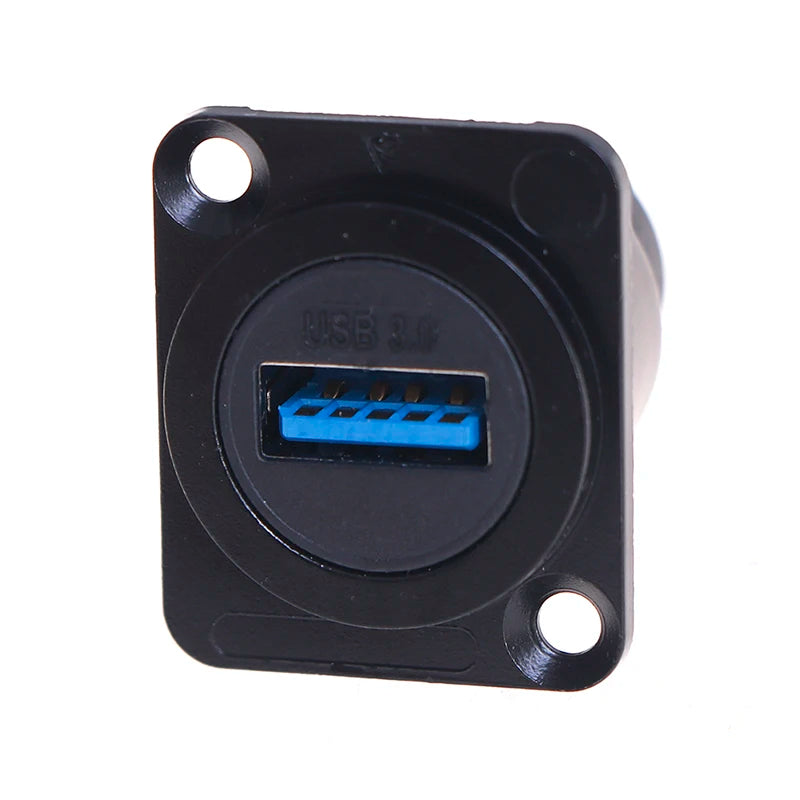

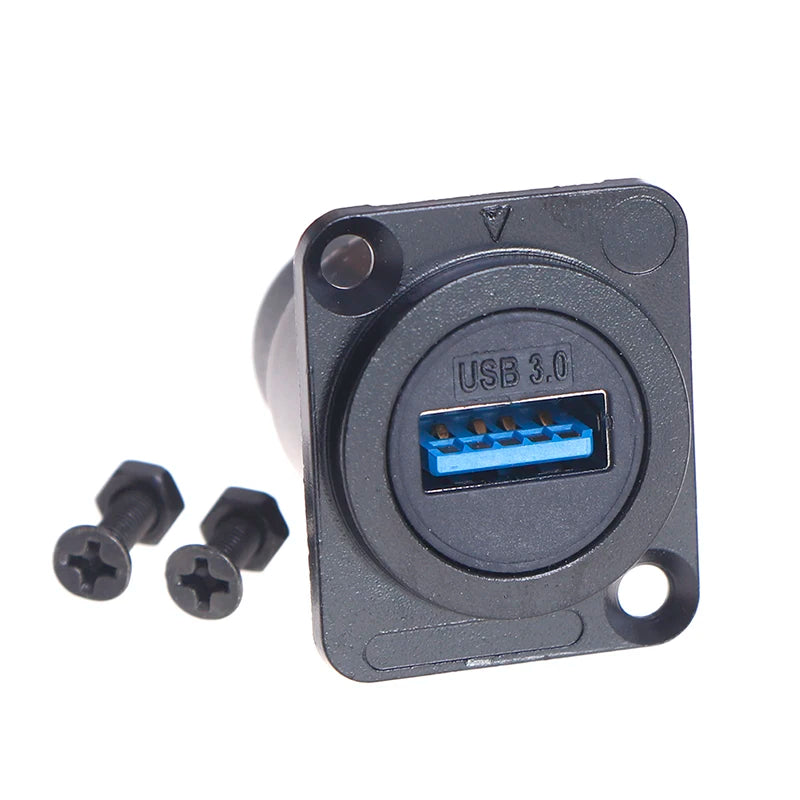

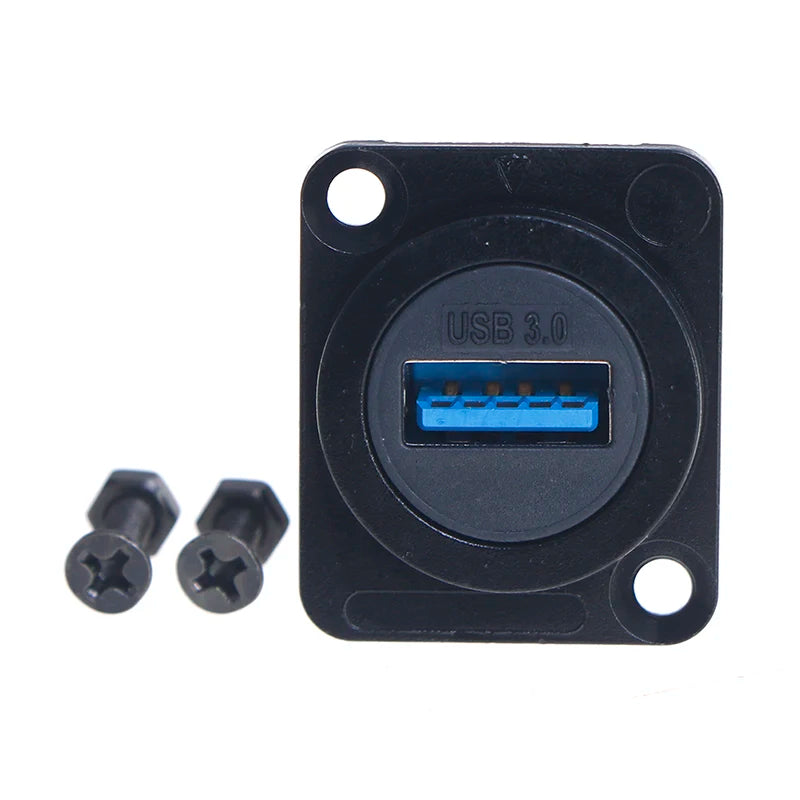

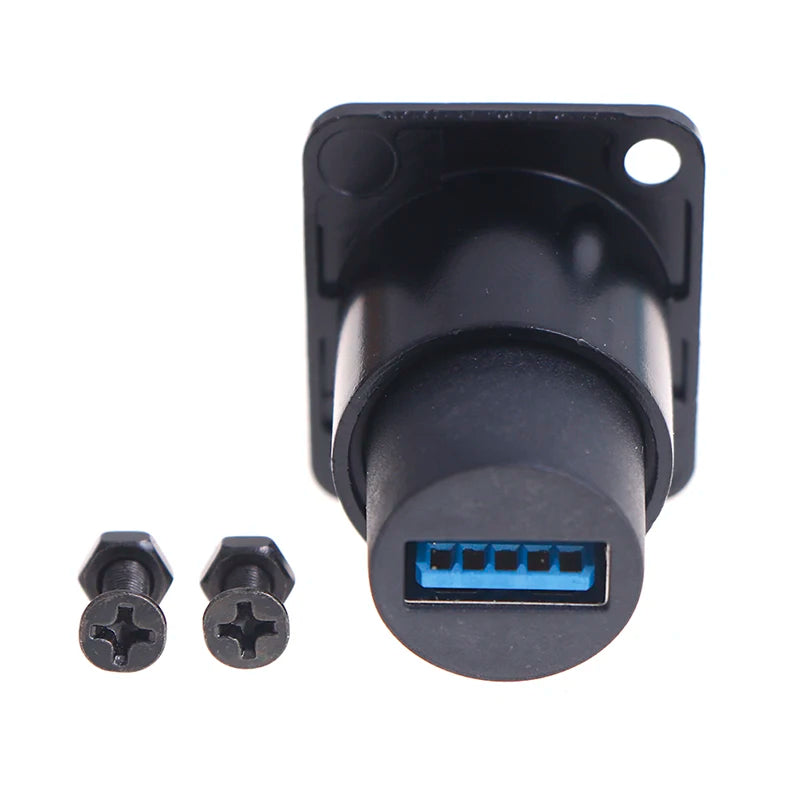

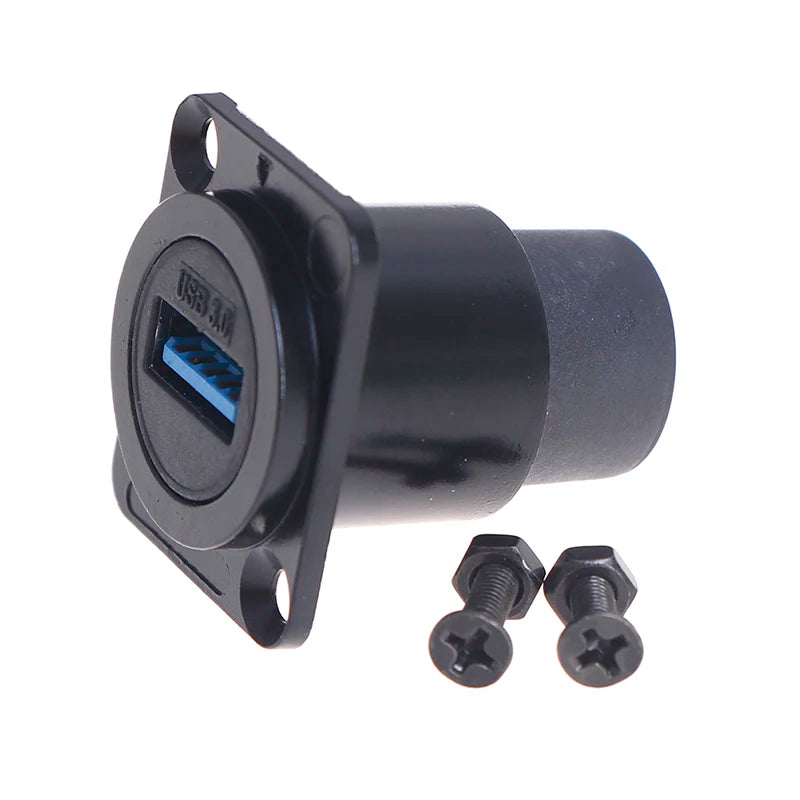

D-Type USB 3.0 Panel Mount Double Pass Metal Connector

D-Type USB 3.0 Panel Mount Double Pass Metal Socket Connector

Upgrade your electronics builds, enclosures, and control panels with this rugged D-Type USB 3.0 Double Pass-Through Connector. Designed for flush panel mounting, this compact metal socket lets you route USB 3.0 signals cleanly through chassis walls, project boxes, and custom enclosures — no messy cable routing required.

Key Features

• USB 3.0 Compatible: Supports high-speed data transfer — ideal for panel-mount installations in DIY builds, industrial enclosures, and media setups.
• Durable PVC + Metal Construction: Robust materials ensure long-lasting performance even in demanding environments.
• D-Type Panel Mount Design: Standard D-type form factor fits common panel cutouts for quick, secure installation.
• Double Pass-Through: Female-to-female design allows seamless cable pass-through from outside to inside an enclosure.
• Low Voltage Rated: Operates below 50V AC or 75V DC — safe for standard USB applications (24V rated).
• Compact Size: Approximately 31 × 26 × 32.8 mm — fits neatly into tight spaces without bulk.
• Color: Black — blends cleanly into most panels and enclosures.
• No Battery Required: Purely passive connector — no power source needed.

Specifications

• Interface: USB 3.0
• Type: D-Type Double Pass-Through Panel Mount Socket
• Material: PVC + Metal
• Color: Black
• Dimensions: ~31 × 26 × 32.8 mm
• Operating Voltage: 24V (Low voltage: below 50V AC or 75V DC)
• Package Includes: 1 × Panel Mount USB 3.0 Connector
• Country of Origin: Made in Mainland China

Perfect For

• DIY electronics enclosures and project boxes
• Raspberry Pi, Arduino, and maker board setups
• Rackmount or chassis panel installations
• Home theater and AV rack builds
• Industrial control panel integration

Related Products You May Like

• "1% Better Every Day" Motivational Canvas Poster | Wall Art

For guidance on safe electrical connector usage and low-voltage standards, visit the U.S. Consumer Product Safety Commission (CPSC) and the National Institute of Standards and Technology (NIST) for relevant electrical standards and safety information.

Frequently Asked Questions

Q: Is this USB 3.0 panel mount connector compatible with USB 2.0 devices?

A: Yes — USB 3.0 connectors are backward compatible with USB 2.0 devices. You can use this D-type panel mount socket with both USB 2.0 and USB 3.0 cables and devices, though data speeds will be limited to the lower USB 2.0 standard when used with USB 2.0 hardware.

Q: What panel cutout size is required for installation?

A: The connector measures approximately 31 × 26 × 32.8 mm. It follows the standard D-type form factor, so it fits common D-sub or rectangular panel cutouts of similar dimensions. We recommend measuring your panel opening before installation to ensure a snug fit.

Q: Does this connector support data transfer only, or also power delivery?

A: This is a passive pass-through connector supporting both data transfer and standard USB power delivery (up to the USB 3.0 specification). It is rated for low-voltage use (below 50V AC / 75V DC), making it suitable for standard USB applications in enclosures and panels.

Q: What is included in the package?

A: Each package includes 1 × D-Type USB 3.0 Double Pass-Through Panel Mount Metal Socket Connector. No additional hardware or tools are included.
