Copper Busbar Terminal Block 63A – MCB DZ47 Circuit Breaker Pin
Copper Busbar Terminal Block 63A – MCB DZ47 Circuit Breaker Pin
Couldn't load pickup availability

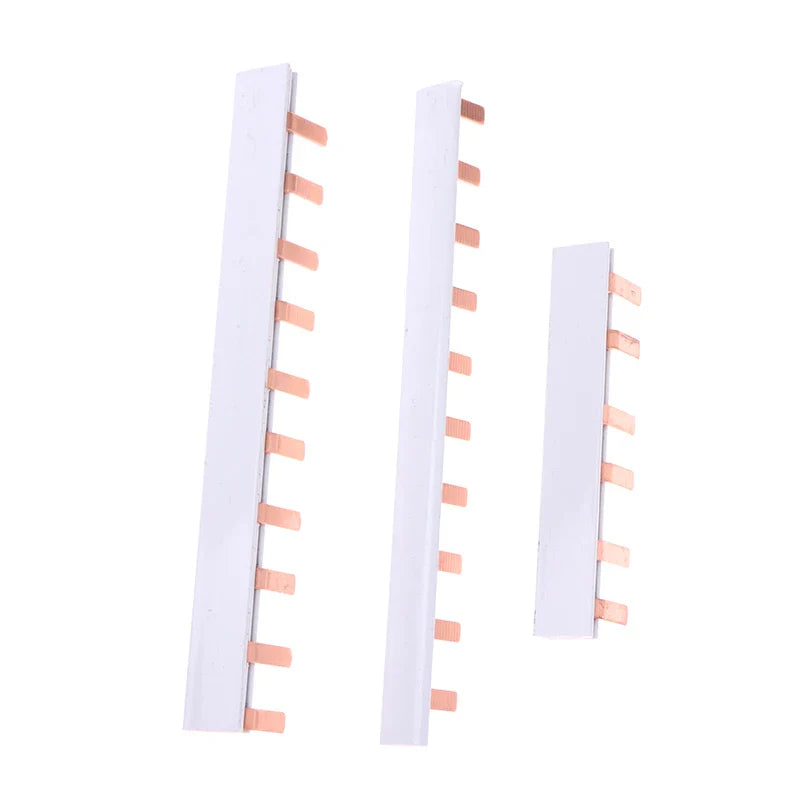

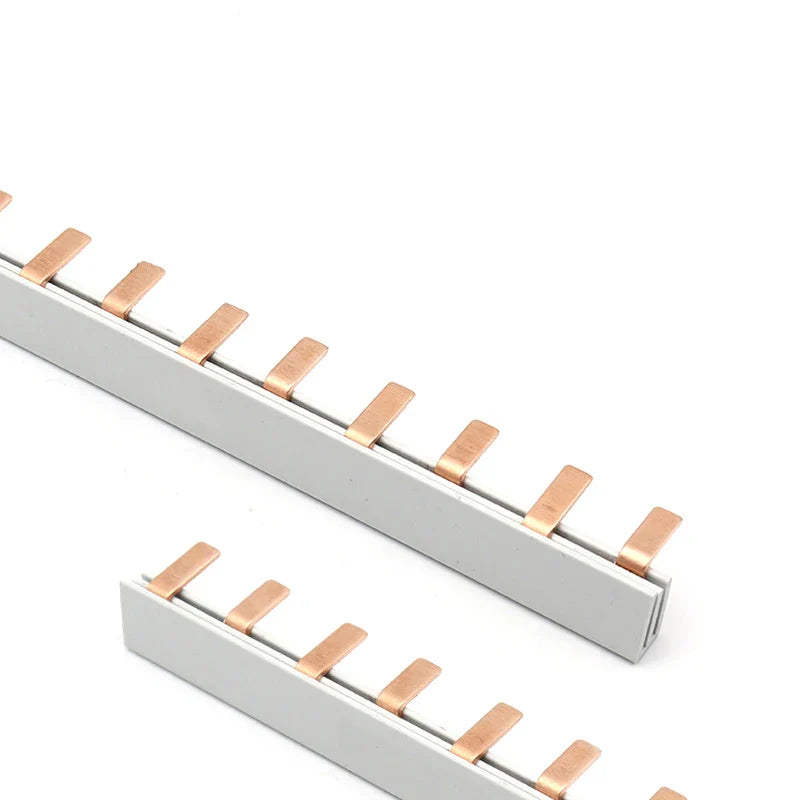

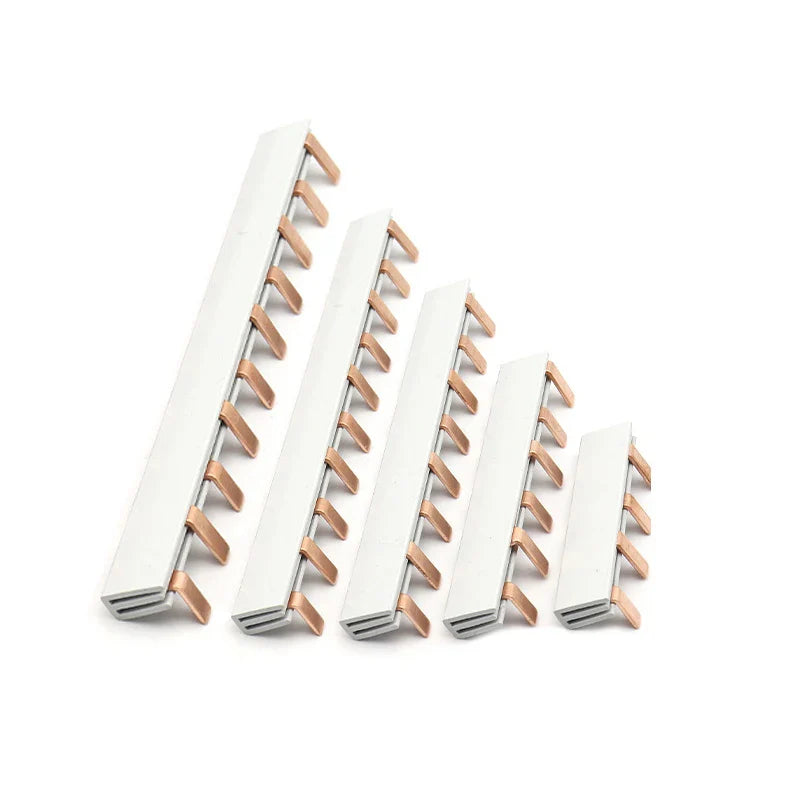

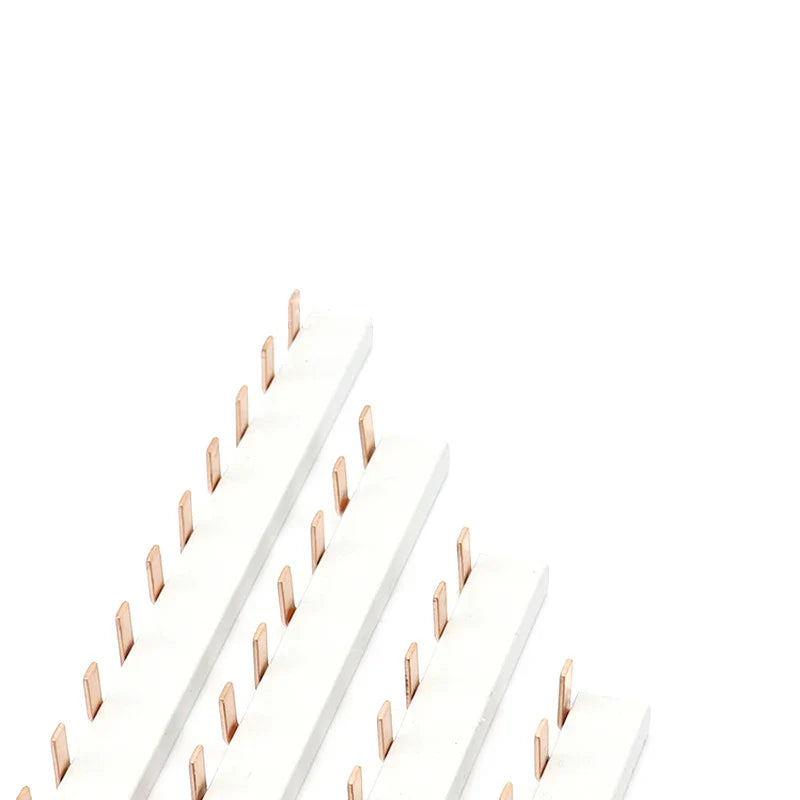

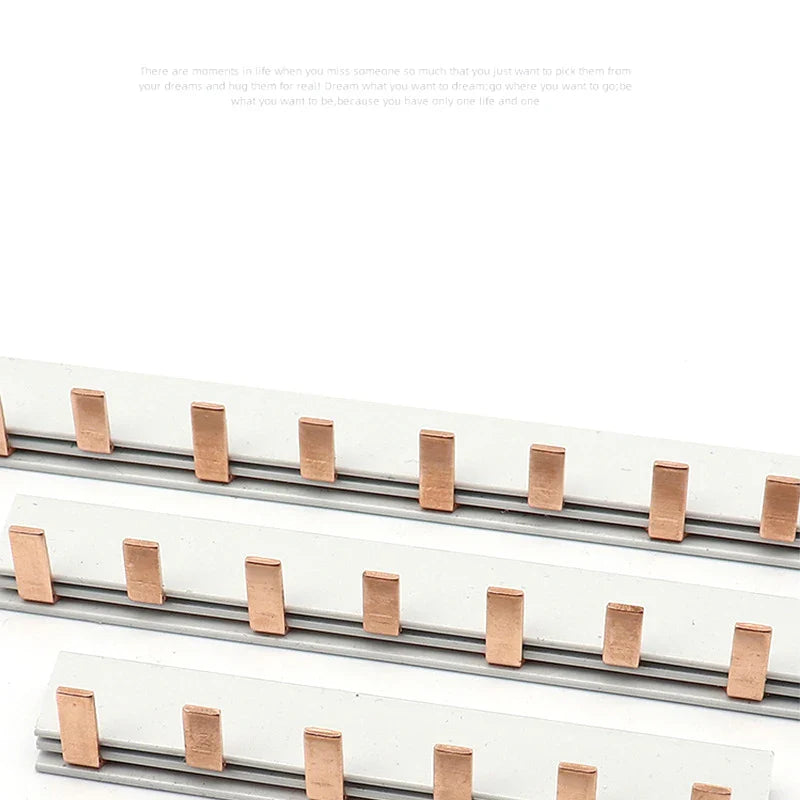

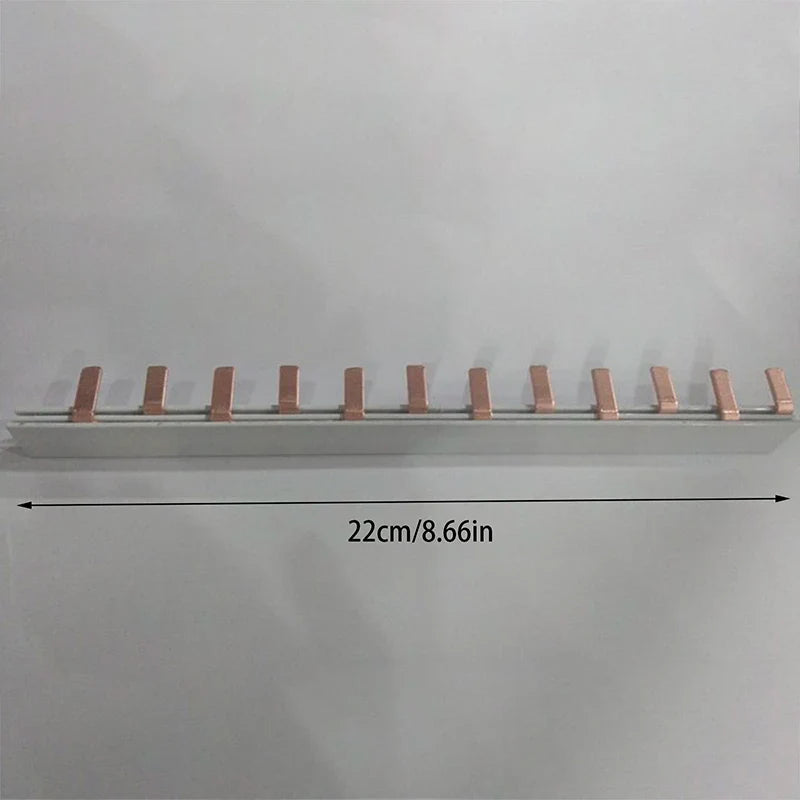

Copper Pin-Type Busbar Terminal Block – 1/2P, 63A, MCB DZ47 Compatible
Upgrade your electrical panel with this solid copper pin-type busbar terminal block, engineered for reliable connectivity in MCB DZ47 air switch and circuit breaker installations. Whether you're working on a home DIY electrical project or a professional panel setup, this compact connector delivers stable, low-resistance current distribution up to 63A.
Key Features
- Pure Copper Construction: High-conductivity copper bar ensures efficient current transfer and long-term durability.
- 63A Rated Capacity: Handles up to 63 amps, suitable for standard MCB and DZ47 air switch configurations.
- Pin-Type Design: Easy snap-in installation directly onto compatible busbar rails — no special tools required.

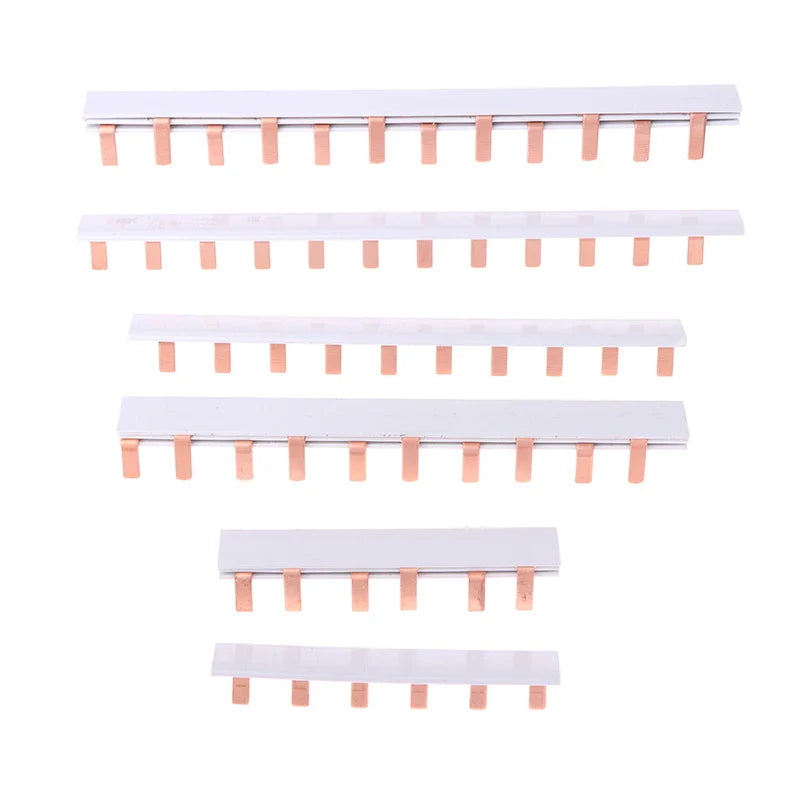

- 1P / 2P Configuration: Available in single-pole and double-pole variants to suit your circuit layout needs.
- Gold-Tone Finish: Corrosion-resistant surface treatment helps maintain conductivity over time.
- Compact Form Factor: Space-saving design fits neatly inside standard distribution boards and enclosures.
- Home DIY & Professional Use: Ideal for residential distribution boards, workshop panels, and light commercial switchgear.

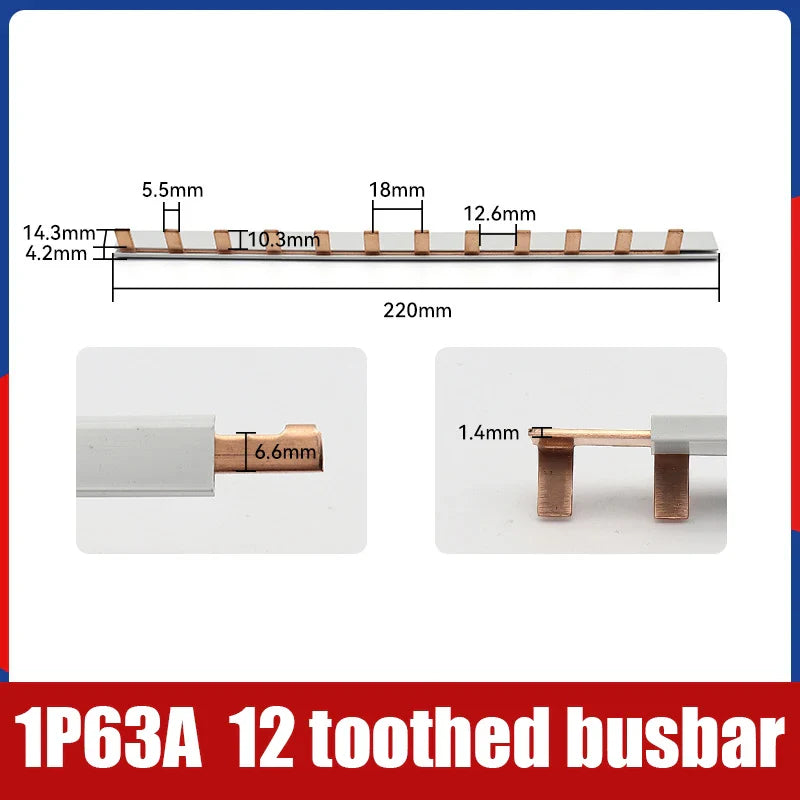

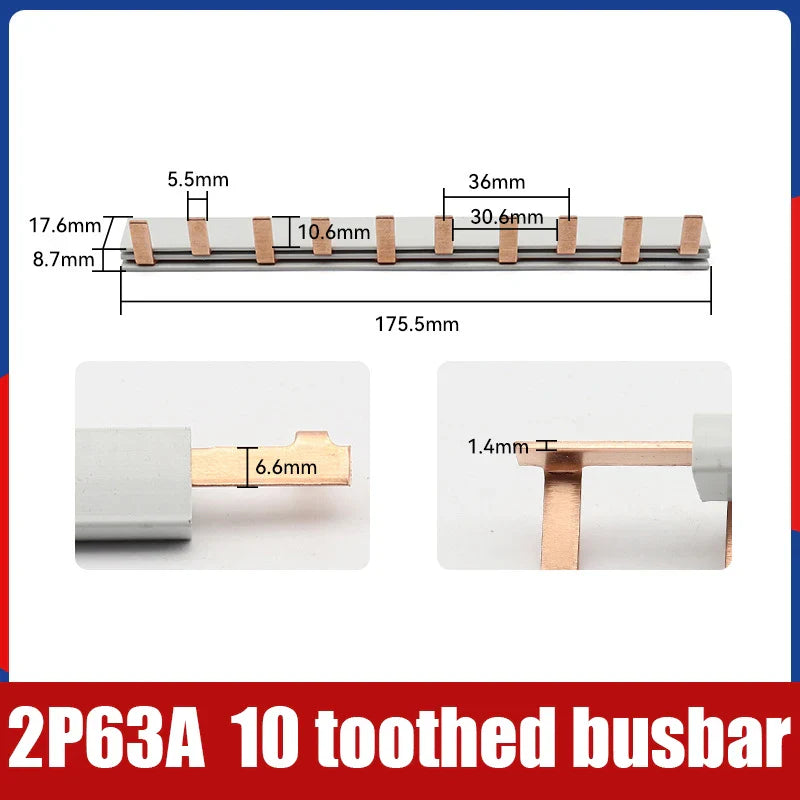

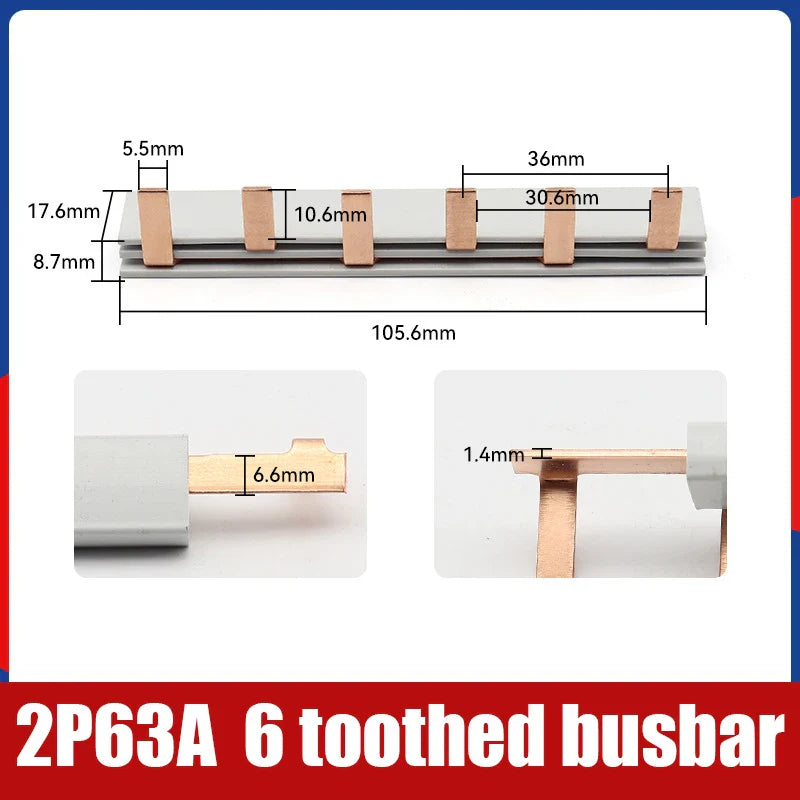

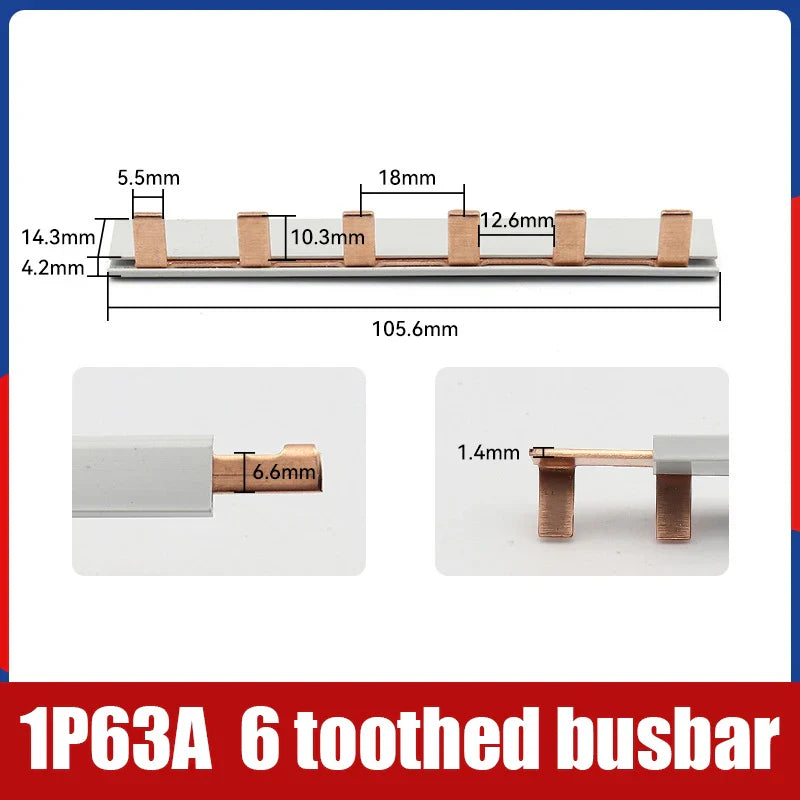

Specifications
| Material | Copper (Gold-tone finish) |
| Type | Pin-Type Busbar / Terminal Block |
| Poles | 1P / 2P (Single or Double Pole) |
| Current Rating | 63A |
| Compatible With | MCB, DZ47 Air Switch, Standard Circuit Breakers |
| Package Includes | 1 × Copper Busbar Terminal Block |
| Country of Origin | Made in China |
Installation Notes
- Please allow 5–10mm variance due to manual measurement.
- Product images are for reference only; actual size details are provided in the specifications above.
- Colours may vary slightly between monitors and actual product.
- Always ensure mains power is fully isolated before handling or installing any electrical components.
Related Products You May Like
- 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler
- 10-Pack 12V 3-Pin PC Fan Extension Cable 26cm – CPU GPU Cooler
For more information on electrical safety standards and safe wiring practices, visit the OSHA Electrical Safety Resource.
Frequently Asked Questions
Q: What circuit breakers is this copper busbar terminal block compatible with?
A: This pin-type busbar terminal block is designed specifically for use with MCB (Miniature Circuit Breaker) and DZ47-series air switches. It is compatible with standard 1P and 2P circuit breaker configurations rated up to 63A, making it suitable for most residential and light commercial distribution boards.
Q: Is this terminal block suitable for DIY home electrical panel work?
A: Yes — this busbar connector is designed with home DIY use in mind. Its pin-type snap-in design makes installation straightforward on compatible DIN rail panels. However, always ensure the mains supply is fully isolated before working on any electrical installation, and consult a licensed electrician if you are unsure about any aspect of your wiring.
Q: Why is copper used for the busbar rather than aluminium or other metals?
A: Copper is the preferred material for busbars and terminal connectors because of its excellent electrical conductivity, low resistance, and long-term reliability. The gold-tone finish on this busbar also helps resist oxidation, maintaining a clean, low-resistance contact surface over time.
Q: How many pieces are included in the package?
A: Each order includes 1 copper pin-type busbar terminal block. If you require multiple units for a larger panel installation, simply adjust the quantity at checkout.
