CH5.08mm Socket Connectors Straight & Right Angle 2–10 Pin 10pcs

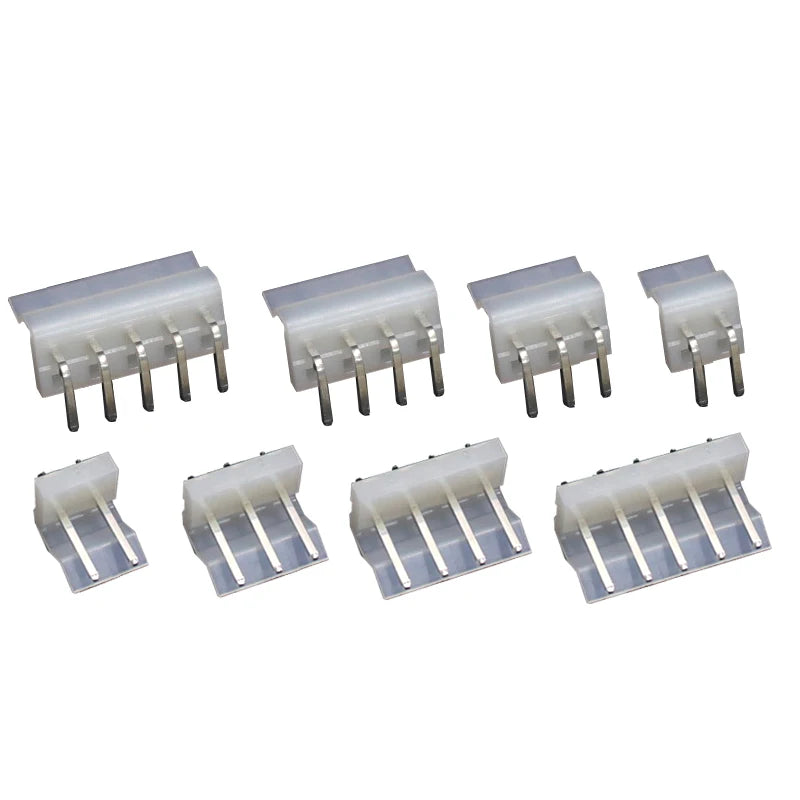

CH5.08mm Straight & Right Angle Needle Socket Connectors – 10-Piece Set

Keep your electronics projects wired up cleanly and securely with this versatile 10-piece set of CH 5.08mm pitch socket connectors. Available in both straight and right-angle needle configurations and in pin counts ranging from 2P to 10P, these connectors are an essential addition to any electronics workbench, DIY project kit, or professional assembly setup.

Whether you're building custom PCBs, wiring control panels, prototyping circuits, or carrying out board-level repairs, the 5.08mm pitch spacing provides reliable electrical contact with enough physical clearance for secure, vibration-resistant connections at low voltages.

Key Features

• Model: CH5.08 (5.08mm pitch)
• Pack Size: 10 pieces per order
• Available Pin Counts: 2P, 3P, 4P, 5P, 6P, 7P, 8P, 9P, 10P

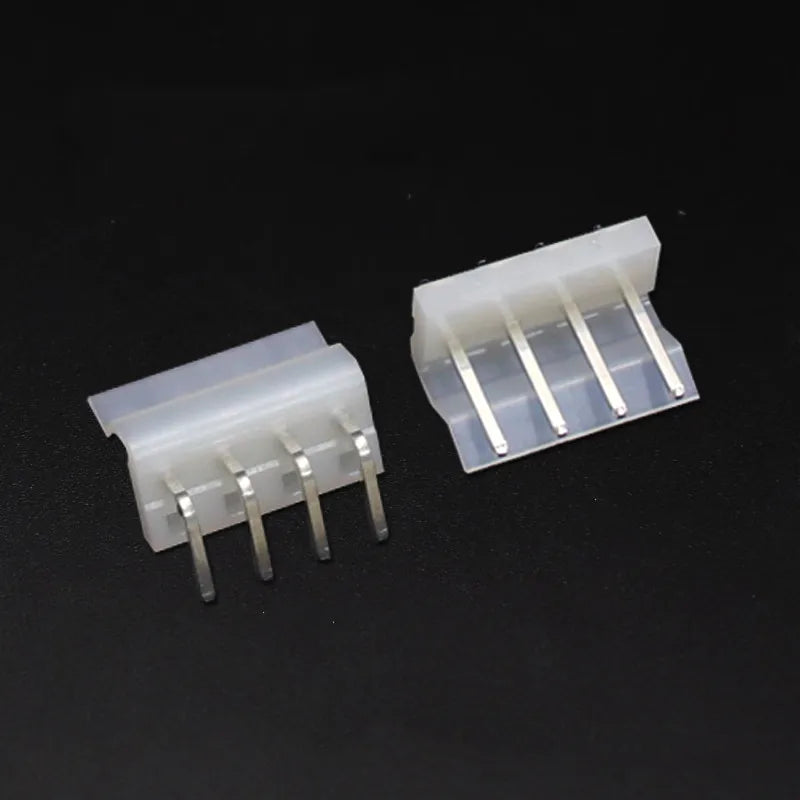

• Connector Styles: Straight needle and right-angle needle socket
• Operating Voltage: Low voltage — below 50V AC or 75V DC (EU LVD compliant)
• Certification: CE certified
• High-Concern Chemicals: None
• Battery Included: No
• Wireless: No

Why Choose CH5.08 Socket Connectors?

The 5.08mm pitch is one of the most widely used spacings in through-hole and panel-mount connector systems. The generous pin spacing makes manual soldering straightforward, reduces the risk of solder bridges, and ensures solid mechanical retention. The right-angle variant is ideal where horizontal wire routing is needed or board space is at a premium, while the straight type suits vertical installations and standard top-exit cabling.

Typical Applications

• PCB and breadboard prototyping
• Control panel and industrial wiring harnesses
• 3D printer electronics and RepRap builds
• Home automation and smart-home wiring
• LED driver and power distribution boards
• Robotics and maker/DIY projects

Made in Mainland China.

Related Products You May Like

• Looking to take on a hands-on build project? Check out our "1% Better Every Day" Motivational Canvas Wall Art Print for workshop inspiration.
• Explore more tools and components in our "Everything Is Figureoutable" Sage Green Quote Canvas Wall Art — a great addition to any maker space.

For more information on electrical connector safety standards, visit the U.S. Consumer Product Safety Commission (CPSC).

Learn more: Twist-on wire connector

Frequently Asked Questions

Q: What does the "5.08mm pitch" mean for CH5.08 socket connectors?

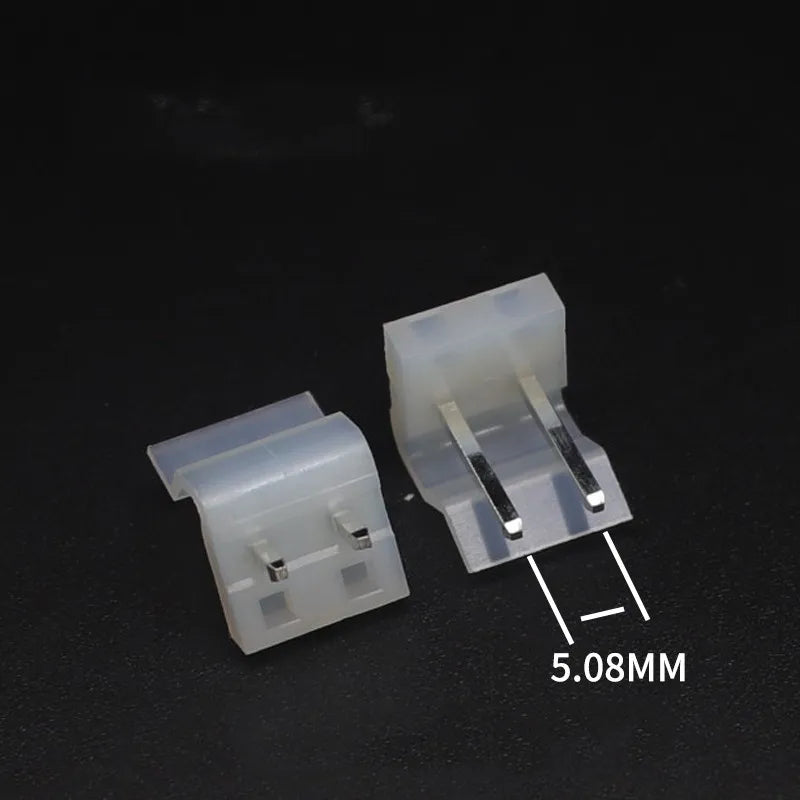

A: The pitch refers to the center-to-center distance between adjacent pins. A 5.08mm pitch is a widely adopted standard in through-hole and terminal-block connectors, making these CH5.08 socket connectors compatible with many off-the-shelf PCBs, headers, and mating plugs available from common electronics suppliers.

Q: What is the difference between the straight and right-angle versions?

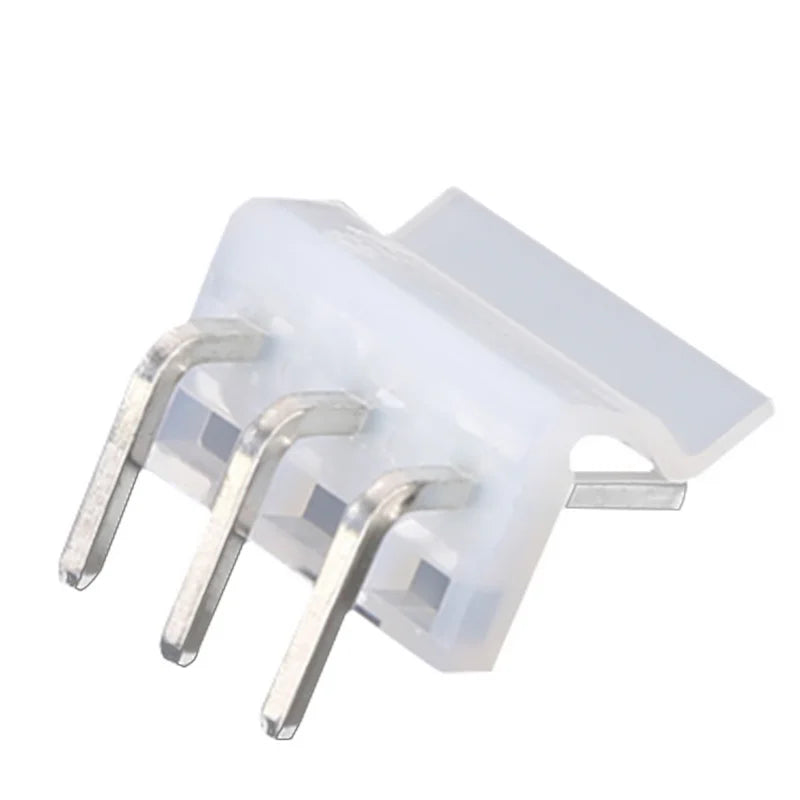

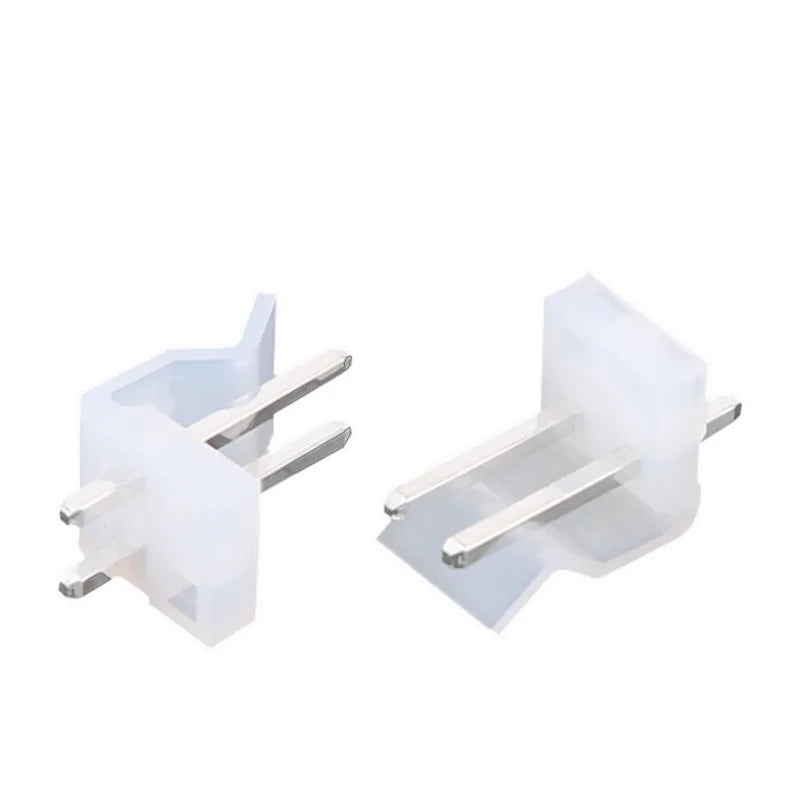

A: The straight (vertical) needle socket connector positions the pins perpendicular to the PCB surface, ideal for top-exit wire routing. The right-angle version angles the pins parallel to the board, perfect for side-exit cable runs or installations where vertical clearance is limited. Both offer the same 5.08mm pitch and pin count options.

Q: Are these connectors suitable for low-voltage electronics projects?

A: Yes. These CH5.08 connectors are CE certified and rated for low voltage applications — below 50V AC or 75V DC — making them well-suited for PCB prototyping, 3D printer electronics, LED boards, home automation wiring, robotics, and similar low-voltage DIY or professional electronics projects.

Q: How many pieces and pin configurations are included per order?

A: Each order contains 10 pieces. You can select your desired pin count (2P through 10P) and orientation (straight or right-angle) from the available variants, allowing you to stock exactly what your project requires.
