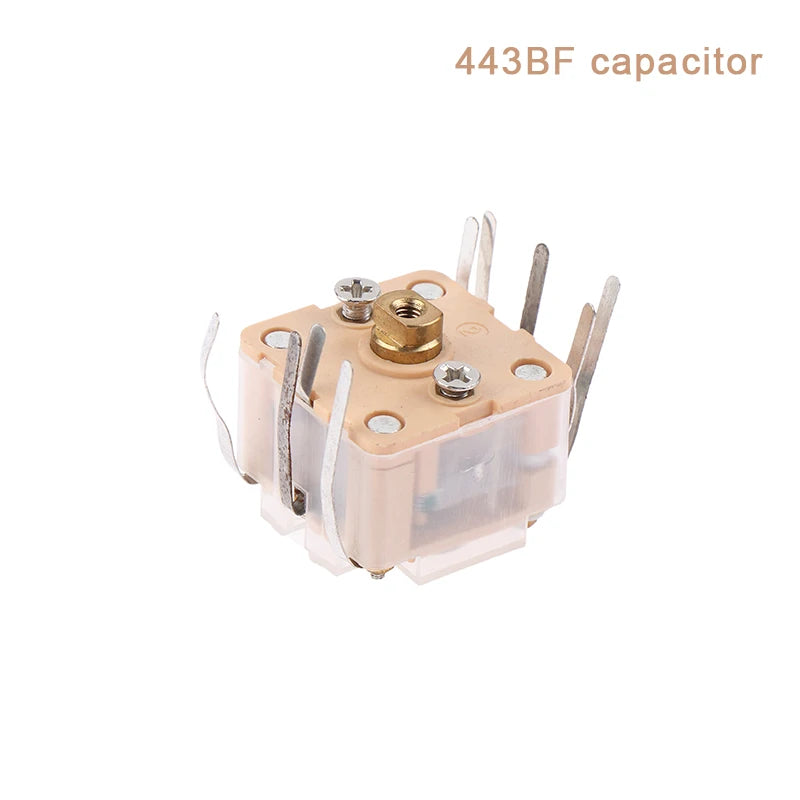

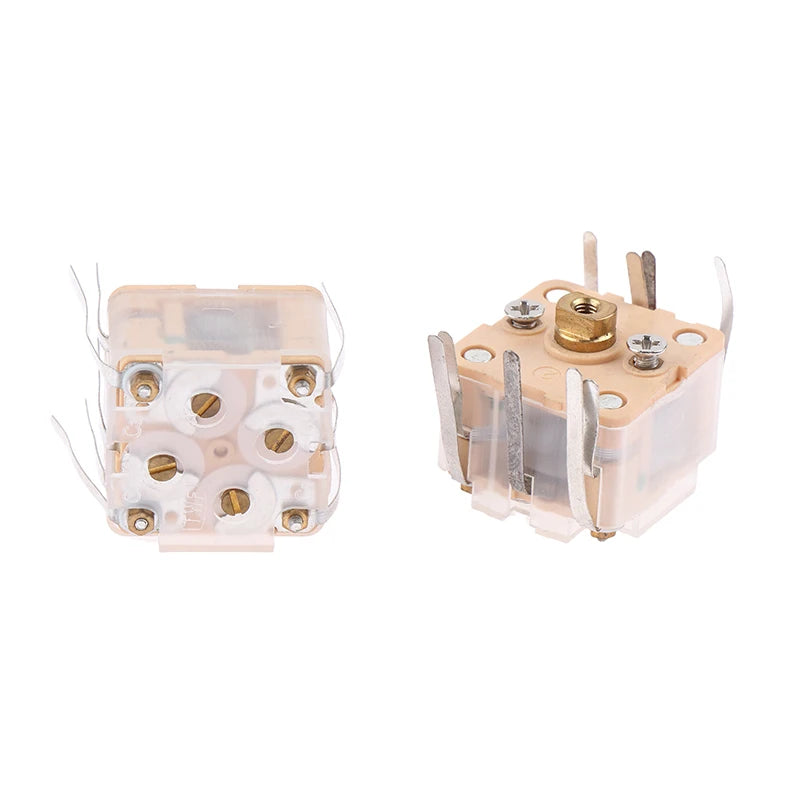

CBM-443BF Thin Film Dual Variable Capacitor for AM/FM Radio Tuning Circuits
The CBM-443BF Dual Variable Capacitor is a compact, high-quality thin film (PVC) variable capacitor designed for AM/FM radio tuning circuits, medium and short wave radios, and crystal/ore radio projects. Whether you're a hobbyist building a radio from scratch or an electronics enthusiast repairing a vintage set, this dual-gang variable capacitor delivers reliable, precise frequency tuning in a small, durable plastic housing.
Key Features
- Model: CBM-443BF
- AM Section: 2 × 270PF dual variable capacitance with 4 fine-tuning capacitors (gang: ~4 × 270PF total)
- FM Section: 2 × 20PF dual variable capacitors (usable in conjunction with the 270PF group)
- Construction: Thin film (PVC) dielectric — smooth, stable tuning action
- Mounting: M2.5 mounting nut for secure, standard panel installation
- Housing Material: Durable plastic shell

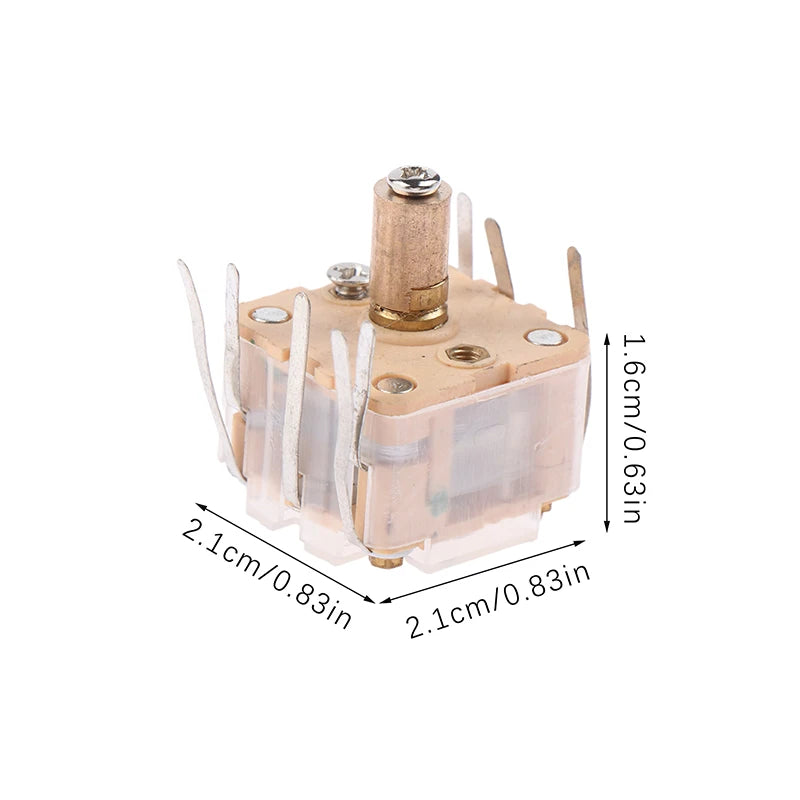

- Compact Size: 21 mm × 21 mm × 17 mm — fits easily into tight enclosures
- Quantity: 1 piece per order
Ideal Applications
- AM/FM radio tuning circuits
- Medium and short wave radio receivers
- Crystal (ore) radio construction
- DIY and maker radio projects
- Electronics repair and prototyping
Specifications at a Glance
| Parameter | Value |
|---|---|
| Model | CBM-443BF |
| AM Capacitance | ~4 × 270PF (dual gang) |
| FM Capacitance | ~2 × 20PF (dual gang) |
| Dielectric Type | Thin Film (PVC) |
| Mounting Nut | M2.5 |
| Housing Size | 21 × 21 × 17 mm |
| Material | Plastic |
| Country of Origin | Made in China |
Notes
- Please allow ±1–2 mm tolerance due to manual measurement.
- Actual color may vary slightly from photos due to monitor calibration differences.
- The 2 × 20PF FM group is usable only in conjunction with the 2 × 270PF AM group.
