Cabinet Hinge Hole Drilling Guide Jig | Door Installation Tool

Cabinet Hinge Hole Drilling Guide – Precision Installation Made Easy

Stop struggling with misaligned hinges and inconsistent cabinet installations. This Hinge Hole Drilling Guide Jig is the smart woodworking companion that delivers perfectly positioned hinge holes every single time — no guesswork, no repeated calibration, no wasted materials. Ideal for hobbyists, DIYers, and woodworking professionals alike.

Made in China.

Why You'll Love This Hinge Jig

• Magnetic Stability System: A built-in strong magnetic feature holds the drill bit firmly in place during operation, minimizing bit movement for fast, accurate hinge installations.
• 2mm Precision Groove Design: Engineered with a fine 2mm precision groove that ensures mechanical alignment standardization — consistent, uniform hinge placement across every door or cabinet panel.
• Accurate Hole Alignment: Directs drill bits with pinpoint spatial positioning so your hinges seat flush and function flawlessly, whether you're building custom cabinetry or fitting interior doors.
• Impact-Resistant ABS Construction: Made from durable, high-grade ABS plastic that resists impact and wear, extending the service life of this jig for long-term use on every project.
• Versatile Compatibility: Accommodates a range of hinge styles and sizes, making it suitable for doors, cabinets, furniture panels, and custom wood pieces — indoors or in the workshop.

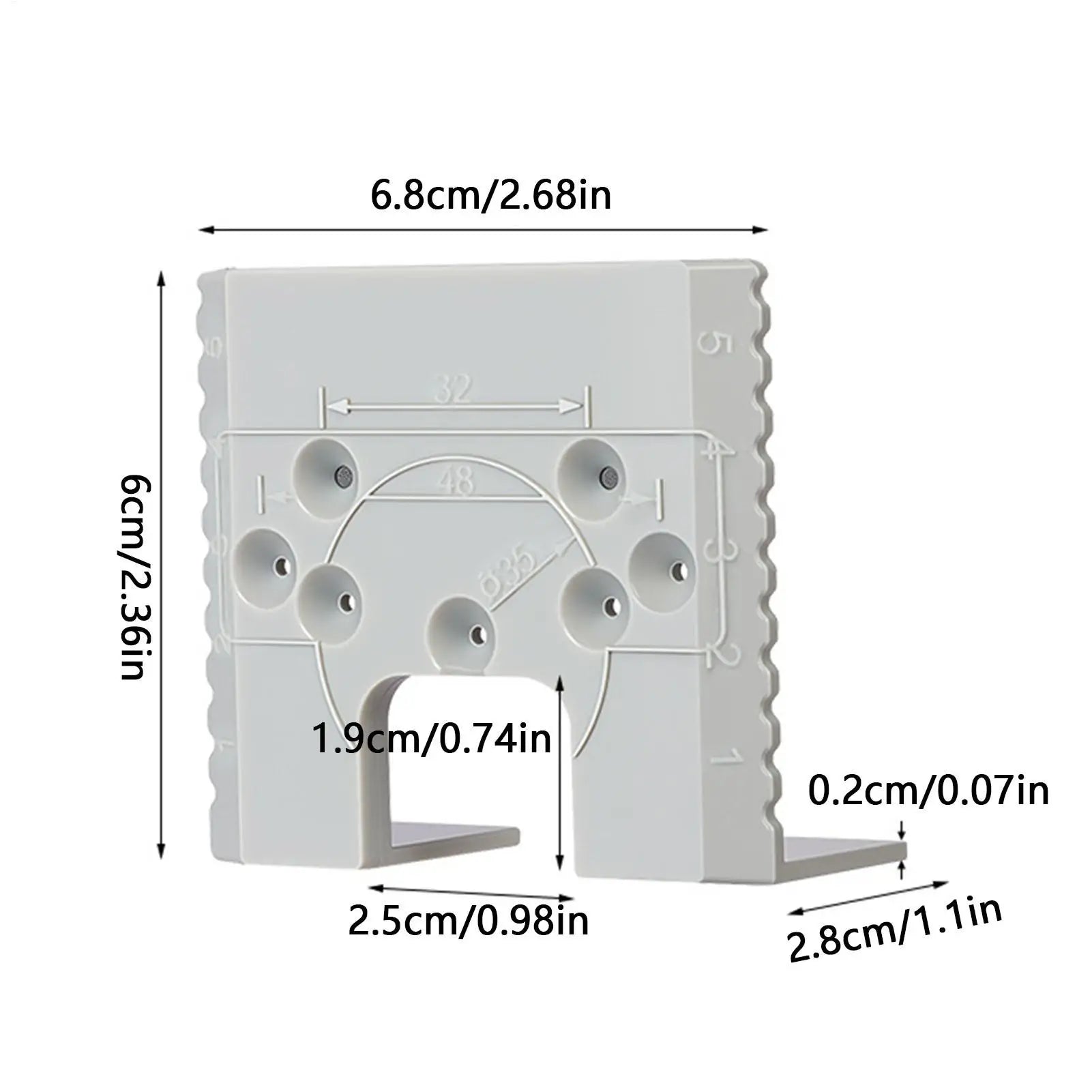

• Compact & Lightweight: At just 25g and measuring approximately 6.8 × 6 × 2.8 cm (2.68 × 2.36 × 1.1 inches), this jig is easy to handle, store, and carry on any job.

Product Specifications

Perfect For

• Installing European cup hinges on kitchen and bathroom cabinets
• Fitting door hinges with consistent edge spacing
• Custom woodworking, cabinetry, and furniture projects
• Home renovation and DIY improvement tasks
• Garage workshop and professional woodworking setups
