C8 Male Socket C7 Female Plug Embedded AC Connector 250V 35×15mm
C8 Male Socket C7 Female Plug Embedded AC Connector 250V 35×15mm
Couldn't load pickup availability

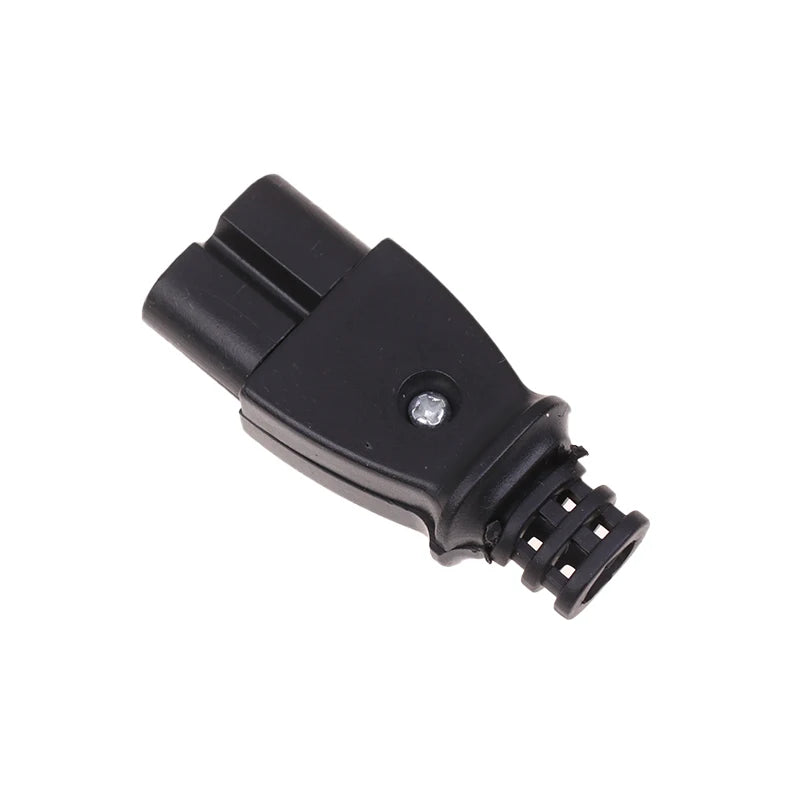

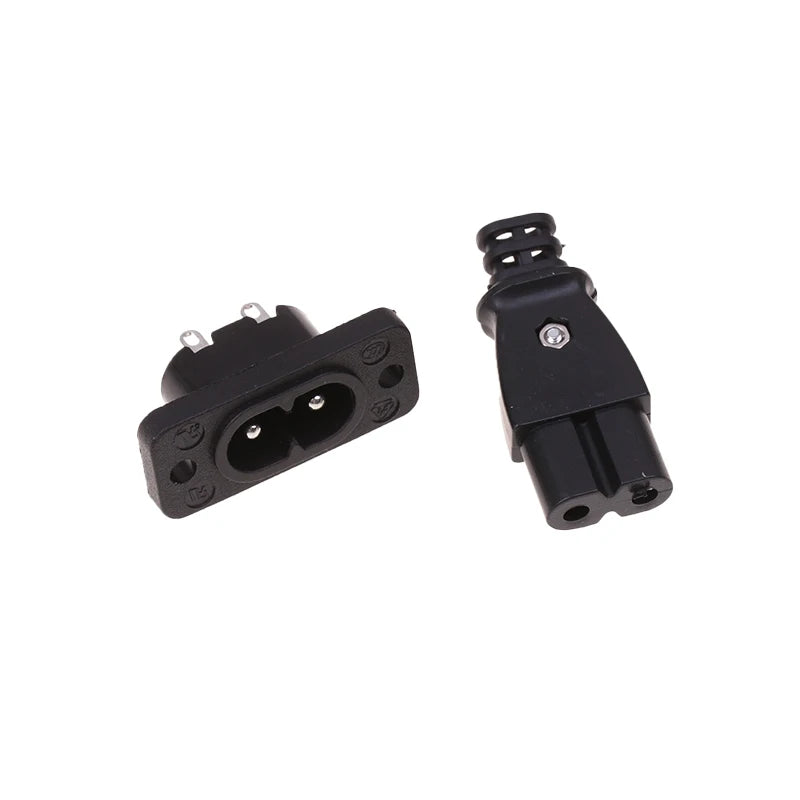

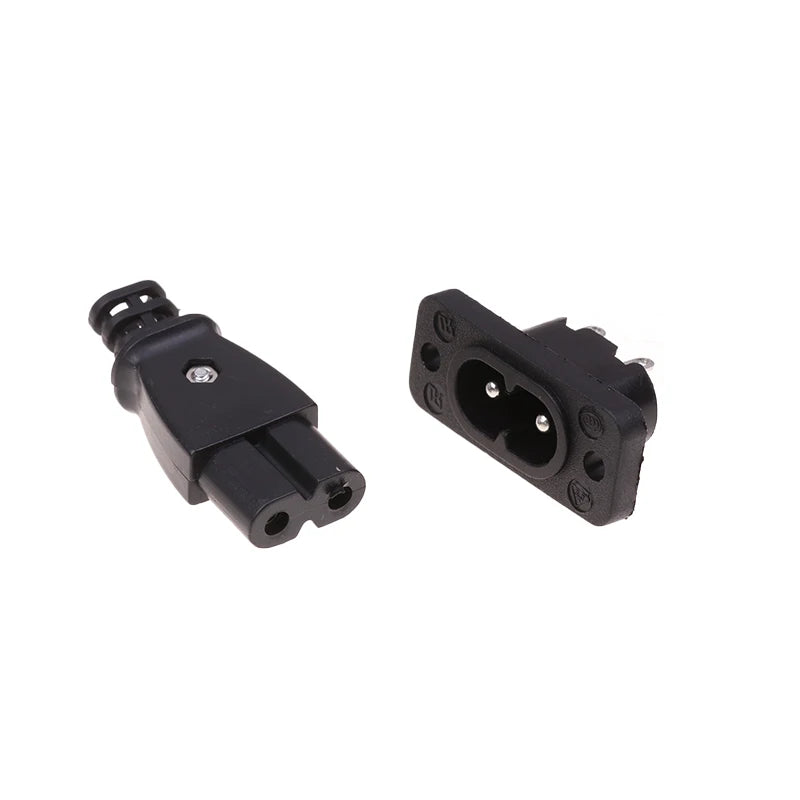

C8 Male Power Socket & C7 Female Plug – Embedded AC Electrical Connector
This compact figure-8 shaped embedded power connector set is the ideal solution for replacing or adding power inlets and outlets to small household appliances, lighting fixtures, and low-current electronics. The C8 male socket pairs perfectly with the C7 female plug, providing a secure, screw-terminal connection that you can wire yourself with standard two-core cable.
Key Features
- Compact Design: Slim 35mm × 15mm panel-mount profile fits neatly into appliance enclosures and chassis cutouts.
- Figure-8 / IEC C7–C8 Standard: Universal figure-8 polarized connector compatible with a wide range of small appliances and lighting accessories.
- Rated 250V / 2.5A: Suitable for low-current, weak-current household applications up to 250V AC.
- Durable ABS Shell: High-quality black ABS plastic housing with robust hardware contacts for long-lasting performance.

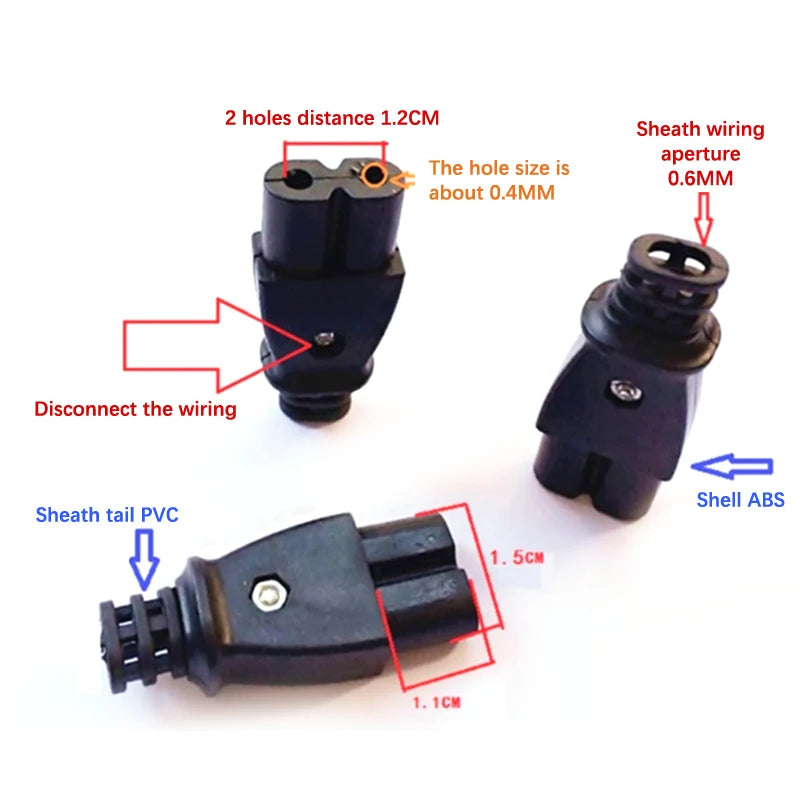

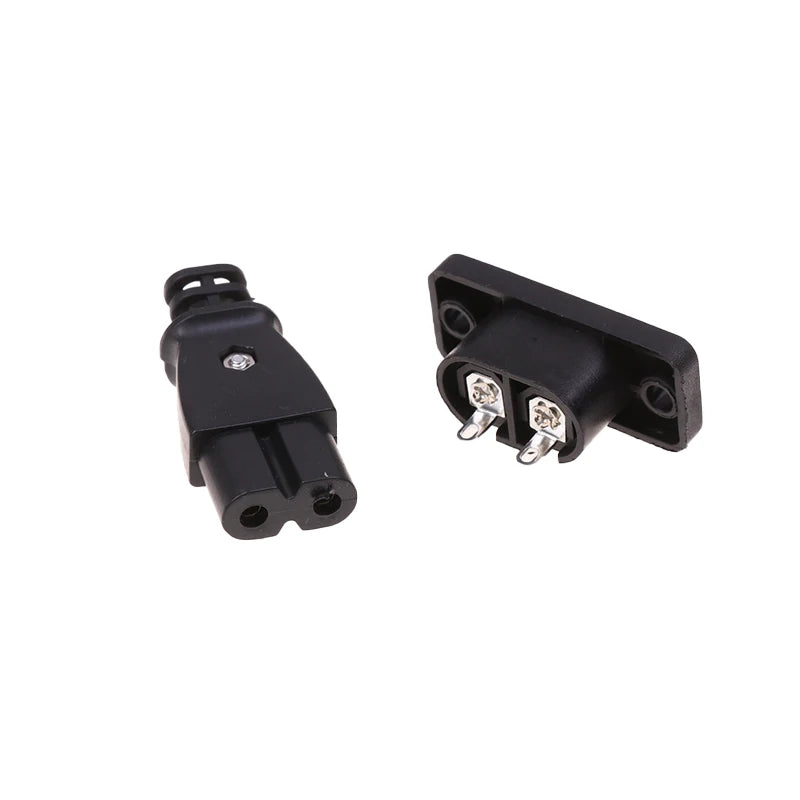

- Screw-Terminal Wiring: Detachable screw terminals accept 2-core wires of 0.3, 0.5, and 0.75 mm² cross-section — no soldering required.
- Versatile Application: Perfect for desk lamps, radios, audio equipment, small appliances, and lighting products requiring a standard 2-core power connection.
Specifications
| Model | C8 Male Socket / C7 Female Plug (Figure-8) |
| Rated Voltage | 250V AC |
| Rated Current | 2.5A |
| Current Type | Low / Weak Current |
| Dimensions | 35mm × 15mm |
| Shell Material | ABS Plastic + Metal Hardware |
| Wire Compatibility | 2-core, 0.3 / 0.5 / 0.75 mm² |
| Wiring Method | Screw-detachable self-connect |
| Package Includes | 1 × Connector Set |
| Country of Origin | Made in China |
Important Notes
- Due to manual measurement, please allow a tolerance of 1–3mm.
- Colors may vary slightly from product images due to monitor display differences.
- This connector is intended for low-current applications only. Always follow local electrical codes and standards when wiring.
Explore More from Our Store
Looking for more home and electronics accessories? Check out these related products:
- "1% Better Every Day" Motivational Canvas Poster | Wall Art
- "Best Seat In The House" Retro Quote Canvas Wall Art Print
Safety & Electrical Standards
For guidance on safe electrical wiring practices and consumer product safety, refer to the U.S. Consumer Product Safety Commission (CPSC), which provides resources on electrical safety standards for household appliances and components.
Learn more: Coaxial power connector
Frequently Asked Questions
Q: What is the difference between a C7 and C8 connector?

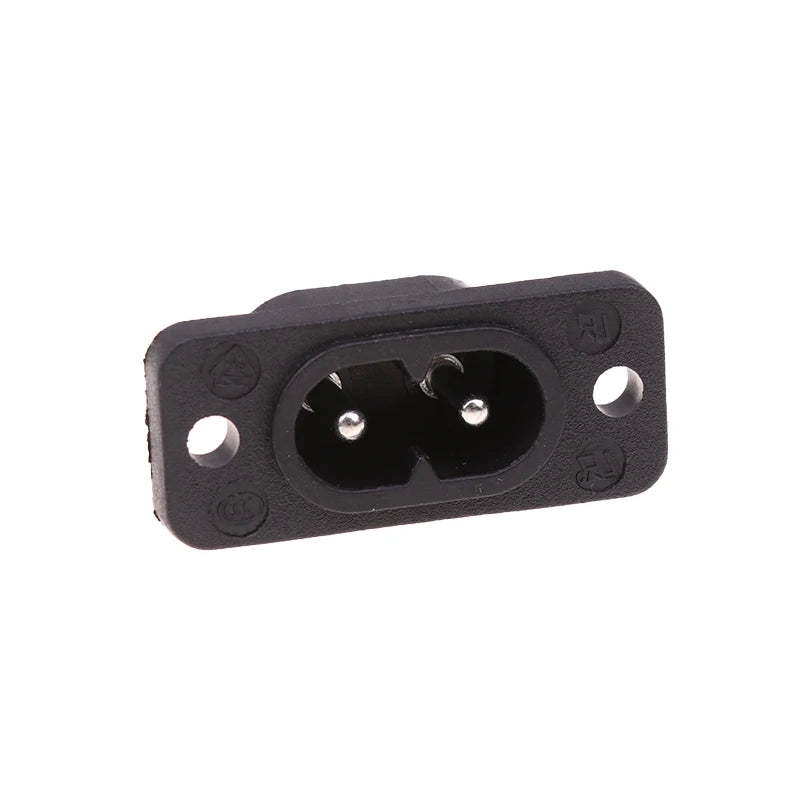

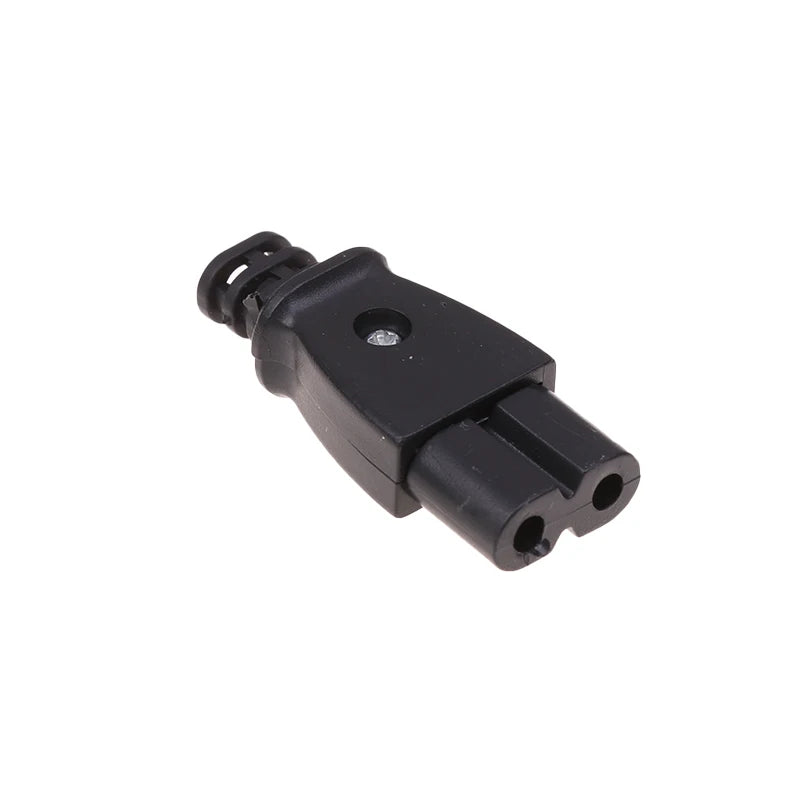

A: The C8 is the male socket (inlet) typically mounted on the appliance or device body, while the C7 is the female plug on the end of the power cord. Together they form the standard figure-8 / IEC 60320 connector pair used for low-current household electronics such as desk lamps, radios, and small appliances.
Q: What wire sizes are compatible with this embedded connector?
A: This C7/C8 embedded connector is compatible with 2-core wires in cross-sections of 0.3 mm², 0.5 mm², and 0.75 mm². The screw-terminal design allows you to attach and detach your power cord easily without any soldering.
Q: Is this connector safe for use with mains voltage?
A: Yes, the connector is rated for up to 250V AC at 2.5A, making it suitable for standard mains voltage applications in small, low-current devices. Always ensure your installation complies with local electrical safety codes and do not exceed the rated current or voltage.

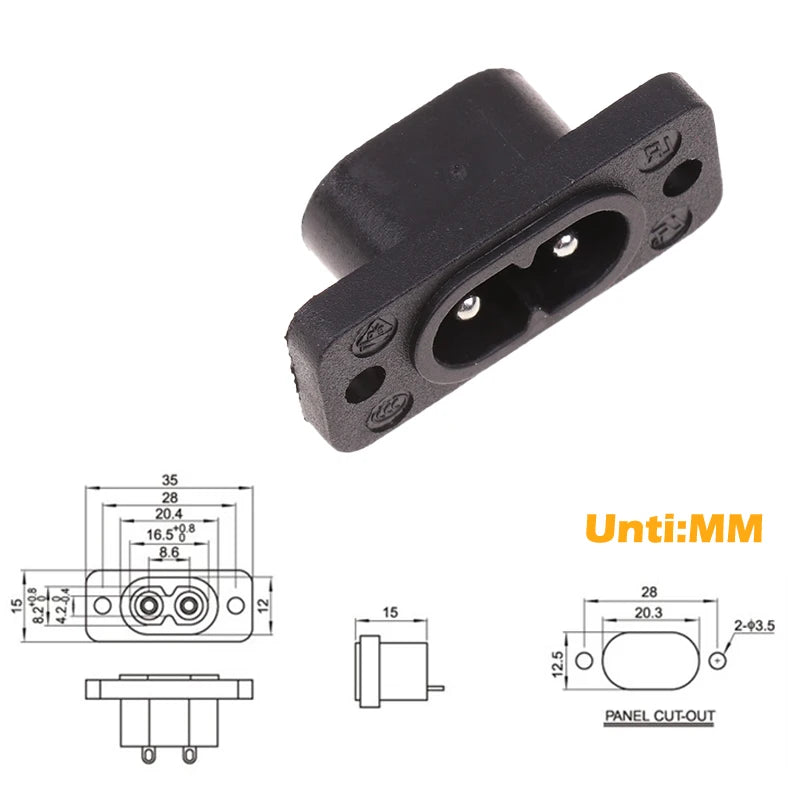

Q: What is the panel cutout size needed for installation?
A: The connector measures 35mm × 15mm, so you will need a panel cutout of approximately that size to embed the socket flush into your appliance or enclosure. Please allow 1–3mm manufacturing tolerance.
