BNC to Banana Plug Adapter – RF Coaxial Converter & Binding Post

This compact and versatile BNC to Banana Adapter is an essential connector for electronics enthusiasts, lab technicians, hobbyists, and engineers. Whether you need to interface RF coaxial equipment with banana-plug test leads or build a reliable signal path between instruments, this adapter delivers a solid, low-profile solution in seconds — no tools required.

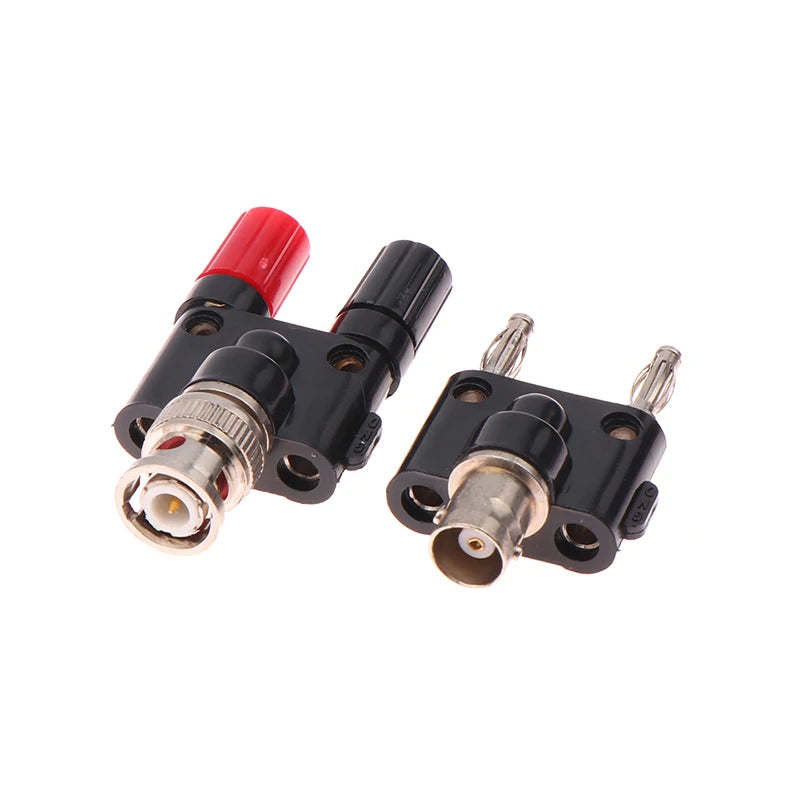

Available in multiple configurations (male plug to female jack, female jack socket with binding post, and more), this adapter makes it easy to convert BNC coaxial ports to standard banana connectors used on multimeters, oscilloscopes, signal generators, and power supplies.

Key Features

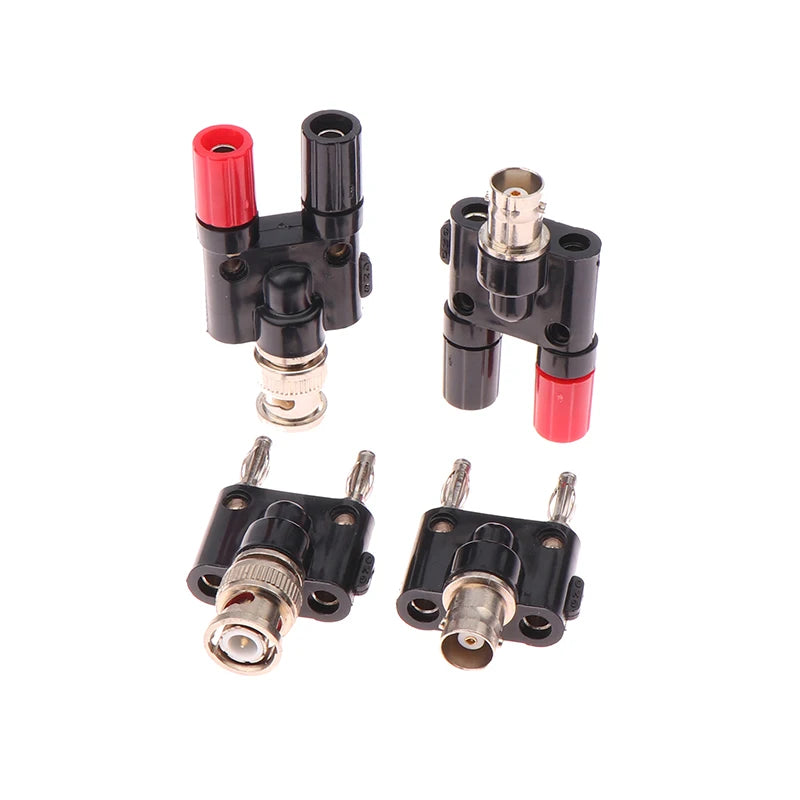

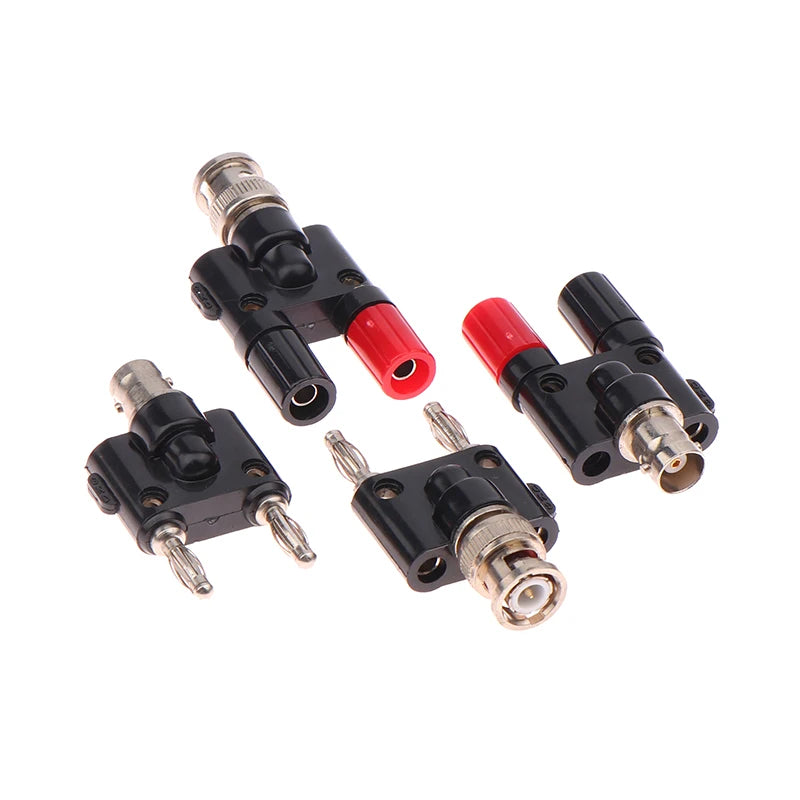

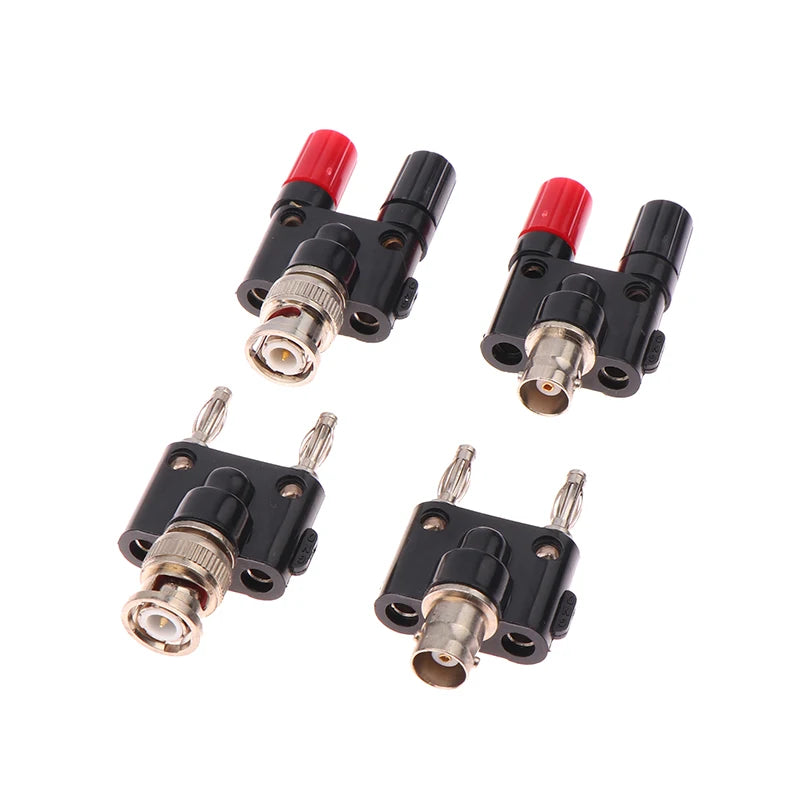

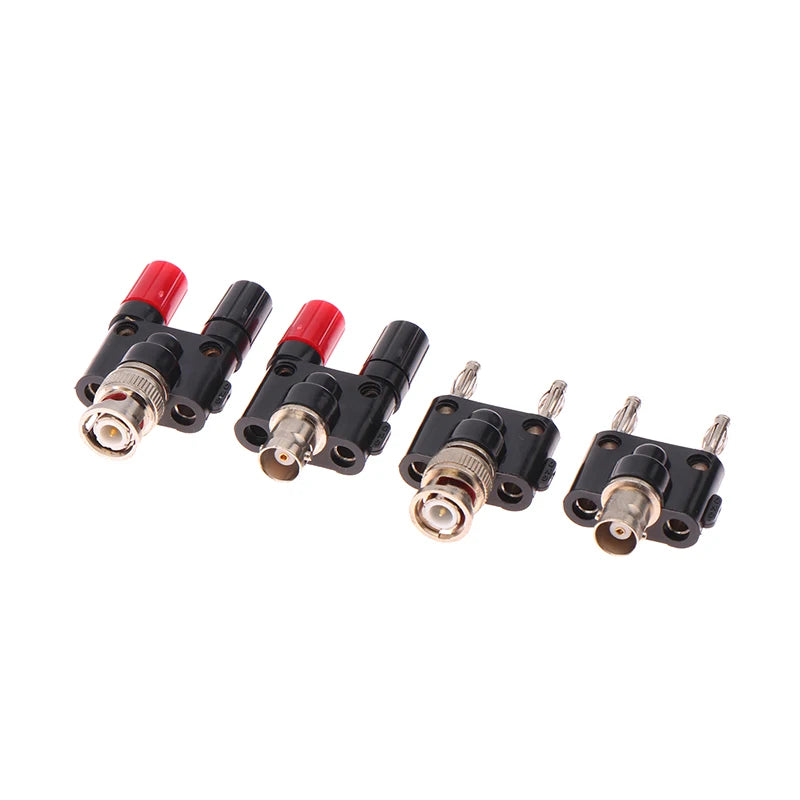

• Multiple Configurations: Choose from A1, A2, A3, or A4 variants to match your exact BNC-to-banana wiring needs
• Durable Construction: Built from a combination of sturdy plastic housing and metal contacts for reliable conductivity and longevity
• Compact Size: Lightweight and low-profile — fits neatly on bench-top instruments without adding bulk
• Easy Plug-and-Play: No soldering or tools needed — simply connect and get to work
• Versatile Use: Compatible with RF coaxial systems, test & measurement equipment, lab setups, ham radio benches, and DIY electronics projects
• Secure Binding Post: Female jack socket variants include a binding post for secure, strain-free cable termination

Specifications

• Material: Plastic + Metal
• Dimensions:

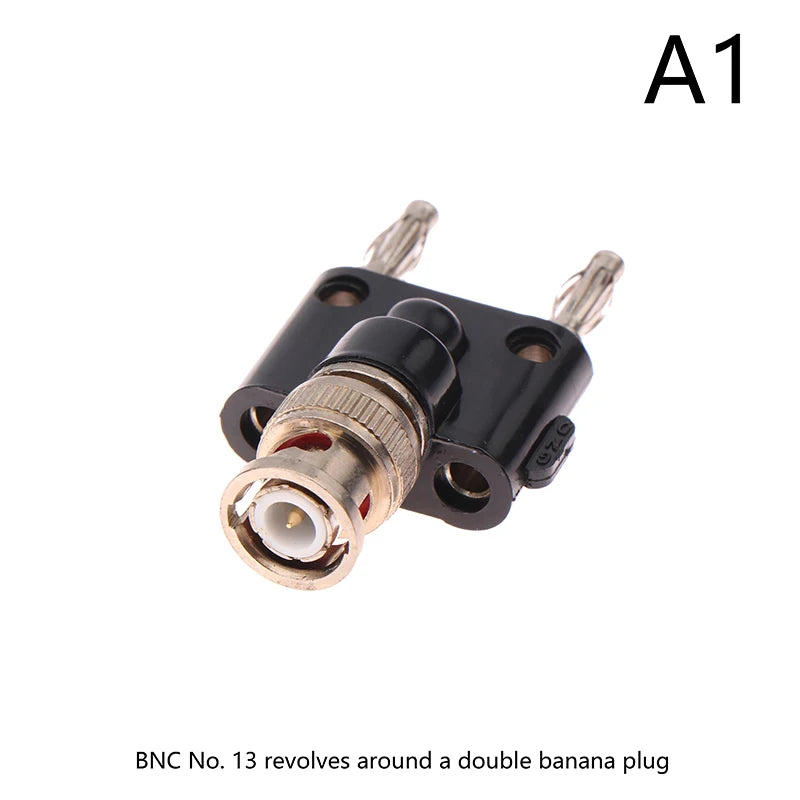

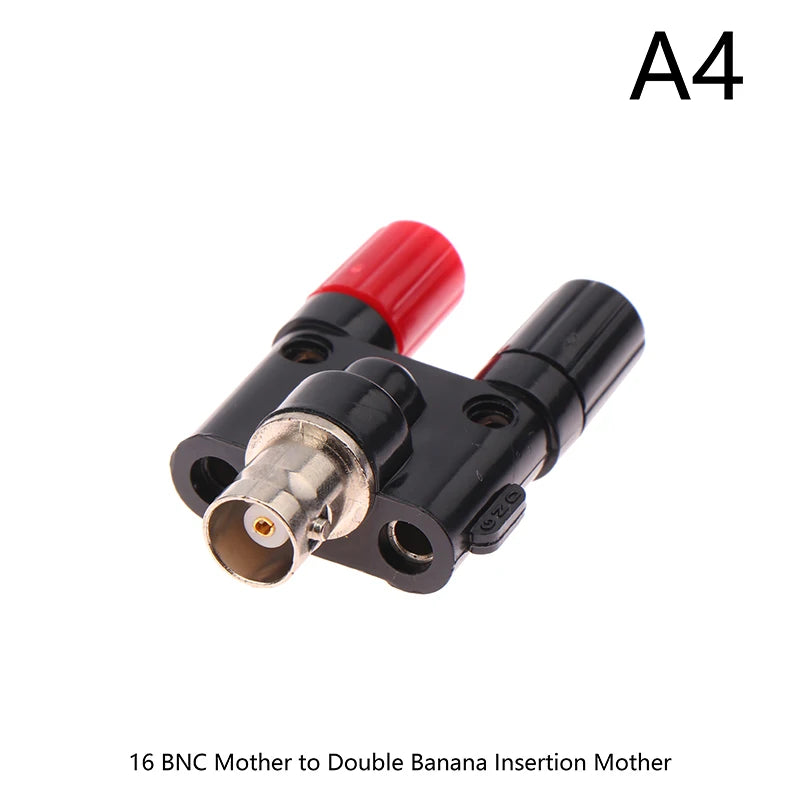

  • A1 / A4: 2.17 × 1.18 × 0.59 in (5.5 × 3.0 × 1.5 cm)

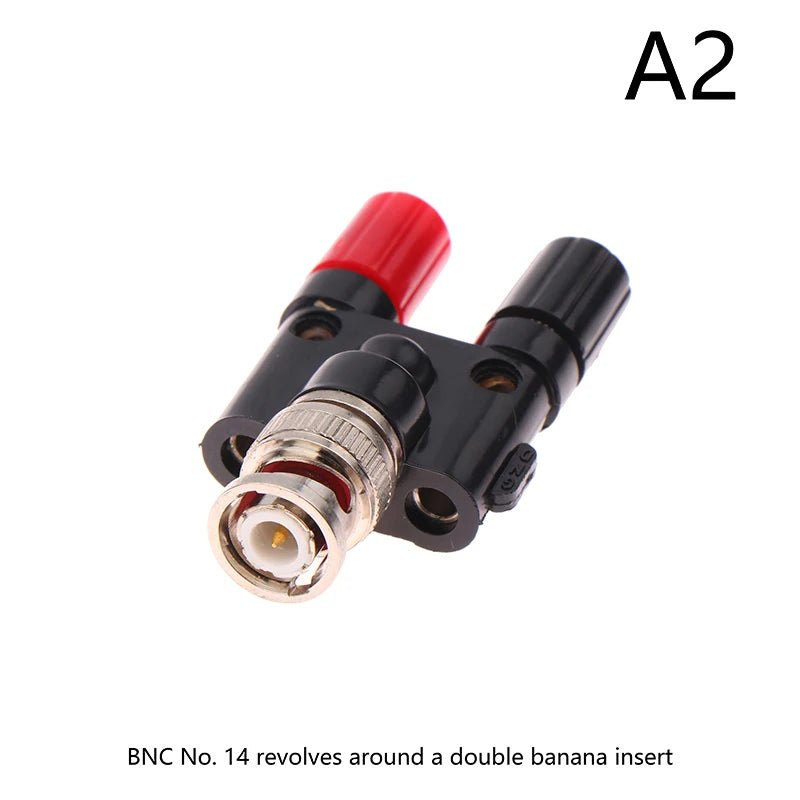

  • A2: 2.36 × 1.18 × 0.59 in (6.0 × 3.0 × 1.5 cm)

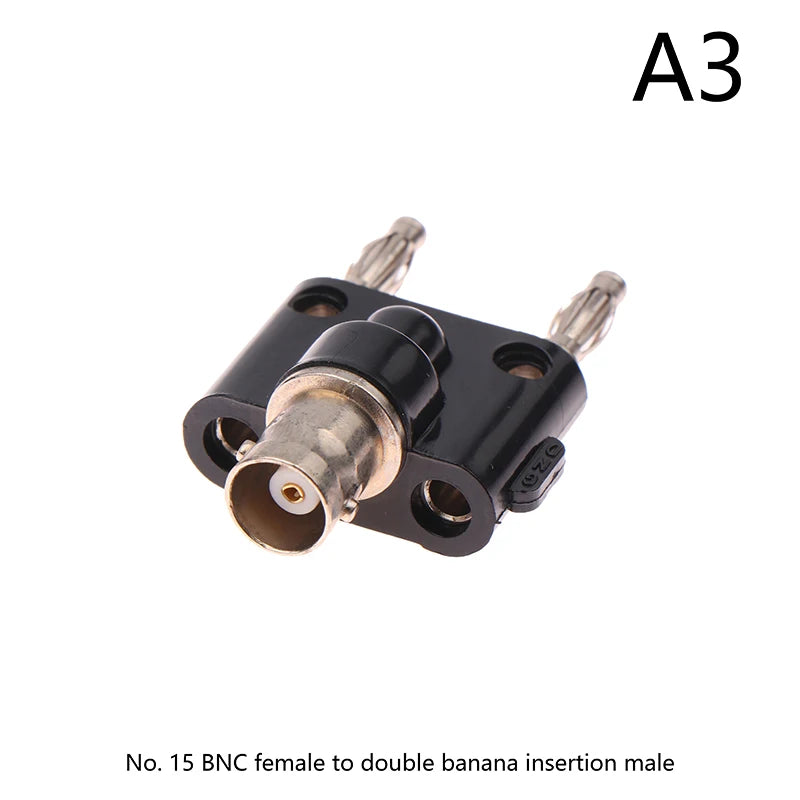

  • A3: 1.97 × 1.18 × 0.59 in (5.0 × 3.0 × 1.5 cm)
• Package Includes: 1 × BNC to Banana Adapter (variant of your choice)
• Country of Origin: Made in China

Please Note

• Photos are for illustration purposes only; actual size is as listed in the specifications above.
• Minor dimensional differences may exist due to manual measurement tolerances.
• Colors may vary slightly from screen to screen due to monitor calibration differences.

Related Products You May Like

• "1% Better Every Day" Motivational Canvas Poster | Wall Art
• "Everything Is Fine" Funny Men's Graphic T-Shirt | Cotton Tee

For more information on safe practices when working with electrical connectors and test equipment, visit the OSHA Electrical Safety Resource.

Frequently Asked Questions

Q: What is a BNC to banana adapter used for?

A: A BNC to banana adapter allows you to connect RF coaxial cables (with BNC connectors) to equipment that uses standard banana plug or binding post terminals, such as oscilloscopes, multimeters, signal generators, and power supplies. It bridges two common connector standards without the need for soldering or additional wiring.

Q: What are the different configurations (A1, A2, A3, A4)?

A: Each variant (A1–A4) refers to a different combination of male plug, female jack, or binding post terminations on the BNC and banana sides of the adapter. Please refer to the product images and size specifications to select the configuration that matches your specific equipment and use case.

Q: Is this adapter compatible with standard BNC coaxial cables?

A: Yes. This adapter is designed to work with standard BNC coaxial connectors commonly found on lab instruments, RF test equipment, oscilloscopes, and signal sources. Always verify connector compatibility with your specific device before use.

Q: Does this adapter require any tools or soldering to install?

A: No tools or soldering are required. This is a plug-and-play adapter — simply mate the BNC connector and banana terminals to your respective equipment for an instant, secure connection.
