BNC Male to 4mm Banana & Crocodile Clip Test Lead 75 Ohm RF

BNC Male to 4mm Banana Stackable Plug & Crocodile Clip Test Lead — 75Ω RF Coaxial Cable

This versatile BNC Male to 4mm Banana / Crocodile Clip Test Lead is an essential adapter cable for electronics testing, RF signal work, multimeter connections, and oscilloscope probing. With a 75-ohm impedance rating and support for operating frequencies up to 18 GHz, this cable delivers reliable, low-loss signal transfer for hobbyists and professionals alike.

Key Features

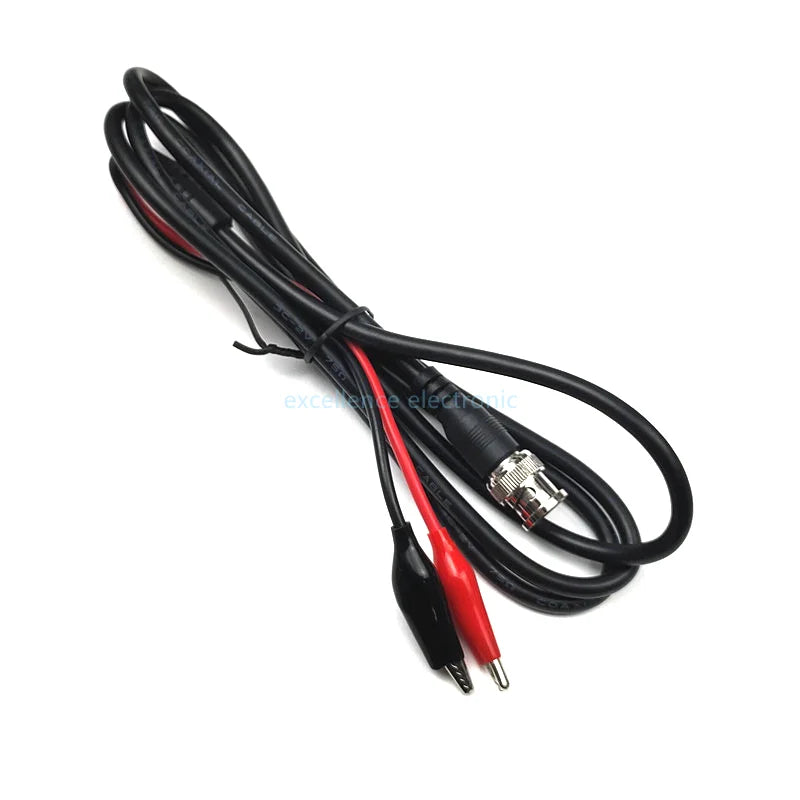

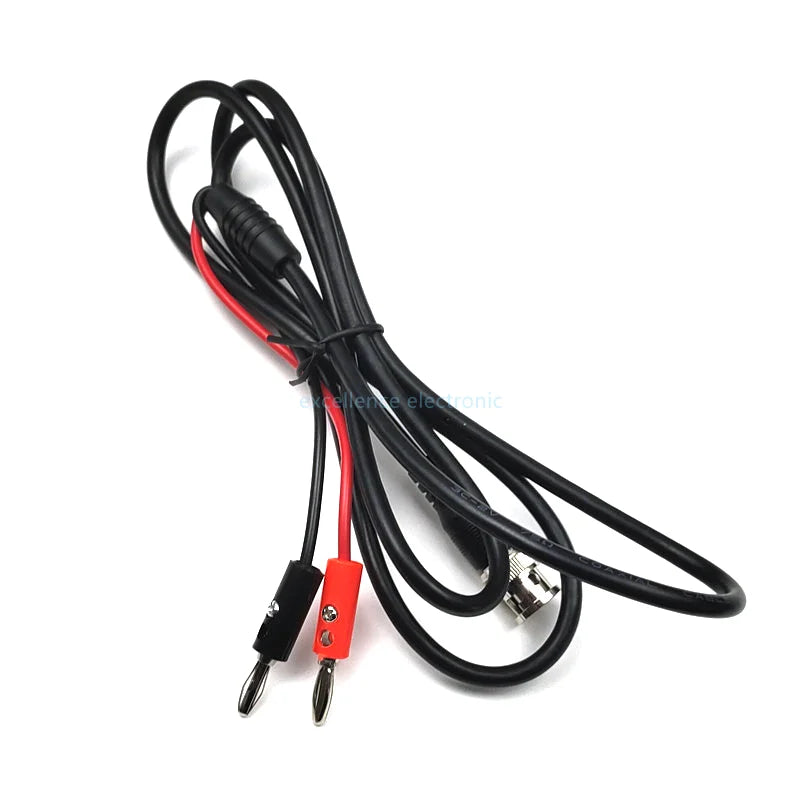

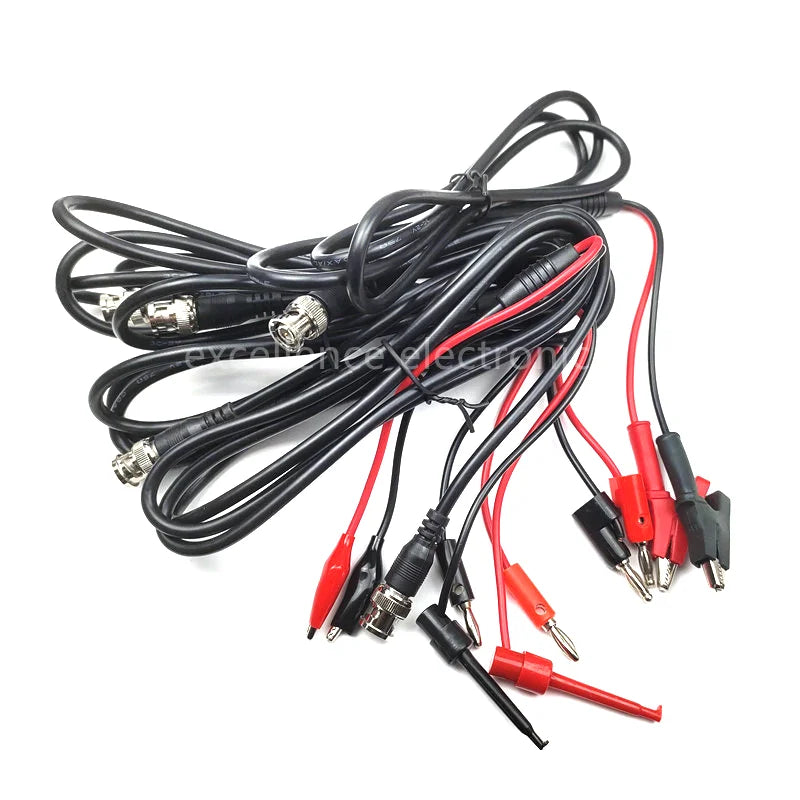

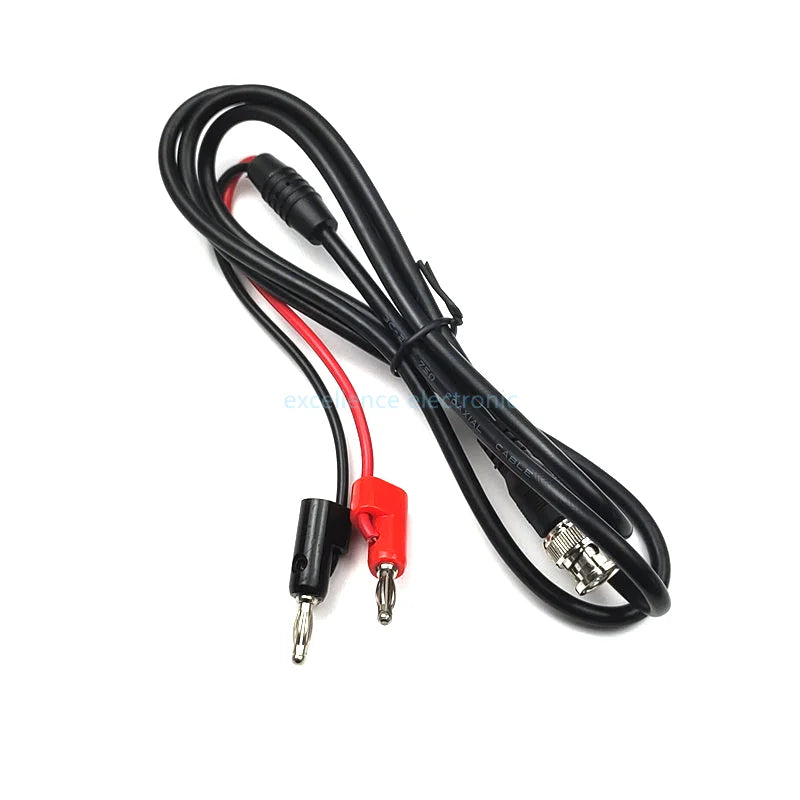

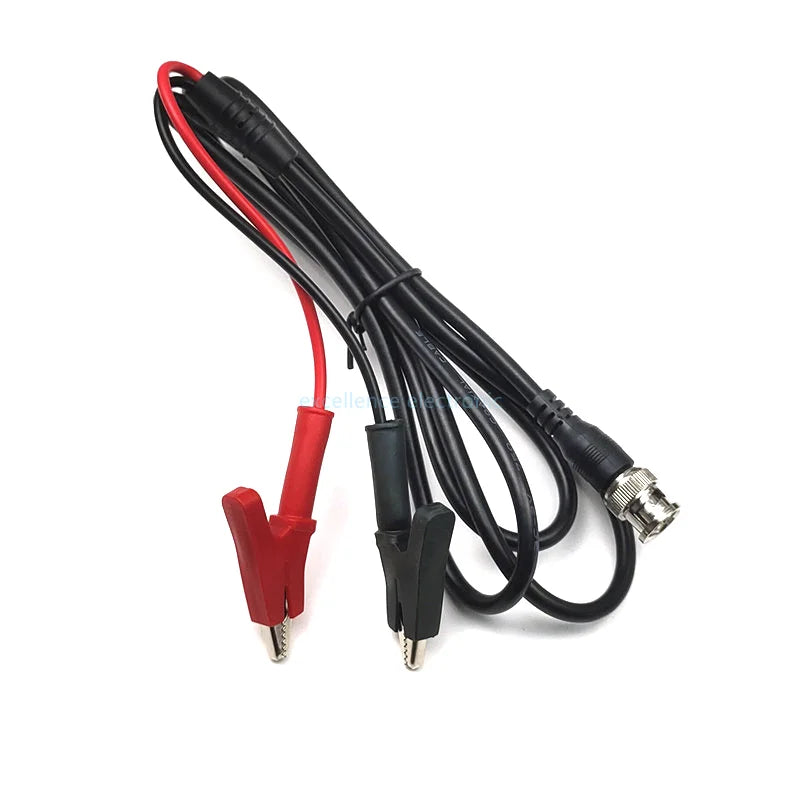

• Multi-Use Terminations: Choose between 4mm stackable banana plug or crocodile (alligator) clip ends — perfect for a wide range of test equipment and multimeters.
• 75 Ohm Impedance: Ideal for RF, video, and broadcast testing applications requiring precise impedance matching.
• 1.5 m Cable Length: Generous 1.5-metre cord gives you reach and flexibility on the workbench or in the field.
• Wide Operating Frequency: Engineered for frequencies up to 18 GHz (2.4 GHz, 3 GHz, 5 GHz, 6 GHz, 12 GHz, 18 GHz+).
• Premium Construction: Machined brass body with gold/nickel-plated contacts and a genuine PTFE (Teflon) insulator for minimal signal loss and long-lasting durability.
• Corrosion Resistant: Passes a 24–48 hour salt spray test for enhanced resistance to oxidation and harsh environments.
• Wide Temperature Range: Rated –65 °C to +165 °C (PE cable: –55 °C to +85 °C), suitable for demanding temperature conditions.
• CE Certified: Meets CE low-voltage requirements (below 50 V AC or 75 V DC).

Specifications

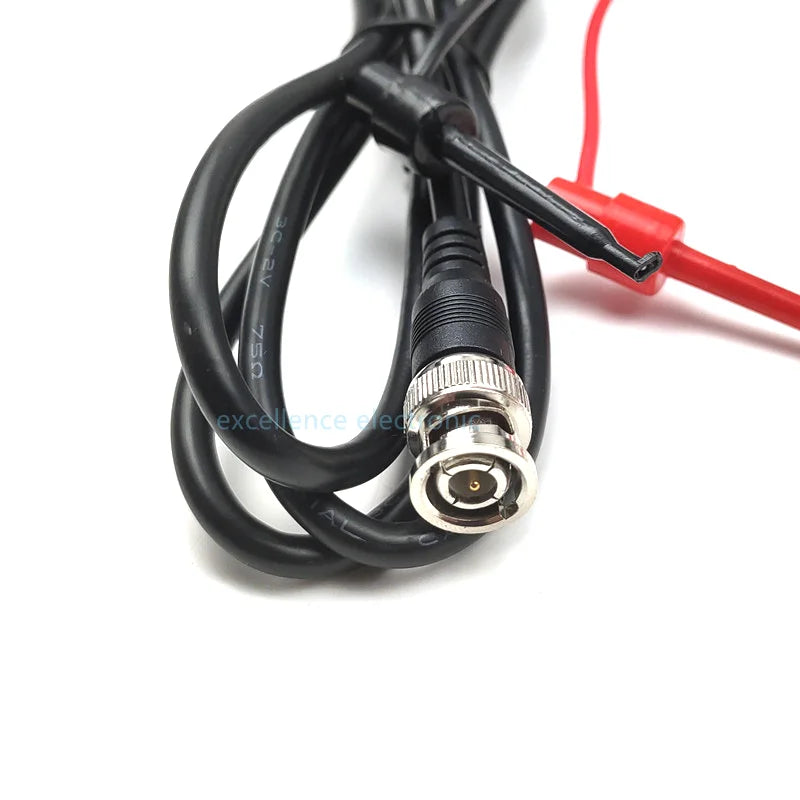

• Connector Type: BNC Male (Q9) to 4mm Stackable Banana Plug / Crocodile Clip
• Impedance: 75 Ohm
• Cable Length: ~1.5 m
• Operating Frequency: Up to 18 GHz
• Temperature Range: –65 °C to +165 °C
• Plating: Gold/Nickel-plated contacts, real Teflon insulator
• Mounting: Machined brass, crimped & soldered cable mount
• Certification: CE
• Country of Origin: Made in Mainland China

Common Applications

• Oscilloscope & signal generator probing
• Multimeter test connections
• RF coaxial signal testing
• Electronics lab bench work
• Broadcast and video signal QA

Related Products You May Like

• "1% Better Every Day" Motivational Canvas Poster | Wall Art
• "Best Seat In The House" Retro Quote Canvas Wall Art Print

Learn More

For guidelines on safe use of electrical test equipment and connectors, visit the OSHA Electrical Safety resource page.

Frequently Asked Questions

Q: What is a BNC Male to 4mm Banana Plug test lead used for?

A: This test lead connects equipment with a BNC (Q9) coaxial port — such as oscilloscopes or signal generators — to test instruments using standard 4mm banana plug inputs, like multimeters. It enables quick, secure signal probing without the need for custom adapters.

Q: What is the difference between the banana plug and crocodile clip versions?

A: The 4mm stackable banana plug version connects directly into banana-socket test equipment, while the crocodile (alligator) clip version allows you to clip directly onto bare wire leads, PCB traces, or component terminals — making it more flexible for hands-free probing.

Q: Is this cable suitable for high-frequency RF testing?

A: Yes. With a 75-ohm impedance and support for operating frequencies up to 18 GHz, this BNC test lead cable is well-suited for RF signal testing, including applications at 2.4 GHz, 5 GHz, and beyond. The genuine PTFE Teflon insulator and precision-machined brass construction help minimize signal loss at high frequencies.

Q: What is the cable length and temperature rating?

A: The cable is approximately 1.5 metres (about 5 feet) long. It is rated for temperatures from –65 °C to +165 °C (with PE cable rated –55 °C to +85 °C), making it suitable for a wide range of laboratory and field environments.
