AT3600L MM Phono Cartridge & Stylus | 20Hz–20kHz Vinyl

Bring Your Vinyl Back to Life with the AT3600L Moving Magnet Phono Cartridge

Upgrade or replace your worn-out stylus with the AT3600L Moving Magnet (MM) Phono Cartridge — a compatible replacement for Audio-Technica AT3600L cartridges. Designed for vinyl record players running 33, 45, and 78 RPM, this cartridge delivers a full 20Hz–20kHz frequency response, crisp highs, balanced stereo imaging, and reliable tracking across the entire audio groove.

Whether your current stylus has lost its edge after hundreds of hours of playback or you're upgrading your turntable setup, this MM cartridge is a straightforward, cost-effective solution that fits most standard tonearm headshells.

Made in Mainland China.

Key Features

• Full-Range Audio: 20Hz–20kHz frequency response captures every detail from deep bass to sparkling treble
• Moving Magnet Design: High output voltage of 4.2mV for strong, clear signal with standard phono preamps

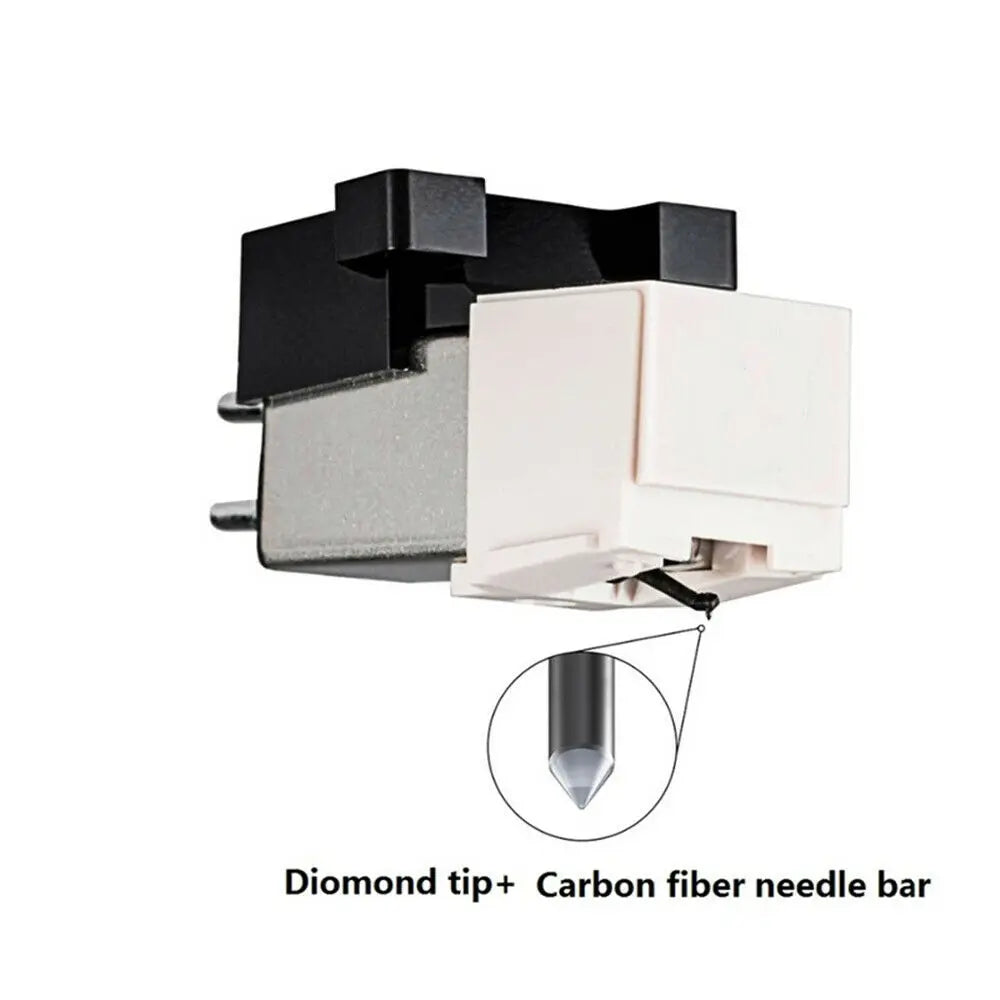

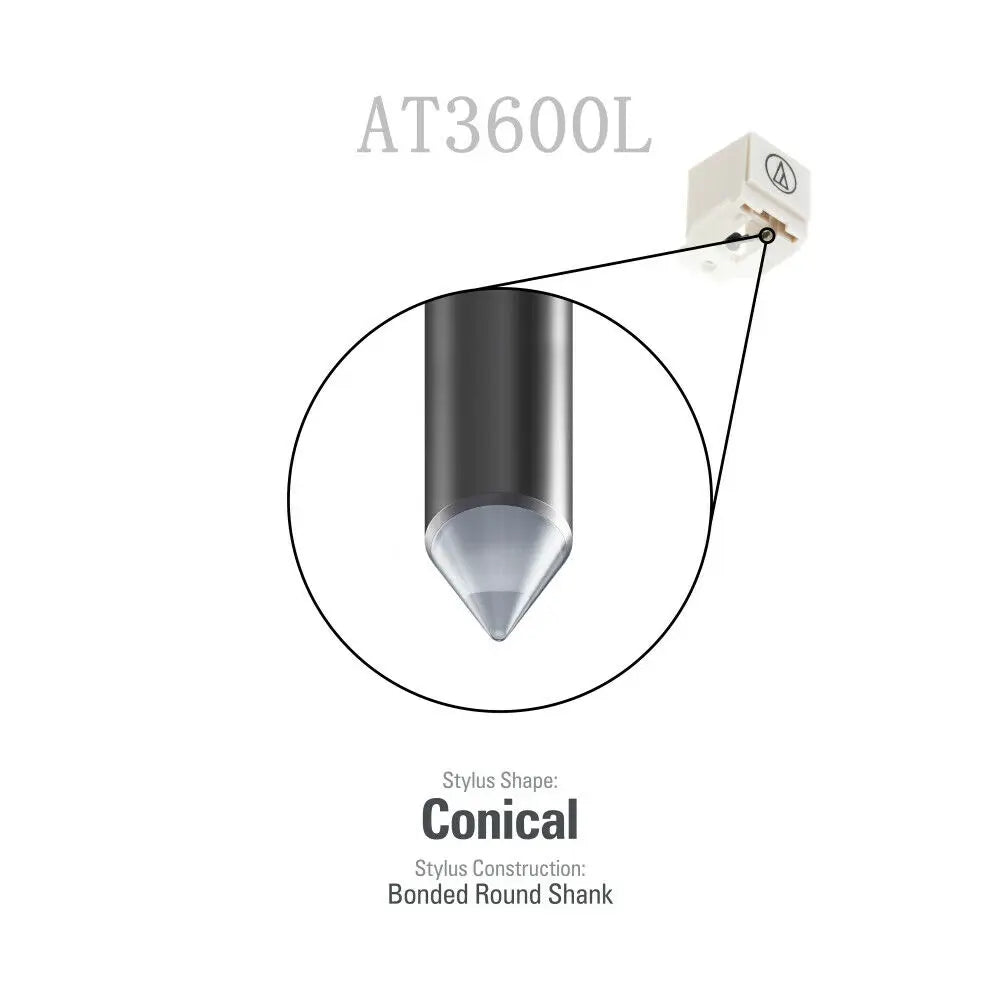

• Conical Diamond Stylus: Highly polished 0.006" conical diamond tip for smooth, accurate groove tracking
• Excellent Channel Balance: ±1.5dB channel balance and 24/15dB channel separation at 1kHz/10kHz for true stereo reproduction
• Universal MM Fit: Compatible with most standard MM tonearm headshells (10mm fixing hole spacing); NOT compatible with LP60, 310BT, or T4P cartridge systems
• Easy Replacement: Snap-in stylus design — replace just the needle tip without removing the entire cartridge body

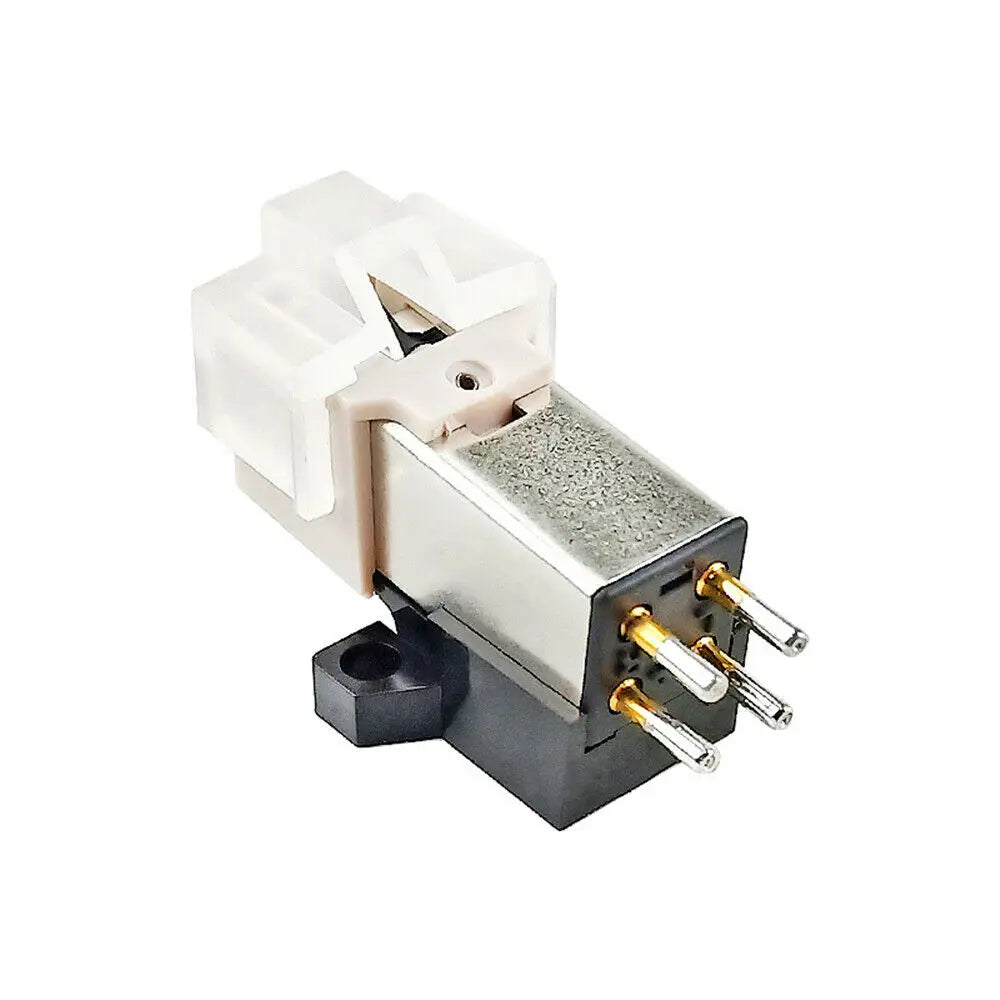

• Color-Coded Terminals: R+=Red, R-=Green, L+=White, L-=Blue for easy, error-free wiring
• Speeds Supported: 33, 45, and 78 RPM

Technical Specifications

When Should You Replace Your Stylus?

A stylus is a wear item with a typical lifespan of 300–400 hours of playback. Signs it's time for a replacement include dull or muffled treble, reduced sound detail, sibilance distortion, or visible tip wear. Using correct tracking force (2–2.5g for this model), quality records, and a stable turntable will help maximise stylus life.

Explore More Audio Essentials

Pair your turntable setup with these store favourites:

• 1-In-2-Out HDMI Splitter Cable 1080P 3D – TV Monitor Projector
• 1.8M DisplayPort to HDMI Cable 4K DP Adapter – PC TV Monitor

Further Reading

Learn more about how audio components and sound reproduction work from the U.S. Department of Energy, which provides resources on electronics and acoustic technologies. For standards in audio measurement, visit NIST.gov.

Frequently Asked Questions

Q: Is the AT3600L cartridge compatible with my Audio-Technica LP60 or 310BT turntable?

A: No — this AT3600L moving magnet cartridge is not compatible with the LP60, 310BT, or T4P cartridge systems. It is designed for standard MM tonearm headshells with a 10mm fixing hole spacing. Please confirm your tonearm type before purchasing.

Q: Can I replace just the stylus needle without replacing the whole cartridge body?

A: Yes! If your existing phono cartridge body is still in good condition, you can simply snap out the old stylus and snap in the new one. The white part of the assembly separates the cartridge body from the needle — handle carefully to avoid damage during removal.

Q: What tracking force should I set for the AT3600L stylus?

A: The recommended tracking force for this cartridge is 2.0 to 2.5 grams. Using excessive tracking force beyond this range will accelerate stylus and record wear, so always calibrate your tonearm's anti-skate and counterweight accordingly.

Q: How long does the AT3600L stylus last?

A: Under normal conditions, the conical diamond stylus has an expected lifespan of approximately 300–400 hours of playback. Using warped or dirty records, improper tracking force, or an unstable turntable can significantly shorten its life.
