Arealer MJ-340 Embedded USB 1D/2D/QR Barcode Scanner Module

Arealer MJ-340 Embedded Barcode Scanner – Fast, Reliable 1D/2D/QR Code Reading

Meet the Arealer MJ-340 Embedded Barcode Scanner Module — a compact, high-performance scanning solution built for self-service kiosks, gate machines, ticket checking systems, and mobile payment terminals. With self-induction (hands-free) scanning and blazing-fast 200 scans/second speed, this USB module delivers accurate reads every time, even on damaged or blurry codes.

Why Choose the Arealer MJ-340?

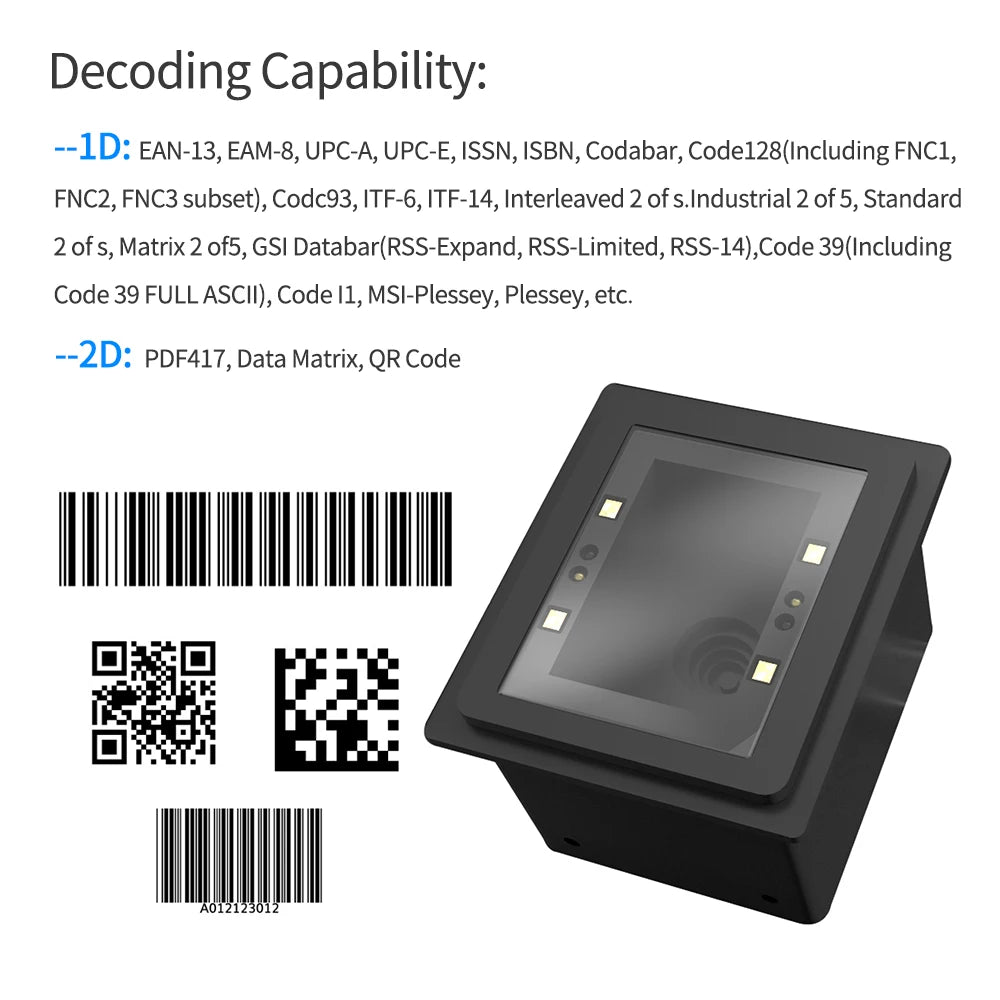

• Versatile 1D & 2D Scanning: Reads virtually all major barcode formats including EAN-13, UPC-A, Code128, Code39, QR Code, PDF417, Data Matrix, and many more — all in one module.
• CMOS Image Technology: The 752×480 CMOS sensor scans both printed paper barcodes and on-screen codes with ease, overcoming partial damage or low contrast without missing a beat.
• Self-Induction (Auto-Trigger) Mode: Hands-free inductive reading automatically activates when a barcode is presented — perfect for high-traffic, self-service environments.

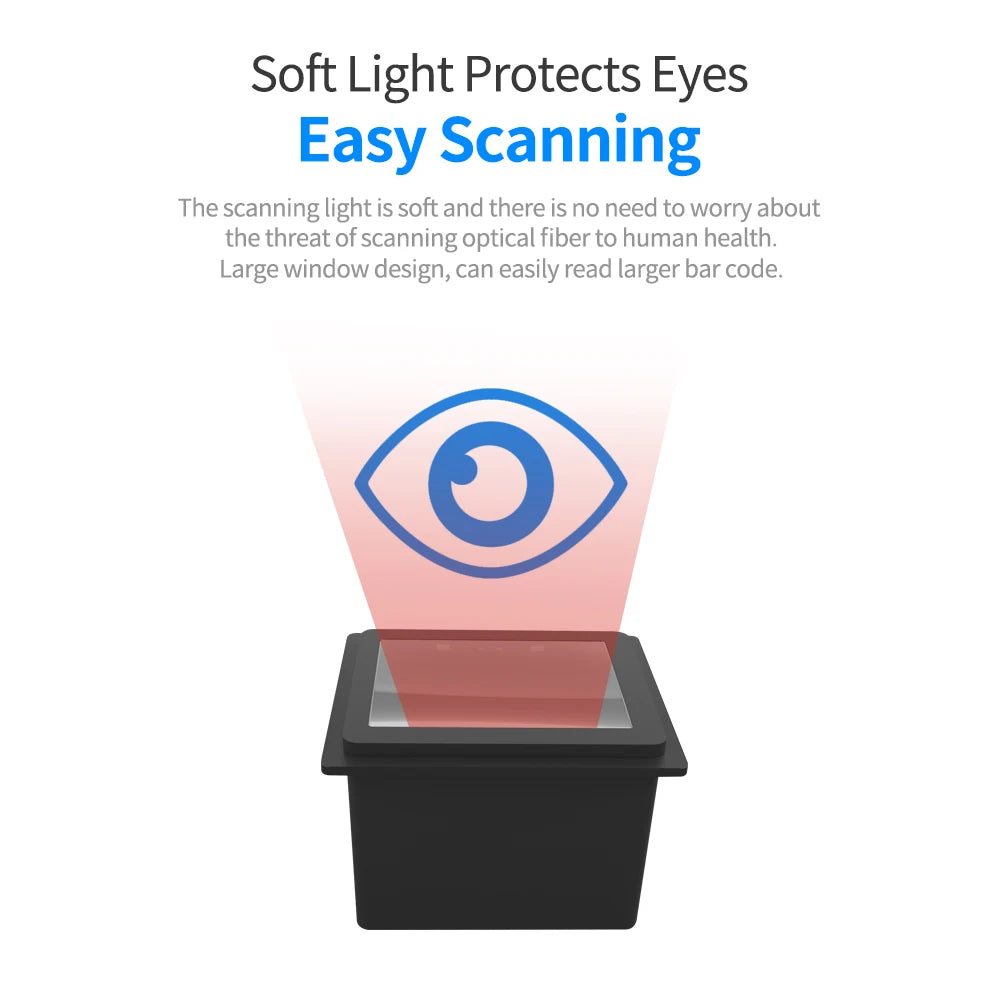

• Eye-Safe White LED: Soft white LED light source (0–100,000 LUX) with no harmful laser — safe for customers and staff during continuous operation.
• Rugged Solid Insulation Design: Engineered with solid insulation construction to protect the internal components from external interference and ensure user safety.
• Large Scan Window: The 46.5 × 31.5 mm scanning window easily captures larger barcodes in a single pass.
• Plug-and-Play USB Interface: USB 1.1 (HID-KBW / HID-POS) connectivity means no drivers needed — just plug in and start scanning on any Windows XP/Vista/7/8/10 system.
• Low Power Consumption: Runs at just 1.75W (DC 5V, 0.5A), making it energy-efficient for 24/7 deployments.

Technical Specifications

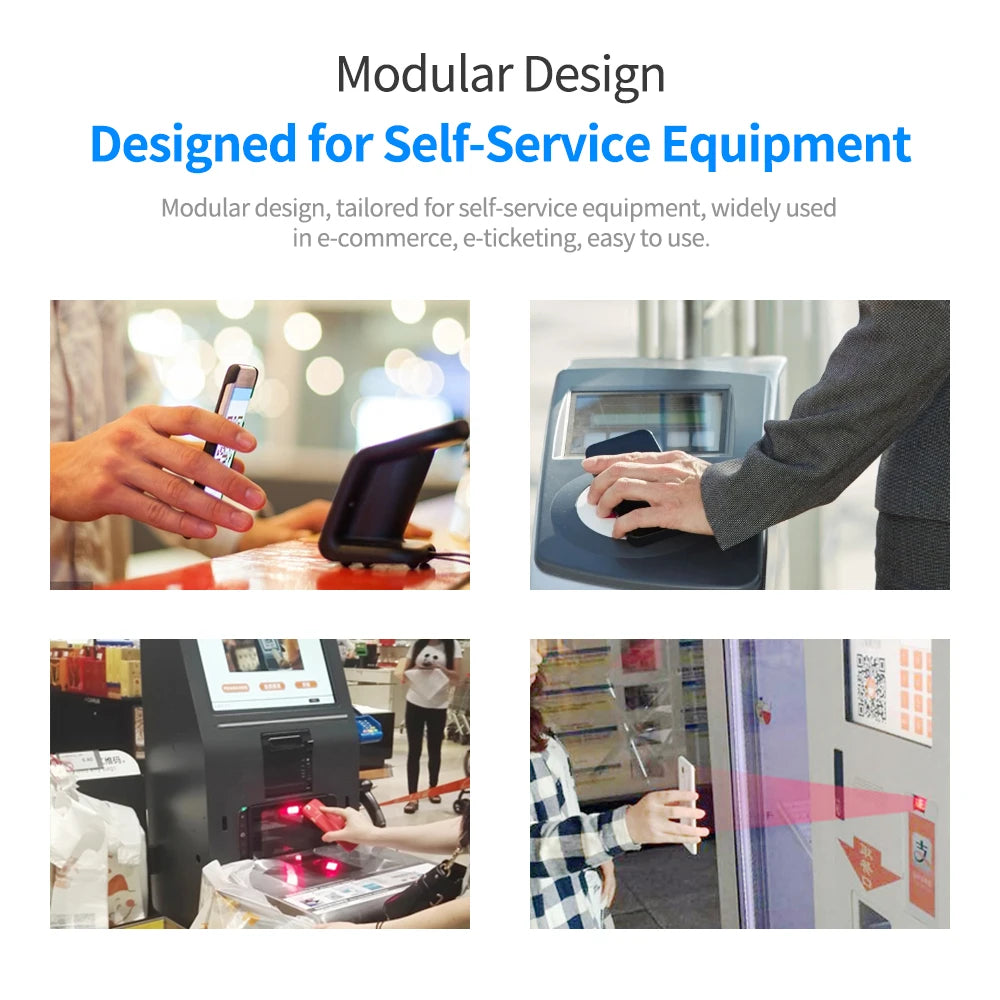

Ideal Applications

• Turnstile & gate access control systems
• Event & transit ticket verification
• Mobile payment & QR code payment kiosks
• Self-service check-in terminals
• Retail POS & inventory management systems
• Library & document management

What's in the Box

• 1× Arealer MJ-340 Barcode Scanner Module
• 1× USB Cable
• 1× User Manual

Related Products You May Like

• 1/2 Channel Tuya WiFi Smart Relay Switch | 16A, Alexa & Google Home
• 1-In-2-Out HDMI Splitter Cable 1080P 3D – TV Monitor Projector
• 1 to 5 SATA Power Splitter Cable 18AWG | HDD SSD Extension

For more information on barcode standards and technology, visit the National Institute of Standards and Technology (NIST) – Automated Identification.

Frequently Asked Questions

Q: What barcode types does the Arealer MJ-340 embedded scanner support?

A: The MJ-340 supports a wide range of 1D barcodes (including EAN-13, UPC-A, Code128, Code39, ITF, GS1 Databar, and more) as well as 2D codes such as QR Code, PDF417, and Data Matrix — making it suitable for virtually any retail, ticketing, or payment application.

Q: Is this barcode scanner module easy to install?

A: Yes. The MJ-340 features a USB plug-and-play interface (HID-KBW / HID-POS), so no additional drivers are required. Simply connect it via USB to any Windows XP/Vista/7/8/10 computer or kiosk, and it's ready to scan immediately.

Q: Can this scanner read barcodes from phone screens or damaged labels?

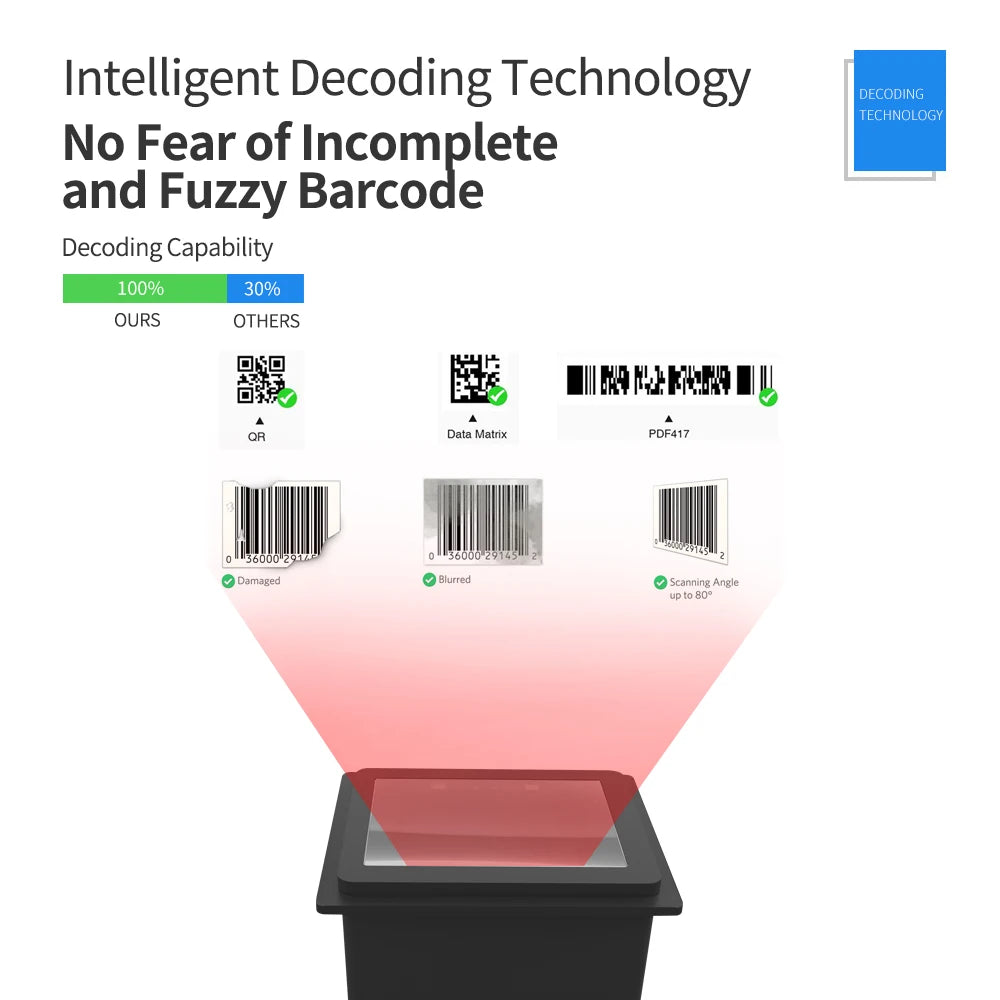

A: Absolutely. The CMOS image scanning technology is designed to decode both printed paper barcodes and on-screen codes (e.g., on smartphone displays). The high-performance decoding chip also handles incomplete or blurry barcodes that traditional laser scanners often fail to read.

Q: What environments is this embedded barcode scanner best suited for?

A: The MJ-340 is purpose-built for embedded deployment in self-service kiosks, gate/turnstile machines, ticket checking systems, mobile payment terminals, and retail POS setups. Its self-induction (auto-trigger) mode makes it ideal for high-traffic, hands-free operations.
