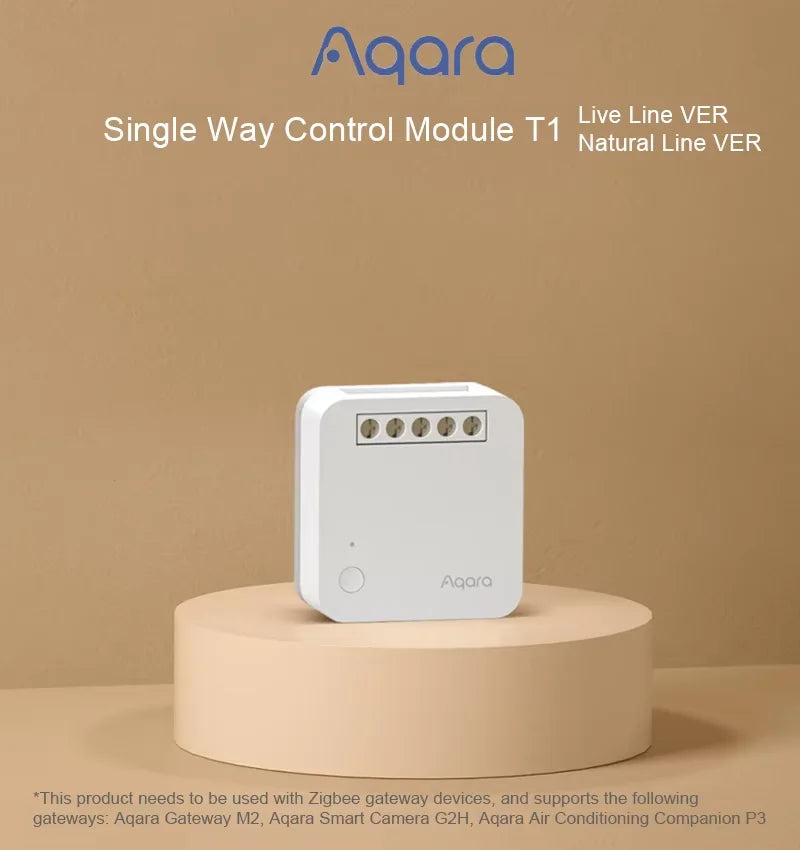

Aqara Single Way Control Module T1 Zigbee 3 0 Wireless Relay

Discover the Aqara Single Way Control Module T1 Zigbee 3 0 Wireless Relay — a standout decor pick featuring wireless design for dependable, everyday performance.

Specifications

Brand Name: Aqara,Aqara

Certification: CE,CE

Communication method: Zigbee

Control Channels: 2 Channels

Does It Includes Wireless Communication: Yes

Features: Solar

Gyro: Work with Apple Homekit

Implementation of the standard: GB/T15092.1-2010

Inbox adaptor: No

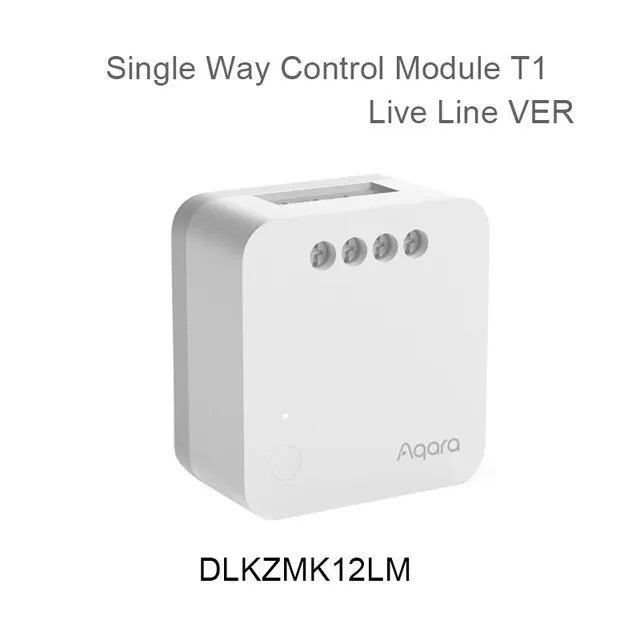

Live Line VER: DLKZMK12LM

Model Number: Aqara Single Way Control Module T1

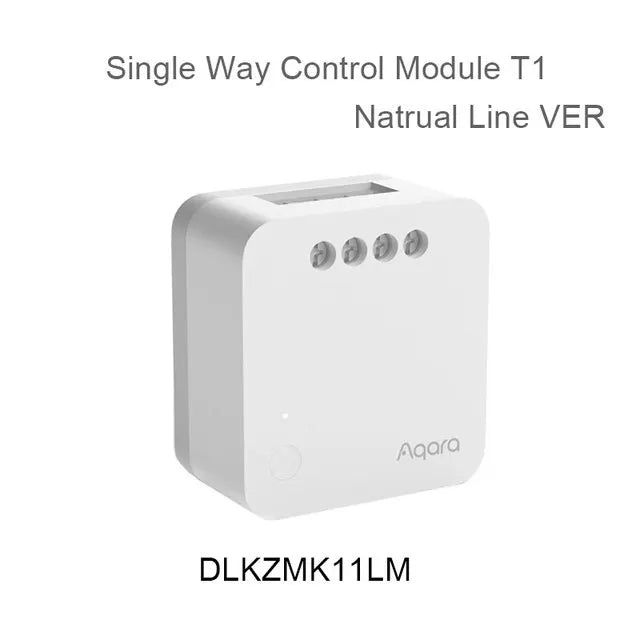

Natrual Line VER: DLKZMK11LM

Operating Humidity: 5-95% RH, non-condensing

Power Source: DC,DC

Rated Parameters: Max.10A 250V to 50Hz

Scale: 1:5

State of Assembly: Ready-to-Go

Wireless: Zigbee 3.0

Wireless Communication: ZIGBEE

The product is in stock, please don't worry to make an order!

Notice

-The product must be used with compatibile Aqara Hub.

-For complex automatizations (notifications, if-then actions) it need to be connected to Aqara Hub, where else compatible devices are already connected.

-To use this product with HomeKit, an Aqara Hub is required.

-The product is limited to indoor use. Please connect to the Hub before use.

Specifications :

Product Model: DLKZMK12LM (Neutral) DLKZMK11LM (Non Neutral)

Product Dimensions: 42.9×40×21.4 mm

Product Color: White

Net Weight (kg): 0.04

Gross Weight (kg): 0.05

Input Power: 100-250VAC,50/60Hz, μ

Input Current: MAX 5A (resistive load)

Rated Load: Min 3W, Max 1250W (resistive load), μ This product is only suitable for non-remote-control lights above 3W (typical value)

Wireless Connection: Zigbee 3.0

Wireless Standard: IEEE 802.15.4

Wireless Frequency: 2.4GHz (2400～2483.5MHz)

Receiver Sensitivity: -98dBm

Effective Communication Distance: 30m (indoors)

Operating Temperature: 0°C~ 35°C

Operating Humidity: 5% ~ 95% RH, non-condensing

Storage Temperature: -10°C~ 50°C

Options

• Color: Natrual Line VER, Live Line VER

Frequently Asked Questions

Q: What is the Aqara Single Way Control Module T1 Zigbee 3 0 Wireless Relay?

A: The Aqara Single Way Control Module T1 Zigbee 3 0 Wireless Relay is a quality decor pick. Notice -The product must be used with compatibile Aqara Hub.

Q: How do I use the Aqara Single Way Control Module T1 Zigbee 3 0 Wireless Relay?

A: The Aqara Single Way Control Module T1 Zigbee 3 0 Wireless Relay is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the Aqara Single Way Control Module T1 Zigbee 3 0 Wireless Relay?

A: The Aqara Single Way Control Module T1 Zigbee 3 0 Wireless Relay stands out in our decor range — For complex automatizations (notifications, if-then actions) it need to be connected to Aqara Hub, where else compatible devices are already connected.
