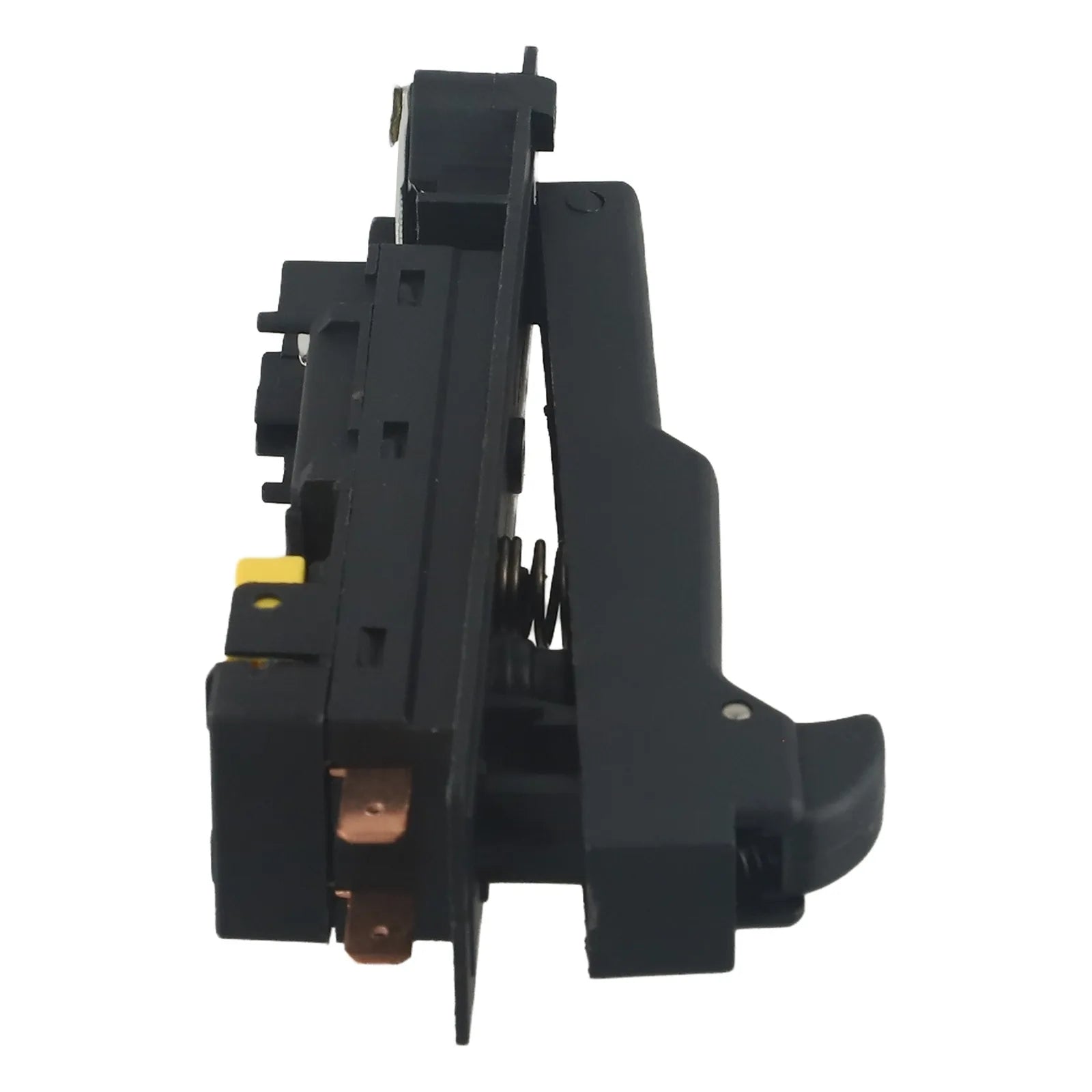

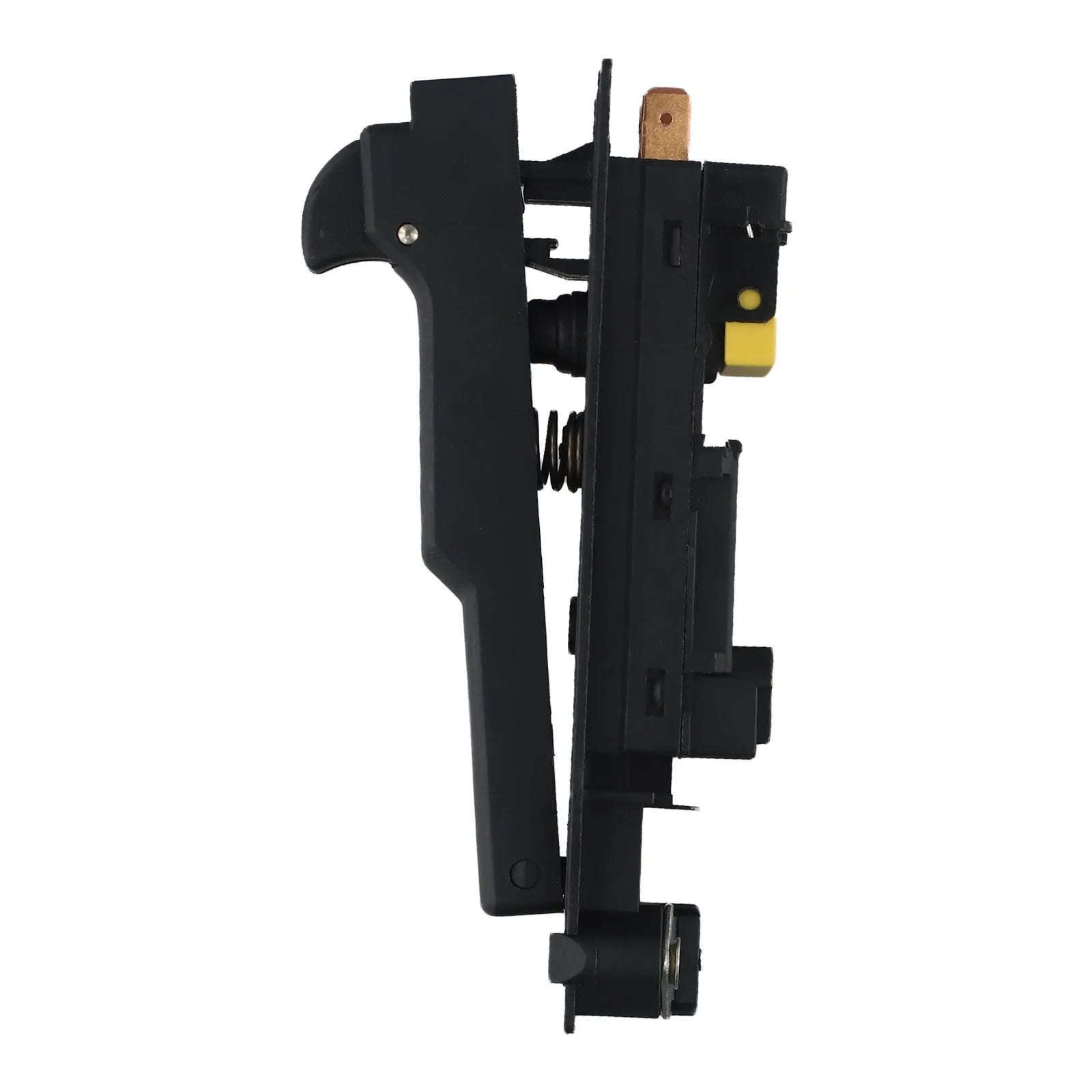

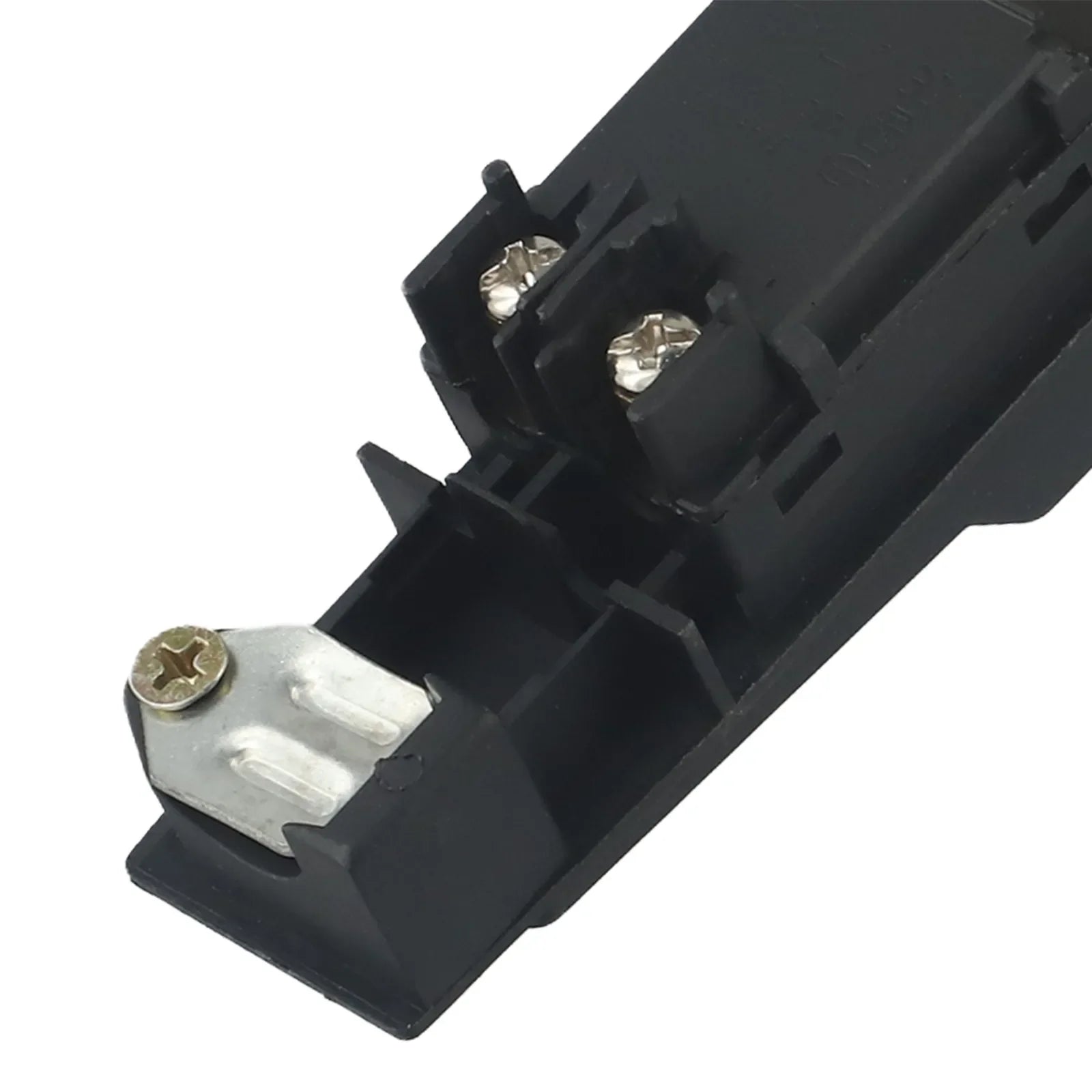

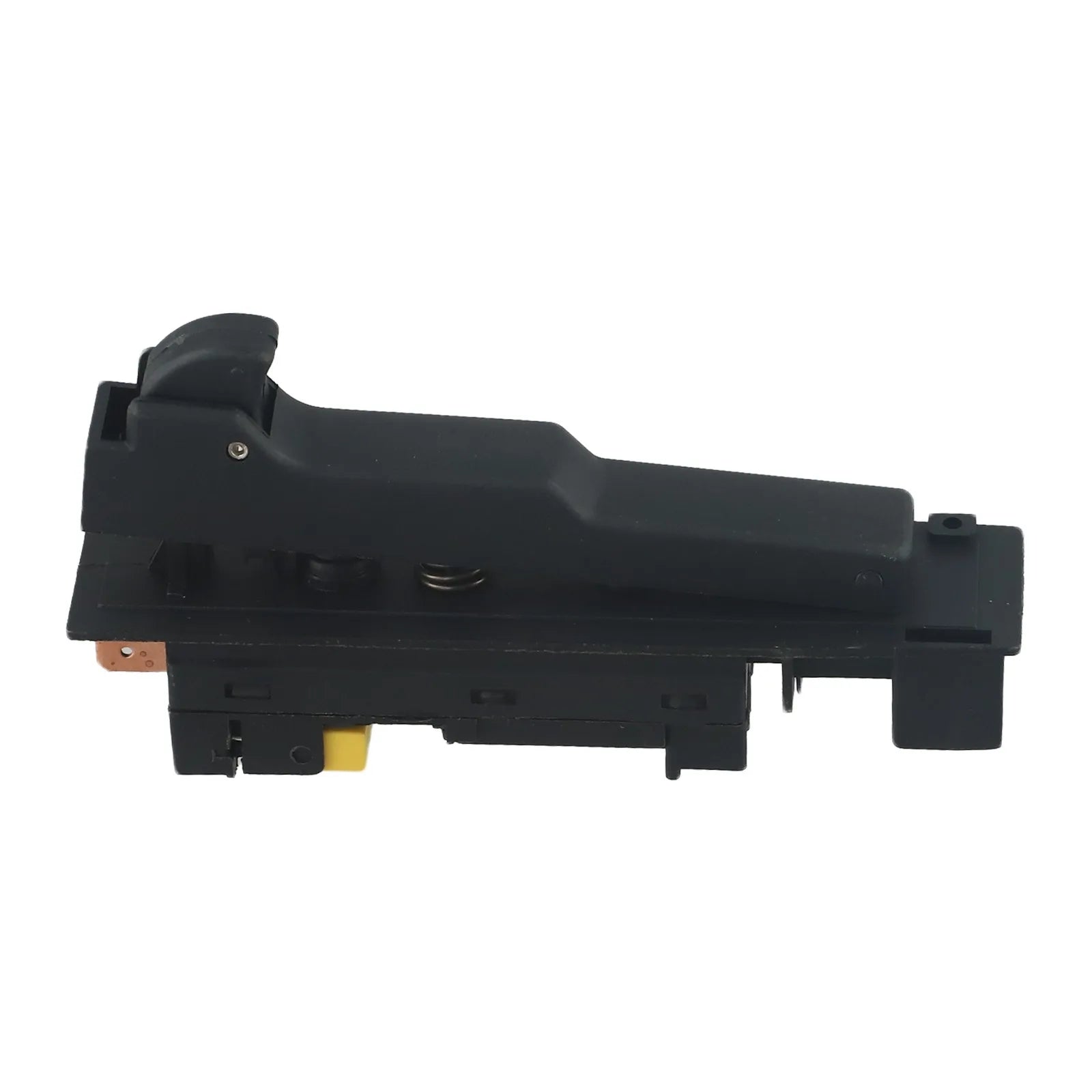

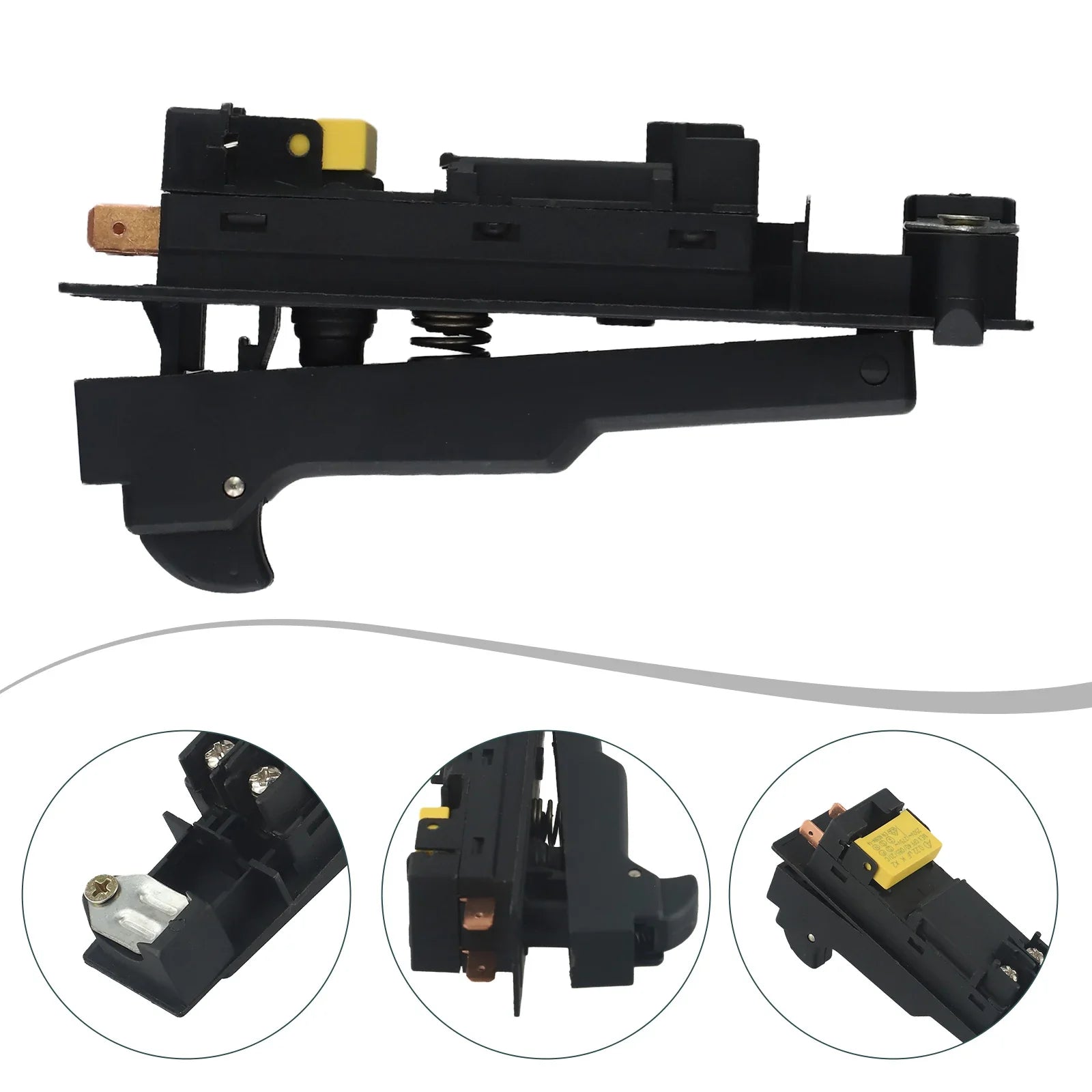

VIBRATITE Trigger Switch for Angle Grinder & Cutting Machines
Keep your power tools running at peak performance with this heavy-duty VIBRATITE Trigger Switch (Model SR-010), designed as a direct replacement for the GWS-20-180 angle grinder and compatible cutting machines. Rated at AC 250V / 12A, this push-button switch is built for long-lasting, reliable power control in demanding workshop environments. Made in Mainland China.
Key Features
- High-Rated Performance: Handles AC 250V and 12A — ideal for heavy-duty angle grinders and polishers.
- Direct Replacement: Compatible with GWS-20-180 angle grinder models for a straightforward swap.
- Durable Construction: Made from robust plastic and metal components for long service life.
- Extended Electrical Life: Rated for 150,000 electrical cycles and 500,000 mechanical cycles.
- High Temperature Tolerance: Operates reliably up to 150°C working temperature.
- IP20 Protection: Offers basic protection against solid objects in workshop conditions.
- Easy to Install & Operate: Simple push-button mechanism snaps into place — no specialist tools required.
- Lightweight: Weighs just 75g, adding minimal bulk to your tool.
Specifications
| Model | SR-010 |
| Type | Angle Grinder Trigger Switch |
| Material | Plastic & Metal |
| Rated Voltage | AC 250V |
| Rated Current | 12A |
| Electrical Life | 150,000 cycles |
| Mechanical Life | 500,000 cycles |
| Working Temperature | Up to 150°C |
| Protection Level | IP20 |
| Weight | 75g |
| Application | Power Tools (Angle Grinders, Cutting Machines, Polishers) |
| Country of Origin | Mainland China |
What's in the Box?
- 1× Angle Grinder Trigger Switch (SR-010)
Important Notes
- Screen display may cause slight color variation from the actual product.
- Please allow for minor measurement deviation due to manual measurement.
- This is a replacement part only — not a complete tool.
Safety Information
Always disconnect your power tool from the mains supply before replacing the switch. For electrical safety guidelines related to power tool use and maintenance, refer to OSHA's Electrical Safety resource.
Related Products You May Like
- 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino
- 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler
Frequently Asked Questions
Q: Which angle grinder models is this trigger switch compatible with?
A: This SR-010 trigger switch is specifically designed as a replacement for the GWS-20-180 angle grinder. It is also suitable for a range of other electric power tools such as cutting machines and polishers that use a push-button switch rated at AC 250V / 12A. Always verify your tool's voltage and current requirements before installation.
Q: Is this switch easy to install myself?
A: Yes — the switch is designed for straightforward DIY replacement. Simply power off and unplug your tool, remove the old switch, and snap the new SR-010 into place. No specialist tools are needed. If you are unsure about electrical work, consult a qualified technician.
Q: What is the lifespan of the VIBRATITE SR-010 switch?
A: The SR-010 is rated for up to 150,000 electrical cycles and 500,000 mechanical cycles, making it a durable, long-term replacement part for regular workshop use.
Q: What protection rating does this switch have?
A: The switch carries an IP20 protection rating, providing basic protection against solid objects (12.5mm and larger). It is suitable for standard indoor workshop environments.
