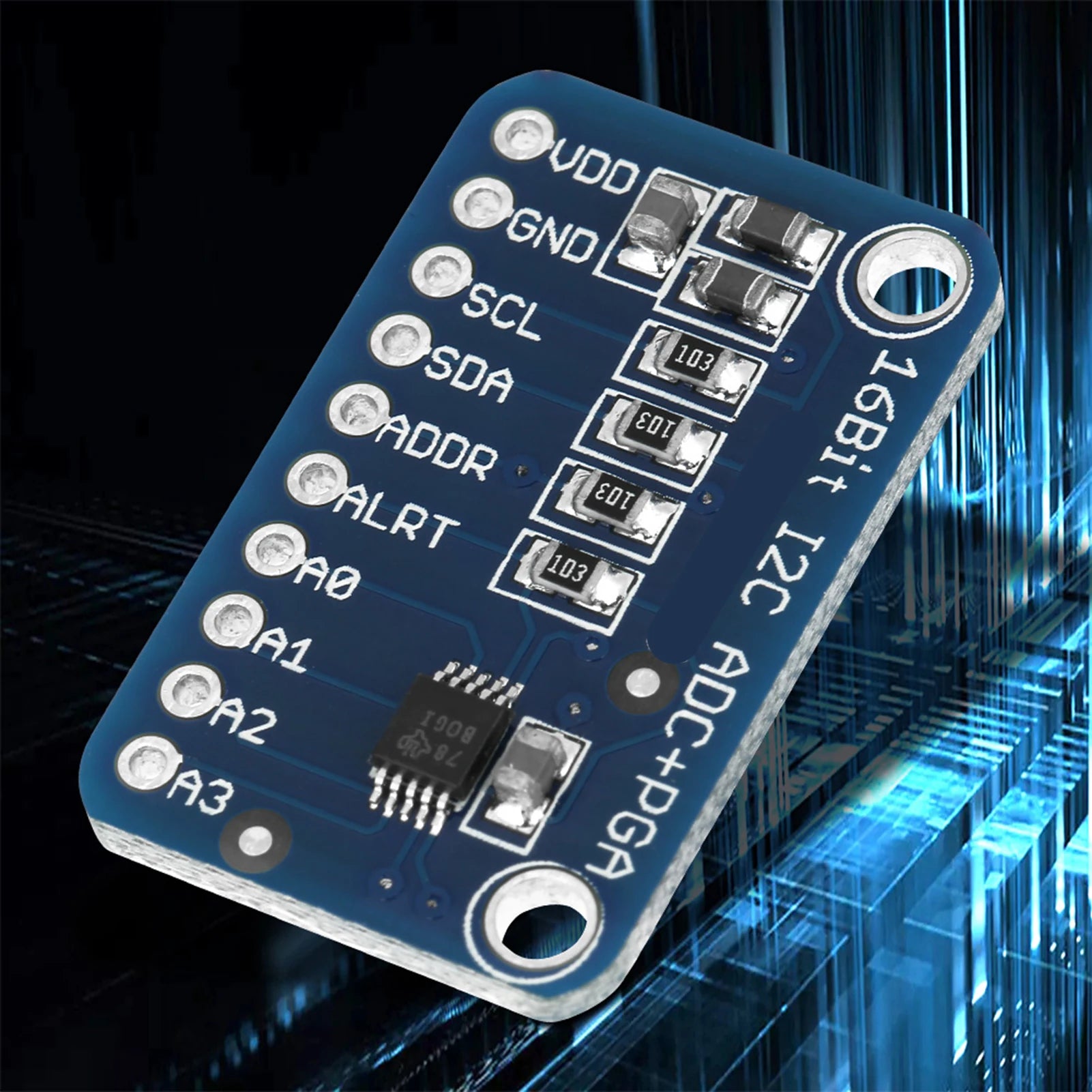

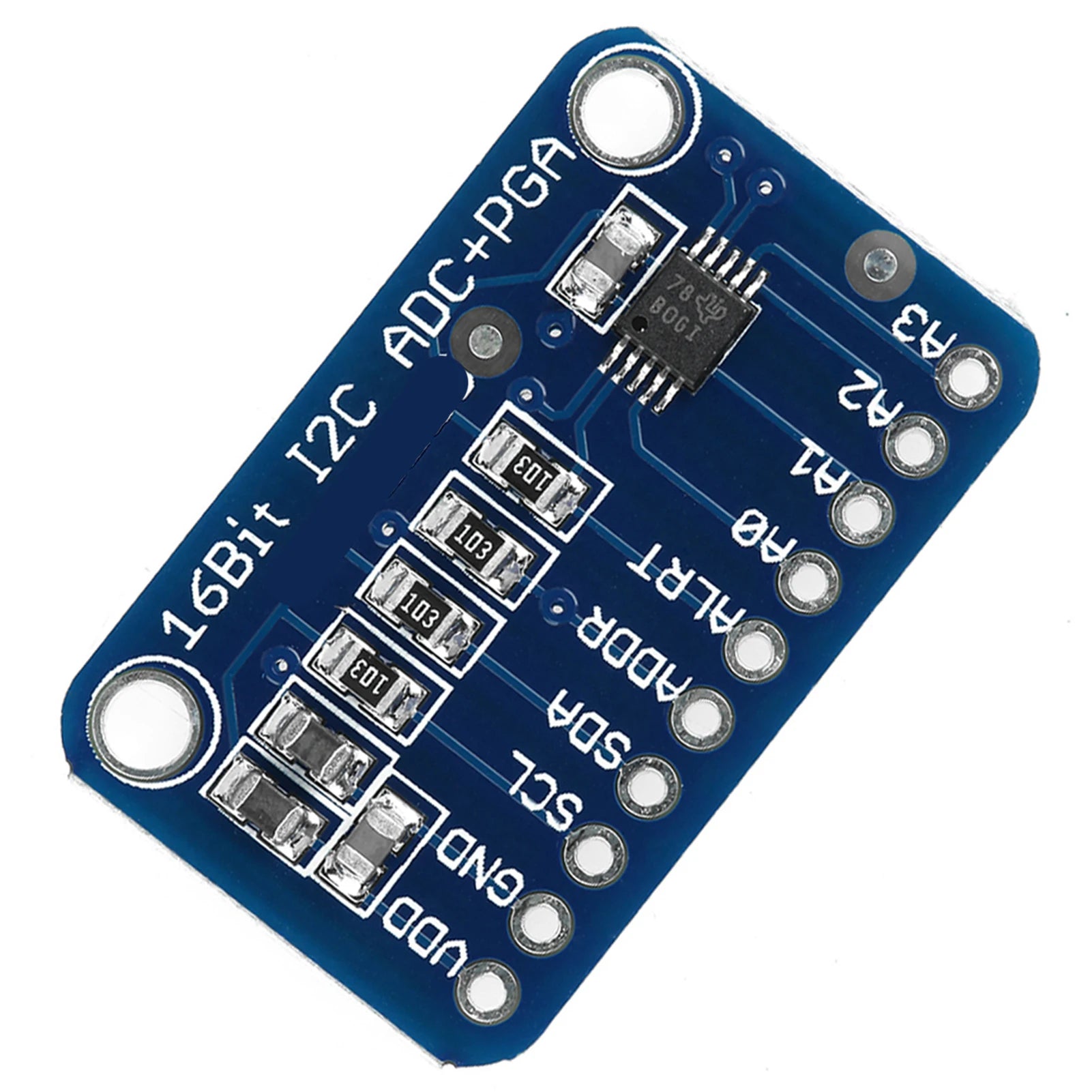

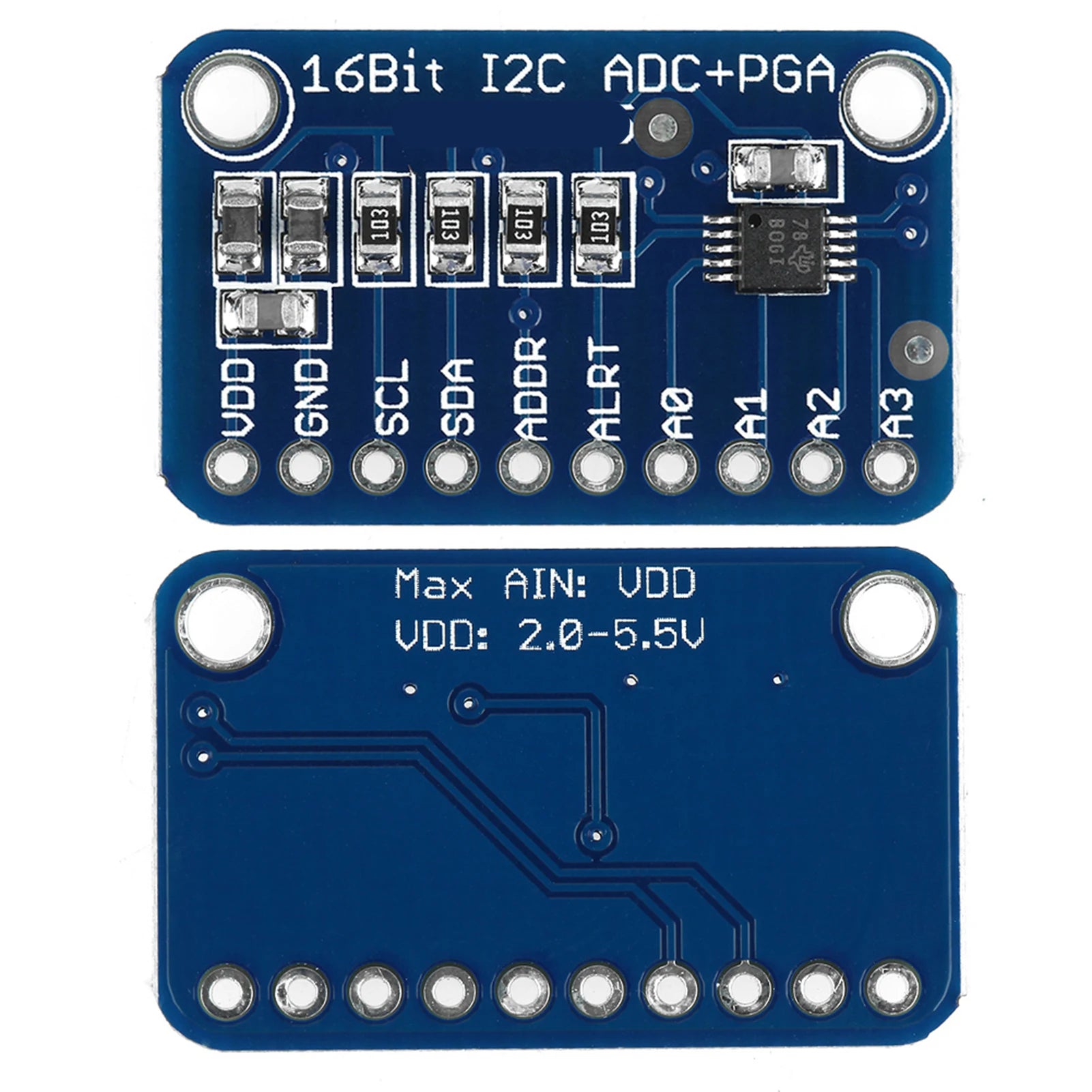

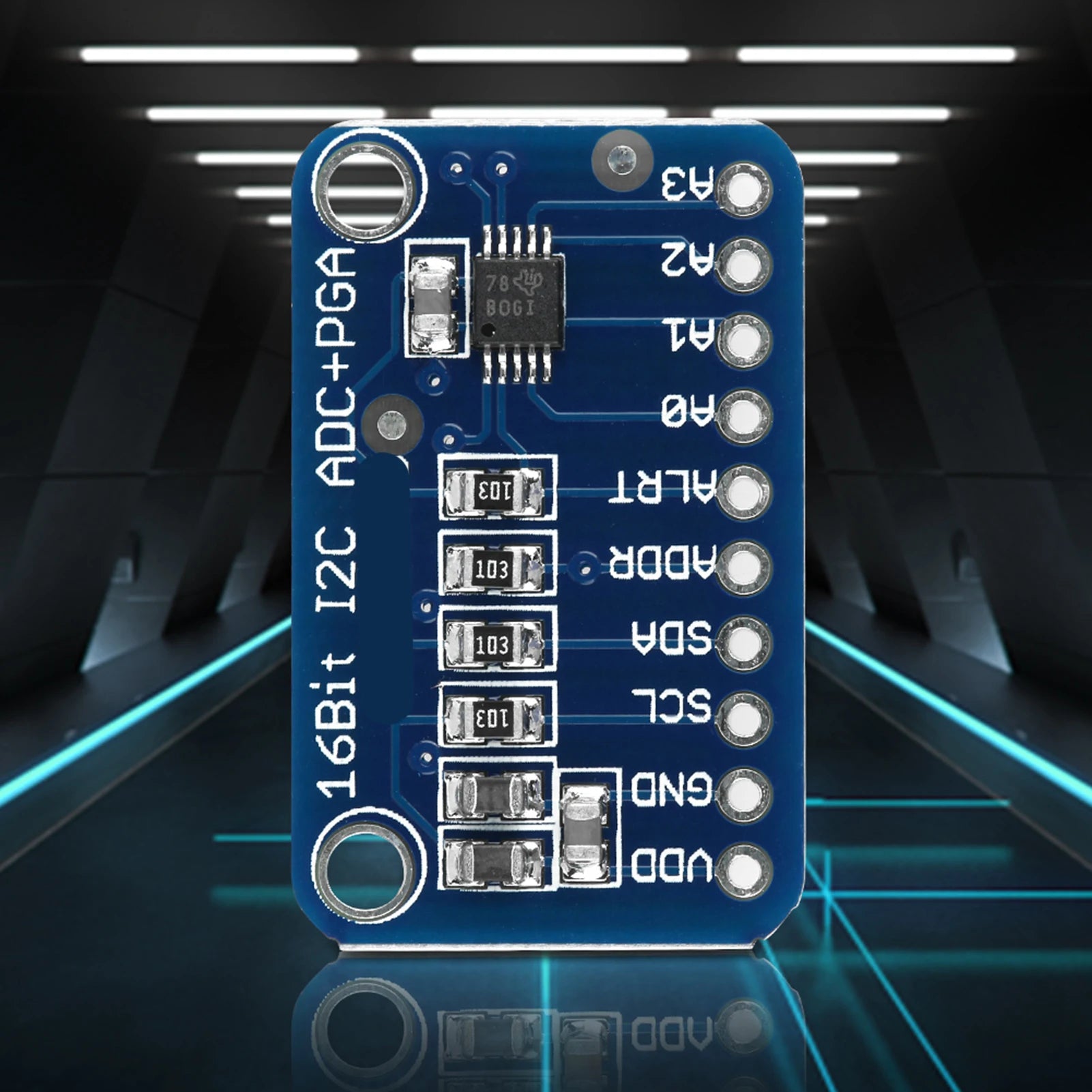

Analog Digital Converter 16 Bit I2C Development Board Module

Discover the Analog Digital Converter 16 Bit I2C Development Board Module — a standout electronics accessories pick featuring easy to use design for dependable, everyday performance.

Specifications

1pc 16‑Bit I2C ADC Development Board Analog to Digital Converter Module:

Specification:

Features:
For micro-controllers without an analog-to-digital converter or when you want a higher-precision ADC, provides 16-bit precision at 860 samples/second over I2C.
The chip can be configured as 4 single-ended input channels, or two differential channels.
As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range.
We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of signals and its super easy to use. It is a great general purpose 16 bit converter.

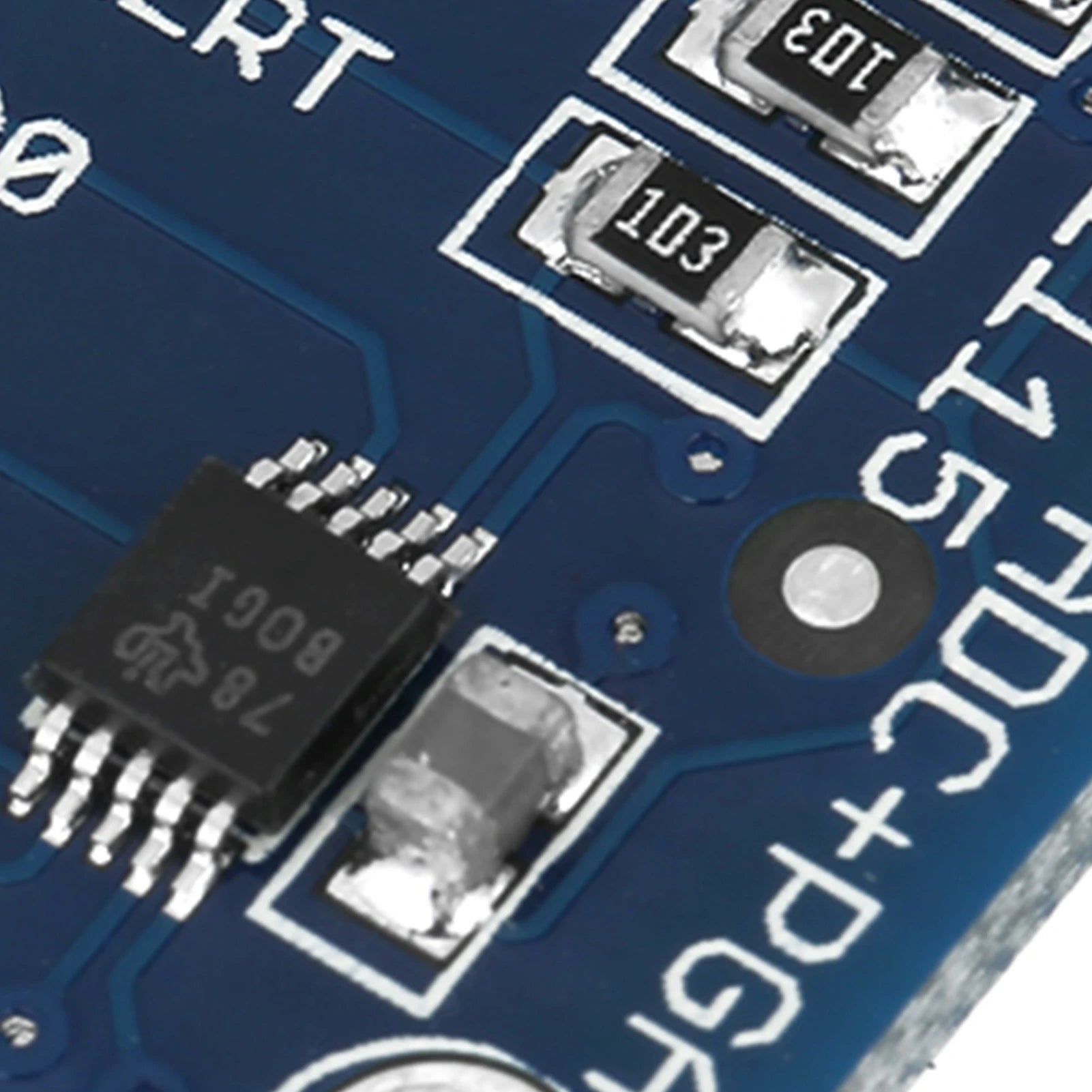

The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the data-sheet table 5) so you can have up to 4 connected on a single 2-wire I2C bus for 16 single ended inputs.
Four single-ended or two differentialinputs. Programmable comparator; internal low-driftvoltage reference; internal oscillator; internal PGA.
This board/chip uses I2C 7-bit addresses between 0x48-0x4B, selectable with jumpers.
Specifications:
Wide Supply Range: 2.0v to 5.5v;
Low Current Consumption: Continuous Mode:Only 150uA Single-Shot Mode: Auto Shut-Down;
Programmable Data Rate: 8sps to 860sps;
I2C Interface: Pin-selectable addresses;
Size: 2.8*1.8cm/1.1*0.7in
Weight: 5g(approx.)

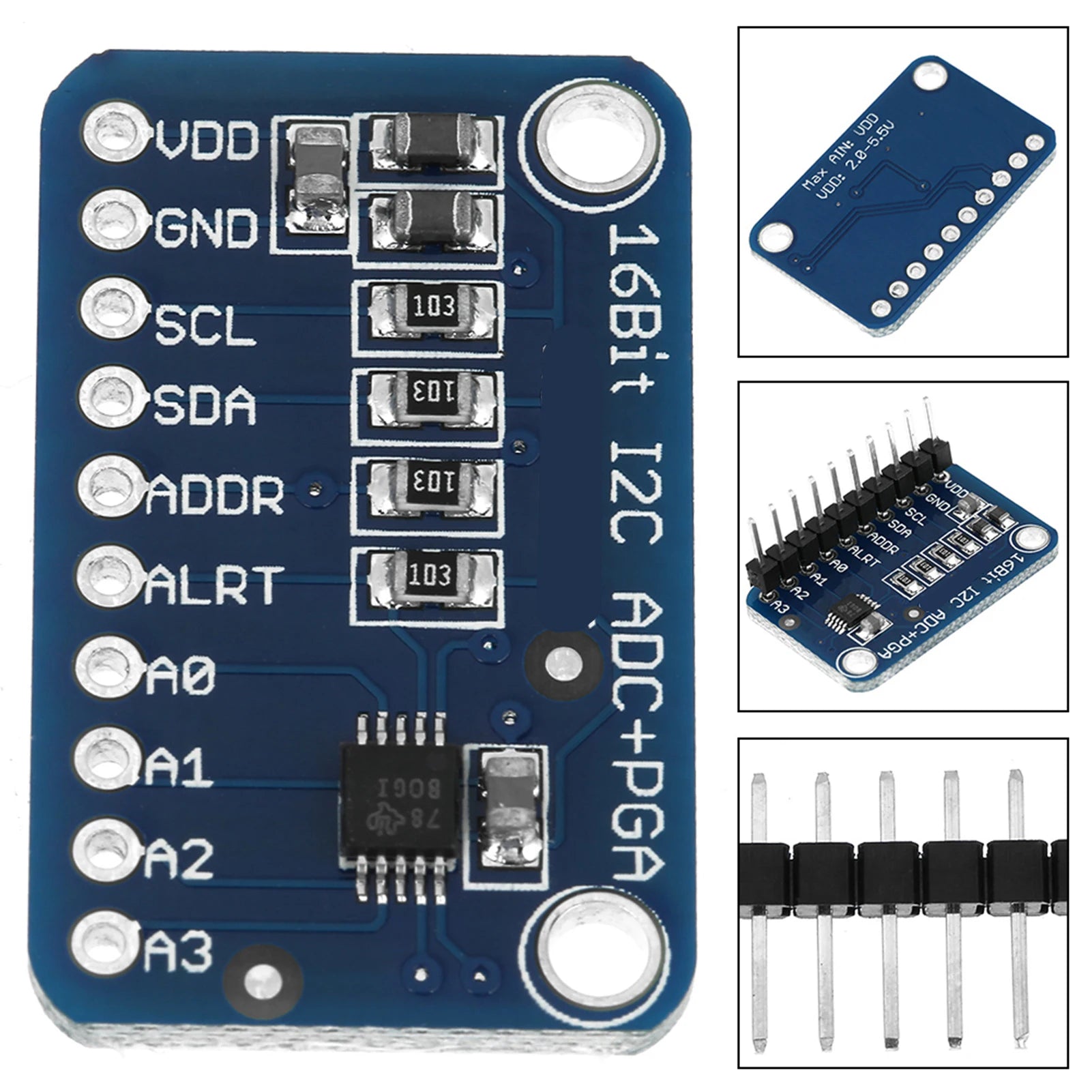

Package Includes:
1 x Module
1 x Pin Header
:

:

Frequently Asked Questions

Q: What is the Analog Digital Converter 16 Bit I2C Development Board Module?

A: The Analog Digital Converter 16 Bit I2C Development Board Module is a quality electronics accessories pick. The chip can be configured as 4 single-ended input channels, or two differential channels.

Q: How do I use the Analog Digital Converter 16 Bit I2C Development Board Module?

A: The Analog Digital Converter 16 Bit I2C Development Board Module is ready to use right out of the box and makes an easy addition to your electronics accessories lineup.

Q: Why choose the Analog Digital Converter 16 Bit I2C Development Board Module?

A: The Analog Digital Converter 16 Bit I2C Development Board Module stands out in our electronics accessories range — As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range.
