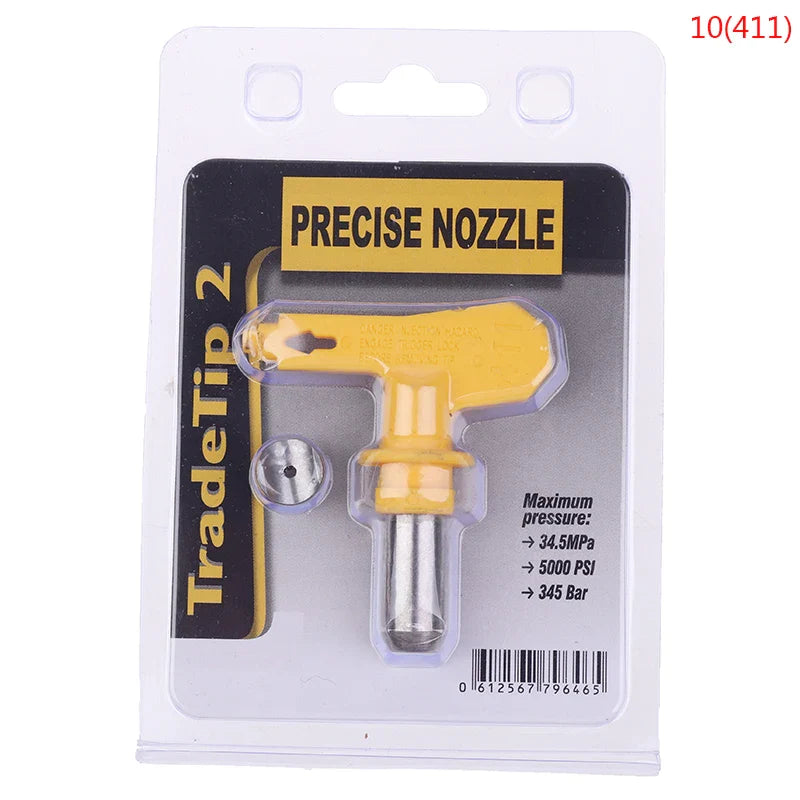

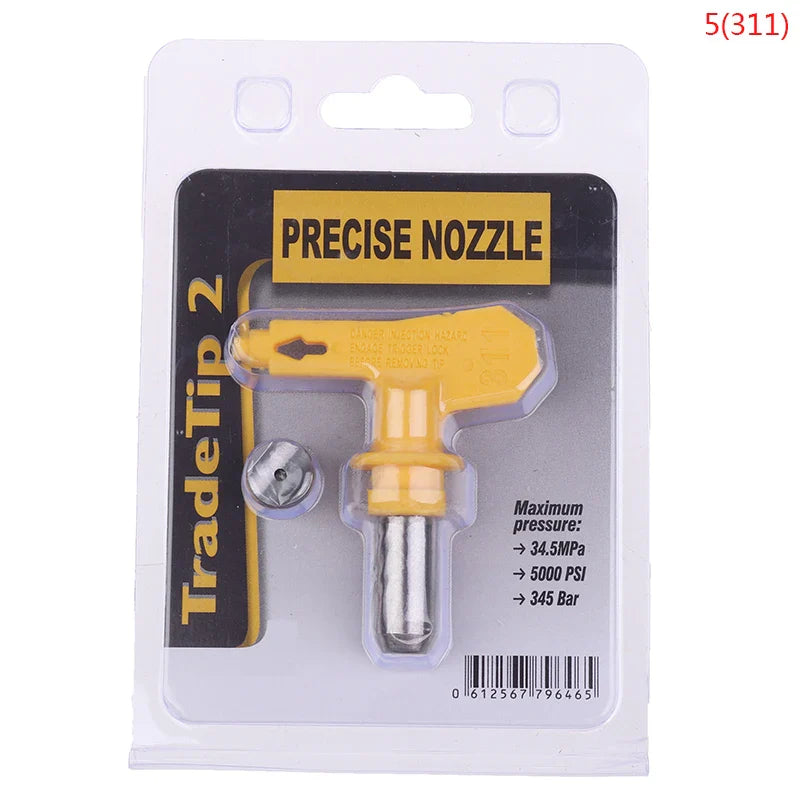

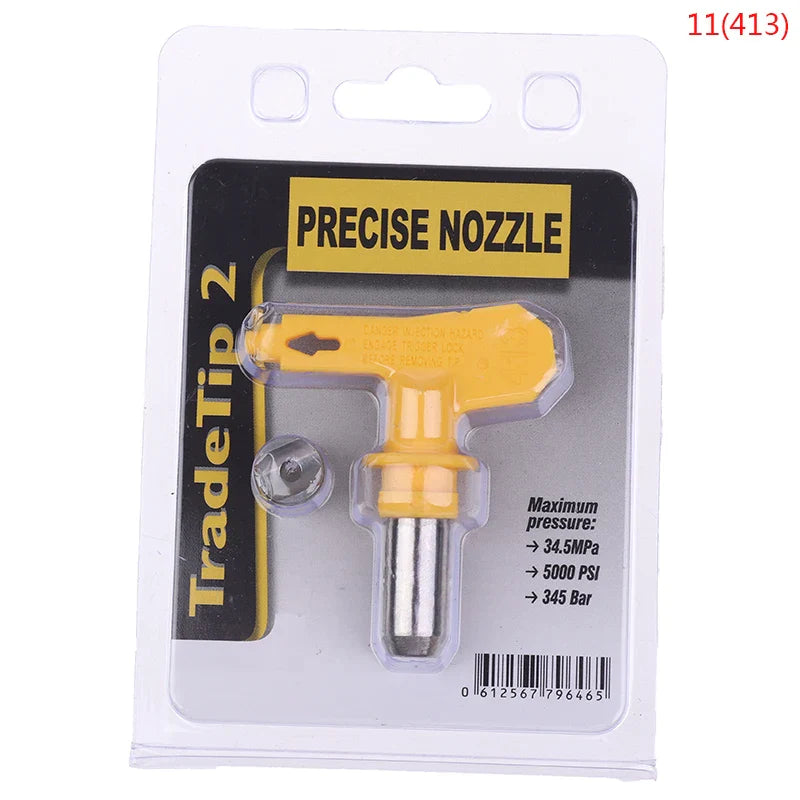

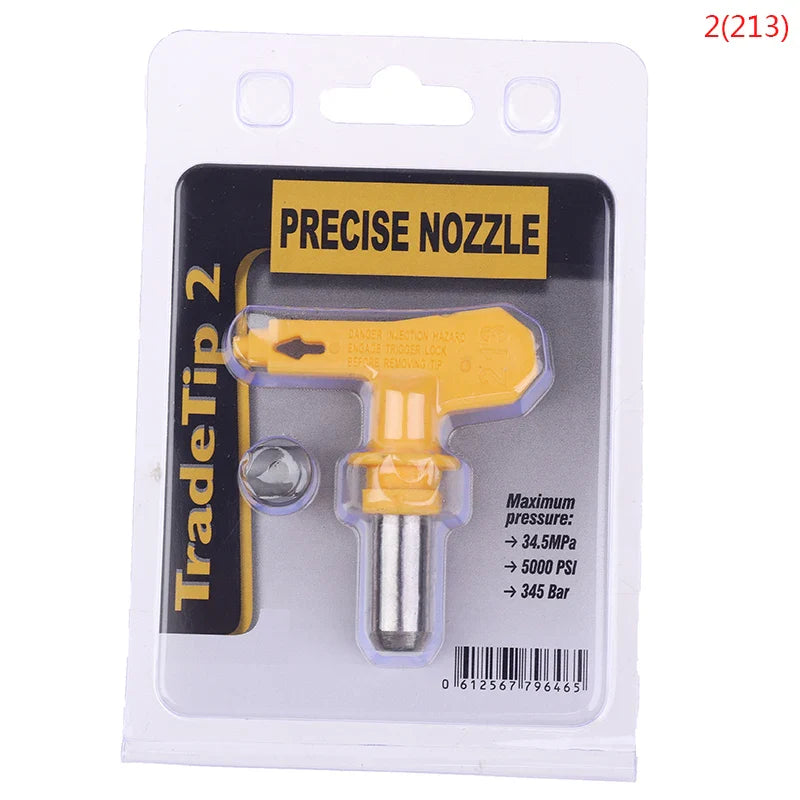

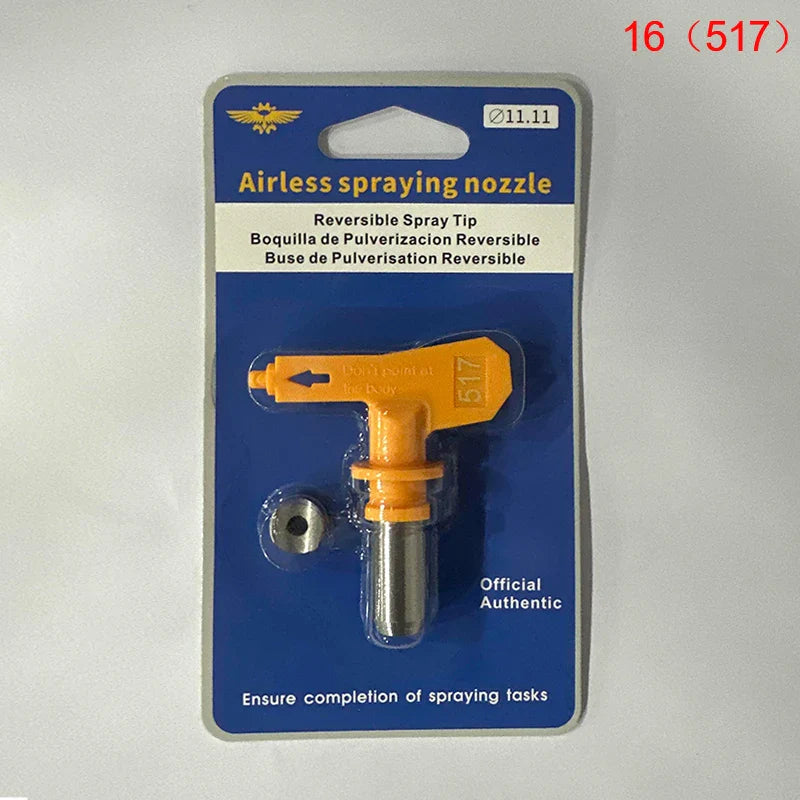

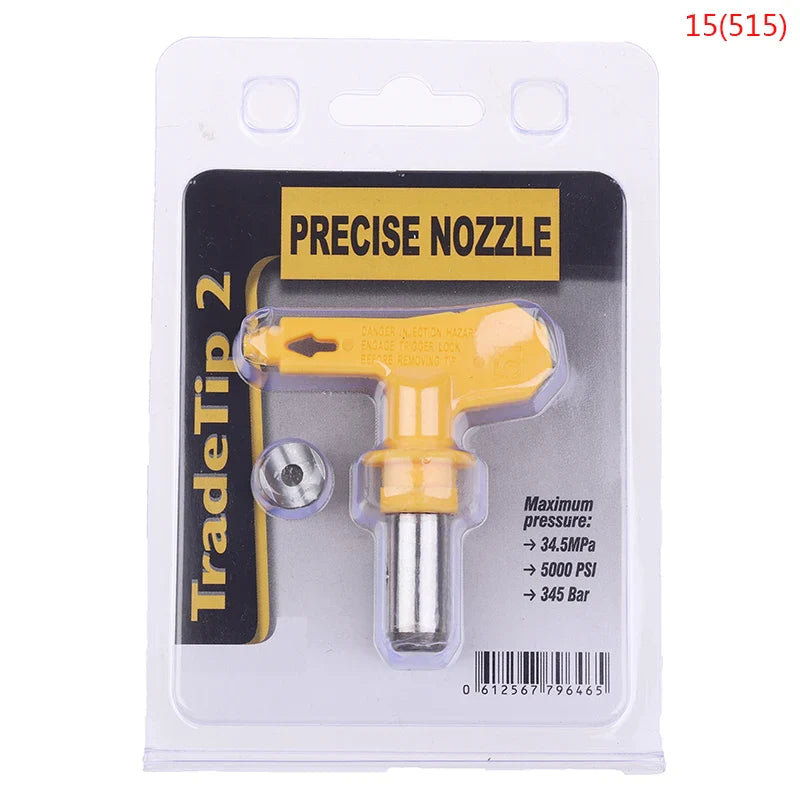

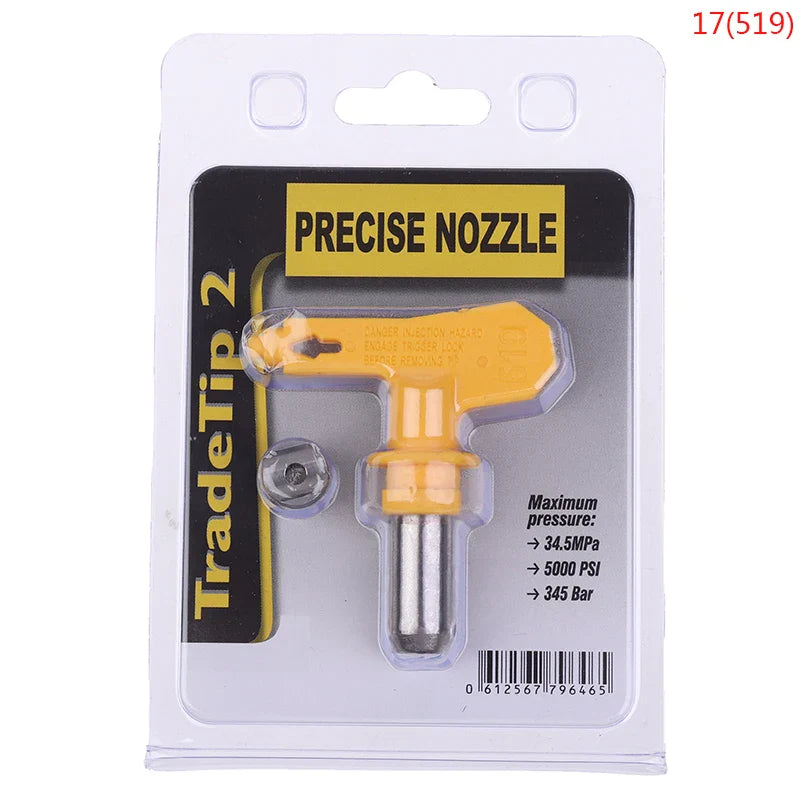

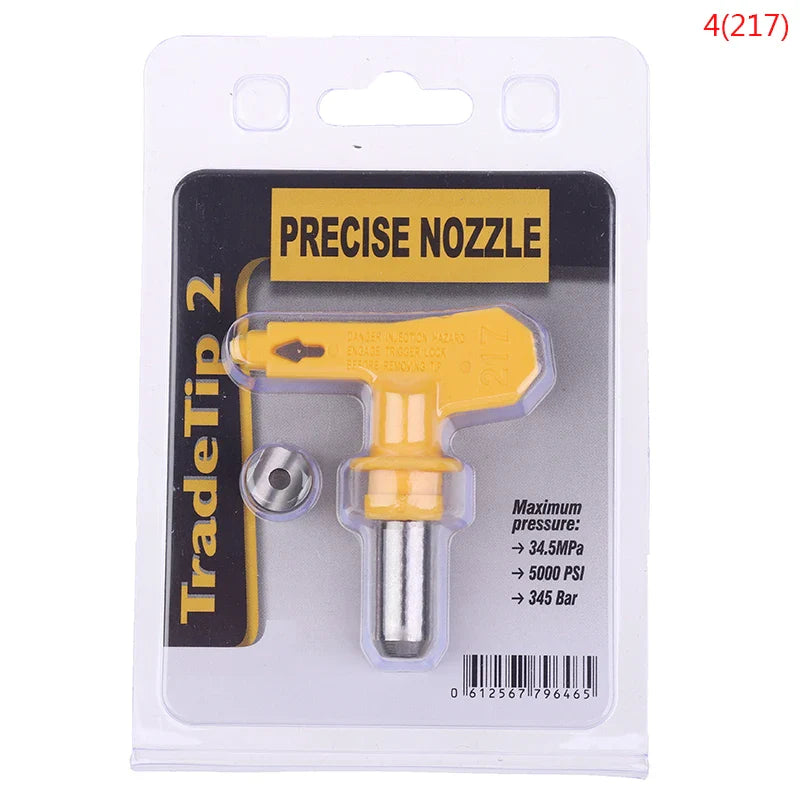

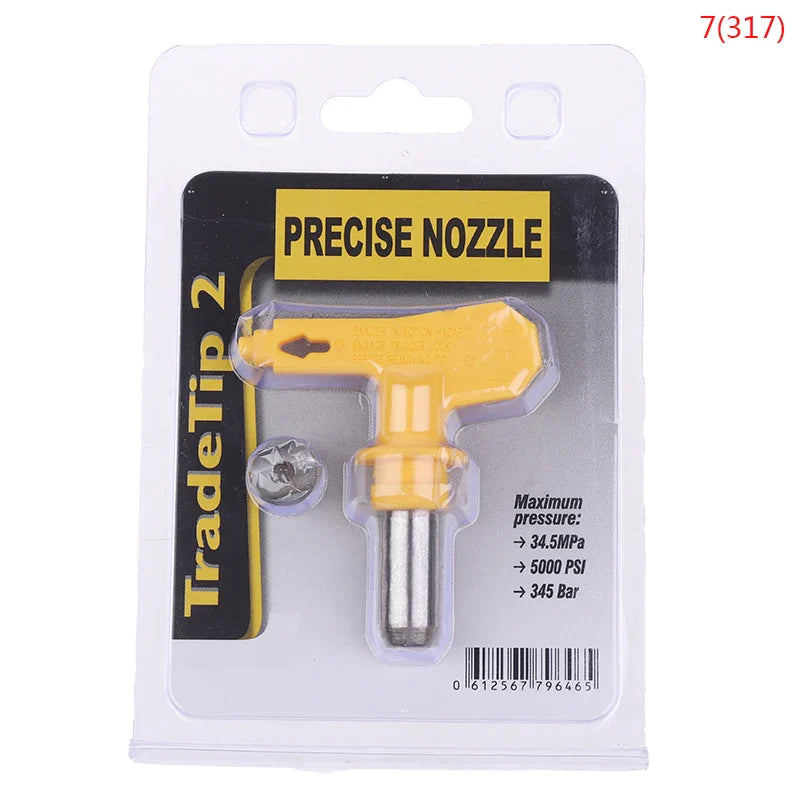

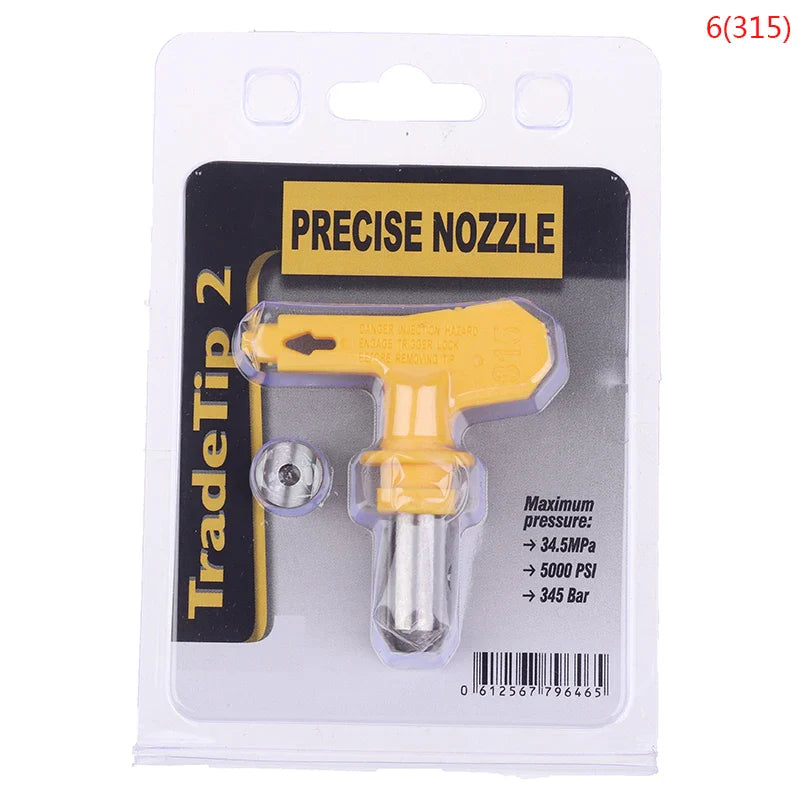

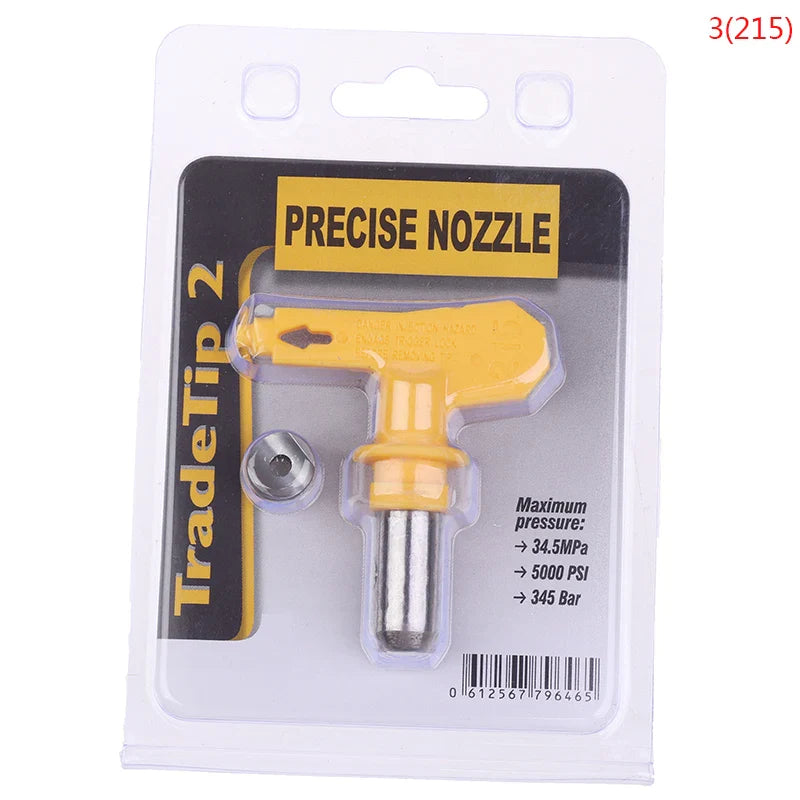

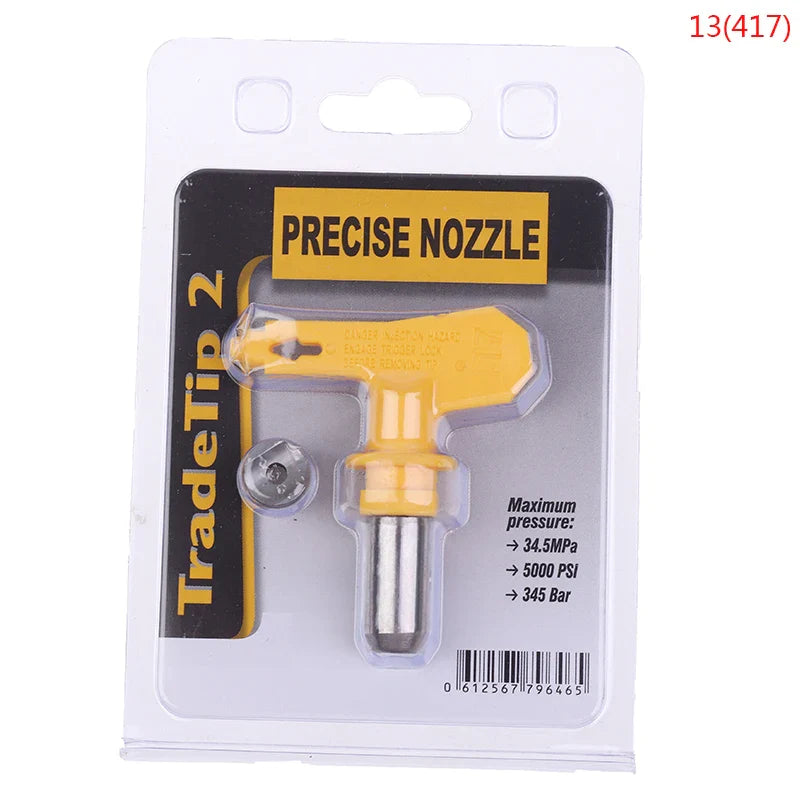

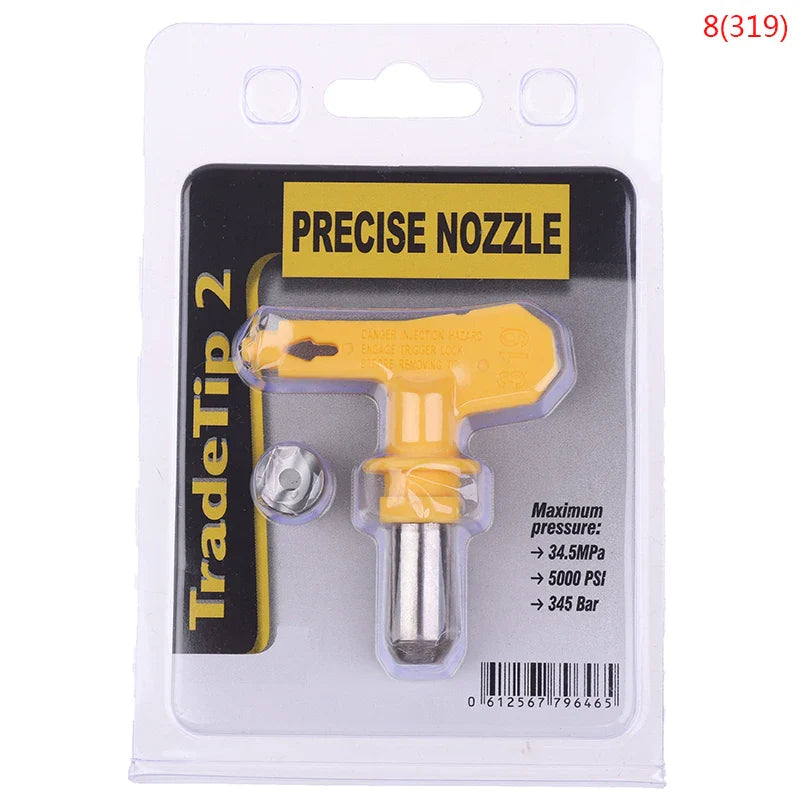

Airless Spray Gun Tip Nozzle – 2/3/4/5/6 Series
Upgrade your painting projects with this professional-grade Airless Spray Gun Tip Nozzle, compatible with Wagner, Titan, Graco, Atomex, AGR, and most standard airless paint sprayers. Whether you're tackling interior walls, exterior siding, or commercial buildings, this durable tip delivers consistent, even atomization for a flawless finish every time.
Made in China.
Key Features
- Wide Compatibility: Fits most airless sprayers including Wagner, Titan, Graco, Atomex, and AGR brands.

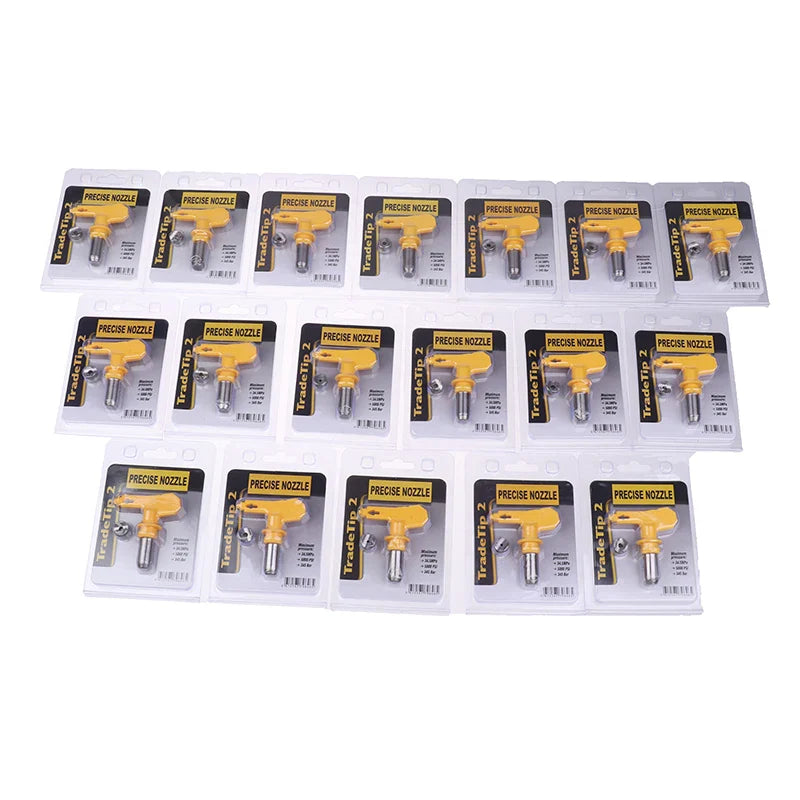

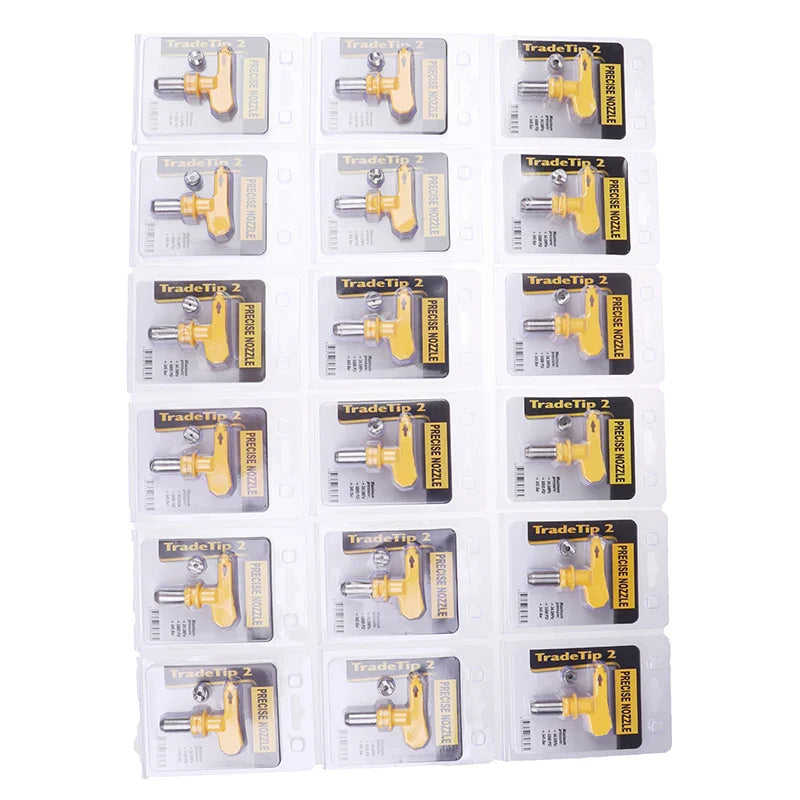

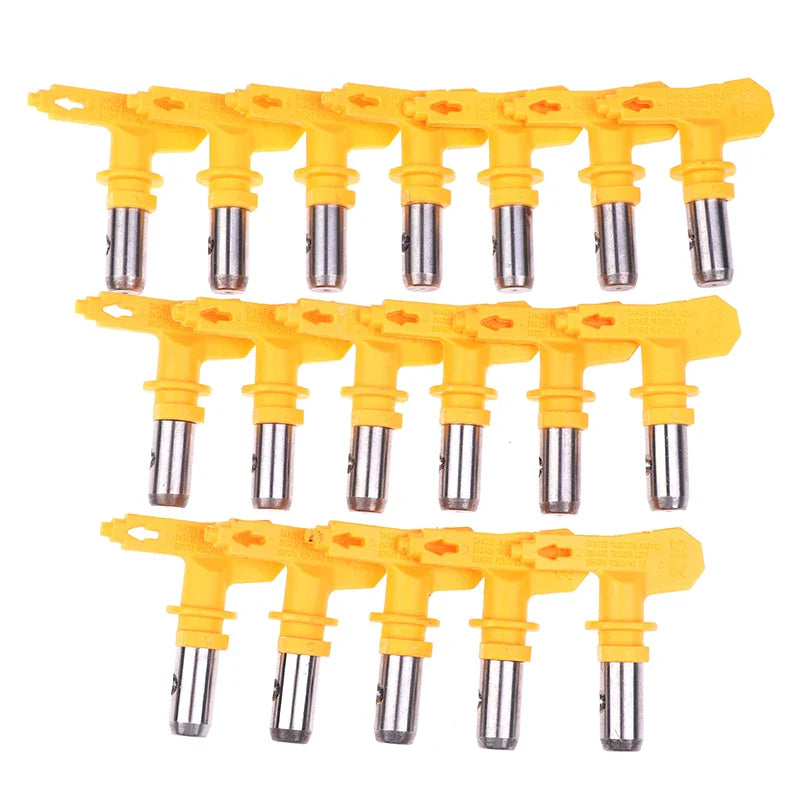

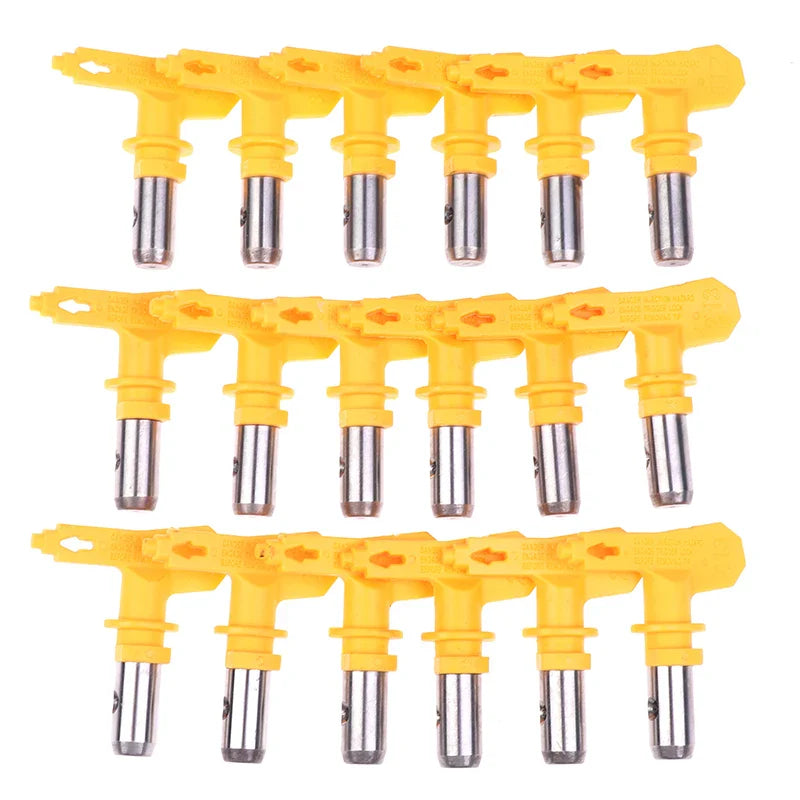

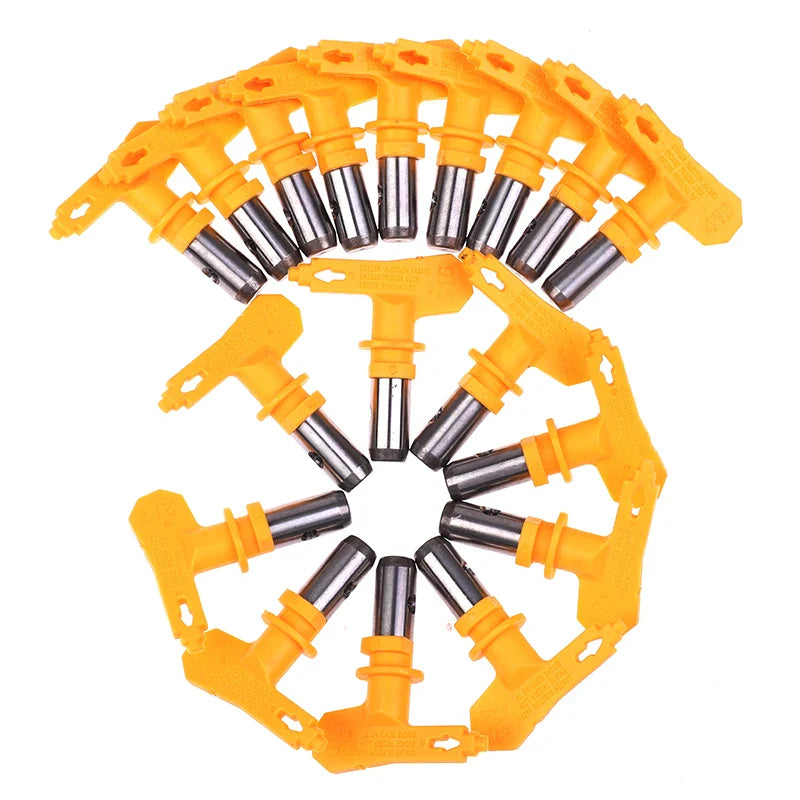

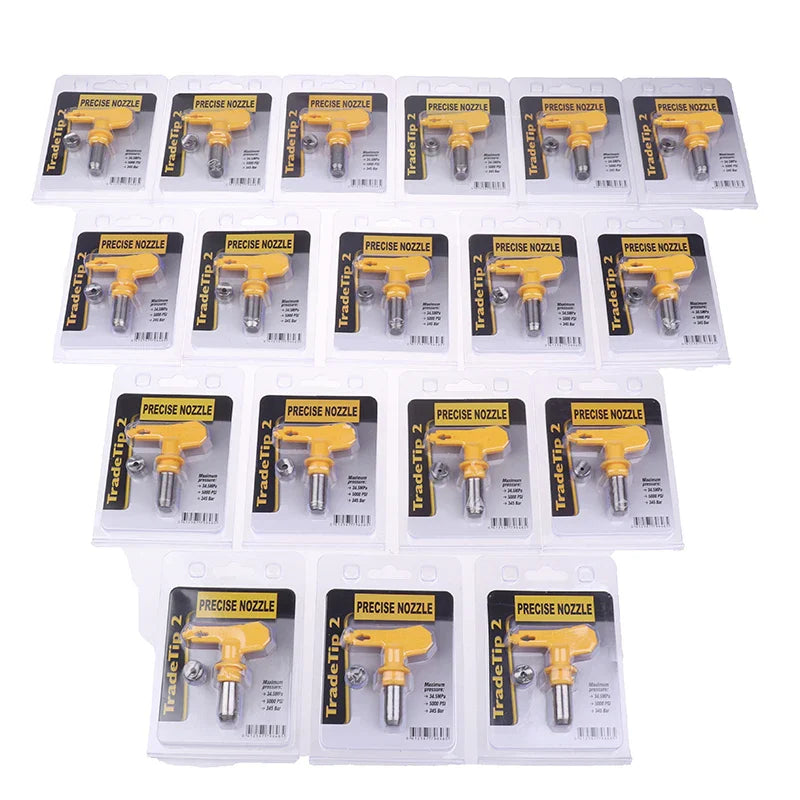

- Complete Series Range: Available in 2, 3, 4, 5, and 6 series with multiple tip sizes (211, 213, 215, 217, 311, 315, 317, 319, 321, 411, 413, 415, 417, 419, 515, 517, 519, 617).
- Excellent Atomization: Engineered for superior spray pattern consistency — ideal for latex paint, oil paint, and other coatings.
- Easy Reverse-Clean Design: Simply rotate the nozzle 180° to clear clogs and resume spraying instantly.
- Adjustable Spray Pattern: The first digit of the tip number indicates spray width; the last two digits indicate orifice size and flow rate — choose the right tip for your job.
- Durable Construction: Built to withstand heavy use in residential and commercial painting applications.
- 100% Brand New: High-quality construction right out of the box.
Spray Pattern Width Guide
| Series | Pattern Width (mm) | Pattern Width (inches) |
|---|---|---|
| 2 Series | 100–150 mm | 3.93"–5.9" |
| 3 Series | 150–200 mm | 5.9"–7.87" |
| 4 Series | 200–250 mm | 7.87"–9.84" |
| 5 Series | 250–300 mm | 9.84"–11.8" |
| 6 Series | 300–350 mm | 11.8"–13.7" |
Specifications
- Product Name: Airless Spray Tip Nozzle

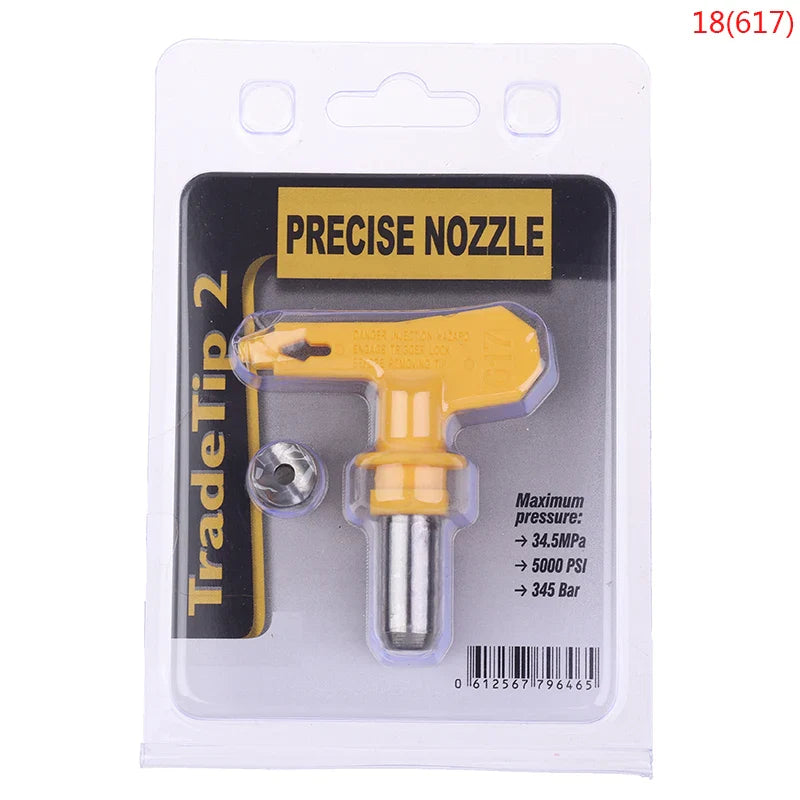

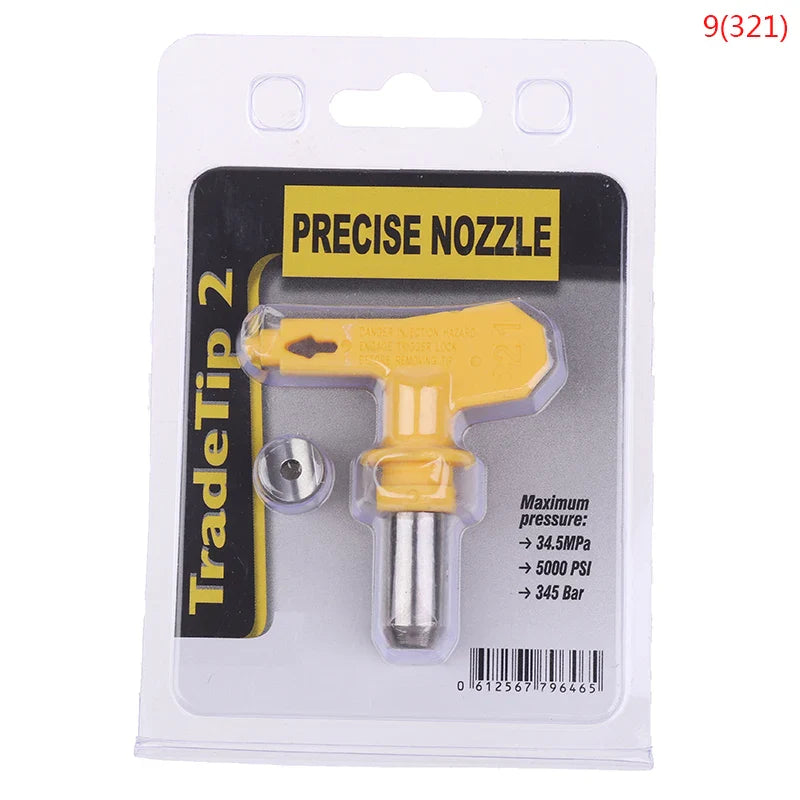

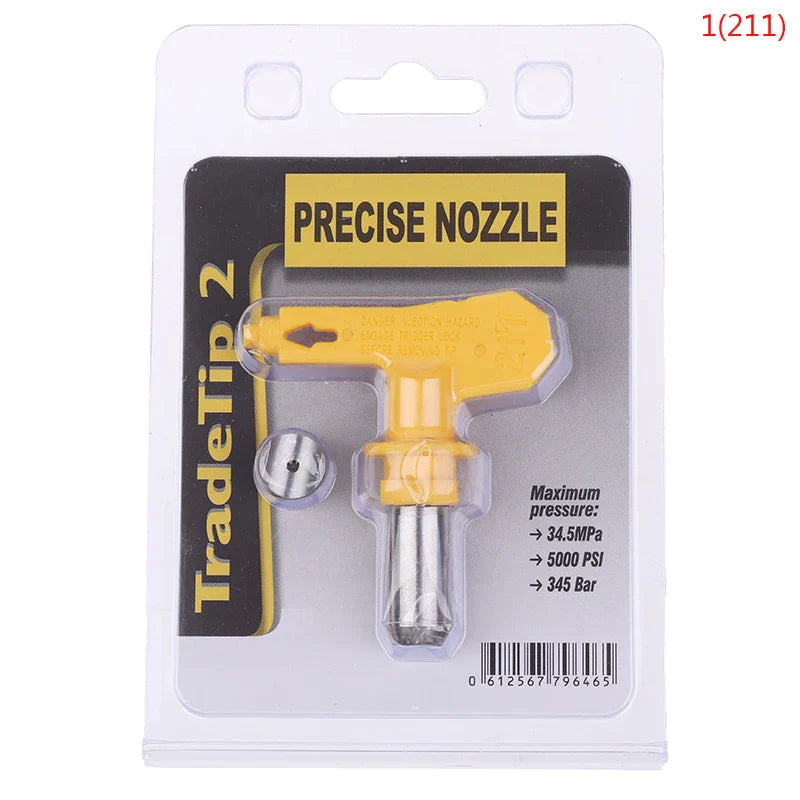

- Available Types: 211, 213, 215, 217, 311, 315, 317, 319, 321, 411, 413, 415, 417, 419, 515, 517, 519, 617
- Color: Yellow + Black
- Quantity: 1 Piece
- Origin: Made in China
What's in the Box?
- 1 × Airless Spray Tip Nozzle
Note: Please allow 1–3mm tolerance due to manual measurement. Monitor color settings may slightly affect the appearance of the item in photos.
Related Products You May Like
- 1/4" Hex Wire Twister Drill Attachment – Rebar Tie Wire Tool
- 1/2" & 3/4" PPR Water Pipe Tap – Alloy Steel Anti-Corrosion
- 1/2" DN15 Adjustable Garden Sprinkler Head | Lawn Irrigation
For further guidance on safe paint sprayer use and coating best practices, visit the OSHA Spray Finishing Safety Resource.
Frequently Asked Questions
Q: Which airless sprayer brands is this tip nozzle compatible with?
A: This airless spray tip is designed to fit most standard airless paint sprayers, including Wagner, Titan, Graco, Atomex, and AGR brand sprayers. It uses a universal fitting that works across the majority of professional and consumer-grade machines.
Q: How do I choose the right tip series and number for my project?
A: The first digit of the tip number refers to the spray pattern width — a higher number means a wider spray. For example, a 4-series tip produces a 200–250mm pattern, ideal for medium-sized walls. The last two digits indicate the orifice size and flow rate; a larger number means a greater flow, suitable for thicker coatings like exterior latex paint.
Q: How do I clean this airless spray tip if it gets clogged?
A: Simply rotate the nozzle 180° to switch it into reverse/clean mode, then briefly trigger the sprayer to clear the blockage. Rotate it back to the spray position and continue working — no tools required for routine maintenance.
Q: Is this tip suitable for both latex and oil-based paints?
A: Yes! This tip is compatible with a wide range of coatings, including interior and exterior latex paints as well as oil-based paints, making it versatile for both residential and commercial painting projects.
