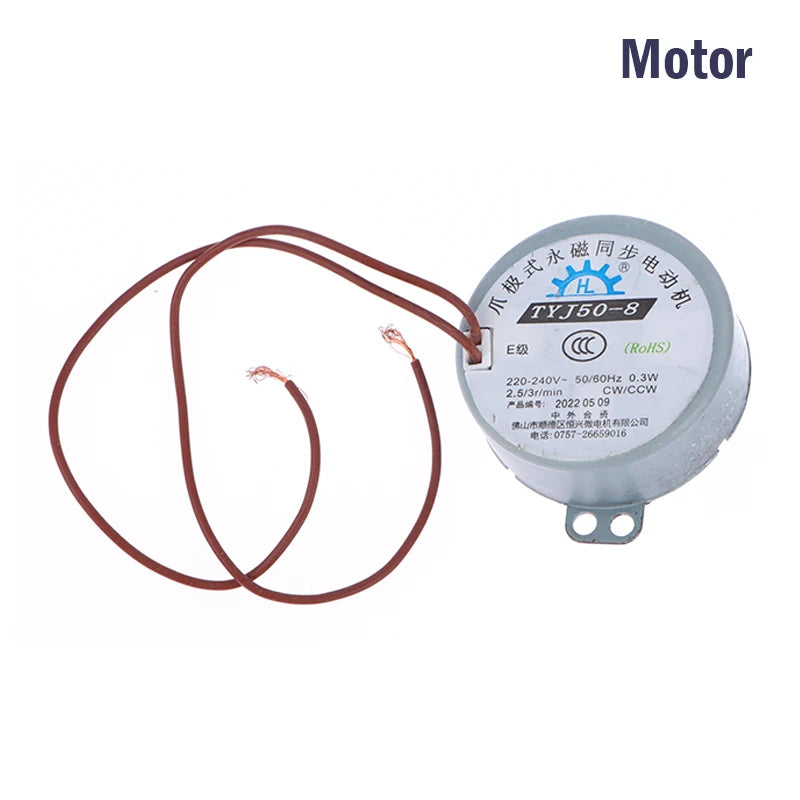

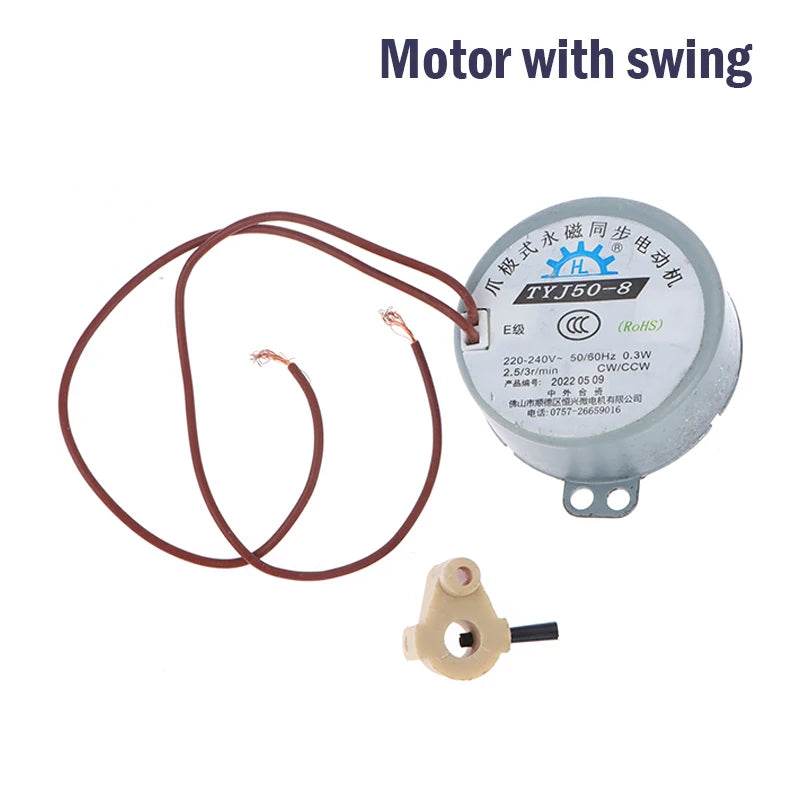

AC 220V 4W Synchronous Motor for Electric Fan Oscillating Head

AC Synchronous Motor for Electric Fan Oscillating Head Drive

Keep your oscillating fan running smoothly with this compact and reliable AC 220V–240V Claw Pole Permanent Magnet Synchronous Motor. Designed as a direct replacement or upgrade motor for electric fans with a shaking/oscillating head mechanism, this 4W motor delivers consistent, quiet rotational output at your choice of speed — ideal for DIY repairs, fan restoration, and maker projects alike.

Key Specifications

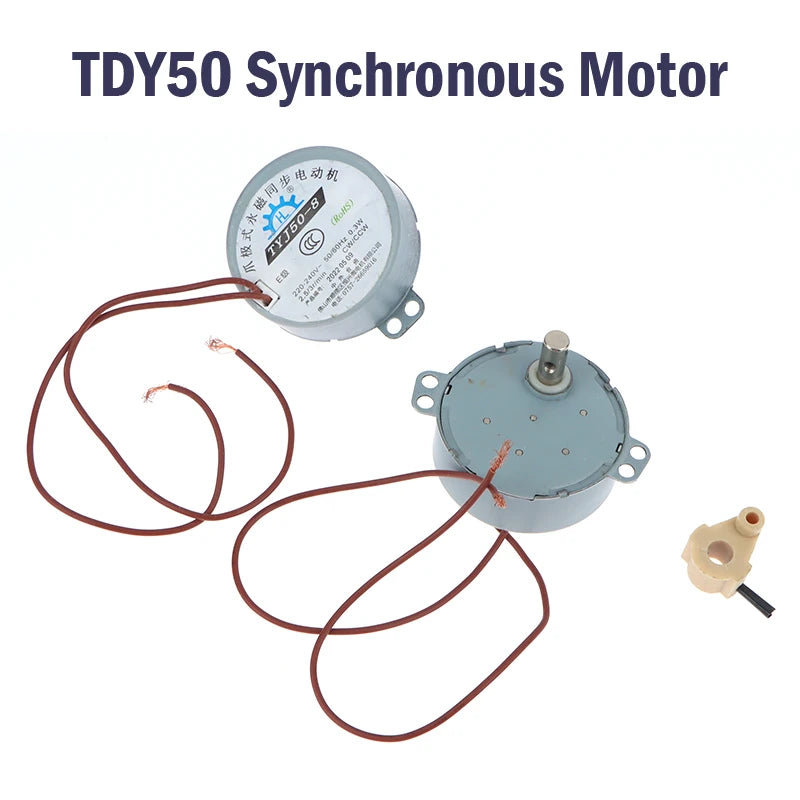

• Model: TYJ50-8A7 (TDY50 Series)
• Input Voltage: AC 220V–240V
• Frequency: 50 / 60 Hz
• Power Consumption: 4W
• Rotation Speed: 3 / 3.6 r/min
• Rotation Direction: CW & CCW (Clockwise & Counter-Clockwise)
• Motor Type: Claw Pole Permanent Magnet Synchronous Motor
• Material: Durable Plastic Housing
• Package Contents: 1 × Synchronous Motor Unit

Why Choose This Motor?

• ✅ Dual-direction operation — supports both CW and CCW rotation for versatile fan head oscillation
• ✅ Low power draw — energy-efficient 4W consumption for continuous household use
• ✅ Stable output speed — synchronized to mains frequency for consistent, reliable performance
• ✅ Compact, lightweight design — fits into standard electric fan oscillating head assemblies
• ✅ Direct replacement — compatible with many TDY50-series fan motor brackets

Ideal Applications

This synchronous motor is perfect for:

• Replacing worn or failed oscillation motors in household electric fans
• DIY electronics and maker board projects requiring low-speed AC synchronous drive
• Automated display turntables, rotating stands, and slow-motion mechanisms
• Educational motor experiments and STEM demonstrations

Made in Mainland China.

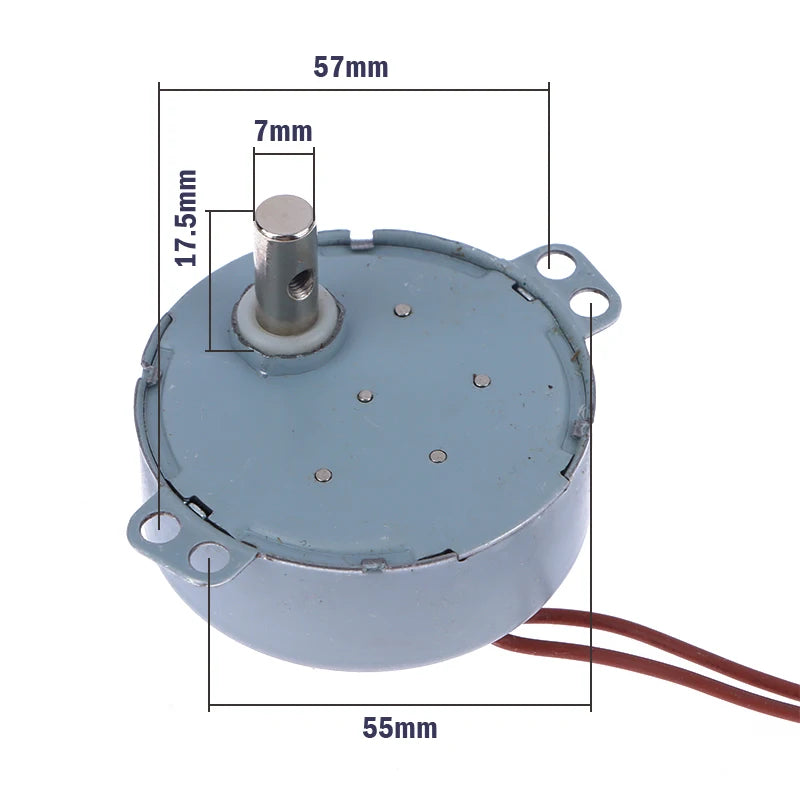

Note: Due to manual measurement, please allow a tolerance of 1–3 mm. Product color may vary slightly from images due to differences in monitor calibration.

Related Products You May Like

• Explore our DIY & Maker Boards Collection

For guidance on electrical motor safety in household appliances, visit the U.S. Consumer Product Safety Commission (CPSC) for consumer safety resources.

Learn more: Engine

Frequently Asked Questions

Q: What voltage does this synchronous motor require?

A: This motor operates on AC 220V–240V at 50/60 Hz, making it suitable for standard mains voltage used in the UK, Europe, Asia, and other regions with 220–240V electrical systems.

Q: Can this motor rotate in both clockwise and counter-clockwise directions?

A: Yes. The TYJ50-8A7 supports both CW (clockwise) and CCW (counter-clockwise) rotation, making it versatile for various fan oscillating head assemblies and other low-speed rotary applications.

Q: What is the output speed of this motor?

A: The motor outputs at approximately 3 r/min at 50 Hz and 3.6 r/min at 60 Hz, providing a very slow and steady rotation — ideal for fan head oscillation and turntable mechanisms.

Q: Is this motor a direct replacement for my electric fan's oscillating head motor?

A: This motor is compatible with many electric fans that use the TDY50-series synchronous motor for their oscillating (shaking) head mechanism. We recommend comparing your existing motor's specifications and mounting dimensions before ordering, as fan models vary.
