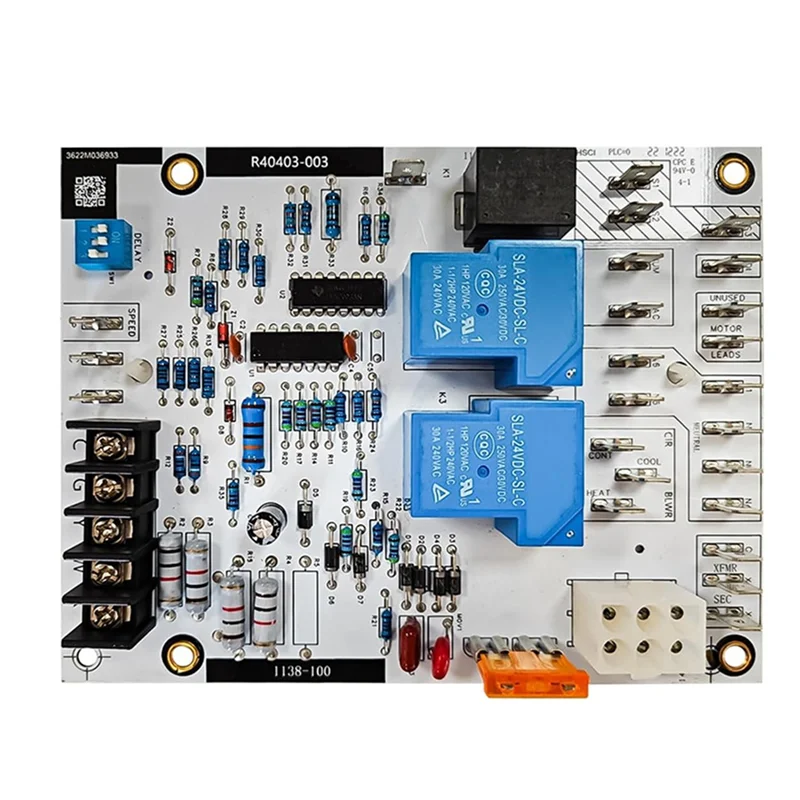

A36T-R40403-003 Furnace Blower Control Circuit Board Replacement Air

Discover the A36T-R40403-003 Furnace Blower Control Circuit Board Replacement Air, a standout decor pick designed for dependable everyday performance and lasting value.

Specifications

Does it include a Battery?: No

Specification 1: furnace blower

Specification 2: furnace control circuit board

Specification 3: 40403002 ST9120A

Specification 4: Furnace Blower Control Circuit Board

Specification 5: 20054502

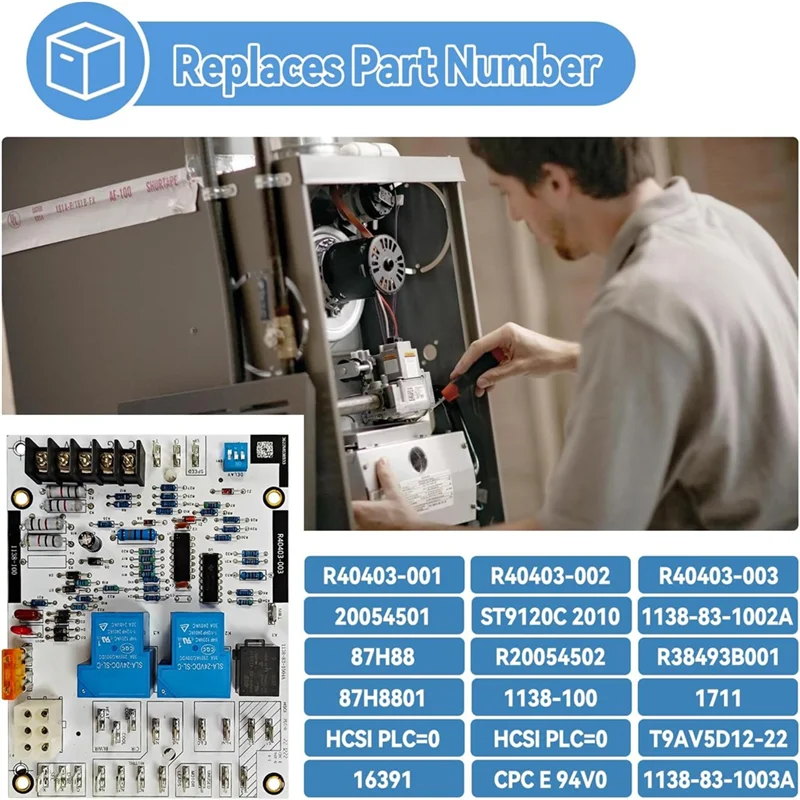

Applicable model: Fit for all 40403-001, 40403-002, 20054502, ST9120A, B or C blower controllers. Also replaces part # R40403-001, R40403-002, R40403-003, 20054501, ST9120C 2010, 1138-83-1002A, 87H88, R20054502, R38493B001, 87H8801. Replaces other part # 1138-100, 1711, HCSI PLC=0, 164322, T9AV5D12-22, 16391, CPC E 94V0, 1138-83-1003A. Please confirm your model before purchasing.
Function: The controller receives the input from the thermostat (W, Y and G), pressure switch and high temperature limit switch input. The controller also provides user-selectable blower delay through dip switch settings. The 24-volt circuit of this controller is protected by a 5-amp replaceable automotive type fuse. Effectively controls the operation of the 2-speed blower motor and induction motor, and adjusts and protects according to the input signal.

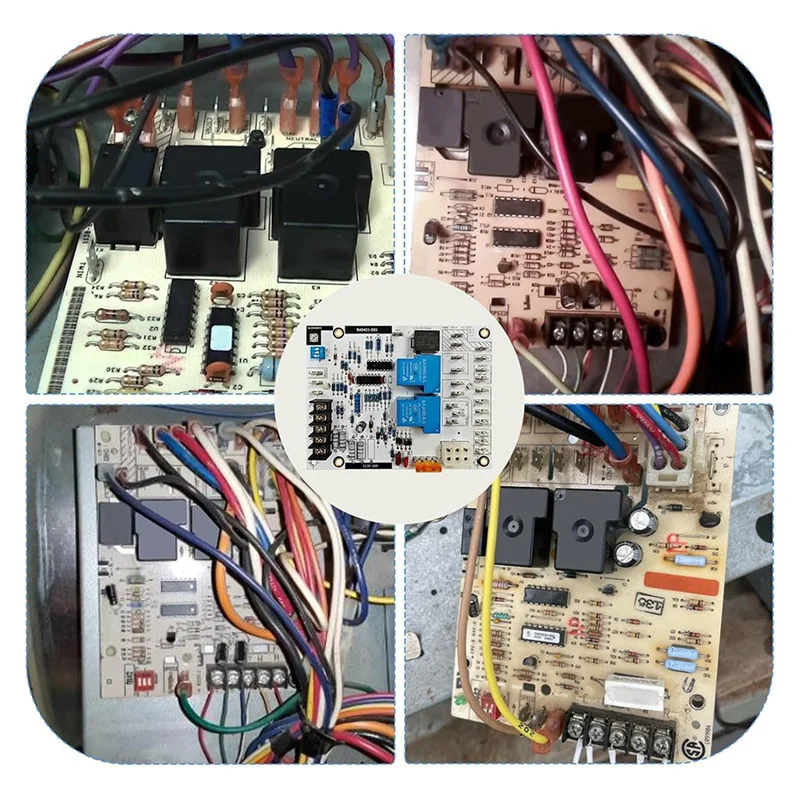

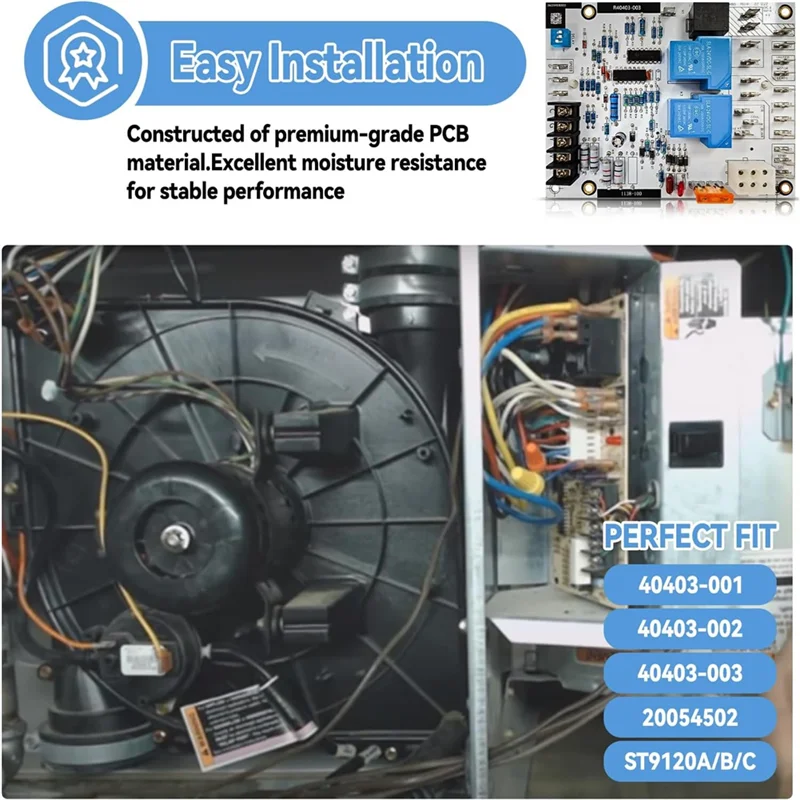

Material and Installation: This control circuit board is made of High-quality material, which has good moisture resistance, stable performance and long service life. The installation process is easier because no additional wiring kit is required. In addition, it works well with both the for original-wiring and the updated wiring, ensuring a solid and reliable connection.

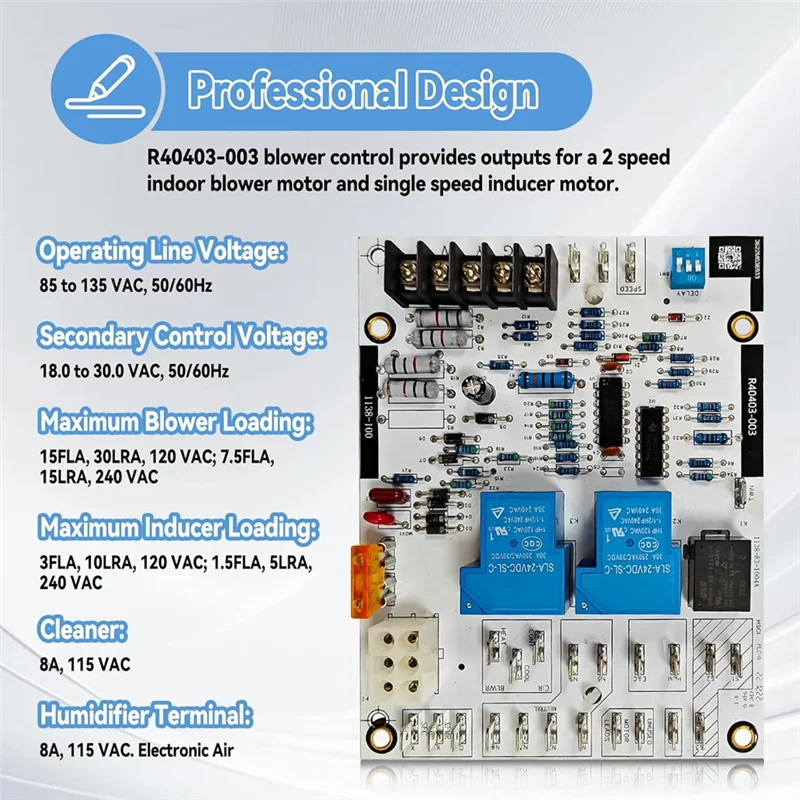

Operating line voltage:85 to 135 VAC, 50/60Hz
Secondary control voltage:18.0 to 30.0 VAC, 50/60Hz
Maximum blower load:15FLA, 30LRA, 120 VAC; 7.5FLA, 15LRA, 240 VAC
Maximum inductor load:3FLA, 10LRA, 120 VAC; 1.5FLA, 5LRA, 240 VAC
Humidifier terminals:8A, 115 VAC
Electronic air purifier:8A, 115 VAC.
Colour:As Shown
Material:Metal

Package Contents:
1 * Furnace Blower Control Circuit Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Options

• Color: As Shown
• Brand Name: NONE

Frequently Asked Questions

Q: What is the A36T-R40403-003 Furnace Blower Control Circuit Board?

A: The A36T-R40403-003 Furnace Blower Control Circuit Board is a quality decor pick. Also replaces part # R40403-001, R40403-002, R40403-003, 20054501, ST9120C 2010, 1138-83-1002A, 87H88, R20054502, R38493B001, 87H8801.

Q: What is the A36T-R40403-003 Furnace Blower Control Circuit Board made of?

A: The A36T-R40403-003 Furnace Blower Control Circuit Board is made from Metal Package Contents.

Q: Why choose the A36T-R40403-003 Furnace Blower Control Circuit Board?

A: The A36T-R40403-003 Furnace Blower Control Circuit Board stands out in our decor range — Replaces other part # 1138-100, 1711, HCSI PLC=0, 164322, T9AV5D12-22, 16391, CPC E 94V0, 1138-83-1003A.
