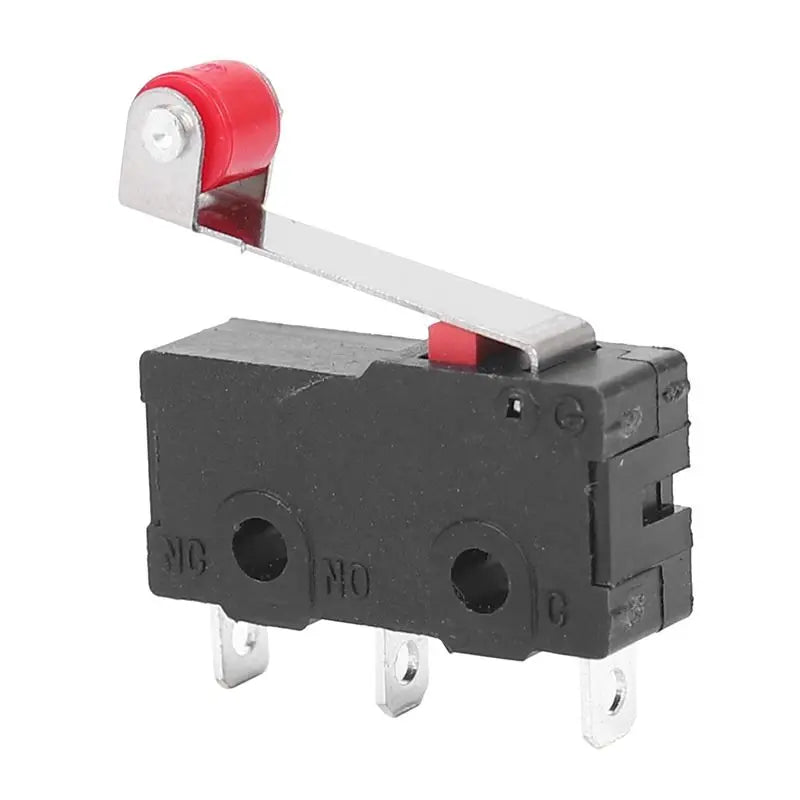

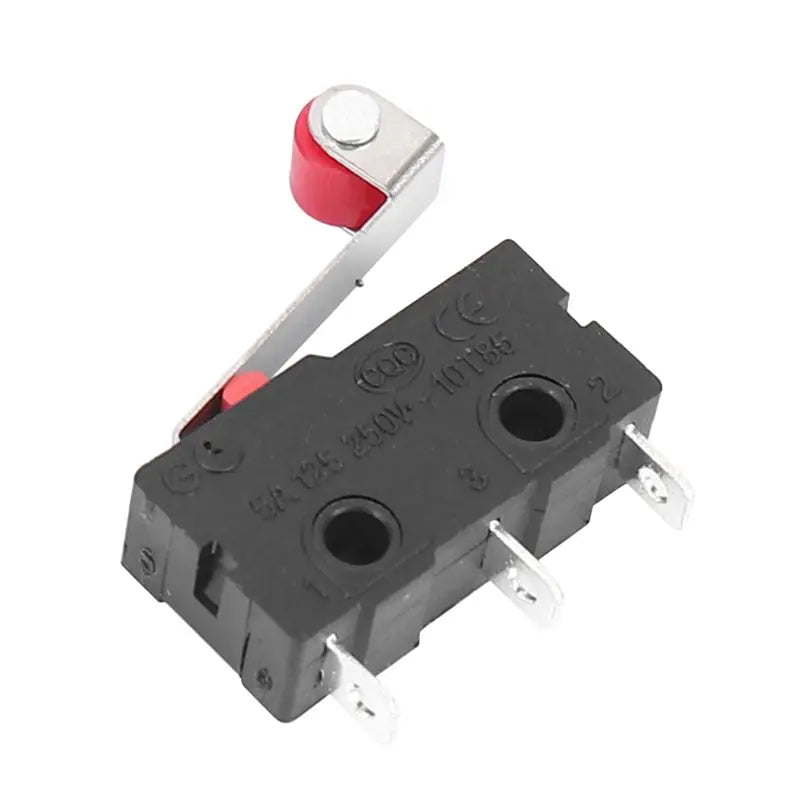

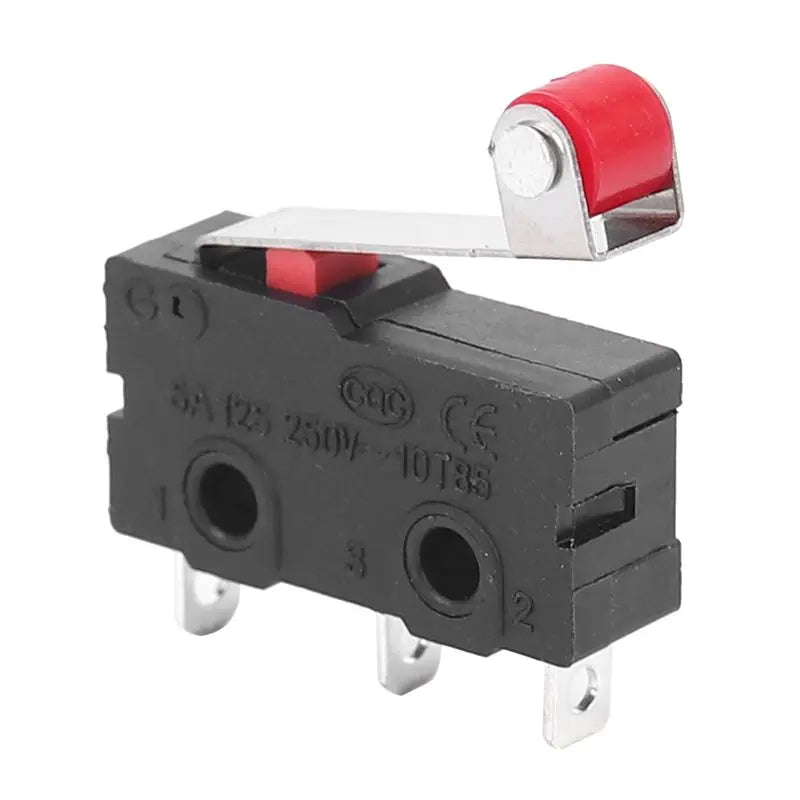

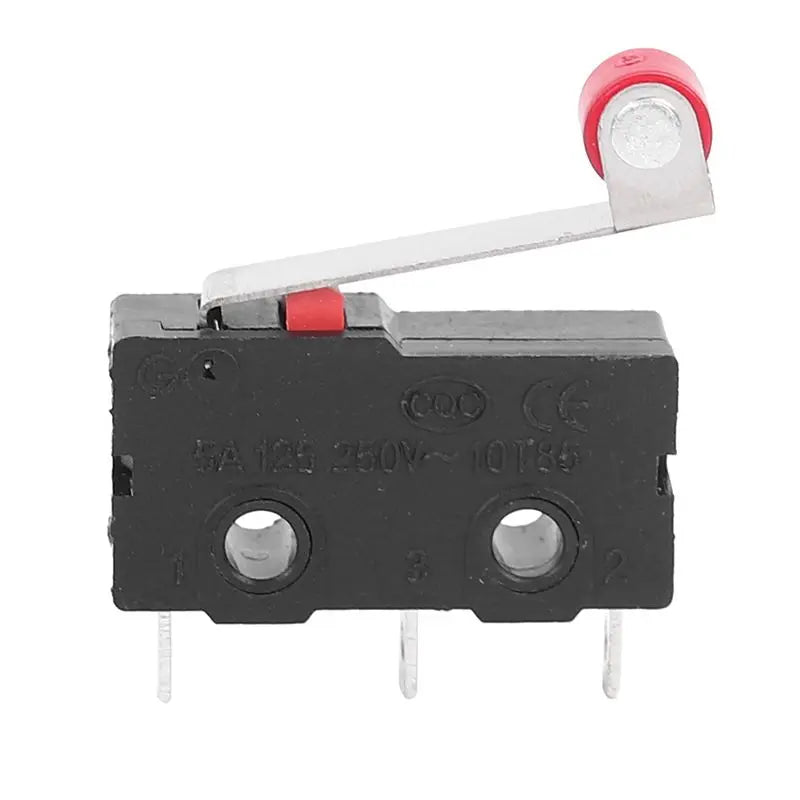

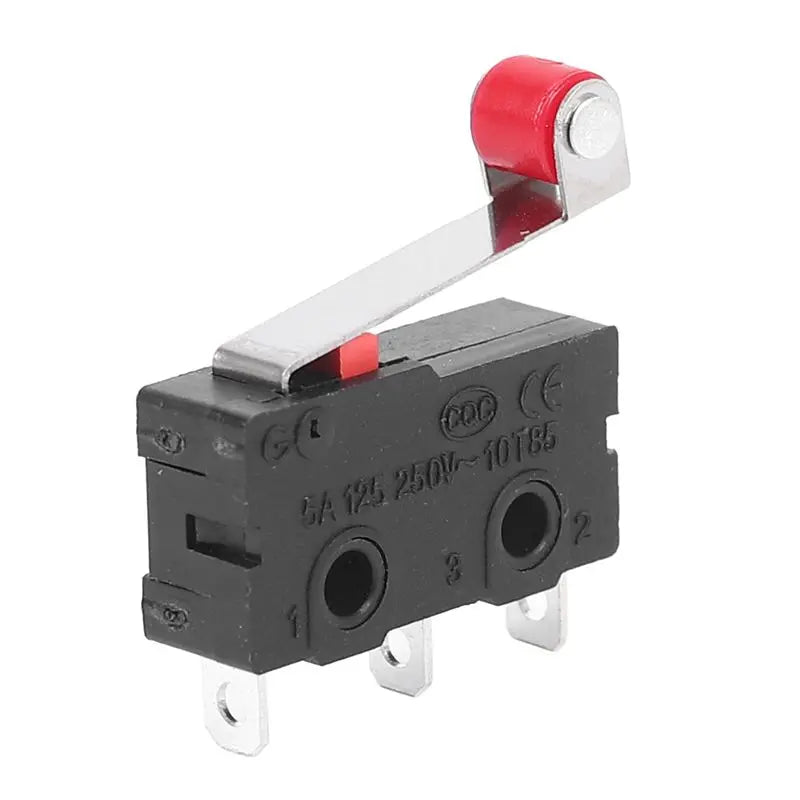

A36T- Mini Micro-limit Switch Roller Lever SPDT Snap Action LOT

Discover the A36T- Mini Micro-limit Switch Roller Lever SPDT Snap Action LOT, a standout decor pick designed for dependable everyday performance and lasting value.

Specifications

Certification: NONE

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Material: Plastic

Specification 1: MicroSwitch

Specification 2: Limit Switch

Specification 3: Long Hinge Switch

Specification 4: Roller Lever Switch

Specification 5: Snap Action Switch

Product Name : Micro-Switch;Voltage & Current : AC 125V 5A;Contact Type : SPDT 1NO 1NC 1COM
Action Type : Momentary;Actuator Type : Hinge Roller Lever;Terminal Type : 3 Pins
Overall Size(Pin not included) : 20 x 6 x 10mm / 0.8 inch x 0.2 inch x 0.4 inch (L x W x H);Hinge Roller Lever Length : 18mm/0.7 inch;Roller Diameter : 4.5mm/0.2 inch
Mounting Hole Dia. : 2mm / 0.08 inch;Mounting Hole Spacing : 9mm/ 0.35 inch;Material : Plastic, Metal
Color : Black, Red, Silver Tone;Net Weight : 110g

These Micro-Switches features Single Pole Double Throw (SPDT) Type, 1NO + 1NC Contact, Momentary Action, Hinge Roller Lever Actuator, 3-Pin Terminals, etc.
Easy installation and long using life.
Widely used in electronic equipments, Microwave Micro-Door/Oven/Refrigerator Interlock N/O / N/C Switch etc.
In snap action contacts, the movement of the actuator applies force to an overcenter mechanism.
This mechanism creates a quick change in contact state when the trip point is reached.
Reversing the motion of the actuator to a given reset point causes the contacts to snap back to their original position.
Snap action contacts have different trip and reset points.
The distance between the trip and reset point is called the travel to reset, hysteresis, or differential.
Finite travel to reset helps to avoid multiple changes of state if the object actuating the switch is subject to vibration.
Snap action contacts ensure repeatable performance in applications that involve low speed actuators.
The amount of travel of the contacts is also not dependent on the amount of travel by the actuator.

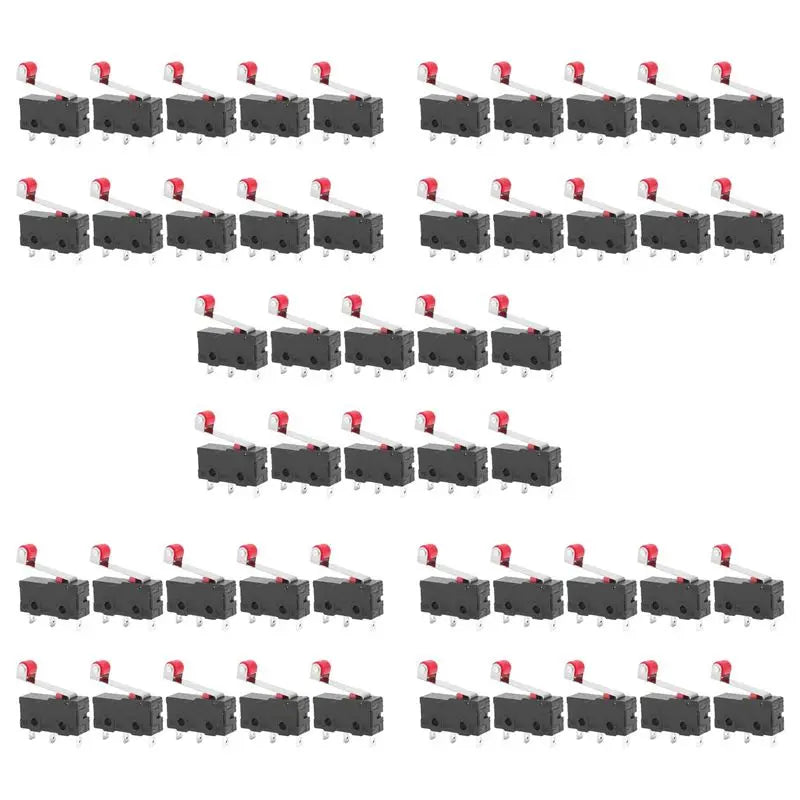

Package Content : 50 x Micro-Switch

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Frequently Asked Questions

Q: What is the A36T- Mini Micro-limit Switch Roller Lever SPDT Snap Action?

A: The A36T- Mini Micro-limit Switch Roller Lever SPDT Snap Action is a quality decor pick. : 2mm / 0.08 inch;Mounting Hole Spacing : 9mm/ 0.35 inch;Material : Plastic, Metal Color : Black, Red, Silver Tone;Net Weight : 110g These Micro-Switches features Single Pole Double Throw (SPDT) Type, 1NO + 1NC Contact, Momentary Action, Hinge Roller Lever Actuator, 3-Pin Terminals, etc.

Q: What is the A36T- Mini Micro-limit Switch Roller Lever SPDT Snap Action made of?

A: The A36T- Mini Micro-limit Switch Roller Lever SPDT Snap Action is made from Plastic Specification 1.

Q: Why choose the A36T- Mini Micro-limit Switch Roller Lever SPDT Snap Action?

A: The A36T- Mini Micro-limit Switch Roller Lever SPDT Snap Action stands out in our decor range — Easy installation and long using life.
