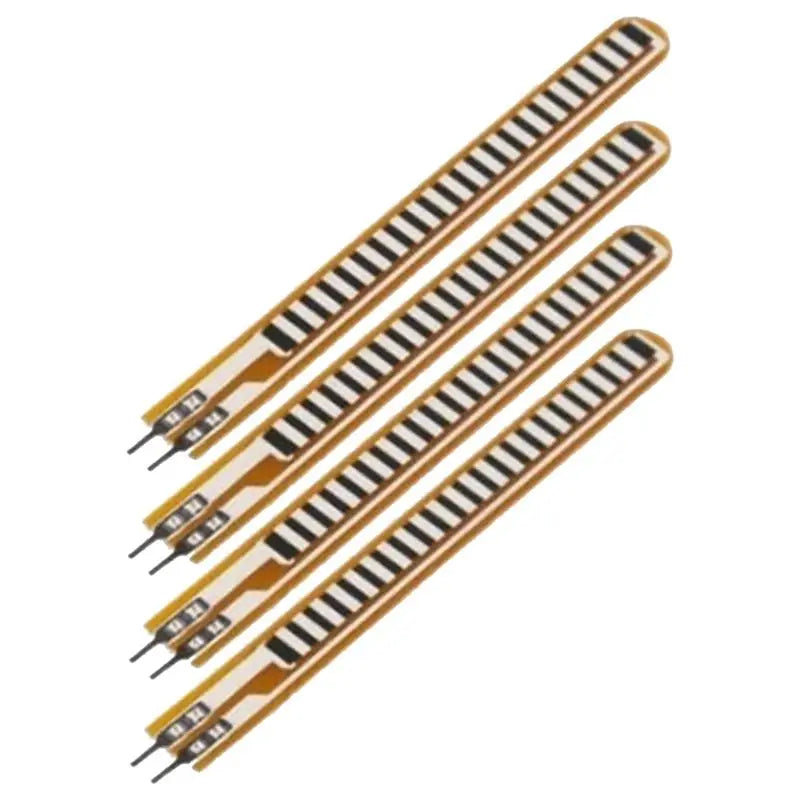

A36T-4X Flex Sensor Manipulator Electronic Glove Accessories Flex2

Discover the A36T-4X Flex Sensor Manipulator Electronic Glove Accessories Flex2, a standout decor pick designed for dependable everyday performance and lasting value.

Specifications

DIY Supplies: Electrical

Semi-finishedproduct: No

Specification 1: Electronic Glove Accessories

Specification 2: Mechanic Glove Accessories

Specification 3: Sensor accessories

Specification 4: Flex sensor

Specification 5: sensor

1. Bending sensor. The degree of bending of the sensor can be translated into a change in resistance value. The more the bend, the higher the resistance. This sensor can be used to make an energy glove
2. Bending direction: the side with the word is the inner side when bending. Avoid bending the end pin portion (i.e. the part that is not bent) during use, as damage may result

Product Description:
Model: Flex Sensor 2.2 inch
Technical Specifications Straight Resistor: 25K ohms
Resistance Tolerance: +30% Bend
Resistance change: 60K-110K ohms
Rated Power: 0.5 Watt Peak Power: 1 Watt
Bending life: Greater than1 million times
Working temperature: 35°C~+80°C
Interface type: 2-pin metal pins (0.1 pitch)
Torque sensor, for electronic gloves. When the sensor's metal bends outward, the resistance of the sensor changes and the bend can be detected.
Non-bending state resistance: -9000 ohms
90 degree bending resistance: 14000 ohms
180 degree bending resistance: 22000 ohms
Principle: Current Sensor
Application: pressure sensor
Type: Vibration Sensor
Output: Analog Sensor
size: 7.5 x 1 x 1cm
Material: ABS
colour: yellow

Package Contents:
4 x Flex sensor

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Frequently Asked Questions

Q: What is the A36T-4X Flex Sensor Manipulator Electronic Glove?

A: The A36T-4X Flex Sensor Manipulator Electronic Glove is a quality decor pick. The degree of bending of the sensor can be translated into a change in resistance value.

Q: What is the A36T-4X Flex Sensor Manipulator Electronic Glove made of?

A: The A36T-4X Flex Sensor Manipulator Electronic Glove is made from ABS colour, measuring 7.5 x 1 x 1cm Material.

Q: Why choose the A36T-4X Flex Sensor Manipulator Electronic Glove?

A: The A36T-4X Flex Sensor Manipulator Electronic Glove stands out in our decor range — The more the bend, the higher the resistance.
