Micro 0706 Airplane Brushless Motor BLDC 6700KV 1S-2S FPV Indoor

Discover the Micro 0706 Airplane Brushless Motor BLDC 6700KV 1S-2S FPV Indoor — a standout decor pick featuring high-speed design for dependable, everyday performance.

Specifications

Is it electrified: No

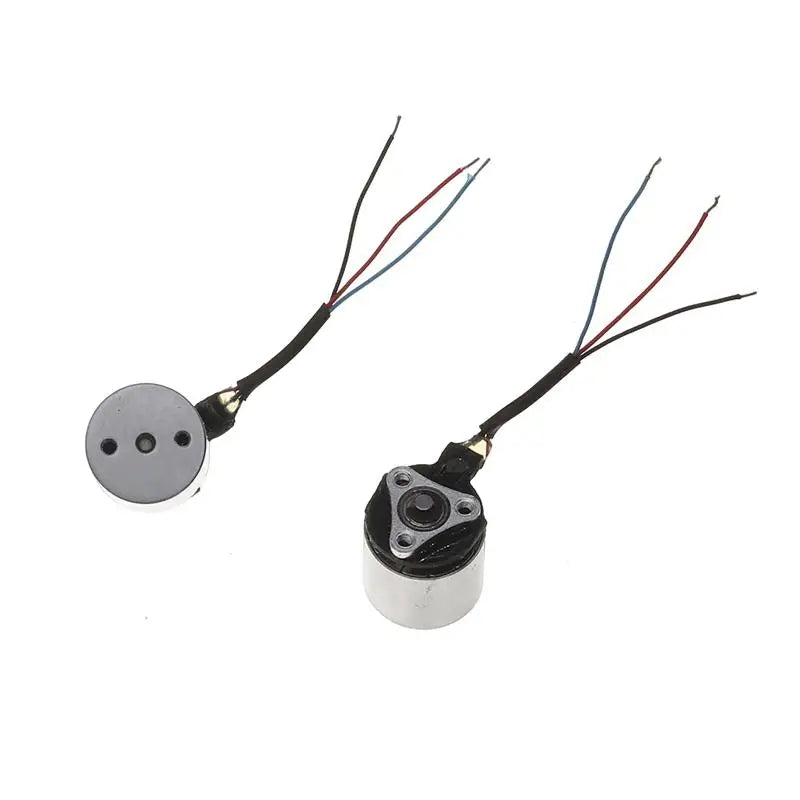

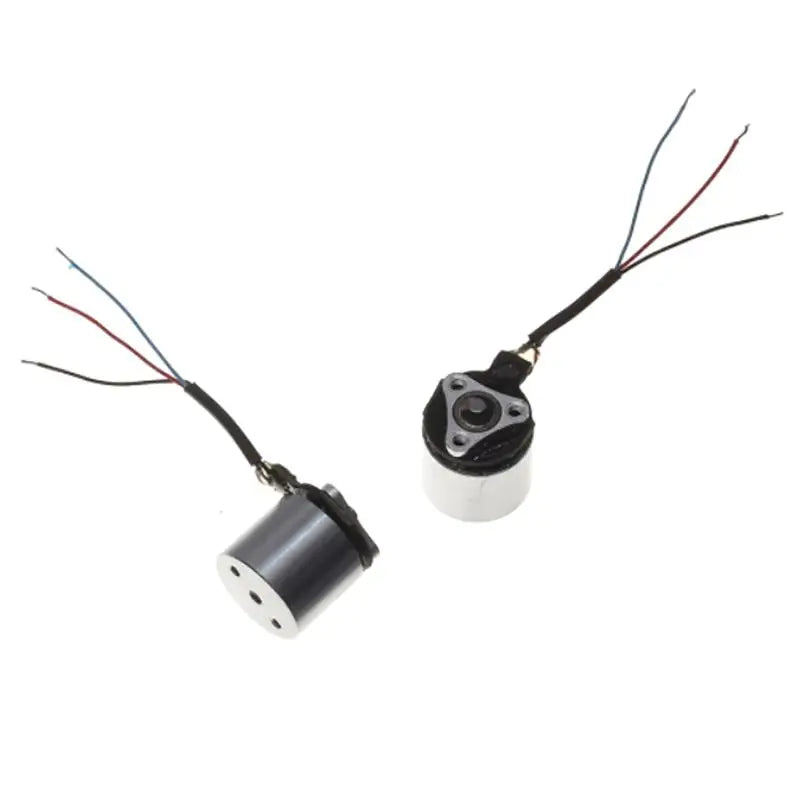

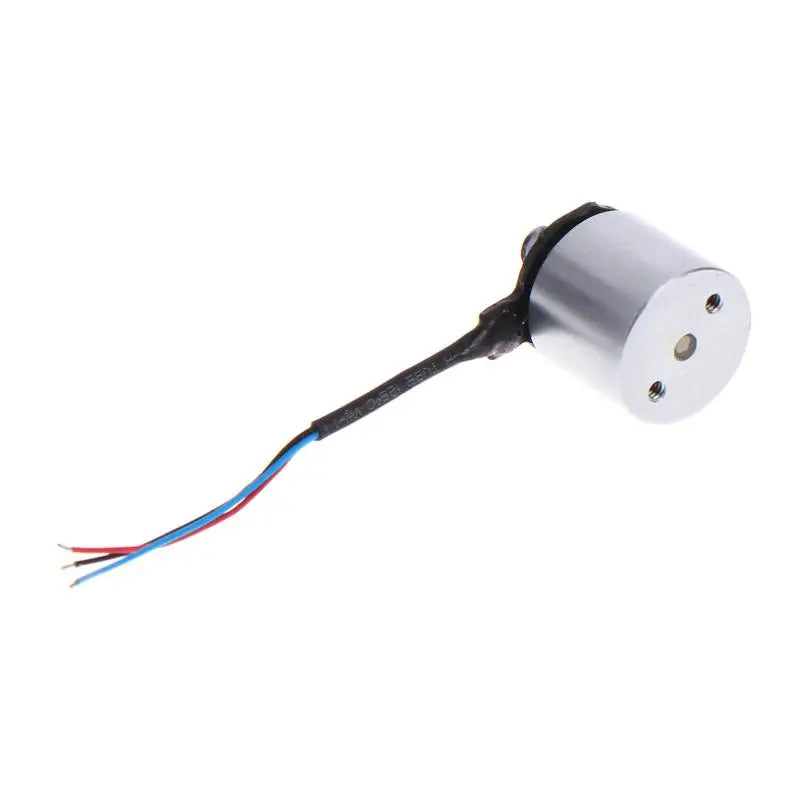

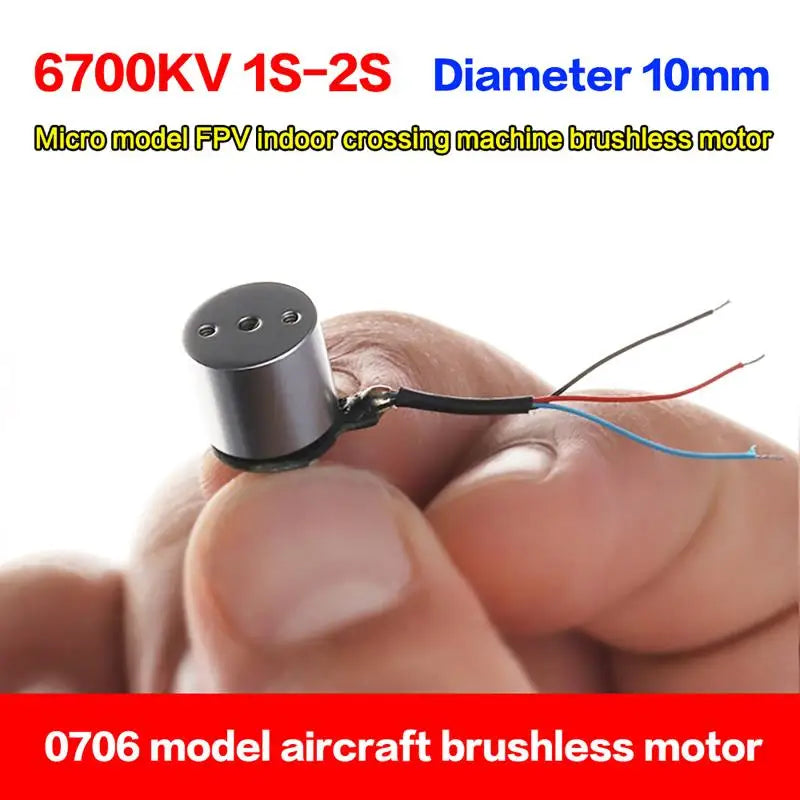

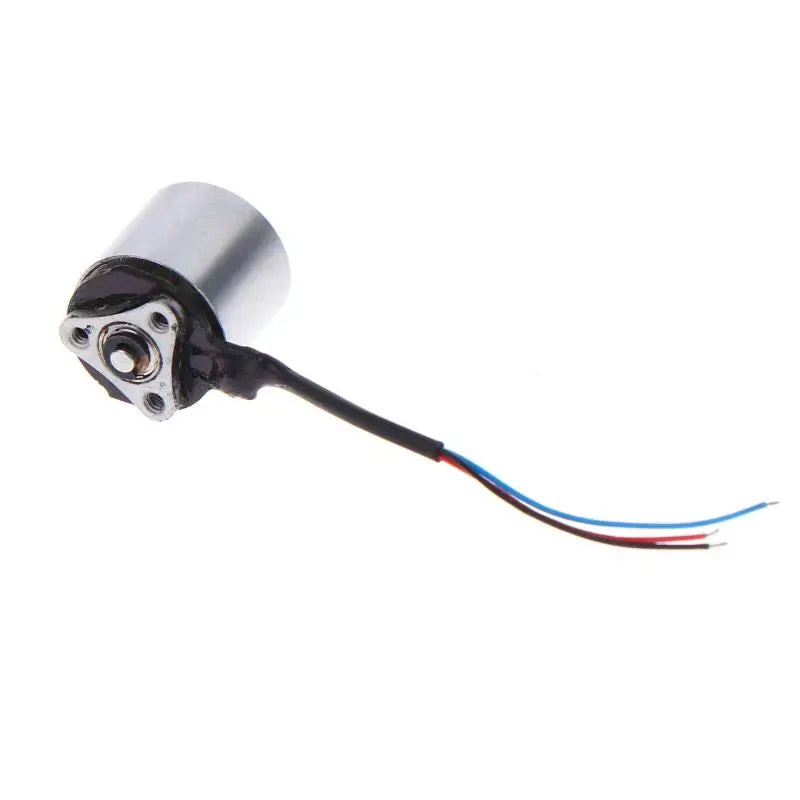

1.The micro 0706 model brushless motor is a very mini high-speed brushless motor with an outer rotor diameter of 10mm. The motor model specification is 0706 and the KV value is around 6700. It is suitable for micro time traveling drones. The motor can also be modified for types of micro fixed wing model small aircraft, etc. Specific modifications need to be researched by oneself.

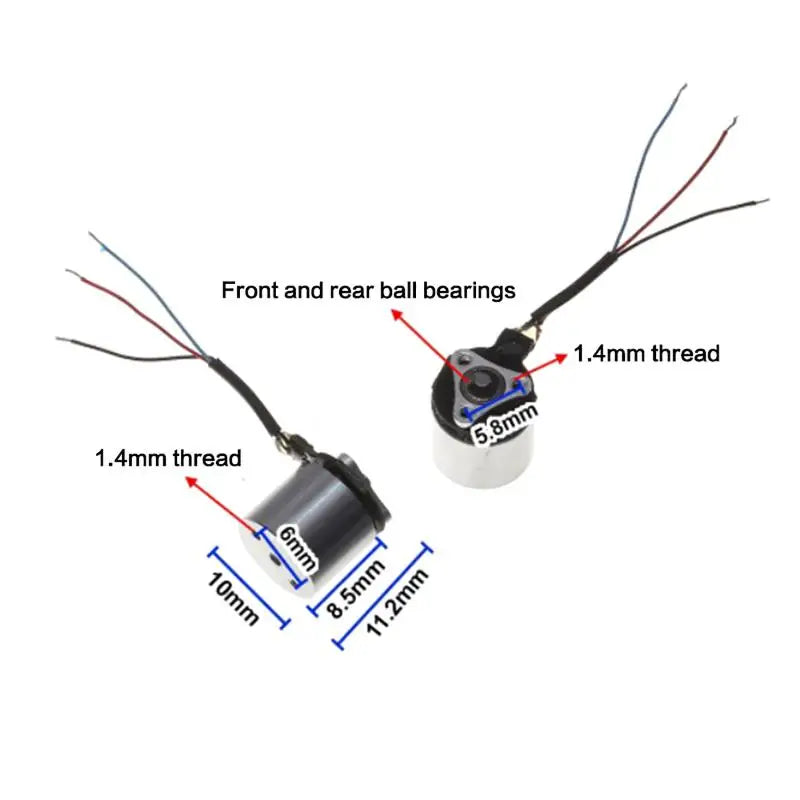

2.The motor has excellent workmanship. This small motor still has ball bearings, and the outer rotor is arranged with neodymium magnets without gaps. The motor output lead is made of high-temperature resistant PTFE material, with a wire length of about 30mm.

3.The brushless motor is originally equipped with a 2S four axis micro drone. It has been tested that it can operate and rotate with a 1-2S lithium battery power distribution and adjustment. The specific use depends on the compatibility of your own power adjustment. The power adjustment is about 10A.

4.Attention should be paid to the poor compatibility of some brushless electric adjusters with ultra-high KV, such as inability to go up and down at high speeds or light jitter, abnormal high current, and high heat generation. In severe cases, it may directly heat up and burn out the motor. It is important to start testing with low current, for example, if the Blheli electric adjusters have incorrect parameters, they can be adjusted before use.

Material:Metal

Color: As the pictures show

Size:As the pictures show

Package quantity:1Pc

As different computers display different colors, thank you for your understanding, the actual product color may be slightly different from the image.

Frequently Asked Questions

Q: What is the Micro 0706 Airplane Brushless Motor BLDC 6700KV 1S-2S FPV?

A: The Micro 0706 Airplane Brushless Motor BLDC 6700KV 1S-2S FPV is a quality decor pick. The motor model specification is 0706 and the KV value is around 6700.

Q: What is the Micro 0706 Airplane Brushless Motor BLDC 6700KV 1S-2S FPV made of?

A: The Micro 0706 Airplane Brushless Motor BLDC 6700KV 1S-2S FPV is made from Metal Color, measuring As the pictures show Package quantity.

Q: Why choose the Micro 0706 Airplane Brushless Motor BLDC 6700KV 1S-2S FPV?

A: The Micro 0706 Airplane Brushless Motor BLDC 6700KV 1S-2S FPV stands out in our decor range — It is suitable for micro time traveling drones.
