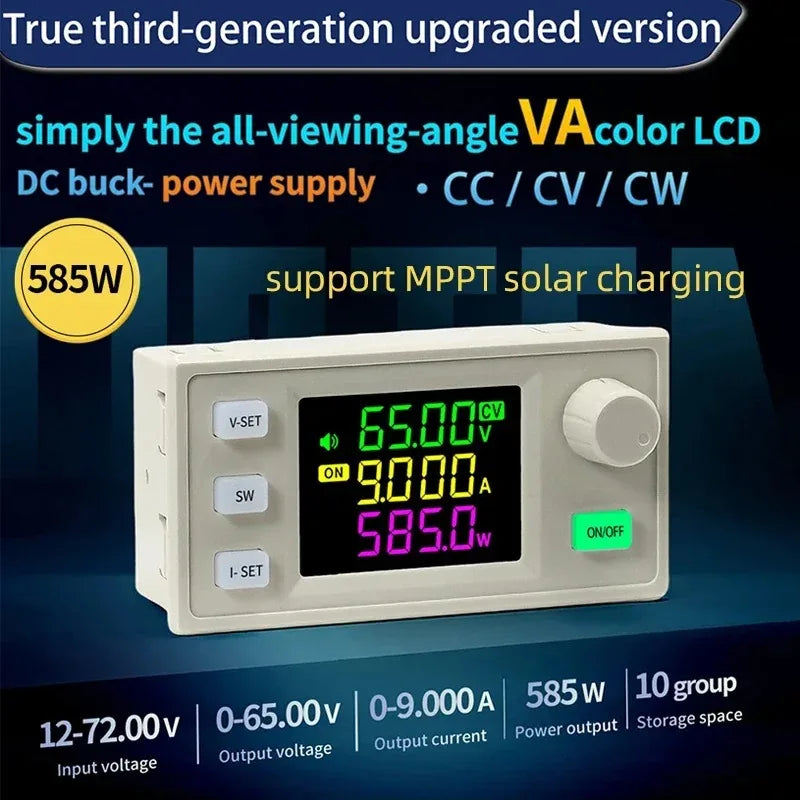

XY6509X 65V 9A 585W CNC Buck-Boost DC Converter — Precision CC/CV Lab Power Supply Module
Take full command of your electronics bench with the XY6509X 585W Buck-Boost DC-DC Converter. This high-performance adjustable power supply module delivers both constant current (CC) and constant voltage (CV) regulation across a wide 0–65V / 0–9A output range, making it an indispensable tool for engineers, hobbyists, and electronics enthusiasts who demand accuracy and flexibility.
Why Choose the XY6509X?
- Wide Buck-Boost Range: Seamlessly steps voltage up or down — no need for separate converters. Output spans 0–65V DC, input compatible with a broad supply range.
- High Power Capacity: Up to 585W continuous power handles demanding applications from lab bench testing to solar panel charge management.
- CNC Digital Control: Precision numerical control interface lets you set voltage and current with fine resolution, eliminating guesswork and mechanical pot drift.
- Dual CC/CV Mode: Automatically switches between constant current and constant voltage operation — ideal for battery charging, LED driving, motor testing, and more.
- Solar Charging Compatible: Optimized input stage works efficiently with solar panels, making it a smart choice for off-grid power projects and MPPT-adjacent designs.

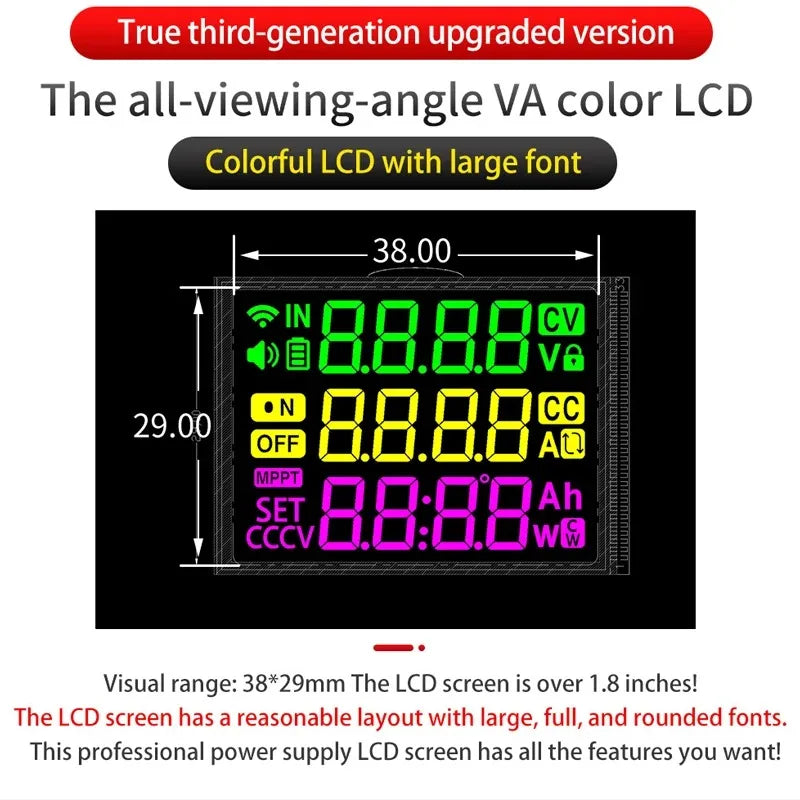

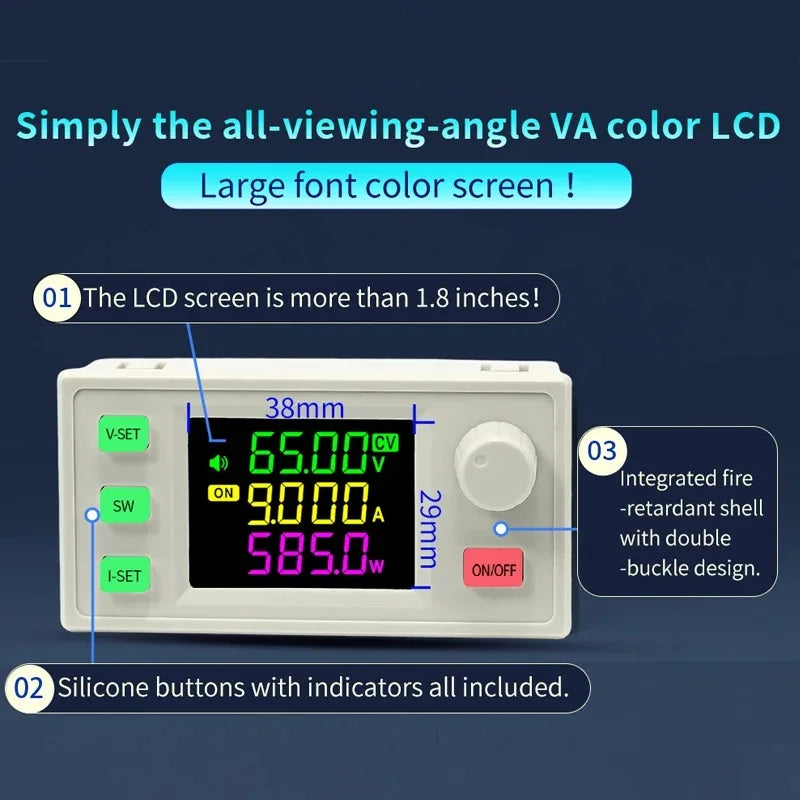

- Real-Time Display: Onboard digital display shows live output voltage, current, and power readings so you always know exactly what your circuit is receiving.
- Compact Module Form Factor: Designed for easy integration into custom enclosures, DIY power supply builds, or lab rack systems.
- Robust Protection: Built-in over-voltage, over-current, and over-temperature protection safeguards both the module and your connected devices.

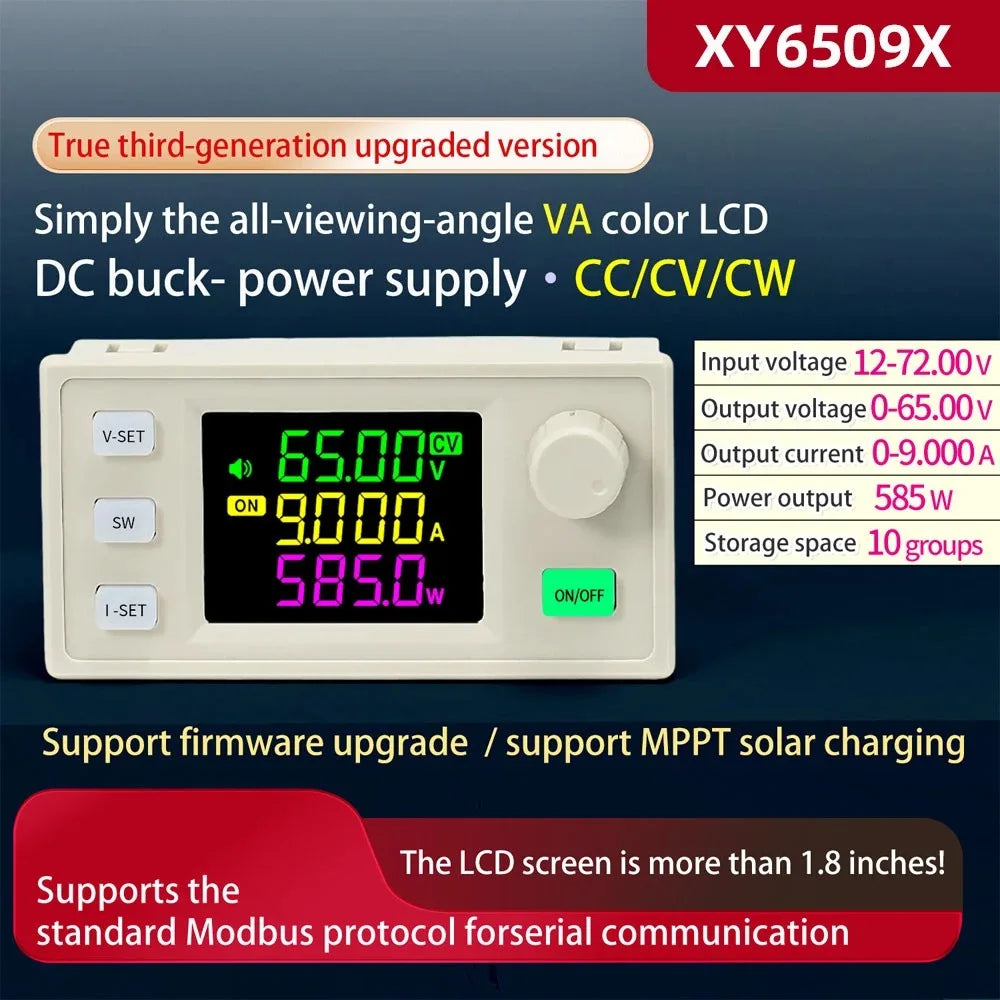

Technical Specifications
| Model | XY6509X |
| Max Output Power | 585W |
| Output Voltage | 0 – 65V DC (adjustable) |
| Output Current | 0 – 9A (adjustable) |
| Regulation Modes | CC (Constant Current) / CV (Constant Voltage) |
| Control Type | CNC Digital |
| Application | Lab power supply, battery charging, solar charging, LED testing |
| EU LVD | Low voltage: Below 50Vac or 75Vdc |
| Country of Origin | Made in Mainland China |
Who Is This For?
The XY6509X is perfect for:
- Electronics engineers and technicians running bench tests
- DIY makers building custom adjustable power supplies
- Solar energy enthusiasts needing a smart charging module
- Educators and students in electronics and STEM labs
- RC hobbyists charging LiPo, LiFePO4, and other battery packs
Related Products You May Like
Learn More About Electrical Safety
Working with high-power DC converters requires attention to safe wiring practices. For guidance on electrical safety standards, visit OSHA's Electrical Safety Resource. For component and product safety standards, the U.S. Consumer Product Safety Commission (CPSC) provides useful reference information.
Frequently Asked Questions
Q: What is a buck-boost converter and why do I need one for my lab power supply?
A: A buck-boost DC converter can both step voltage down (buck) and step voltage up (boost) depending on your input and desired output. Unlike a simple buck or boost module, the XY6509X handles a wide range of input voltages and produces a stable, adjustable output — making it far more versatile for bench testing, battery charging, and solar applications where input voltage may fluctuate.
Q: Can the XY6509X XY6509X module charge lithium batteries safely?
A: Yes. The CC/CV (Constant Current / Constant Voltage) regulation modes are ideal for charging lithium-based batteries (LiPo, Li-ion, LiFePO4). Set the voltage to your pack's target charge voltage and the current to your desired charge rate. The module automatically transitions from CC to CV mode as the battery approaches full charge, following standard battery charging profiles.
Q: Is the XY6509X suitable for solar panel integration?
A: Absolutely. The XY6509X is designed to accept varying input voltages, which aligns well with the fluctuating output of solar panels. It can be used as a solar charge controller or voltage regulator in off-grid and DIY renewable energy projects. Ensure your panel's output specs are within the module's rated input range for safe and efficient operation.
Q: What kind of enclosure or housing does this module require?
A: The XY6509X is sold as a bare module intended for integration into a custom enclosure or DIY power supply case. You will need to provide adequate housing, cooling (heatsink or fan), and appropriate input/output wiring. This is a module for makers and engineers — it is not a plug-and-play finished power supply unit.
Q: What protections are built into the XY6509X?
A: The module features built-in over-voltage protection (OVP), over-current protection (OCP), and over-temperature protection (OTP) to help keep your connected devices and the module itself safe during operation.
