5W–10W LED Driver Board Type-C Charging Module | DIY Electronics

HELTC 5W–10W LED Circuit Board Driver – Type-C Charging Module

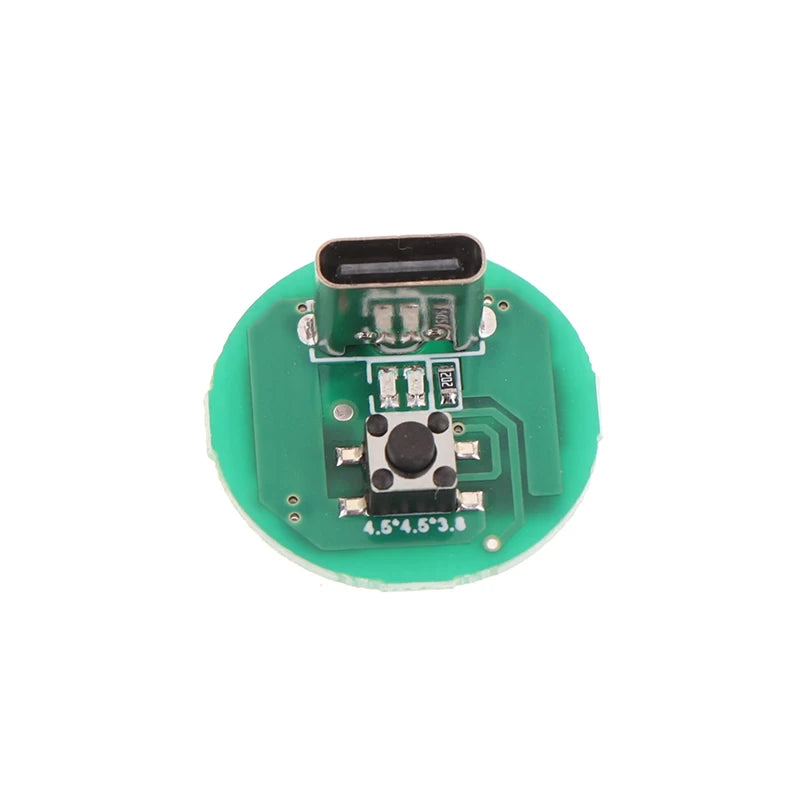

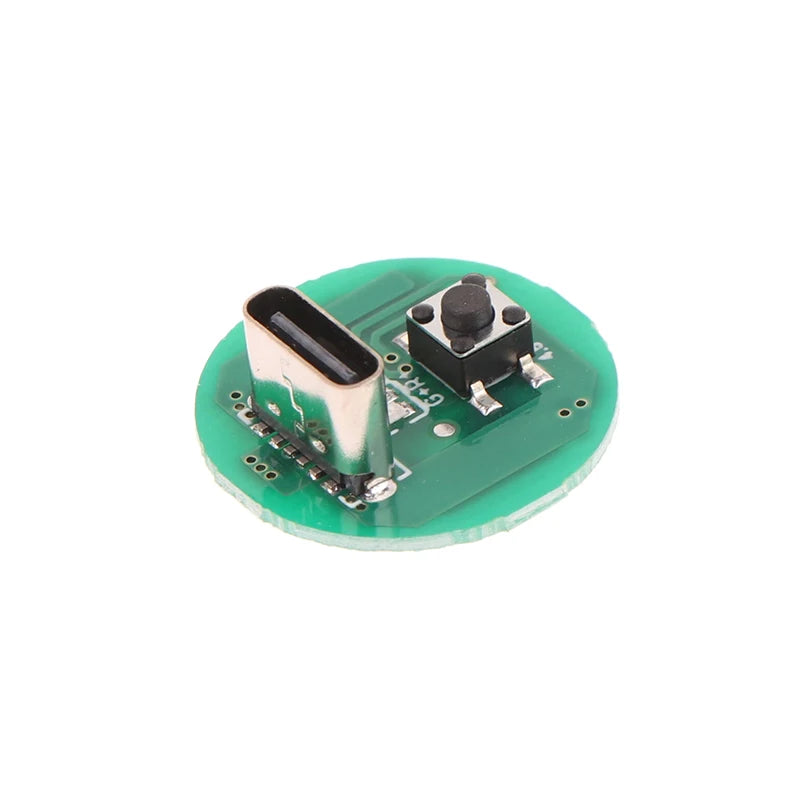

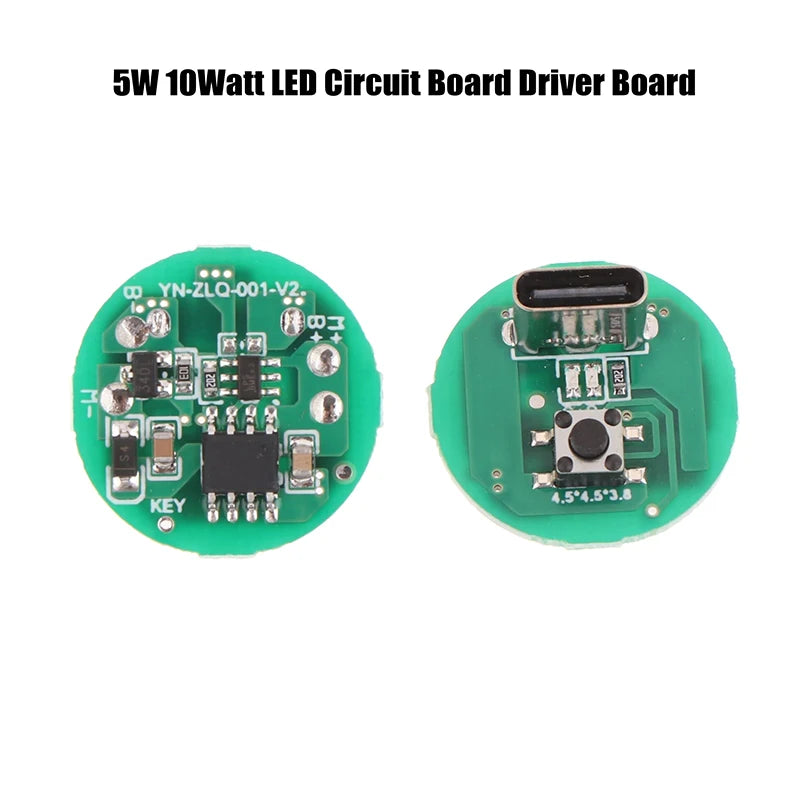

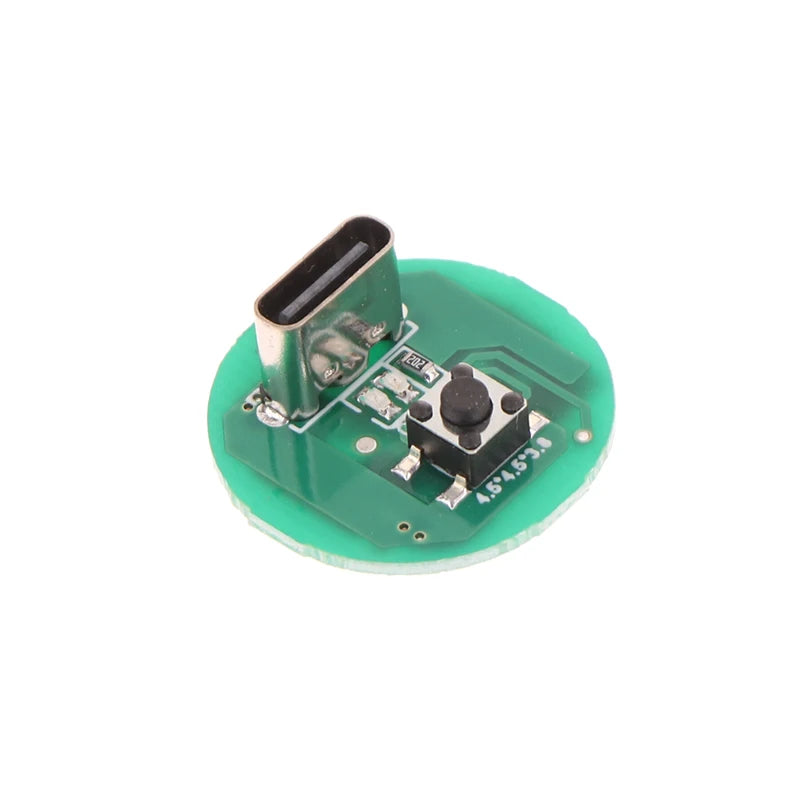

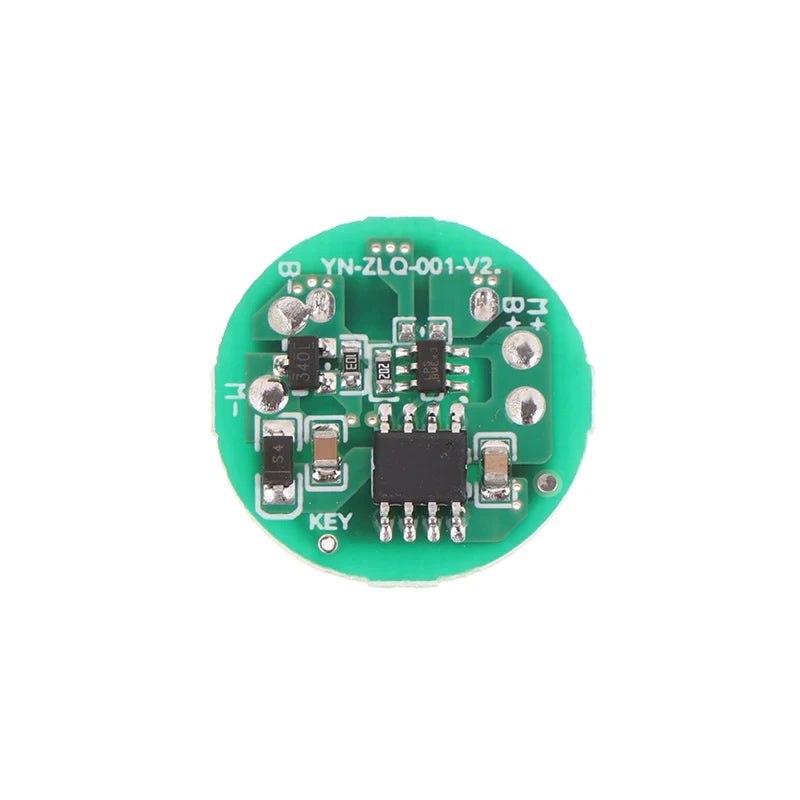

Power your DIY projects with confidence! The HELTC LED Circuit Board Driver Board is a compact, versatile Type-C charging module designed for makers, hobbyists, and electronics enthusiasts. Whether you're building a custom flashlight, a small desktop fan, a portable lamp, or a micro polishing machine, this tiny but mighty board delivers reliable, adjustable power in a package no bigger than a thumbnail.

Key Features

• Three-Gear Output Control: Switch between Low (30%), Medium (60%), and High (100%) output power to match the demands of your project precisely.
• 5W–10W Output Power: Delivers 5 to 10 watts of clean, stable power to drive LEDs and small motors efficiently.
• Universal Type-C Charging Port: Compatible with virtually any Type-C charger on the market — fast or slow charging, any brand or model accepted.
• ~1A Charging Current: Maintains a steady ~1A input charging current for dependable battery top-ups.
• Input Voltage: 3–4.5V: Works with a single 3C power battery (please ensure your battery has sufficient capacity to start the module).
• Multi-Layer Safety Protection: Built-in overload, overvoltage, and short-circuit protection safeguard both your module and your connected devices.
• Wide Compatibility: Suitable for flashlights, small fans, mobile desk lamps, micro polishing machines, and more DIY electronics applications.
• Durable Construction: Engineered to perform in high and low temperature environments, maintaining stable output throughout its service life.

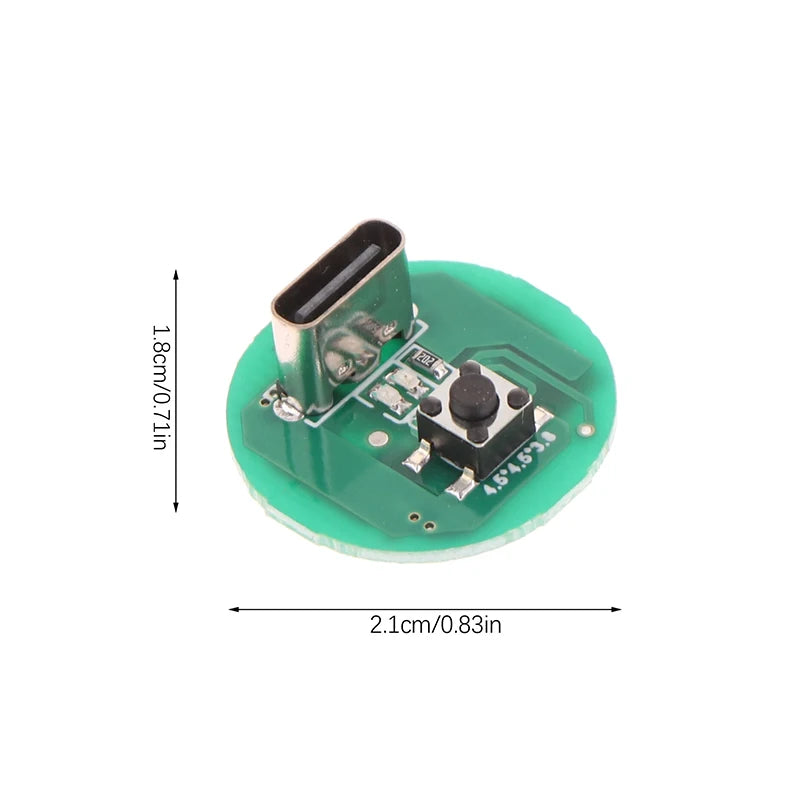

• Ultra-Compact Size: Measures just 2.1 × 2.1 × 1.8 cm (0.83 × 0.83 × 0.71 in) — easy to integrate into even the smallest builds.

Specifications

Applications & DIY Ideas

This module is perfect for a huge range of DIY electronics builds. Use it as the power management heart of a homemade flashlight, spin up a cooling fan for a small enclosure, power a desktop reading lamp, or control a micro polishing or engraving tool. Its compact form factor and three-speed output control make it a go-to component for any maker's toolkit.

Notes

• Please allow ±1–3 cm variation due to manual measurement.
• Actual color may vary slightly from product images due to monitor settings and lighting conditions.
• Ensure your battery has sufficient charge and capacity — some batteries with insufficient power may not start the module.
