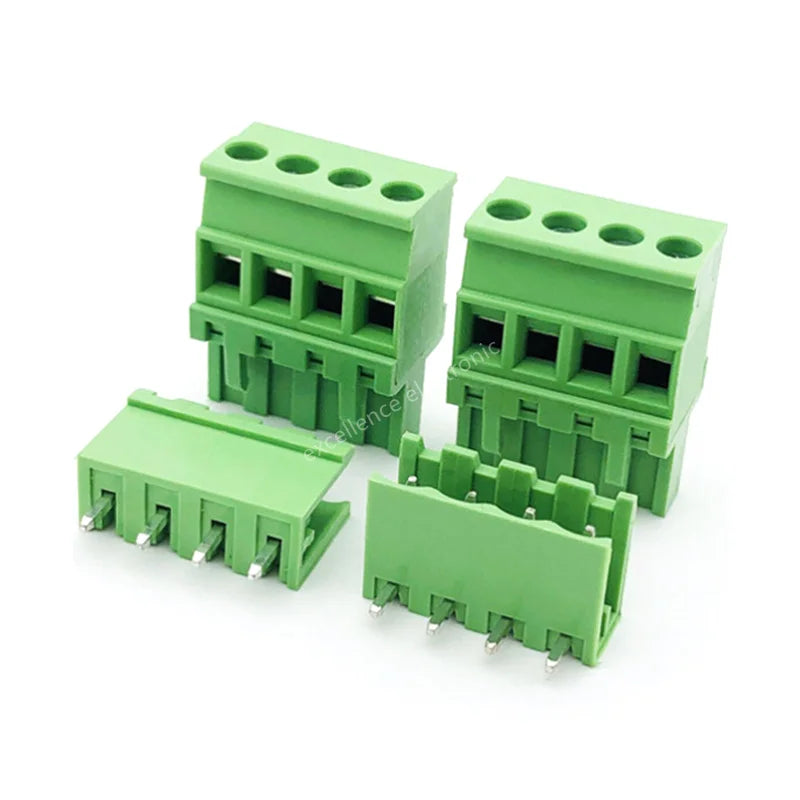

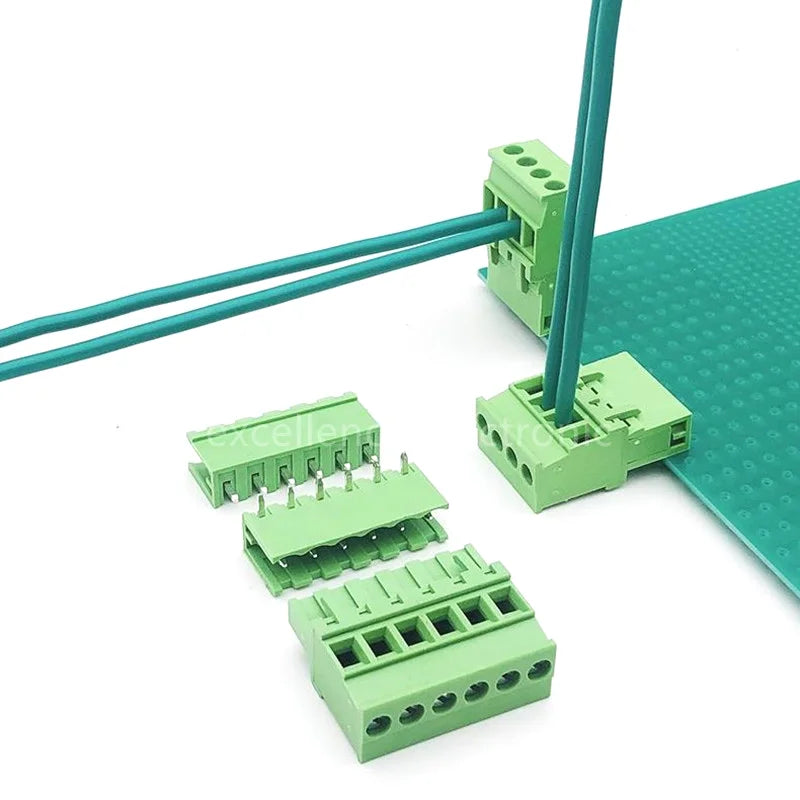

5Sets 2EDGKA- Plug-in PCB Wiring Terminal Vertical Side Outlet Plug

Discover the 5Sets 2EDGKA- Plug-in PCB Wiring Terminal Vertical Side Outlet Plug, a standout vehicle parts & accessories pick designed for dependable everyday performance and lasting value.

Specifications

Certification: CE

Does it include a Battery?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Feature 3: Vertical

Feature1: PCB Terminal Connector

Feature2: 2EDG 5.08mm PCB Screw Terminal

Model Number: 5.08mm Screw Terminal Block

Pitch: 5.08mm

Rated current: 10A

Rated voltage: 300V

Voltage: 380 V

semi_Choice: yes

MATERIAL

Pin header: Brass, Tin plated

Housing:PA66, UL94V-0

ELECTRICAL

Rated voltage: 300V

Rated current: 15A

Contact resistance: 20mΩ

Insulation resistance:5000MΩ/DC1000V

Withstand voltage: AC2000V/1Min

MECHANICAL

Temperature range:-40℃~+105℃

SPECIFICATION

Pitch:5.08mm

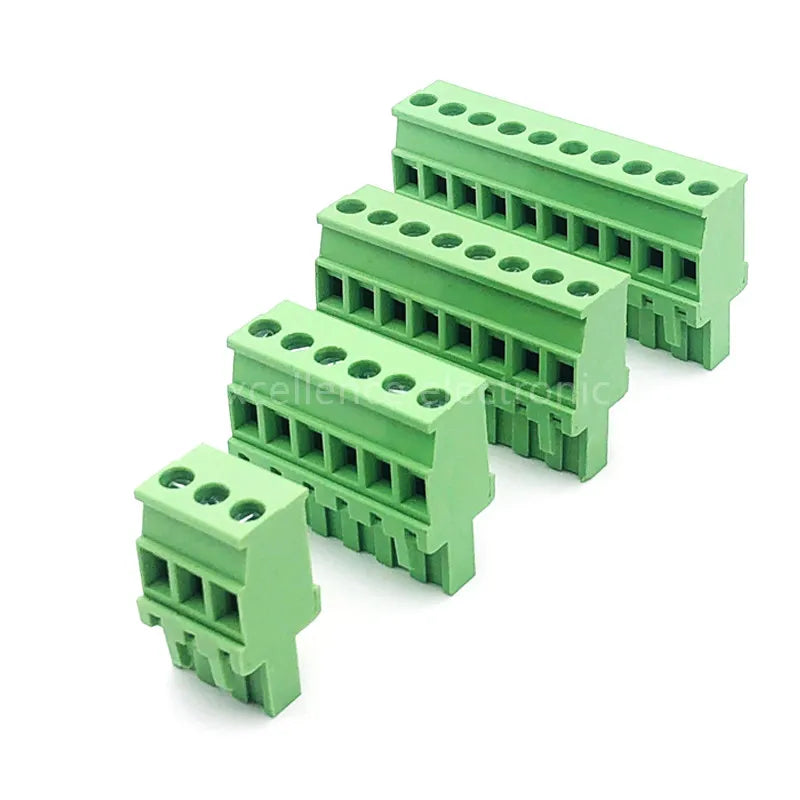

Poles:2P/3P/4P/5P/6P/7P/8P/9P/10P/12

Options

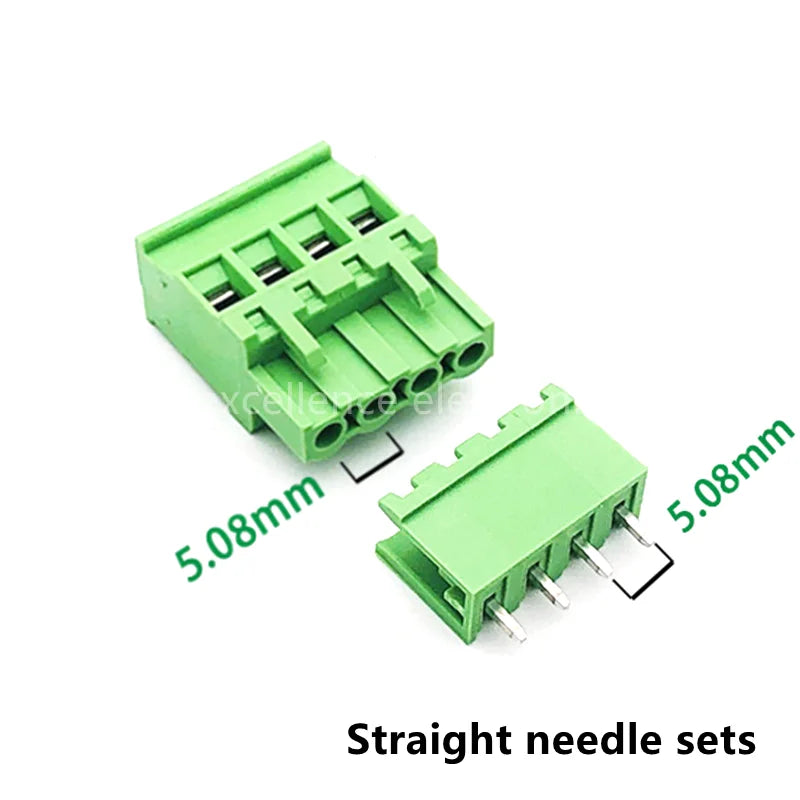

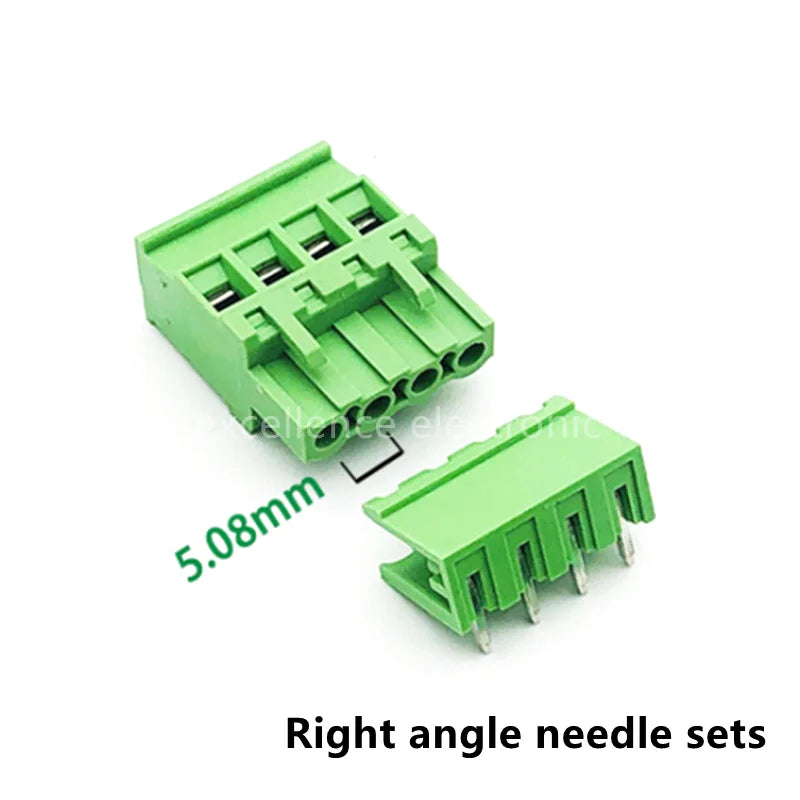

• Color: Straight needle, Right Angle needle
• Pins: 4P, 3P, 2P, 8P, 7P, 6p, 5P, 12P, 10P

Frequently Asked Questions

Q: What is the 5Sets 2EDGKA- Plug-in PCB Wiring Terminal Vertical Side?

A: The 5Sets 2EDGKA- Plug-in PCB Wiring Terminal Vertical Side is a quality vehicle parts & accessories pick built for everyday use.

Q: How do I use the 5Sets 2EDGKA- Plug-in PCB Wiring Terminal Vertical Side?

A: The 5Sets 2EDGKA- Plug-in PCB Wiring Terminal Vertical Side is ready to use right out of the box and makes an easy addition to your vehicle parts & accessories lineup.

Q: Why choose the 5Sets 2EDGKA- Plug-in PCB Wiring Terminal Vertical Side?

A: The 5Sets 2EDGKA- Plug-in PCB Wiring Terminal Vertical Side pairs practical design with everyday value — a reliable choice in our vehicle parts & accessories range.
