5pcs DB26 HDB26 26-Pin D-Sub Solder Connector Male & Female

5pcs DB26 26-Pin HDB26 D-Sub Solder Type Connector — Male & Female Set

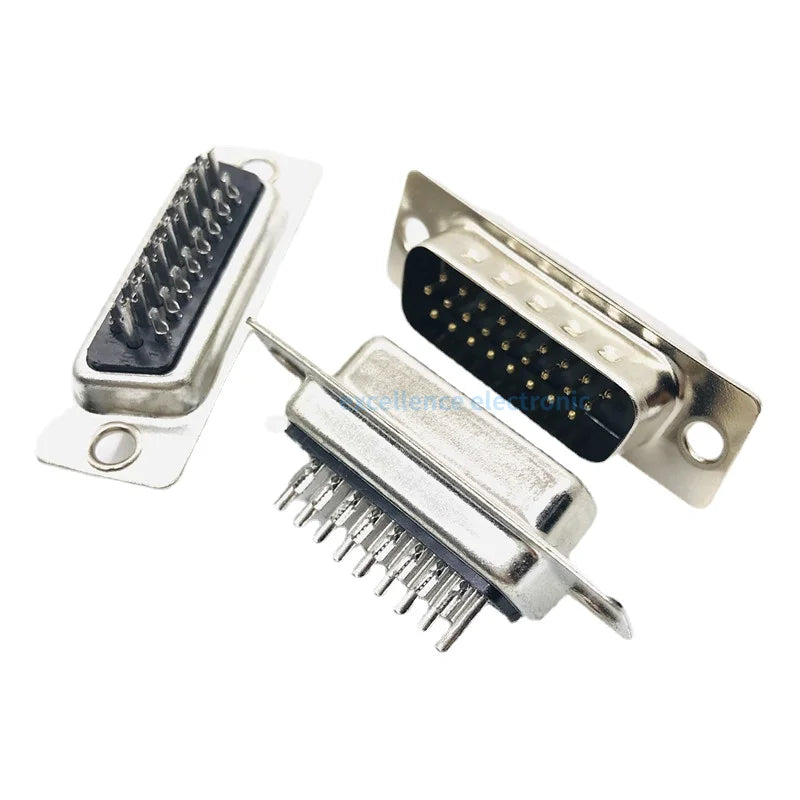

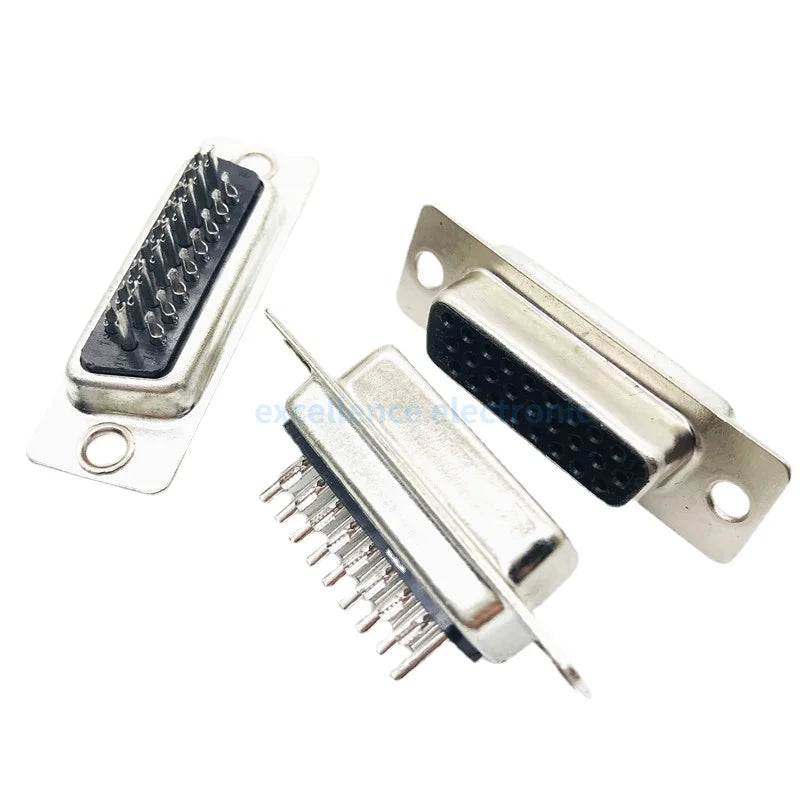

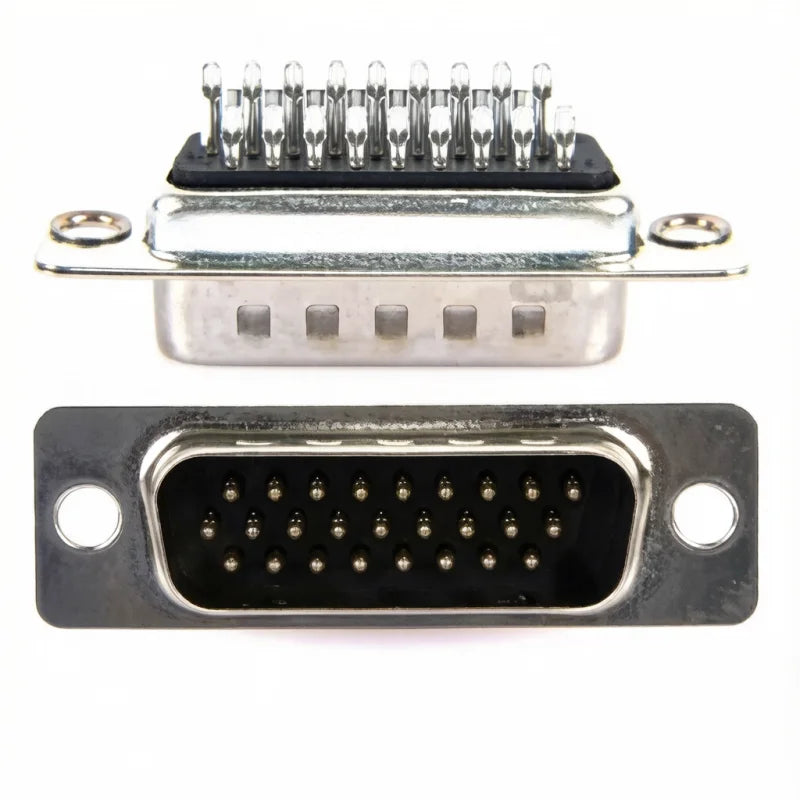

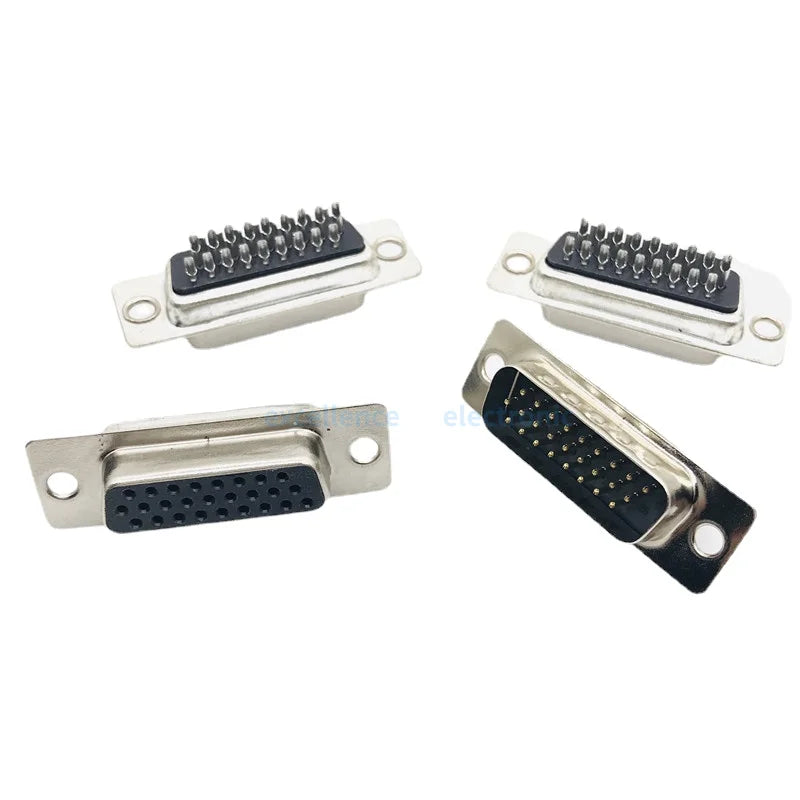

Upgrade your wiring projects with these versatile DB26 HDB26 D-Sub connectors. This 5-piece set includes both male and female solder-type socket adapters, each featuring a robust 3-row, 26-pin configuration. Whether you're building custom cables, repairing industrial equipment, or prototyping electronics, these CE-certified connectors deliver reliable conductivity and a secure mechanical fit.

Key Features

• Complete 5-Piece Set: Includes both male and female connectors for full wiring flexibility
• 26-Pin / 3-Row HDB26 Layout: High-density D-Sub design fits standard DB26 port applications
• Solder-Type Termination: Allows precise, low-resistance hand-soldered connections for custom cable assemblies
• CE Certified: Meets EU Low Voltage Directive standards (below 50Vac / 75Vdc)
• Durable Construction: Sturdy metal shell with quality plastic insulator body for long-lasting use
• No Battery or Wireless Required: Simple, passive connectivity — just solder and go
• Versatile Application: Suitable for industrial controls, test equipment, custom data cables, and DIY electronics projects

Specifications

What's in the Box?

• 5× DB26 HDB26 D-Sub Connectors (Male and/or Female, as selected)

Great for DIY & Professional Projects

These solder-type D-Sub connectors are a staple in any electronics toolkit. Perfect for makers, technicians, and engineers who need reliable multi-pin connectivity for data transmission, industrial automation, or custom test rigs. Browse more components and accessories in our DIY & Electronics store section.

For guidance on safe electrical wiring practices and component handling, refer to the OSHA Electrical Safety Guidelines and the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What is the difference between a DB26 and a standard DB25 connector?

A: The DB26 (HDB26) is a high-density D-Sub connector with 26 pins arranged in 3 rows, whereas the standard DB25 has 25 pins in 2 rows. The DB26 is commonly used in specialized industrial, instrumentation, and data acquisition applications that require an extra pin within a similar form factor.

Q: Are these connectors compatible with standard D-Sub hoods and backshells?

A: The DB26 HDB26 shell size is slightly different from the common DB25 due to its 3-row high-density layout. Always verify the hood or backshell dimensions match the HDB26 shell size before purchasing enclosures separately.

Q: Do I need special tools to solder these DB26 connectors?

A: A standard soldering iron (25–40W) and fine solder wire are sufficient for these solder-cup style connectors. Use a fine-tip iron for precision on the small solder cups, and ensure each pin is fully tinned for a reliable, low-resistance connection.

Q: What voltage rating do these DB26 connectors support?

A: These connectors are CE certified under the EU Low Voltage Directive for voltages below 50Vac or 75Vdc, making them suitable for most low-voltage signal and data wiring applications.
