50pcs 1mm Pitch FPC FFC Connector Kit 4P–24P Flip Clamshell
50pcs 1mm Pitch FPC FFC Connector Kit 4P–24P Flip Clamshell
Couldn't load pickup availability

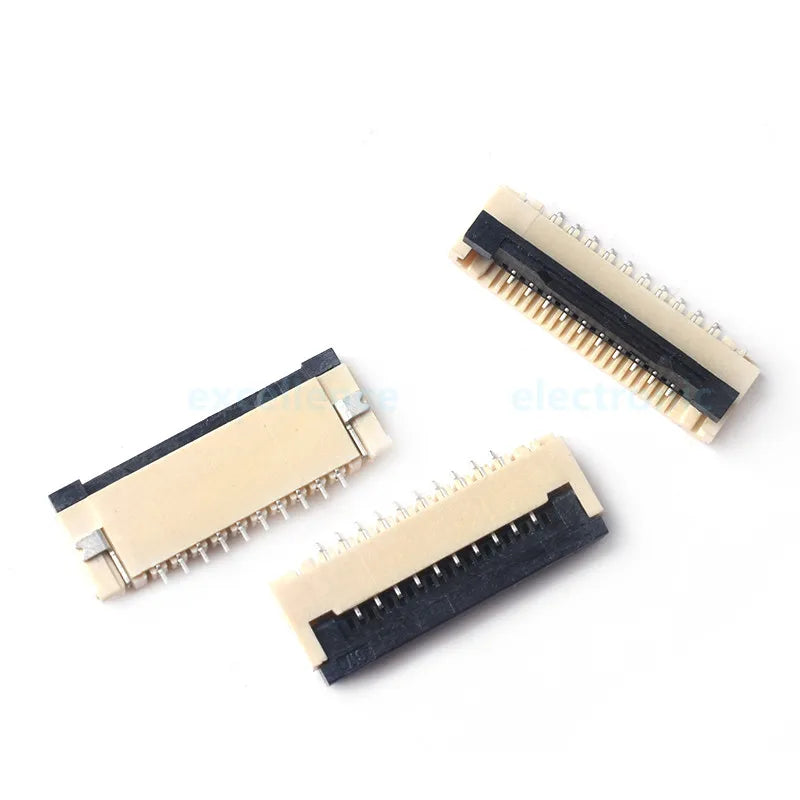

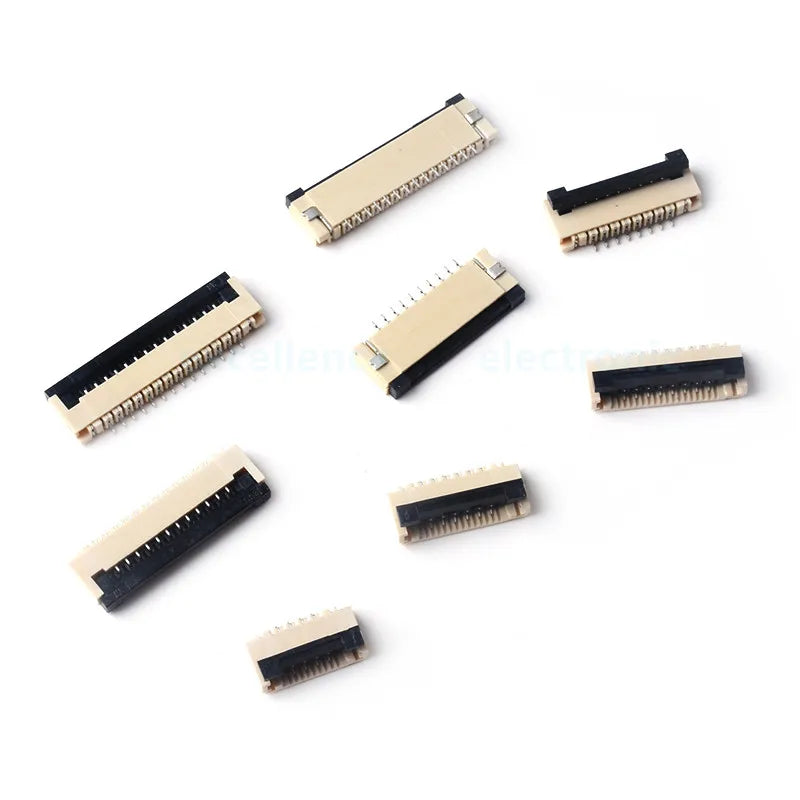

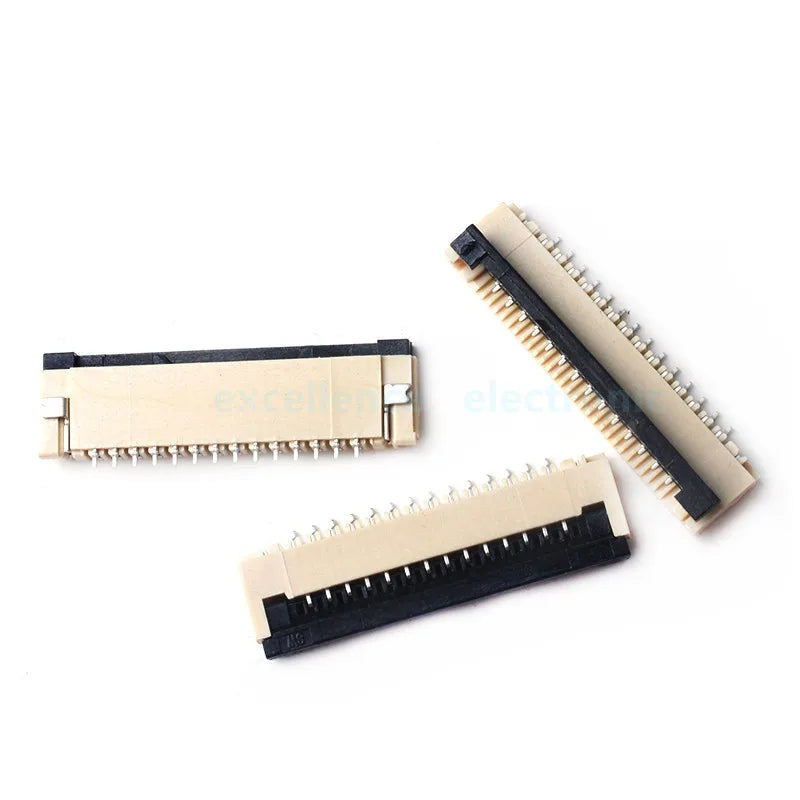

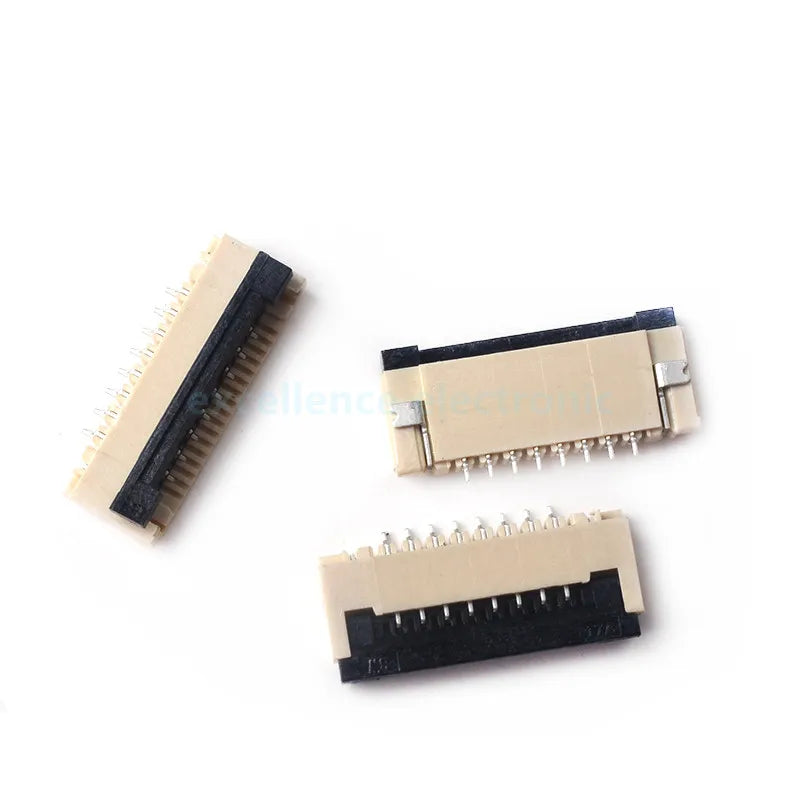

This versatile 50-piece FPC/FFC Flat Cable Connector Kit is an essential addition to any electronics workbench. Featuring a 1.0mm pitch flip-type under clamshell socket design, these connectors deliver reliable, low-profile connections for flexible printed circuits and flat flexible cables. Whether you're repairing consumer electronics, prototyping a custom PCB, or building a DIY maker project, this assortment kit has you covered with 10 pin configurations all in one box.
Key Features
- 1.0mm Pitch — precision spacing for compact, high-density circuit board layouts
- Flip-Type Under Clamshell (Flip Bottom Contact) — secure, tool-free FPC/FFC cable locking mechanism

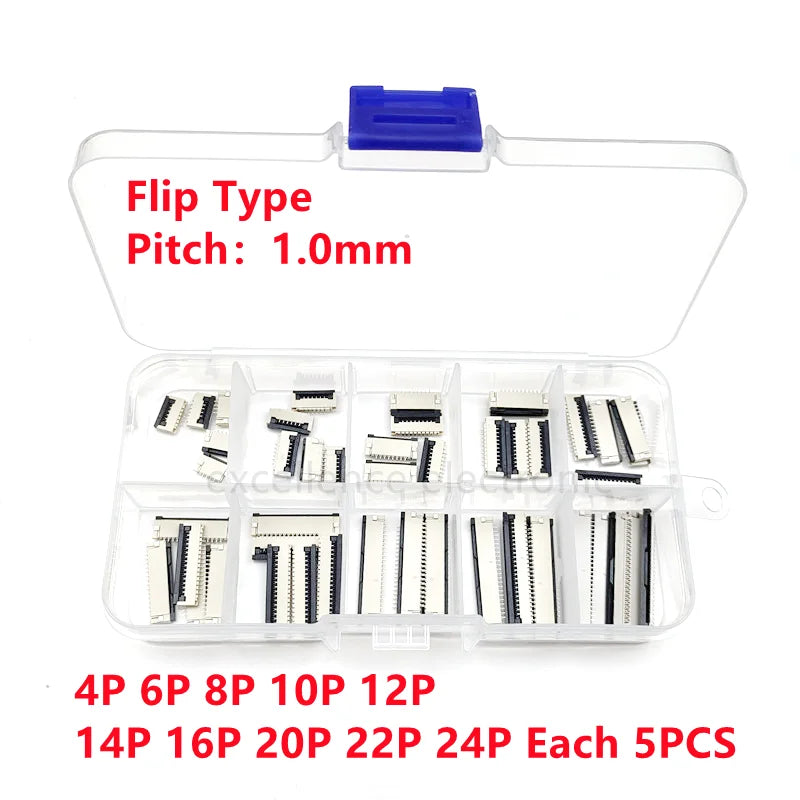

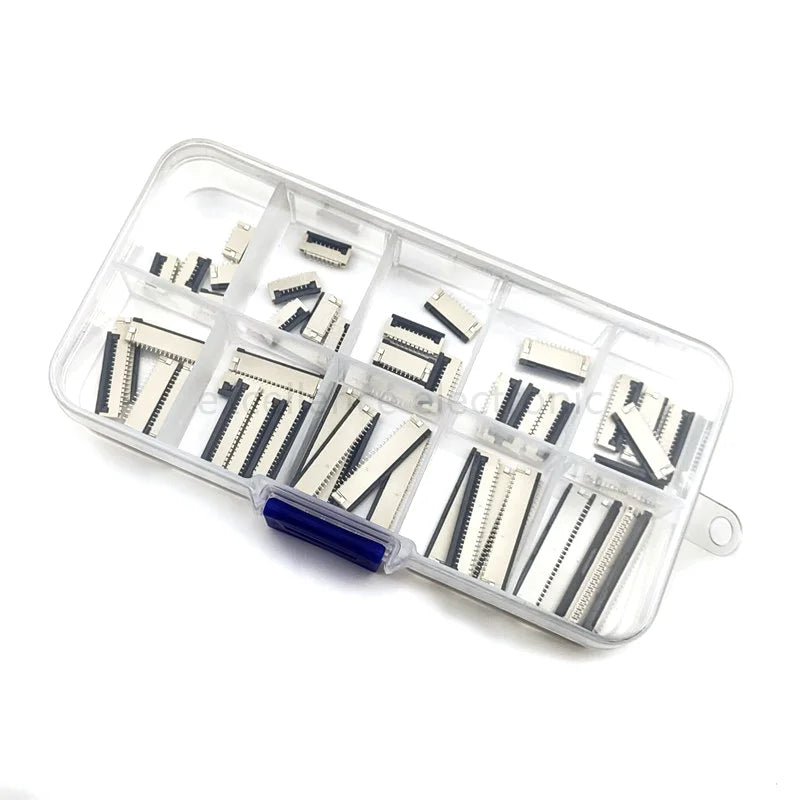

- 10 Pin Sizes Included — 4P, 6P, 8P, 10P, 12P, 14P, 16P, 20P, 22P, 24P (5 pcs each = 50 total)
- CE Certified — meets EU Low Voltage Directive (below 50V AC / 75V DC)
- No hazardous chemicals — RoHS-compliant materials
- Compatible with standard 1.0mm pitch FPC/FFC flat cables
- Ideal for PCB repair, prototyping, electronics manufacturing, and maker projects
What's in the Box
| Pin Count | Quantity |
|---|---|
| 4-Pin | 5 pcs |
| 6-Pin | 5 pcs |
| 8-Pin | 5 pcs |
| 10-Pin | 5 pcs |
| 12-Pin | 5 pcs |
| 14-Pin | 5 pcs |
| 16-Pin | 5 pcs |
| 20-Pin | 5 pcs |
| 22-Pin | 5 pcs |
| 24-Pin | 5 pcs |
| Total | 50 pcs |
Technical Specifications
- Connector Type: FPC/FFC Flip-Type Under Clamshell Socket
- Contact Pitch: 1.0mm
- Contact Style: Flip Bottom Contact
- Voltage Rating: Low Voltage — Below 50V AC / 75V DC
- Certification: CE
- Country of Origin: Made in China
Who Is This For?
This kit is perfect for electronics hobbyists, PCB designers, repair technicians, and engineers who regularly work with flexible flat cables in devices such as smartphones, tablets, laptops, cameras, printers, and other consumer electronics. Having all 10 pin configurations on hand eliminates downtime and keeps your workflow moving.
For more information on electronic connector standards, visit the NIST Publications resource.
Related Products You May Like
- "1% Better Every Day" Motivational Canvas Poster | Wall Art
- "Everything Is Fine" Funny Men's Graphic T-Shirt | Cotton Tee
Frequently Asked Questions
Q: What types of cables are compatible with these 1mm pitch FPC FFC connectors?
A: These connectors are designed for standard 1.0mm pitch flexible printed circuit (FPC) cables and flat flexible cables (FFC). The flip-type under clamshell socket mechanism accepts bottom-contact flat cables in the included pin counts (4P through 24P). Always verify your cable's pitch and contact side before installation.
Q: What does "flip-type under clamshell" mean for these FPC connectors?
A: The flip-type under clamshell (also called flip bottom contact) design means the actuator flips upward to open the socket, you insert the FPC/FFC cable from underneath with contacts facing down, then flip the actuator closed to lock the cable securely in place. This provides a reliable, low-profile connection without additional tools.
Q: Are these connectors suitable for surface-mount (SMD) PCB soldering?
A: Yes. These 1.0mm pitch FPC/FFC connectors are designed for surface-mount (SMD) soldering onto PCBs. They are commonly used in professional PCB assembly, repair work, and DIY electronics projects. Standard SMD soldering techniques and equipment apply.
Q: What is the voltage rating for these FPC FFC flat cable connectors?
A: These connectors are rated for low-voltage applications — below 50V AC or 75V DC, and are CE certified under the EU Low Voltage Directive. They are intended for signal and data transmission in consumer electronics and similar low-voltage circuit applications.
