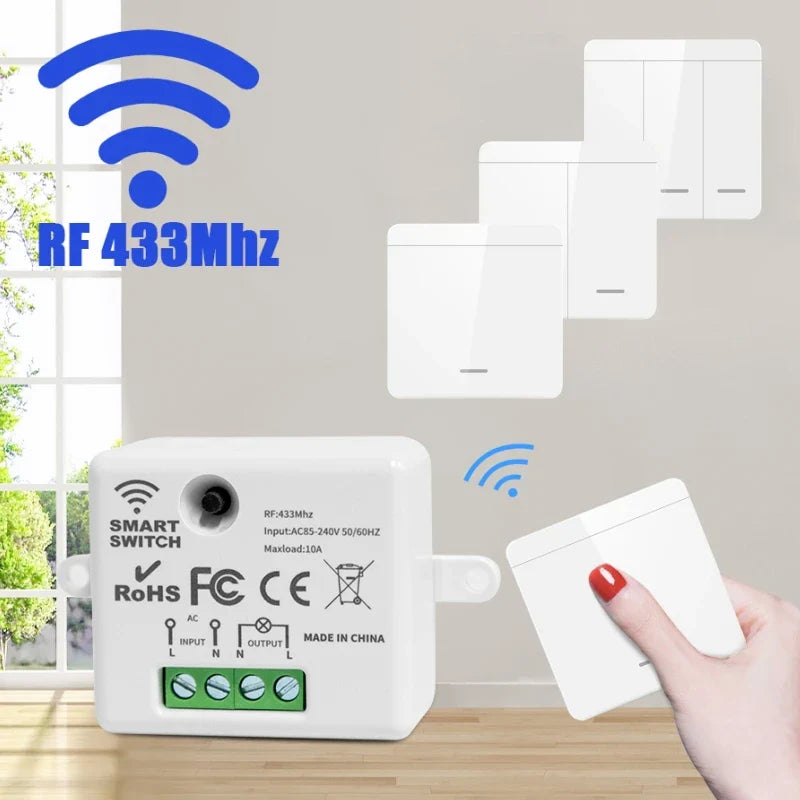

433MHz Wireless Wall Switch 1/2/3 Gang + RF Remote 110V/220V

Control Your Lights from Anywhere — No Wiring Needed

Tired of getting up to flip a switch? The GGBEE 433MHz Wireless Smart Wall Switch lets you control your lights, ceiling fans, and other appliances with the tap of a button — from across the room or anywhere within range. Available in 1, 2, or 3 gang configurations, this no-neutral-wire-required solution is perfect for retrofitting any room without expensive rewiring.

Made in China.

Why You'll Love It

• True Wireless Freedom: The 86-type wall panel transmitter runs on a 12V 27A battery and mounts virtually anywhere with adhesive — no electrical box required.
• Wide Compatibility: Works with LED, CFL, fluorescent lamps (up to 300W) and other load types up to 1,100W. Also compatible with ceiling fans.

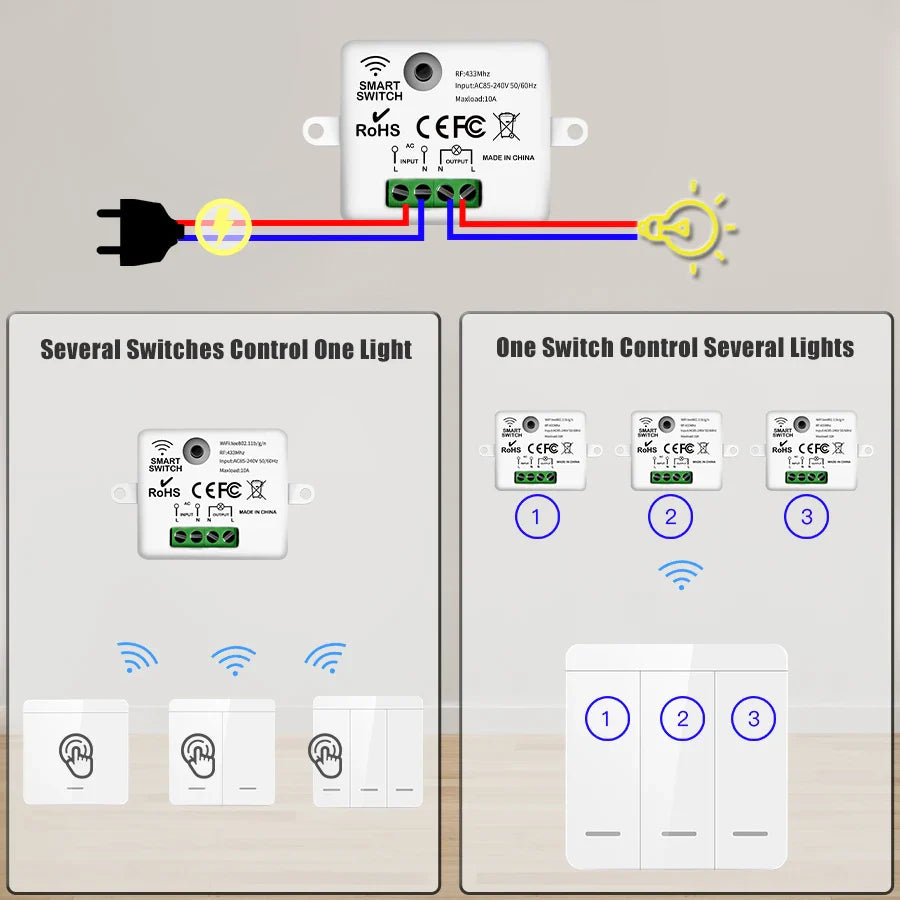

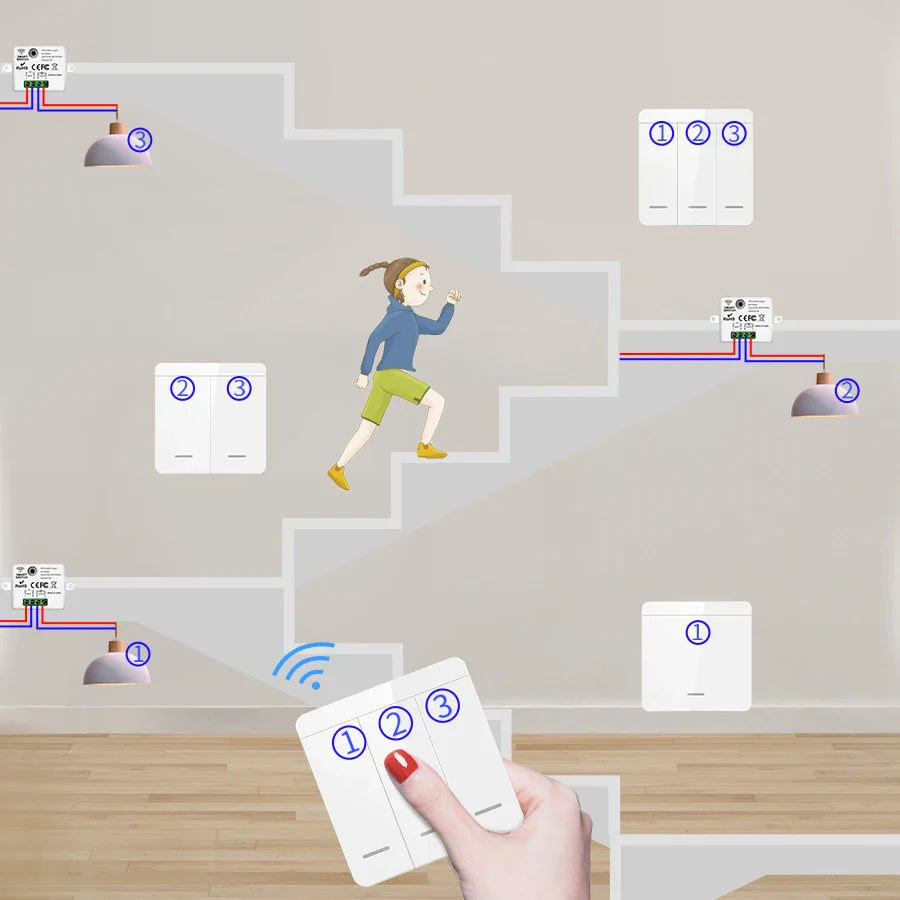

• Multi-Switch Control: Multiple wall switches can independently control the same or different receivers — great for long hallways, staircases, or open-plan spaces.
• EV1527 Learning Code (IC Chip): Universal learning-code technology means the transmitter pairs with most RF receivers on the market.
• Ultra-Low Standby Power: The receiver draws less than 0.3W in standby, helping you save energy around the clock.
• Simple Pairing in Seconds: Easy two-step pairing process — no app, no Wi-Fi, no hub required.
• CE Certified: Meets European safety standards for peace of mind.
• 1-Year Warranty included.

Technical Specifications

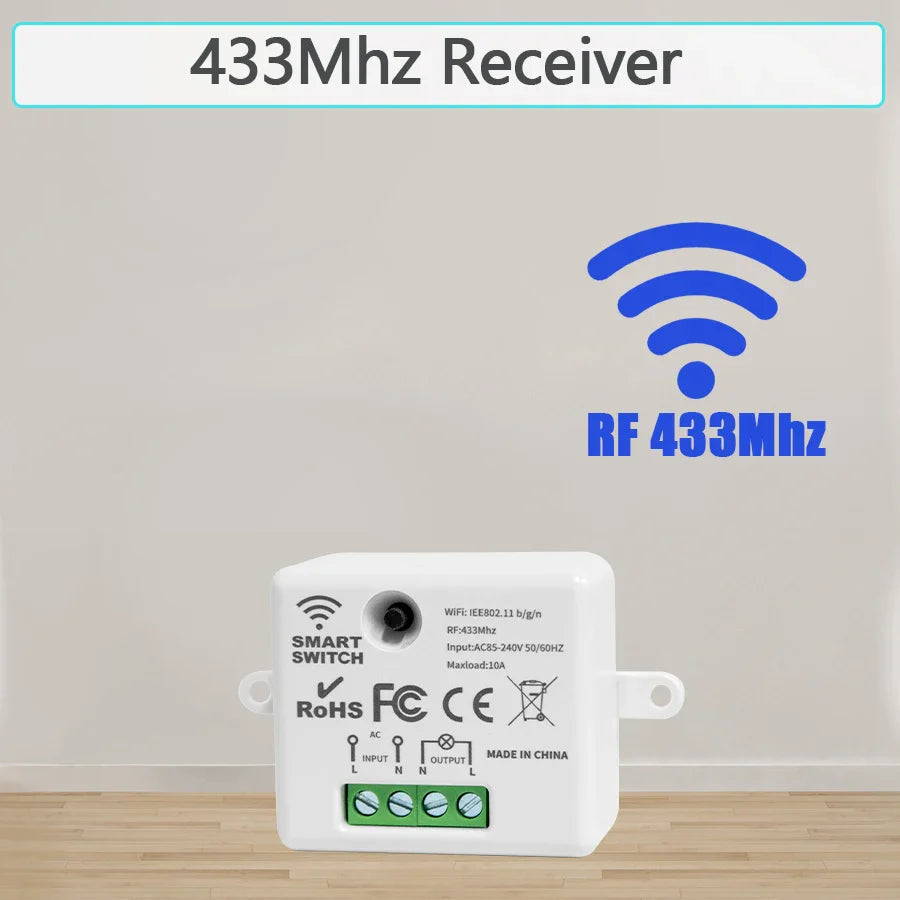

Controller (Receiver)

• Working Voltage: AC 85–240V, 50/60Hz
• Working Frequency: 433MHz
• Standby Power Consumption: <0.3W
• Max Load Power: <1,100W
• Receiving Sensitivity: -108dBm
• Modulation: ASK
• Coding: Learning Code
• Operating Temperature: -10°C to +70°C
• Dimensions: 47.4 × 42 × 22.8mm

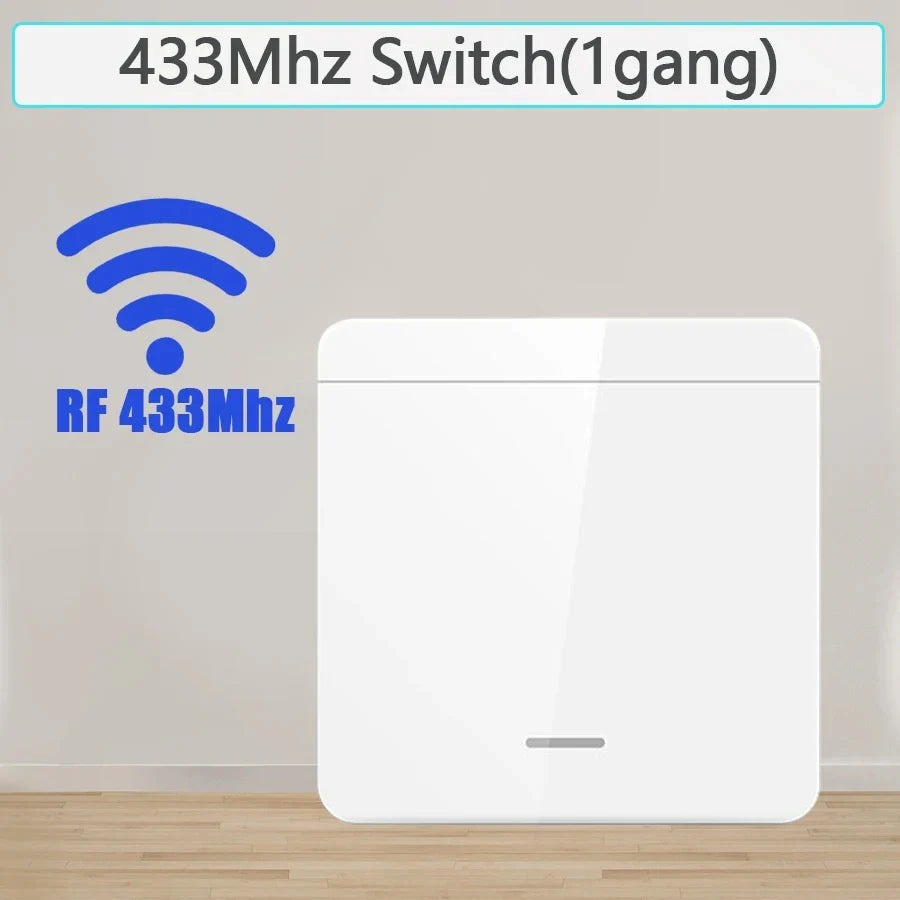

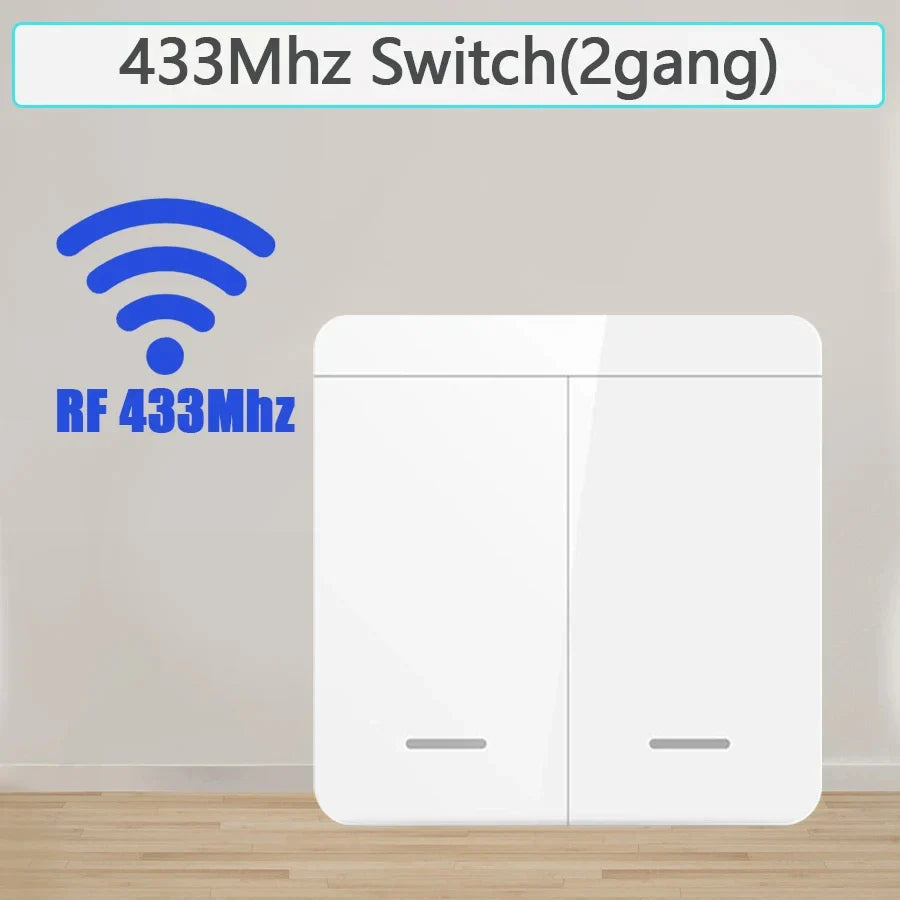

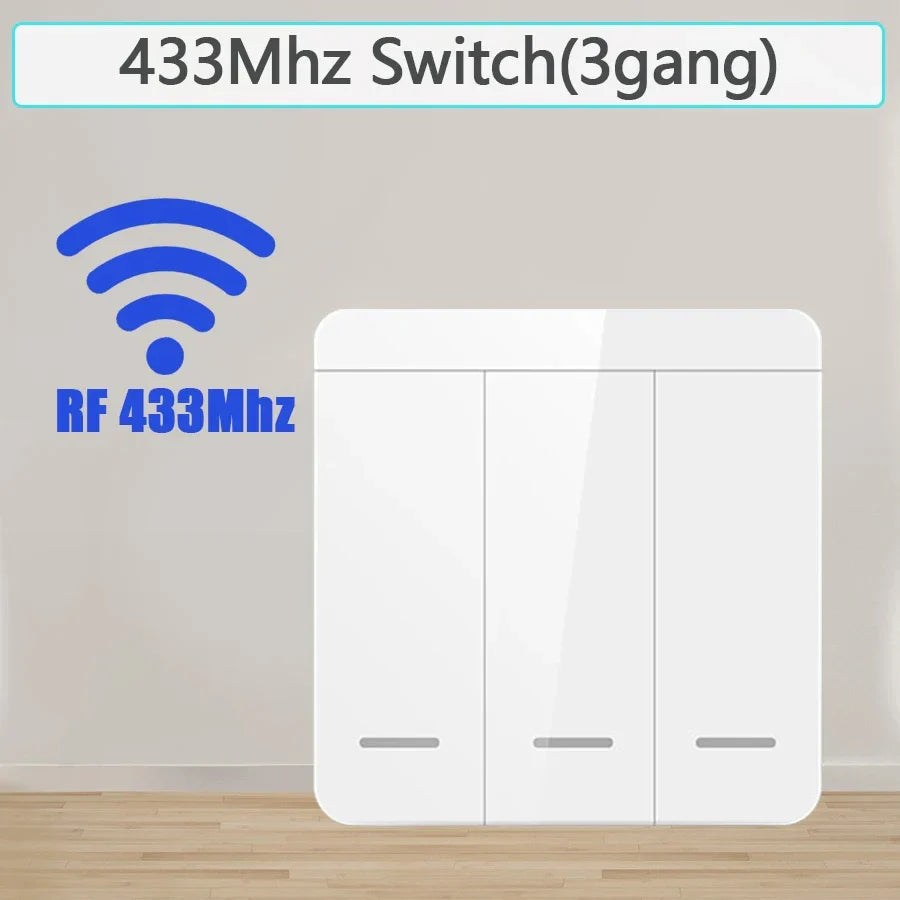

Wireless Wall Switch (Transmitter)

• Working Voltage: DC 3.0V
• Working Frequency: 433MHz
• Standby Power Consumption: <1µA
• Transmitter Power: <10mW
• Coding: EV1527 Learning Code
• Modulation: ASK
• Operating Temperature: -10°C to +70°C
• Dimensions: 86 × 86 × 15mm
• Battery: 12V 27A (not included)

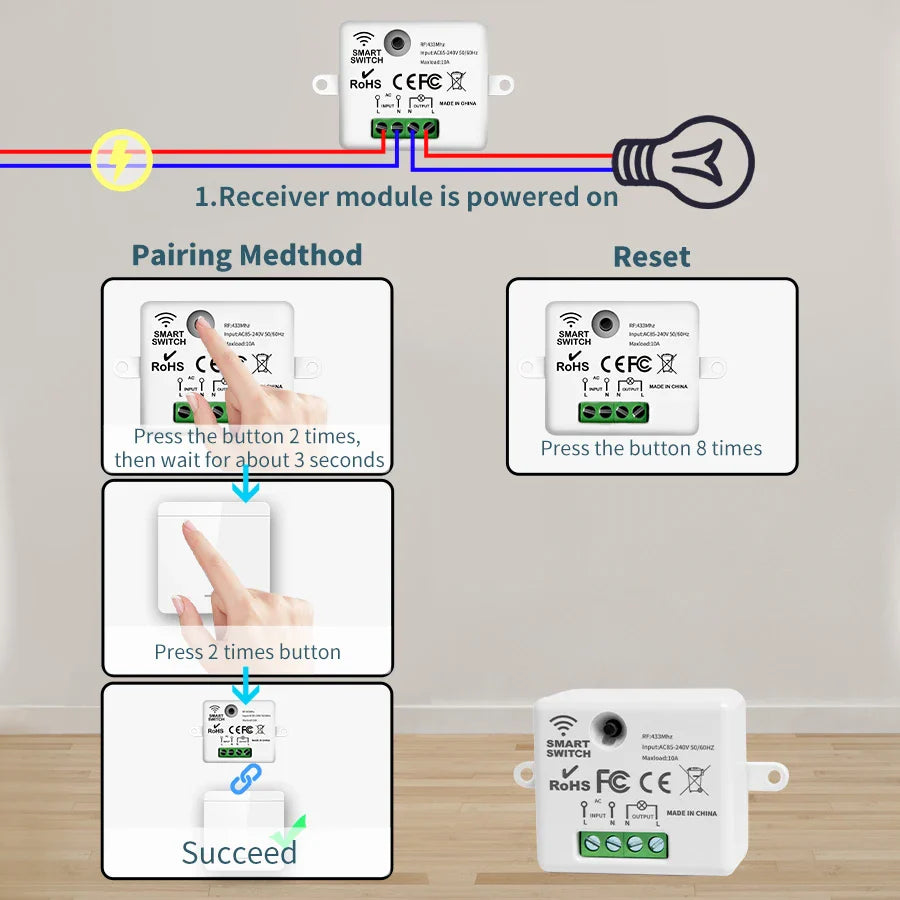

How to Pair (Get Signal)

1. Press the learning button on the Receiver twice. Wait 3 seconds.
2. Press one button on the remote/wall switch. Wait 3 seconds. Pairing complete!

How to Clear All Signals

Press the learning button on the Receiver 8 times. Wait 3 seconds. All paired signals are cleared.

⚠ Important Note: The wall switch panel alone cannot turn lights on or off. It must be used together with the RF receiver module (sold as a set or separately depending on your chosen option).

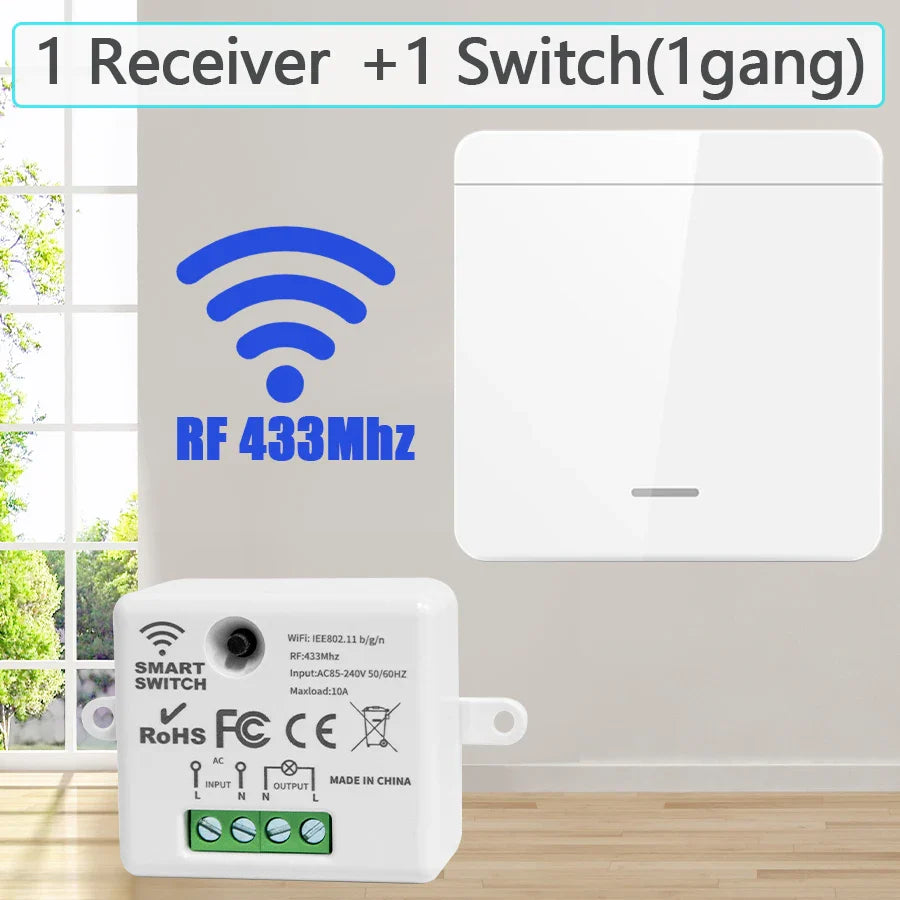

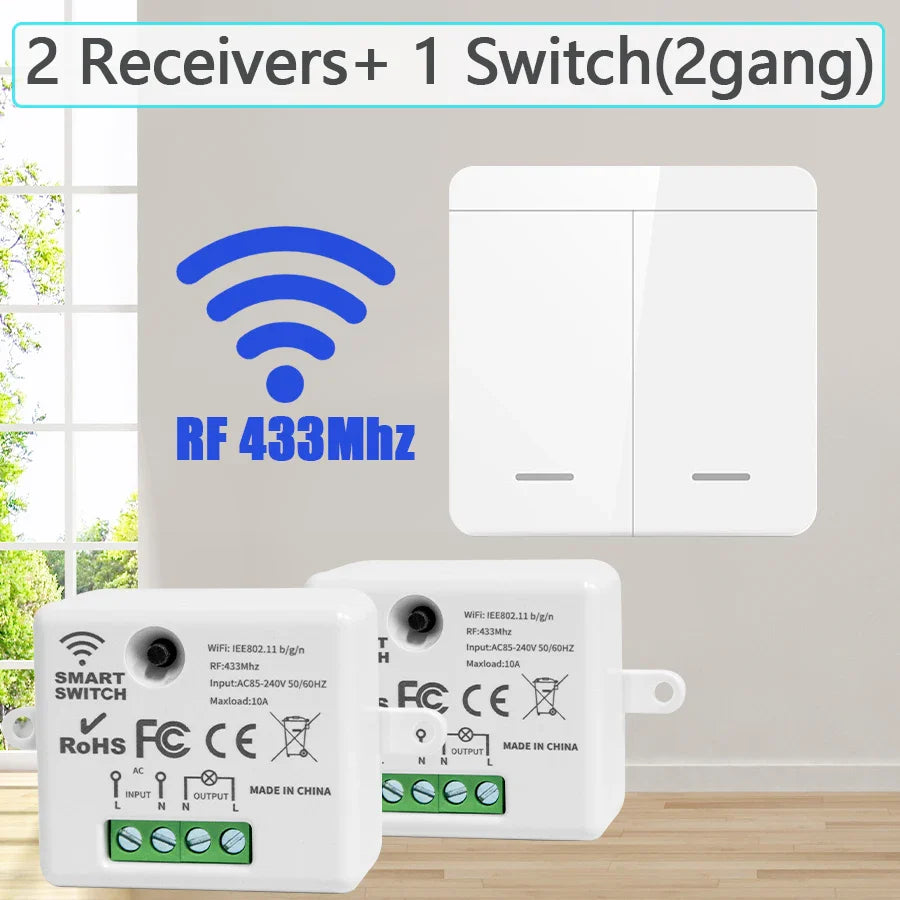

Package Options

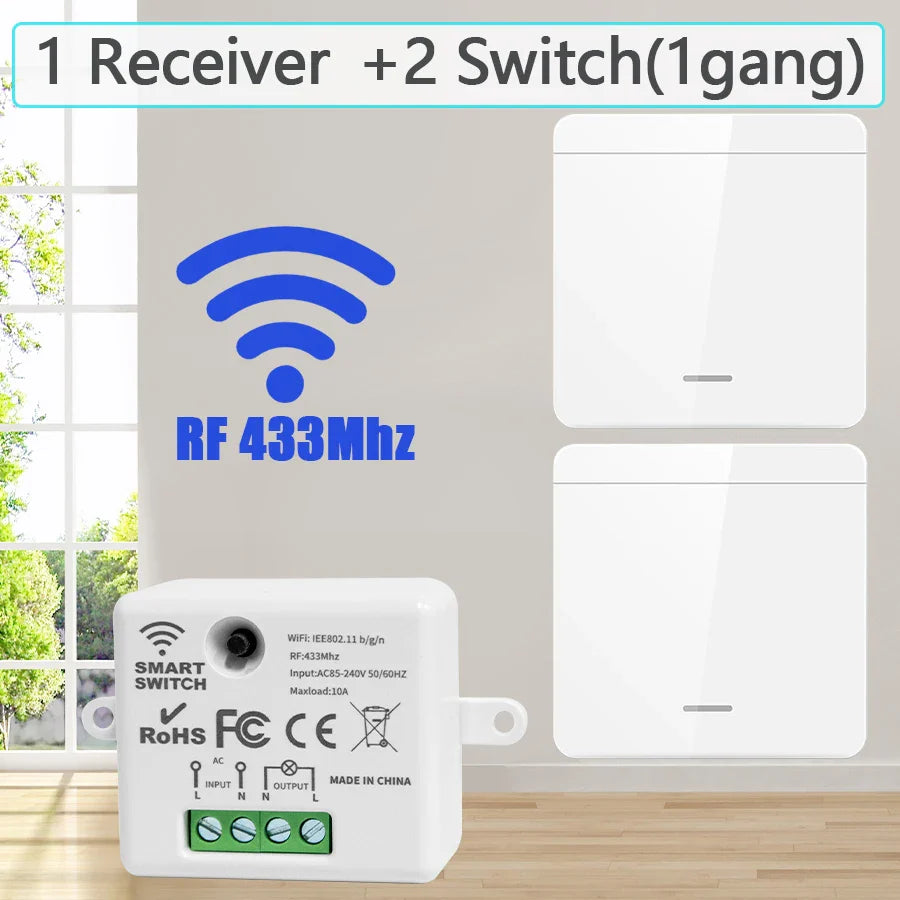

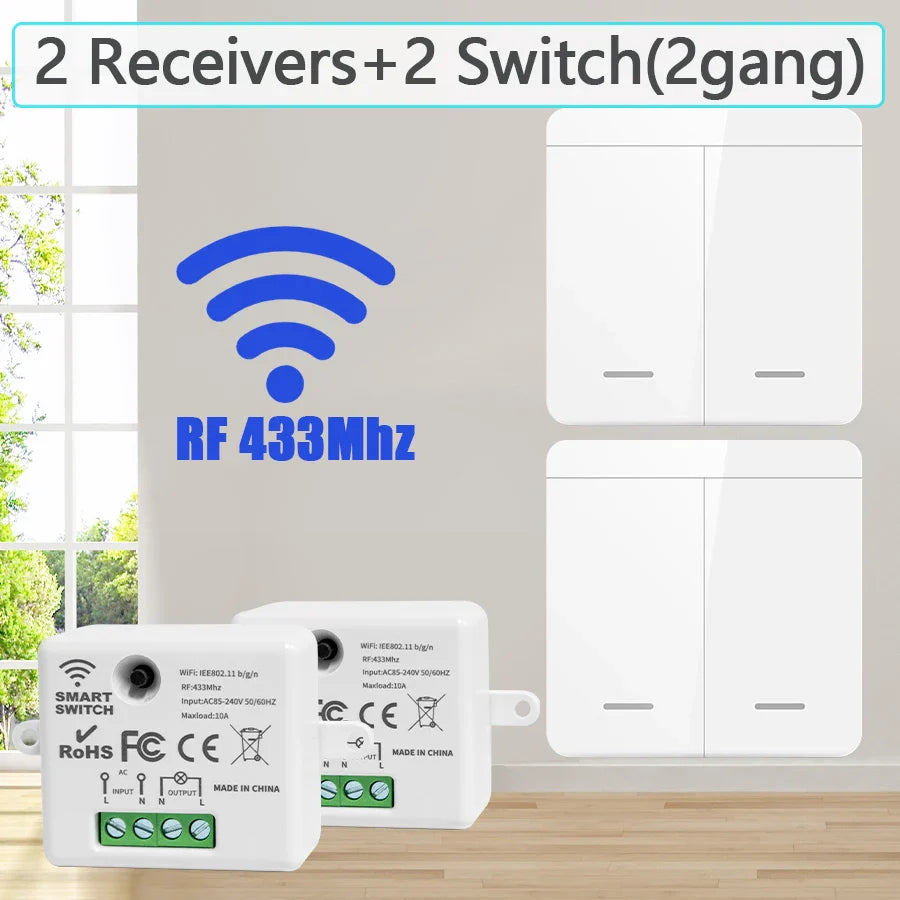

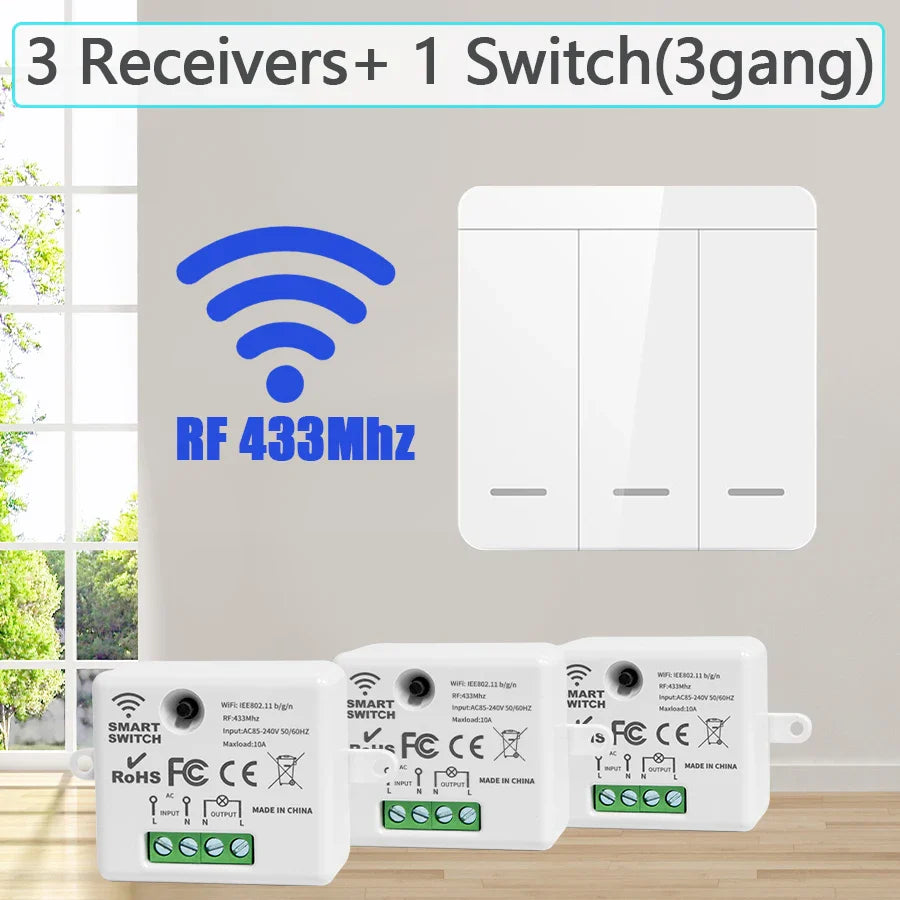

Various combinations are available — wall switch only, receiver only, or switch + receiver sets. Choose the option that best fits your setup at checkout.

Related Products You May Like

• 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler
• 1.8M DisplayPort to HDMI Cable 4K – DP Adapter for PC & TV

Safety & Standards Reference

For guidance on safe electrical product use and consumer safety standards, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: Does the 433MHz wireless wall switch require any wiring or a neutral wire?

A: No! The wireless wall switch panel is battery-powered (12V 27A battery, not included) and requires zero wiring. It can be mounted anywhere using adhesive. The RF receiver module is the only component that connects to your mains wiring.

Q: What types of lights and appliances are compatible with this wireless switch?

A: This 433MHz wireless switch works with LED, CFL, and fluorescent lamps (up to 300W) as well as incandescent bulbs and ceiling fans (up to 1,100W load). It supports both 110V and 220V systems, making it suitable for use worldwide.

Q: Can I use multiple wall switches to control the same receiver?

A: Yes! You can pair multiple 433MHz wireless wall switch panels to the same receiver. This is ideal for staircases, hallways, or large rooms where you want to control a single light from multiple locations without running extra wiring.

Q: Is this switch compatible with smart home systems or does it need Wi-Fi?

A: This switch operates on the 433MHz RF frequency using EV1527 learning code technology. It does not require Wi-Fi, a hub, or any app. It is also compatible with most third-party 433MHz RF receivers and some smart home RF controllers that support the EV1527 learning code standard.
