433MHz Wireless Remote Switch AC 75V-240V 30A Relay | GGBEE

Control Any Device from Up to 100 Metres Away

The GGBEE 433MHz Wireless Remote Control Switch gives you effortless on/off control over water pumps, motors, LED lighting, and other high-voltage appliances — no wiring changes needed at the switch point. Simply pair the compact transmitter with the relay receiver board and enjoy wire-free convenience from up to 100 metres in open field. Made in Mainland China.

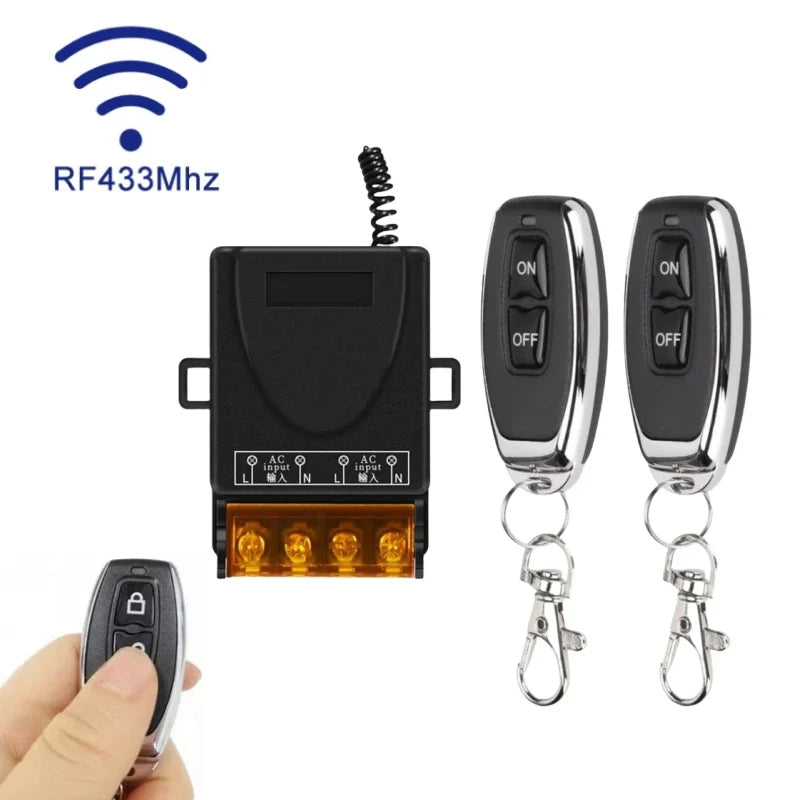

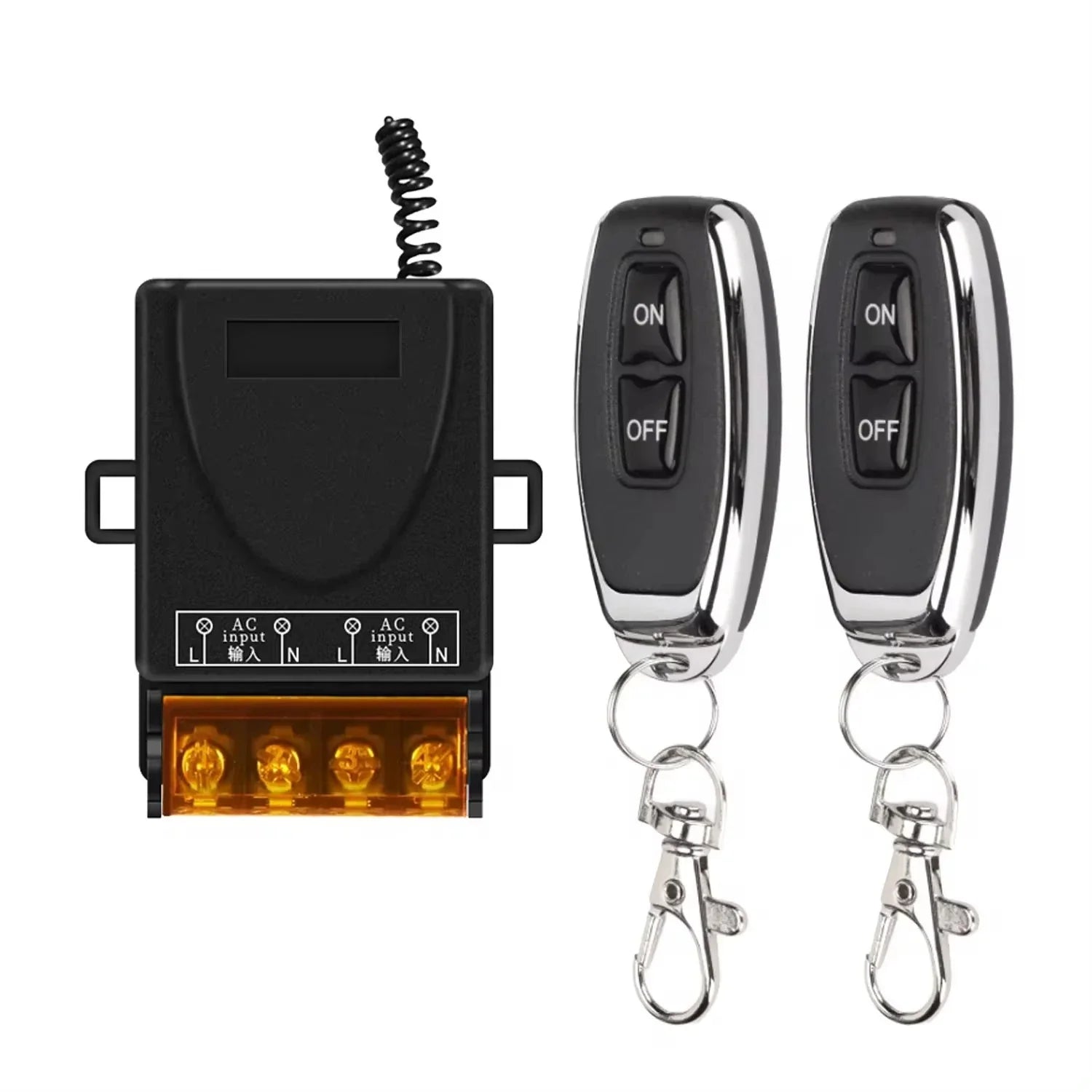

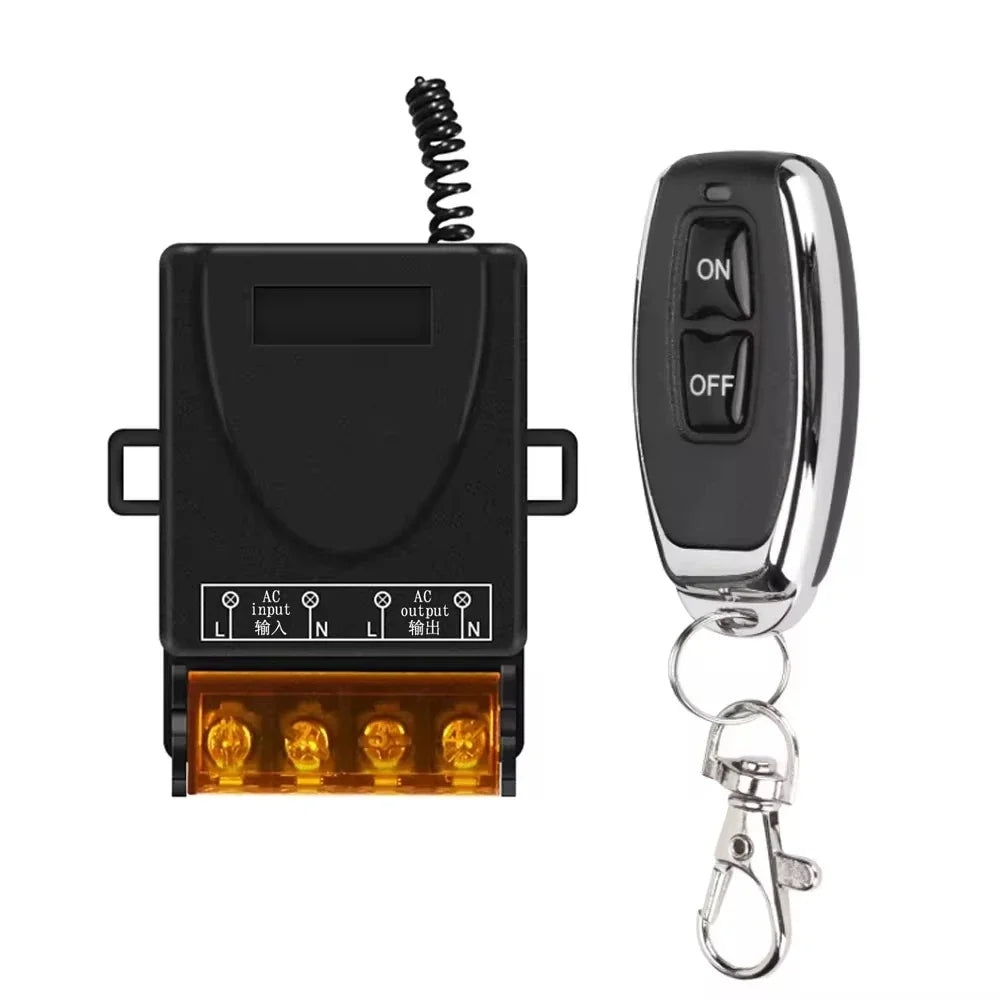

What's in the Box

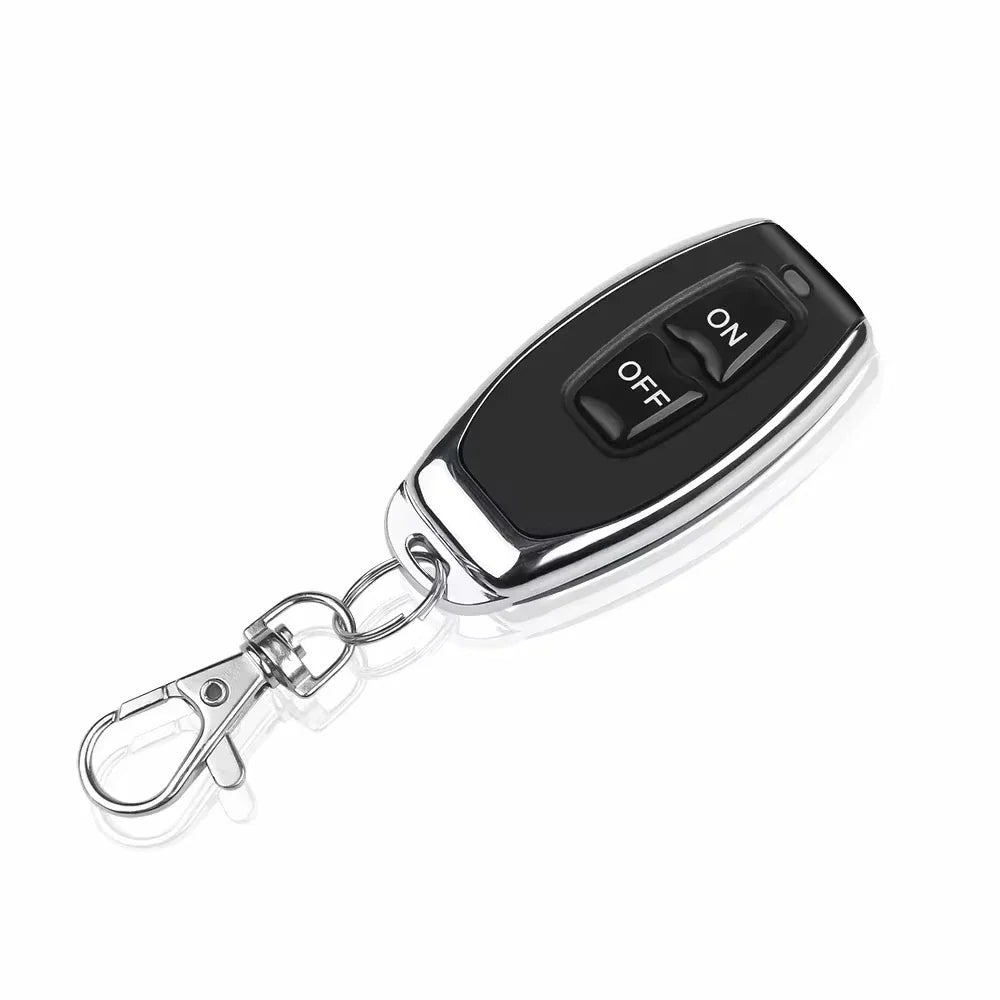

• Remote Control Transmitter – pocket-sized, powered by a single 23A/12V battery

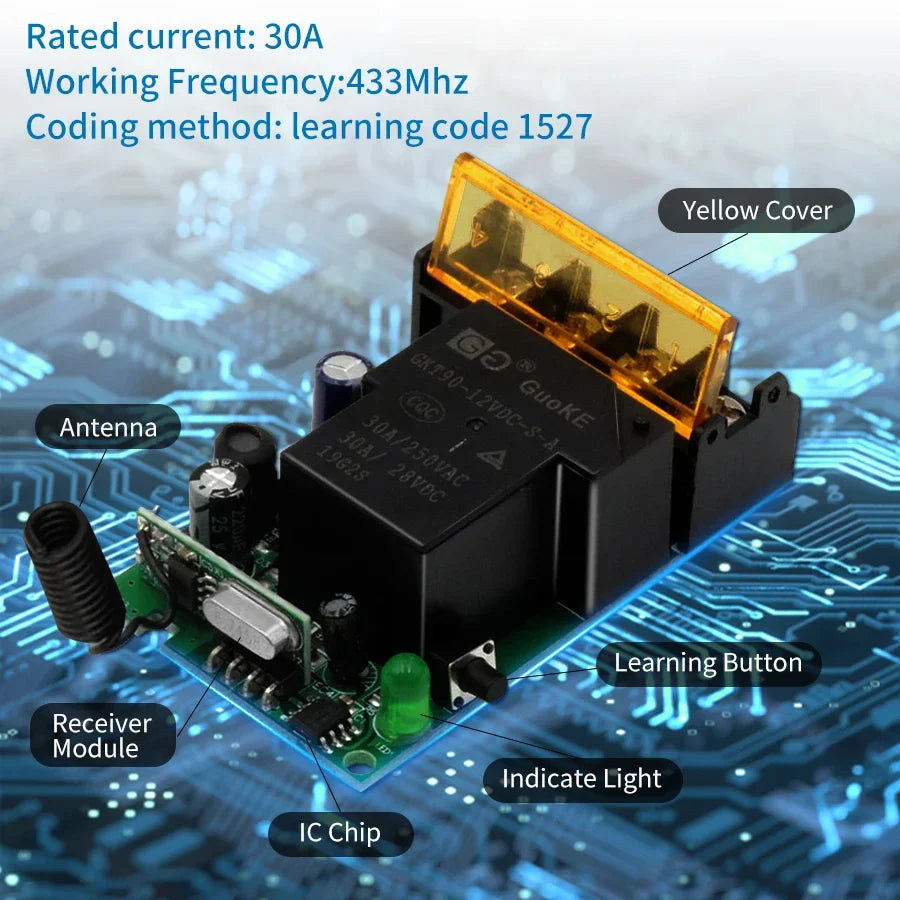

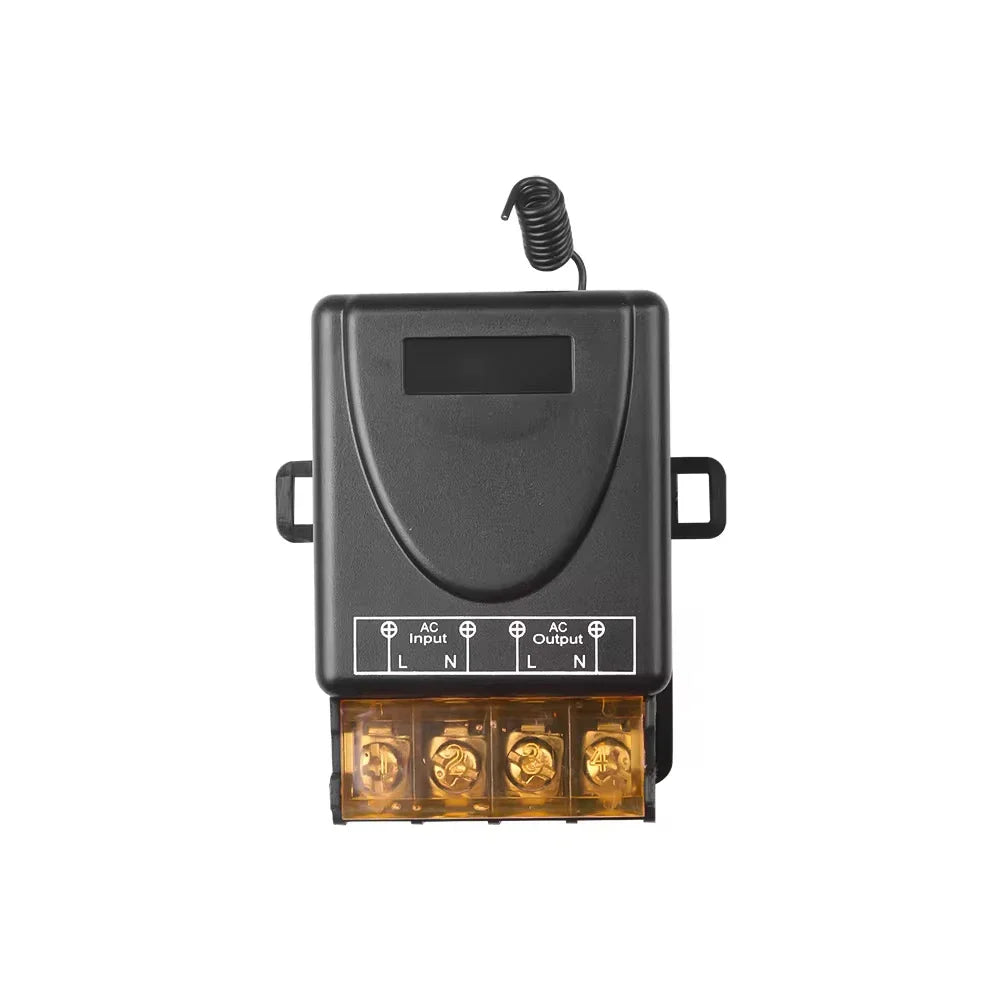

• Receiver Board with Relay – housed in a sturdy plastic enclosure, ready to wire into your circuit

Transmitter Specifications

• Operating Voltage: DC 12V (23A/12V battery × 1)
• Transmitting Frequency: 433 MHz (fixed code)
• Receiver Sensitivity: > −105 dB
• Transmission Range: Up to 100 m (open field)
• Dimensions: ~55 × 28 × 10 mm

Receiver Board Specifications

• Operating Voltage: AC 75 V – 240 V
• Output Voltage: Same as operating voltage
• Operating Frequency: 433 MHz (learning code — compatible with additional 315 MHz remote controllers)
• Relay Rated Current: 15 A / 240 VAC or 15 A / 110 VAC (Note: although the relay is marked 30 A, this is the peak current rating. Keep your load's continuous current below 15 A.)
• Enclosure Size: ~65 × 45 × 28 mm
• Material: Durable plastic housing
• Certification: CE

Common Applications

• Water pumps & irrigation systems
• Electric motors & garage doors
• LED strips, outdoor lighting & signage
• Home automation & DIY projects
• Industrial relay switching up to 240 VAC

Why Choose This Remote Switch?

• ✅ Wide voltage range (AC 75 V – 240 V) suits most household & industrial circuits
• ✅ Long 100 m range — perfect for large yards, workshops & warehouses
• ✅ Learning-code receiver: pair multiple transmitters easily
• ✅ Compact receiver fits in standard electrical enclosures
• ✅ CE certified for safety compliance

Related Products You May Like

• 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler
• 1.4W Solar Bird Bath Fountain Pump – Pond, Garden & Fish Tank

Safety & Compliance

Always ensure your load's continuous current does not exceed 15 A. Follow all local electrical codes when installing high-voltage switching equipment. For guidance on electrical safety standards, visit the U.S. Consumer Product Safety Commission (CPSC) or refer to OSHA's Electrical Safety guidelines.

Frequently Asked Questions

Q: What is the actual rated current for continuous loads on this 433MHz relay switch?

A: Although the relay is labelled 30 A, that figure represents the peak (inrush) current capacity. For continuous operation — such as running a water pump or motor — your load should draw no more than 15 A at 110 VAC or 240 VAC. Always size your circuit accordingly to avoid overheating.

Q: Can I pair more than one remote transmitter with the 433MHz receiver?

A: Yes. The receiver uses a learning-code system, so you can pair multiple 433 MHz transmitters. It is also compatible with additional 315 MHz remote controllers, giving you flexible multi-remote setups for your home or workshop.

Q: How far away can I operate the wireless remote control switch?

A: The transmitter has a range of up to 100 metres in an open field. Walls, metal enclosures, and other obstructions will reduce the effective range, so plan your installation with line-of-sight in mind where possible.

Q: What kind of battery does the remote transmitter use?

A: The transmitter is powered by a single 23A/12V alkaline battery, which is a slim, cylindrical battery commonly available at hardware and electronics stores.
