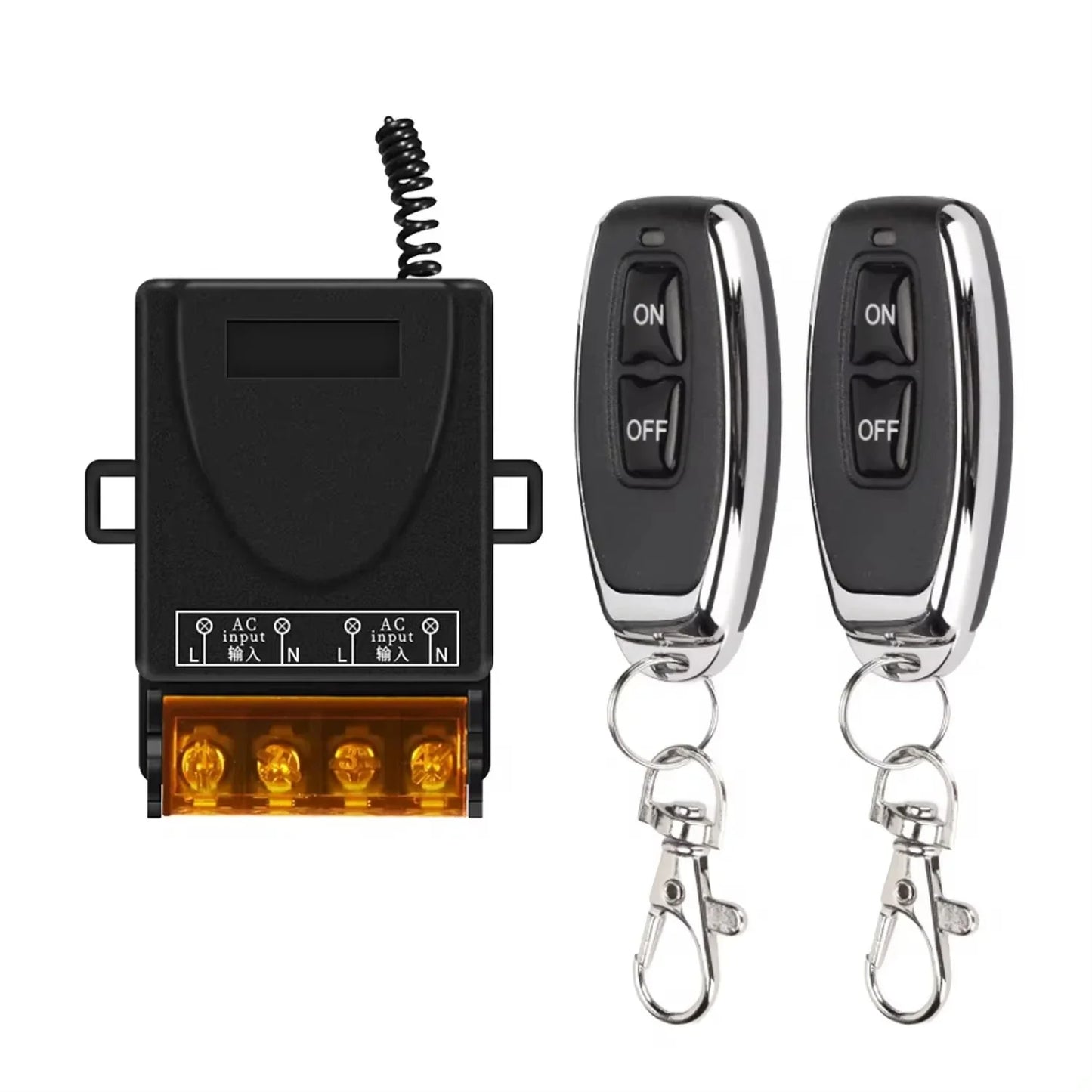

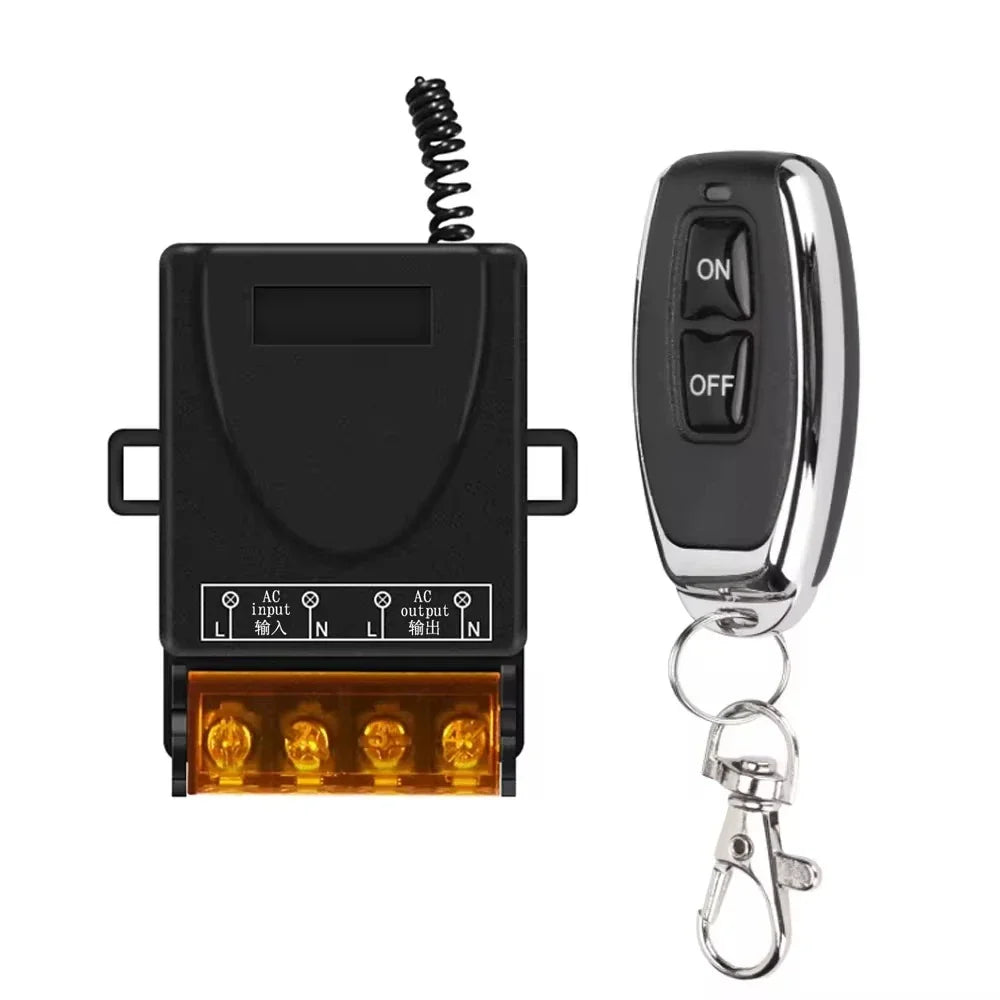

433MHz Wireless Remote Control Switch AC 75-220V DC 9-72V 30A Relay

Take Full Control – From Up to 100 Metres Away

The 433MHz Wireless Remote Control Switch by GGBEE gives you instant, reliable ON/OFF control over water pumps, motors, LED lighting, and more — without running a single extra wire. Whether you're managing an irrigation pump from across the yard or switching a motor in a workshop, this compact relay module makes remote control simple, safe, and flexible.

Made in Mainland China.

Key Features at a Glance

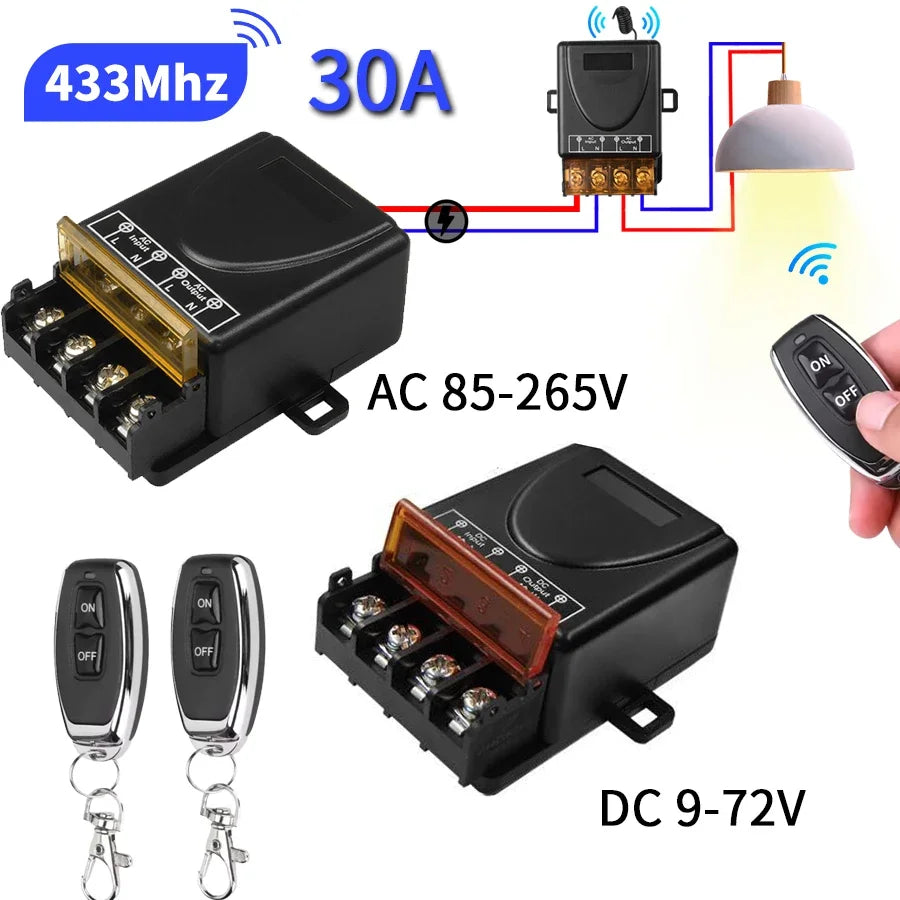

• ✅ Wide voltage compatibility: AC 75V–240V or DC 9–72V — works with most household and industrial setups
• ✅ 30A peak relay (rated load current: up to 15A continuous) — handles pumps, motors, and high-draw LED systems
• ✅ 100-metre open-field range at 433MHz for dependable long-distance switching
• ✅ 6 operating modes: Momentary, Toggle, Latched, and 3 programmable delay timers (5s, 10s, 15s)
• ✅ Learning code technology — pair multiple transmitters easily; clear codes with a single long press
• ✅ Compact & ready-to-go — no soldering required, receiver fits neatly in its 65 × 45 × 28 mm housing

Technical Specifications

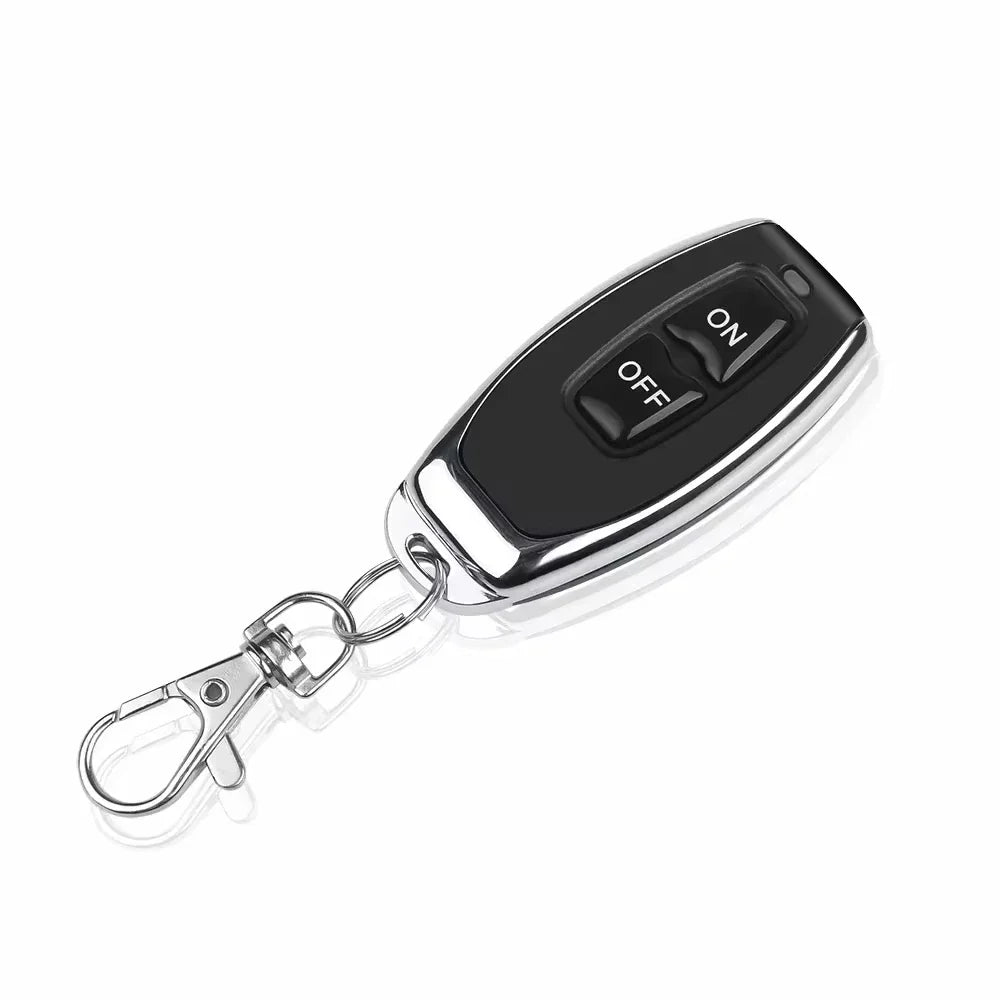

Remote Control Transmitter

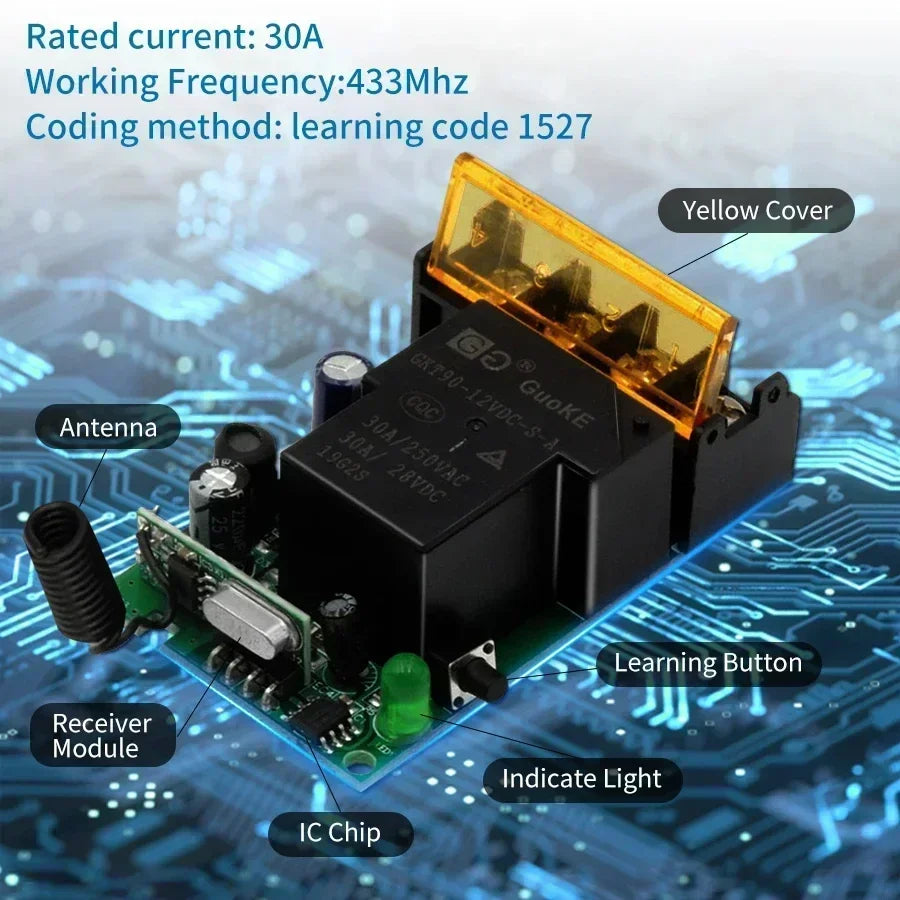

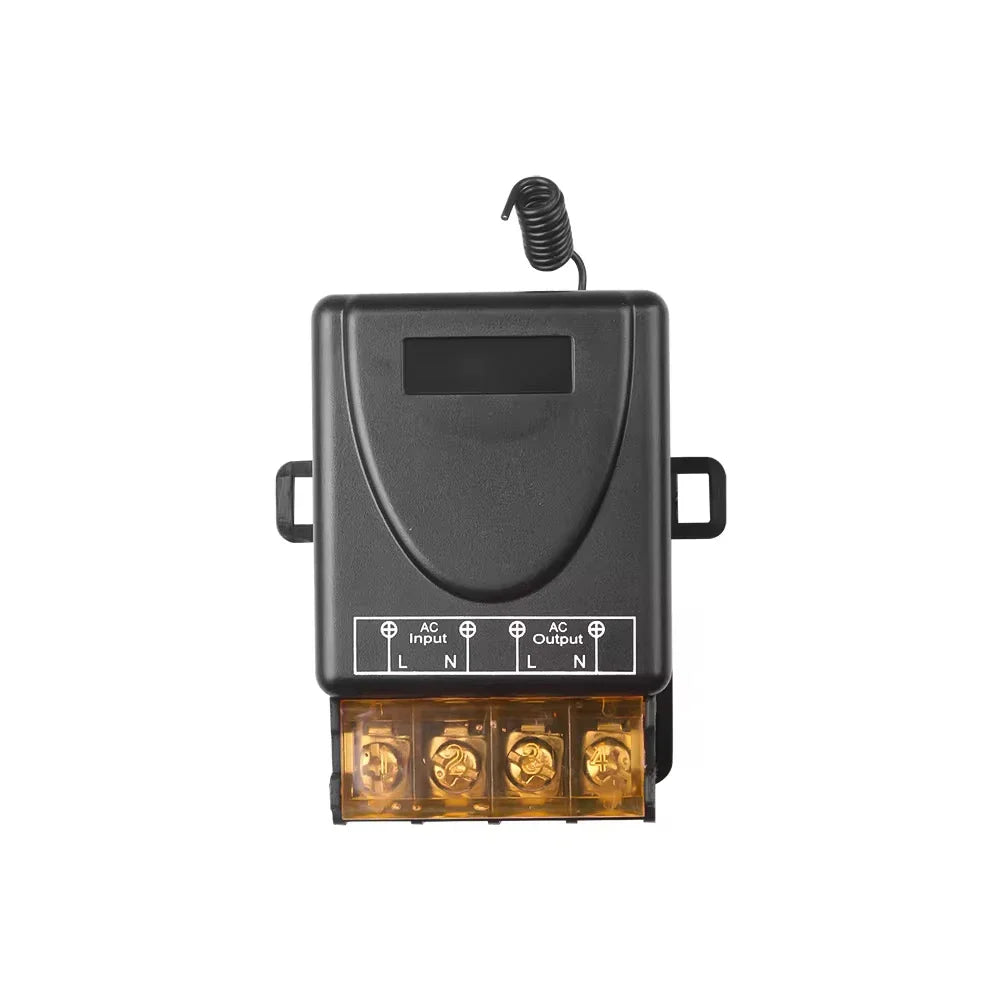

Receiver Board

⚠️ Important: Although the relay is labelled 30A 240VAC, the 30A rating is for peak load only. Your continuous rated load current must remain below 15A to ensure safe, reliable operation.

6 Learning Modes — Full Programming Flexibility

Press the Learning Button on the receiver the corresponding number of times to set your preferred mode. The LED will confirm each step:

1. Momentary — Press 1 time; relay activates only while button is held
2. Toggle — Press 2 times; each button press switches relay ON or OFF
3. Latched — Press 3 times; relay stays ON after press, OFF after next press
4. Delay 5s — Press 4 times; relay turns OFF automatically after 5 seconds
5. Delay 10s — Press 5 times; relay turns OFF automatically after 10 seconds
6. Delay 15s — Press 6 times; relay turns OFF automatically after 15 seconds

To clear all stored codes: Hold the Learning Button for 8 seconds until the LED flashes 3 times then goes off.

Common Applications

• 🌊 Water pumps & irrigation systems
• ⚙️ Electric motors & industrial machinery
• 💡 LED strip lights & lighting circuits
• 🔌 Home automation switching
• 🔋 12V–72V DC battery-powered systems

Related Products You May Like

• 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler
• 1-Inch Impact Rocker Sprinkler – Adjustable Rotating Irrigation

For guidance on safe electrical wiring practices, visit the U.S. Consumer Product Safety Commission – Electrical Safety.

Frequently Asked Questions

Q: What is the true maximum continuous current this 433MHz wireless relay switch can handle?

A: While the relay module is marked "30A 240VAC," the safe continuous rated current is 15A. The 30A figure refers to peak or inrush current only. Always ensure your load (pump, motor, LED system, etc.) draws less than 15A continuously to protect the relay and prevent overheating.

Q: Can I use this wireless remote switch with both AC and DC power systems?

A: Yes! The receiver board supports AC 75V–240V (covering most global mains voltages) as well as DC 9V–72V, making it compatible with battery systems, solar setups, automotive, and industrial DC applications. Simply connect the appropriate supply to the receiver's input terminals.

Q: How do I pair (learn) a new remote transmitter to the 433MHz receiver?

A: Press the Learning Button once to enter Momentary mode (or 2–6 times for other modes), wait for the LED to flash the corresponding number of times, then press your transmitter button. When the LED flashes 3 times, the transmitter is successfully paired. You can pair multiple transmitters to the same receiver using this method.

Q: What is the transmission range of this wireless remote control switch?

A: In open-field conditions, the 433MHz transmitter has a range of approximately 100 metres (about 330 feet). Range may be reduced indoors or near metal structures, walls, or other RF interference sources.
