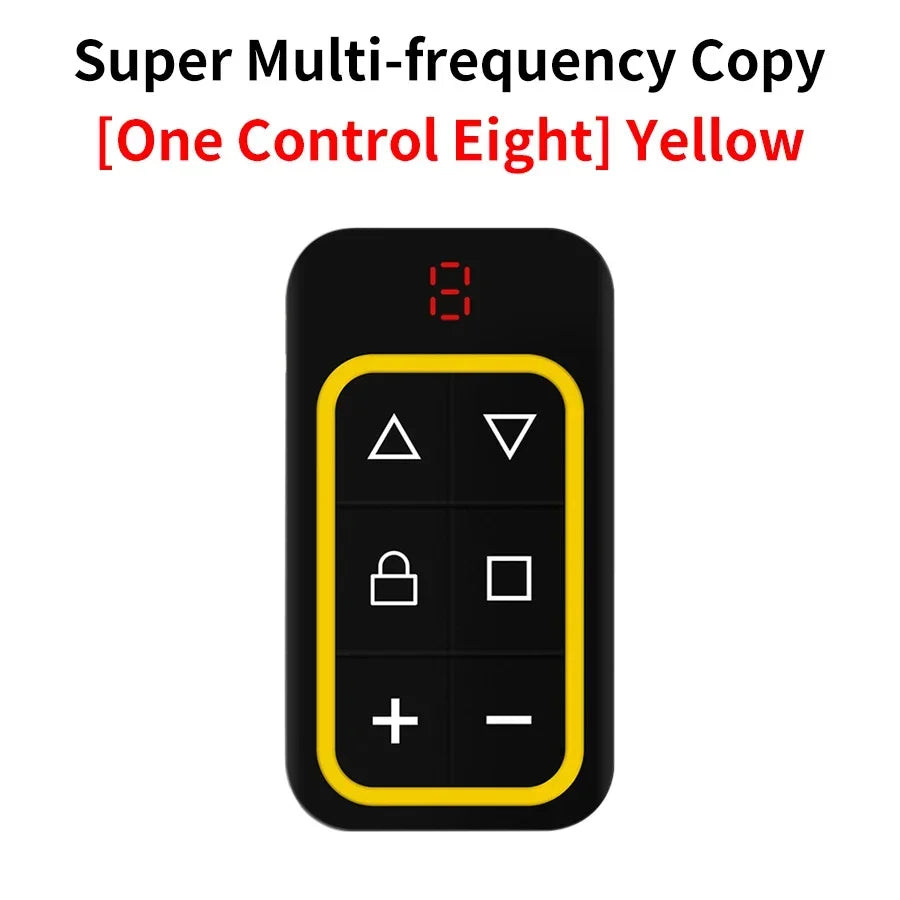

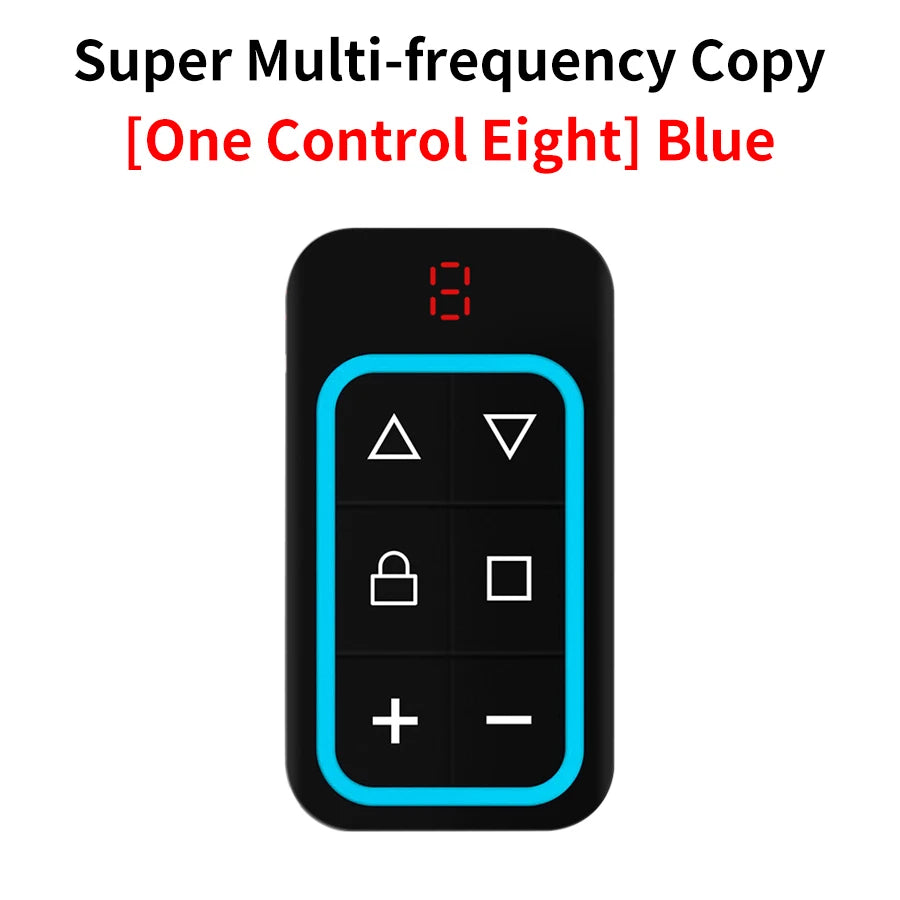

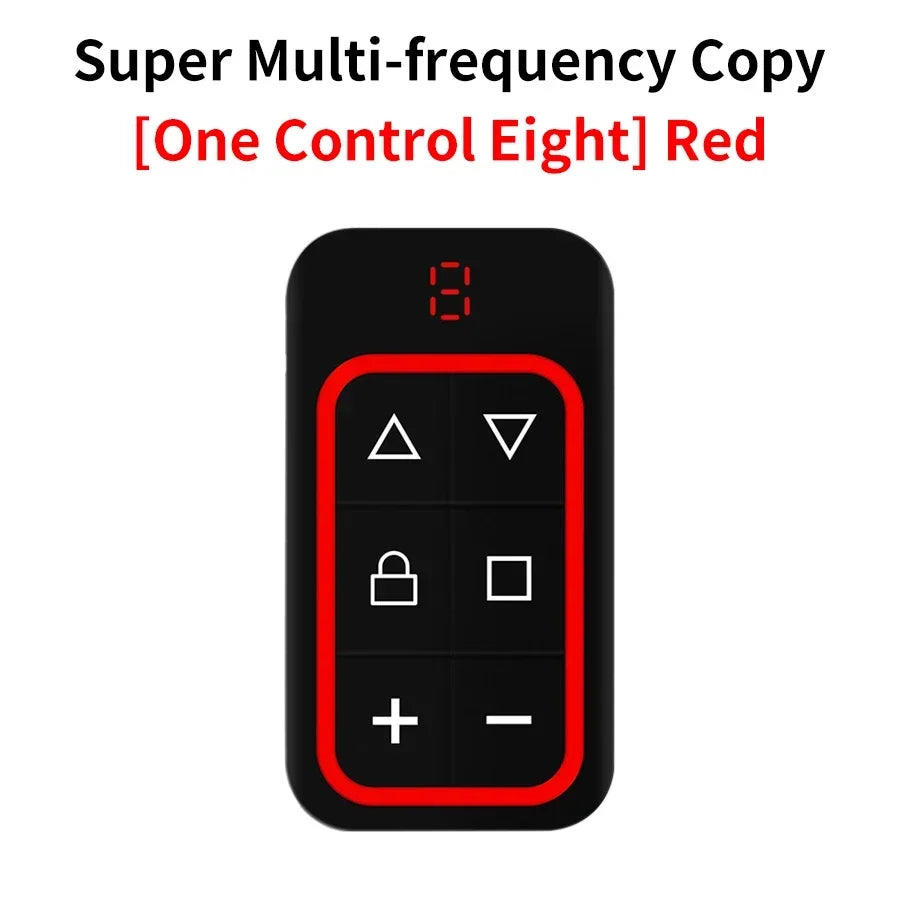

8-in-1 Universal Garage Door Remote Duplicator – 300–915MHz, Fixed/Rolling/Learning Code, USB-C Rechargeable

8-in-1 Universal Garage Door Remote Duplicator – 300–915MHz | Fixed, Rolling & Learning Code | USB-C Rechargeable

The most versatile garage door remote you’ll ever own. This 8-channel multi-frequency duplicator supports over 16 frequency bands across 300–915MHz and can copy fixed codes, learning codes, and select rolling codes — storing up to 8 different remotes in one device. USB-C rechargeable with a 30–50m range and built-in data recovery so your codes are never lost.

⚠️ Important Notes:

• Cannot copy car key remotes.
• Supports fixed code (e.g. 2262), learning code (e.g. 1527), select rolling code (e.g. HC301), and some non-standard encrypted remotes.
• Not compatible with all rolling code systems — verify your remote type before purchasing.

Key Features

• 📶 8 Channels – Store 8 Remotes in One: Copy and store up to 8 different remote controls across 8 independent channels. Switch between them instantly using the + / − buttons.
• 💻 16+ Frequency Support – 300–915MHz: Covers the widest range of garage door, gate, barrier, and switch frequencies — compatible with the vast majority of RF remote systems worldwide.
• 🔄 Fixed, Rolling & Learning Code Support: Copies common fixed codes (2262), learning codes (1527), select rolling codes (HC301), and some non-standard encrypted remotes.
• 💾 Data Recovery – Never Lose Your Codes: High-quality chip with permanent storage — accidentally cleared codes can be recovered, and data is retained even when the battery is replaced or runs out.
• 🔒 Channel Lock Function: Lock individual channels to prevent accidental switching or overwriting of stored codes.
• 🔋 USB-C Rechargeable: Built-in 3.7V rechargeable battery charges via USB-C (5V). No disposable batteries — always ready when you need it.
• 📍 30–50m Operating Range: Reliable RF signal transmission up to 50 meters — works from your car, driveway, or entry point.

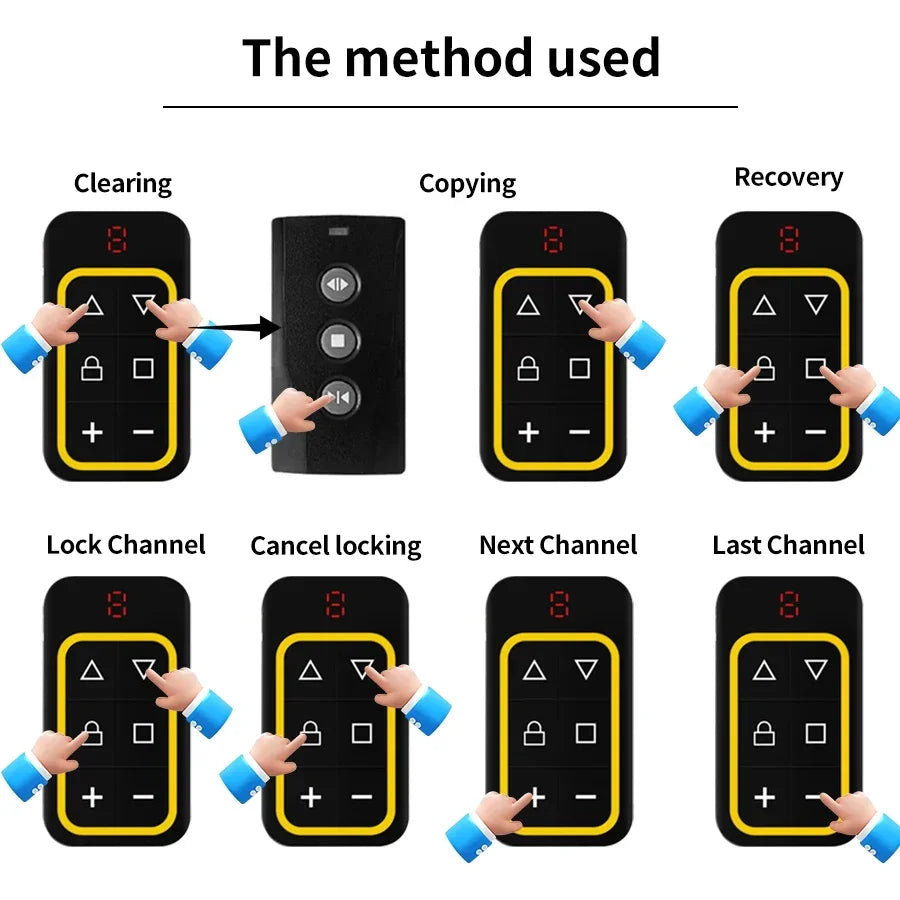

How to Use

1. Clear a Channel: Select channel with + / − buttons. Press both upper-row buttons simultaneously for 2 seconds until LED flashes rapidly. Release.

2. Copy a Remote: Select channel with + / −. Hold original remote and this remote face-to-face. Press the corresponding button on each simultaneously for 3 seconds. LED channel number lights solid = copy successful. Repeat for each button. Change channel to copy a different remote.

3. Recover Codes: Press both middle-row buttons simultaneously for 2 seconds until LED flashes. Release — last saved codes are restored.

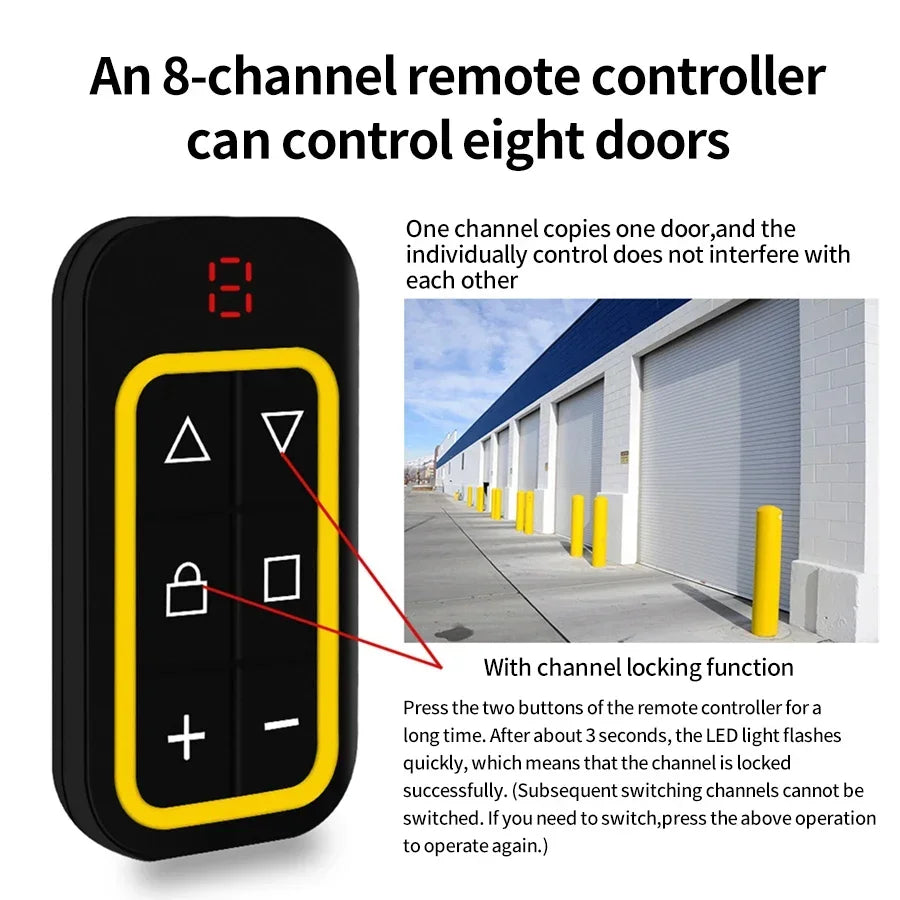

4. Lock a Channel: Select channel. Press the 2nd upper-row button and 1st middle-row button simultaneously. LED blinks rapidly = locked. Repeat to unlock.

Specifications

• Channels: 8
• Frequency Range: 300–915MHz (16+ frequencies)
• Code Types: Fixed code, learning code, select rolling code
• Transmit Power: 13dBm
• Operating Voltage: 3.7V
• Operating Current: 30mA
• Charging: USB-C (5V)
• Range: 30–50 meters
• Certifications: CE, RoHS
• High-Concern Chemicals: None
• Model: TX130_8
