40-Pin LVDS Cable 6-Bit 2-Channel LCD LED Display | 25cm

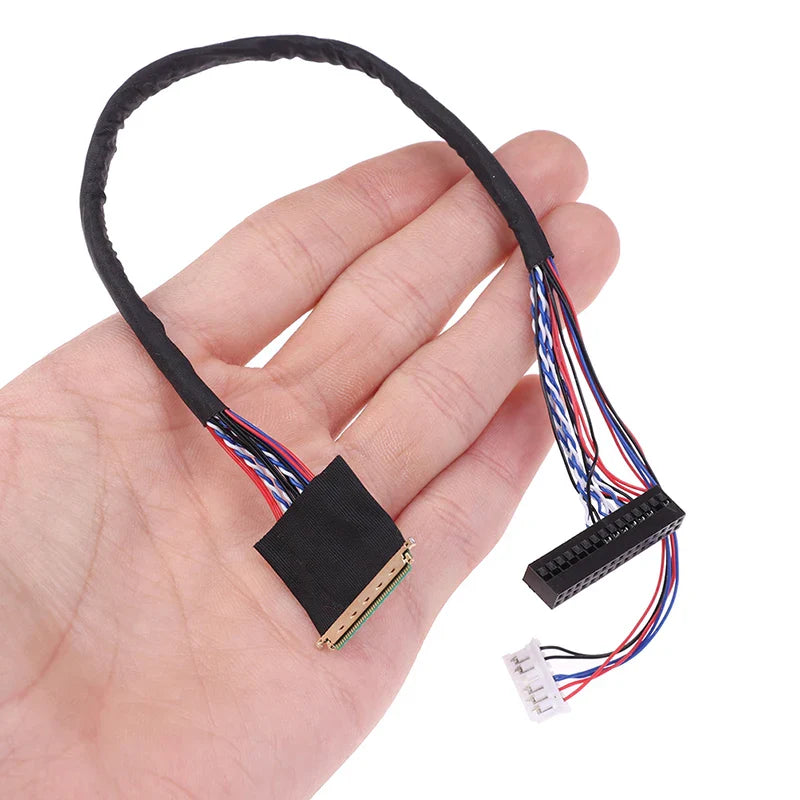

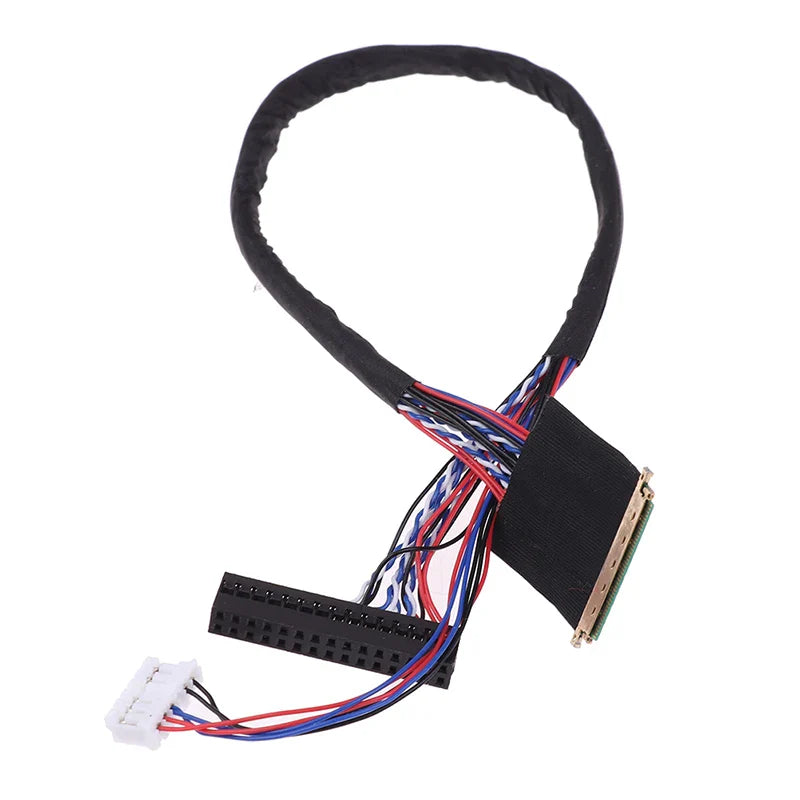

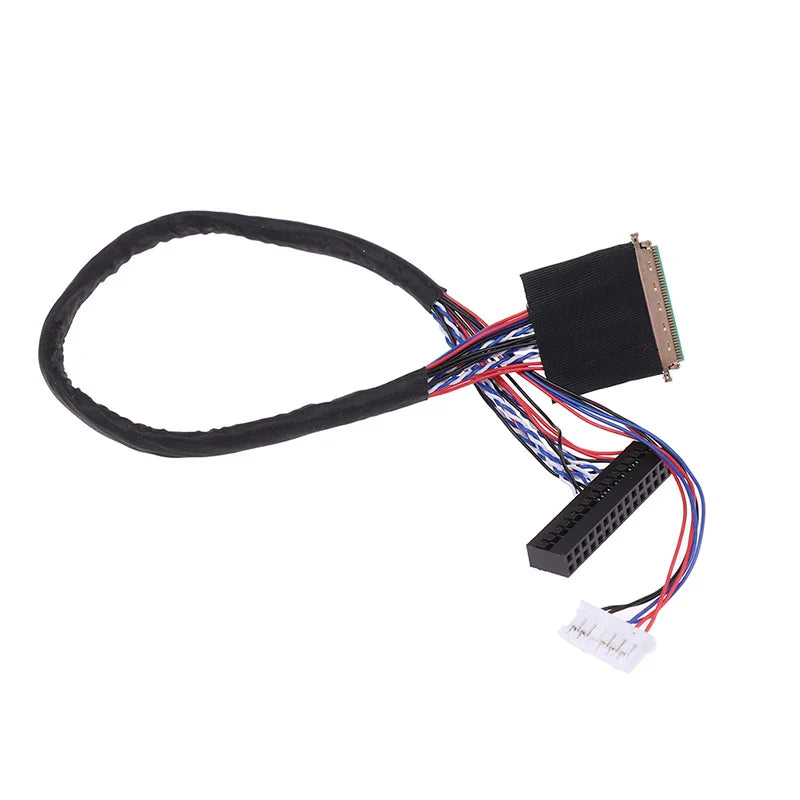

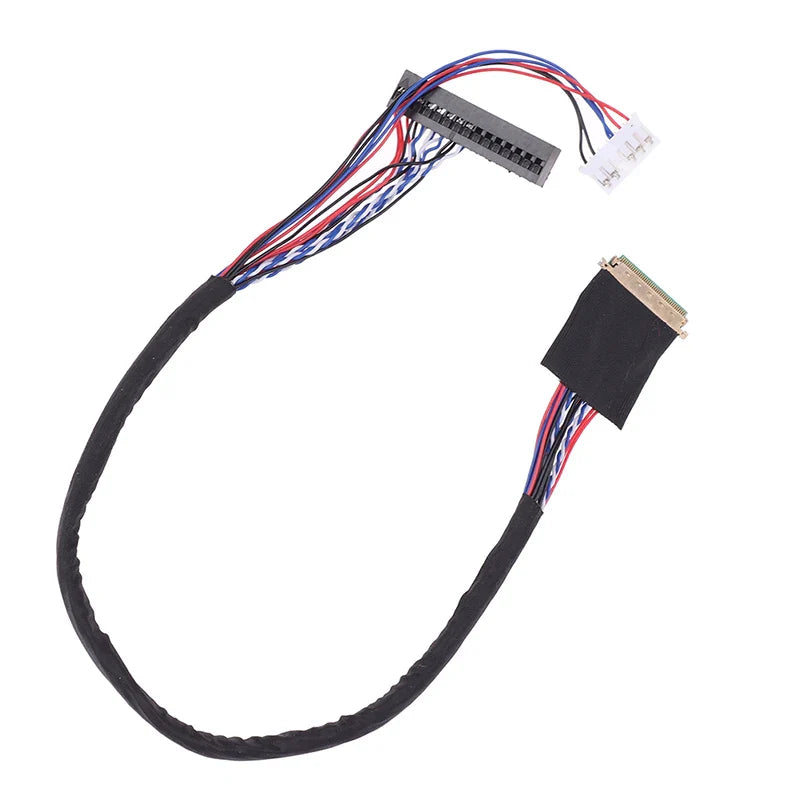

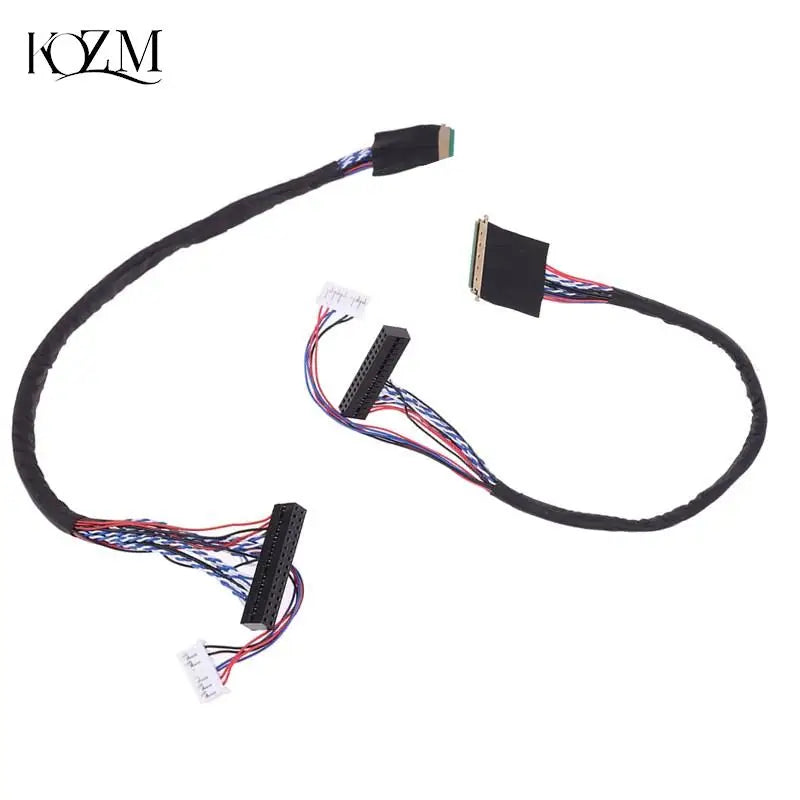

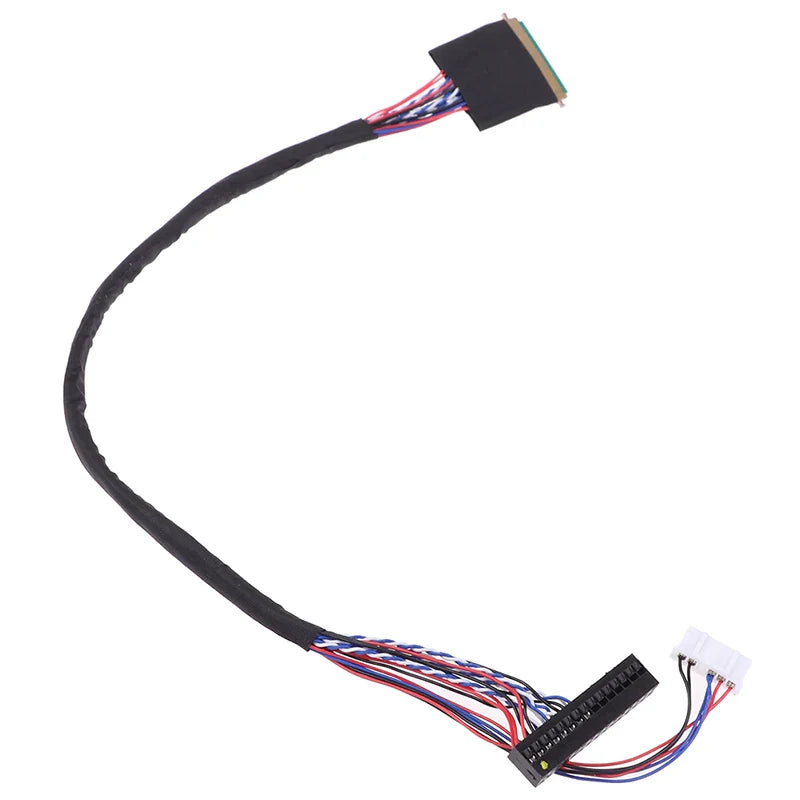

40-Pin LVDS LCD/LED Screen Cable – 6-Bit, 2-Channel, 25cm

Keep your LCD and LED displays running smoothly with this reliable 40-Pin LVDS Screen Cable. Designed for technicians, DIY builders, and electronics repair shops, this compact 25cm cable connects directly to 40-pin, 6-bit LCD panels without the need for a separate high-voltage backlight board — the LED backlight power interface is integrated into the cable itself, saving you time and simplifying your build or repair.

Key Features

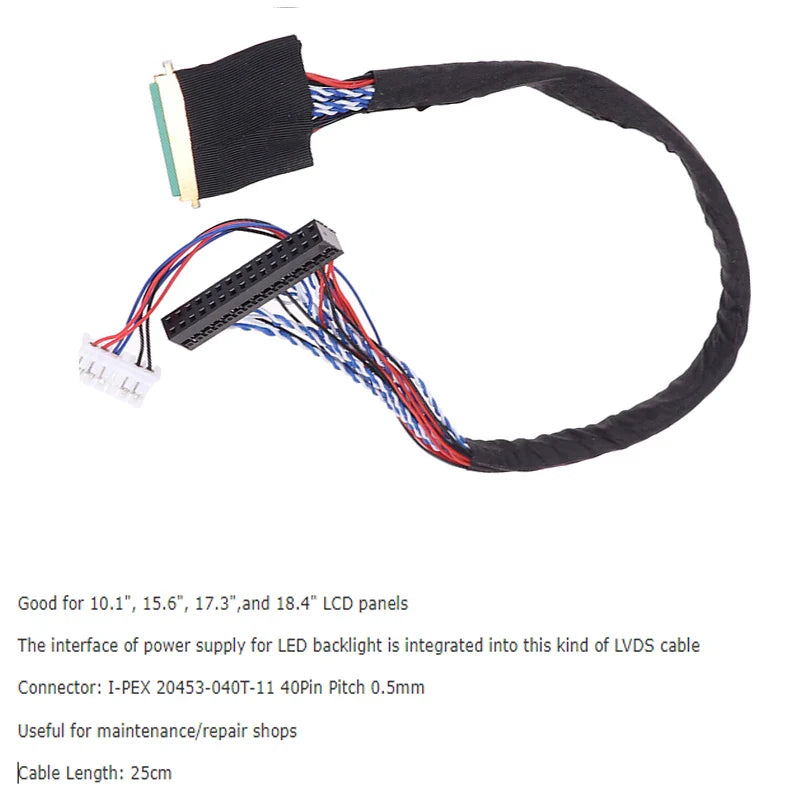

• Connector: I-PEX 20453-040T-11, 40-Pin, 0.5mm pitch
• Configuration: 2-Channel, 6-Bit interface

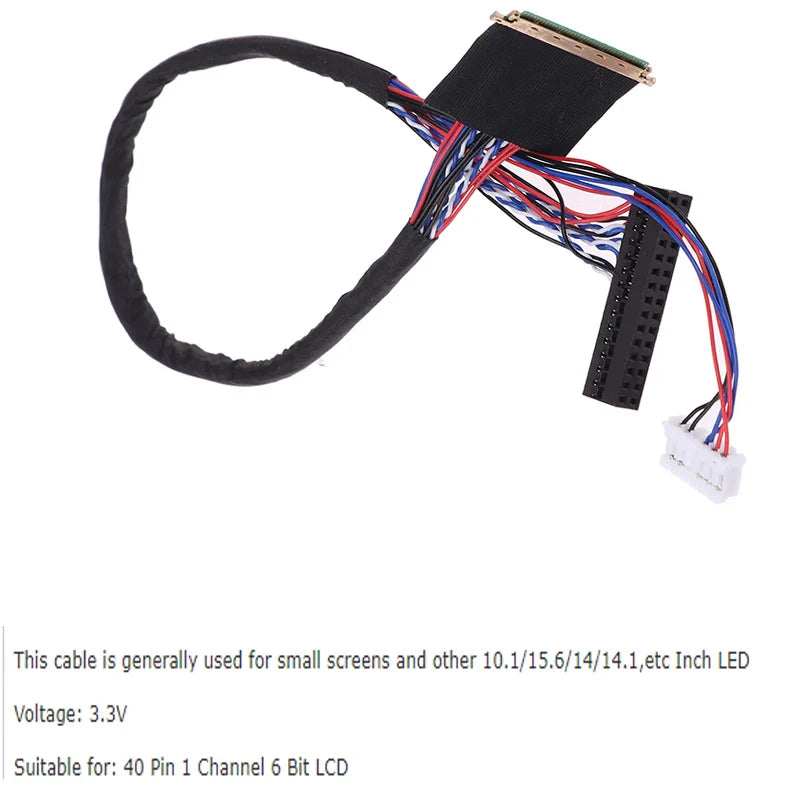

• Operating Voltage: 3.3V
• Cable Length: 25cm (approx. 9.8")
• Compatible Sizes: 10.1", 14", 14.1", 15.6", 17.3", 18.4" LCD/LED panels
• Integrated LED Backlight Power Supply Interface — no additional inverter board required
• CE Certified for safety and performance compliance
• Ideal for screen repairs, DIY display projects, and maintenance shops

Specifications

What's in the Box?

• 1 × 40-Pin 2-Channel 6-Bit LVDS LED Screen Cable (25cm)

Important Notes

Please allow ±1–3mm tolerance due to manual measurement. Monitor color calibration may cause slight variation in how the cable appears in photos versus in person.

Related Products You May Like

• 0.38" 1280x720P Micro Display DIY Kit with HDMI Driver Board
• 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino
• 1-Channel HDMI & AV to RF Modulator – PAL/NTSC CATV Hotel

For more information on electronic cable standards and safety, visit the NIST Electronics Resource Center.

Frequently Asked Questions

Q: What LCD screen sizes is this 40-pin LVDS cable compatible with?

A: This 40-pin LVDS cable is compatible with LED LCD panels in common sizes including 10.1", 14", 14.1", 15.6", 17.3", and 18.4" that use a 40-pin, 2-channel, 6-bit LVDS interface with an I-PEX 20453-040T-11 connector.

Q: Do I need a separate backlight inverter board with this LVDS cable?

A: No — this LVDS cable has the LED backlight power supply interface built in, so you do not need to purchase a separate inverter or high-voltage backlight board. This makes it especially convenient for compact DIY display builds and screen replacements.

Q: What is the voltage requirement for this LVDS display cable?

A: This cable operates at 3.3V, which is standard for most modern LED LCD panels using a 40-pin LVDS interface. Always verify your panel's voltage requirements before installation.

Q: Is this cable suitable for professional repair shops?

A: Yes! This 40-pin LVDS cable is widely used by professional electronics maintenance and display repair technicians. Its universal 2-channel, 6-bit design and integrated backlight connector make it a practical addition to any repair shop's toolkit.
