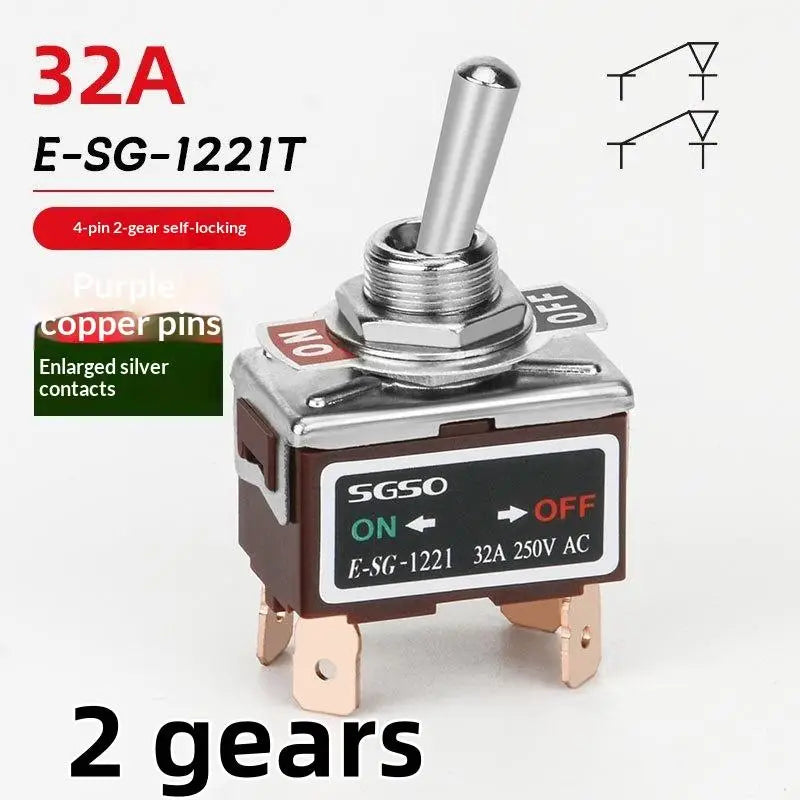

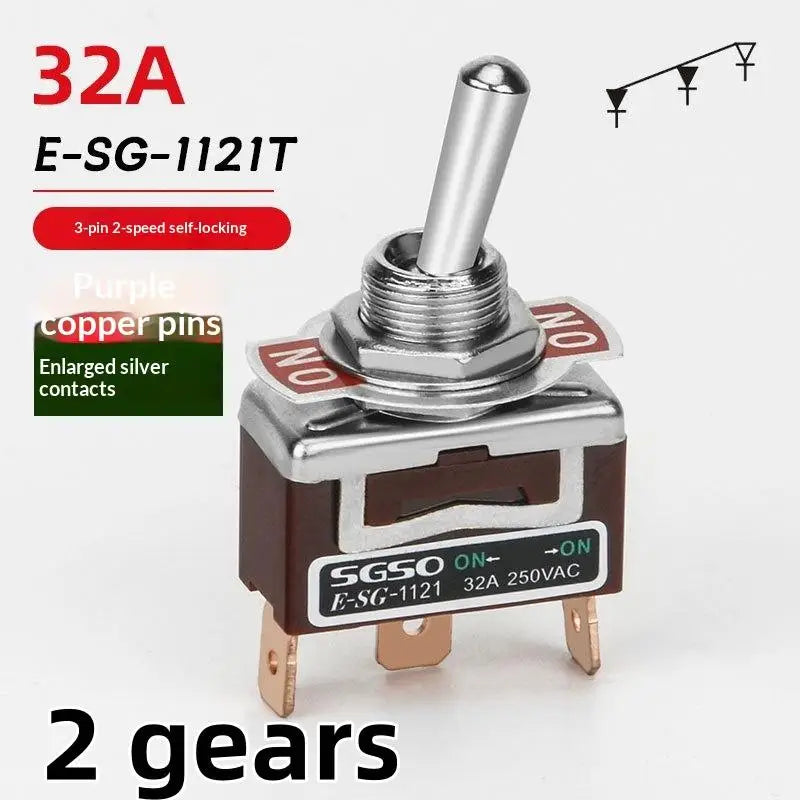

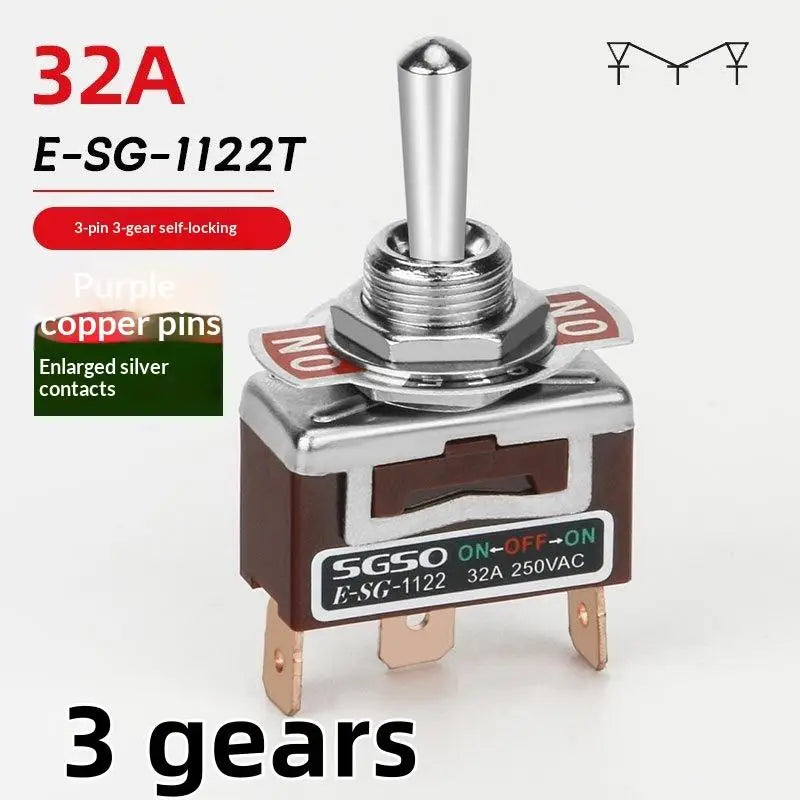

32A 250VAC Rocker Toggle Switch 2/3/4/6 Pin | Brass Screw

Heavy-Duty Rocker Toggle Switch — Reliable Power Control for Your Projects

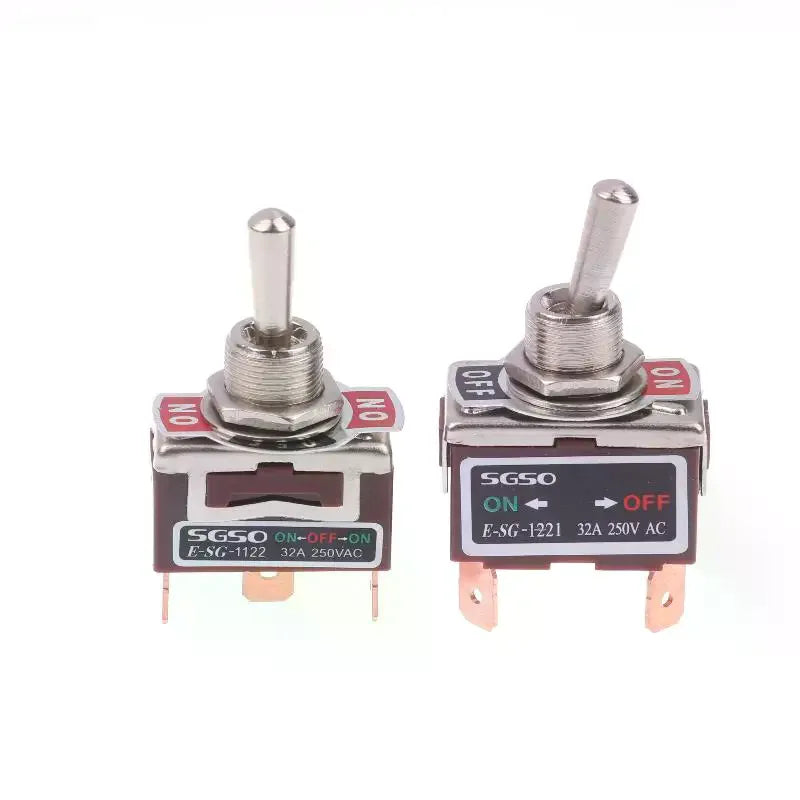

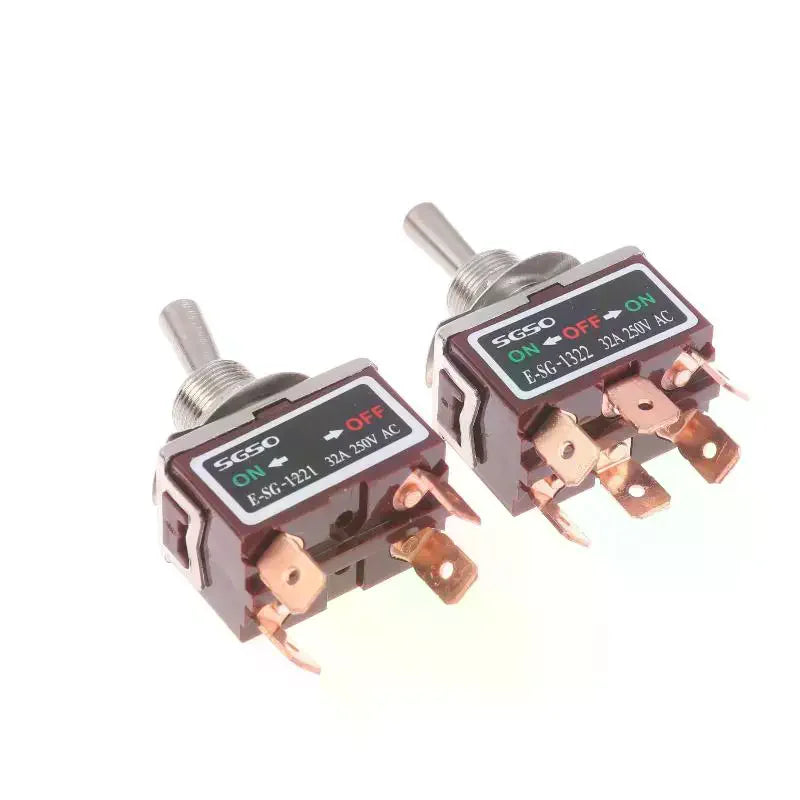

The HELTC E-SG Rocker Toggle Switch is a versatile, high-current power switch designed for a wide range of electrical and DIY applications. Available in 2, 3, 4, and 6-pin configurations, this switch features brass screw foot pins for secure, corrosion-resistant connections and a rugged plastic-and-metal construction built to last.

Key Features

• High Current Rating: Handles up to 32A at 250VAC — suitable for demanding electrical circuits and industrial-grade projects.

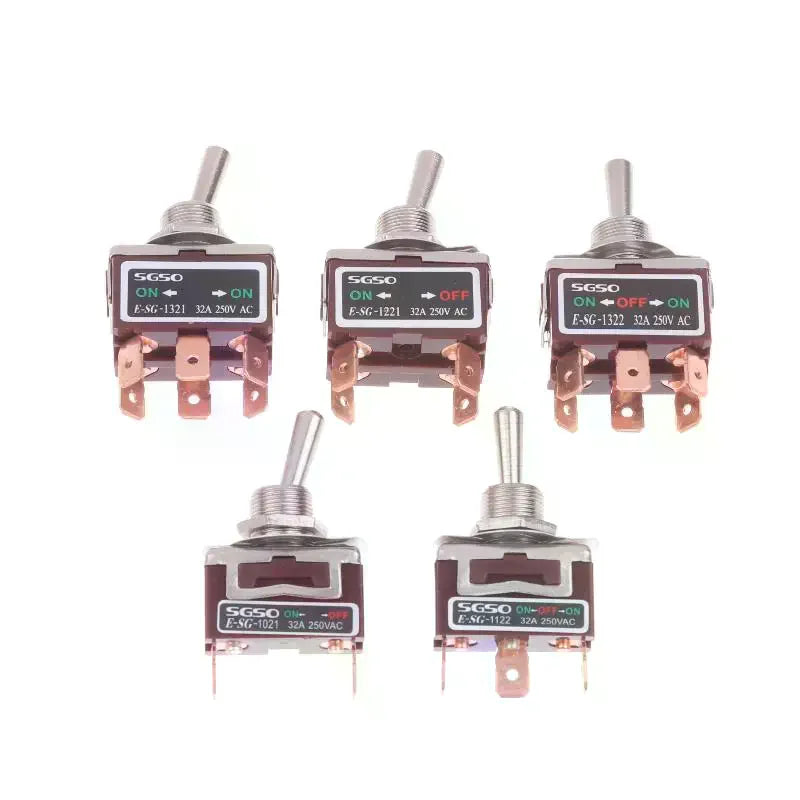

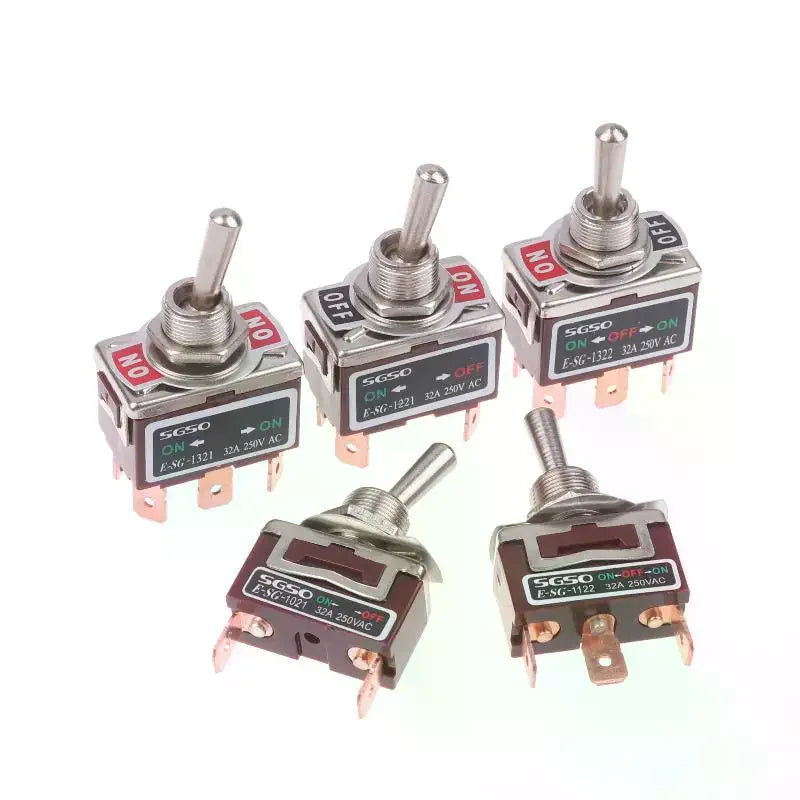

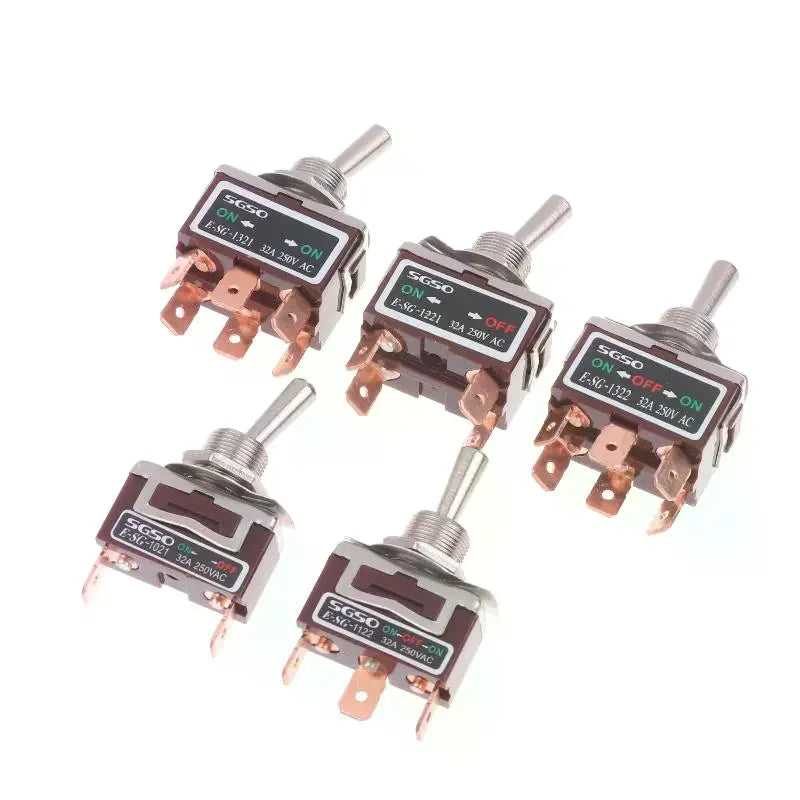

• Multiple Pin Configurations: Available in 2/3/4/6-pin variants to match your specific wiring needs.
• Brass Screw Foot Pins: Corrosion-resistant brass terminals ensure a firm, long-lasting electrical connection.
• Standard 12mm Mounting Hole: Fits standard panel cutouts for easy installation in enclosures, control panels, and DIY builds.
• Compact & Durable Build: Plastic + metal housing measuring approximately 29 × 14 × 54mm keeps things compact without sacrificing durability.
• No Hazardous Chemicals: Contains no high-concern chemicals — safe for workshop and hobbyist use.

Specifications

Ideal Applications

• DIY electronics and maker projects
• Control panels and electrical enclosures
• Home automation and smart switch builds
• Power tool and appliance modifications
• Industrial and workshop equipment

Made in Mainland China.

Looking for more tools and electronics for your builds? Check out our related products:

• "1% Better Every Day" Motivational Canvas Wall Art Print

For safety guidance on electrical components and wiring, refer to the U.S. Consumer Product Safety Commission (CPSC) and OSHA Electrical Safety Resources.

Note: Slight color variation may occur due to monitor settings and lighting conditions. Please allow minor measurement tolerances (±1–2mm) for listed dimensions.

Frequently Asked Questions

Q: What panel hole size is required to install this rocker toggle switch?

A: This rocker toggle switch requires a standard 12mm mounting hole, making it compatible with most common control panel enclosures and DIY project boxes.

Q: What is the maximum current and voltage this switch can handle?

A: The HELTC E-SG toggle switch is rated for up to 32 amps at 250VAC, making it suitable for high-current electrical circuits in both residential and light industrial settings.

Q: What is the difference between the 2, 3, 4, and 6-pin versions?

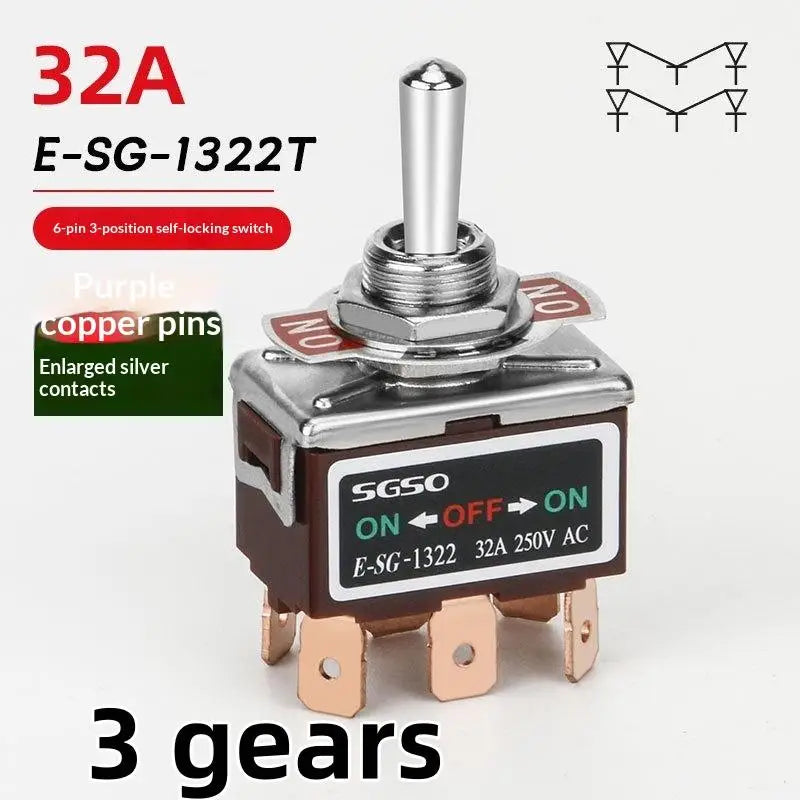

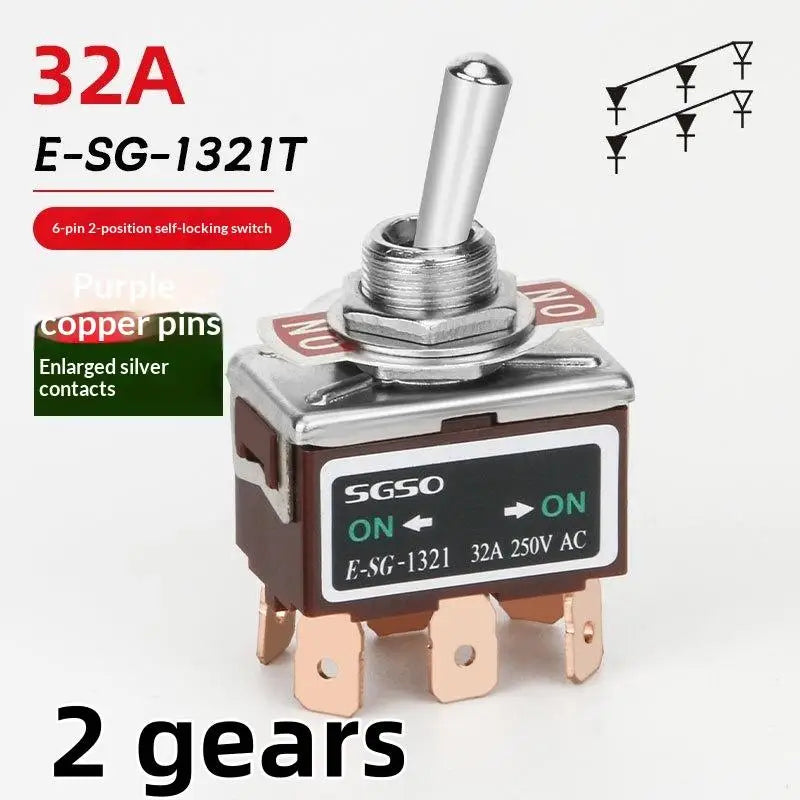

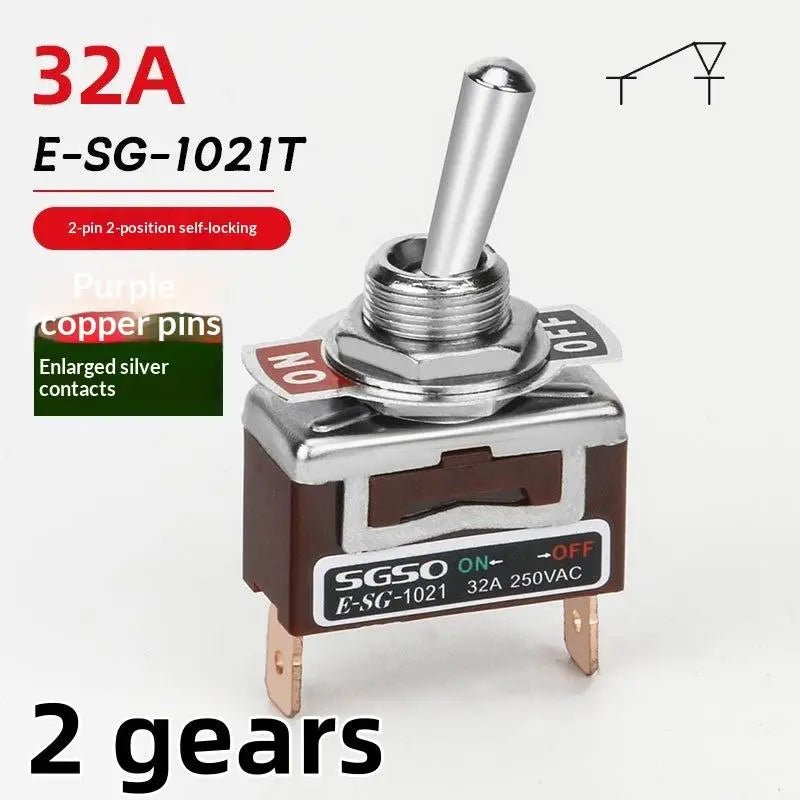

A: The pin count determines the switching configuration. 2-pin versions are typically used for simple on/off circuits, while 3, 4, and 6-pin versions support more complex wiring configurations such as SPDT or DPDT setups. Choose the variant that matches your circuit design.

Q: Are the brass screw terminals easy to connect wires to?

A: Yes — the brass screw foot pins allow for secure, tool-tightened wire connections that resist loosening over time and provide excellent conductivity, even in high-current applications.
