304 SS Sanitary 45° Butt Weld Elbow | Food Grade 16–80mm OD

Q: What sizes are available for this 45-degree sanitary weld elbow?

This fitting is available in a wide range of outer diameter (OD) sizes from 16 mm to 80 mm, making it suitable for a variety of sanitary pipeline configurations in food, beverage, dairy, and pharmaceutical applications.

Q: Is 304 stainless steel safe for food and pharmaceutical use?

Yes. 304 stainless steel is a widely recognized food-grade and pharma-grade material. Its corrosion resistance and non-reactive surface make it ideal for sanitary piping systems where hygiene and material integrity are critical. The mirror-polished finish further supports easy cleaning and compliance with hygiene standards.

Q: What type of connection does this elbow use?

This elbow uses a butt weld connection, which provides a permanent, leak-proof joint. It is well-suited for high-integrity fluid transfer systems where a secure, flush weld is required to maintain sanitary conditions and withstand pressures up to 850 kPa.

Q: Can this fitting be used outdoors or in humid environments?

Yes. The 304 stainless steel construction provides excellent resistance to corrosion and oxidation, making it suitable for use in humid, wet, or moderately corrosive environments typically found in food processing and industrial settings.

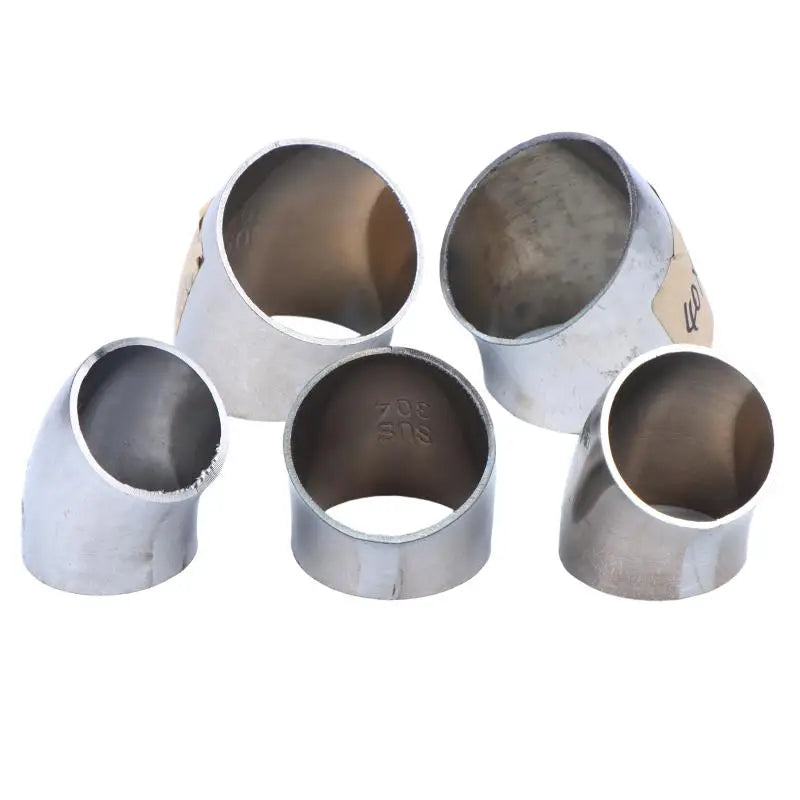

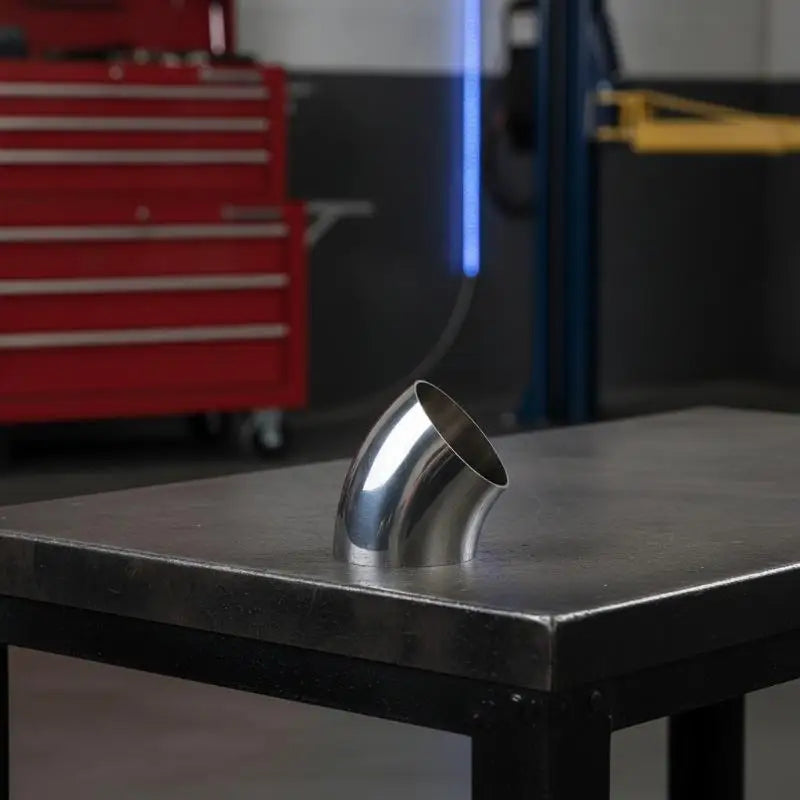

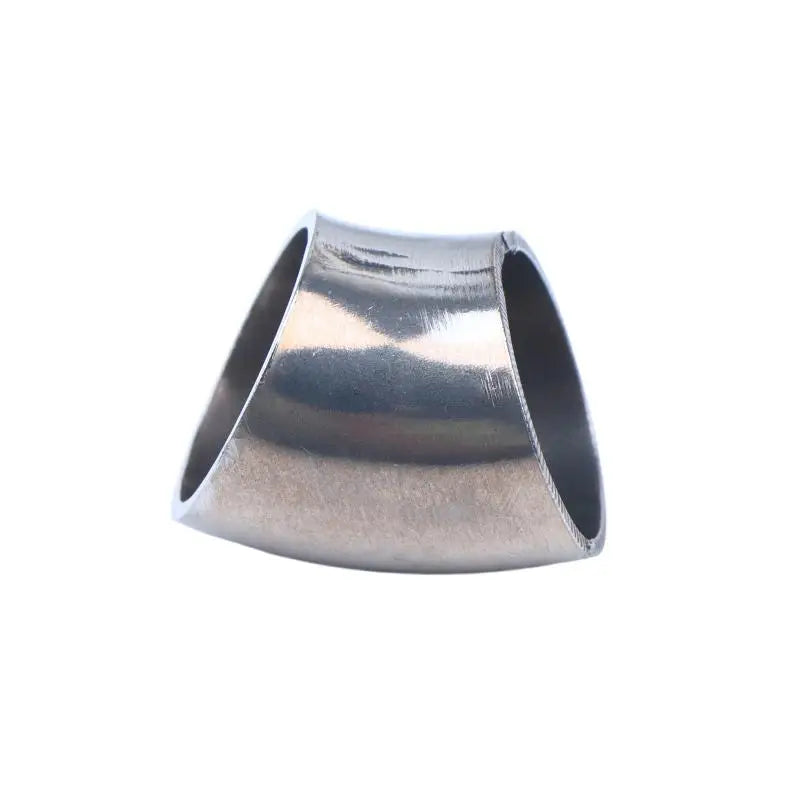

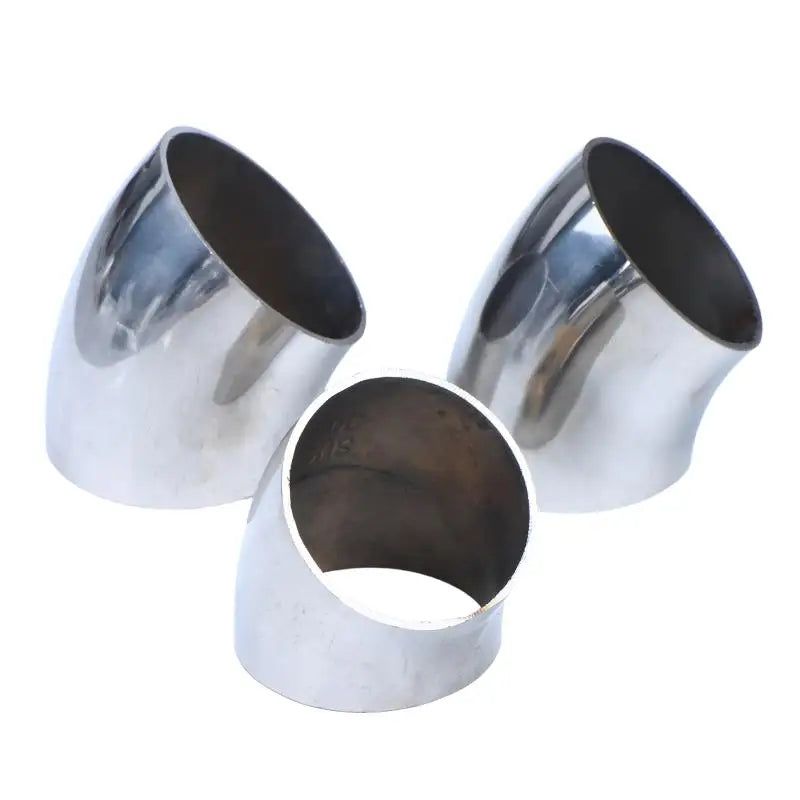

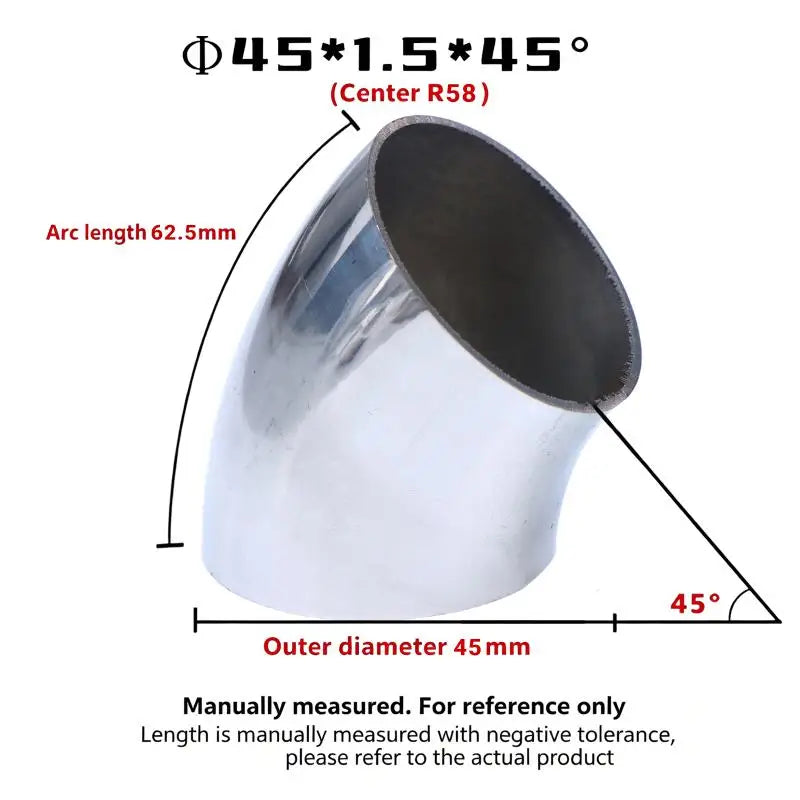

304 Stainless Steel Sanitary 45° Butt Weld Elbow — Food & Pharma Grade

Upgrade your piping system with this precision-polished 45-degree sanitary butt weld elbow, crafted from 304 stainless steel and designed to meet the strict hygiene standards of food processing, beverage production, dairy, and pharmaceutical industries. With a wide size range from 16 mm to 80 mm OD, this fitting adapts to virtually any sanitary pipeline configuration.

Key Features

Food & Pharma Grade Quality: Sanitary/hygiene-grade construction approved for use in food, beverage, and pharmaceutical piping systems.
304 Stainless Steel: Superior corrosion resistance and long-lasting durability, even in demanding, moisture-rich environments.
Mirror-Finish Polish: Smooth interior and exterior surface minimizes bacterial buildup and makes cleaning fast and thorough.
45° Elbow Angle: Facilitates smooth, efficient fluid flow with minimal turbulence — ideal for space-saving pipe routing.
Butt Weld Connection: Creates a secure, leak-proof, permanent joint rated for pressures under 850 kPa — perfect for high-integrity pipeline assemblies.
Wide Size Range: Available in multiple OD sizes from 16 mm to 80 mm to fit diverse pipe diameters and system requirements.

Specifications

Material	304 Stainless Steel
Elbow Angle	45 Degrees
Connection Type	Butt Weld

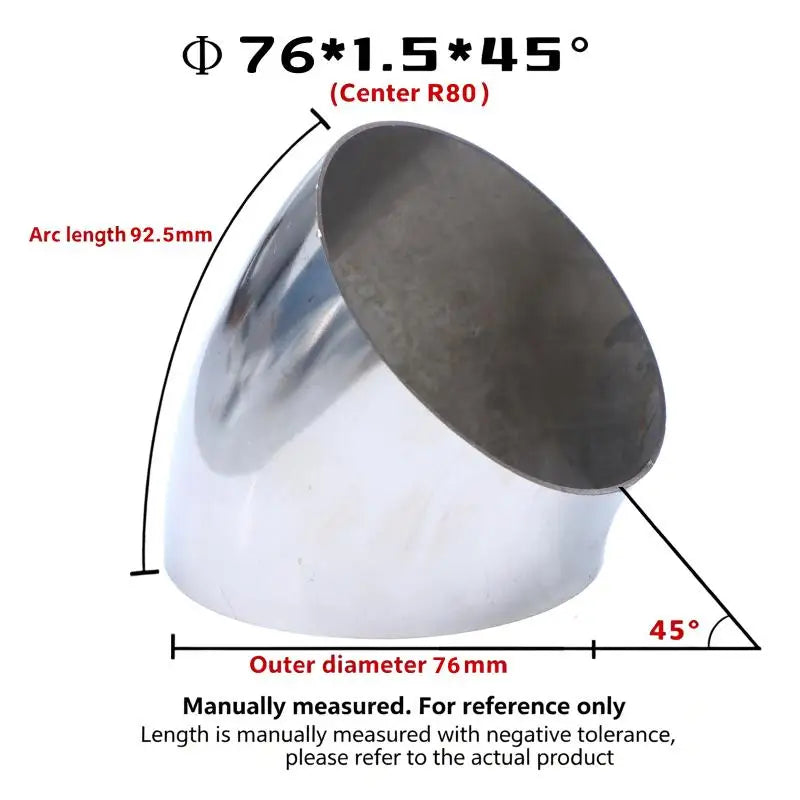

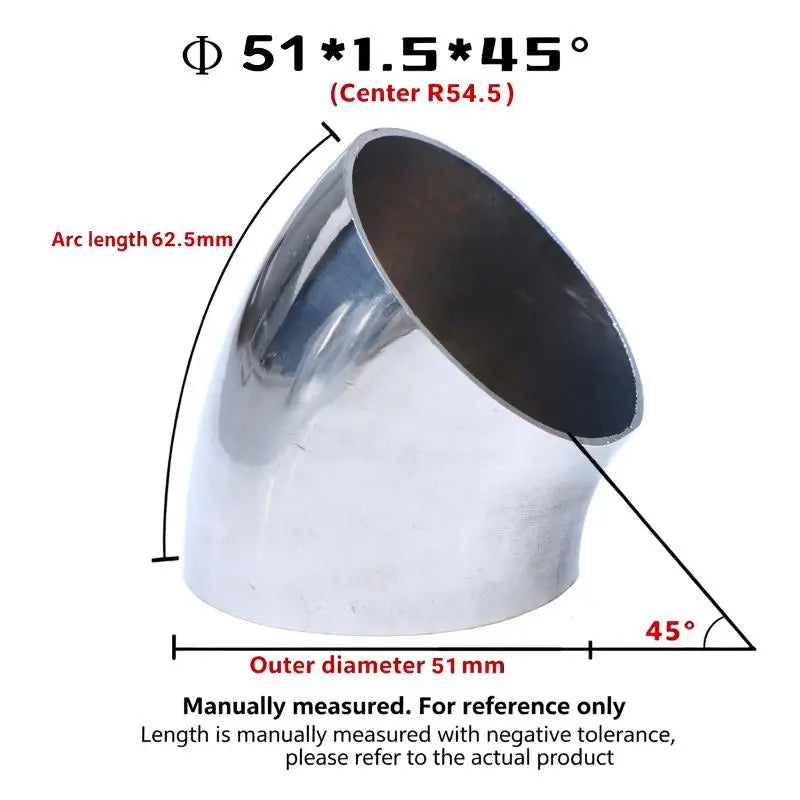

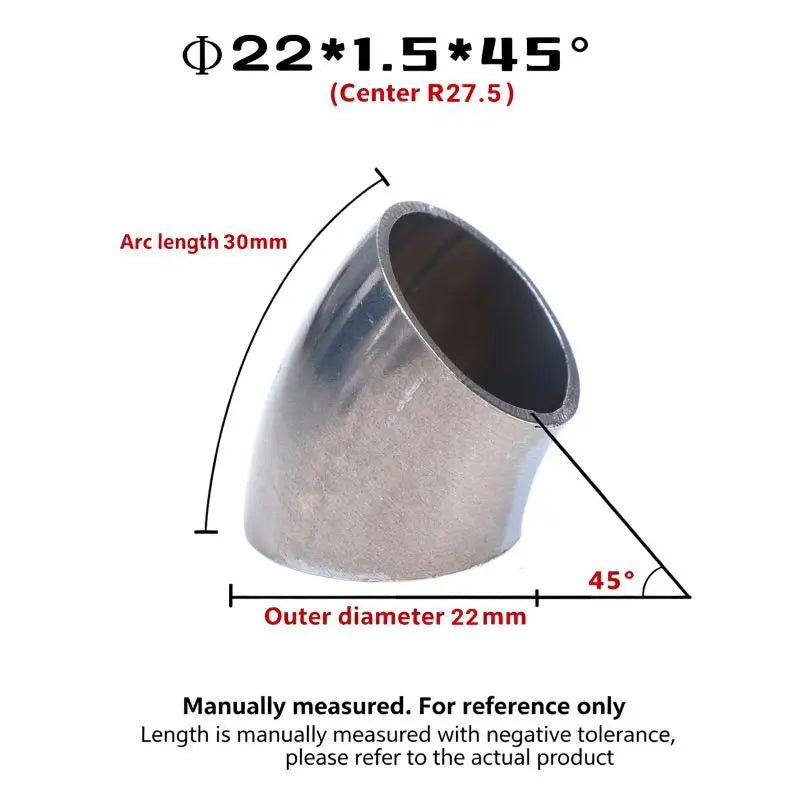

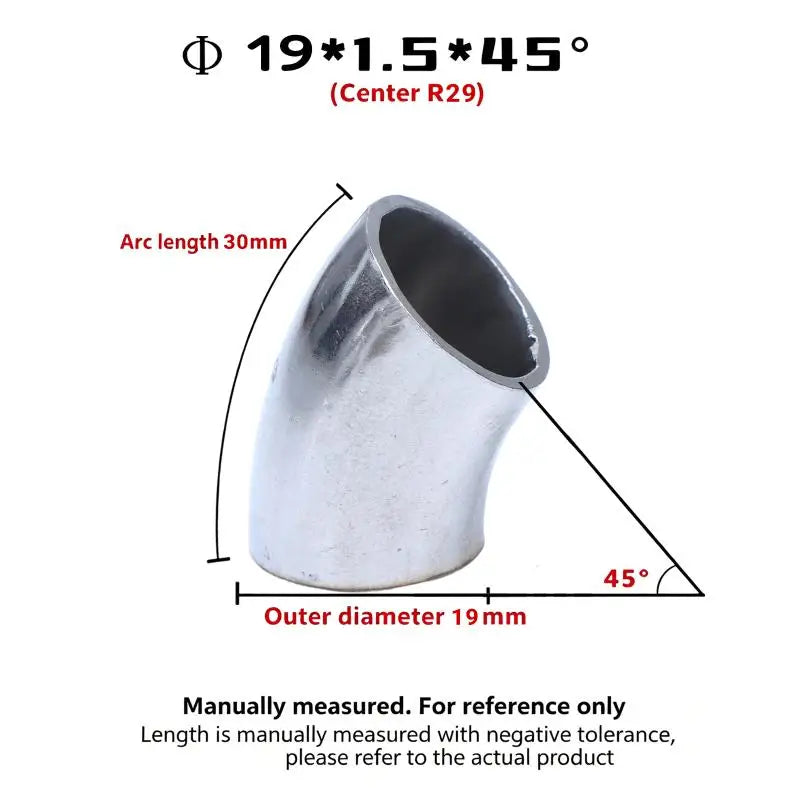

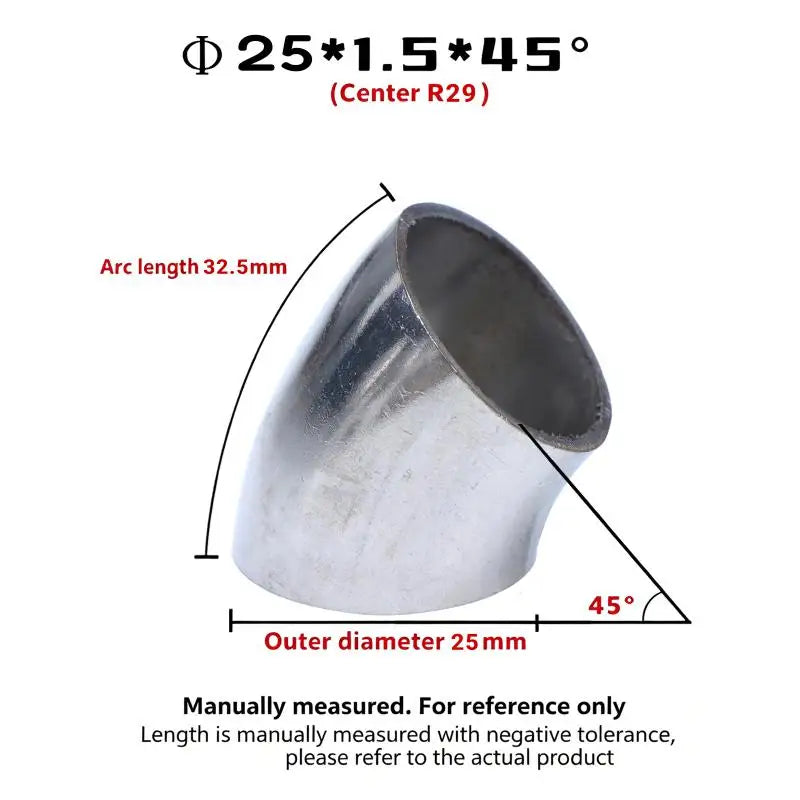

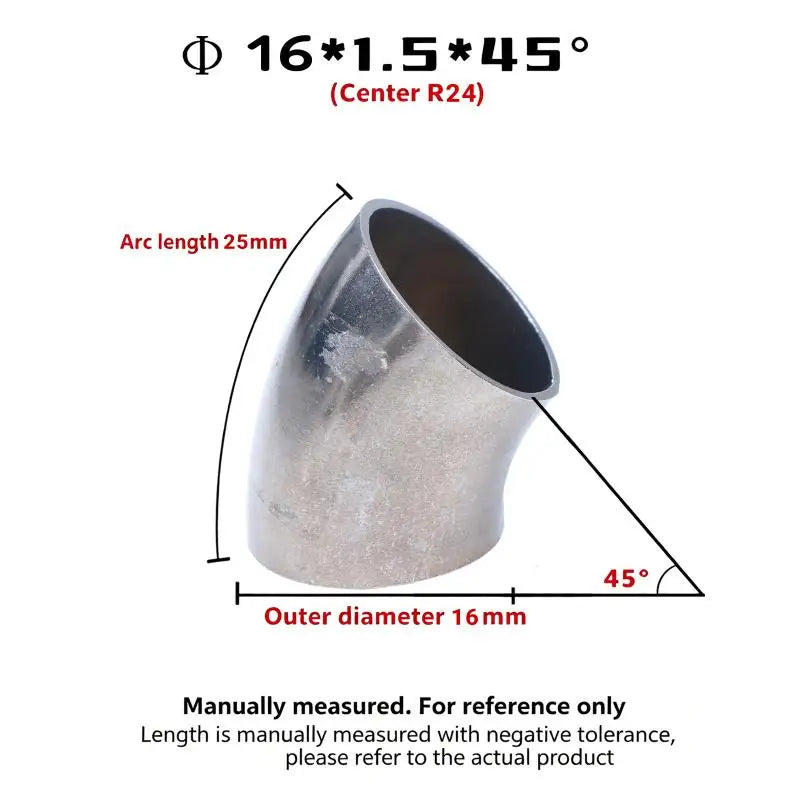

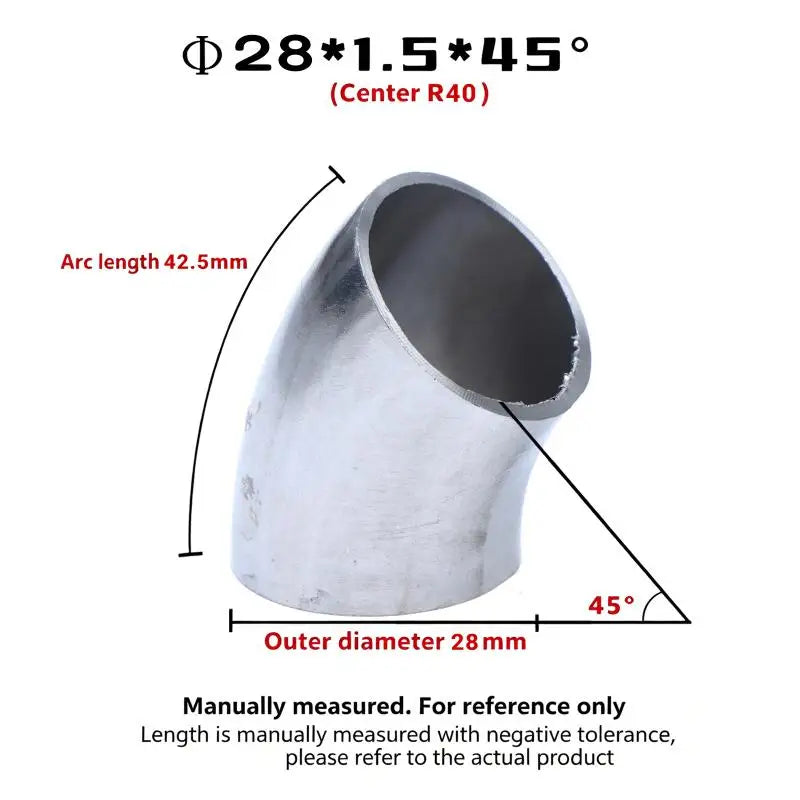

Size Range	16 mm – 80 mm OD
Surface Finish	Mirror / Finishing Polish
Pressure Rating	< 850 kPa
Grade	Sanitary / Hygiene Grade
Country of Origin	Made in Mainland China

Applications

Food & beverage processing lines
Dairy and brewing equipment
Pharmaceutical manufacturing pipelines
Chemical processing (non-hazardous fluids)
Water treatment and sanitary fluid transfer systems

Package Includes

1 × 45° Sanitary Butt Weld Elbow (304 Stainless Steel)

Important Notes

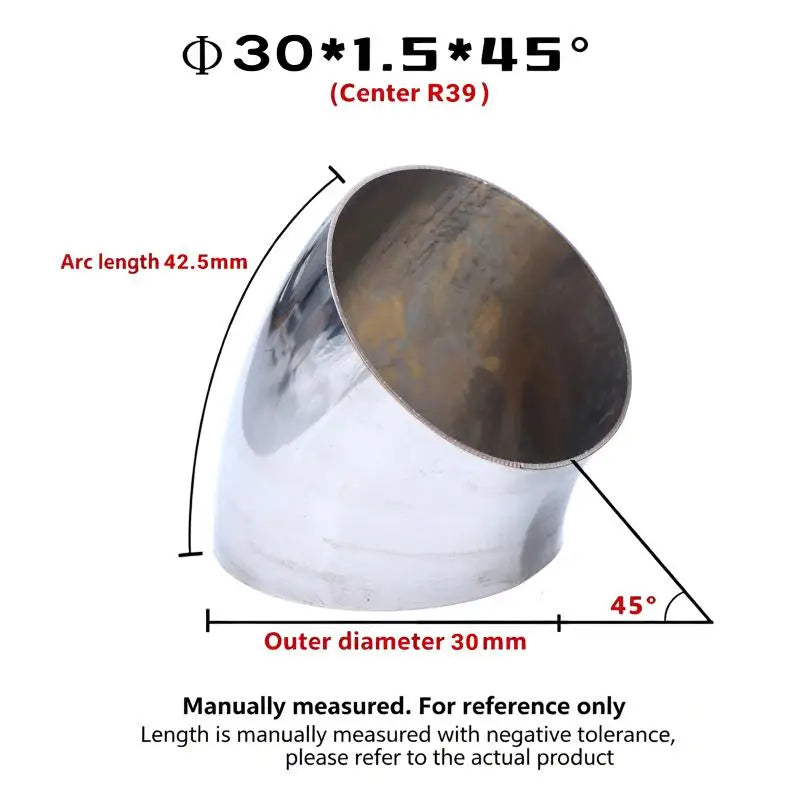

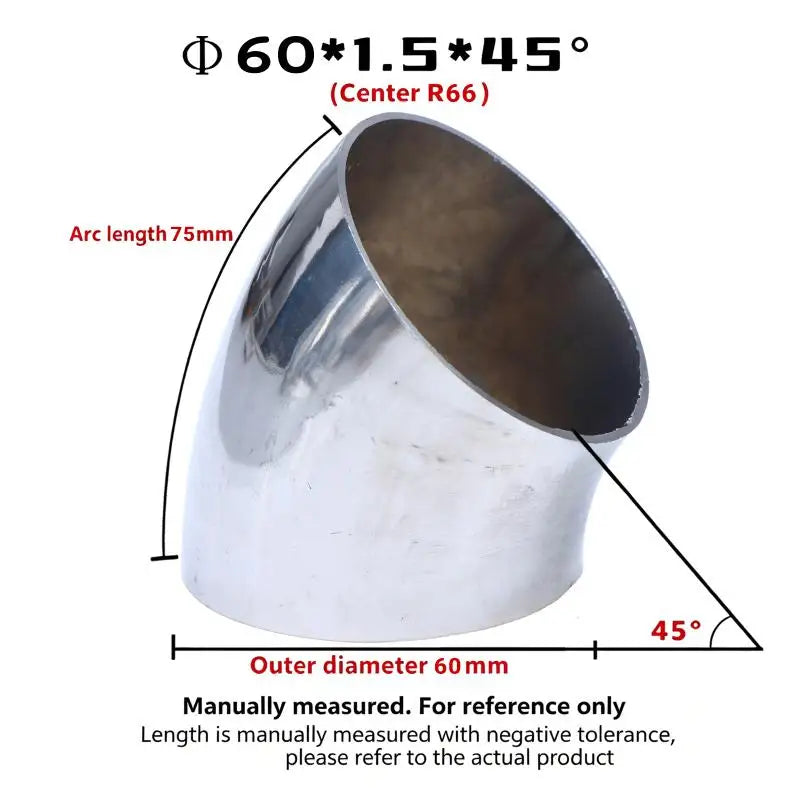

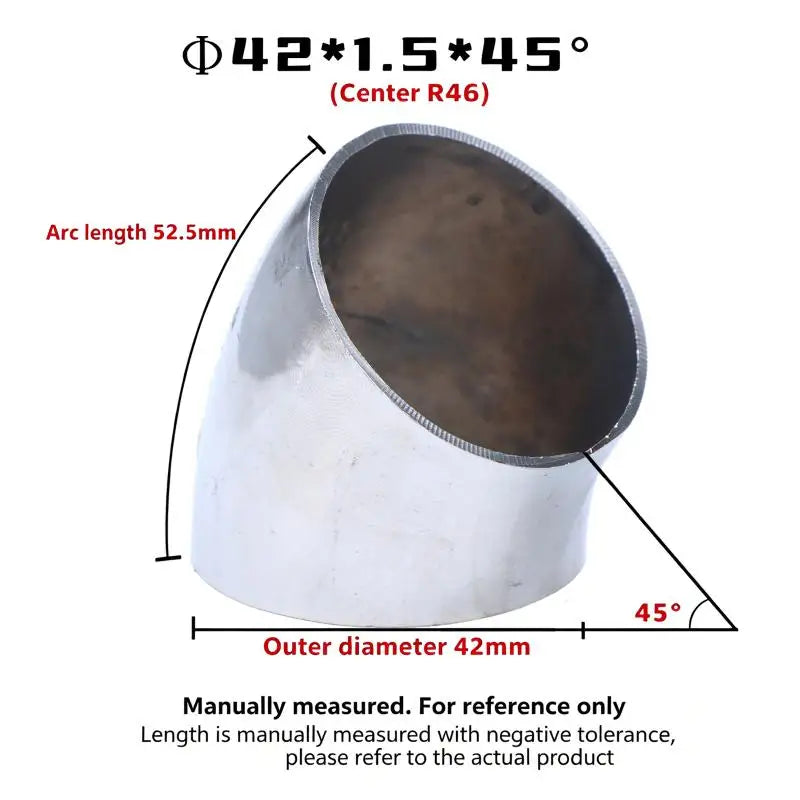

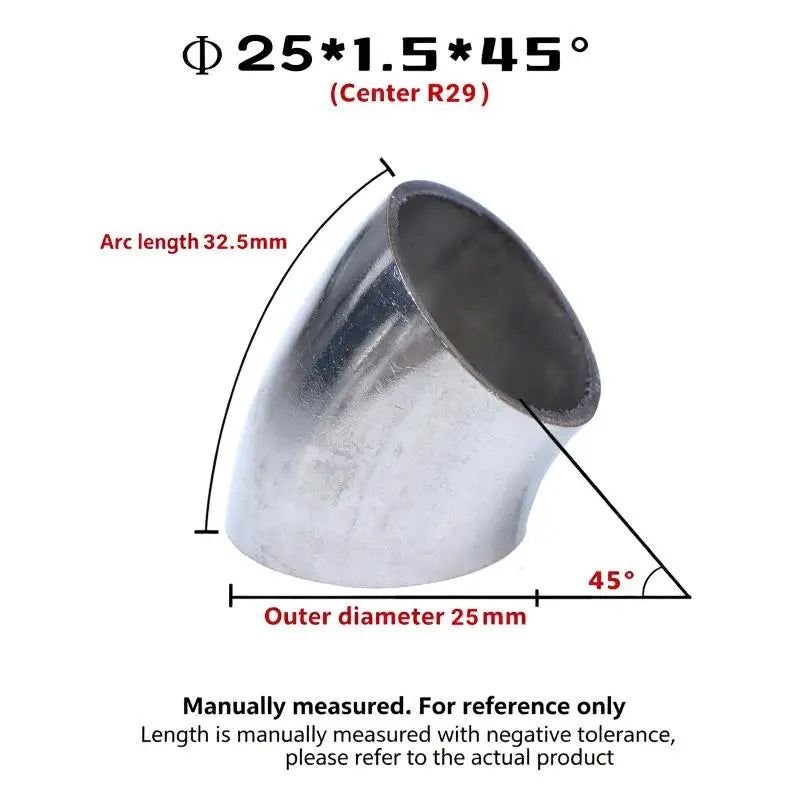

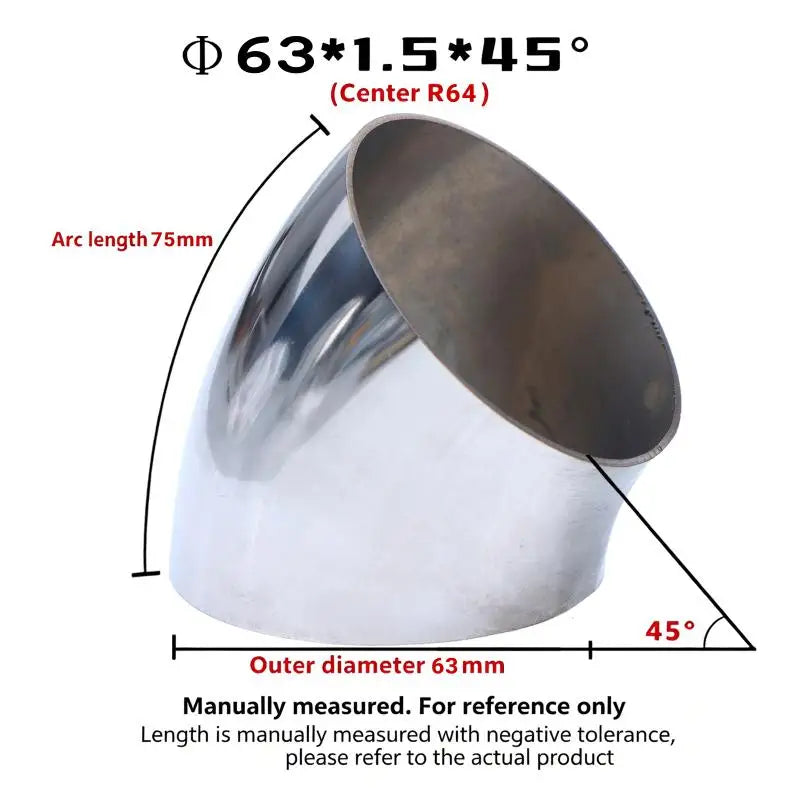

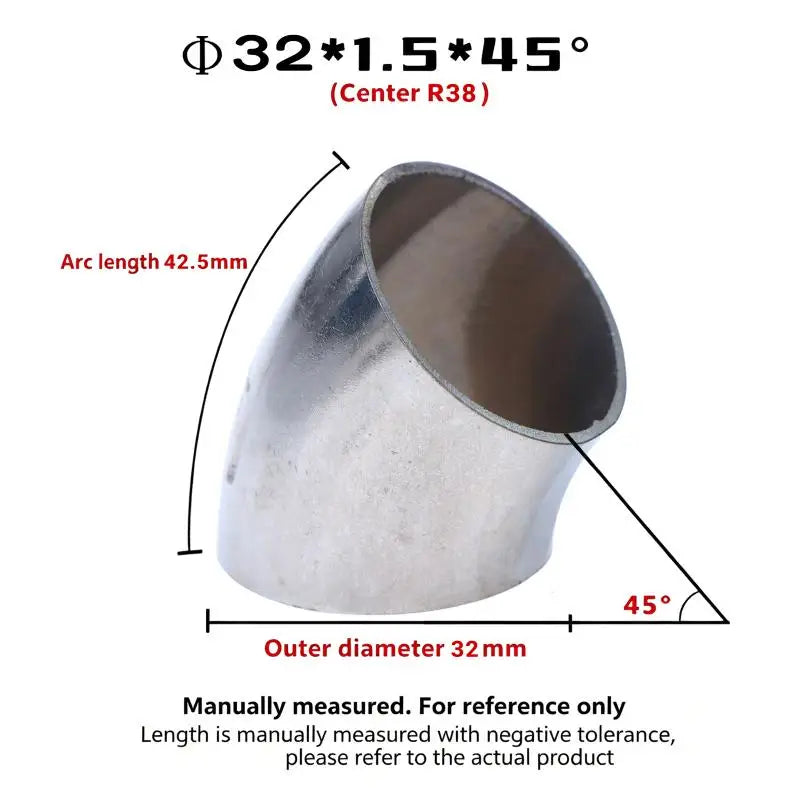

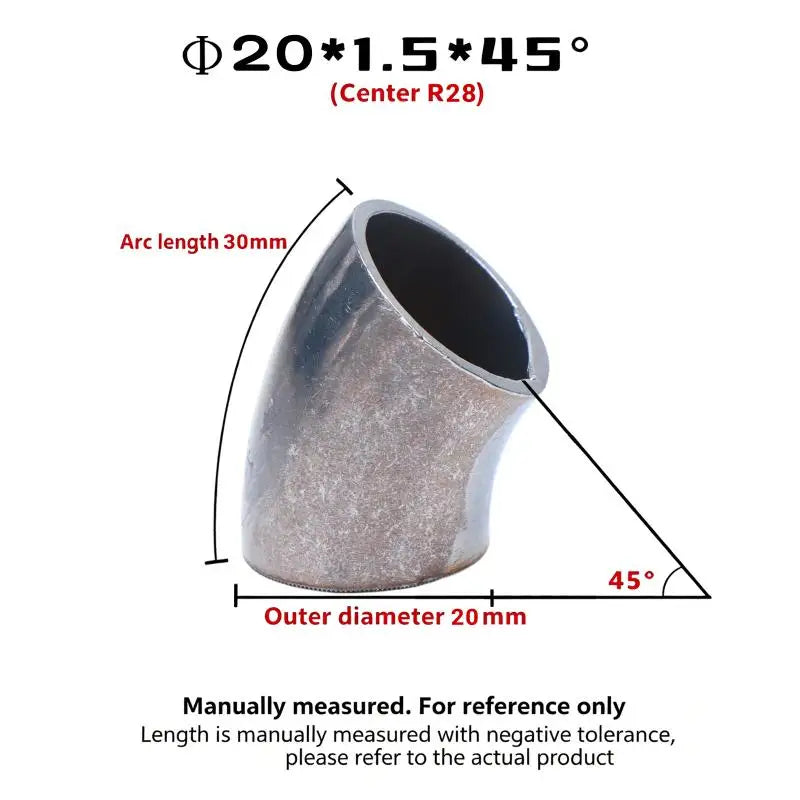

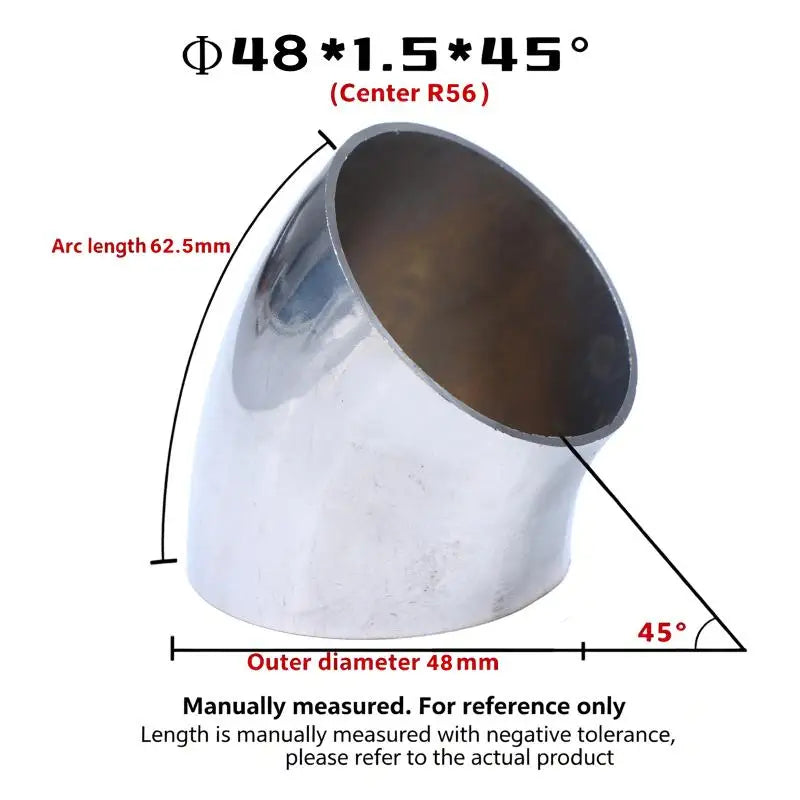

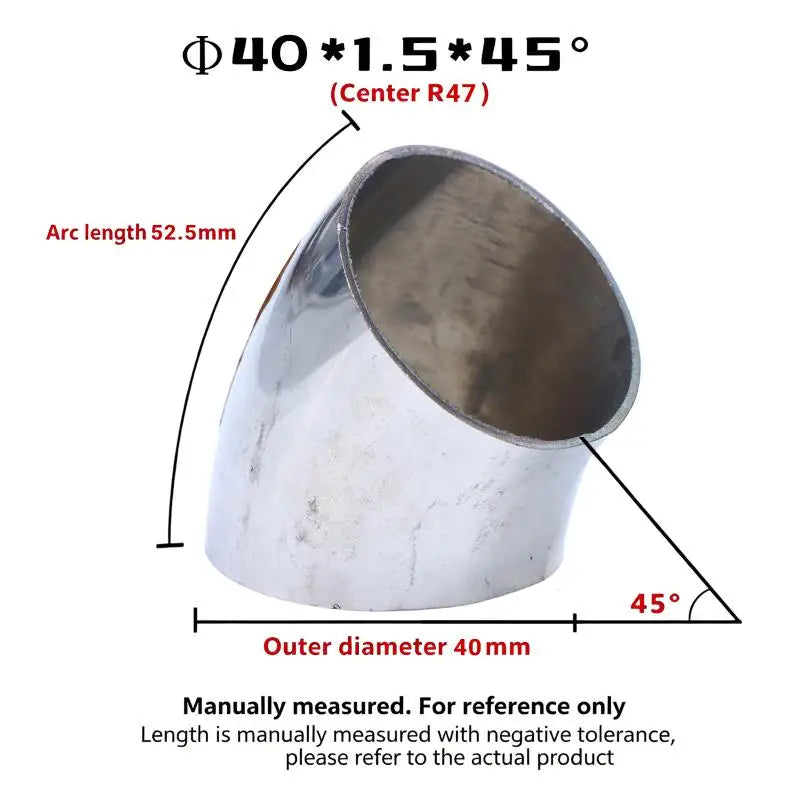

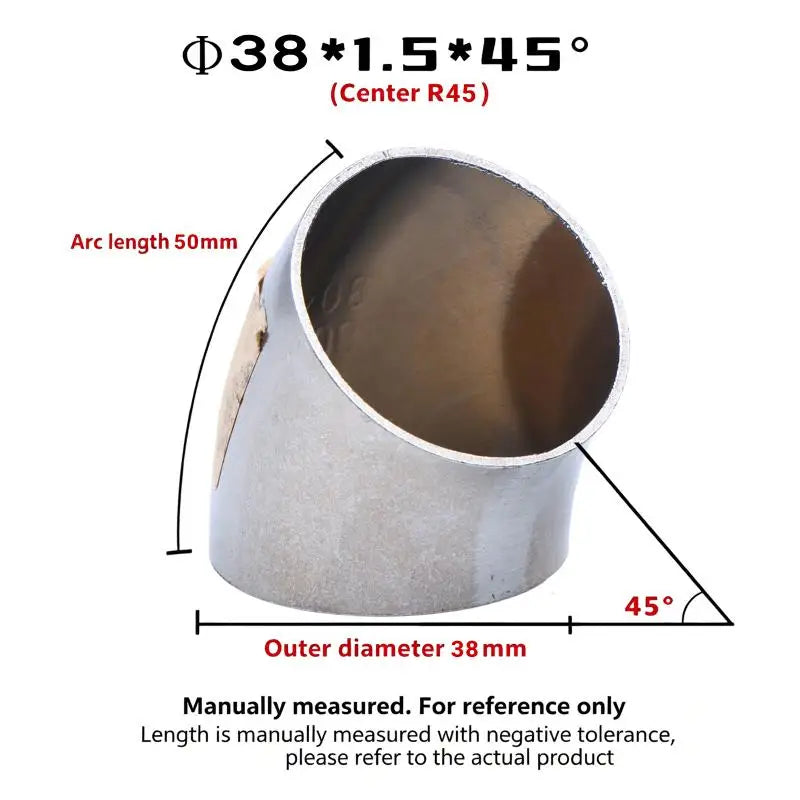

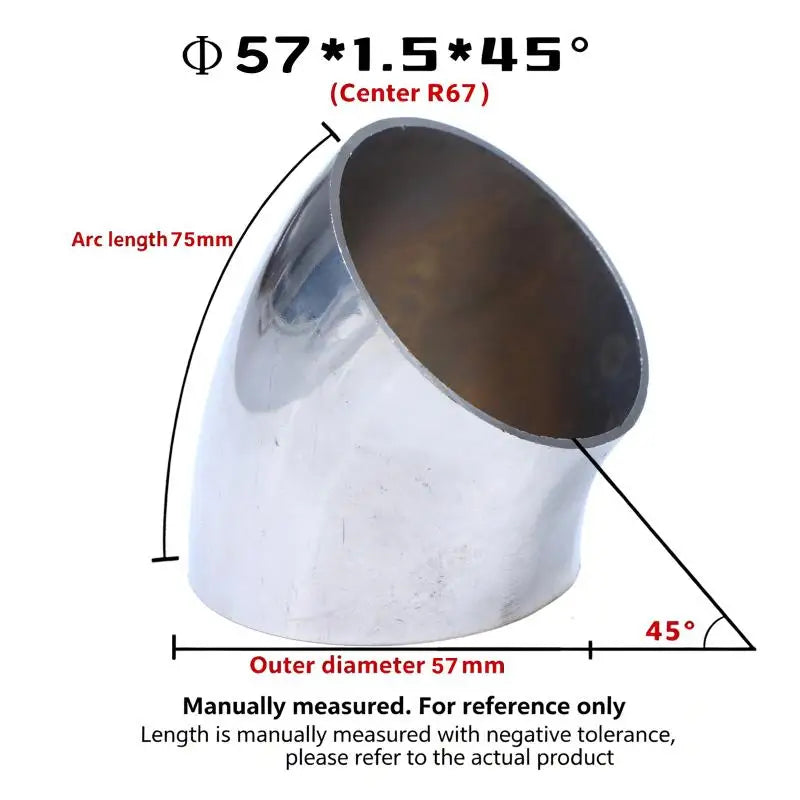

Photos are for illustrative purposes; please refer to size specifications before ordering.
Minor dimensional variations may occur due to manual measurement tolerances.
Screen color settings may cause slight color differences from the actual product.

External Resources

For guidelines on sanitary piping standards in food manufacturing, refer to the FDA Current Good Manufacturing Practices (CGMPs) for Food.

Frequently Asked Questions

Q: What sizes are available for this 45-degree sanitary weld elbow?

A: This fitting is available in a wide range of outer diameter (OD) sizes from 16 mm to 80 mm, making it suitable for a variety of sanitary pipeline configurations in food, beverage, dairy, and pharmaceutical applications.

Q: Is 304 stainless steel safe for food and pharmaceutical use?

A: Yes. 304 stainless steel is a widely recognized food-grade and pharma-grade material. Its corrosion resistance and non-reactive surface make it ideal for sanitary piping systems where hygiene and material integrity are critical. The mirror-polished finish further supports easy cleaning and compliance with hygiene standards.

Q: What type of connection does this elbow use?

A: This elbow uses a butt weld connection, which provides a permanent, leak-proof joint. It is well-suited for high-integrity fluid transfer systems where a secure, flush weld is required to maintain sanitary conditions and withstand pressures up to 850 kPa.

Q: Can this fitting be used outdoors or in humid environments?

A: Yes. The 304 stainless steel construction provides excellent resistance to corrosion and oxidation, making it suitable for use in humid, wet, or moderately corrosive environments typically found in food processing and industrial settings.
