3-Pin AC Male LY01 Connector for Deye M60/M80 Inverters | IP68
3-Pin AC Male LY01 Connector for Deye M60/M80 Inverters | IP68
Couldn't load pickup availability

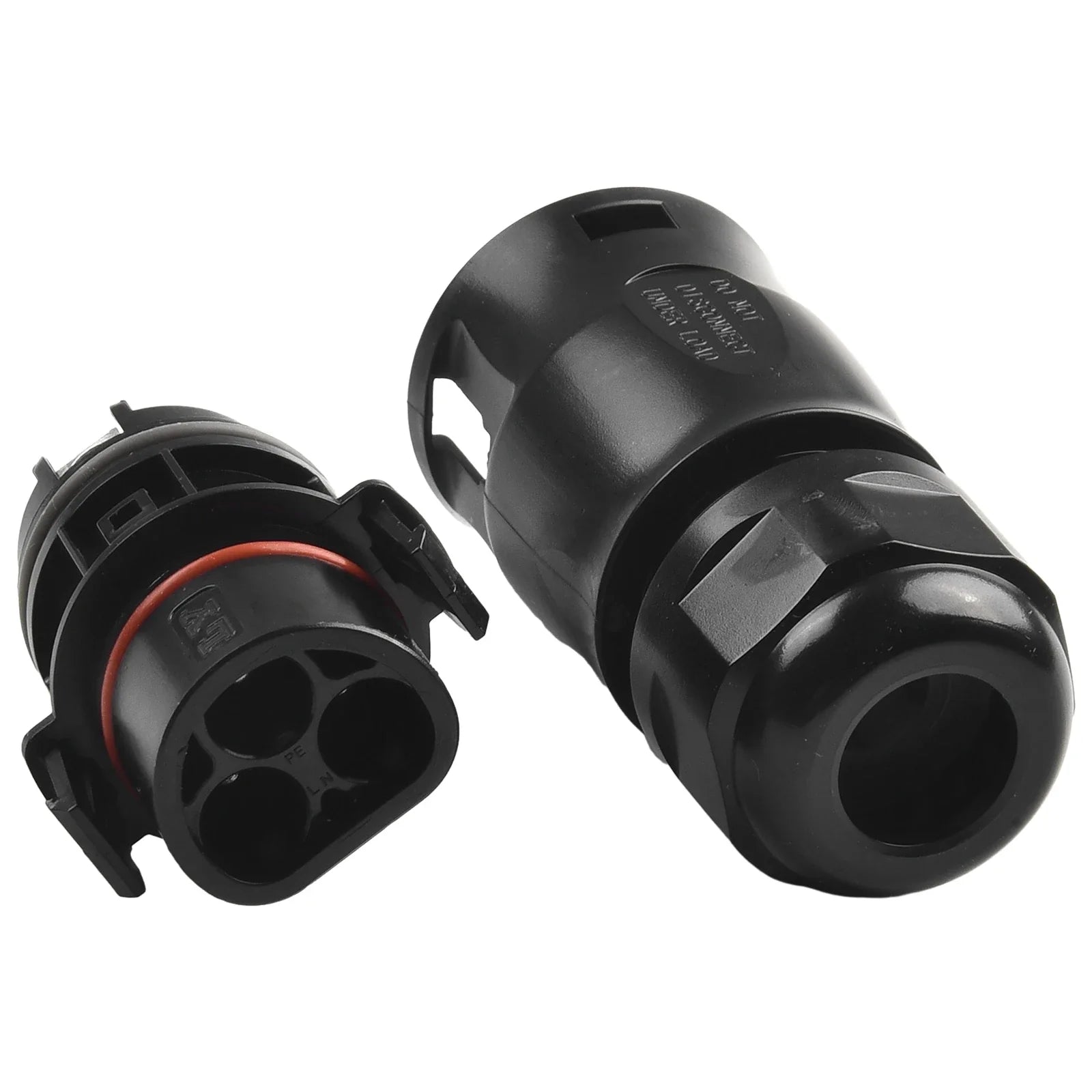

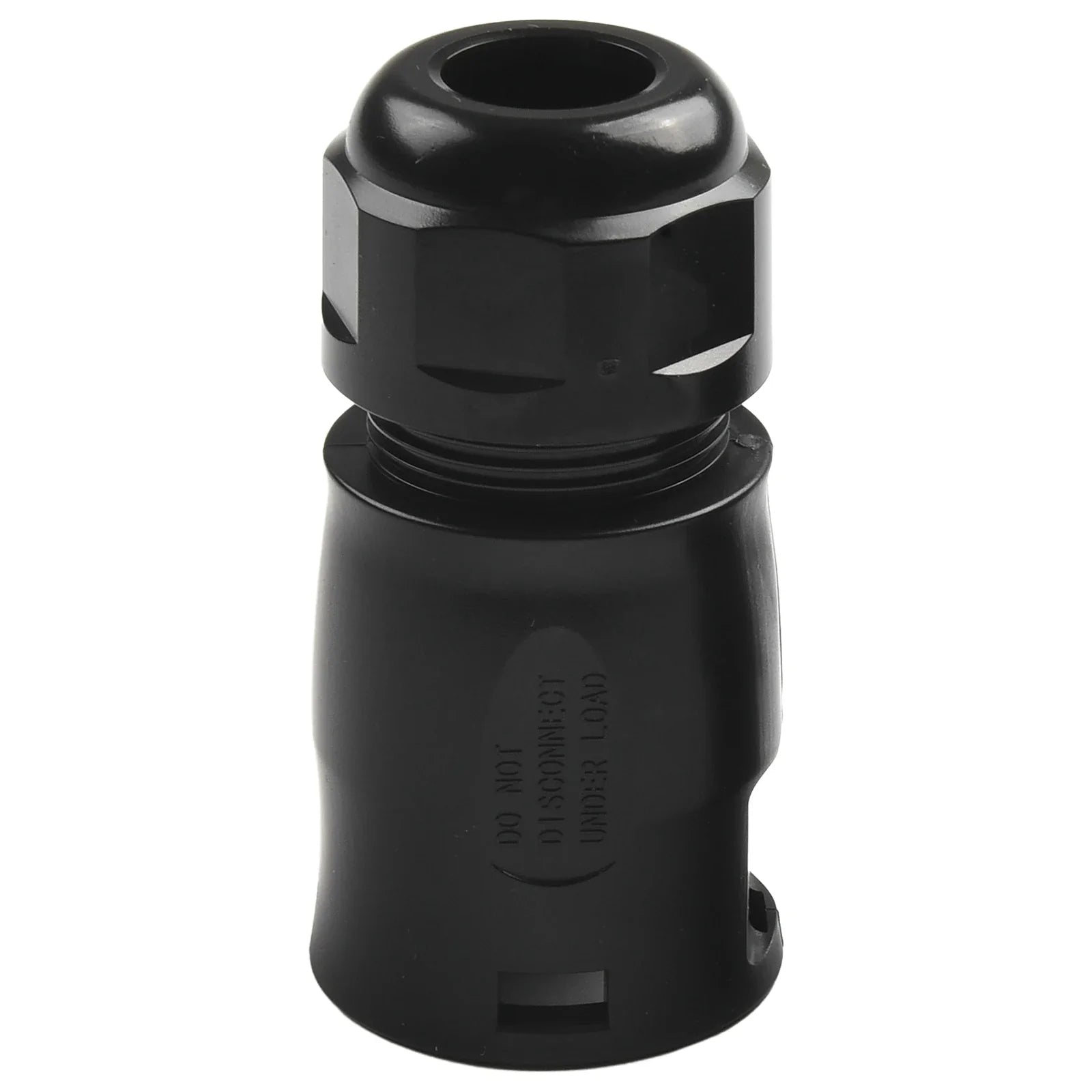

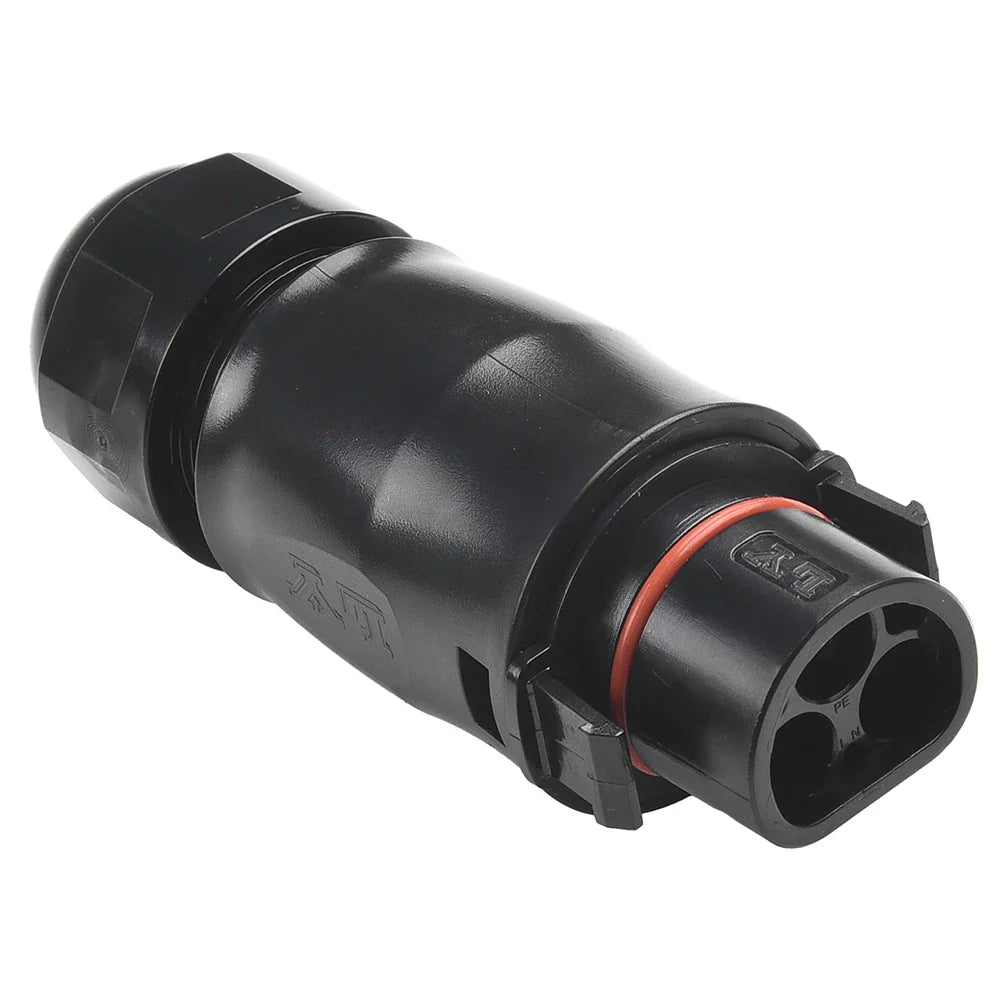

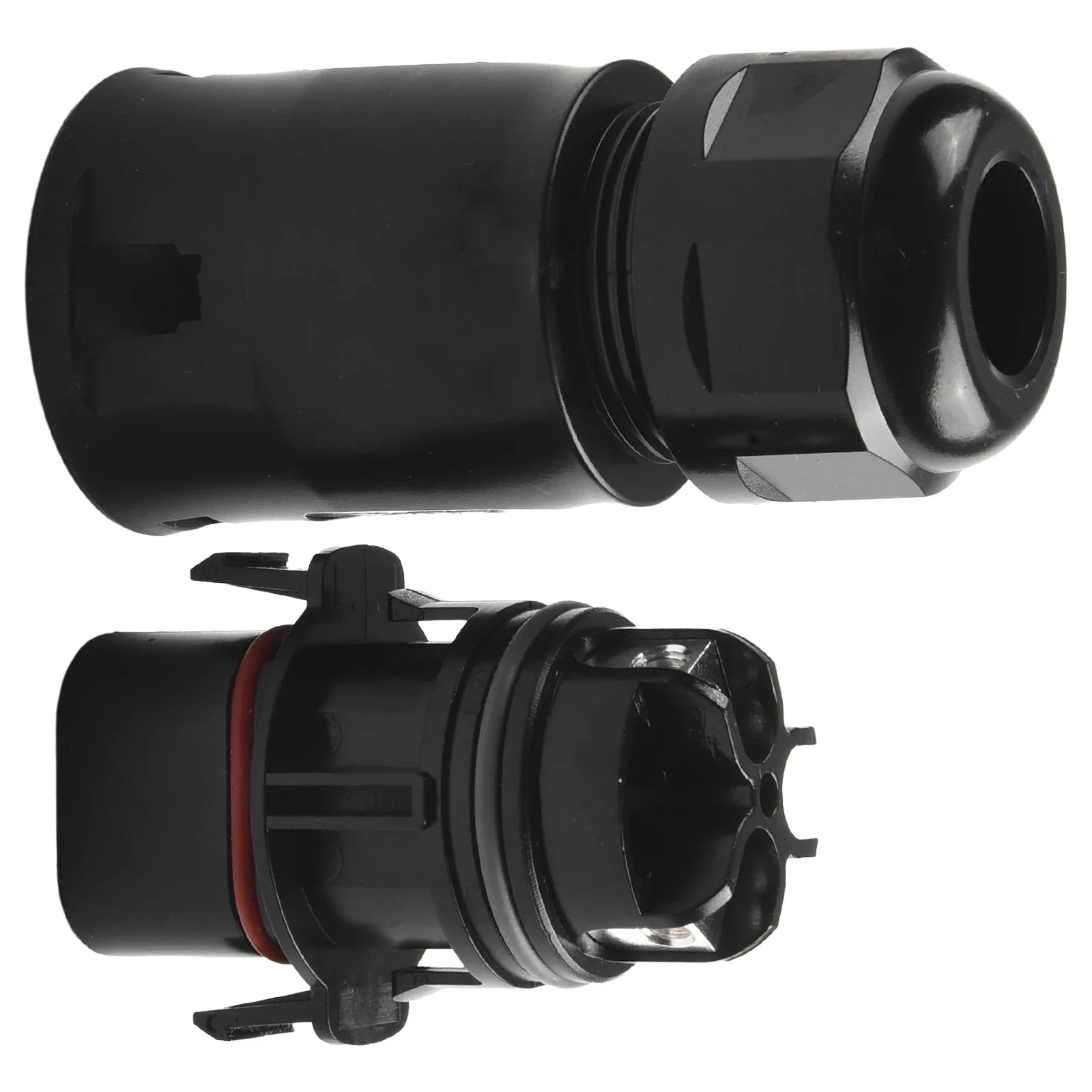

3-Pin AC Male Connector for Deye LY01 Inverters (M60/M80 Series)
Keep your solar PV setup running safely and reliably with this heavy-duty 3-Pin AC Male LY01 Connector, engineered specifically for Deye M60 and M80 series single-phase inverters. Rated at 40A / 690V and sealed to IP68 standards, this connector delivers a secure, weatherproof connection whether you're installing indoors or outdoors. The screw-type wire termination ensures a firm, vibration-resistant grip — no tools required beyond a screwdriver.
Made in Mainland China.
Key Features
- IP68 Weatherproof Rating — fully protected against dust and sustained water ingress, ideal for outdoor solar installations
- High Stability Design — robust construction for long-term, maintenance-free performance
- Plug-and-Play — drop-in replacement connector socket compatible with Deye LY01 single-phase inverters
- Indoor & Outdoor Use — versatile installation environments supported
- Screw-Type Wire Connection — secure, reliable termination without crimping tools
- 3-Pin Configuration (L, N + PE) — line, neutral, and protective earth for safe AC power distribution
Specifications
| Pin Configuration | 3-Pin (L, N + PE) |
| Rated Current | 40A |
| Rated Voltage | 690V |
| Wire Connection | Screw Terminal |
| Outer Wire Diameter | 13mm |
| Compatible Cable Diameter | 7.5–13mm outer diameter |
| Cable Cross-Section | 2.5 / 4.0 mm² or 14 / 12 AWG |
| Protection Class | IP68 |
| Compatible Inverters | Deye M60 / M80 Series (Single-Phase) |
| Connector Type | LY01 Socket |
| Country of Origin | Mainland China |
Package Contents

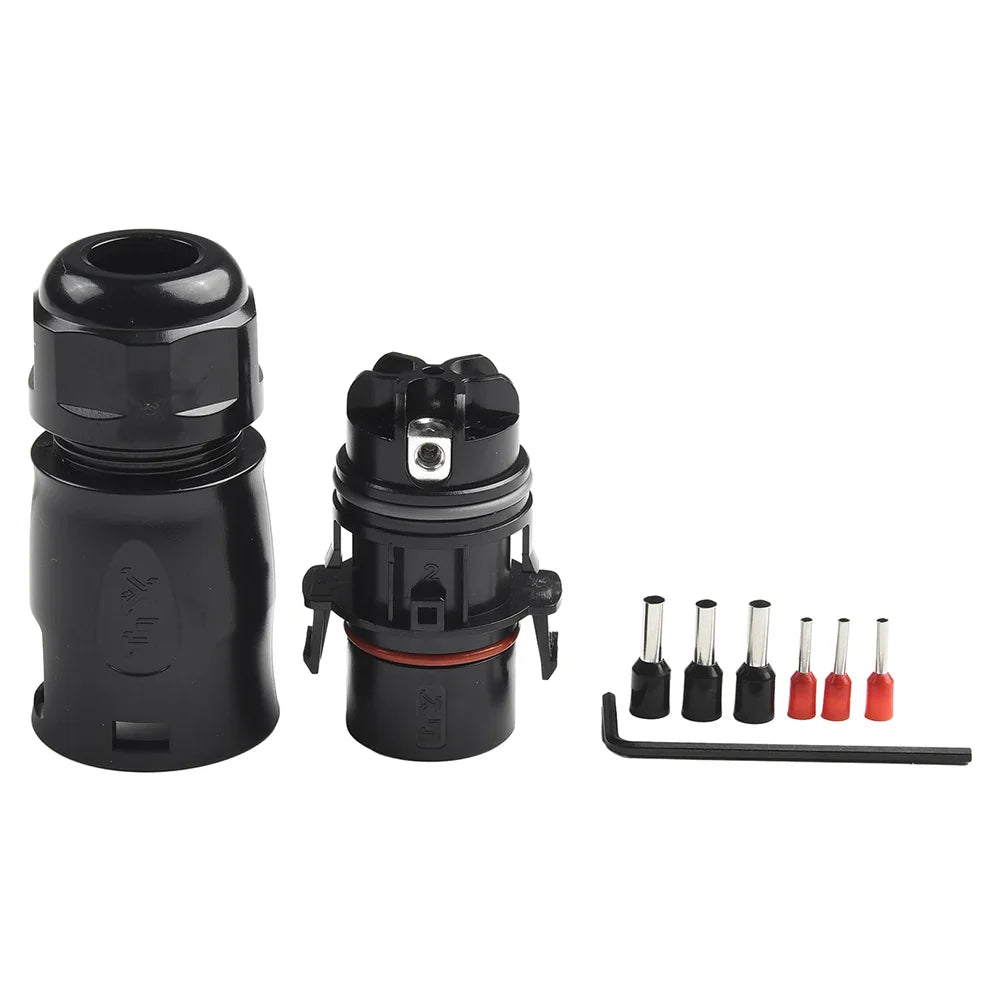

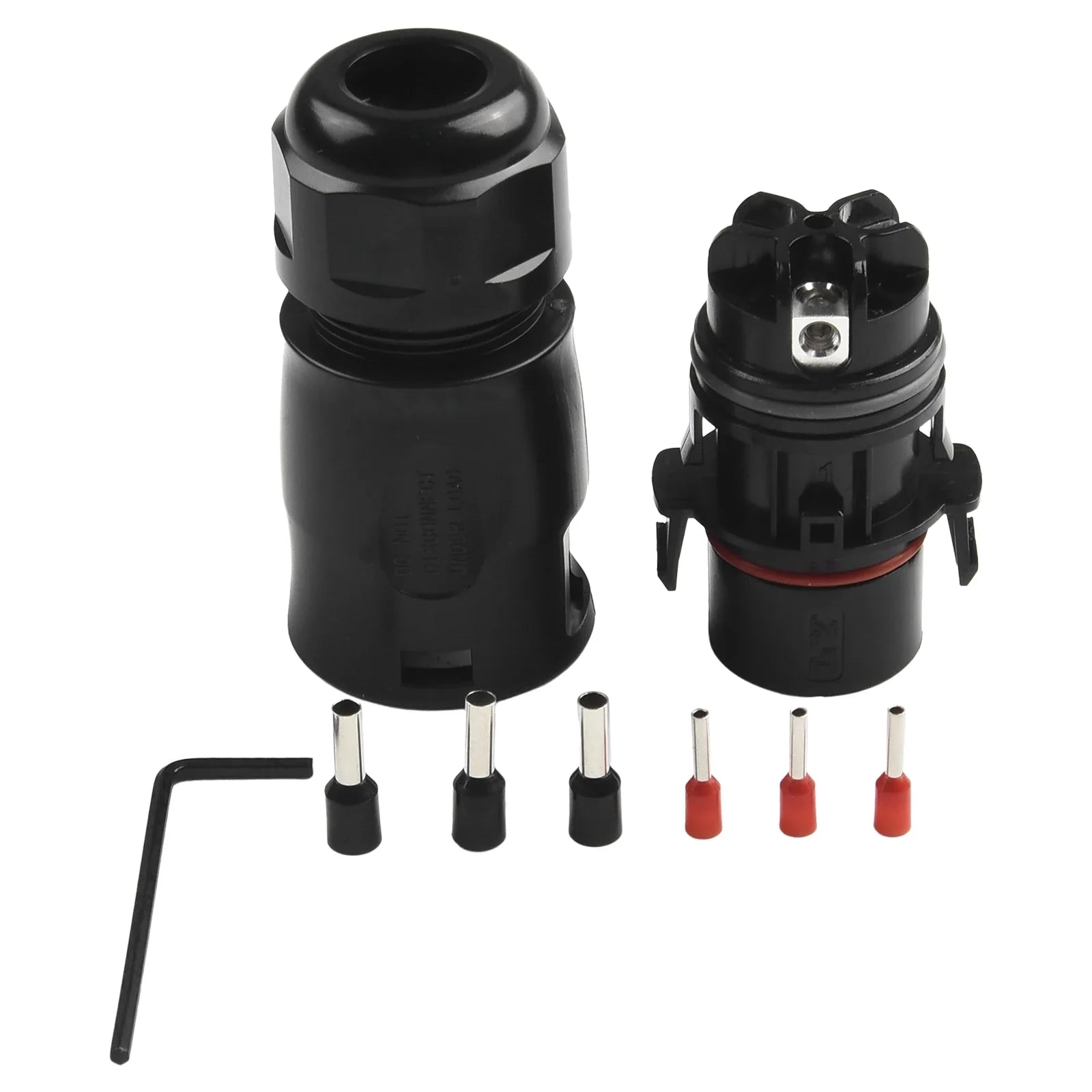

- 1 × 3-Pin AC Male PV Connector (including accessories)
Notes
Actual color may vary slightly from product images due to monitor brightness and lighting conditions. Please allow for minor measurement tolerances in listed dimensions.
Related Products You May Need
- 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino
- 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler
External Resources
For guidance on safe electrical installation practices and wiring standards, visit the OSHA Electrical Safety resource page.
Frequently Asked Questions
Q: Is this 3-pin AC male connector compatible with all Deye inverter models?
A: This connector is specifically designed for the Deye LY01 connector socket used on M60 and M80 series single-phase inverters. It may not be compatible with other Deye inverter series or three-phase models. Always verify your inverter's connector type before purchasing.
Q: What cable sizes are compatible with this LY01 AC male connector?
A: The connector accepts cables with an outer diameter of 7.5–13mm and a conductor cross-section of 2.5 or 4.0 mm² (equivalent to 14 or 12 AWG). Ensure your cable falls within this range for a secure and safe connection.
Q: Can this connector be used outdoors in wet or dusty environments?
A: Yes. This connector carries an IP68 protection rating, meaning it is fully sealed against dust ingress and capable of withstanding prolonged submersion in water, making it well-suited for outdoor solar PV panel installations in a variety of weather conditions.
Q: How is the wire connected to this connector?
A: The connector uses a screw-type terminal connection for all three conductors (Line, Neutral, and Protective Earth). This method provides a strong, vibration-resistant termination that is easy to install and inspect without specialised crimping equipment.
