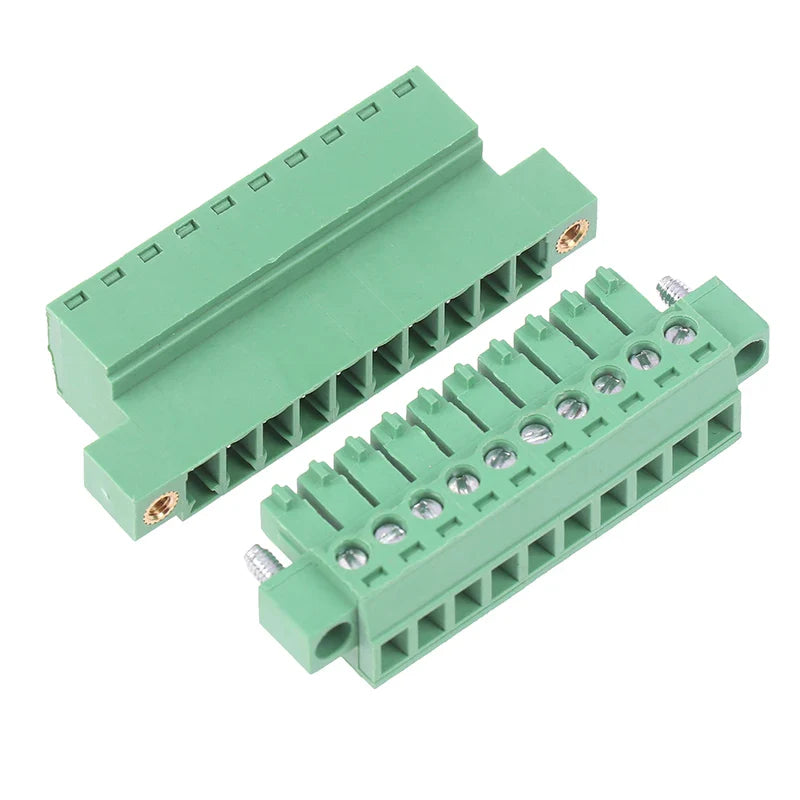

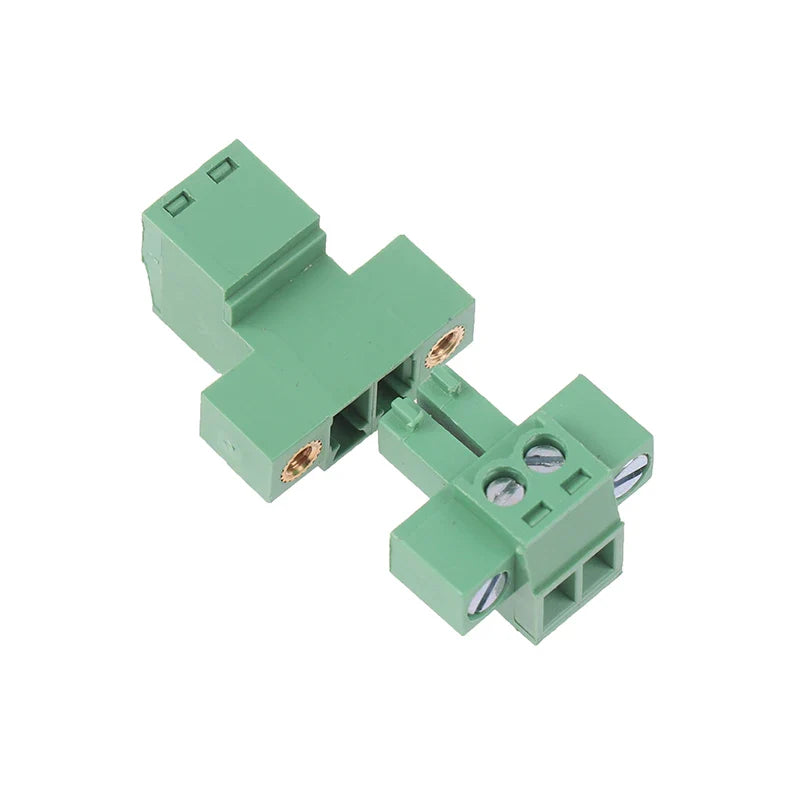

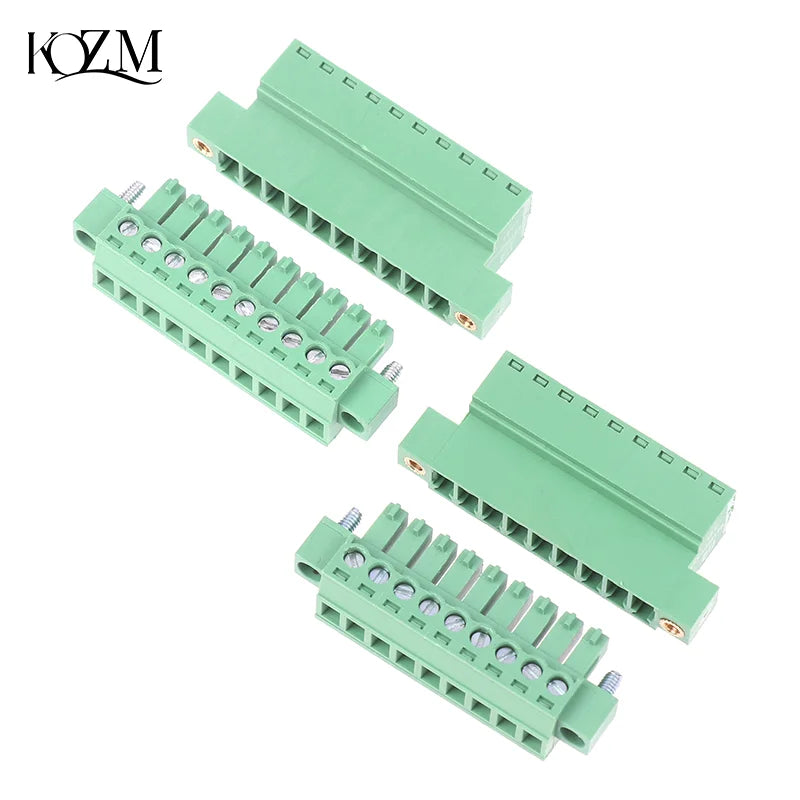

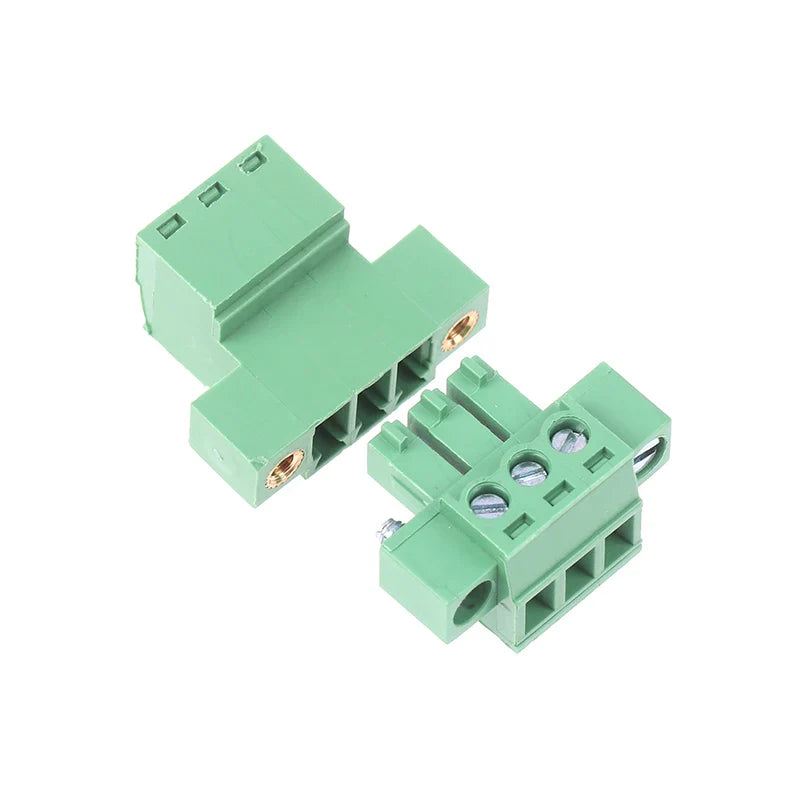

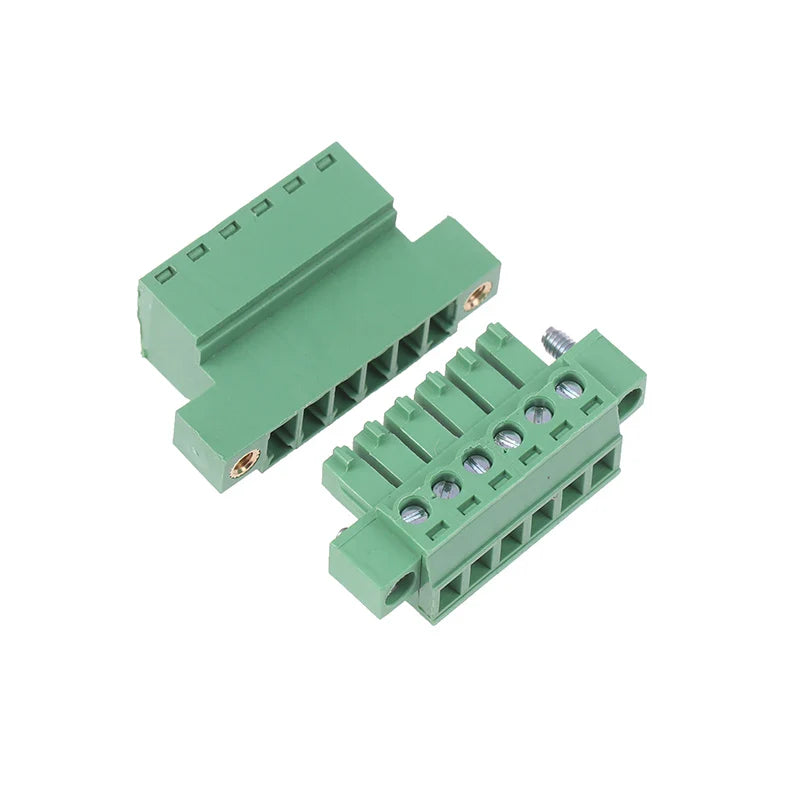

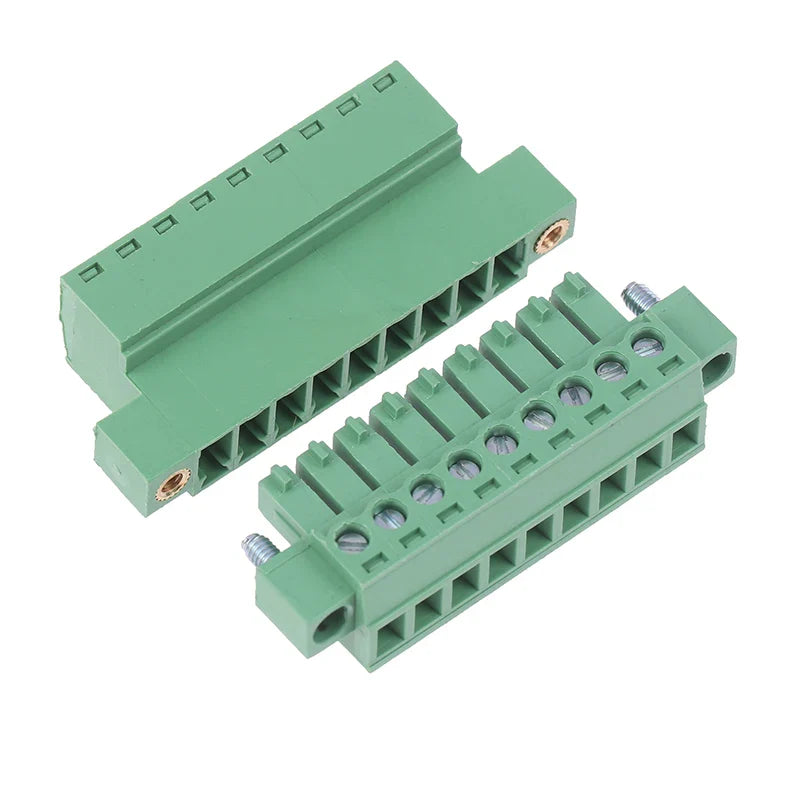

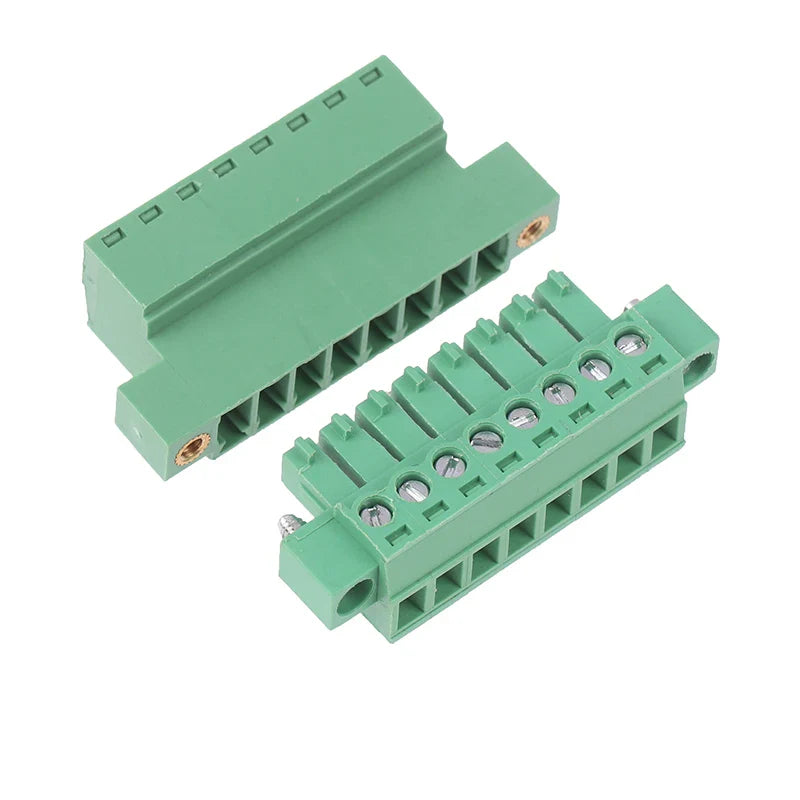

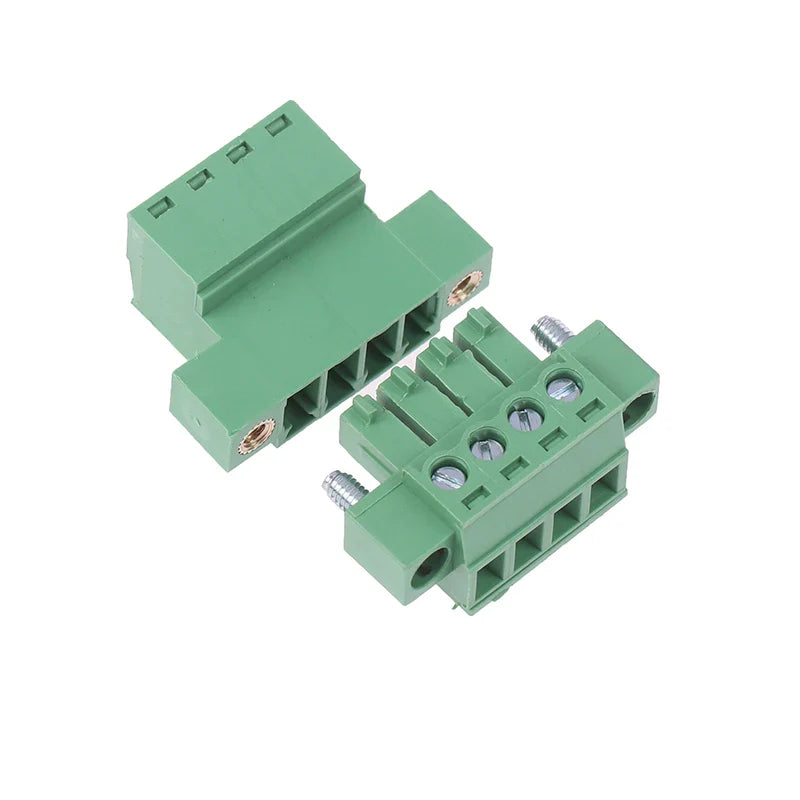

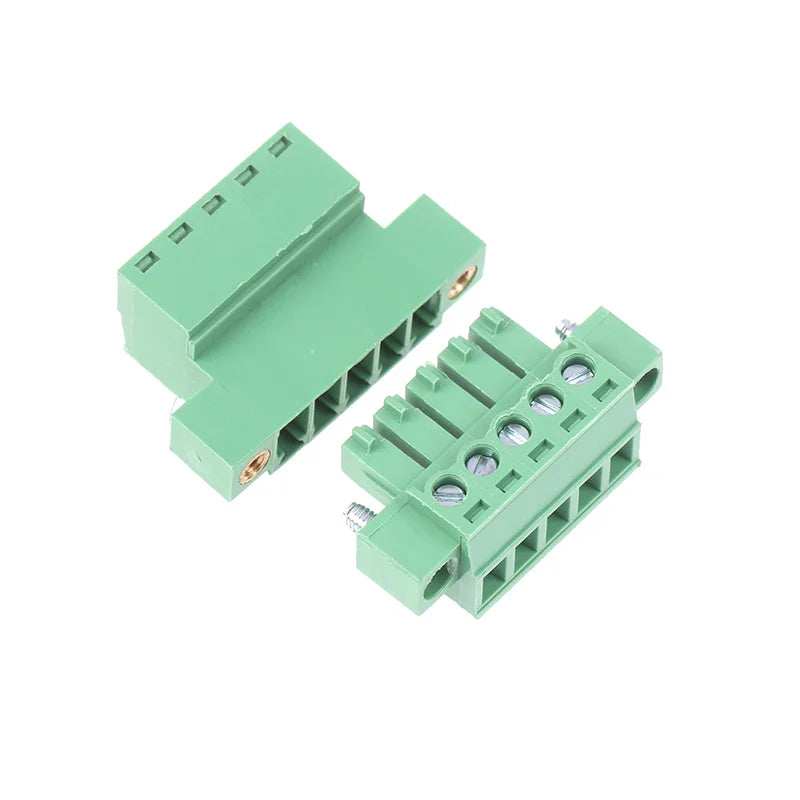

3.81mm Pluggable Terminal Block Connector Set 2P–10P PCB

3.81mm Pitch Pluggable Terminal Block Connector – 15EDGWC / JM15EDGKM Series

Upgrade your PCB wiring with this versatile 3.81mm pitch pluggable terminal block connector set. Available in 2P, 3P, 4P, 5P, 6P, 8P, 9P, and 10P configurations, these green plastic-and-metal connectors offer a reliable plug-in wiring solution — no soldering required. Ideal for electronics hobbyists, engineers, and DIY circuit builders who need clean, secure, and removable connections on their boards.

Key Features

• Pitch: 3.81mm — compact spacing perfect for dense PCB layouts

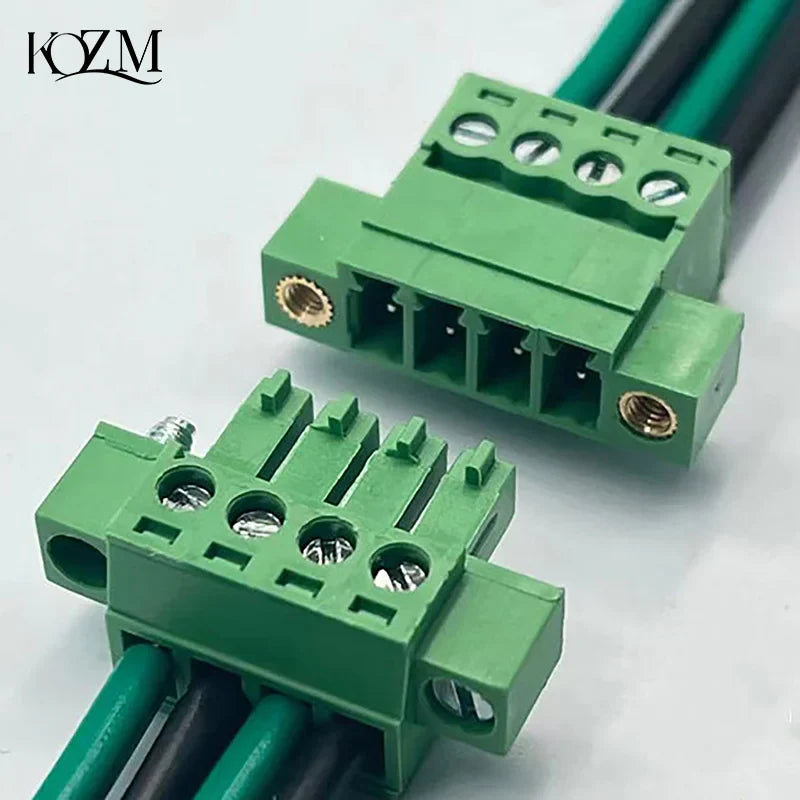

• Plug-in wiring method: Tool-free mating; simply insert and lock — no sockets or soldering needed
• Rated Current: IEC 15A / UL 10A
• Rated Voltage: 300V
• Withstand Voltage: AC 2500V / 1 min
• Wire Gauge: 12–28 AWG
• Stripping Length: 7mm
• Torque: 0.4 Nm (3.51 lb·in)
• Temperature Range: -40°C to +105°C operating; up to +250°C instantaneous (5 seconds)
• Material: Durable plastic housing + metal contacts
• Color: Green (industry-standard)

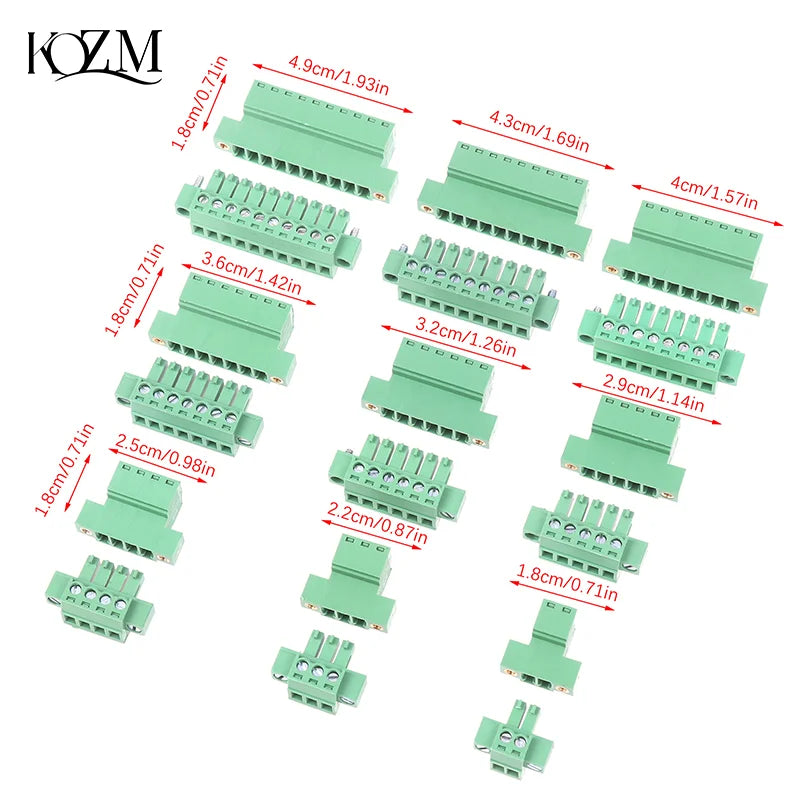

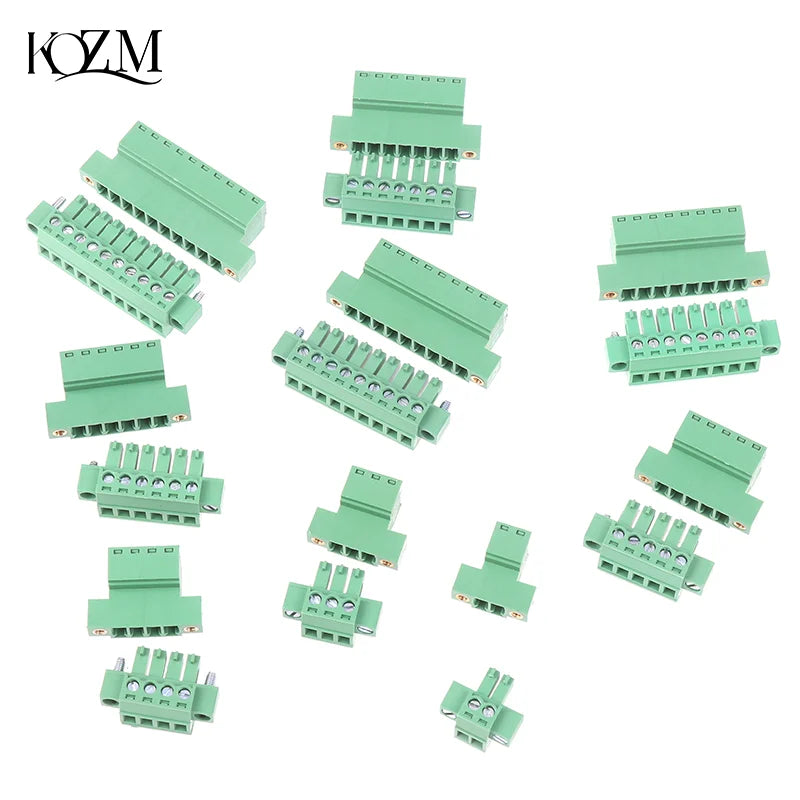

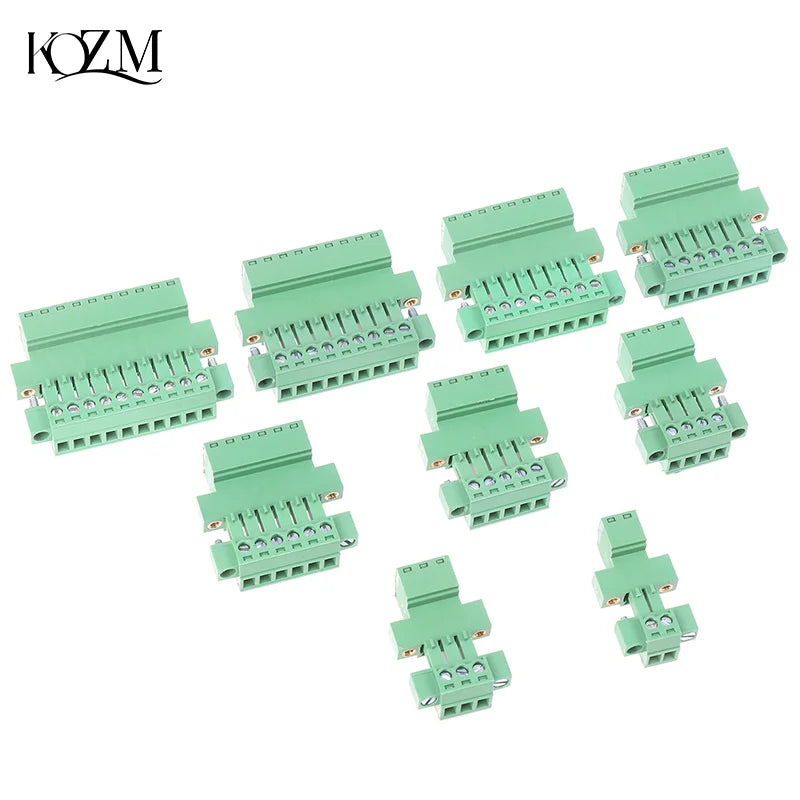

• Configurations available: 2P, 3P, 4P, 5P, 6P, 8P, 9P, 10P

What's in the Box

• 1 × Pluggable Terminal Block Connector Set (male)

Applications

These terminal block connectors are widely used as input/output ports on printed circuit boards (PCBs) in a variety of electronics and electrical applications including:

• Industrial control panels
• Home automation systems
• Arduino and Raspberry Pi DIY projects
• Power distribution boards
• Custom electronic enclosures

Made in Mainland China.

Related Products You May Like

• 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino
• 0.25mm 1000-Turn Precision Copper Inductor Coil for DIY Circuits
• 0–300mm PCB Holder Stand | 360° Rotation Soldering Clamp

External Reference

For guidance on safe electrical wiring standards and connector best practices, visit the OSHA Electrical Safety Standards resource.

Frequently Asked Questions

Q: What pole options are available for the 3.81mm pitch pluggable terminal block connector?

A: This connector set is available in 2P, 3P, 4P, 5P, 6P, 8P, 9P, and 10P configurations, giving you flexibility for a wide range of PCB wiring applications.

Q: Does the 3.81mm terminal block connector require soldering?

A: No soldering is required. The plug-in wiring method allows you to insert wires directly into the connector and secure them — making installation fast, clean, and easy to reconfigure.

Q: What wire gauges are compatible with the JM15EDGKM terminal block?

A: The connector accepts wire gauges from 12 AWG to 28 AWG, making it compatible with a broad range of standard wire sizes used in electronics and electrical projects.

Q: What is the maximum voltage and current rating for this connector?

A: The connector is rated at 300V with a current rating of 15A (IEC) / 10A (UL), and withstands AC 2500V for 1 minute — suitable for most low-to-medium voltage PCB applications.
