Oasis Select

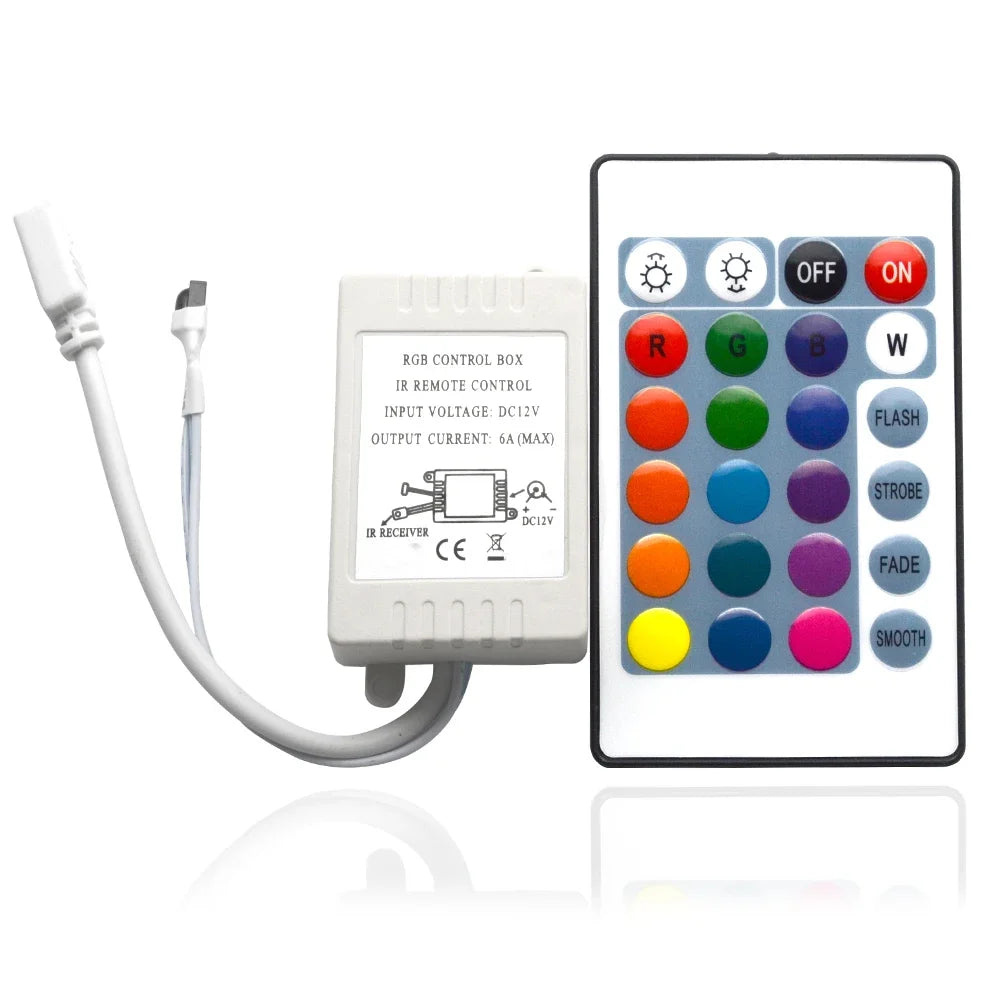

24-Key IR Remote RGB LED Strip Controller – DC 12V
24-Key IR Remote RGB LED Strip Controller – DC 12V
Couldn't load pickup availability
Mini 24-Key Infrared Remote RGB LED Strip Controller
Take full wireless control of your RGB LED lighting with this compact 24-Key Infrared (IR) Remote Controller. Designed for compatibility with popular 5050, 2835, and 3528 RGB LED strips, this mini controller lets you effortlessly switch colors, adjust brightness, and activate dynamic lighting effects — all from across the room.
Whether you're setting the mood in your living room, bedroom, gaming setup, or home office, this controller gives you 20 functional modes at your fingertips. Simple wiring, a built-in power-off memory function, and a low-voltage DC 12V design make it an ideal upgrade for any RGB lighting project.
Made in Mainland China.
Key Features

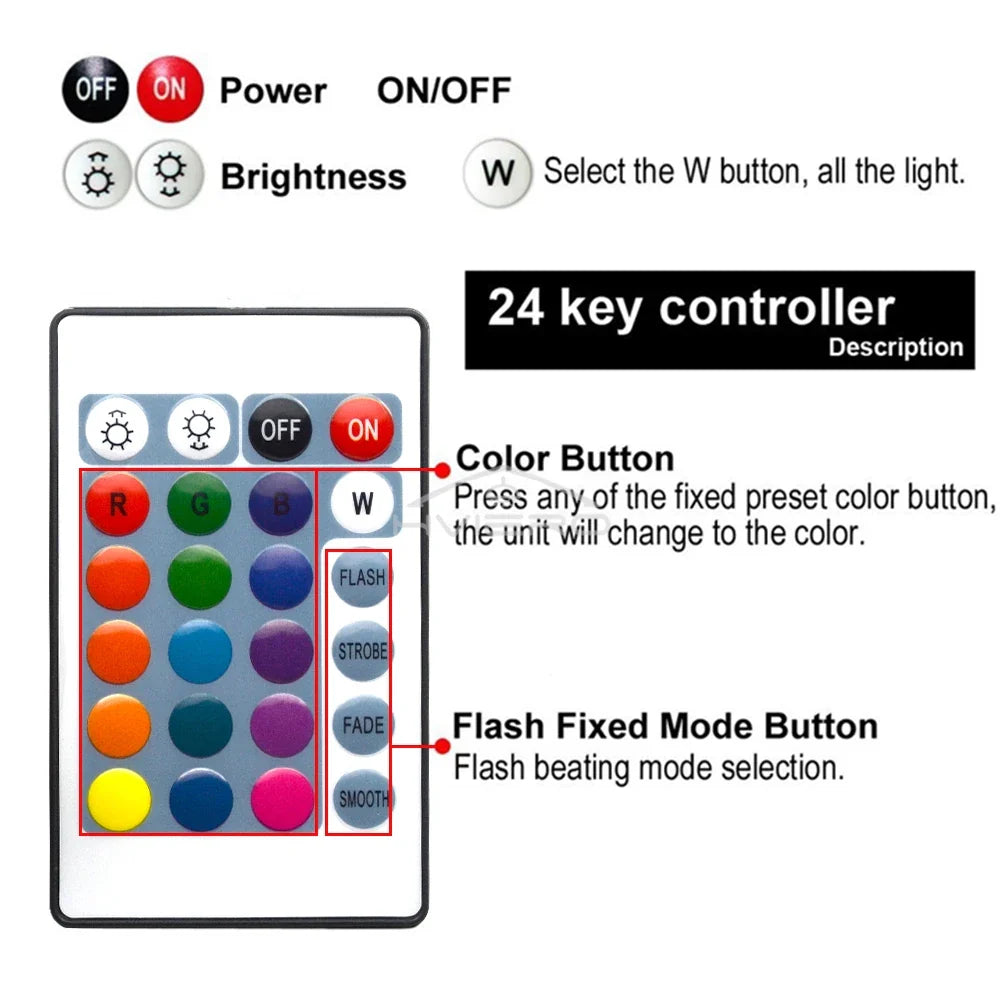

- 24-Key IR Remote: Control colors, brightness, speed, and effects wirelessly from up to ~10 meters away.
- 20 Functional Modes: Includes solid colors, fade, strobe, flash, and smooth dynamic lighting transitions.
- Wide Compatibility: Works with 5050, 2835, and 3528 RGB LED strips, ambient lights, panel lights, and more.

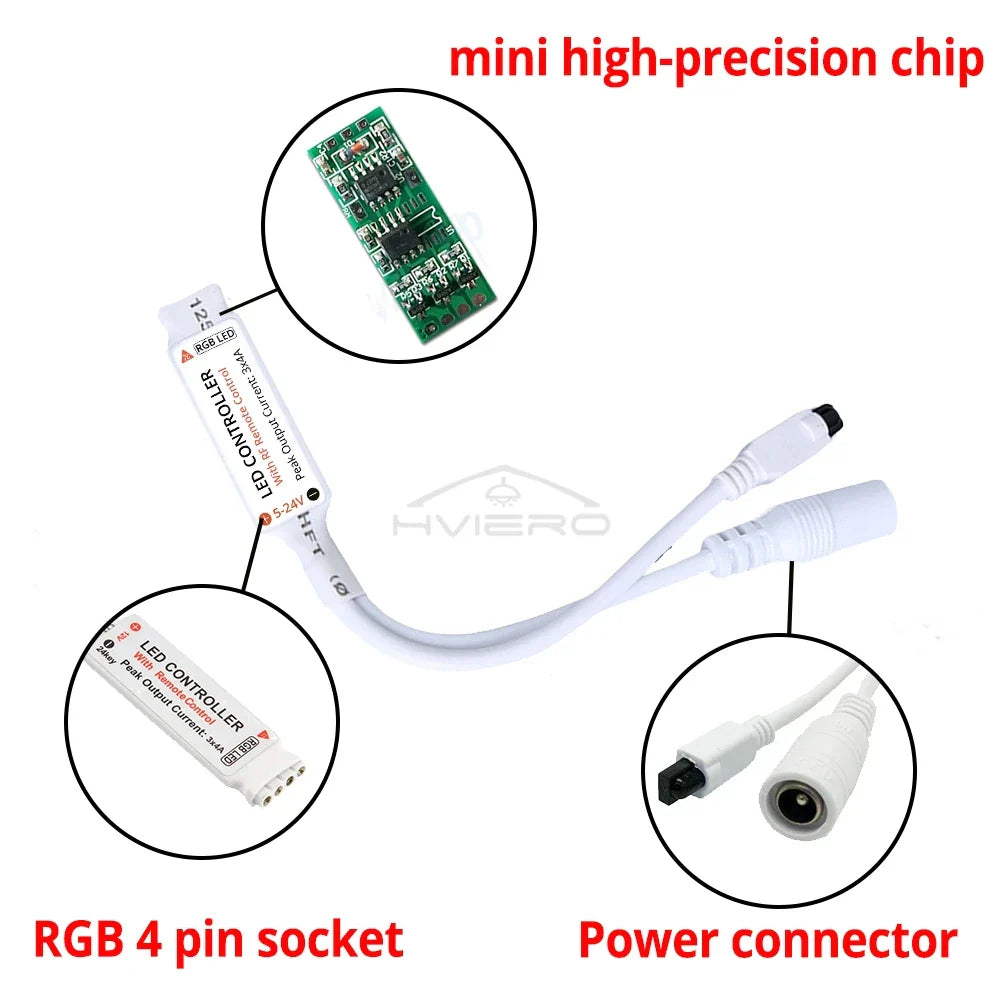

- Advanced Microcomputer Chip: Delivers stable, precise dimming and color control.
- Power-Off Memory: Remembers your last setting when powered back on — no need to reconfigure every time.
- Easy Installation: Common anode (+) connection with simple wiring; no special tools required.
- Low Voltage & Energy Efficient: Operates at DC 12V with output up to 6A (72W max).
- Certified & Safe: CCC, CE, and RoHS certified materials — ABS engineering-grade environmental plastic housing.
Specifications
| Compatible Strips | 5050, 2835, 3528 RGB LED Strips |
| Power Supply Voltage | DC 12V |
| Output Current | 6A (max 72W) |
| Control Method | 24-Key Infrared (IR) Remote |
| Remote Battery | CR2025 (Not Included) |
| Working Temperature | -20°C to 60°C |
| Certifications | CCC, CE, RoHS |
| Housing Material | ABS Engineering Plastic |
| Connection Mode | Common Anode (+) |
What's in the Box
- 1 × 24-Key IR Remote Control Panel (CR2025 battery NOT included)
- 1 × RGB LED Strip Controller Receiver
Applications
- Living room, bedroom, and home office ambient lighting
- Under-cabinet, under-bed, and TV backlighting
- Gaming setups and entertainment areas
- Decorative strip lighting, panel lights, and strobe/breathing light effects
Related Products You May Like
- 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino
- 0.25mm 1000-Turn Precision Copper Inductor Coil for DIY Circuits
External Resource
For general guidance on energy-efficient home lighting, visit the U.S. Department of Energy – LED Lighting Guide.
Learn more: LED controller
Frequently Asked Questions
Q: What RGB LED strip types are compatible with this 24-key IR controller?
A: This controller is compatible with 5050, 2835, and 3528 RGB LED strips that operate on DC 12V with a common anode (+) connection. It supports strips up to 72W (6A output).
Q: Does the remote battery come included?
A: No, the CR2025 button battery required for the remote control panel is not included. You will need to purchase one separately before first use.
Q: How many lighting effects does the controller support?
A: The controller includes 20 functional modes, covering solid color selection, brightness adjustment, fade, strobe, flash, and various dynamic lighting transition effects — giving you full creative control over your RGB setup.
Q: Will the controller remember my settings if the power goes out?
A: Yes! The built-in power-off memory function saves your last lighting configuration, so your preferred color and mode will be restored automatically when power is reconnected.
