230V DIN-Rail Timer Relay – Auto Lighting Control 16A Energy Saving
230V DIN-Rail Timer Relay – Auto Lighting Control 16A Energy Saving
Couldn't load pickup availability

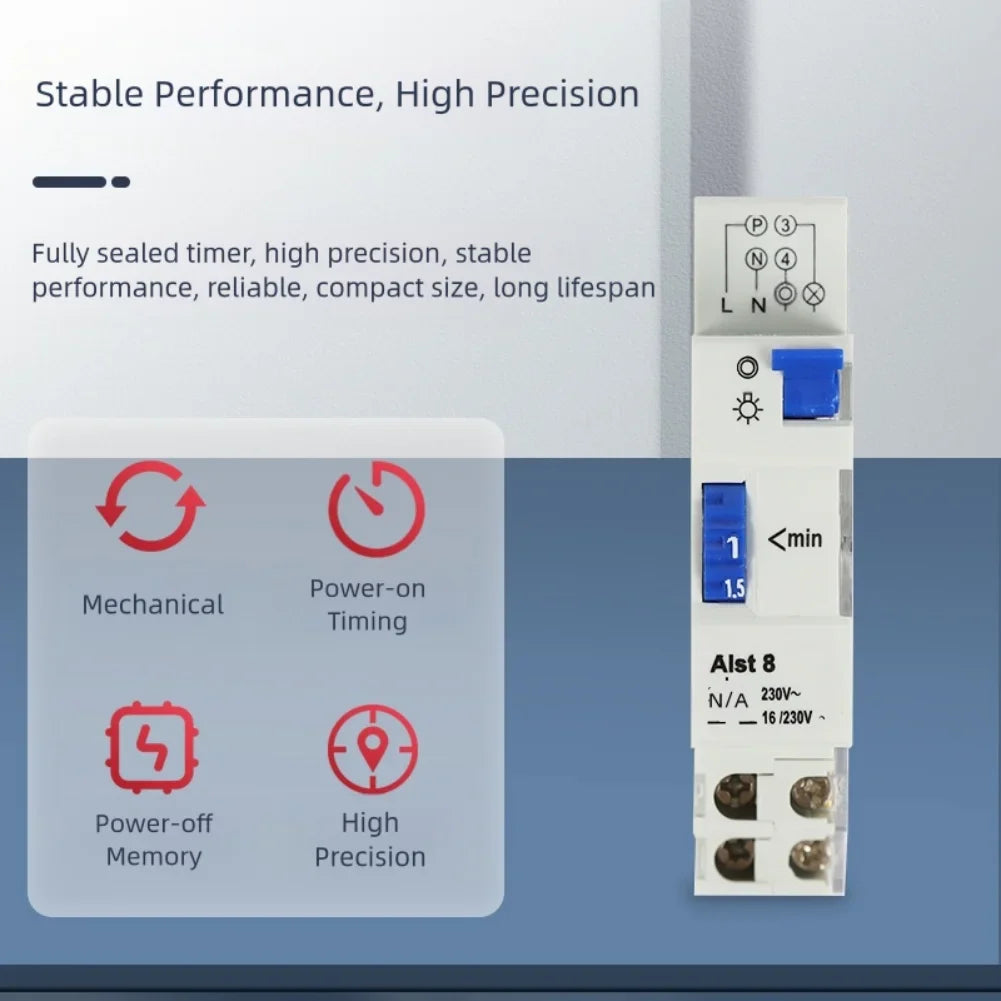

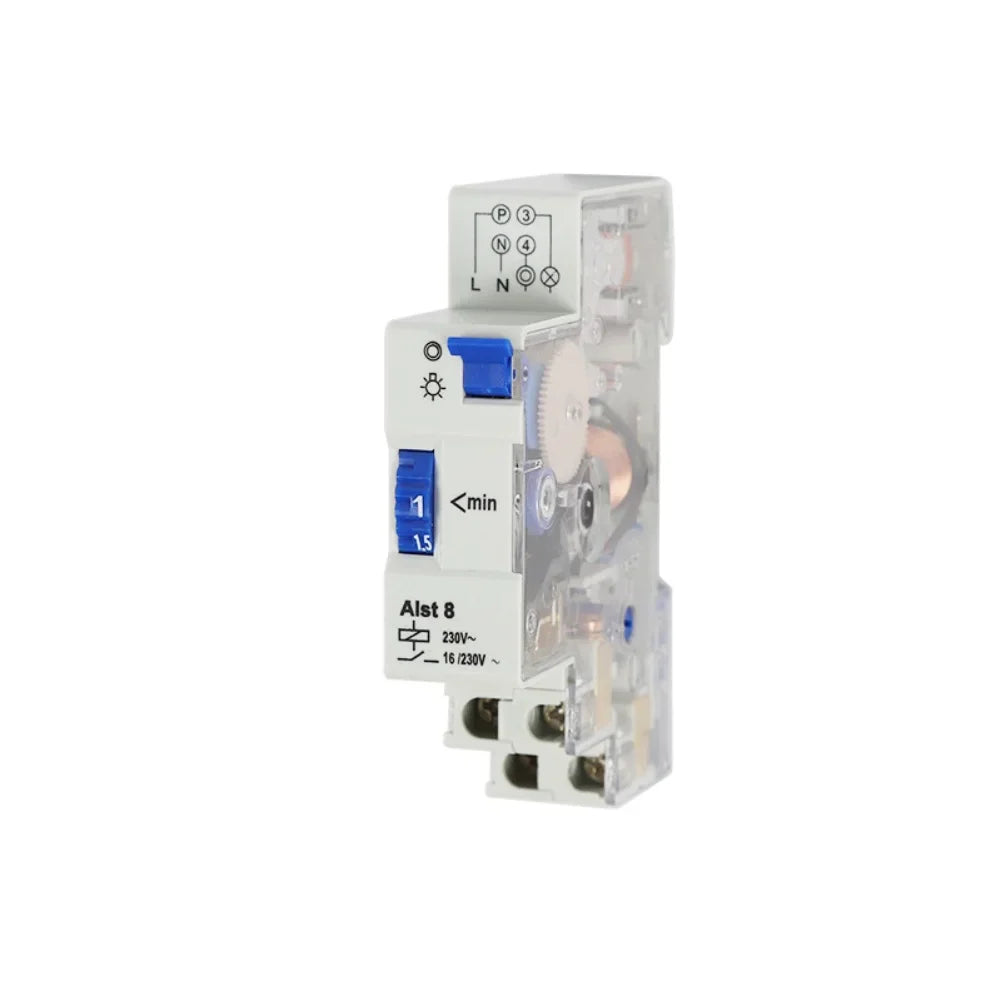

Automatic 230V DIN-Rail Timer Relay for Lighting & Display Control
Take full control of your lighting and advertising displays with this reliable 230V Automatic Timer Relay. Designed for DIN-rail mounting, it fits neatly into standard electrical enclosures and panels. A simple knob adjustment lets you program off-delay intervals from 30 seconds up to 20 minutes — keeping stairway lights, signage, and other electrical loads running only when needed, and cutting unnecessary energy consumption automatically.
Key Features

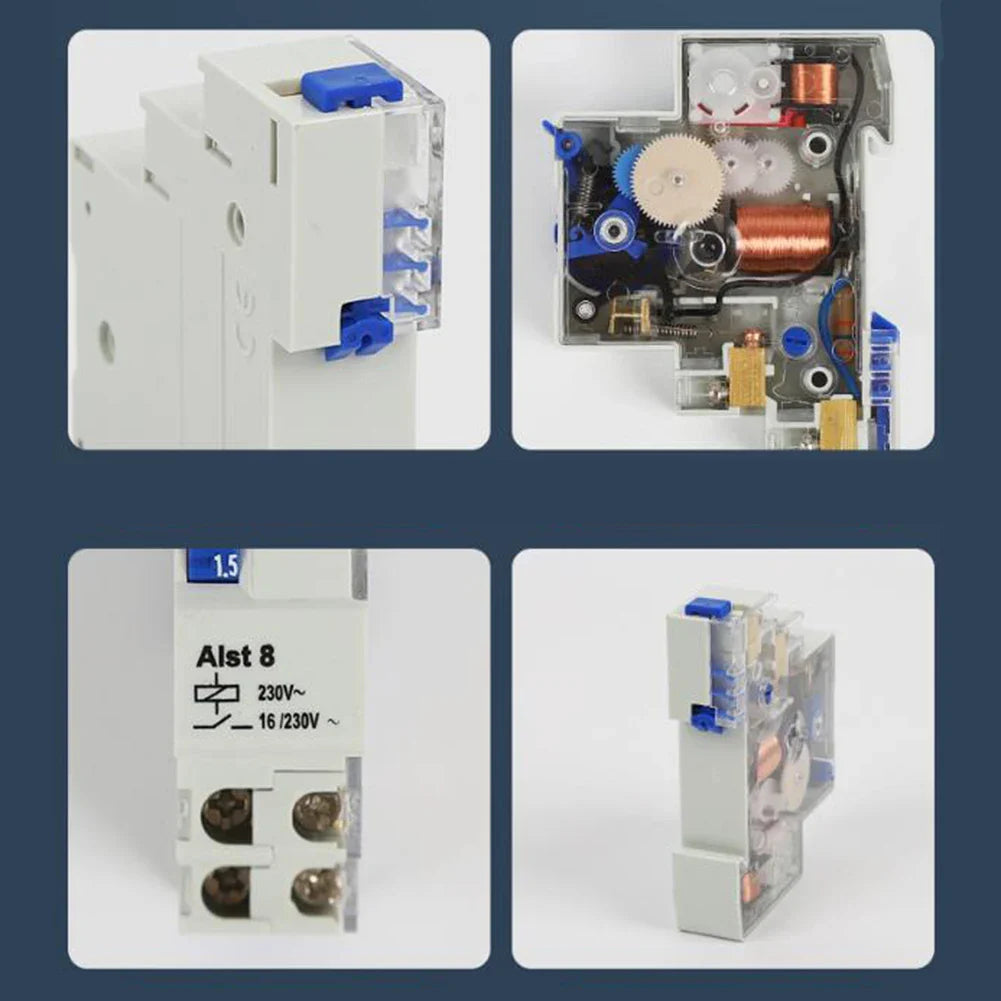

- Durable ABS Construction: Built from high-quality ABS plastic for long-lasting resilience in everyday installations.
- Energy-Efficient Operation: Low standby power draw helps reduce electricity costs over time — ideal for always-on environments like stairwells and commercial signage.
- Flexible Off-Delay Settings: Intuitive knob lets you dial in an off-delay anywhere from 30 seconds to 20 minutes, adapting easily to different scenarios.
- Wide Application Range: Perfect for stairway lighting, hallway lights, advertising displays, corridor fixtures, and more — any load you want to operate automatically for a set period.

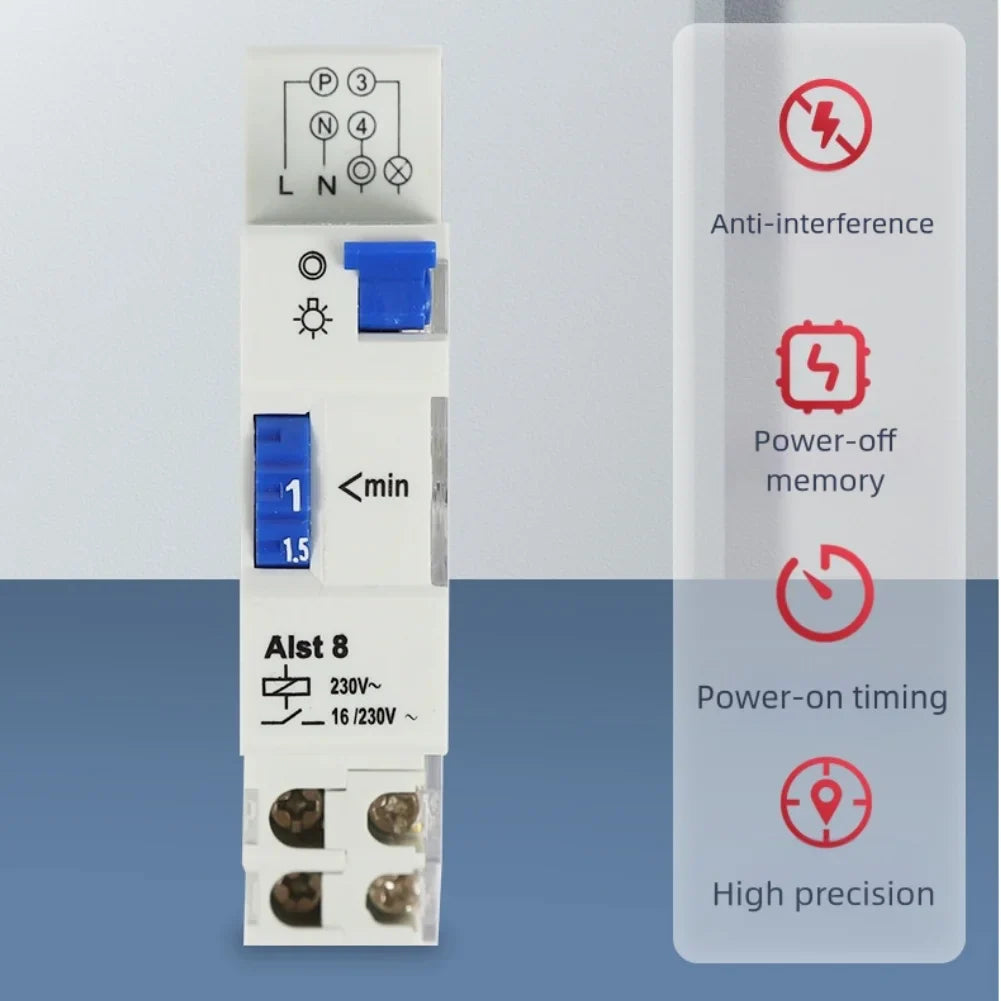

- Strong EMI Resistance: Built-in electromagnetic interference shielding ensures stable, consistent performance even in electrically noisy environments.
- Standard DIN-Rail Mounting: Clips securely onto standard 35mm DIN rails for a clean, professional panel installation.
Technical Specifications
| Material | ABS Plastic |
| Dimensions | 84 × 62 × 18 mm |
| Mounting Method | DIN-Rail (35mm) |
| Operating Voltage | 230V AC |
| Frequency | 50 Hz |
| Operating Current | 16A |
| Off-Delay Range | 30 seconds – 20 minutes (knob adjustable) |
| On/Off Time | 1 minute – 7 minutes |
| Operating Humidity | 45–85% RH |
| Ambient Temperature | -20°C to +50°C |
| Control Type | ON toggle switch (standard lighting) |
| Country of Origin | Made in China |
What's in the Box
- 1 × 230V DIN-Rail Timer Relay Switch
Related Products You May Like
- 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino
- 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler
For more information on electrical safety standards and energy-efficient lighting practices, visit the U.S. Department of Energy – Lighting Choices.
Note: Actual product color may vary slightly from images due to monitor settings and lighting conditions. Please allow minor measurement deviations of ±1–2 mm.
Frequently Asked Questions
Q: What voltage does this DIN-rail timer relay operate at?
A: This timer relay is designed to operate at 230V AC / 50Hz, making it compatible with standard European and international mains electrical systems. It is rated for up to 16A operating current.
Q: How do I adjust the off-delay time on this timer relay?
A: The off-delay time is adjusted using the built-in knob on the front of the unit. Simply turn the knob to set your desired delay — anywhere from 30 seconds to 20 minutes — without any tools or additional programming needed.
Q: What types of devices can I control with this timer relay?
A: This automatic timer relay is versatile and suitable for a wide range of applications, including stairway lighting, hallway and corridor lights, advertising displays, signage panels, and other 230V electrical loads that benefit from automatic timed shut-off.
Q: How is this timer relay installed?
A: The relay uses standard 35mm DIN-rail mounting, allowing it to clip directly onto a DIN rail inside a standard electrical enclosure or distribution board for a neat, professional installation.
