230V 20A Soft Start Module for Angle Grinder & Power Tools
230V 20A Soft Start Module for Angle Grinder & Power Tools
Couldn't load pickup availability

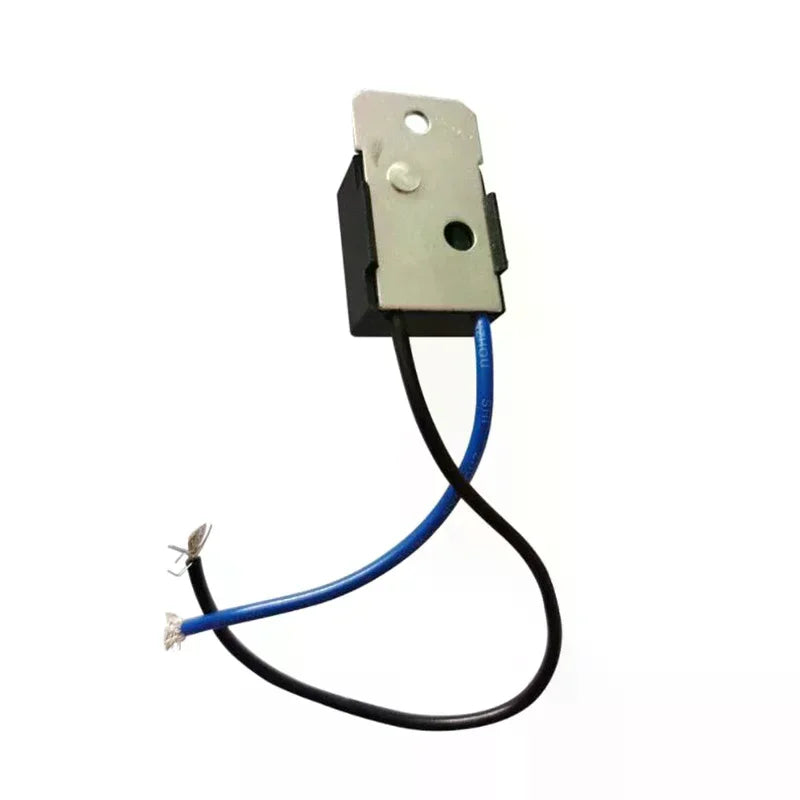

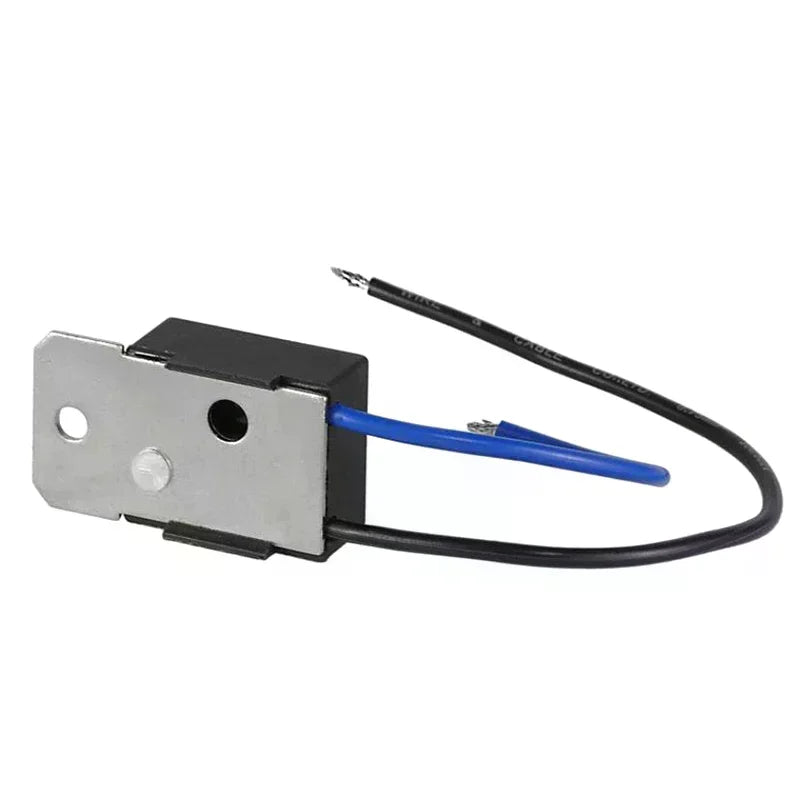

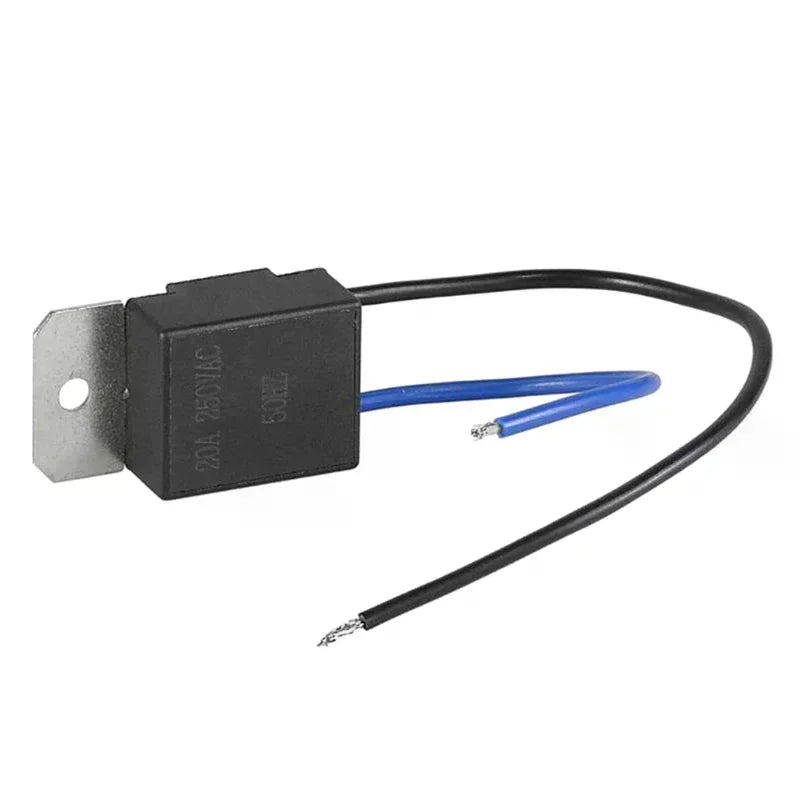

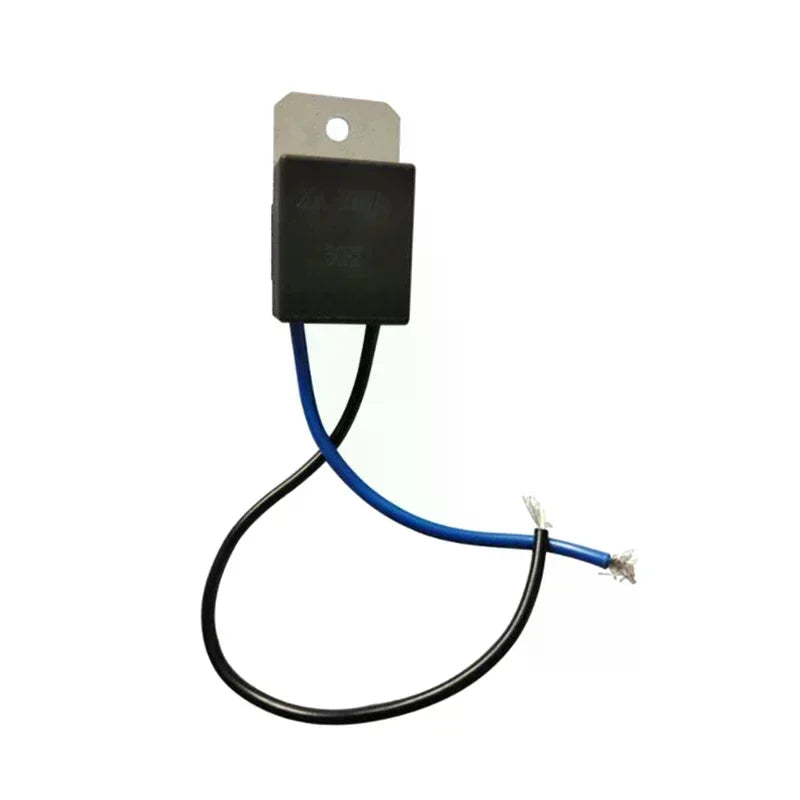

230V 20A Soft Start Drive Module — Smoother Startups, Longer Tool Life
Protect your angle grinder, cutting machine, slotting saw, and other power tools from damaging inrush current with this compact 230V Soft Start Drive Module. Built with imported chips and three selectable start modes, this module dramatically reduces mechanical stress on motors and electrical stress on your wiring — extending the life of your tools and keeping you safer on the job.
Key Features
- Imported Chips: High-quality imported chipset ensures reliable, consistent performance over thousands of start cycles.
- Wide Compatibility: Compact dimensions (36×20 mm / 36×22 mm) allow built-in installation inside almost any power tool handle or housing — no external box required.
-
Three Start Modes:
- Current Limit Start Mode — caps inrush current to protect circuits and motors.
- Voltage Ramp Start Mode — gradually ramps voltage for ultra-smooth acceleration.
- Smooth & Stable Start Mode — combines both methods for maximum equipment protection.
- 230V / 20A Rating: Handles 230V AC input with up to 20A output, suitable for most household and workshop power tools.
- Durable Construction: Plastic and metal composite body built to withstand the heat and vibration of continuous power tool use.
Specifications
| Input Voltage | 230V AC |
| Current Rating | 20A / 12A |

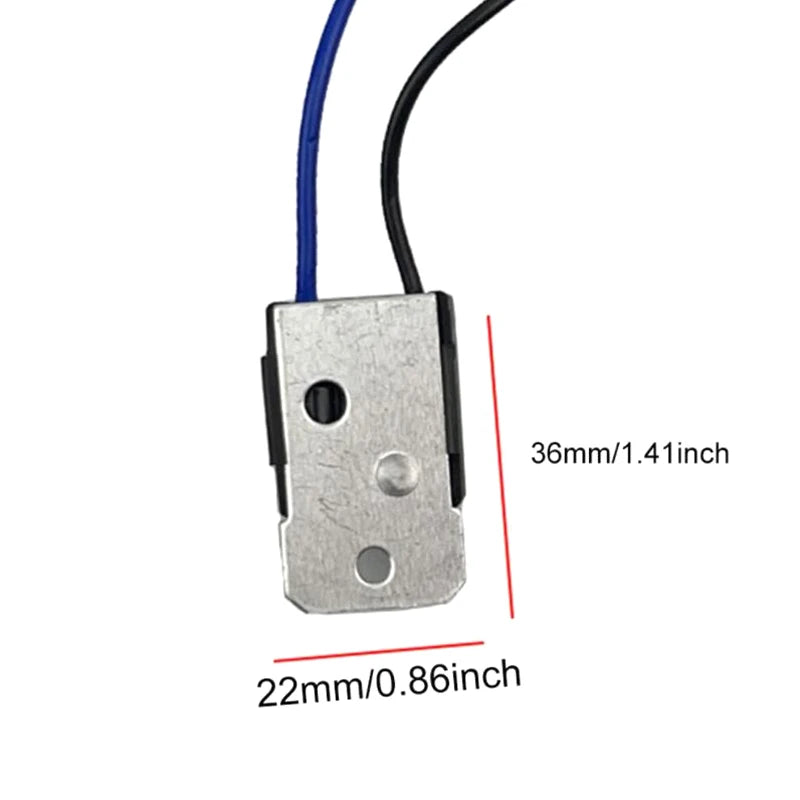

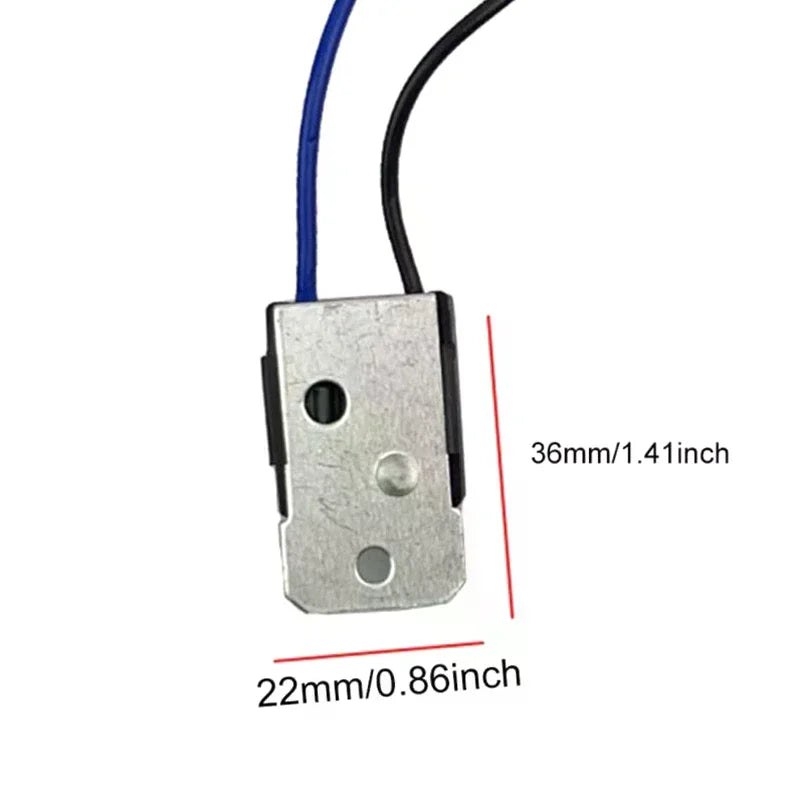

| Dimensions | 36×20 mm / 36×22 mm |
| Material | Plastic & Metal |
| Package Contents | 1× Soft Start Driver Module |
Made in Mainland China.
Compatible With
- Angle Grinders
- Cutting Machines
- Slotting Saws
- Aluminum Processing Machines
- Most 230V AC single-phase power tools
For guidance on electrical safety when working with power tools and wiring, visit the OSHA Electrical Safety page.
Related Products You May Like
- "1% Better Every Day" Motivational Canvas Wall Art Print
- "Best Seat In The House" Retro Quote Canvas Wall Art Print
Note: Actual color may vary slightly from images due to monitor brightness and lighting conditions. Please allow ±1–2 mm measurement deviation.
Frequently Asked Questions
Q: What power tools is this 230V soft start module compatible with?
A: This soft start drive module is designed for a wide range of 230V AC single-phase power tools, including angle grinders, cutting machines, slotting saws, and aluminum processing machines. Its compact 36×20 mm / 36×22 mm footprint allows it to fit inside most tool handles and shells.
Q: What are the three start modes and why do they matter?
A: The module offers a Current Limit Start Mode (caps inrush current to protect motor windings), a Voltage Ramp Start Mode (gradually increases voltage for smooth acceleration), and a Smooth & Stable Start Mode (combines both for maximum protection). Choosing the right mode helps reduce wear on your tool's motor, prevents circuit breaker trips, and improves operator safety.
Q: Is this module easy to install inside my power tool?
A: Yes. It is specifically designed for built-in installation. The small form factor means it fits inside most standard power tool handles and housings without modification. Basic electrical knowledge is recommended; always ensure the tool is unplugged before installation.
Q: What is the maximum current rating of this soft start module?
A: This module supports up to 20A at 230V AC, making it suitable for most medium-duty angle grinders and power tools. A 12A variant is also included/available for lighter-duty applications.
