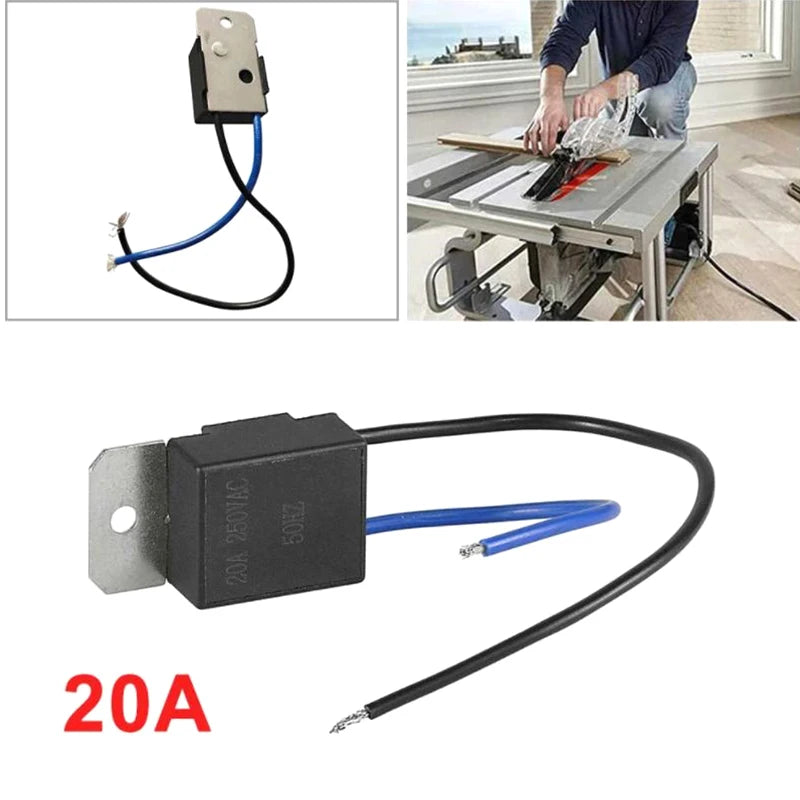

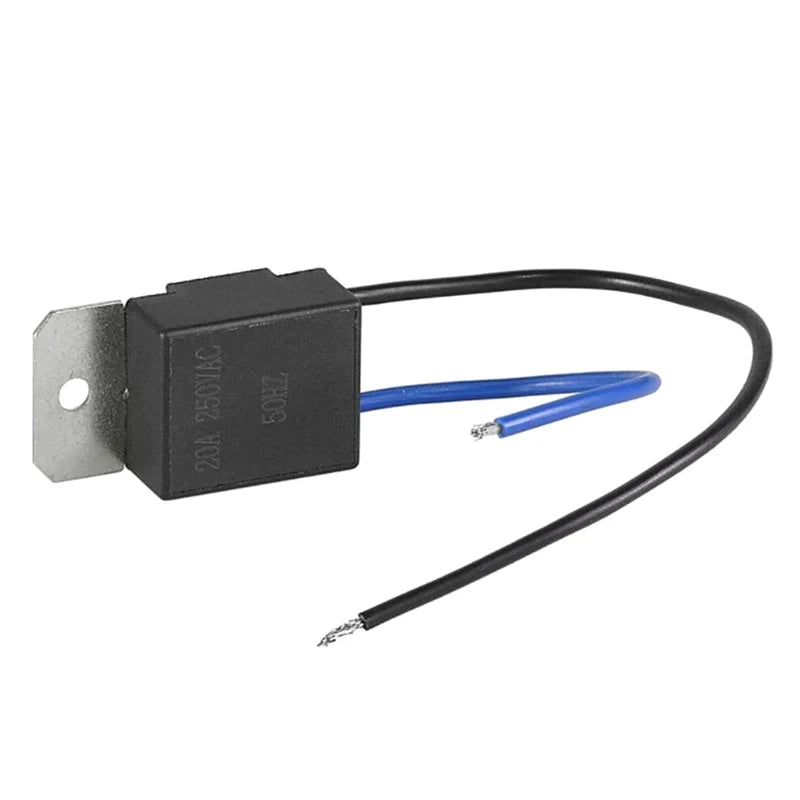

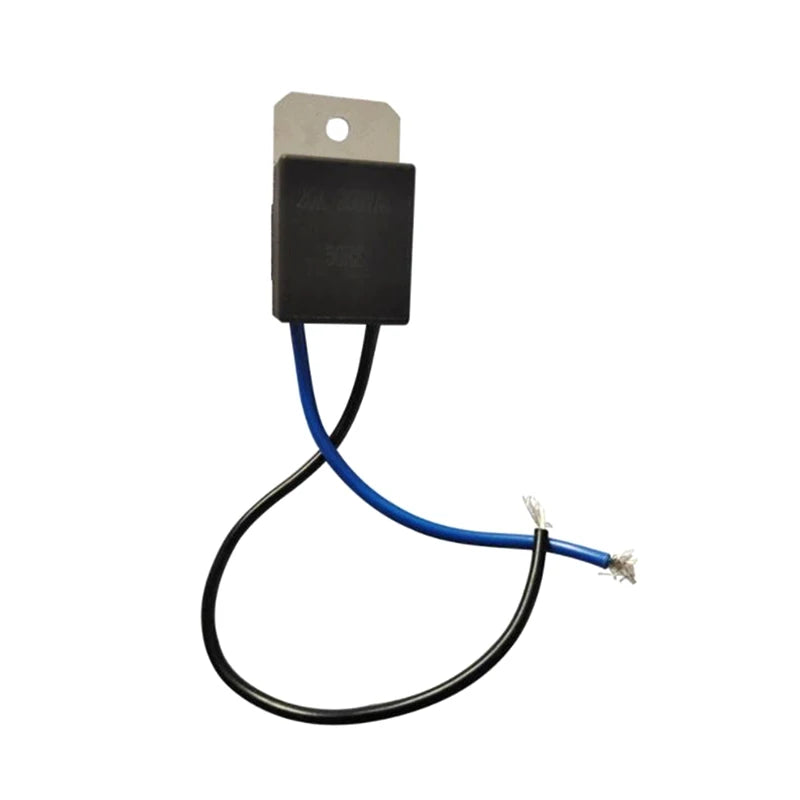

230V 20A Soft Start Drive Module for Angle Grinders & Power Tools

230V 20A Soft Start Drive Module – Smooth, Safe Power Tool Startup

Upgrade your power tools with the HELTC 230V Soft Start Drive Module — a compact, high-performance driver module designed to deliver smooth, controlled startup for angle grinders, cutting machines, slotting saws, aluminum machines, and a wide range of electric power tools. With three selectable start modes and built-in imported chips, this module protects your equipment and extends tool life by eliminating aggressive torque spikes at startup. Made in Mainland China.

Key Features

• Imported Chips: Built with high-quality imported chips for reliable, consistent performance over long-term use.

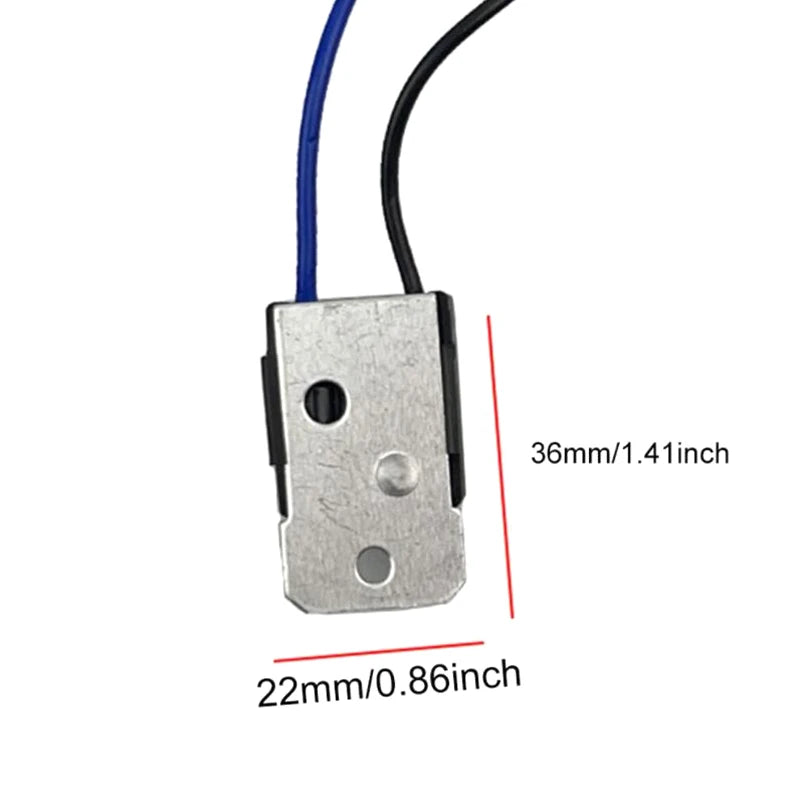

• Wide Compatibility: Compact form factor (36×20mm / 36×22mm) fits inside virtually all standard power tool handles and shells — easy built-in installation with minimal modification.
• Three Start Modes: Choose from current limit start, voltage ramp start, or smooth and stable start to match your tool's requirements and operating conditions.
• 230V Input / 20A Output: Handles up to 20A (12A variant also available), providing ample power headroom for demanding electric tools.
• Enhanced Equipment Protection: Gradual motor ramp-up reduces mechanical stress on gears, brushes, and windings, helping to extend the operational lifespan of your tools.
• Plastic & Metal Construction: Durable housing resists everyday workshop conditions.

Specifications

Package Contents

• 1× Soft Start Driver Module

Important Notes

• Colors may vary slightly from images due to monitor brightness and lighting conditions.
• Please allow a small measurement tolerance (±1–2mm) for listed dimensions.
• Always disconnect power before installing or servicing electrical modules. Follow local electrical safety standards.

Related Products You May Like

• "1% Better Every Day" Motivational Canvas Poster | Wall Art

For guidance on safe electrical practices in the workshop, refer to the OSHA Electrical Safety Resource. For general tool safety standards, visit CPSC Power Tool Safety.

Frequently Asked Questions

Q: What power tools is this 230V soft start module compatible with?

A: This soft start drive module is designed for a wide range of 230V electric power tools, including angle grinders, cutting machines, slotting saws, and aluminum machines. Its compact 36×20mm / 36×22mm dimensions allow it to fit inside most standard tool handles and shells.

Q: What are the three start modes and when should I use them?

A: The module offers three selectable start modes: Current Limit Start (caps inrush current for sensitive tools), Voltage Ramp Start (gradually increases voltage for smoother acceleration), and Smooth and Stable Start (provides the gentlest, most consistent startup). Choose based on your tool type and the level of controlled ramp-up you need.

Q: Is this module safe to install myself?

A: The module is designed for built-in installation within power tool housings, making it accessible for experienced DIYers and repair technicians. Always disconnect from mains power before installation and follow all applicable electrical safety codes in your region. If you are unsure, consult a qualified electrician.

Q: What is the maximum current this module can handle?

A: This module is rated for up to 20A at 230V (a 12A variant is also available). Always verify your tool's rated current draw before selecting the appropriate version to ensure safe operation.
