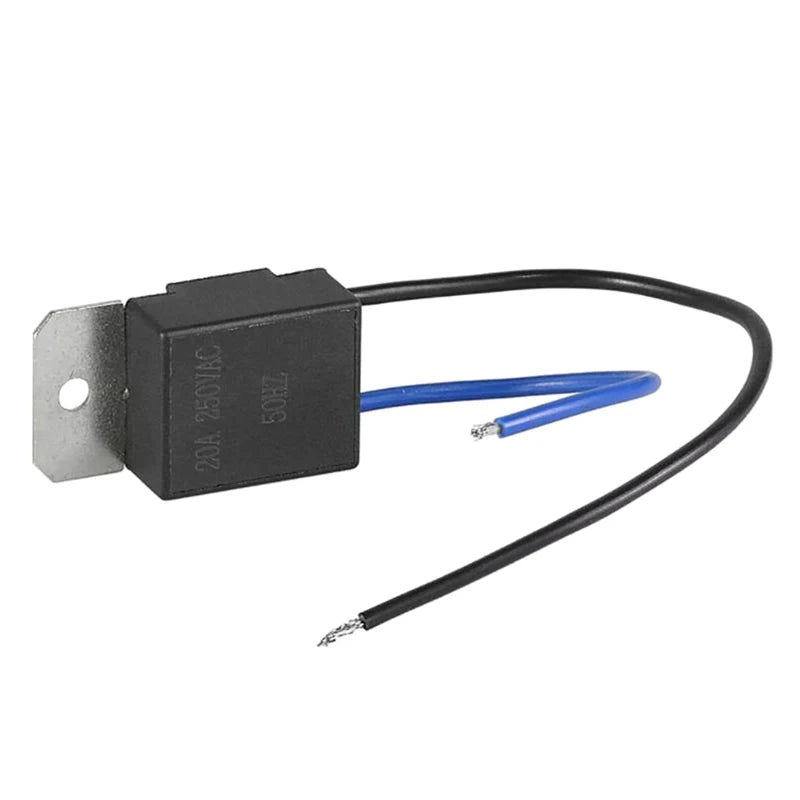

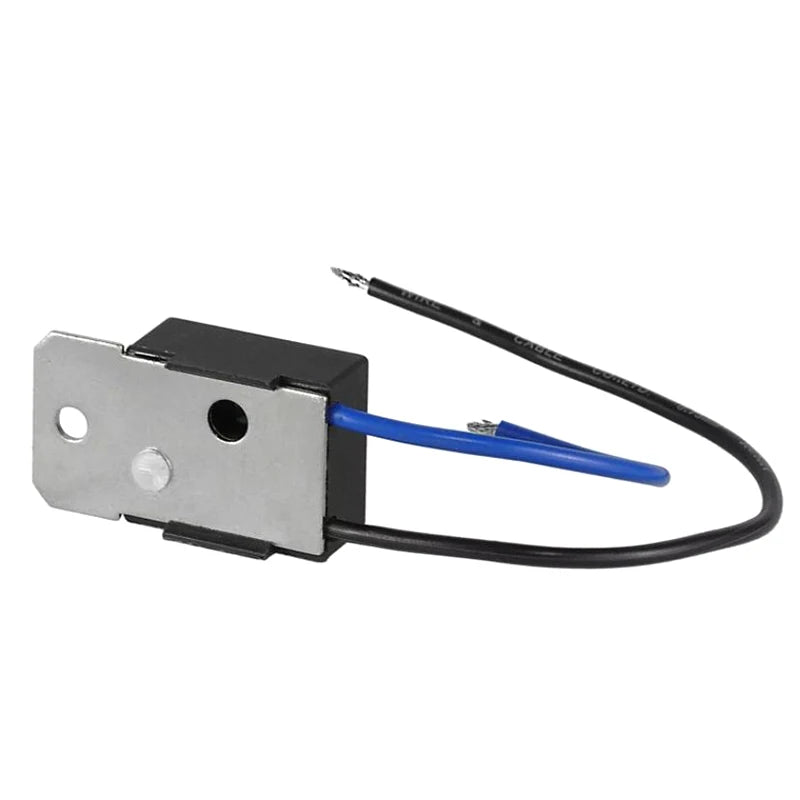

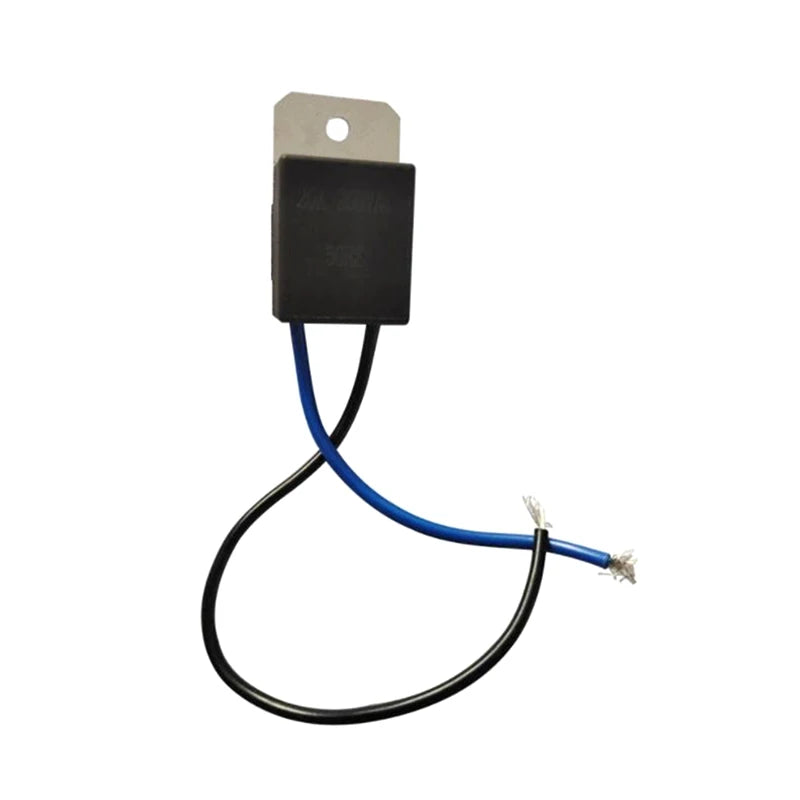

230V 20A Soft Start Drive Module for Angle Grinders & Power Tools

230V 20A Soft Start Drive Module for Angle Grinders & Power Tools

Upgrade your power tools with this compact and reliable 230V Soft Start Drive Module. Engineered with imported chips for consistent, high-quality performance, this module delivers smooth, controlled startups for angle grinders, cutting machines, slotting saws, and more — protecting your equipment and extending tool life.

Made in Mainland China.

Key Features

• Imported Chips: Built with premium imported chips for dependable, long-lasting performance.

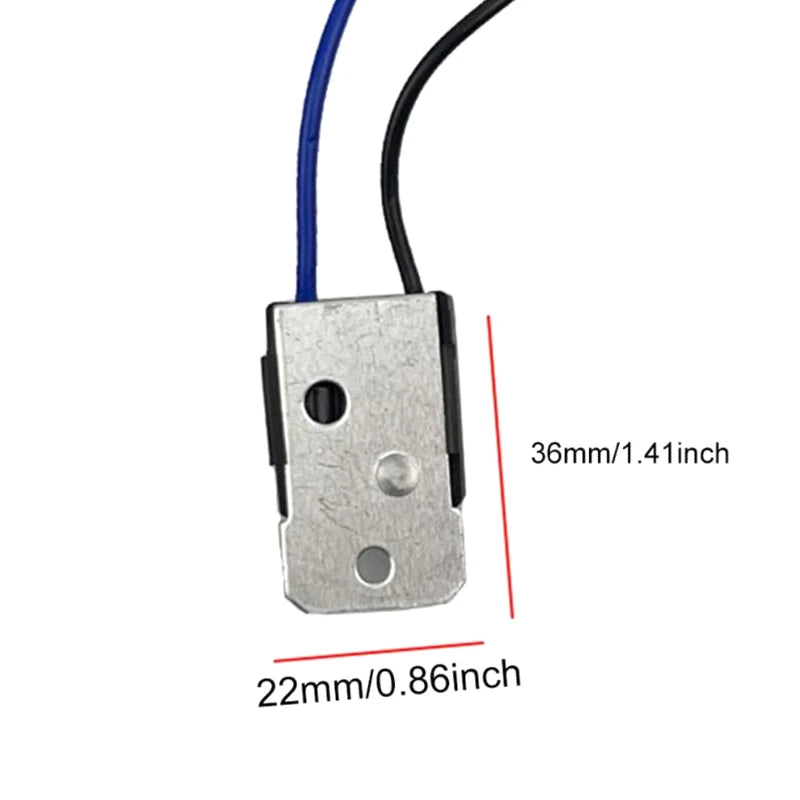

• Wide Compatibility: Compact design (36×20mm / 36×22mm) fits inside nearly all standard power tool handles and housings for easy built-in installation.
• Three Start Modes: Choose from current limit start mode, voltage ramp start mode, or smooth and stable start mode — giving you flexibility to match any application.
• 230V / 20A Rated: Supports a 230V power input with up to 20A current output, delivering ample power for demanding power tools and machines.
• Enhanced Equipment Protection: Gradual motor ramp-up reduces mechanical stress and electrical surge, safeguarding both the tool and connected components.

Specifications

Compatible Applications

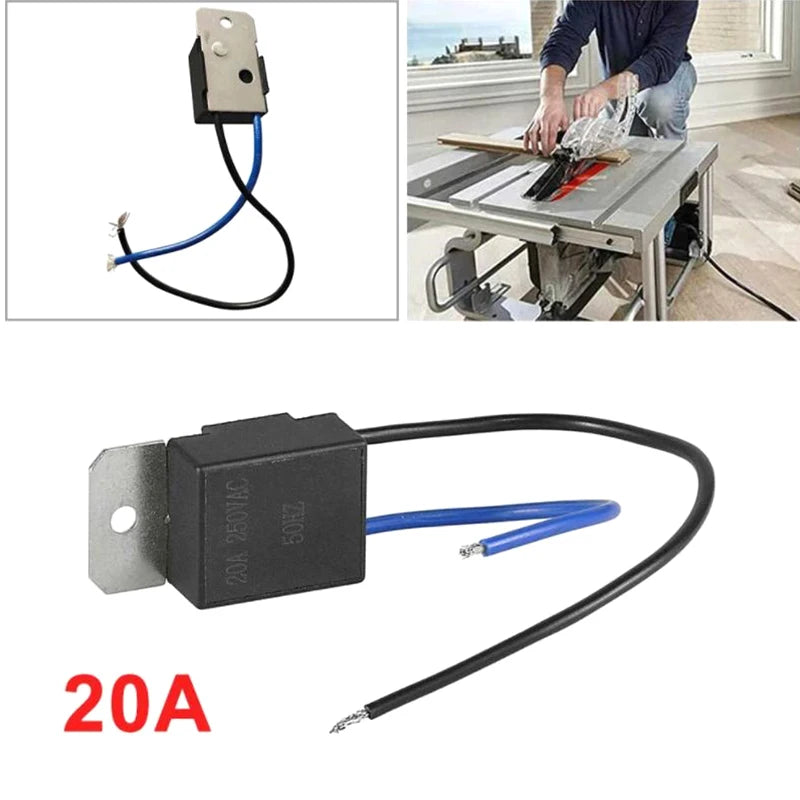

• Angle Grinders
• Cutting Machines
• Slotting Saws
• Aluminum Machines
• General Electric Power Tools (230V)

Important Notes

• Actual color may vary slightly from images due to monitor brightness and lighting conditions.
• Please allow a slight tolerance (±1–2mm) for manual measurements.

Related Products You May Like

• "1% Better Every Day" Motivational Canvas Poster | Wall Art

Authoritative Resource

For electrical safety standards and guidance on working with power tools and electrical components, visit OSHA Electrical Safety.

Frequently Asked Questions

Q: What power tools is this 230V soft start module compatible with?

A: This soft start drive module is designed to be compatible with a wide range of 230V power tools including angle grinders, cutting machines, slotting saws, and aluminum machines. Its compact dimensions (36×20mm or 36×22mm) allow it to fit inside most standard tool handles and housings.

Q: What are the three start modes and how do they differ?

A: The module offers three start modes: Current Limit Start Mode caps the inrush current during startup; Voltage Ramp Start Mode gradually increases the supply voltage for a smooth motor start; and Smooth & Stable Start Mode provides the gentlest ramp-up for the most delicate applications. Choose the mode that best suits your tool and task.

Q: Is this module easy to install inside my power tool?

A: Yes. The module is specifically designed for built-in installation inside power tool handles and shells. Its small form factor and straightforward wiring make it straightforward to install for anyone with basic electrical DIY skills. Always disconnect power before installation and follow your tool's wiring diagram.

Q: What current ratings does this soft start module support?

A: The module supports two current ratings — 20A and 12A — making it versatile enough for a variety of power tool motor sizes operating at 230V.
