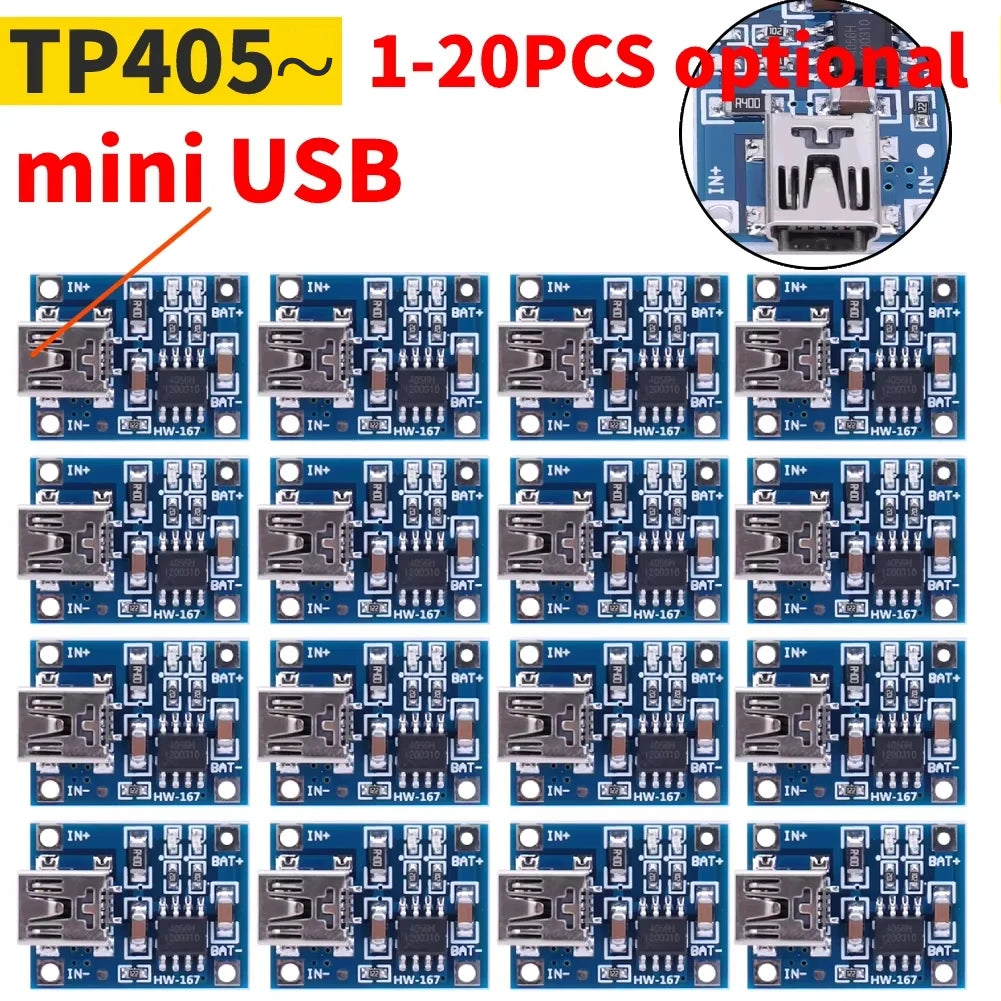

20- Type-c Micro Mini USB 5V 1A 18650 TP405 Lithium Battery Charger

Discover the 20- Type-c Micro Mini USB 5V 1A 18650 TP405 Lithium Battery Charger — a standout electronics accessories pick featuring portable, compact design for dependable, everyday performance.

Specifications

Accessory Type: Battery Accessories,Battery Accessories

Battery Charging Module: Mini Battery Charger Board

Battery Included: Yes

Battery over discharge protection voltag: 2.5V/3A

Brand Name: APWIKOGER

Certification: NONE,NONE

Charger included: N

Charging cut-off voltage: 4.2V±1%

Input voltage: 4.5V-5V

Lithium Battery Charger Module: Battery Charging Board

Maximum charging current: 1000Ma

Model Number: Lithium Battery Charger Module,Lithium Battery Charger Module

Type(optional): 1pcs;5pcs;10pcs

TP405~ Lithium Battery Charger Module 1A Portable Battery Charger Panel Type C Micro USB 4.5V-5V for Lithium Batteries

Feature:
1. Wide Input Voltage Range: Our lithium battery charger module is compatible with a wide range of input voltages from 4.5V to 5V, making it versatile and adaptable to a variety of different power sources.
2. High Charging Current: The battery charging board can charge at a maximum current of 1000mA, meaning your batteries will charge quickly and efficiently.
3. Over-Discharge Protection: With over-discharge protection at 2.5V/3A, this battery charging module protects your batteries from damage due to over-discharging.
4. Compact Size: The small size of the board, measuring only 28*17*4mm, makes this mini battery charger board easy to install and use in a range of different settings.
5. Multiple Protection Features: This portable battery charger panel features both charging and over-discharge protection, preventing damage to your batteries from over-charging or over-discharging. Additionally, the module automatically controls the charging current, providing optimal protection to your batteries while charging.

Specification:
Certification: NONE
Origin:
Accessory Type: Battery Accessories
Model Number: Lithium Battery Charger Module
Type(optional): 1pcs;5pcs;10pcs
Input voltage: 4.5V-5V
Maximum charging current: 1000Ma
Charging cut-off voltage: 4.2V±1%
Battery over discharge protection voltage: 2.5V/3A

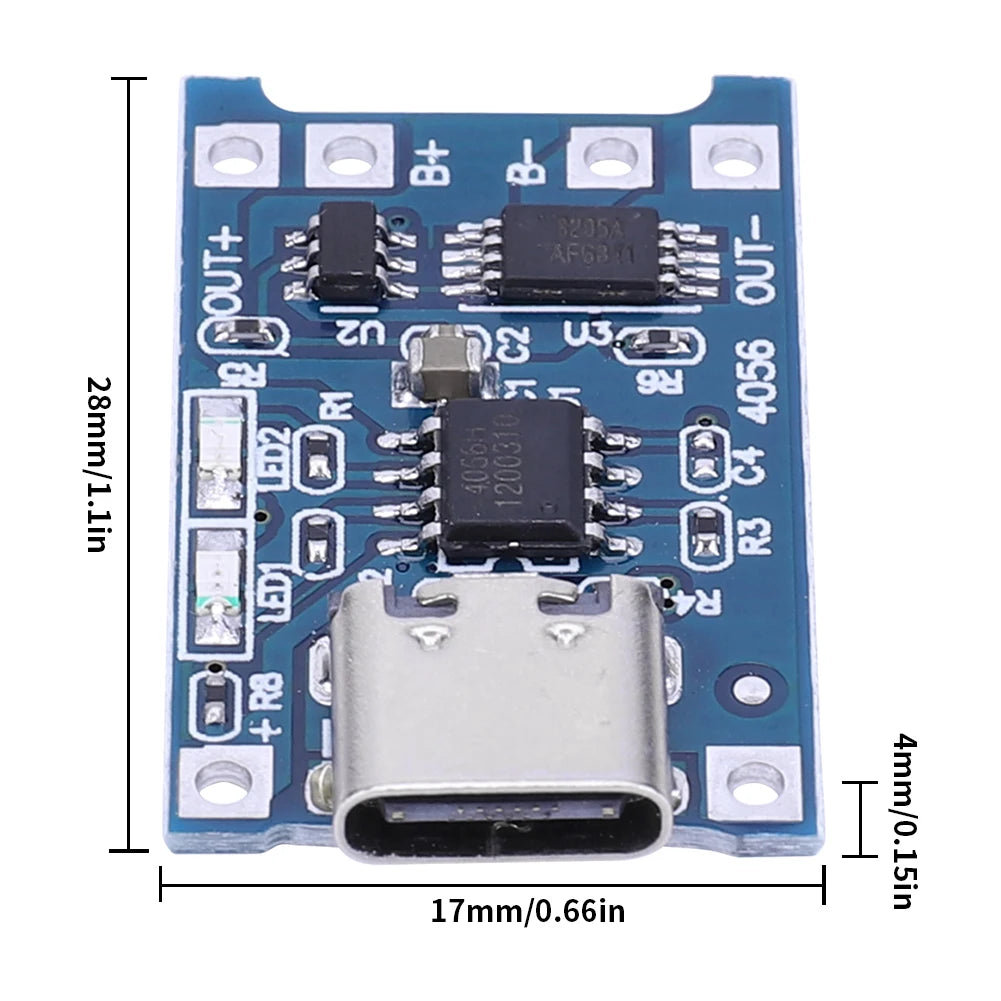

Board size: 28 x 17 x 4mm/1.10 x 0.67 x 0.16inch
Usage:

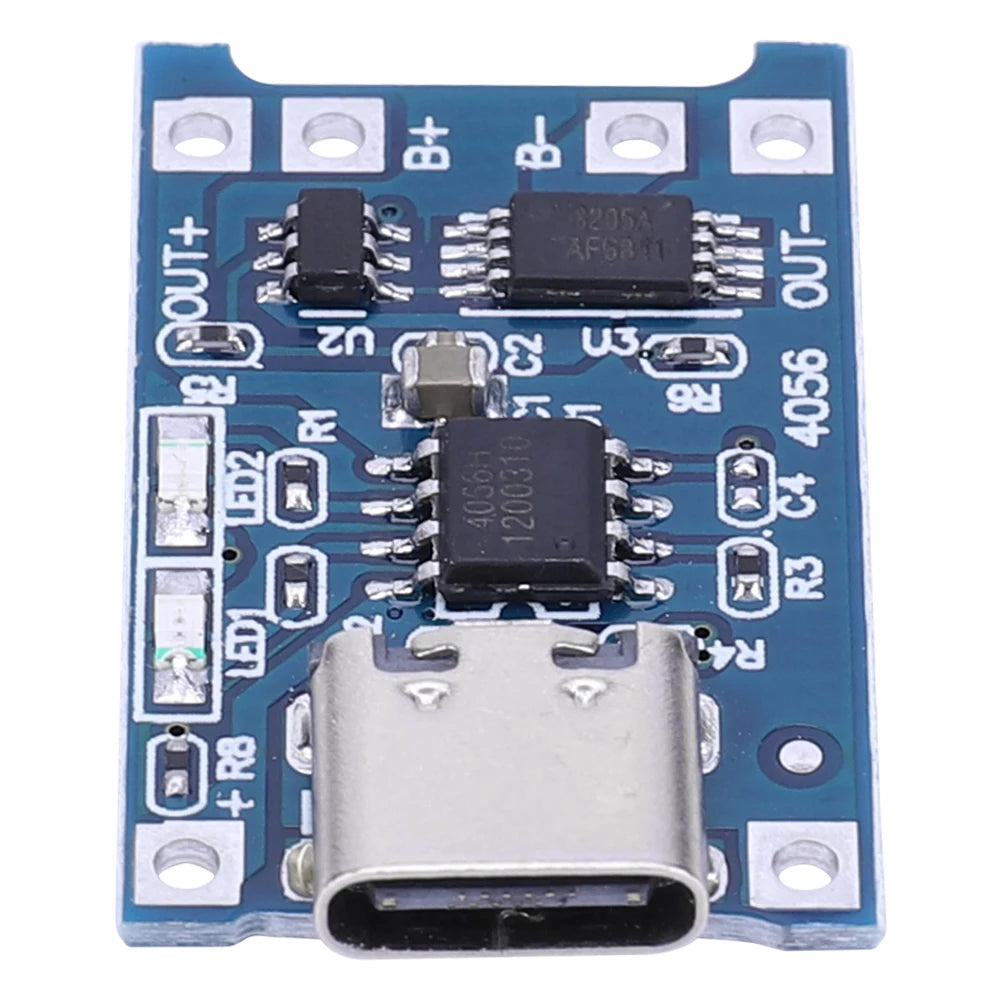

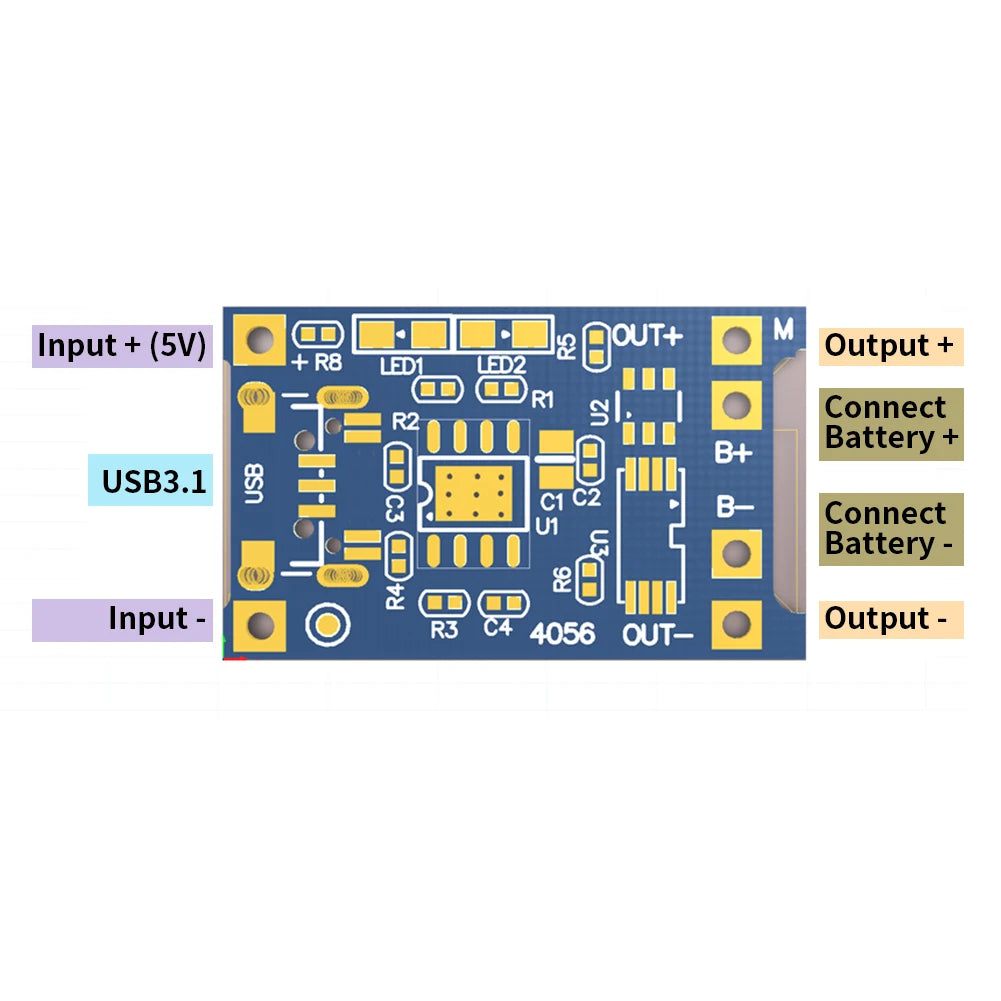

Type-c female socket and the + - pad next to the power input, access the 5V input voltage. b+ connects to the positive terminal of the lithium battery, b- connects to the negative terminal of the lithium battery. out+ out- connects to the load, such as the booster board. Connect the battery to B+ B-, plug in the phone charger to USB, the blue light is on, indicating that there is power access, the red light is flashing, indicating that it is charging. When it is fully charged, the red light will stop flashing and become constant. You can connect a load to the OUT+ OUT- terminal, when the load is connected, the red light is always on. When there is power at the input, current is obtained from the power output, if no power is connected, current is obtained from the battery and the output is automatically switched off when the battery voltage is below 2.5V.
Tip:
When the battery is connected for the first time, there may be no voltage output at the OUT terminal, you need to connect 5V to the power input to charge it a little and activate the protection circuit. When using a mobile phone charger for power supply, it must be able to output more than 1A, otherwise it may not charge properly.
Product features:
1. Charging protection, prevent battery overcharge and over discharge, and automatically control the charging current, better protect the battery
2. type-c female connector, reserved with input voltage welding electricity, convenient for DIY

1/5/10pcs x Lithium Battery Charger Module

Options

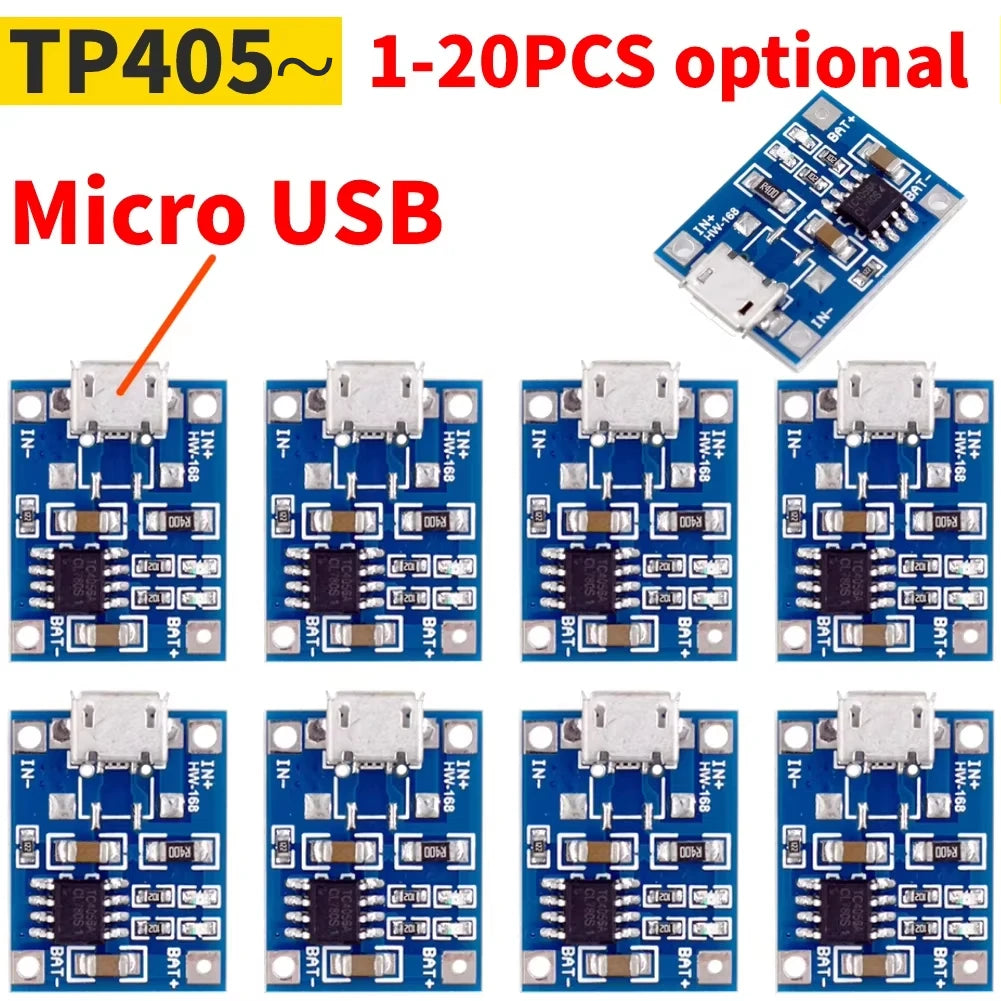

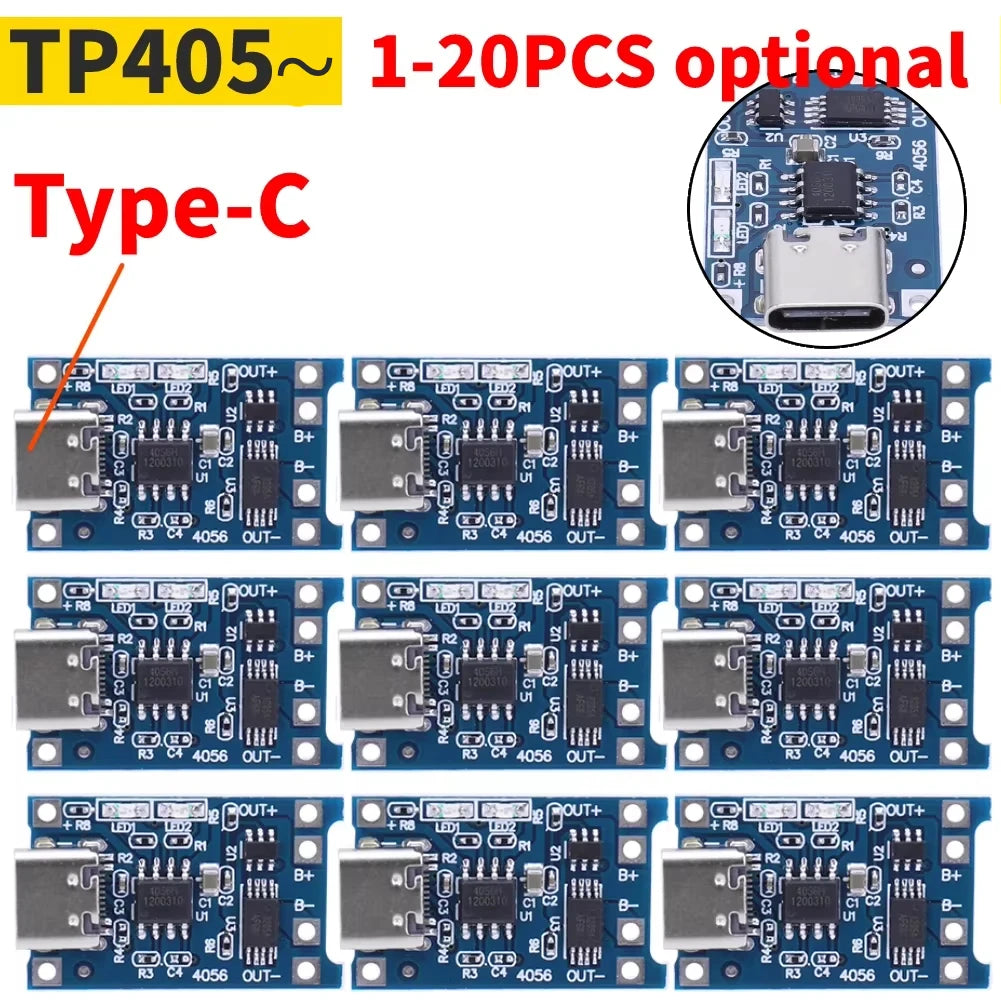

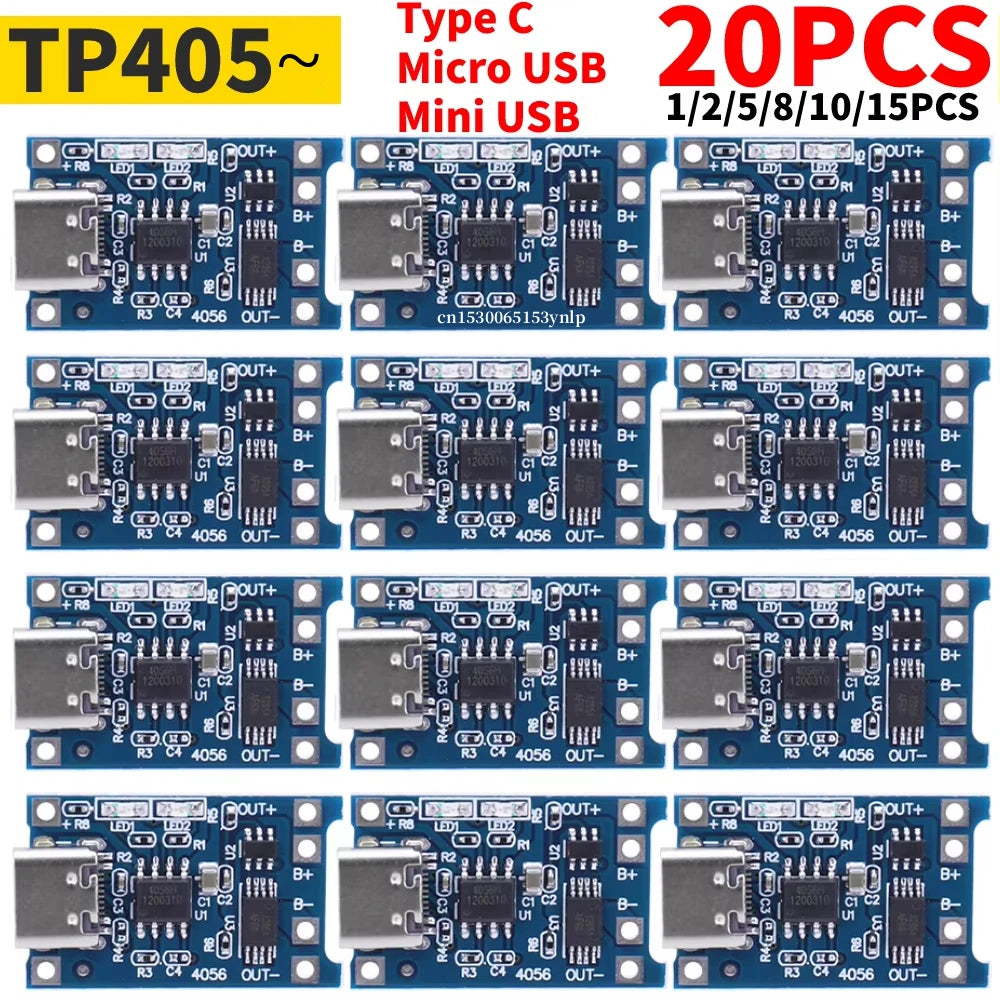

Color: mini USB, Type-C, Micro USB
Current: 15PCS, 1PCS, 20PCS, 8PCS, 10Pcs, 2PCS, 5PCS
