Current Voltage Converter 4 20mA 0 Input Wide Supply Range Precise
Current Voltage Converter 4 20mA 0 Input Wide Supply Range Precise
Couldn't load pickup availability
Discover the Current Voltage Converter 4 20mA 0 Input Wide Supply Range Precise — a standout decor pick featuring adjustable, premium design for dependable, everyday performance.
Specifications
semi_Choice: yes

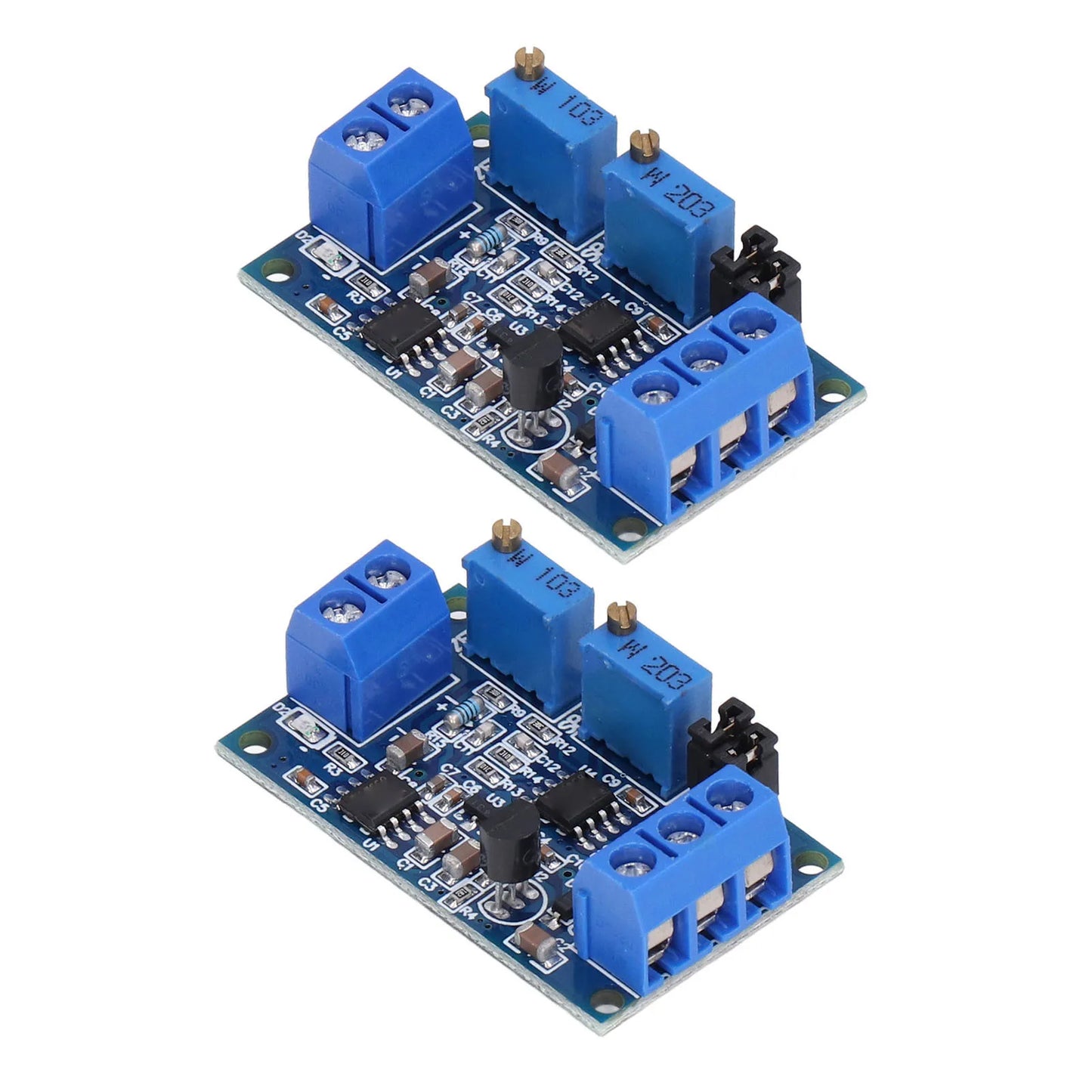

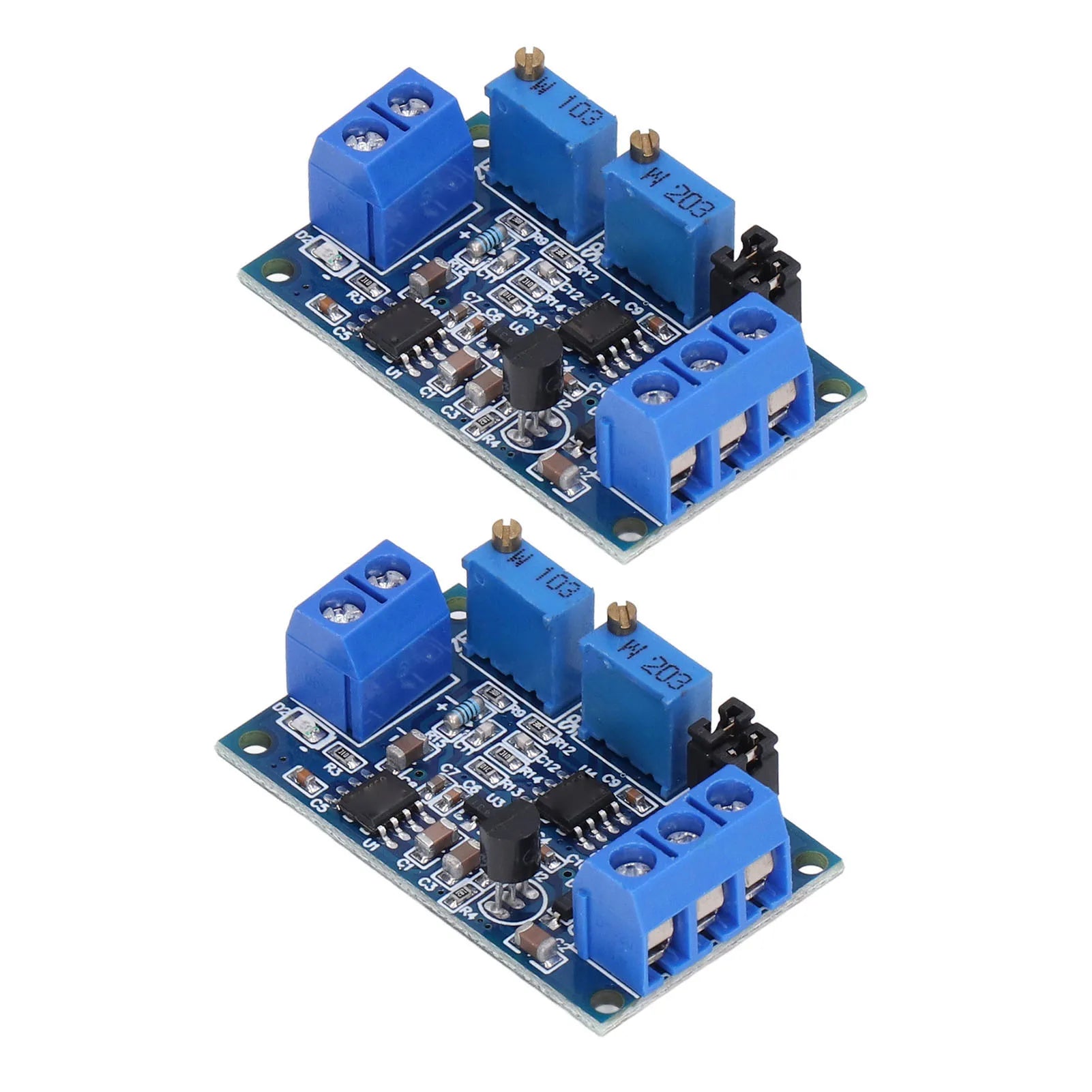

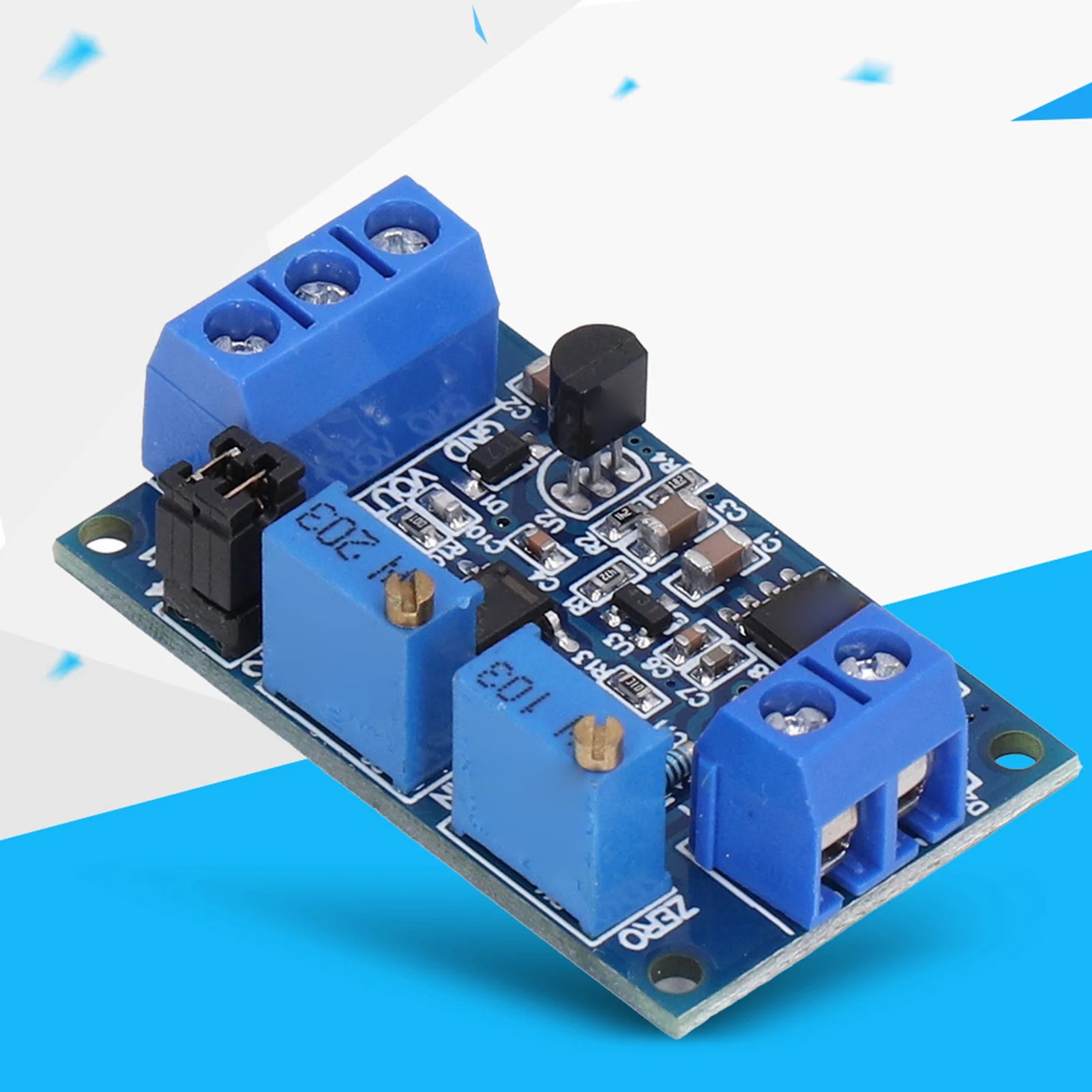

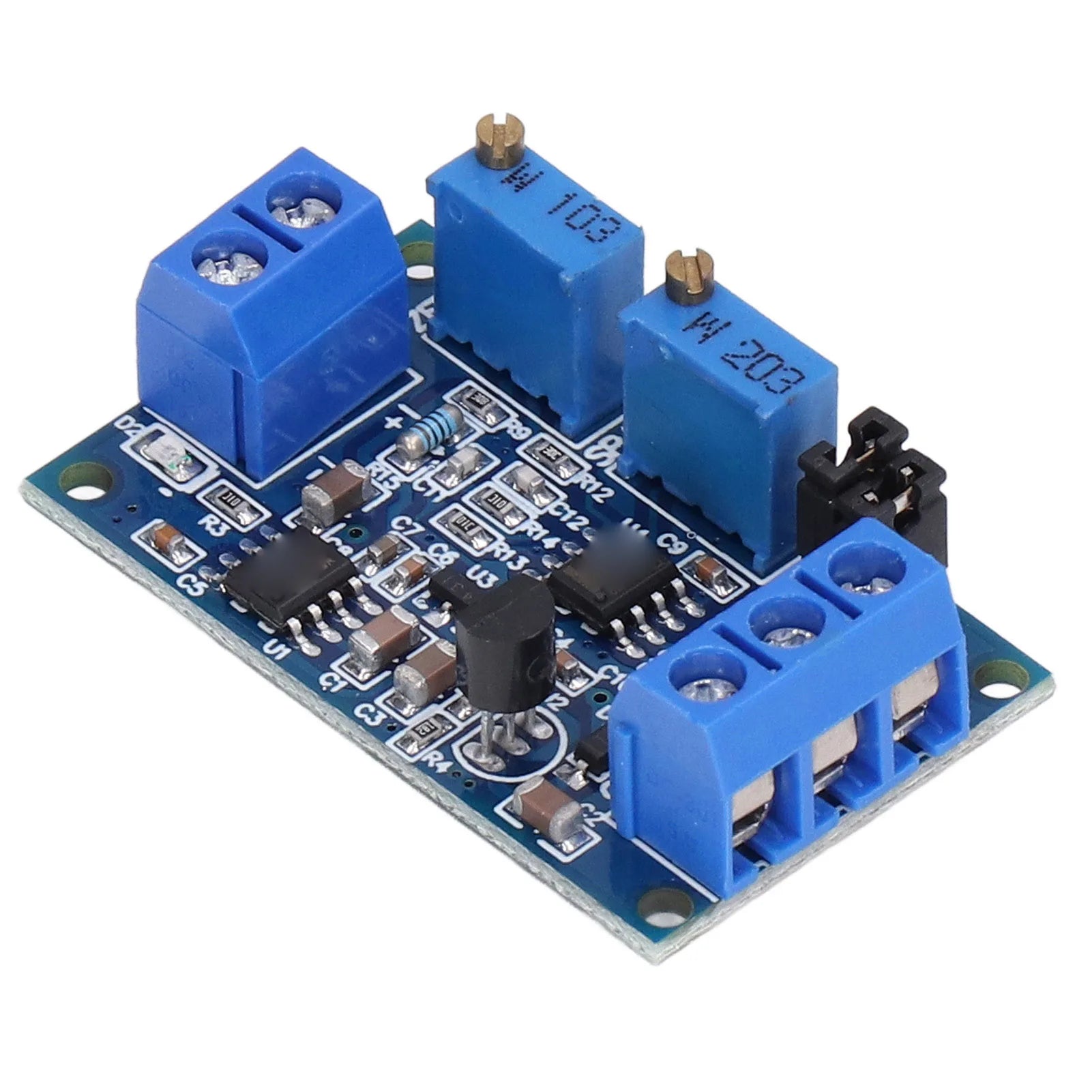

2 Pcs Current to Voltage Converter 4 To 20mA 0 To 20mA Input Wide Supply Voltage Range High Precise Industrial Grade Module
Feature:

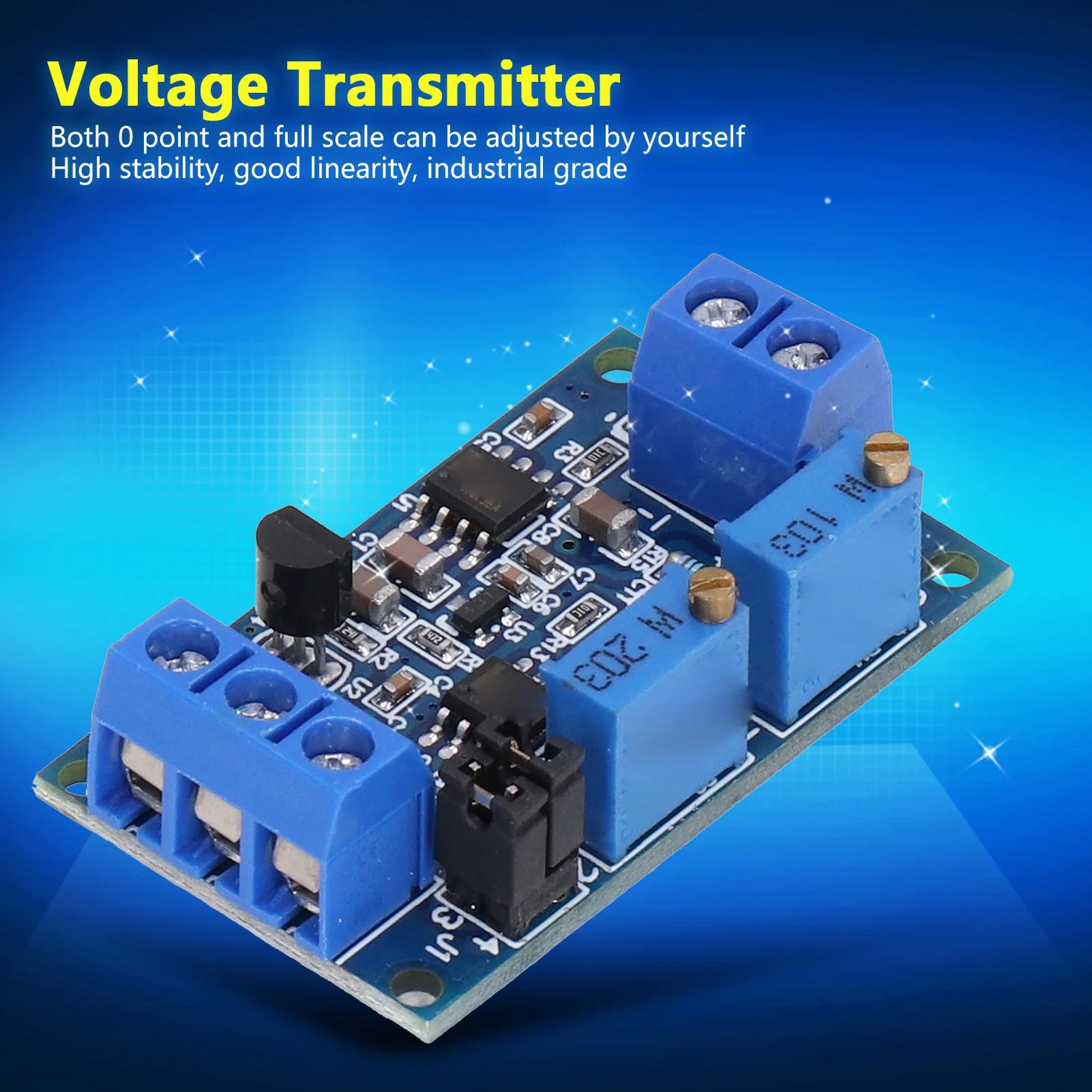

1. Wide Supply Voltage Range: The current to voltage converter has a wide supply voltage range, and the output voltage supports multiple ranges.2. Adjustable Design: Using sophisticated production technology, the 0 point and full scale can be adjusted by yourself.
3. Characteristics: Made of premium plastic, the current to voltage converter has high stability, well linearity, and industrial grade.
4. High Precise: The current signal sampling resistor adopts high precise color ring resistor, which has high precise, low temperature drift and high power.
5. Main Purpose: This module is used at the end of current signal transmission to convert the signal into a voltage signal for single chip detection.
Specification:

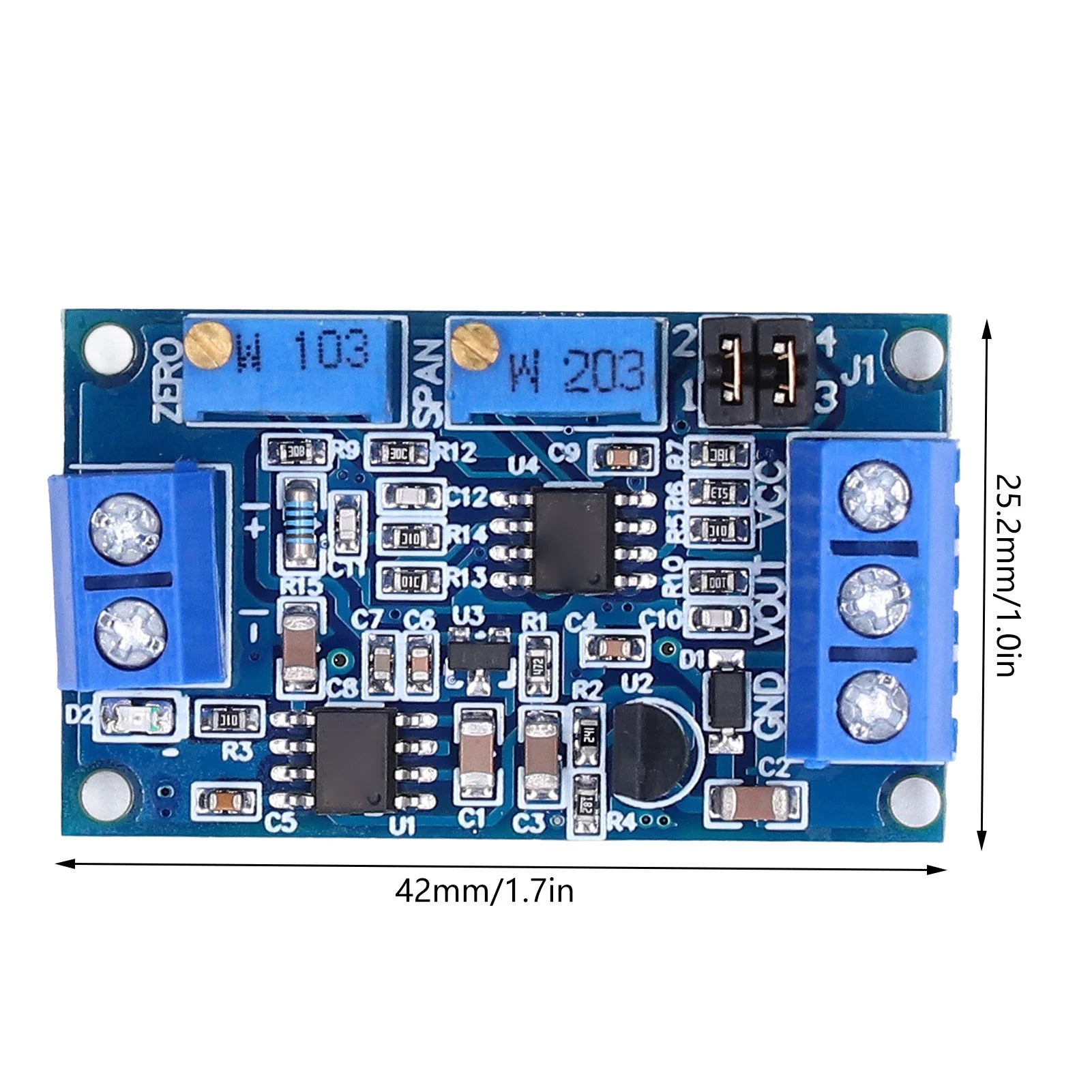

Item Type: Current to Voltage ConverterMaterial: PCB
Product Introduction:
In the process of circuit signal transmission, the voltage signal will weaken with the increase of transmission distance, and using current transmission can avoid signal weakening. This module is used at the end of current signal transmission to convert the signal into a voltage signal for detection by the microcontroller.
Current Input Support: 4 to 20mA, 0 to 20mA
How to Use:

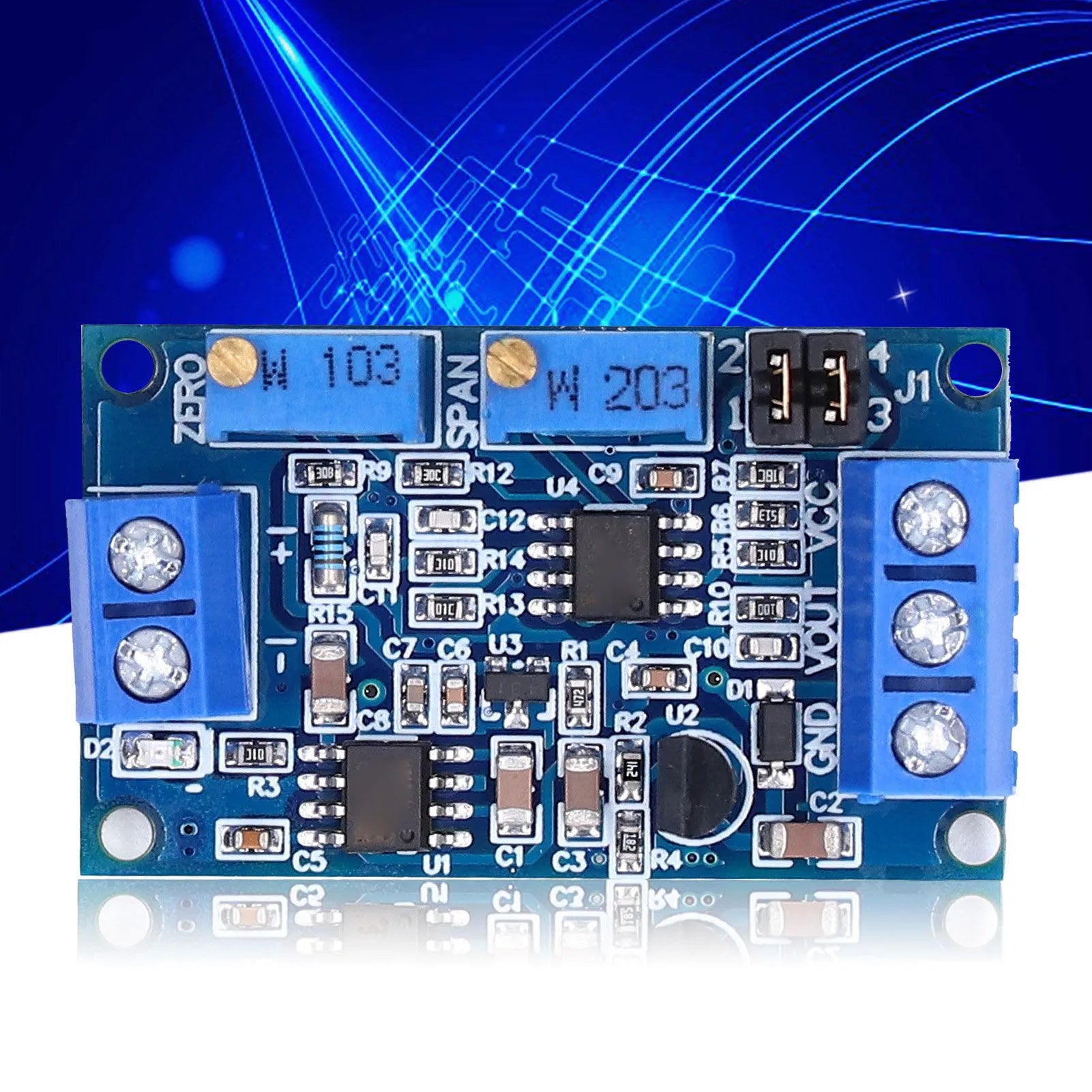

1. Module should be wired according to the definition, power supply voltage 7-36V (if output needs to be 10V, the power supply voltage must be greater than 12V). 2. After power on, D2 light should be on. If not, please check the wiring. The board has reverse connection guard and will not burn if reversed. 3. When the current input is at the minimum value (0mA or 4mA), adjust the ZERO potentiometer to make VOUT output the minimum value (0.0V or other voltage). 4. When the current input is at the maximum value (20mA), adjust the SPAN potentiometer to make VOUT output the maximum value (3.3V or 5V or 10V, when input is 4-20mA, the minimum output can be 2.5V). According to your needs, select the corresponding range by jumper cap: 4-20ma: 0-2.5V range: J1 pins 1 and 2 are short circuited, pins 3 and 4 are short circuited 0-3.3V range: J1 pins 1 and 2 are disconnected, pins 3 and 4 are disconnected 0-5.0V range: J1 pins 1 and 2 are short circuited, pins 3 and 4 are short circuited 0-10.0V range: J1 pins 1 and 2 are short circuited, pins 3 and 4 are disconnected 0-20ma: 0-3.3V range: J1 pins 1 and 2 are short circuited, pins 3 and 4 are short circuited 0-5.0V range: J1 pins 1 and 2 are short circuited, pins 3 and 4 are short circuited 0-10.0V range: J1 pins 1 and 2 are short circuited, pins 3 and 4 are disconnectedPackage List:
2 x Current to Voltage Converter
